Show Tec 50787 Manuel utilisateur

RDM Splitter Pro 4 Channel DMX V1

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Ordercode: 50787

MANUAL

ENGLISH

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Table of contents

Warning...........................................................................................................................................................................2

Safety Instructions .....................................................................................................................................................2

Operating Determinations.......................................................................................................................................4

Connection with the mains.....................................................................................................................................4

Return Procedure......................................................................................................................................................5

Claims .........................................................................................................................................................................5

Description of the device.............................................................................................................................................6

Frontside .....................................................................................................................................................................6

Backside .....................................................................................................................................................................6

Installation ......................................................................................................................................................................7

Set Up and Operation...................................................................................................................................................7

Control Modes...........................................................................................................................................................7

Multiple RDM Splitters (DMX control)...................................................................................................................7

Fixture Linking.............................................................................................................................................................8

Data Cabling.............................................................................................................................................................8

Maintenance..................................................................................................................................................................9

Replacing the Fuse...................................................................................................................................................9

Troubleshooting .............................................................................................................................................................9

No Light.......................................................................................................................................................................9

No Response to DMX................................................................................................................................................9

Product Specifications................................................................................................................................................11

Notes..............................................................................................................................................................................12

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec RDM Splitter Pro 4 Channel DMX

Pro power cable (1,4 m)

User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never look directly into the light source.

Never leave any cables lying around.

Never use the device during thunderstorms, unplug the device immediately.

Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach, as they are potential sources of danger.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmer pack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes hot).

Only use device indoors, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Only install the device with the hanging-bracket.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power cord by the plug. Never pull out the plug by tugging the power cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

Make sure that no side forces can impact on the truss system.

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to

cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the RDM Splitter.The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device. 

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician. 

WARRANTY: Till one year after date of purchase.

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Operating Determinations

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The maximum ambient temperature ta = 40°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 40°C.

If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

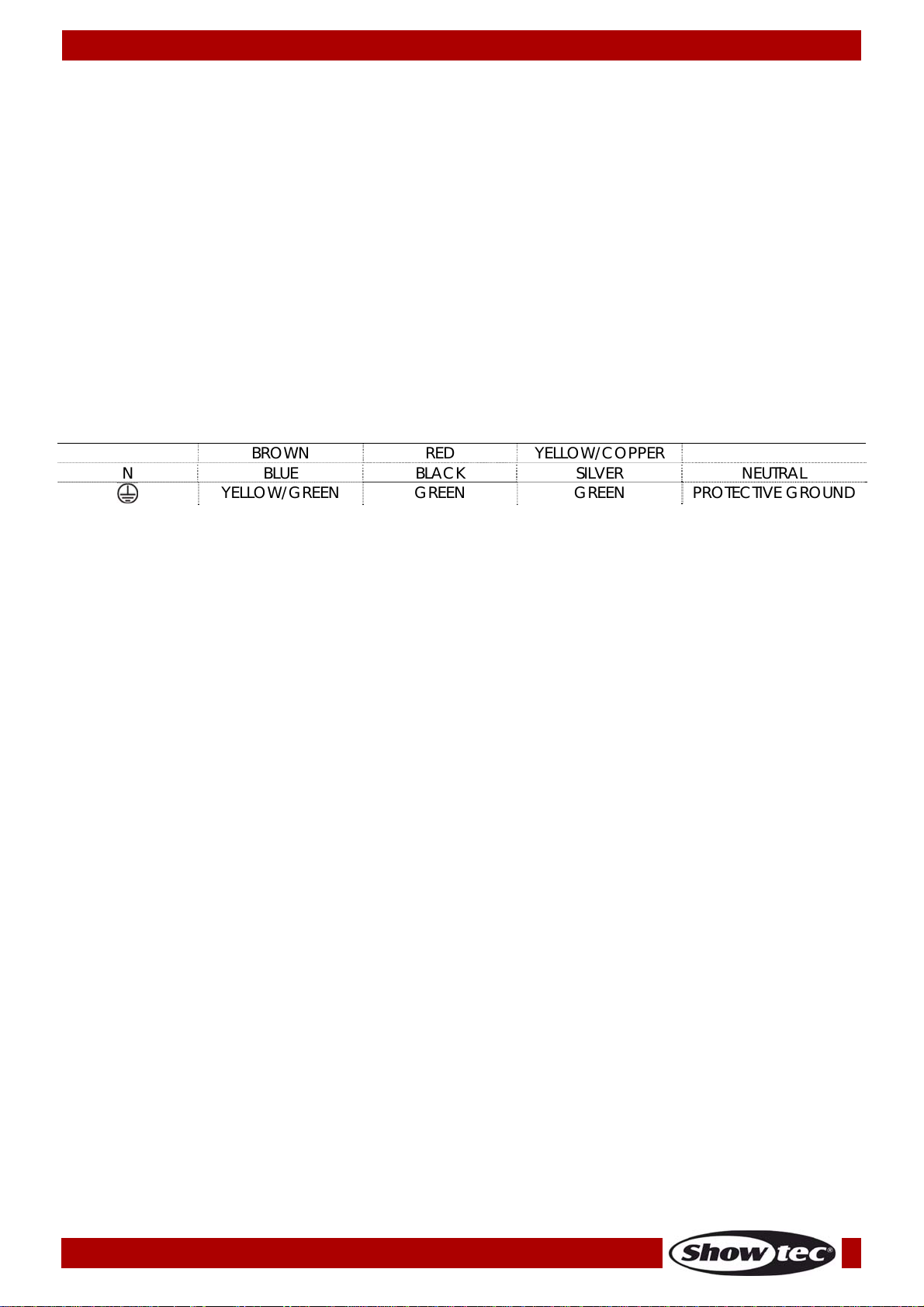

International EU Cable UK Cable US Cable Pin

L BROWN RED YELLOW/COPPER PHASE

N BLUE BLACK SILVER NEUTRAL

YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Description of the device

Features

The Showtec RDM Splitter Pro is a universal DMX-512 splitter. All outputs are equipped with separate

optical and isolated electronics to ensure that a DMX/RDM signal will be distributed and regenerated in

the most optimal quality. All DMX/RDM inputs and outputs support RDM and are equipped with both 3

and 5-pin XLR connectors.

Input voltage: 100-240V AC, 50/60Hz

4 DMX/RDM output channels

Connections: Pro power connector IN, 3-pin/5-pin DMX IN, 3-pin/5-pin DMX THROUGH, 4 x 3-pin

DMX/RDM OUT, 4 x 5-pin DMX/RDM OUT

Fuse: 1A/250V

Dimensions: 482 x 135 x 44 mm (LxWxH)

19” x 1 HE

Weight: 2,1 kg

Frontside

Fig. 01

01) Power LED indicator

02) DMX LED indicator

03) 3-pin DMX signal connector IN

04) 3-pin DMX signal connector THROUGH

05) 5-pin DMX signal connector IN

06) 5-pin DMX signal connector THROUGH

07) 3/5-pin DMX signal connectors OUT

Backside

Fig. 02

08) Power switch ON/OFF

09) Pro power connector IN

10) Fuse 1A/250V

11) Ground/earth connection

12) M10 clamp thread

13) Terminal resistor

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Installation

Remove all packing materials from the RDM Splitter Pro 4 Channel DMX. Check if all foam and plastic

padding is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Control Modes

Multiple RDM Splitters (DMX control)

01) Fasten the distributor to a 19-inch rack.

02) Use a 3-pin/5-pin XLR cable to connect the RDM Splitters and other devices.

03) Connect the first unit’s "in" socket to a light controller.

04) Link the units as shown in fig. 03. Connect the first unit's DMX "link" socket with the second unit's "in"

socket, using a DMX signal cable. Repeat this process to link the second, third, and fourth units.

05) Connect light fixtures to the unit’s DMX "out" sockets.

06) Supply electric power: Plug the unit’s mains power cord into proper electric power supply sockets,

starting with the first unit. Do not supply power before the whole system is set up and connected

properly.

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Multiple RDM Splitters DMX Set Up

Fig. 03

Note : Link all cables before connecting electric power

Fixture Linking

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to

run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined

number of channels required by all the fixtures on a serial data link determines the number of fixtures the

data link can support.

Important: Fixtures on a serial data link must be daisy-chained in a single line. To comply with the

EIA-485 standard, no more than 30 devices should be connected on one data link.

Connecting more than 30 fixtures on one serial data link without the use of a DMX optically

isolated splitter may result in deterioration of the digital DMX signal.

Maximum recommended DMX data link distance: 100 meters

Maximum recommended number of fixtures on a DMX data link: 30 fixtures

Data Cabling

To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables

directly from a dealer/distributor or construct your own cable. If you choose to create your own cable

please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic

interference.

DAP Audio DMX Data Cables

•DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode

FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).

•DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),

FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).

•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).

•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).

•DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),

FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).

•DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.

Ordercode: 50787

RDM Splitter Pro 4 Channel DMX

Maintenance

The Showtec RDM Splitter Pro 4 Channel DMX requires almost no maintenance. However, you should

keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth.

Do not immerse in liquid. Do not use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the DMX/RDM connections with a

damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric

power.

Replacing the Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.

01) Unplug the unit from electric power source.

02) Insert a screwdriver into the fuse holder. Turn the fuse holder counterclockwise. The fuse holder will

come out.

03) Remove the used fuse. If brown or unclear, it is burned out.

04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse holder. Be sure

to use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

No Light

If the light effect does not operate properly, refer servicing to a technician.

Suspect three potential problem areas as: the power supply, the splitter, the fuse.

01) Power supply. Check that the unit is plugged into an appropriate power supply.

02) The splitter. Return the RDM Splitter to your Showtec dealer.

03) The fuse. Replace the fuse. See page 9 for replacing the fuse.

04) If all of the above appears to be O.K., plug the unit in again.

05) If you are unable to determine the cause of the problem, do not open the RDM Splitter, as this may

damage the unit and the warranty will become void.

06) Return the device to your Showtec dealer.

No Response to DMX

Suspect the DMX cable or connectors, a distributor malfunction, a controller malfunction, a light effect

DMX card malfunction.

01) Check the DMX setting. Make sure that DMX addresses are correct.

02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.

Try your DMX control again.

03) Determine whether the distributor, controller or light effect is at fault. If the distributor or controller

does not operate properly, take the distributor or controller in for repair. Otherwise, take the DMX

cable and the light effect to a qualified technician.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Spectral PC 400Z IP65 V2 Manuel utilisateur

Show Tec

Show Tec City Painter 575 Manuel utilisateur

Show Tec

Show Tec Booster IP 1-4 3-pin V1 Manuel utilisateur

Show Tec

Show Tec LED Octostrip Set MKII 100 cm Manuel utilisateur

Show Tec

Show Tec LED Par 56 Short V2 42421-01 Manuel utilisateur

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manuel utilisateur

Show Tec

Show Tec Jumbo Strobe MKIII DMX Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 150 RGBAL V1 Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 12 Q6 Manuel utilisateur

Show Tec

Show Tec EVENTLITE 6/3 Manuel utilisateur

Show Tec

Show Tec 41223 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 6 Q4 Tour Manuel utilisateur

Show Tec

Show Tec Phantom 100 Spot Manuel utilisateur

Show Tec

Show Tec Shark - The Meg - Beam One Manuel utilisateur

Show Tec

Show Tec Showmaster 24 Manuel utilisateur

Show Tec

Show Tec XS-4W Quad Beam Manuel utilisateur

Show Tec

Show Tec Polar 1920 Wash Manuel utilisateur

Show Tec

Show Tec RGB Studio Beam Driver Manuel utilisateur

Show Tec

Show Tec MINI STUDIOBEAM RGB Manuel utilisateur

Show Tec

Show Tec Razor Blaze V1 Manuel utilisateur

Show Tec

Show Tec Galactic RGB300 Manuel utilisateur

Show Tec

Show Tec DB-1-8 Manuel utilisateur

Show Tec

Show Tec 50405 Manuel utilisateur

Show Tec

Show Tec Spectral PC 600Z V3 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
