Festoonlight Q4 String V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Order code: 41751

MANUAL

ENGLISH

Ordercode: 41751

Festoonlight Q4 String

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................3

Rigging ............................................................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the Device ................................................................................................................................................6

Installation...........................................................................................................................................................................7

Setup with 1–3 Festoonlight Q4 Strings......................................................................................................................7

Setup with 4–6 Festoonlight Q4 Strings......................................................................................................................8

Setup and Operation ........................................................................................................................................................9

Maintenance......................................................................................................................................................................9

Troubleshooting .................................................................................................................................................................9

Product Specifications....................................................................................................................................................10

Dimensions........................................................................................................................................................................10

Ordercode: 41751

Festoonlight Q4 String

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture will be returned in the original factory box and

packing.

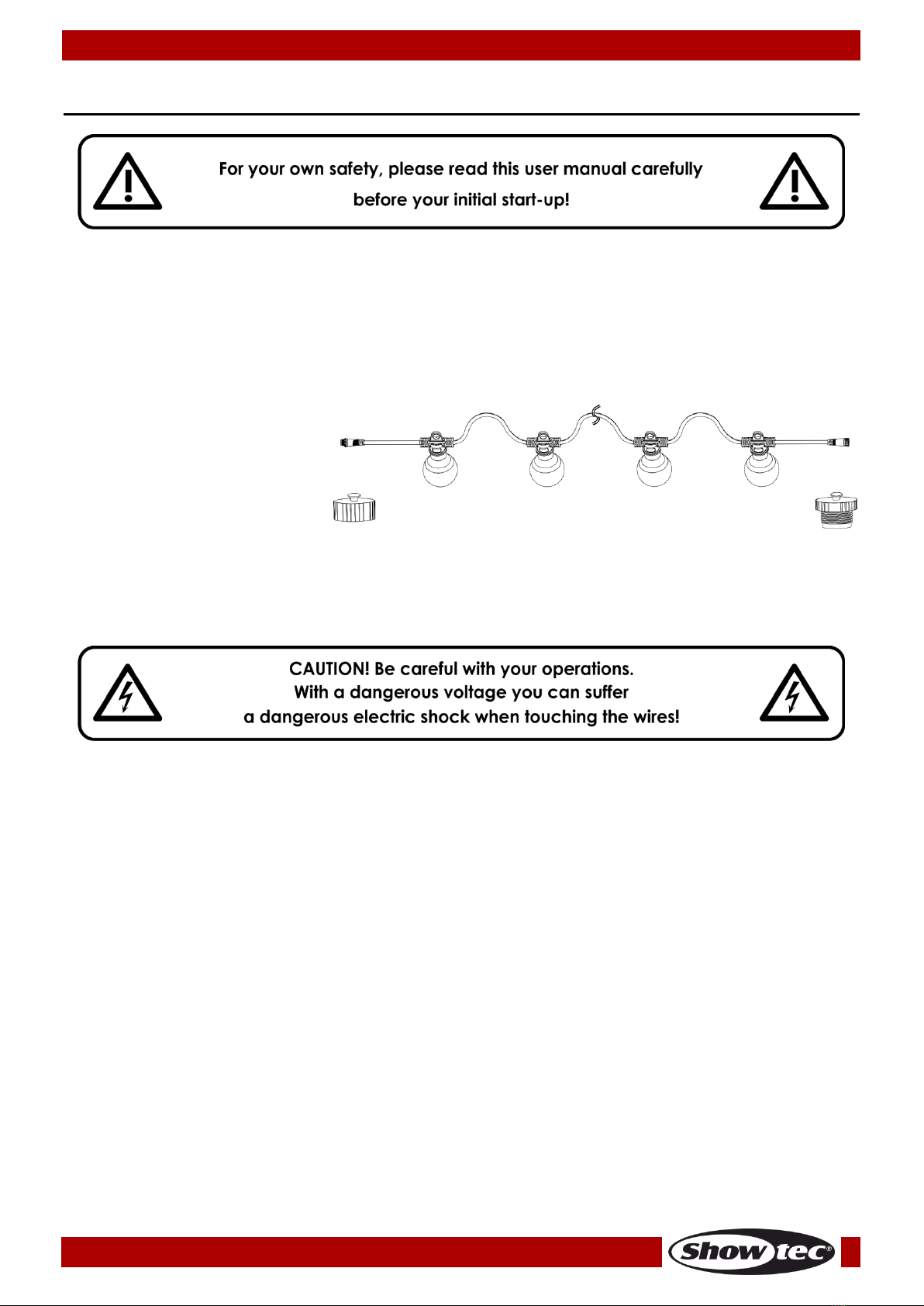

Your shipment includes:

●1 x Showtec Festoonlight Q4

String

●2 x end caps

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 41751

Festoonlight Q4 String

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Do not connect the string to a dimmer pack.

●The bulbs can get hot after prolonged use. Do not touch them with bare hands. Allow the bulbs to

cool down before handling.

●Do not allow the bulbs to rest on anything. Keep bulbs at least 10 cm from other objects.

●Do not modify or cut any part of the string light. Do not use if any part of this string light has been cut

or modified.

●Do not hang using screws, nails, staples, or any other sharp fasteners that may pierce, abrade, or

otherwise damage the cable.

●Do not secure the cable of the string light with staples or nails, or place on sharp hooks or nails.

●Do not hang ornaments or other objects on the cable.

●Do not turn the bulbs in the sockets. The sockets are not threaded. Turning the bulb in the socket may

damage the LED parts attached to the socket.

●Avoid flames and do not put close to flammable liquids or gases.

●This product is not intended for permanent installation.

●This product may be exposed to rain and moisture, as long as the bulbs hang at 90° angle to the

ground.

●Make sure that the product is not exposed to extreme heat, moisture or dust.

●Make sure that the cable is never crimped or damaged. Check the cord before each use.

●If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. The fixture must be installed beyond the reach of children.

●This product is intended for temporary outdoor use (IP54). Do not expose the product to conditions

which exceed the product’s Ingress Protection (IP) rating.

●The user is responsible for correct installation and operating of the Festoonlight Q4 String. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of

this device.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The maximum ambient temperature ta = 40 °C must never be exceeded.

●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely

disconnect from power source via breaker or by unplugging.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Ordercode: 41751

Festoonlight Q4 String

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Improper installation can cause serious injuries and/or damage of property!

The Festoonlight Q4 String can be installed in various ways, however always make sure that the bulbs

hang at 90° angle to the ground. This will prevent rain or moisture from collecting in the lamp holders.

Before installing the string, make sure that there is adequate distance between the string and the

controller. If necessary, use the extension cord supplied with the Festoonlight Q4 Controller. Do not use

more than 1 extension cord per controller.

Make sure that the structure onto which you are mounting the Festoonlight Q4 String(s) can support the

weight of the string(s).

If using a guide wire, attach the mounting eyelets on top of each bulb with the help of S-hooks, cable

ties, or similar adequate fasteners.

If not using a guide wire, connect each string securely to structure at least at 4 points (at both ends and

at 2 points in the middle).

Do not hang using screws, nails, staples, or any other sharp fasteners that may pierce, abrade, or

otherwise damage the cable.

Do not use the cable to mount the string!

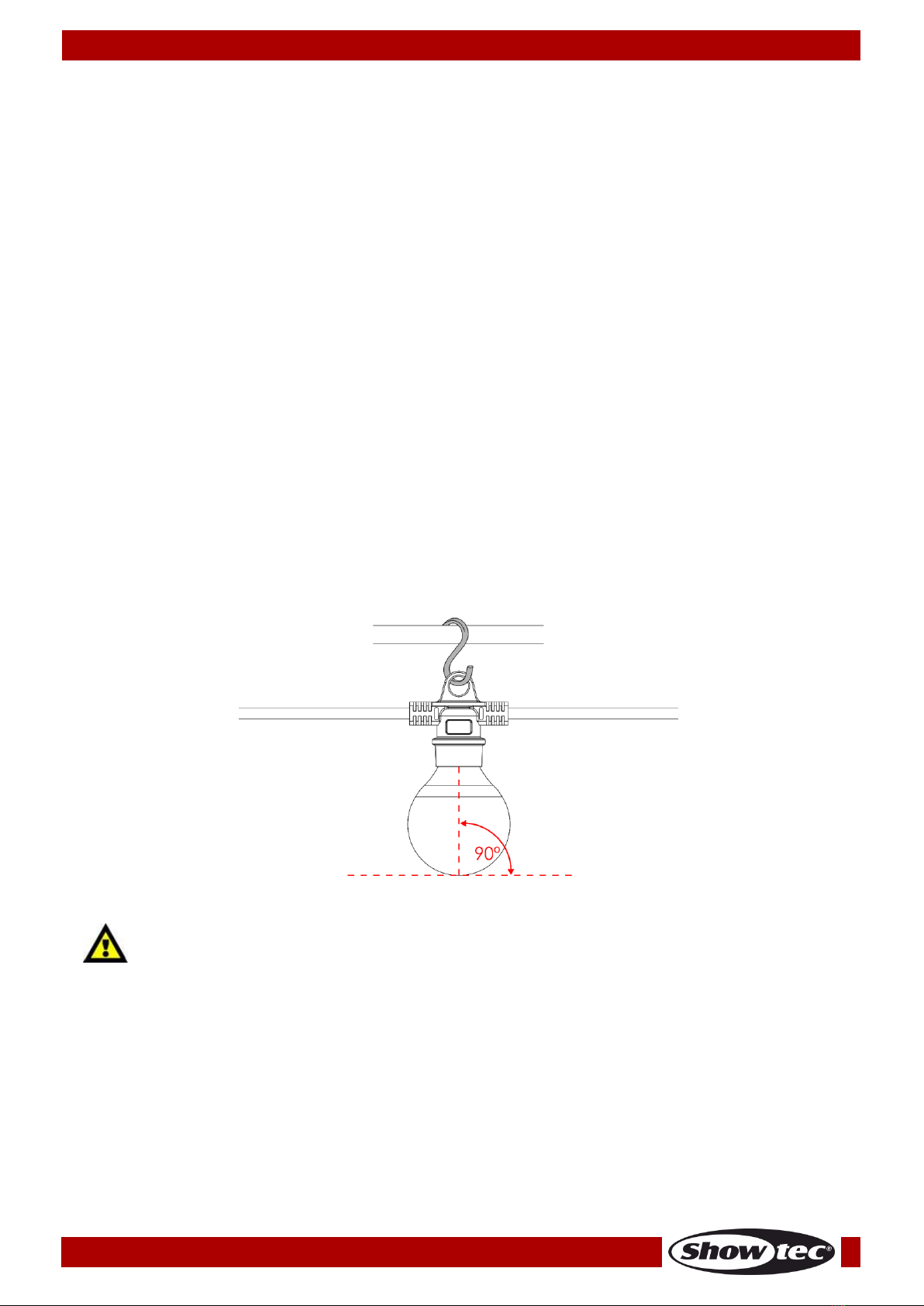

Fig. 01

Always make sure the bulbs hang at 90° angle to the ground.

Ordercode: 41751

Festoonlight Q4 String

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 41751

Festoonlight Q4 String

Description of the Device

Features

The Festoonlight Q4 String features 20 pixels that can be controlled individually with the Festoonlight Q4

Controller. Up to 3 Festoonlight Q4 Strings can be connected to one controller. To extend the setup to a

maximum of 6 strings, you will need the optional Festoonlight Q4 Booster.

●Light source: 5050 SMD RGBW LED

●Power consumption: 35 W

●Refresh rate: 1,9 KHz

●Bulbs per string: 20 pcs

●Bulb size: Ø 80 mm

●String length: 15 m

●Distance between bulbs: 0,75 m

●IP rating: IP54

●Weight: 4 kg

The Festoonlight Q4 String is designed to be operated ONLY with the Festoonlight Q4

Controller.

Note: The Festoonlight Q4 String is delivered without the Festoonlight Q4 Controller. You need to purchase

the Festoonlight Q4 Controller separately. You can connect up to 3 strings to the controller without a

booster. With a booster you can extend the setup to a maximum of 6 strings.

41750–Festoonlight Q4 Controller

41752 –Festoonlight Q4 Booster

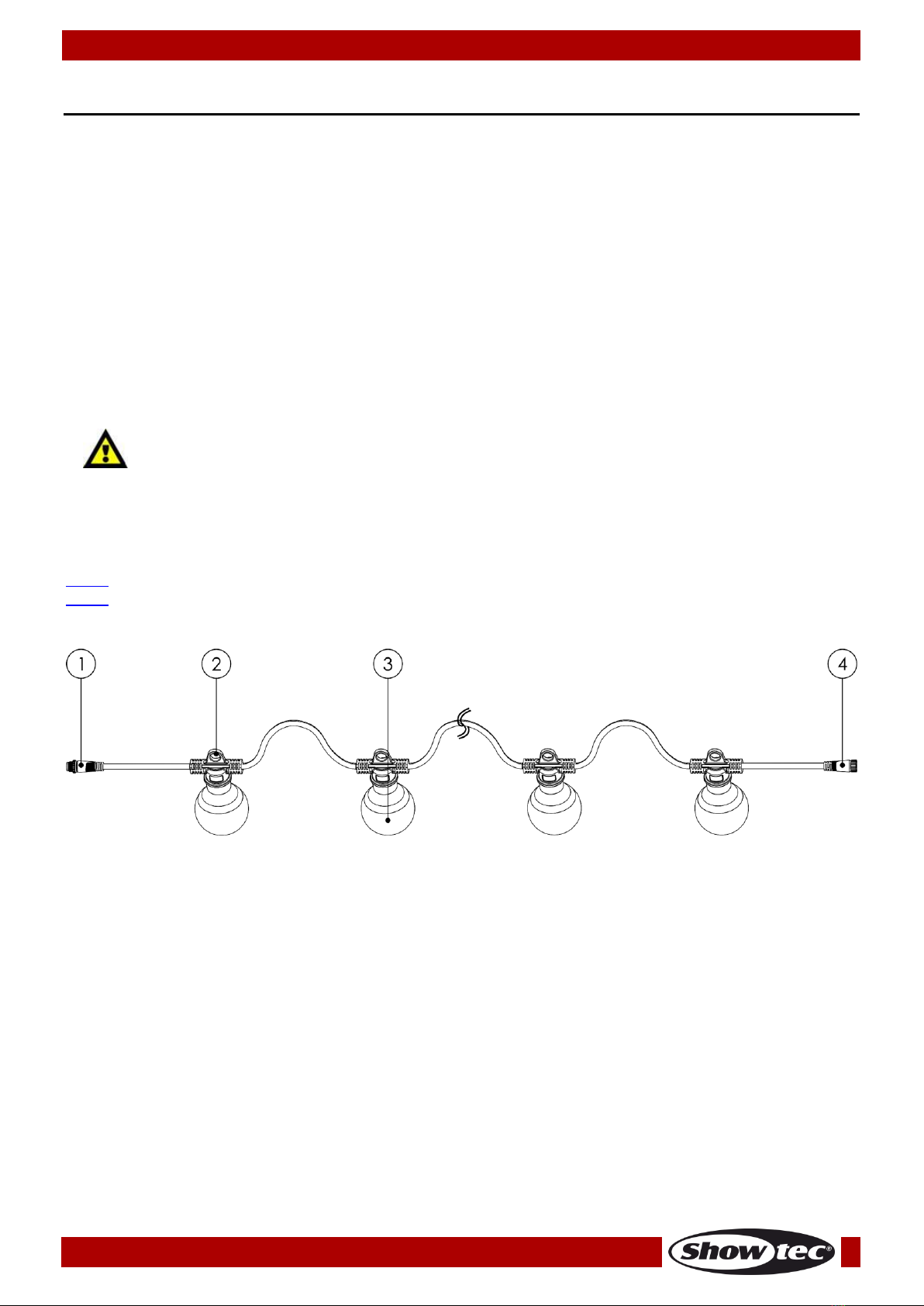

Fig. 02

01) Connector IN (to the Festoonlight Q4 Controller)

02) Mounting eyelet

03) Bulb

04) Connector OUT (to another Festoonlight Q4 String or to the Festoonlight Q4 Booster)

Ordercode: 41751

Festoonlight Q4 String

Installation

Remove all packing materials from the Festoonlight Q4 Controller. Check if all foam and plastic padding

is removed.

The Festoonlight Q4 Strings can be installed outdoors. However, they are not designed for

permanent outdoor use.

The Festoonlight Q4 Controller must be installed indoors.

Always terminate the open end of the Festoonlight Q4 String when installed outdoors.

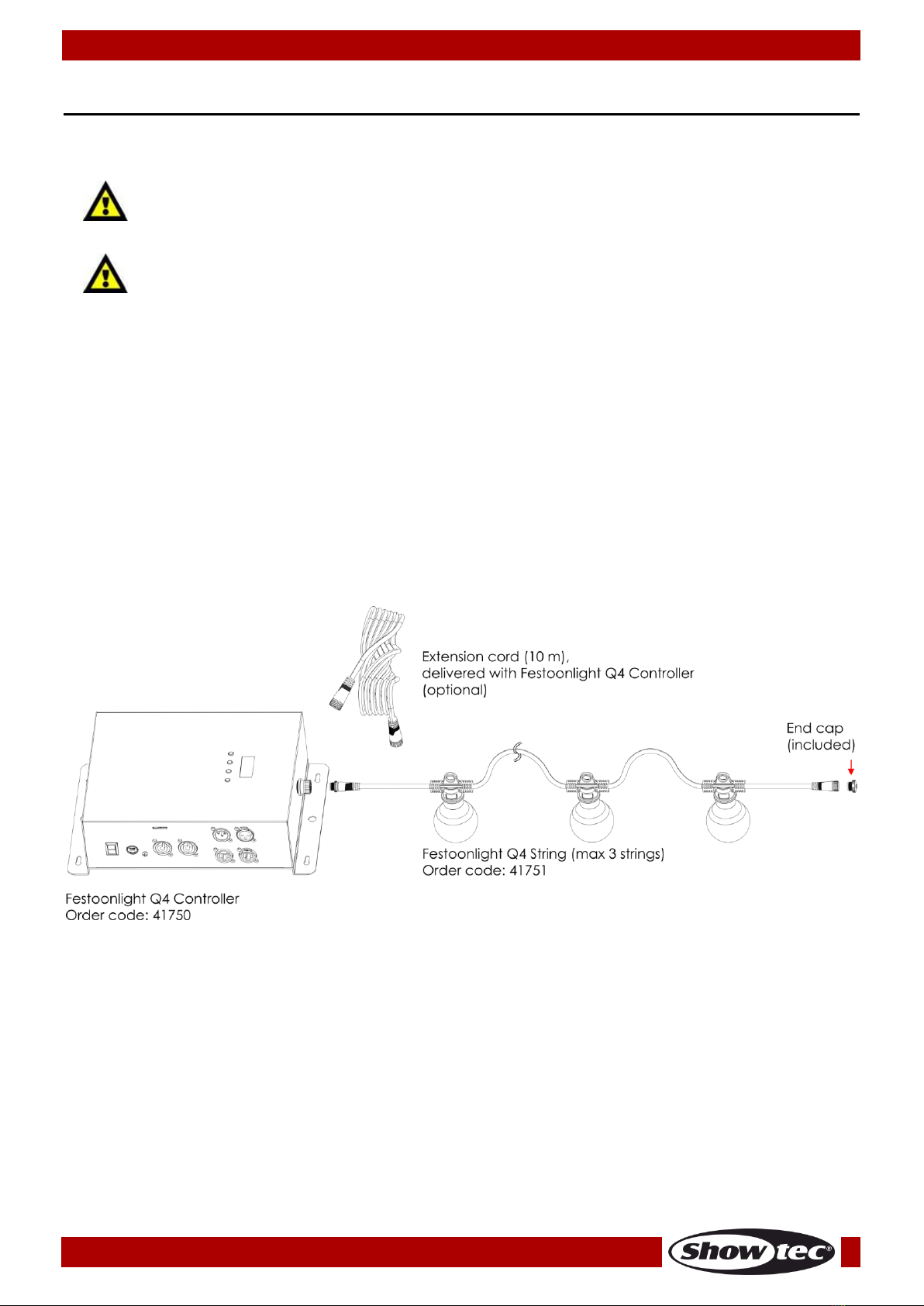

Setup with 1–3 Festoonlight Q4 Strings

01) Connect the Festoonlight Q4 String to the dedicated connector on the Festoonlight Q4 Controller.

02) Use the supplied extension cord, if necessary.

Note: Do not use more than 1 extension cord for each controller in the setup.

03) Connect the 2nd and the 3rd Festoonlight Q4 Strings in a continuous line to the 1st Festoonlight Q4

String.

Note: You can connect up to 3 Festoonlight Q4 Strings to the controller without a booster.

04) Terminate the open end of the last string on the line with the end cap delivered with the Festoonlight

Q4 String.

Fig. 03

Ordercode: 41751

Festoonlight Q4 String

Setup with 4–6 Festoonlight Q4 Strings

01) Follow steps 1–3 from Setup with 1–3 Festoonlight Q4 Strings to connect the first 3 strings.

02) Connect the splitter cable of the Festoonlight Q4 Booster to the 3rd string.

03) Connect the 4th string to the splitter cable of the booster.

04) Connect the 5th and the 6th strings in a continuous line to the 4th string.

Note: You can connect up to 6 Festoonlight Q4 Strings if you use a booster.

05) Terminate the open end of the last string on the line with the end cap delivered with the Festoonlight

Q4 String.

Fig. 04

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Ordercode: 41751

Festoonlight Q4 String

Setup and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120 V specification product on 230 V power, or vice versa.

After you have connected the Festoonlight String(s) to the Festoonlight Controller you can supply electric

power to the setup.

The Festoonlight Q4 String is compatible only with the Festoonlight Q4 Controller. Refer to the user manual

of the Festoonlight Q4 Controller for more information about the various operation modes and

possibilities.

With the Festoonlight Q4 Controller you can play one of the 30 built-in programs. To control each of the

20 pixels on the string individually, you will need to set up a DMX or Art-Net connection to a computer or

a lighting controller.

The Festoonlight Q4 String is not intended for permanent operation.

Maintenance

Inspect all parts and mounting points of the Festoonlight Q4 String before use. Do not use if parts are

weakened, discolored, brittle, or otherwise degraded, damaged, or worn.

The Festoonlight Q4 String requires almost no maintenance. However, you should keep the unit clean.

Disconnect the mains power supply, and then wipe the bulbs with a damp cloth. Do not immerse in

liquid. Do not use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the connections with a damp cloth.

Make sure connections are thoroughly dry before linking equipment or supplying electric power.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

Problem

Probable cause(s)

Solution

No light at all

No power to the fixture

●Check if power is switched on and

cables are plugged in

Defective DMX source

●Replace DMX source

Bad data link

●Inspect the RJ45 connectors and

correct poor connections

Incorrect addressing

●Check addresses and protocol settings

Defective LED

●Replace LED string

No light in one LED

ball

No DMX signal is received from

source

●Replace DMX source

●Check DMX addressing and protocol

settings

Defective DMX source

●Replace DMX source

Incorrect addressing

●Check DMX addressing and protocol

settings

Defective LED

●Replace LED string

Low light output from

a LED ball near the

end of the string

Insufficient voltage from power

source

●Check power source specifications

and replace power source if necessary

●Inspect power source for defects and

repair or replace power source

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec DB-1-4/RDM Manuel utilisateur

Show Tec

Show Tec Solaris 5.5 incl. FB4 Manuel utilisateur

Show Tec

Show Tec Spectral ZP-5 Manuel utilisateur

Show Tec

Show Tec Galactic RGB-2000 Manuel utilisateur

Show Tec

Show Tec D-Pack 6 Classic Manuel utilisateur

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe V1 Manuel utilisateur

Show Tec

Show Tec Spectral M950 Q4 Tour Manuel utilisateur

Show Tec

Show Tec ACT Flood 80 RGBW Manuel utilisateur

Show Tec

Show Tec 437 49 Manuel utilisateur

Show Tec

Show Tec LED Pinspot Q4 Manuel utilisateur

Show Tec

Show Tec Club Par Dizzy 3/8 Manuel utilisateur

Show Tec

Show Tec TECHNO DERBY V1 Manuel utilisateur

Show Tec

Show Tec ACT Flood 100 RGBW V1 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 50 WW Manuel utilisateur

Show Tec

Show Tec LED Par 64 COB RGBW 200W Manuel utilisateur

Show Tec

Show Tec Performer 1000 LED MKII Manuel utilisateur

Show Tec

Show Tec PAR 56 Warm-On-Dim V1 Manuel utilisateur

Show Tec

Show Tec 42199 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 11CW V1 Manuel utilisateur

Show Tec

Show Tec GALACTIC BEAM G40 V1 Manuel utilisateur

Show Tec

Show Tec Mad Mood Manuel utilisateur

Show Tec

Show Tec Performer Pendant Q6 V3 Manuel utilisateur

Show Tec

Show Tec Compact Par 60 COB RGBW V1 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
