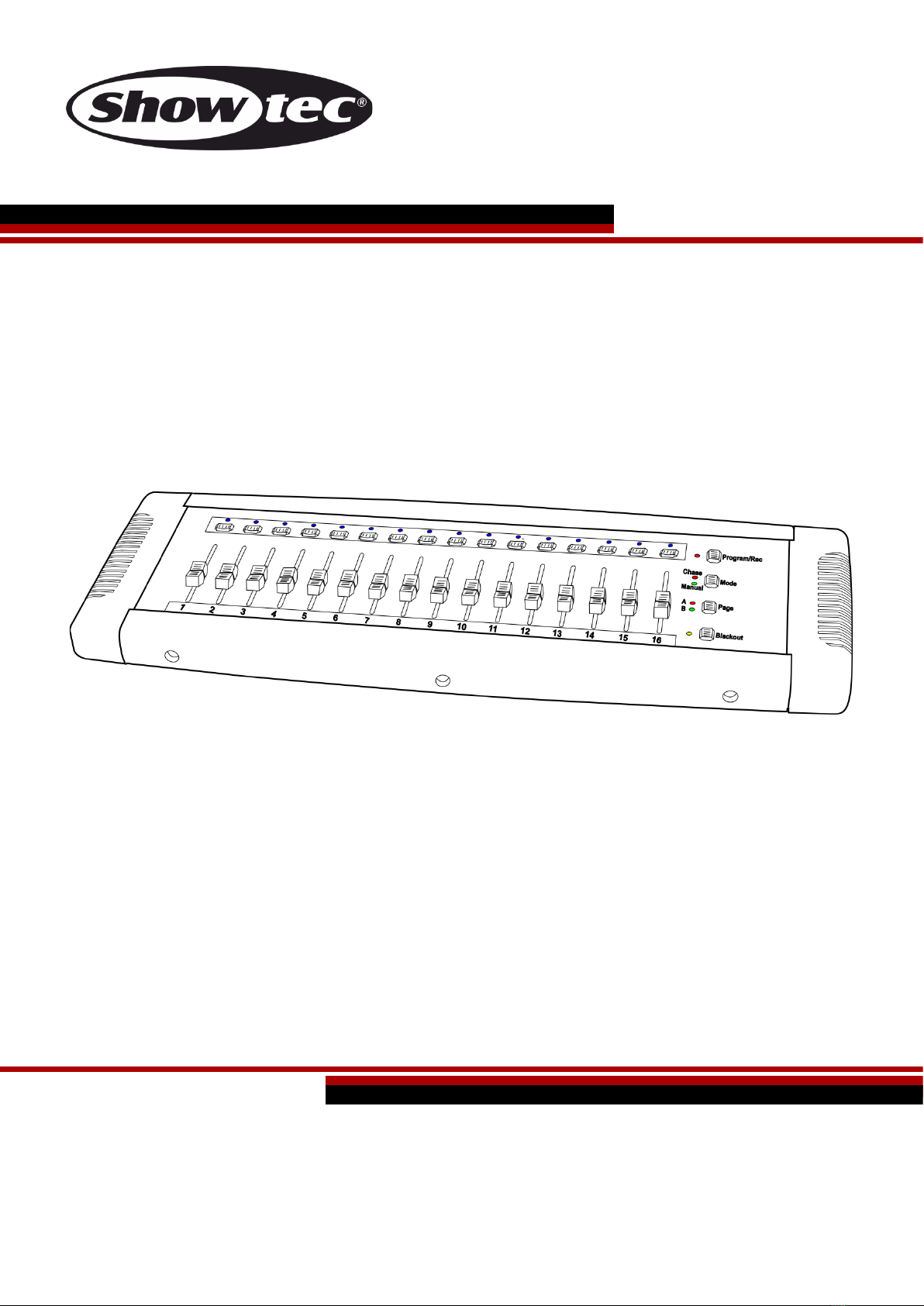

Easy 16
Table of contents

Warning ...............................................................................................................................................................................2
Unpacking Instructions.................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5
Overview ........................................................................................................................................................................5
Backside .........................................................................................................................................................................6

Installation...........................................................................................................................................................................6

Set Up and Operation .......................................................................................................................................................6
Fixture Linking.................................................................................................................................................................6
Data Cabling.................................................................................................................................................................6
Control Modes...............................................................................................................................................................7
1. Programming..........................................................................................................................................................7
2. Exit programming ..................................................................................................................................................7
3. Chase / Manual .....................................................................................................................................................7
4. Chase Mode...........................................................................................................................................................7
5. Delete a Chase......................................................................................................................................................7
6. Blackout...................................................................................................................................................................7

Maintenance......................................................................................................................................................................8

Troubleshooting .................................................................................................................................................................8
No Light...........................................................................................................................................................................8
No Response to DMX....................................................................................................................................................8

Product Specifications......................................................................................................................................................9

Dimensions........................................................................................................................................................................10




Ordercode: 50406

Easy 16

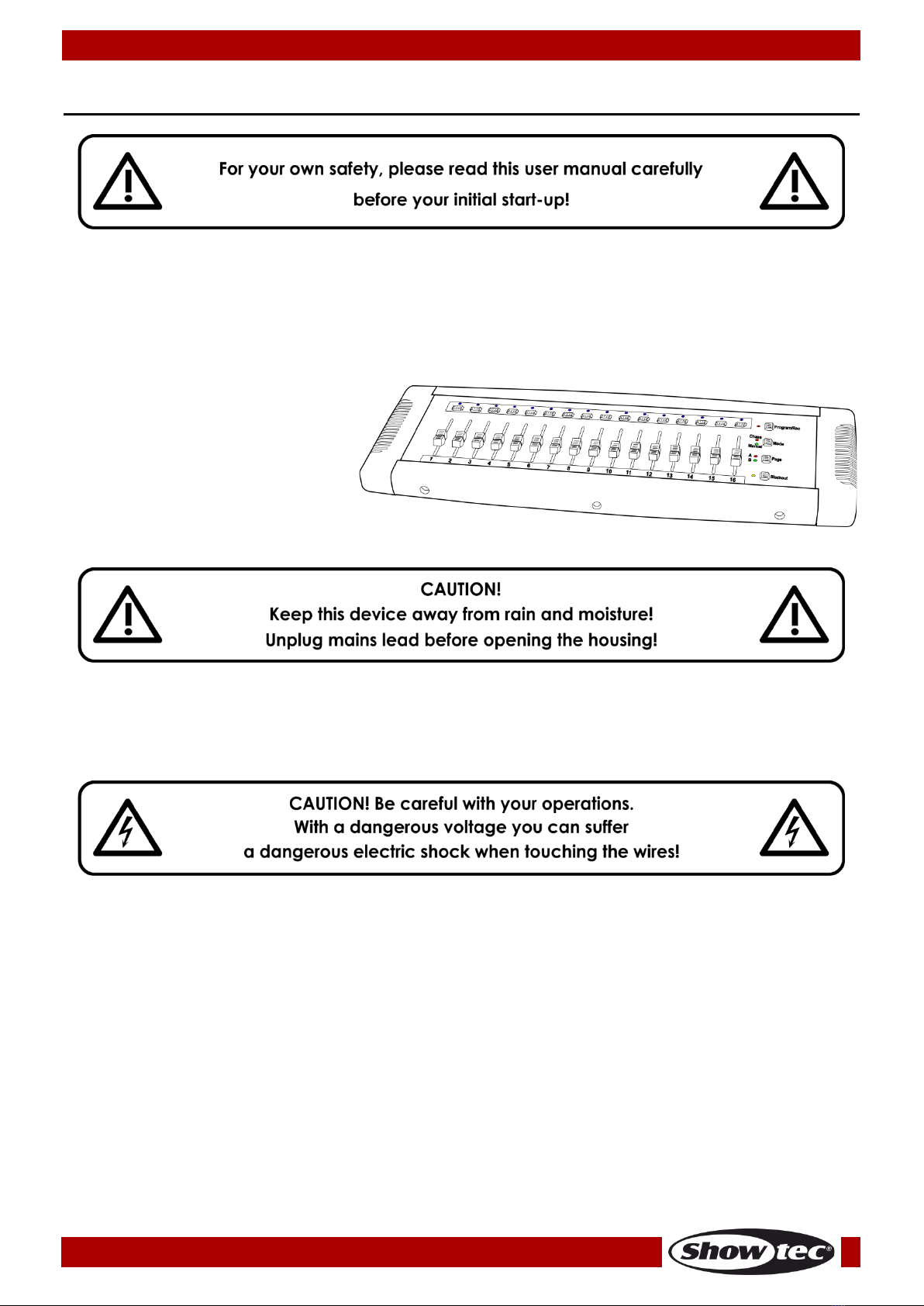

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec Easy 16

DC power adapter (1,75 m)

User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 50406

Easy 16

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Device must be installed out of the reach of children. Never leave the unit running

unattended.

The user is responsible for correct positioning and operating of the Easy 16. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Operating Determinations

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 1 meter.

The maximum ambient temperature ta = 40°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Ordercode: 50406

Easy 16

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 50406

Easy 16

Description of the device

Features

The Showtec Easy 16 is a light controller equipped with very useful features:

32 channel programmable DMX controller

Total output channels: 16 x 2 (pages)

Program 12 scenes

Manual Mode

Built-in chase

Adjustable speed: 0,1 sec - 10 min.

Adjustable fade time: 0-100 %

Adjustable chase direction

Universal DMX-512 controller

Output connector: 3 pole Female XLR

Input connector: 3-pin XLR male

Power Input DC 9V-500 mA

3HE (3U) 19" rack mount

NOTE: Knowledge of DMX is required to fully utilize this unit.

Overview

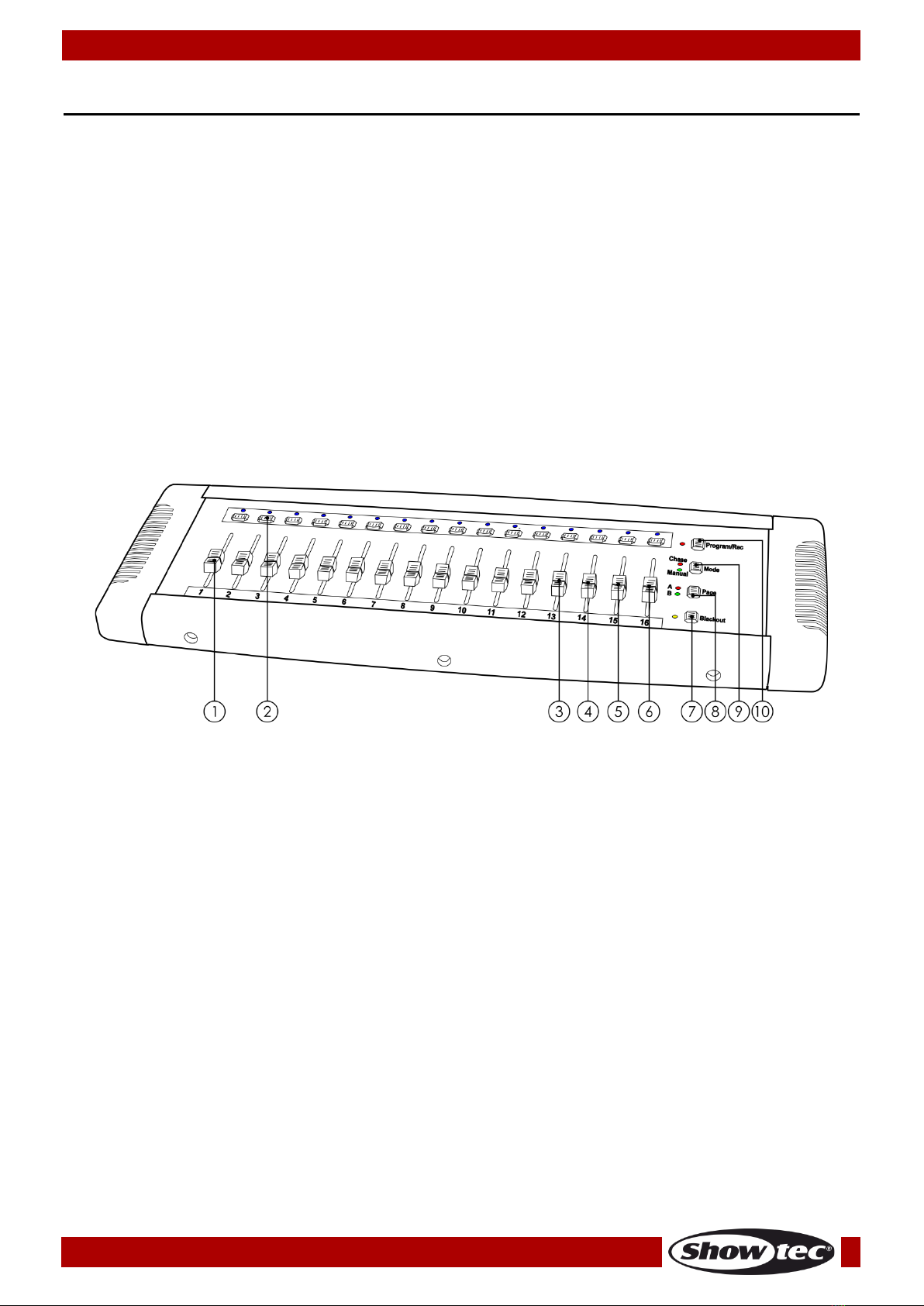

Fig. 01

01) Channel faders

For adjusting DMX values, Ch 1~16 can be adjusted immediately, Ch 17~32 after pressing the Page

select button.

02) Scene select buttons

Universal bump buttons representing scene location for storage and selection

03) Direction Fader

04) Output Fader

05) Speed Fader

This will adjust the hold time of a scene or a step within a chase (range of 0.1 second to 10 minutes).

06) Fade Fader

Used to adjust the fade time. Fade time is the amount of time it takes for a scanner (or scanners) to

move from one position to another, for the dimmer to fade in or fade out.

07) Blackout button

Press this button to enable or disable relevant DMX output. When its LED is lit, that means the relevant

DMX output is disabled. Press this button again the LED will be “off”, that means the DMX output is

reactivated.

08) Page button

Used to select page between Page A (I-16) and Page B (17-32). The corresponding Page LED (A/B)

will light up.

09) Mode button

Operating mode status, (Chase / Manual). The corresponding Mode LED (Chase / Manual) will light

up.

10) Program / Rec button

Activates program mode.

Ordercode: 50406

Easy 16

Backside

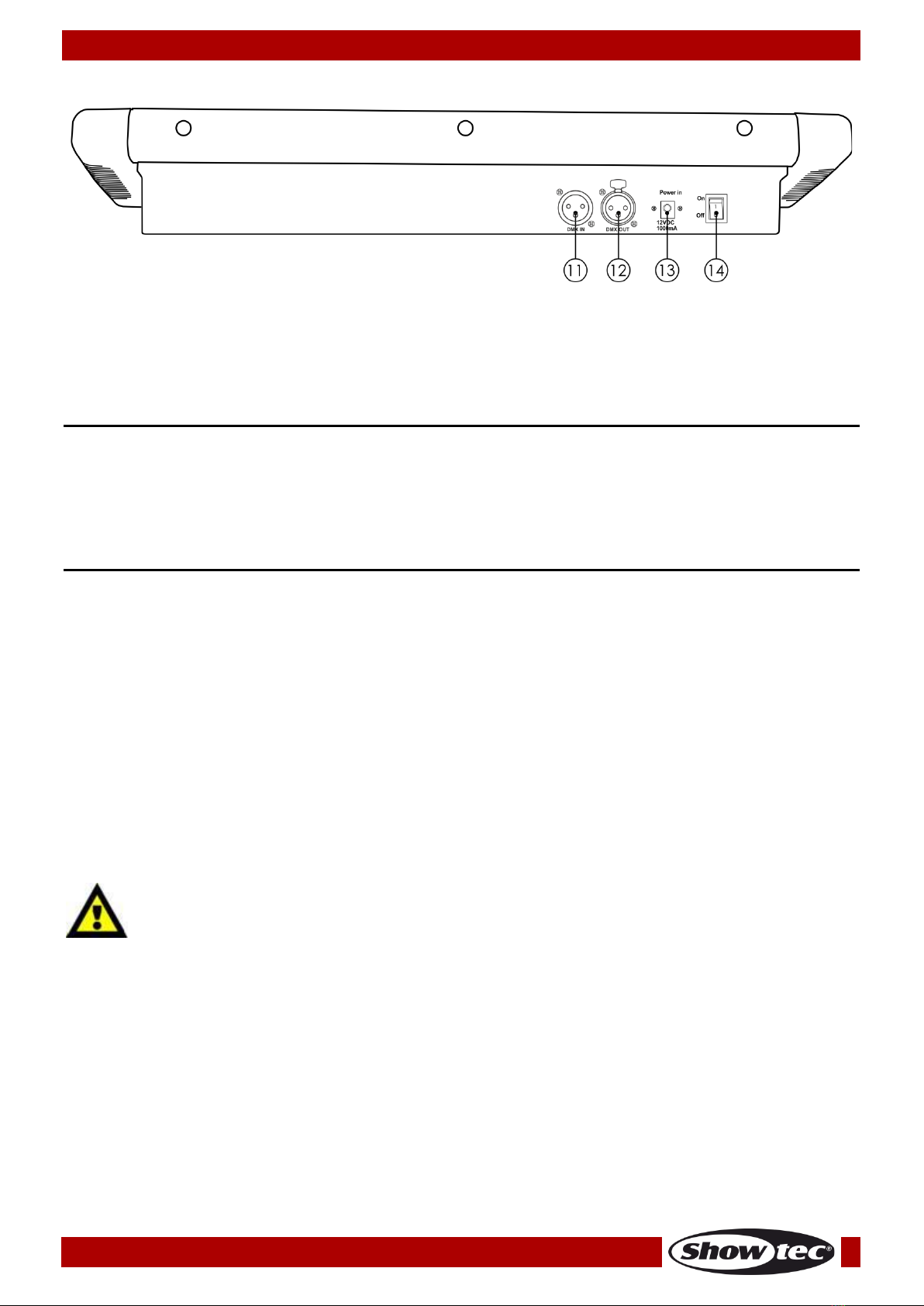

Fig. 03

11) 3-pin DMX input connector

12) 3-pin DMX output connector

13) DC Input DC 9V-500mA

14) ON/OFF power switch turns the controller on and off

Installation

Remove all packing materials from the Easy 16. Check if all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply. The device can be sound-controlled as it is equipped

with a built-in microphone.

Fixture Linking

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to

run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined

number of channels required by all the fixtures on a serial data link determines the number of fixtures the

data link can support.

Important:

Fixtures on a serial data link must be daisy chained in one single line. To comply with the

EIA-485 standard no more than 30 devices should be connected on one data link.

Connecting more than 30 fixtures on one serial data link without the use of a DMX optically

isolated splitter may result in deterioration of the digital DMX signal.

Maximum recommended DMX data link distance: 100 meters

Maximum recommended number of fixtures on a DMX data link: 30 fixtures

Data Cabling

To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables

directly from a dealer/distributor or construct your own cable. If you choose to create your own cable

please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic

interference.

DAP Audio DMX Data Cables

DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode

FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).

DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m), FLX01150

(1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).

DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).

Ordercode: 50406

Easy 16

DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).

DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m), FL09150 (1,5

m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).

Control Modes

1. Programming

01) To enter the program mode, press PROGRAM and then press SCENE buttons 1, 5, 6, 8.

02) Choose the position for the scene you want to save.

03) Use the fader and PAGE button (8) to set the DMX value.

04) Press the program/rec button to store the scene.

2. Exit programming

01) To exit Program mode, first press the PROGRAM button (10) and then the BLACKOUT button (7).

3. Chase / Manual

01) Press MODE (9), you can select 2 different modes: AUTO and MANUAL.

02) You can control the controller manually or automatically.

4. Chase Mode

A chase is created by using previously created scenes. Scenes become steps in a chase.

01) In Chase Mode the scenes will automatically be played one after the other.

02) In AUTO mode: fader 13 controls the running direction of the CHASE

fader 14 controls the dimmer of the chase（0-100%)

fader 15 control the run speed of the chase CHASE (0.1s-10m)

fader 16 control FADE of the chase（0-100%)

03) In MANUAL mode: fader 1-16 and the PAGE button control the output of each channel.

5. Delete a Chase

01) Press PROGRAM (10) and then press SCENE buttons 1, 5, 6, 8. You’re now in Program mode.

02) To delete a chase, press and hold down the PROGRAM (10) + MODE button (9).

03) All LEDs will flash, indicating all programs have been deleted.

6. Blackout

01) Press the BLACKOUT button (7) to enable or disable relevant DMX output. When its LED is lit, that

means the relevant DMX output is disabled. Press this button again the LED will be “off”, that means

the DMX output is reactivated.

Ordercode: 50406

Easy 16

Maintenance

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-related and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

01) All screws used for installing the device or parts of the device have to be tightly connected and

must not be corroded.

02) There may not be any deformations on housings, fixations and installation spots.

03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

04) The electric power supply cables must not show any damages or material fatigue.

The Showtec Easy 16 requires almost no maintenance. However, you should keep the unit clean.

Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in

liquid. Do not use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections

with a damp cloth. Make sure that the connections are thoroughly dry before linking equipment or

supplying electric power.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

No Light

If the Easy 16 does not operate properly, refer servicing to a technician.

Suspect two potential problem areas: the power supply, the LEDs.

01) Power supply. Check if the unit is plugged into an appropriate power supply.

02) The LEDs. Return the Easy 16 to your Showtec dealer.

03) A LED effect does not respond to the Easy 16: Check the DMX-address of the fixture and the

controller. Make sure that they match. Make sure that the connections are correct.

04) Check if blackout is inactive.

05) If all of the above appears to be O.K., plug the unit in again.

06) If nothing happens after 30 seconds, unplug the device.

07) If you are unable to determine the cause of the problem, do not open the Easy 16, as this may

damage the unit and the warranty will become void.

08) Return the device to your Showtec dealer.

No Response to DMX

Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card

malfunction.

01) Check the DMX setting. Make sure that DMX addresses are correct.

02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.

Try your DMX control again.

03) Determine whether the controller or light effect is at fault. Does the controller operate properly with

other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light

effect to a qualified technician.

Ordercode: 50406

Easy 16

Product Specifications

Model:

Easy 16

Input Voltage:

DC 9Volt - 500mA

Dimensions:

535 x 195 x 100 mm (LxWxH)

3HE (3U) 19" rack mount

Weight:

2,8 kg

Operation and Programming

Signal pin OUT:

pin 1 earth, pin 2 (-), pin 3 (+)

DMX Channels:

32 (16x2pages)

Signal input:

3-pin XLR signal connector IN (male)

Signal output:

3-pin XLR signal connector OUT (female)

Electro-mechanical effects

Program 12 scenes

Manual Mode

Built-in chase

Adjustable speed:

0,1 sec - 10 min.

Adjustable fade time:

0-100 %

Adjustable chase direction

Housing:

Grey Metal & Flame-retardant plastic

Connections:

Power adapter & Data connector

Max. ambient temperature ta:

40°C

Minimum distance:

Minimum distance to lighted object:

1 m

Design and product specifications are subject to change without prior notice.

Website: www.Showtec.info

Email: service@highlite.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Performer Fresnel Mini DMX Manuel utilisateur

Show Tec

Show Tec Cameleon Bar 18-4 Manuel utilisateur

Show Tec

Show Tec Powerbeam 10 LED Manuel utilisateur

Show Tec

Show Tec Solar FL-550 Manuel utilisateur

Show Tec

Show Tec MINI STUDIOBEAM RGB Manuel utilisateur

Show Tec

Show Tec Galactic TXT Manuel utilisateur

Show Tec

Show Tec LED Tube Basic Square Manuel utilisateur

Show Tec

Show Tec Mirrorball 20 Sm V1 Manuel utilisateur

Show Tec

Show Tec LED City Painter 45 Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Daylight Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten Manuel utilisateur

Show Tec

Show Tec Candela Pix 50 Manuel utilisateur

Show Tec

Show Tec Indigo 150 LED Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 7 Q6 V1 Manuel utilisateur

Show Tec

Show Tec Dance Cube 40401 Manuel utilisateur

Show Tec

Show Tec 42300 Manuel utilisateur

Show Tec

Show Tec LED Aqua Painter Manuel utilisateur

Show Tec

Show Tec Juno Manuel utilisateur

Show Tec

Show Tec Performer Pendant Q6 V1 Manuel utilisateur

Show Tec

Show Tec Parcan 64 Floorspot V1 Manuel utilisateur

Show Tec

Show Tec Showmaster 48 Manuel utilisateur

Show Tec

Show Tec Maniac FX 7 Manuel utilisateur

Show Tec

Show Tec Performer 2000 RGBAL Manuel utilisateur

Show Tec

Show Tec LED Spere & Cube Controller 30 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
