Show Tec 41223 Manuel utilisateur

DMX Code writer

for LED Aqua Painter/ Neonflex

ORDERCODE 41223

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Adress Code Writer brings excitement to any venue.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Adress Code Writer ™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Installation...............................................................................…...…………………………………….…..

Set Up and Operation.....................................................................……..……………………………….…

Buttons………………………………....................................…………………………………………..

Instruction for address-writing function.........................………………………………………………

Synchronous operation instruction.........................……………………………………………………

Menu.........................…………………………………................………………………………………

Connection...................................................................................…..……..………….…….………………

Maintenance...................................................................................………..………….…….………………

Troubleshooting............................................................................………………….………………….…..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Do not open the device and do not modify the device.

•Never leave any cables lying around.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If device is dropped or struck, disconnect the mains power supply. Have a qualified engineer inspect

for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Description of the device

Features

The Showtec Adress Code Writer is a multi control system.

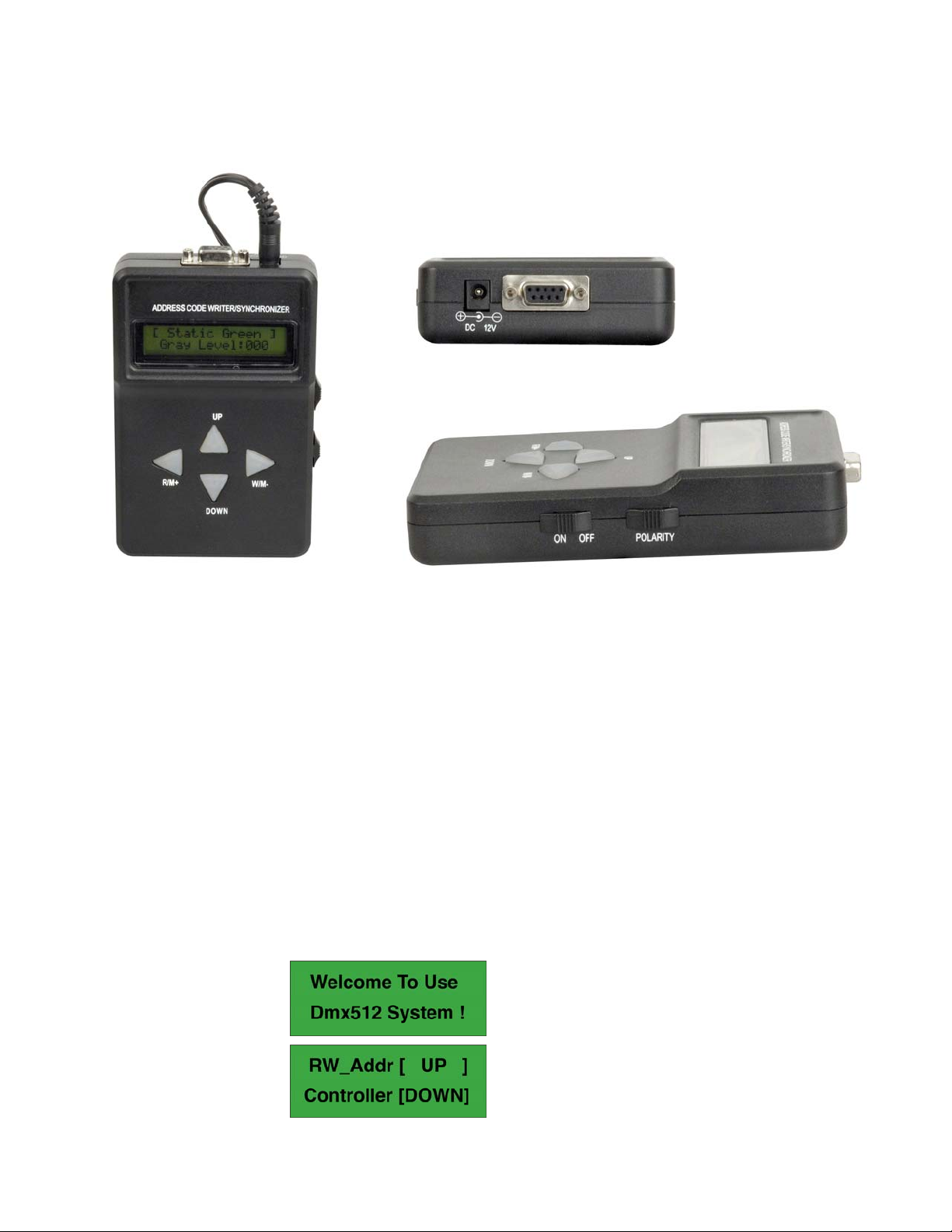

Overview

Fig. 1

Installation

Remove all packing materials from the controller. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

The Address Core Writer / Synchronizer is a combination of DMX address writer and synchronous

controller. It is suitable for writing DMX addresses and controlling the LED Aqua (41220).

It is a versatile and user-friendly controller.

Connect the controller to the power from the wall and set the switch on the side of the controller to ON.

The LCD display shows:

If you press the UP-button, the system is in Address Writing Mode.

If you press the DOWN-button, the system is in Controller Mode.

If no button is pushed within 10 seconds, the controller will automatically go to Controller Mode.

1. The interior battery is only for writing the address, when there is no exterior power supply.

2. When DMX512 is used as a controller, a power supply of 12V 3A is needed.

Note: When the device is used as a controller, do not disconnect the device from the power consumption.

Buttons

1. UP

-When the controller is in Address Writing Mode, press the UP-button once, then the value of the

DMX address will increase

-When the controller is in Controller Mode, press the UP-button once, then the value of Speed or

Gray Level will increase.

2. Down

-When the controller is in Address Writing Mode, press the DOWN-button once, then the value of

the DMX address will decrease.

-When the controller is in Controller Mode, press the DOWN-button once, the value of Speed or

Gray Level will decrease. If you press and hold the button for more than 2 seconds, then the

controller will decrease speed.

3. R / M+

-When the controller is in Address Reading Mode, you can read the address value of each fixture.

Press the R/M+ button once, the address will be shown in the LCD.

-When the controller is in Controller Mode, press it to select the operating mode in sequence.

4. W / M-

-When the controller is in Address Writing Mode, you can write the address value of each fixture.

Press the W/M- button once to write the address to the fixture.

-When the controller is in Controller Mode, press it to select the working mode in reverse

sequence.

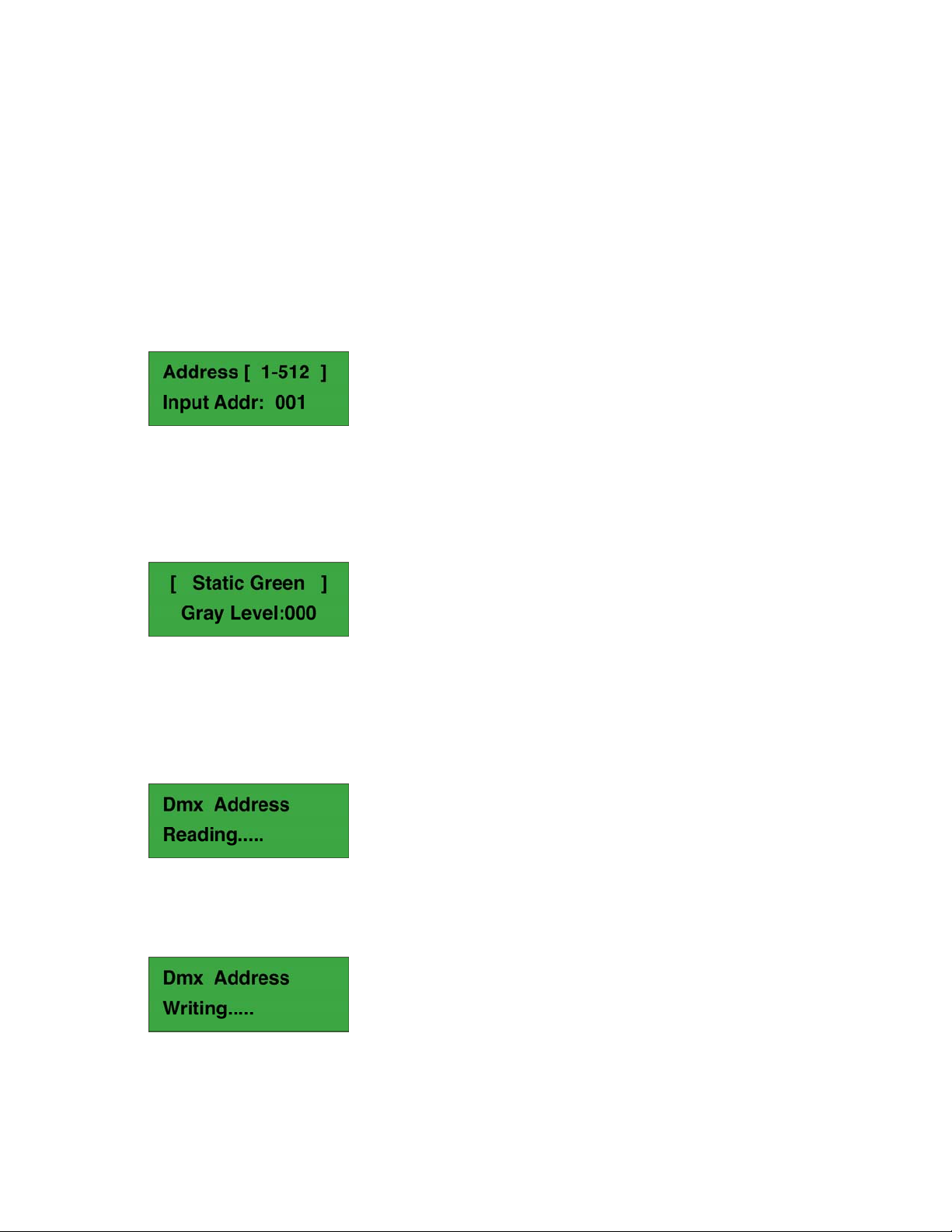

Instruction for address-writing function

This function is for writing and verifying the address value of each fixture. Connect the controller to the

fixture and turn the controller on, then go to the Address Writing Mode.

Note: this product has a polarity switch, so if the polarity does not match use this switch. Press the UP or

DOWN-button to set an address value and press the W/M- button to assign the value to the fixture.

If the addressing has been completed, the LCD will display the address value or it will show a failure

message.

Press the R/M+ button to read the address value of each fixture. If the message is read, it will be displayed

in the LCD or the LCD will show a failure message.

Synchronous operation instruction

This function is for controlling the fixtures to operate synchronously and achieve a synchronous color

change.

Turn the controller on and enter the Controller Mode. Connect the controller to the fixture with the signal

cable. When the controller is in Controller Mode, you have to make sure that the polarity is matched.

Use the UP / DOWN-button to adjust the Speed and Gray Level and use the R/M+ button to select working

mode in sequence, or W/M- to select working in reverse sequence.

1. Black 0-255

2. Static RED 0-255

3. Static GREEN 0-255

4. Static YELLOW 0-255

5. Static BLUE 0-255

6. Static PURPLE 0-255

7. Static CYAN 0-255

8. Static WHITE 0-255

9. Color Change 1-100

10. Color Flash 1-100

11. Color Fade 1-100

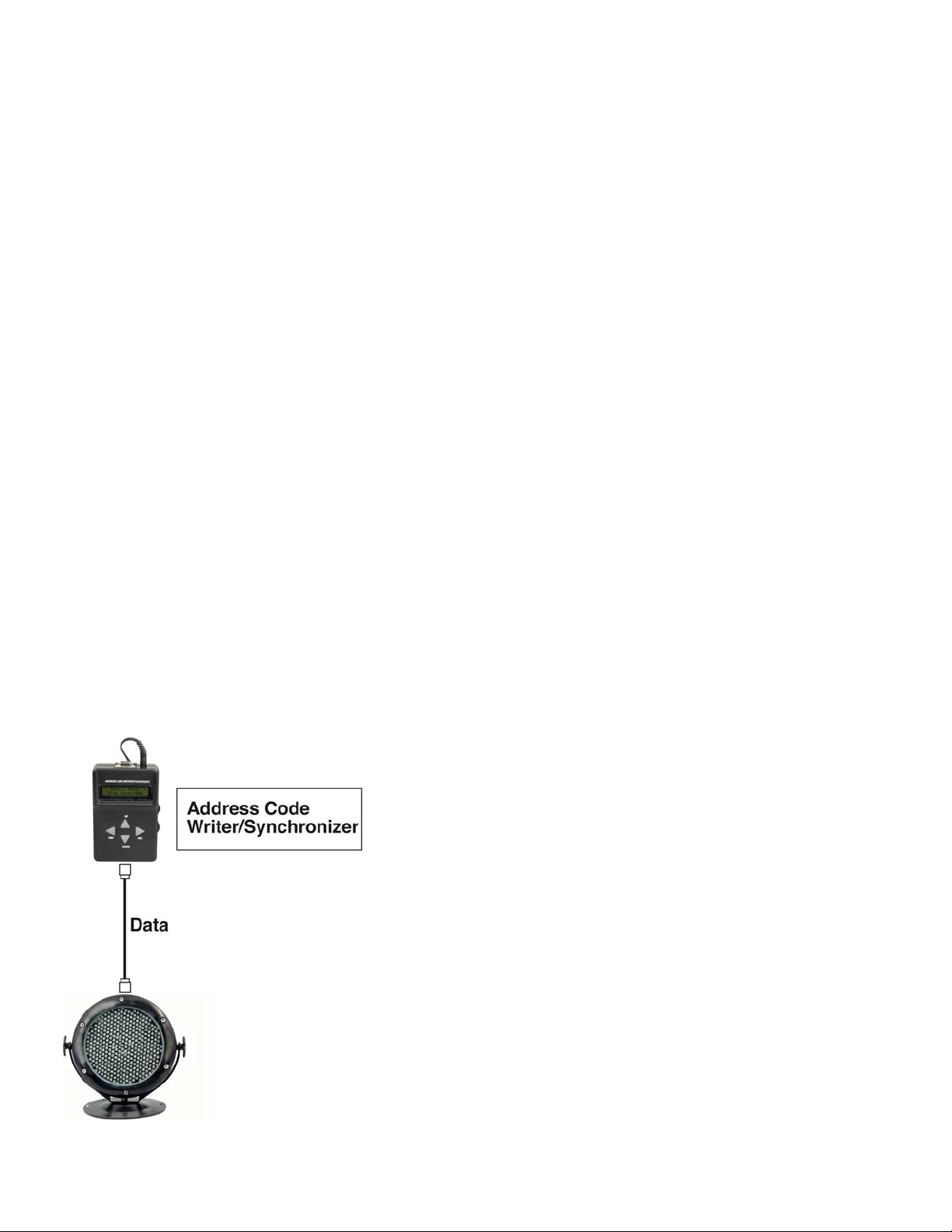

Connection

No PSU or Controller is needed.

Connect the Address Code Writer directly to the Fixture.

Write one fixture at a time.

Maintenance

The Showtec Adress Code Writer requires almost no maintenance. However, you should keep the unit

clean.

Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.

Do not use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a

damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.

Troubleshooting

Showtec Adress Code Writer

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out following

steps.

1. If the device does not operate properly, unplug the device.

2. Check power from the wall, all cables, connections, etc.

3. If all of the above appears to be O.K., plug the unit in again.

4. If nothing happens after 30 seconds, unplug the device.

5. Return the device to your Showtec dealer.

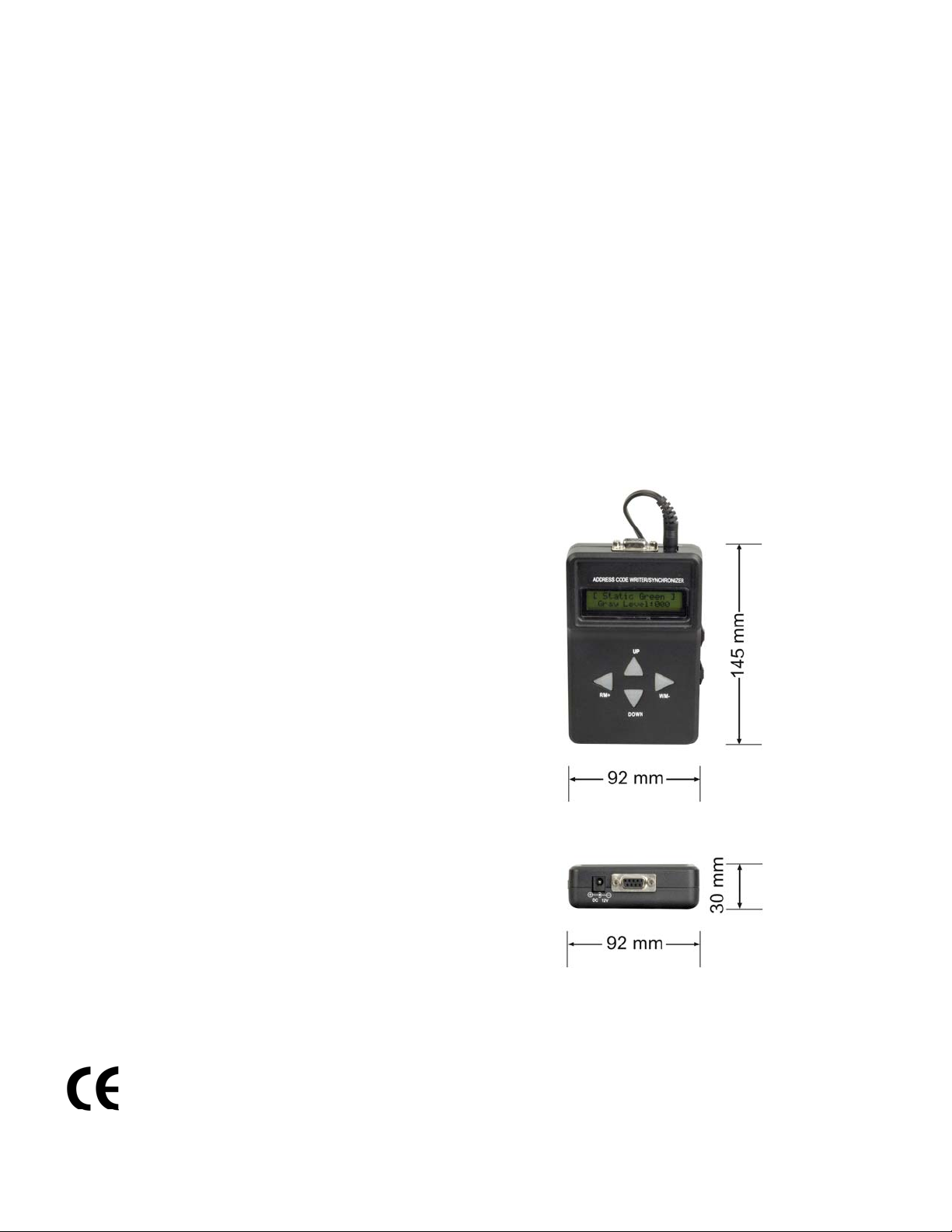

Product Specification

Model: Showtec Adress Code Writer

Voltage: 240V-50Hz (CE)

DC12V

Battery: 9V

Dimensions: 145x92x30mm (LxWxH)

Weight: 0,2 kg

Design and product specifications are subject to change without prior notice.
