Show Tec 43121 Manuel utilisateur

Controller for LED Colorline

ORDERCODE 43121

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec ColorLine Controller brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec ColorLine Controller™Product Guide

Warning.................................................................................…...……………..…………………………….………………..

Safety-instructions……………………………………………………………………………………………………………..

Operating Determinations.…………………………………………………………………………………………............

Rigging.…………………………………………………………………………………………………………………............

Return Procedure……………………………………………………………………………..............................................

Claims…………………………………………………………………………….................................................................

Description...............................................................................…...………………………………………….……………….

Features and Overview ………………………………...….……………….………….……….……….…………………..

Colorline Series………………………………………………..…...….……………….…………………...….………………….

Mounting the ColorLine Series…………………………………..…...….……………….…………………...….…………….

Connection of the Colorline Series……………………………………………………………………...….………………….

Accessories………………………………………………...….……………….………….……….……….………………….

LUX Values………………………………………………...….……………….………….……….……….…………………...

Installation...............................................................................…...…………………………………….……………………..

Set Up and Operation.....................................................................……..…………………………….…………………….

DMX-controllable………..………………………………………………………………………..….………….……………

DMX-serial Data Link………………………………………………………………………..….………….………………….

Master/Slave Data Link………………………………………………………………………………………………………

Function Overview………………………………………………………………………..….………….………………………..

Main Menu Options……...……………………..……………………………………..……………………………………...

DMX addressing………...……………………………………..…………………………………….…….……….…...........

Stand-alone Manual Color Mixing…………………………………………...……………..……………………………..

Master / Slave…………..……………………………………………………...………………………………………………

Auto Chase Mode…………..……………………………………………………...…………………………………………

DMX Operation RGB and RGBW……………………………………………...……………………………………………

MENU FUNCTIONS…………..……………………………………………………...………………………………………….

RGB……..……………………………………………………...…………………………………………………………..

- DFN1 Mode…….………………………………………………...…………………………………………………

- DFN2 Mode…………..…………………………………………...…………………………………………………

- DFN3 Mode…………..…………………………………………...…………………………………………………

RGBW……..……………………………………………………...………………………………………………………..

- DFN4 Mode…….………………………………………………...…………………………………………………

- DFN5 Mode…………..…………………………………………...…………………………………………………

- DFN6 Mode…………..…………………………………………...…………………………………………………

DMX Channels RGB……..……………………………………………………...………………………………………

- DMX Basic (3 Channels)..……………………………………...………………………………………..………..

- DMX Standard (4 Channels)…………………………………...………………………………………………..

- DMX Full Function (7 Channels)…….………………………...………………………………………………...

DMX Channels RGBW……..……………………………………………………...……………………………………

- DMX Basic (4 Channels)..……………………………………...…………………………………………………

- DMX Standard (5 Channels)…………………………………...………………………………………………..

- DMX Full Function (8 Channels)…….………………………...…………………………………………………

Maintenance...................................................................................………..………….…….……………………..………..

Replacing the Fuse........................................................................…………………….………………………………..

Troubleshooting............................................................................………………….………………….…………………..…

No Response to DMX……………………............................................………………….………………………………..

Product Specifications.................................................................……………….…….…………………………………….

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

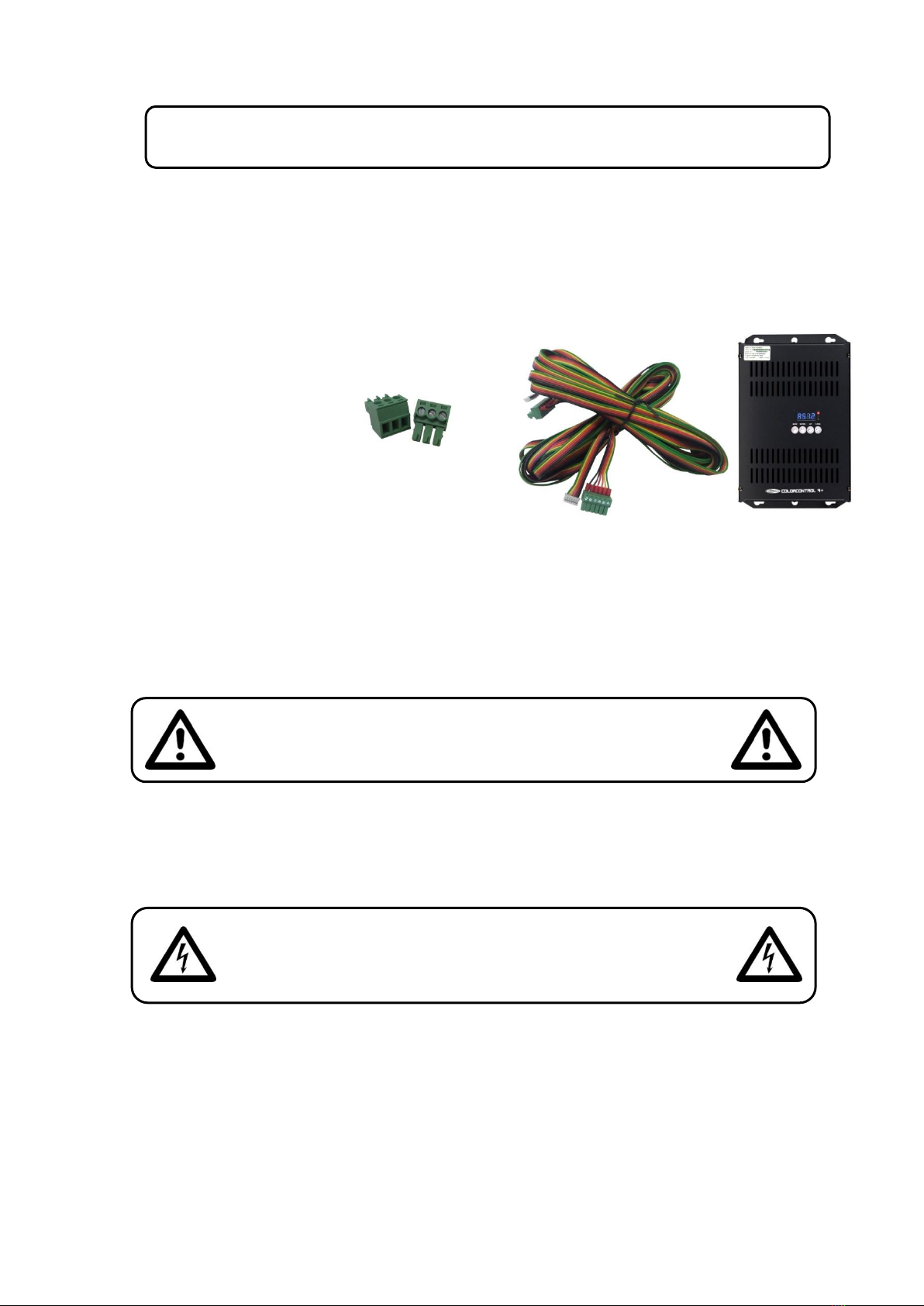

Your shipment includes:

• Showtec Controller for LED Colorline with 1,6m powercable

• 2x connector for DMX control

• 4x connectioncable 5m.

• User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved

under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place

care in providing for lower operational temperatures. This may include climatic-environmental and the

reduction of overall projection intensity.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never look directly into the light source.

Never leave any cables lying around.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If a ColorLine is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Mount the ColorLine to the trussing system.

The ColorLine must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the ColorLine, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The ColorLine Controller is designed for the more demanding user:

• Standalone

• DMX-512

• Power consumption: max. 300 Watt

• Stand-alone Operation: Master/Slave Mode

Manual Color mixing

Manual chases with adjustable speed and fade

9 chases

• Standard 4 channels and full function 7 channel DMX control

• Easy to use in each deco application

• Compact design housing

• Included in the box: 1x Controller for LED ColorLine

4X 5m connection cable

1x 3-pin input terminal connector

1x 3-pin output terminal connector

Overview

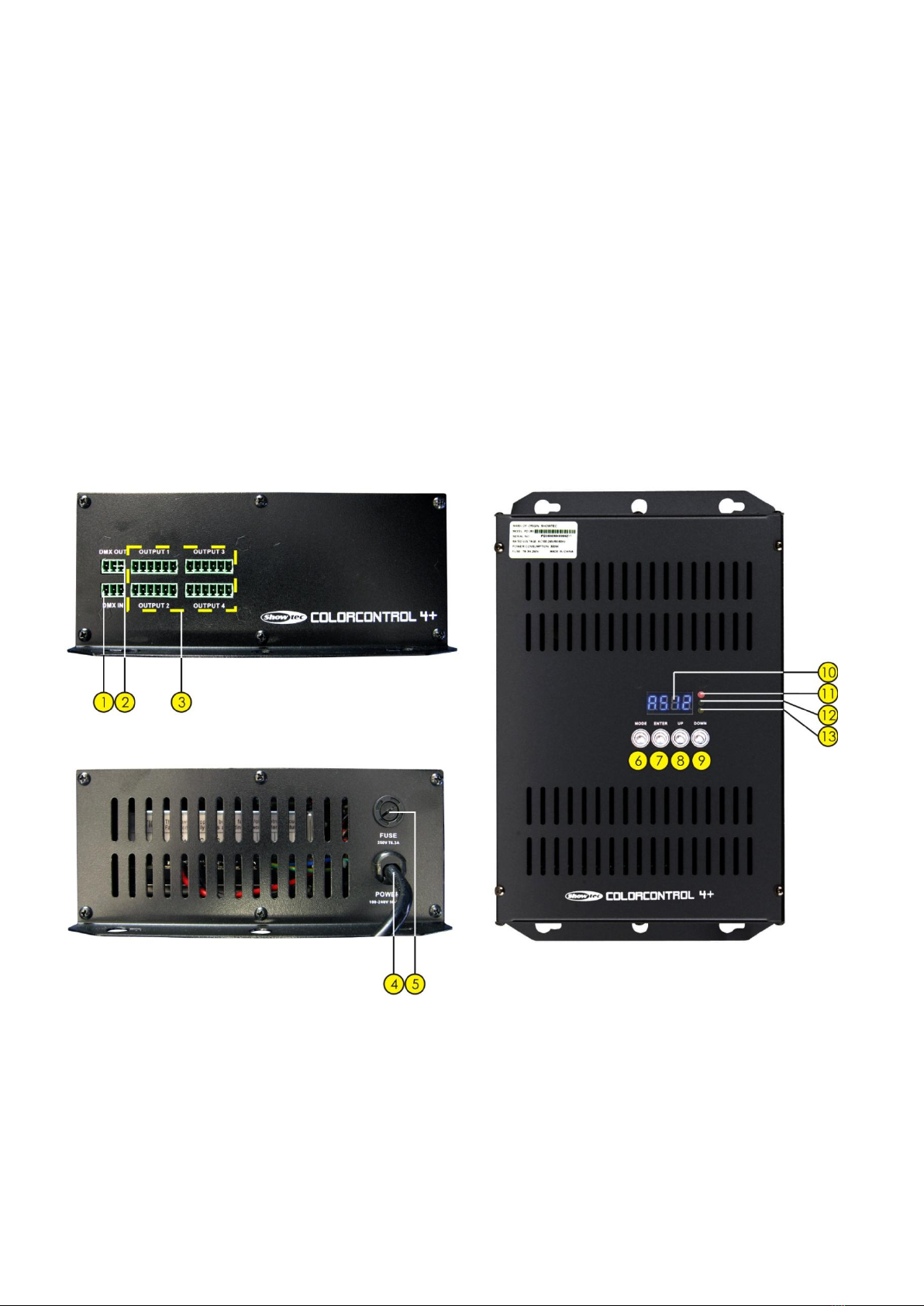

Fig. 1

1) DMX Input 8) Up

2) DMX Output 9) Down

3) 6-pin Terminal 10) Digital Display

4) Fuse 6,3A 250V 11) Power LED

5) Powercable 12) DMX LED

6) Mode 13) Master LED

7) Enter

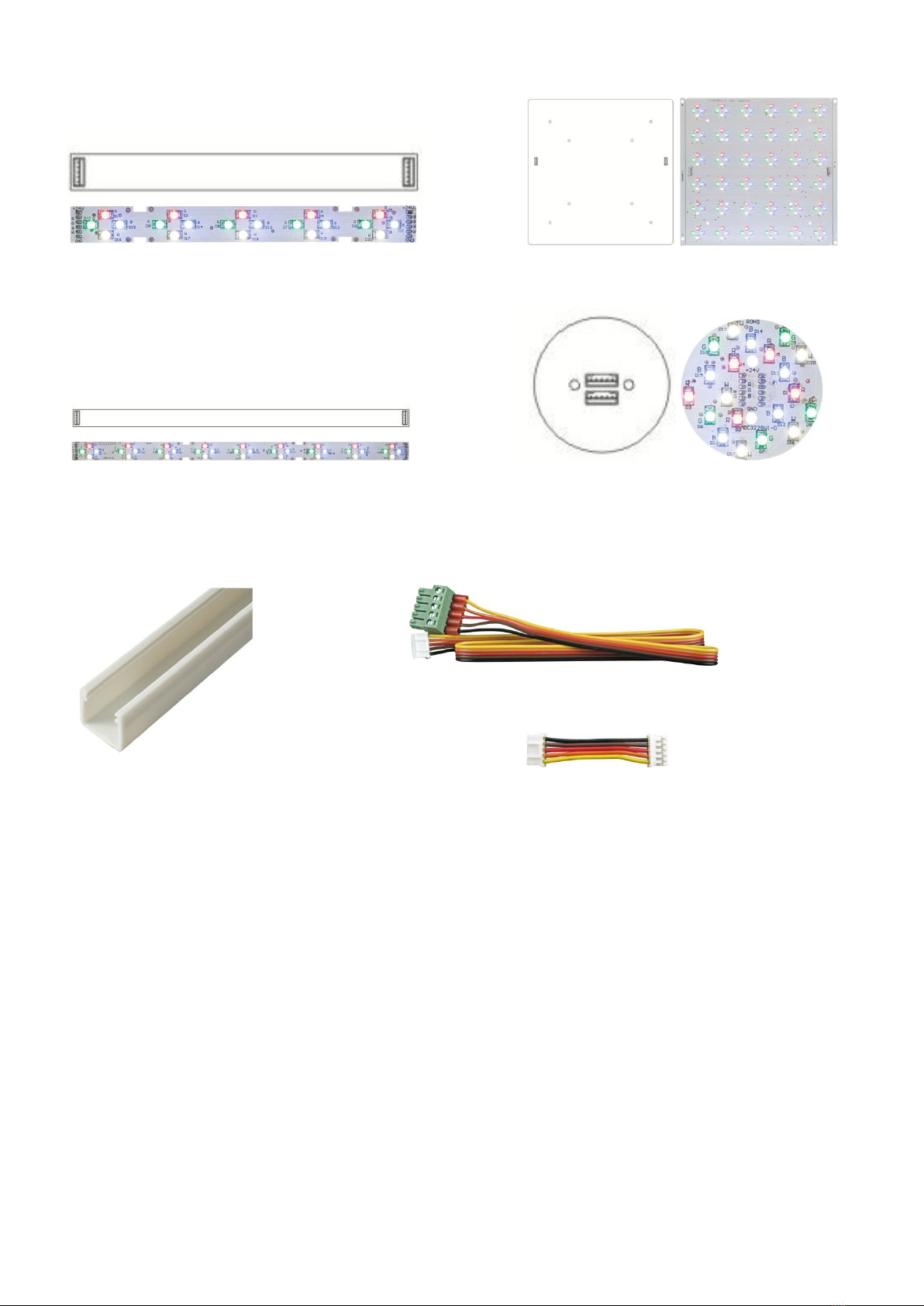

Colorline Series

LED ColorLine 150+ (43110) LED ColorBoard 300+ (43112)

20 LEDs (5 Red, 5 Green, 5 Blue, 5 White) 144 LEDs (36 Red, 36 Green, 36 Blue, 36 White)

LED ColorLine 300+ (43111) LED ColorDot 50+ (43113)

36 LEDs (9 Red, 9 Green, 9 Blue, 9 White) 20 LEDs (5 Red, 5 Green, 5 Blue, 5 White)

Accessories

Mountingstrip for ColorLine (43130) Connection Cable for ColorLine

43135 5 cm

43136 30 cm

43137 1m

LUX Values

ColorLine150+ 58 LUX @ 0.5m

ColorLine 300 + 100 LUX @ 0.5m

ColorDot 50 + 60 LUX @ 0.5m

ColorBoard 300+405 LUX @ 0.5m

Mounting the ColorLine Series

ColorLine 150+/300+ (43110/43111)

Optional mounting bracket (43130) is required for installation. Place the mounting bracket on the desired

surface and drill some holes. Use screws to fix the bracket to the surface and simply slide the ColorLine

150+/300+ into the mounting bracket.

ColorBoard 300+ (43112)

Determine the desired mounting surface, place the included plastic spacers under the ColorBoard 300+.

Then use 4 screws to fasten the ColorBoard 300+ onto the surface through spacer.

ColorDot 50+ (43113)

Determine the desired mounting surface, place the included plastic spacers under the ColorDot 50+.

Then use 2 screws to mount the ColorDot 50+ onto the surface through spacer.

Controller for LED ColorLine (43121)

Screw the 4 included screws through the installation holes located on each corner of the ColorLine.

All screws must be securely fastened. You can either mount it on a wall or a floor. Before attaching the

device, make sure that the installation surface can hold a minimum point load of 10 times the device’s

weight.

Wall Mount Floor Mount

Table des matières

Autres manuels Show Tec Contrôleurs

Show Tec

Show Tec Festoonlight Q4 Booster Manuel utilisateur

Show Tec

Show Tec ColorCue 1 Manuel utilisateur

Show Tec

Show Tec PLE-30-040 Manuel utilisateur

Show Tec

Show Tec LED Octostrip Set MKII 100 cm V2 Manuel utilisateur

Show Tec

Show Tec SCENE PILOT Manuel utilisateur

Show Tec

Show Tec LED Dim Pro Manuel utilisateur

Show Tec

Show Tec Showmaster 48 MKII Manuel utilisateur

Show Tec

Show Tec 42233 Manuel utilisateur

Show Tec

Show Tec 50701 Manuel utilisateur

Show Tec

Show Tec Creator 2048 Manuel utilisateur

Show Tec

Show Tec ColorCue 4 Manuel utilisateur

Show Tec

Show Tec SC-2412 Manuel utilisateur

Show Tec

Show Tec Scanmaster 2 MKII Manuel utilisateur

Show Tec

Show Tec 70237 Manuel utilisateur

Show Tec

Show Tec 50348 Manuel utilisateur

Show Tec

Show Tec TR-512 Manuel utilisateur

Show Tec

Show Tec Lite-4 Manuel utilisateur

Show Tec

Show Tec SCANMASTER 3 Manuel utilisateur

Show Tec

Show Tec Fademaster 16 Manuel utilisateur

Show Tec

Show Tec Lite-12 Manuel utilisateur

Show Tec

Show Tec DMX Merge V2 Manuel utilisateur

Show Tec

Show Tec PLE-30-040 Manuel utilisateur

Show Tec

Show Tec Pixel V1 Manuel utilisateur

Show Tec

Show Tec Light Desk Pro 136 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
