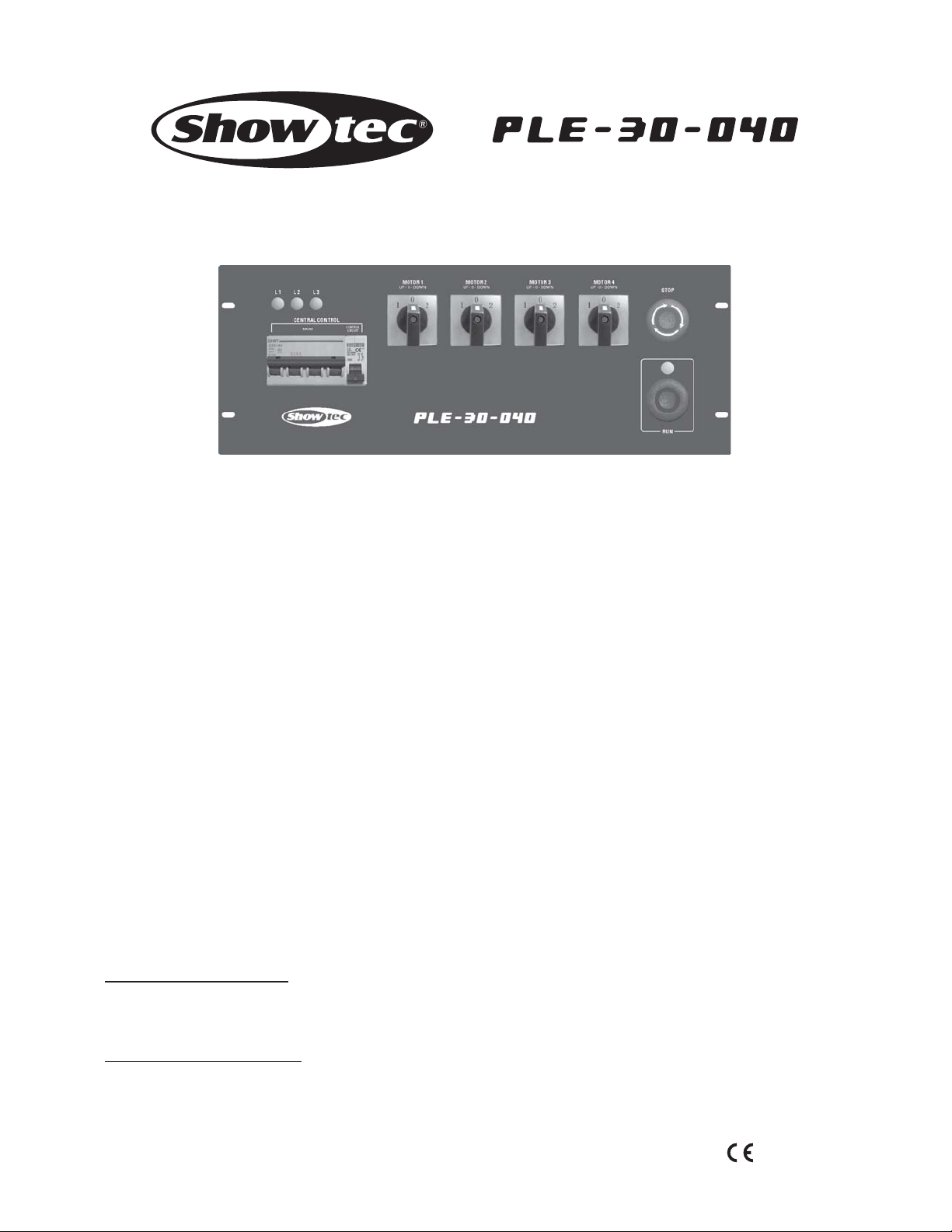

Show Tec PLE-30-040 Manuel utilisateur

Coating:

Input:

Output:

Motor control:

RUN/STOP control:

Mounting:

Net Weight:

Coated with blue epoxy powder paint

AC230V~3Phase 32A/Phase

4x CEE sockets & 1xILME socket

4 Universal Changeover Switches

2 Push Button Switches

19" rack mount/4U

Approx 7.0 Kg

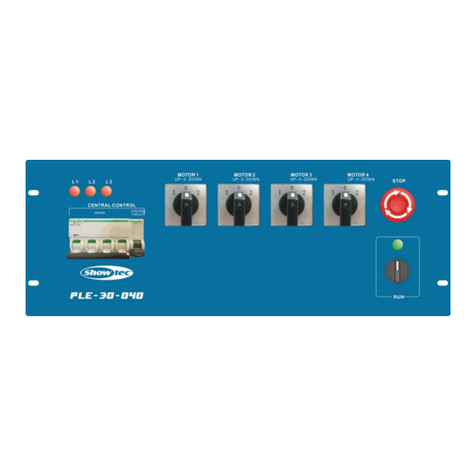

This is a versatile 32A three-phase, 4-way motor commander with a choice of either one ILME

socket or 4 CEE sockets for output loading. The Forward, Backward Rotation and Idle modes

are available by flipping the universal changover switch. And the emergency stop of the motor

is available by pushing the push button switch under the fault condition. Furthermore, one 32 A

residential circuit breaker and one 2 Amp MCB are be used for protection when a fault condition

or voltage spike. Also, a CEE-plug is provided for plugging in power. 19" rack mount/4U front

panel profile design gives you peace of mind. Please read carefully this instruction and printings

on the case of this product before operation.

User Manual

Product Descriptions:

Technical Details:

Operating Instructions:

Forward Rotation Mode

When powering on, select the desired motor, and flip its universal changeover switch to the "UP"

position to access to the Forward Rotation Mode, then press the "RUN" push button to run forward.

24-004-1773

Rev1.0

Backward Rotation Mode

When powering on, select the desired motor, and flip its universal changeover switch to the

"DOWN" position to access to the Backward Rotation Mode, then press the "RUN" push button

to run backward.

Emergency Stop Mode

When powering on, user can press the "STOP" push button to stop emergently under any fault

operation condition.

WARNING!

-The ground connection should be so essential!

-Risk of electric shock, disconnect input power before opening.

-To prevent fire or electric shock, do not expose this apparatus under a high temperature or

moisture area.

-Specifications and improvements in the design and this manual of this product are subject to

changes without any prior written notice.

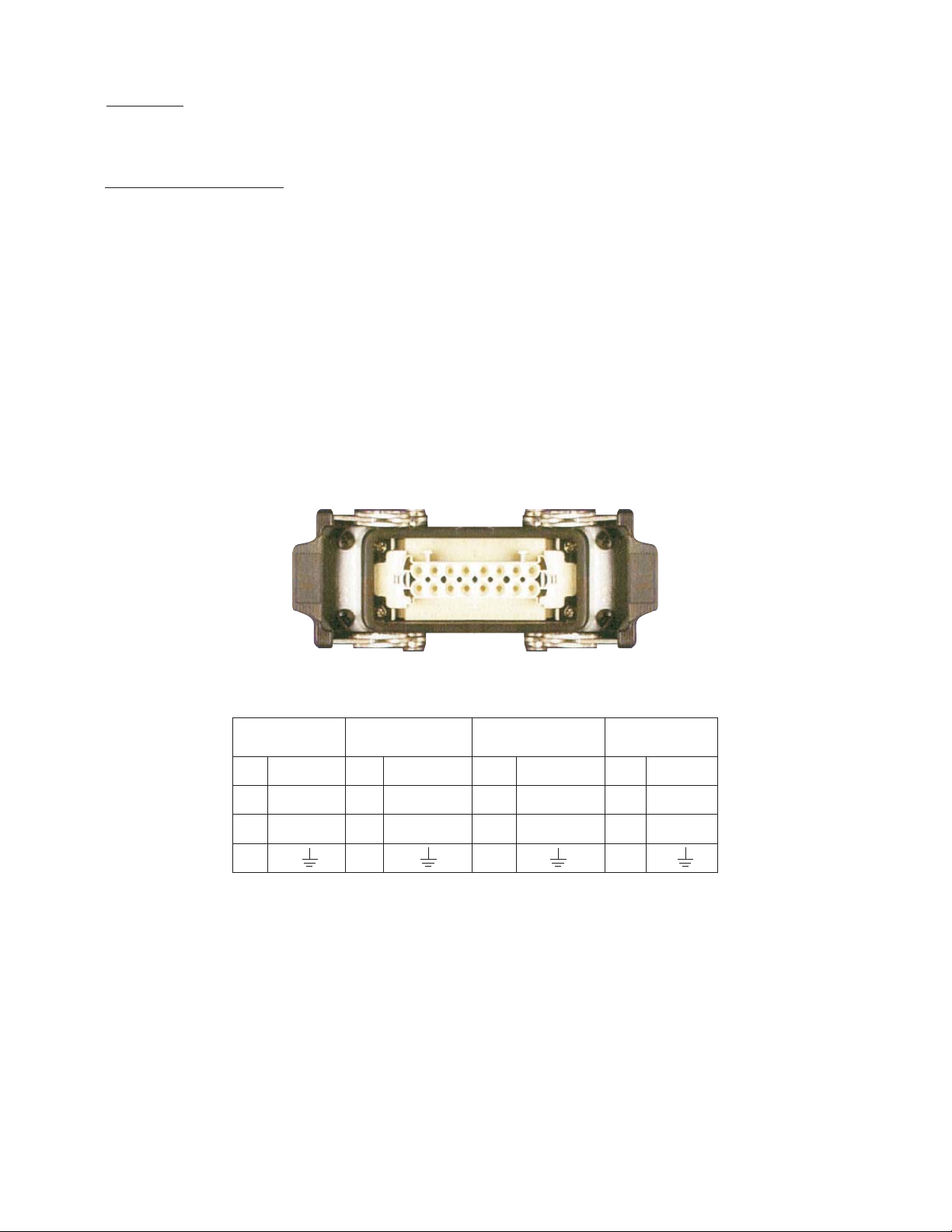

Appendix i:ILME Pin Assignment and Connector Motors

16-pin ILME socket(x1pcs)

1

2

3

4

L1

L2

L3

5

6

7

8

L1

L2

L3

9

10

11

11

12

L1

L1

L2

L2

L3

L3

L1

L1

L2

L3

L3

MOTOR 1 MOTOR 2 MOTOR 3 MOTOR 4

Pin Pin Pin Pin

Pin

13

14

15

16

Idle Mode

When powering on, select the desired motor, and flip its universal changeover switch to the "0"

position to access to the Idle Mode, all four outputs are isolated and any operations are void.

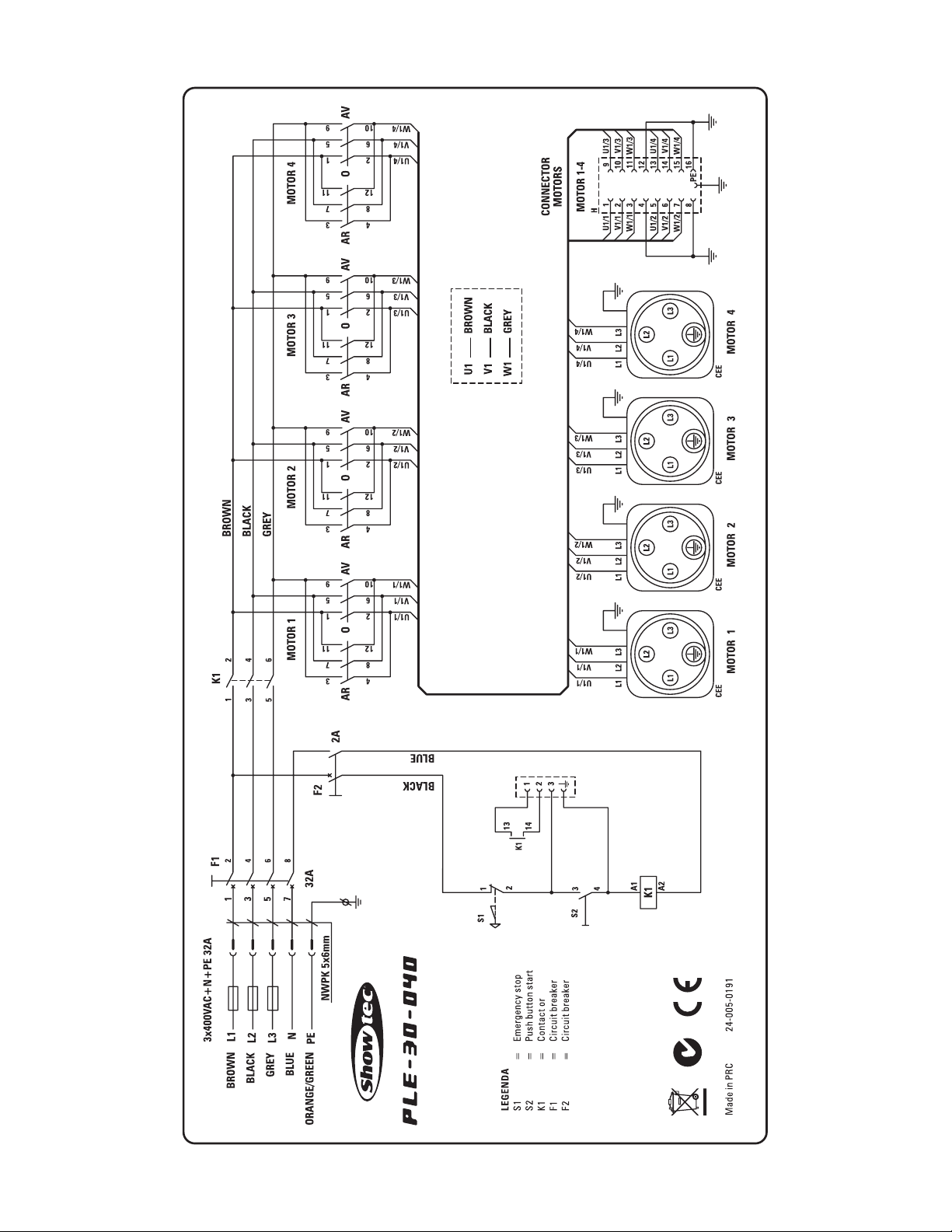

Appendix ii:Interior Connection Diagram
