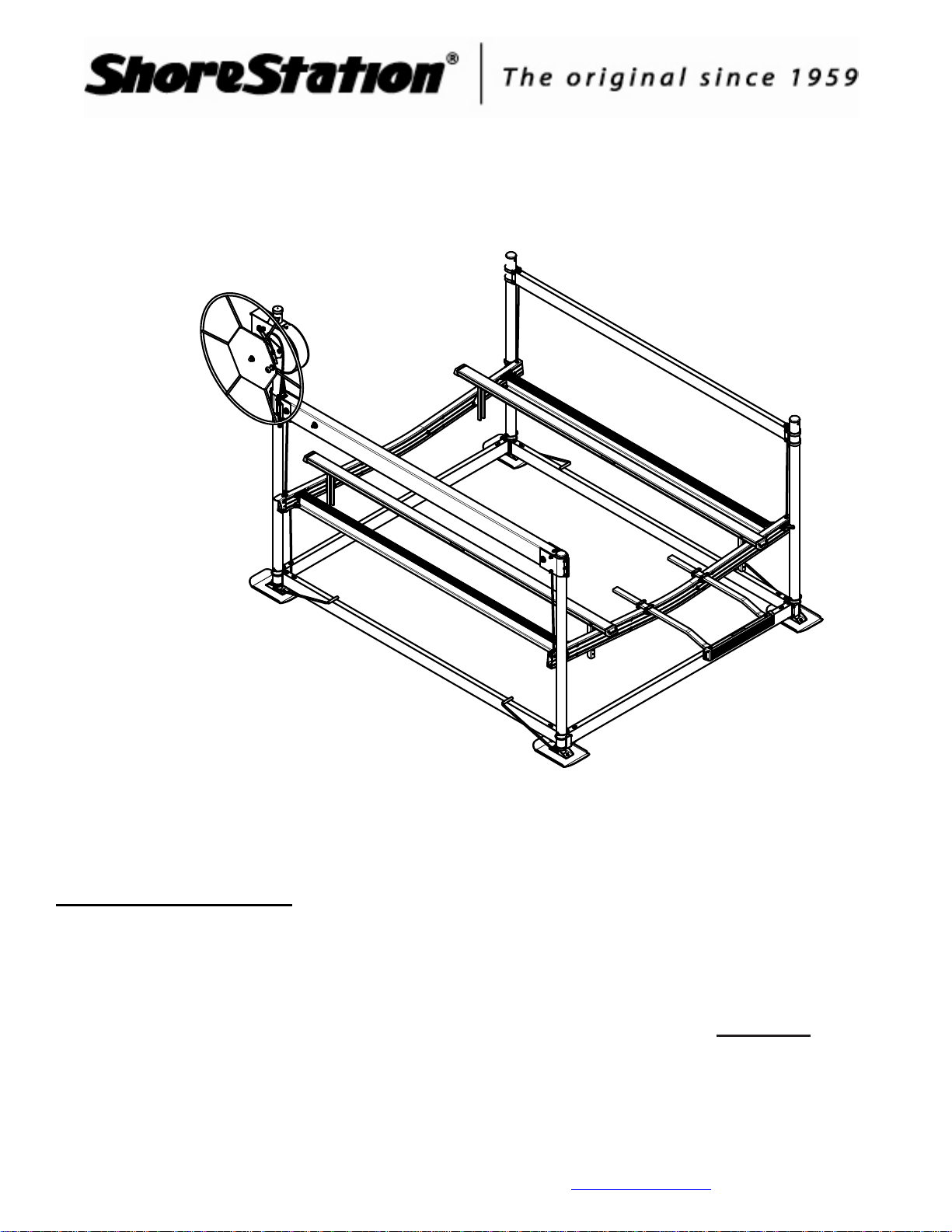

ShoreStation SSV60108MS Manuel utilisateur

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 1 of 41 12/01/2009

ACCESSORY

Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the

enclosed instructions will insure you that your lift is properly assembled.

SSV60108MS

Manual 6000# 108” Aluminum Cradle with Stainless Steel Fasteners

SSV60108MS STANDARD LIFT

68261 Lower Frame Bundle 50/60108

70225 Platform Bundle Alum 50/60M&E

7035701 Wheel Big Lift ShoreStation SS

7036501 Winch Assy Hoist 60108/120 SS

70366 Winch Tube Bundle V60108/120 SS

70362 Leg Bundle SSV60108/60120SS

70412 Lit Packet SSV60108MS

70364 Hdwe Box SSV60108/120MS/E

HA0086 Bunk Poly 4000H/6000M/E Alum

HA0087 Motor Stop Bundle 5.75 Alum V

ATTENTION: This Boat Lift uses

stainless steel fasteners. ALWAYS apply

anti-seize to fastener threads before

assembly to prevent galling or seizing.

SSV60108MS

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 5 of 41 12/01/2009

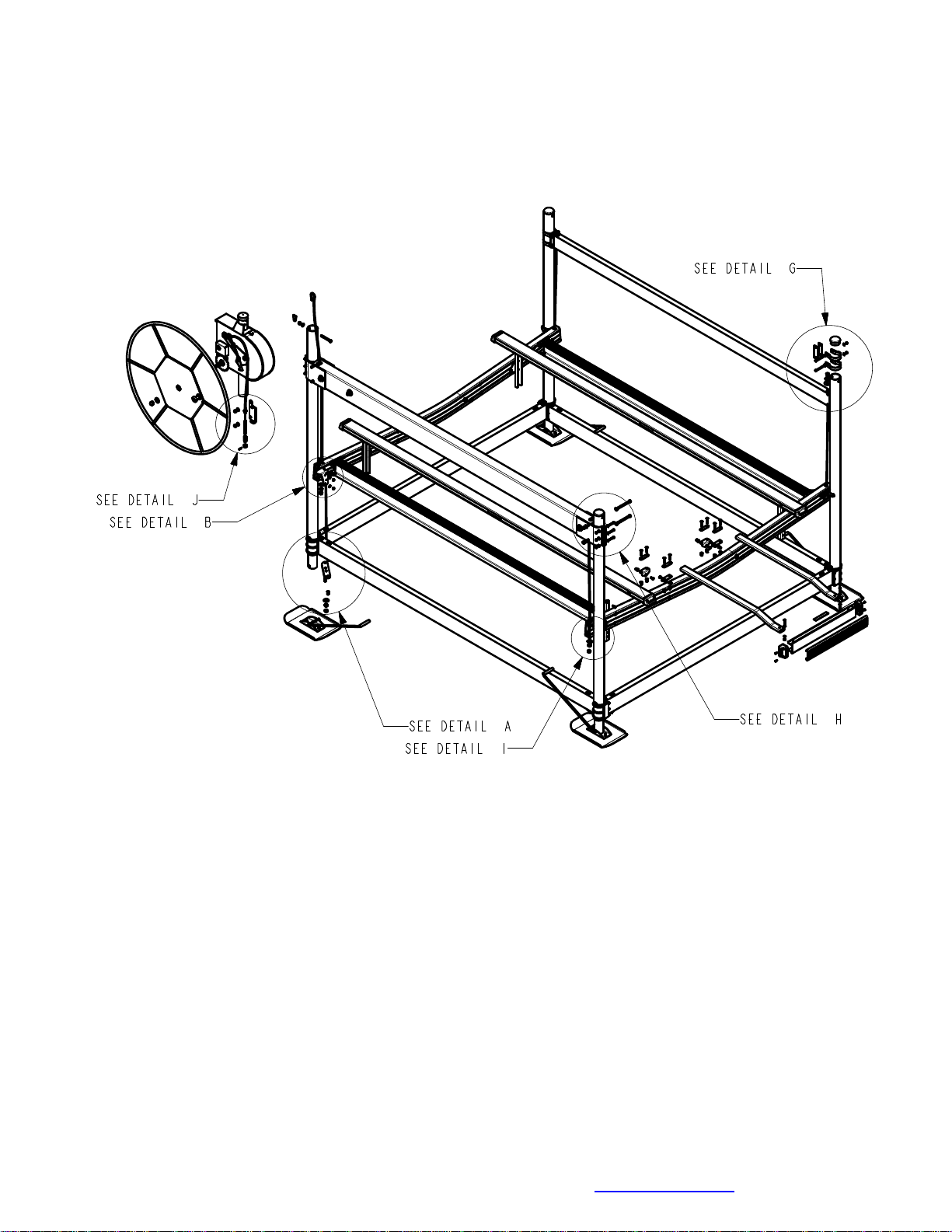

The diagram below and the line art drawings on the following pages are there to give you information on where

parts are used and if needed the part numbers you will need if replacement parts are needed.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 6 of 41 12/01/2009

.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 7 of 41 12/01/2009

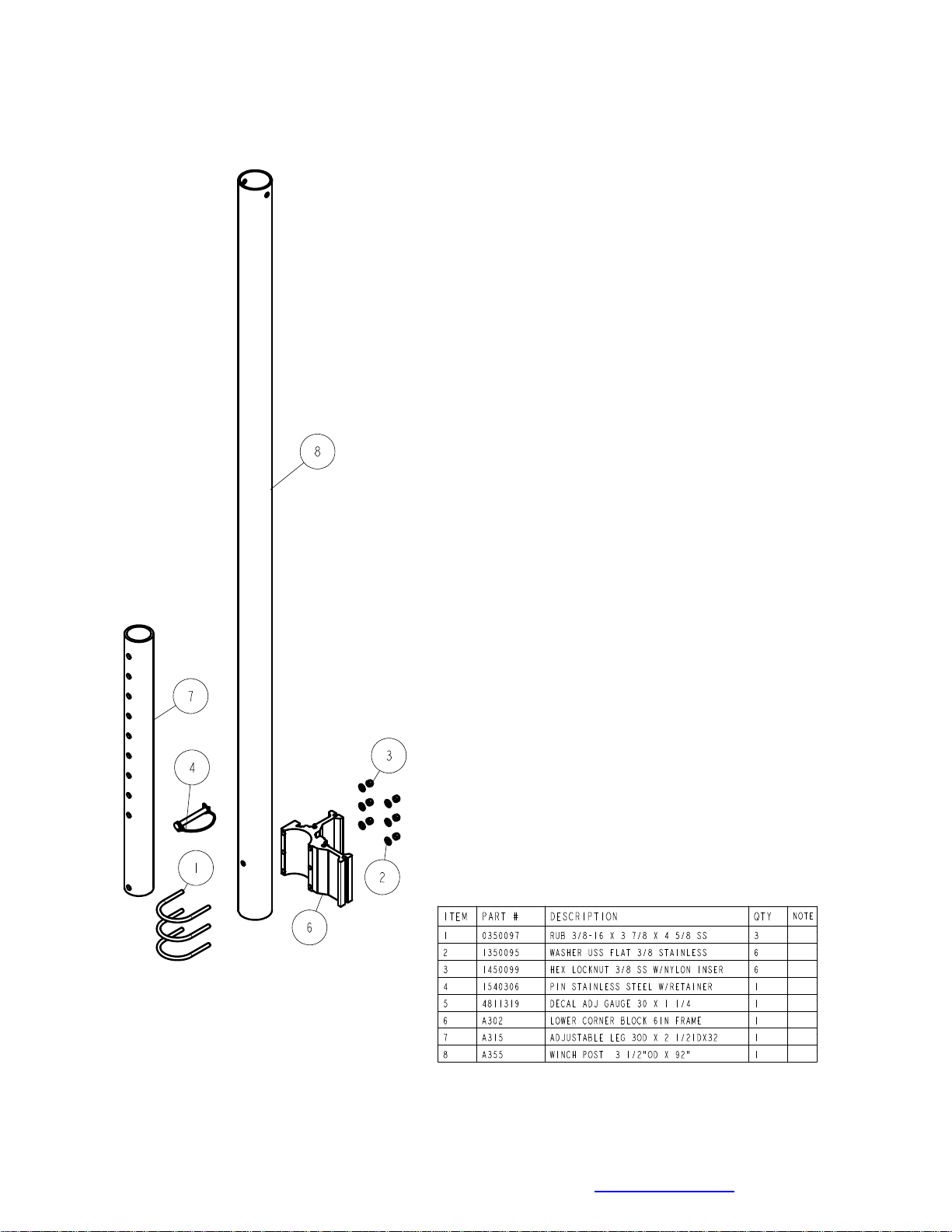

Standard Winch Tube Leg Assemblies

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 8 of 41 12/01/2009

Standard Leg Assemblies

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 9 of 41 12/01/2009

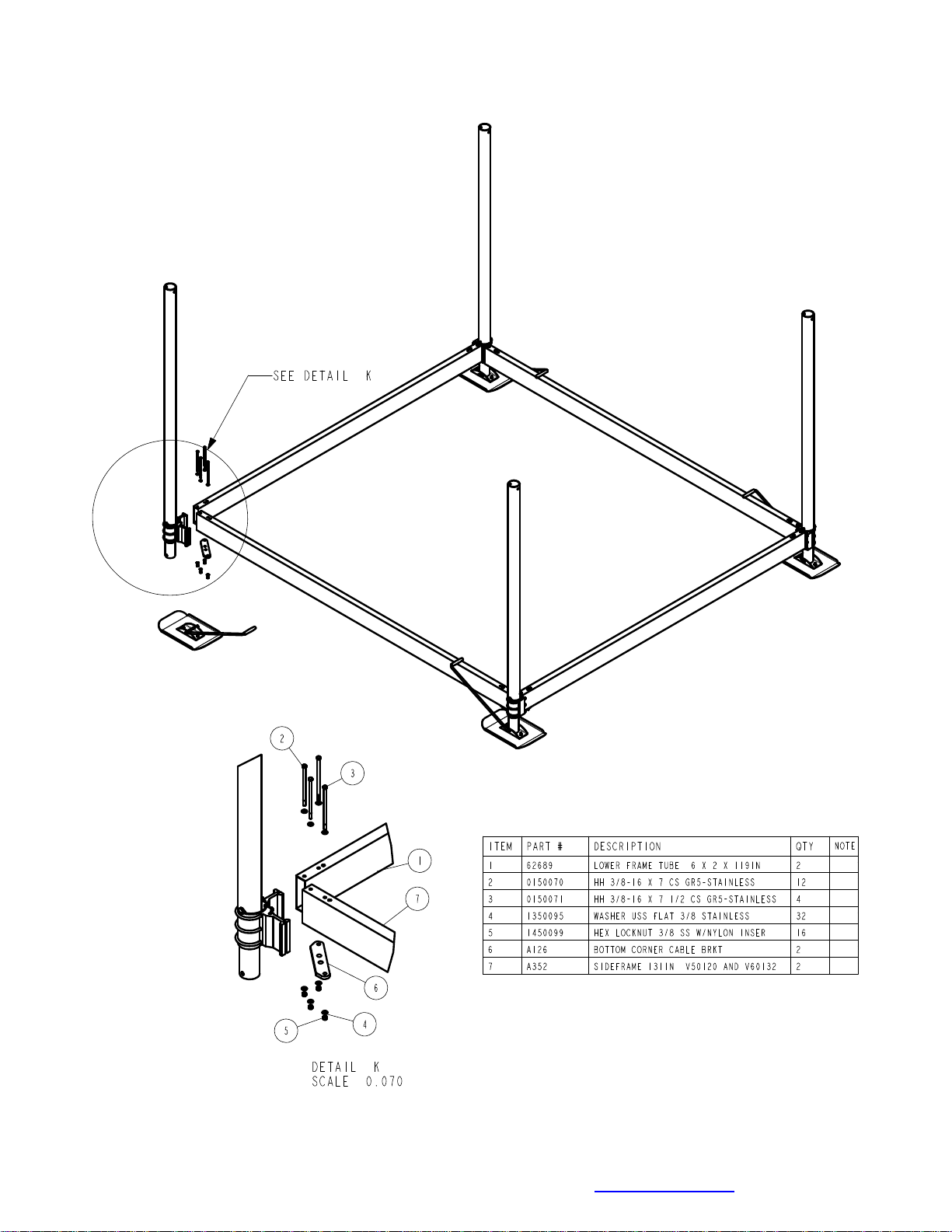

Lower Frame Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 10 of 41 12/01/2009

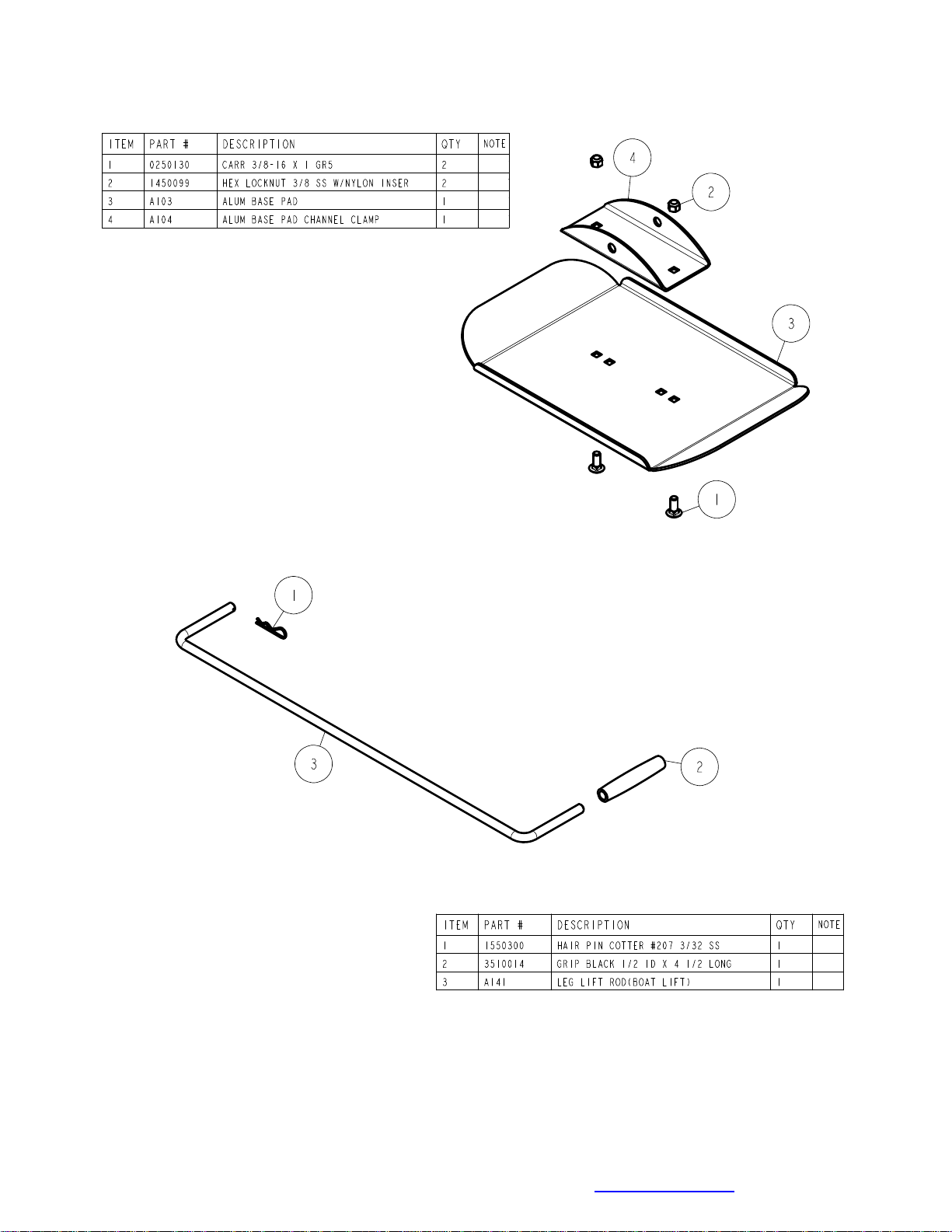

Aluminum Platform Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 11 of 41 12/01/2009

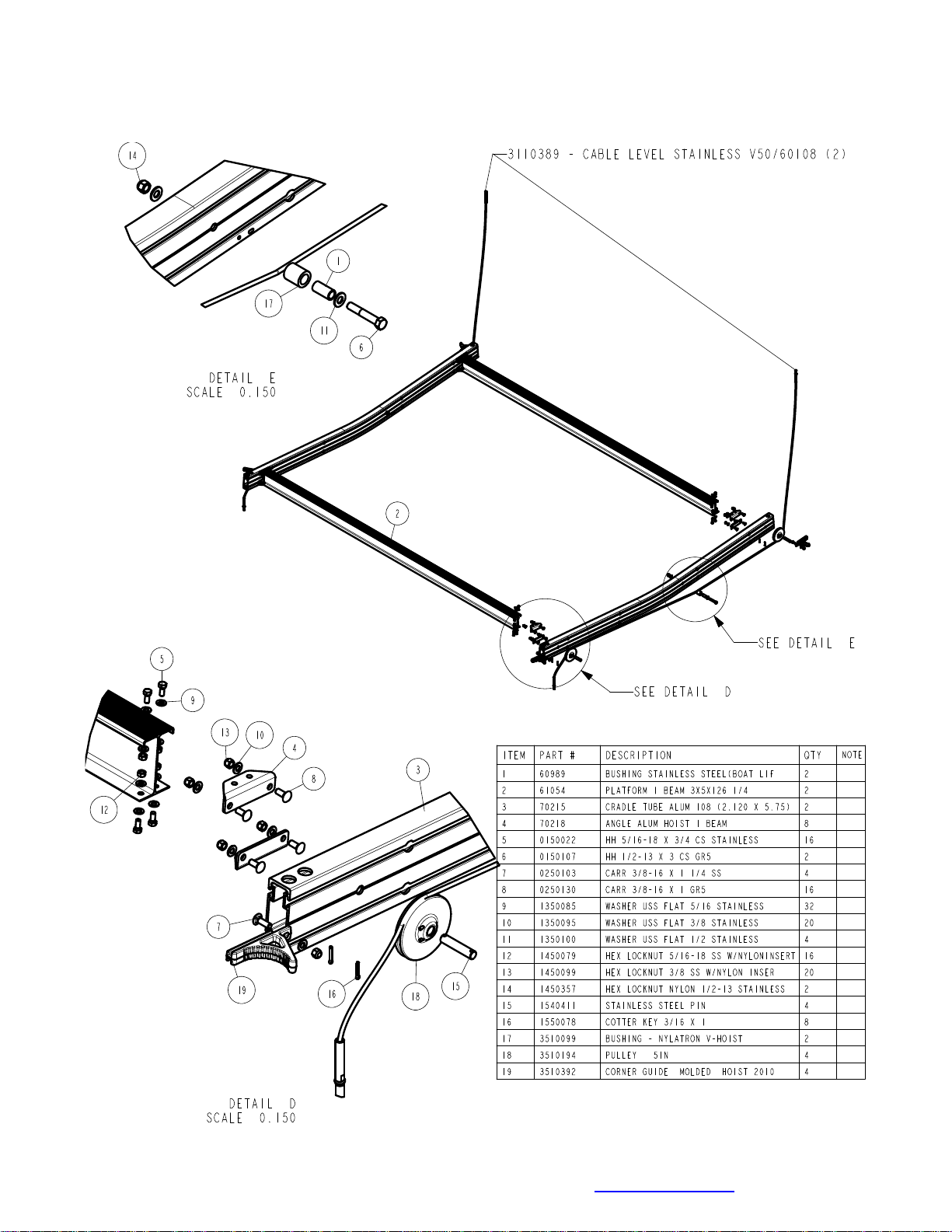

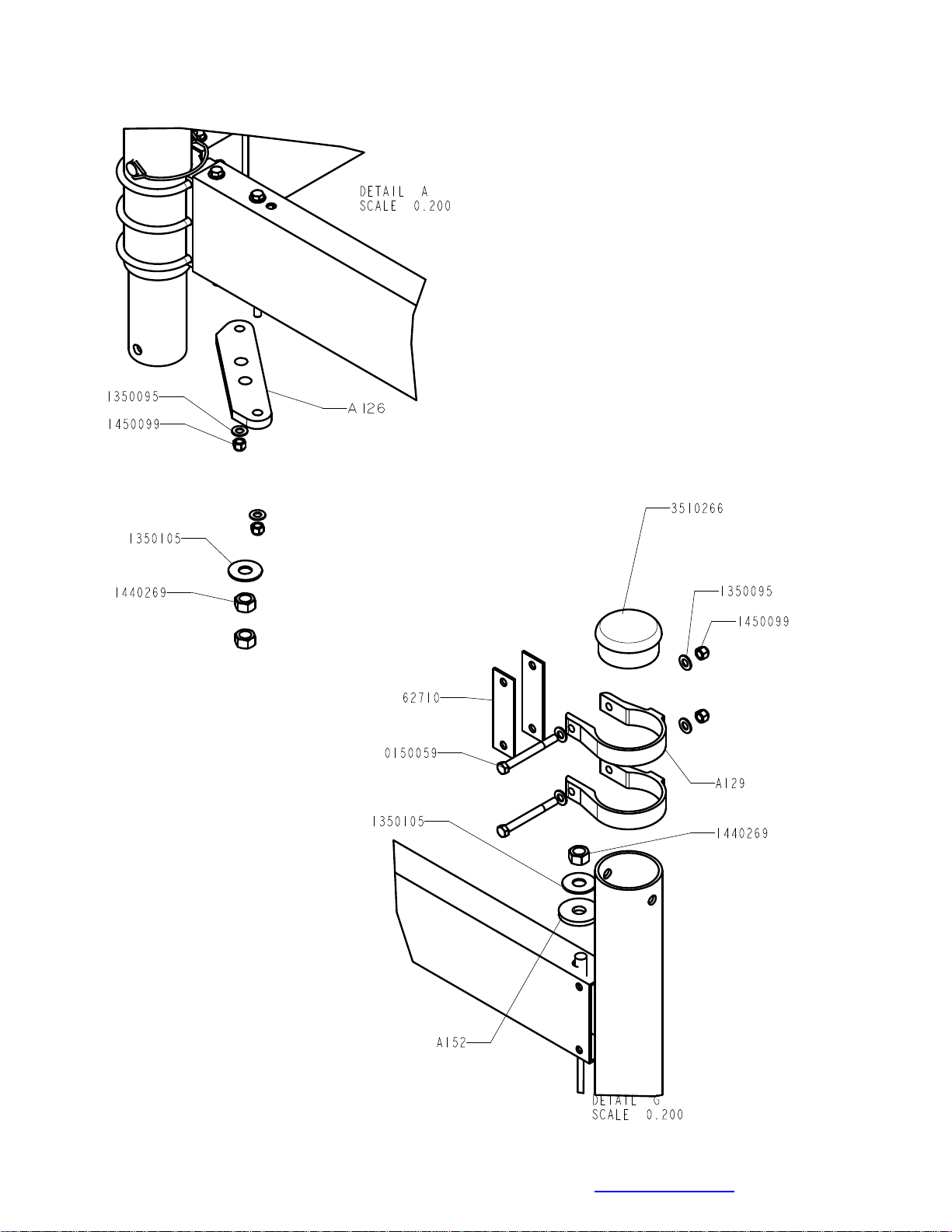

Brace Tube Mounting/Level Cable

Mounting Hardware and Leg Tube Cap

Bottom Level Cable Mounting Hardware

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 12 of 41 12/01/2009

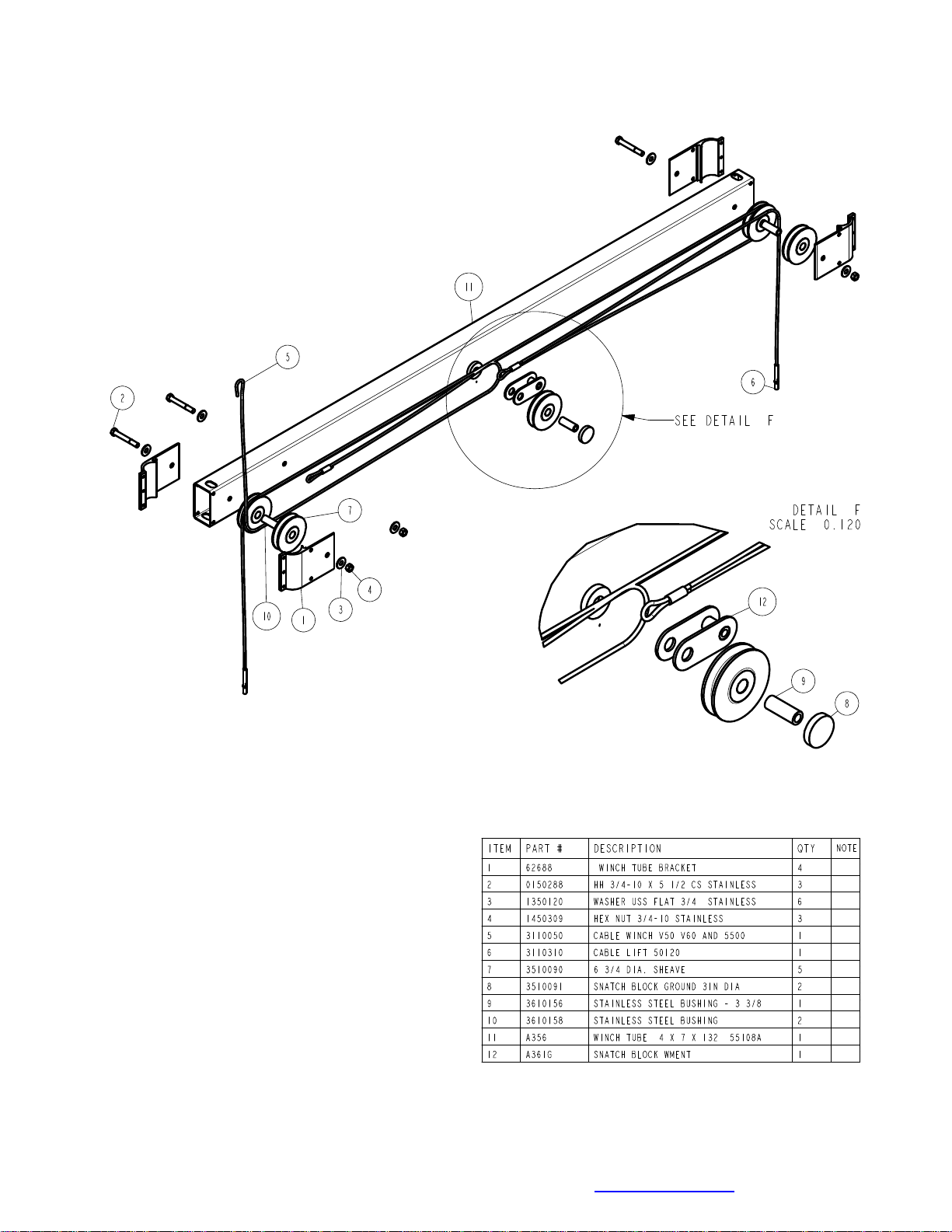

Winch Tube Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004141

Page 13 of 41 12/01/2009

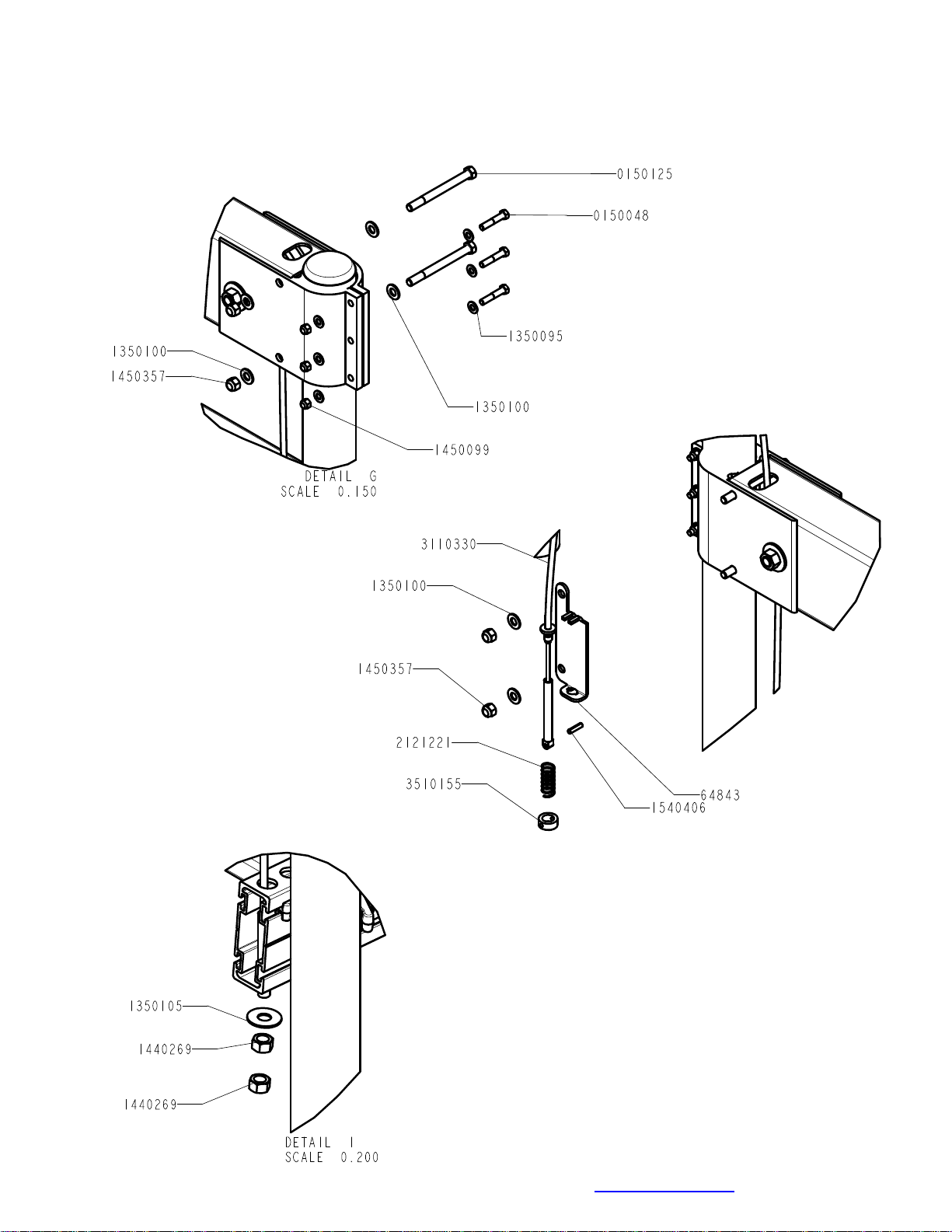

Lift Cable Mounting Hardware

Winch Tube Mounting Components

Mechanical Wheel Stop Mount
