SS1053 - HOIST PWC DOCK MOUNT

Your ShoreStation PWC Boat Hoist is designed to give years of dependable service. Following the

instructions in the operator’s manual will insure its dependability and more important, YOUR safety.

Read through this entire operator’s manual before attempting to operate your hoist. Our goal is your

safety - help us help you by knowing and observing the operating precautions and limitations you

will find listed herein. If you do not understand any of these instructions, please ask your dealer for

his personal attention to your questions.

Midwest Industries, Inc.

Ida Grove, IA 51445

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 2 of 12 Rev B 11/05/2013

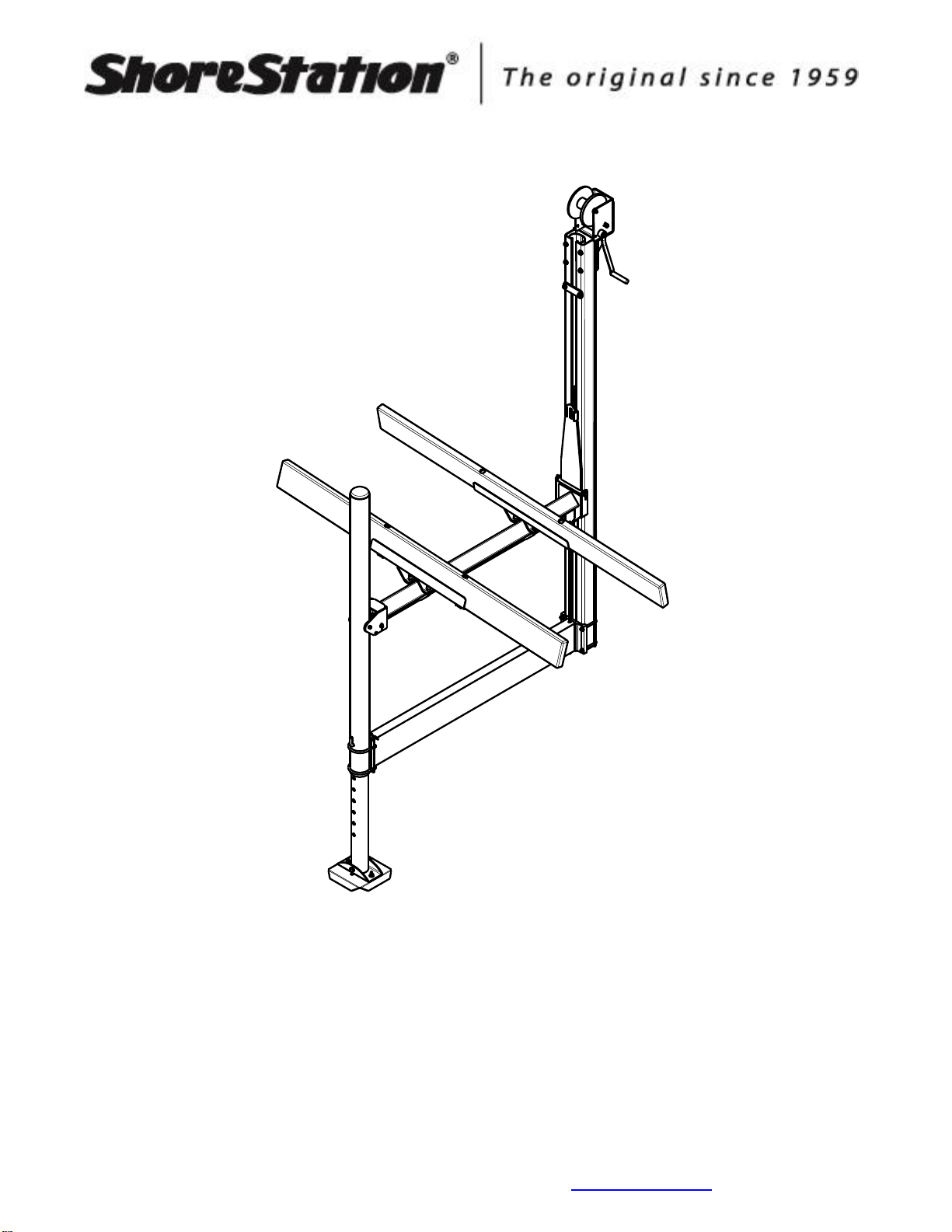

SS1053 Shown with Bundles

71059 Leg Bundle SS1053 90” W/Post

71061 HDWE Box SS1053 Manual Winch

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 3 of 12 Rev B 11/05/2013

Tools Required

9/16” Socket/Wrench

3/4" Socket/Wrench

Assembly

Select the bundles required. Break open the bundles

and open boxes and bags and sort parts.

Mount the aluminum base pad channel clamp to the

base pad using two (2) 3/8” X 1” hex bolts and two (2)

3/8” flange lock nuts. Tighten securely.

Attach the adjustable leg to the assembled base pad

and channel using a 1/2” X 4-1/2” hex bolt and secure

with a 1/2” flange lock nut. Tighten only enough to

have a couple of threads showing out of the locknut.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 4 of 12 Rev B 11/05/2013

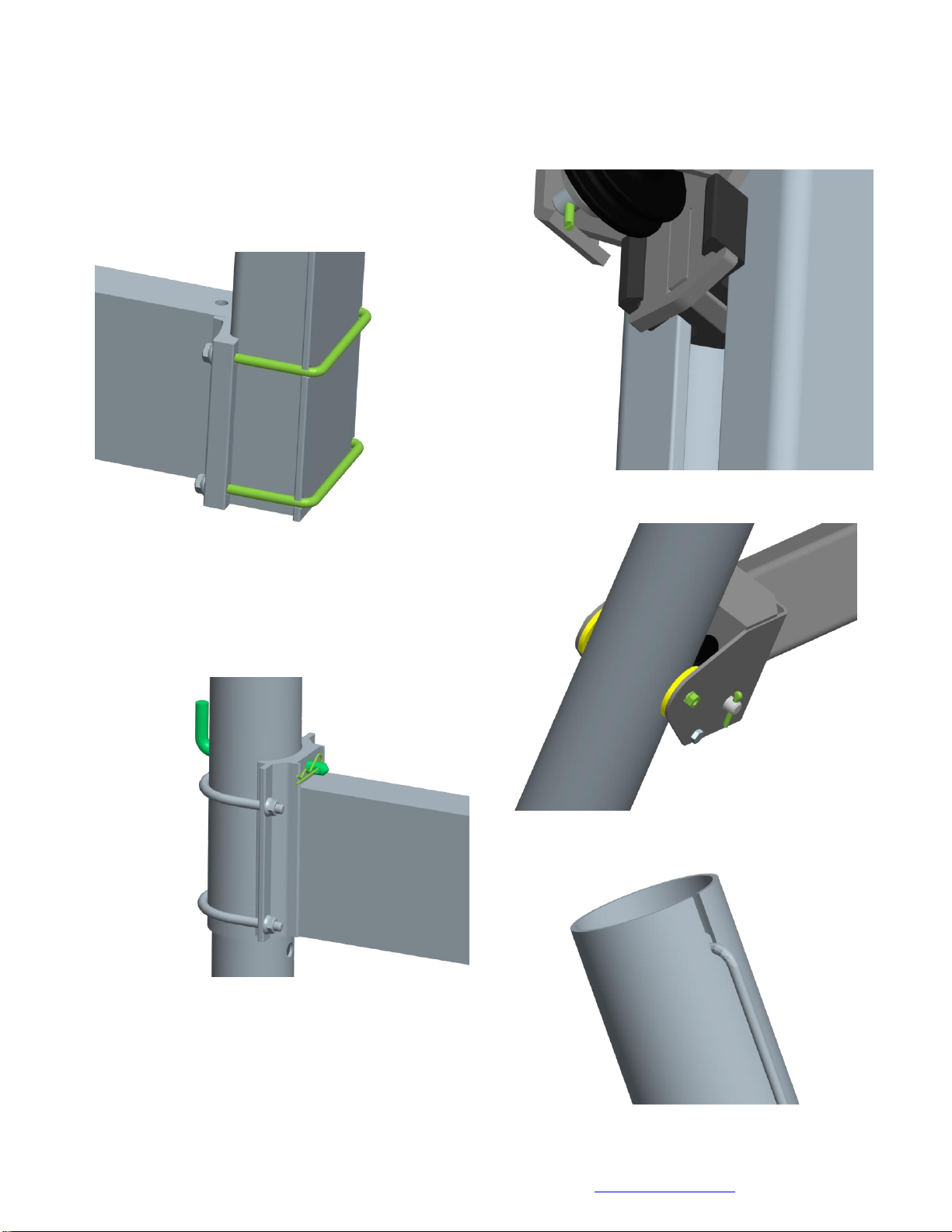

Mount the lower frame weldment to the winch post

extrusion, making sure that the leg pin aligning hole is

to the top side of the hoist, using two (2) 3/8” X 5-

3/16” X 3-7/8” square u-bolts. Slide the u-bolts thru

the notches on the bottom of the winch post extrusion,

the holes in the weldment and secure with 3/8” flange

lock nuts.

Mount the guide post tube to the opposite end of the

lower frame weldment using a leg adjustment pin and

making sure the slot in the guide post is to the inside

of the lift. Secure with a hitch pin clip. Also mount the

guide post tube to the lower frame tube using two (2)

3/8” X 3-7/8” X 3-7/8” RUB’s. Secure with 3/8” flange

lock nuts.

Slide the platform assembly into the winch post

extrusion as shown. Make sure that the side of the

assembly with the pulley goes in first.

Align the other end to slide down over the guide

post.

Hook the end of the cable into the slot on the guide

post.

Note; Be sure that the cable end is in the guide

post tube and the cable is in the notch.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 5 of 12 Rev B 11/05/2013

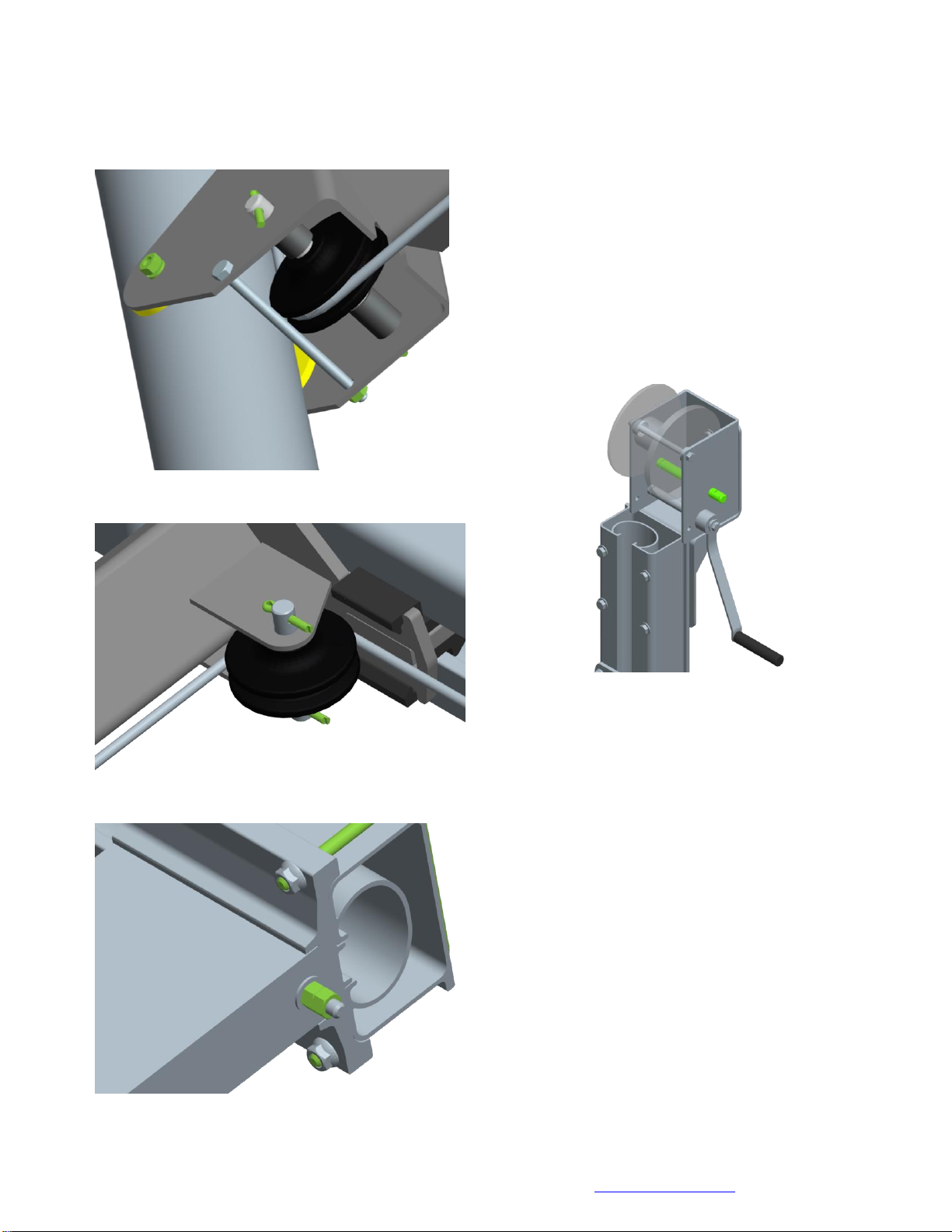

Route the cable down and around the pulley on the

platform weldment.

Run the cable across the bottom side of the platform

and over the pulley next to the winch post extrusion.

Thread down along the extrusion and thru the holes in

the lower frame weldment and secure on the bottom

side with a 3/8” flat washer and two (2) 3/8” hex nuts.

Mount the winch mounting plate to the winch

assembly using three (3) 3/8” X 1” hex bolts. Place

a 3/8” flat washer on each of the three (3) 3/8” X 1”

bolts. Insert the bolts into the slots of the winch

base. Align with the mounting holes in the winch

mounting bracket. Secure with 3/8” flange lock nuts.

Manual winch assembly is shown on next page.

Mount the winch assembly with winch mounting

bracket to the winch post extrusion using the four

(4) 3/8” X 3-3/4” hex bolts just installed. Place a 3/8”

flat washer on each of the four (4) 3/8” X 3-3/4” hex

bolts. Insert them into the holes provided in the top

of the winch post extrusion. Secure with 3/8” flange

lock nuts.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 6 of 12 Rev B 11/05/2013

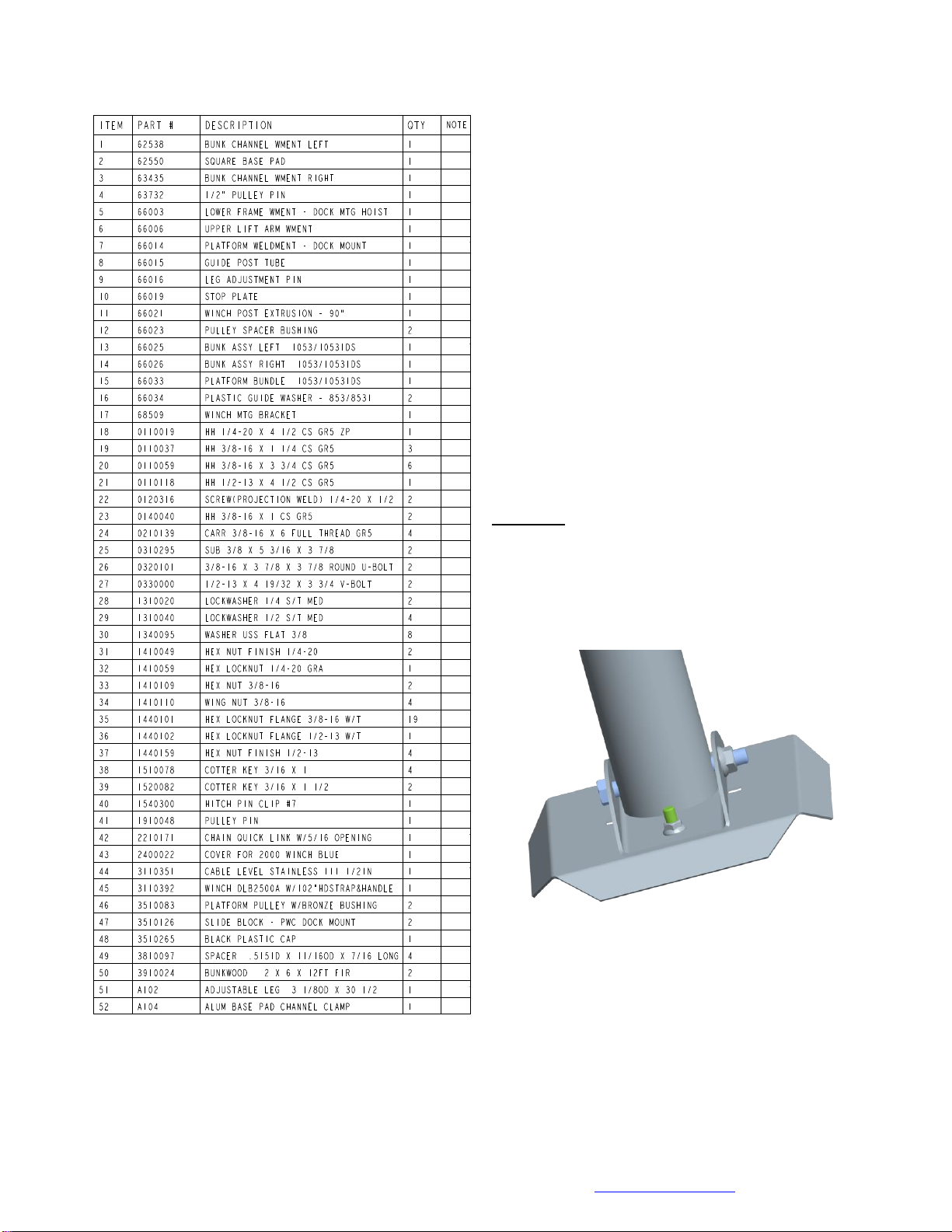

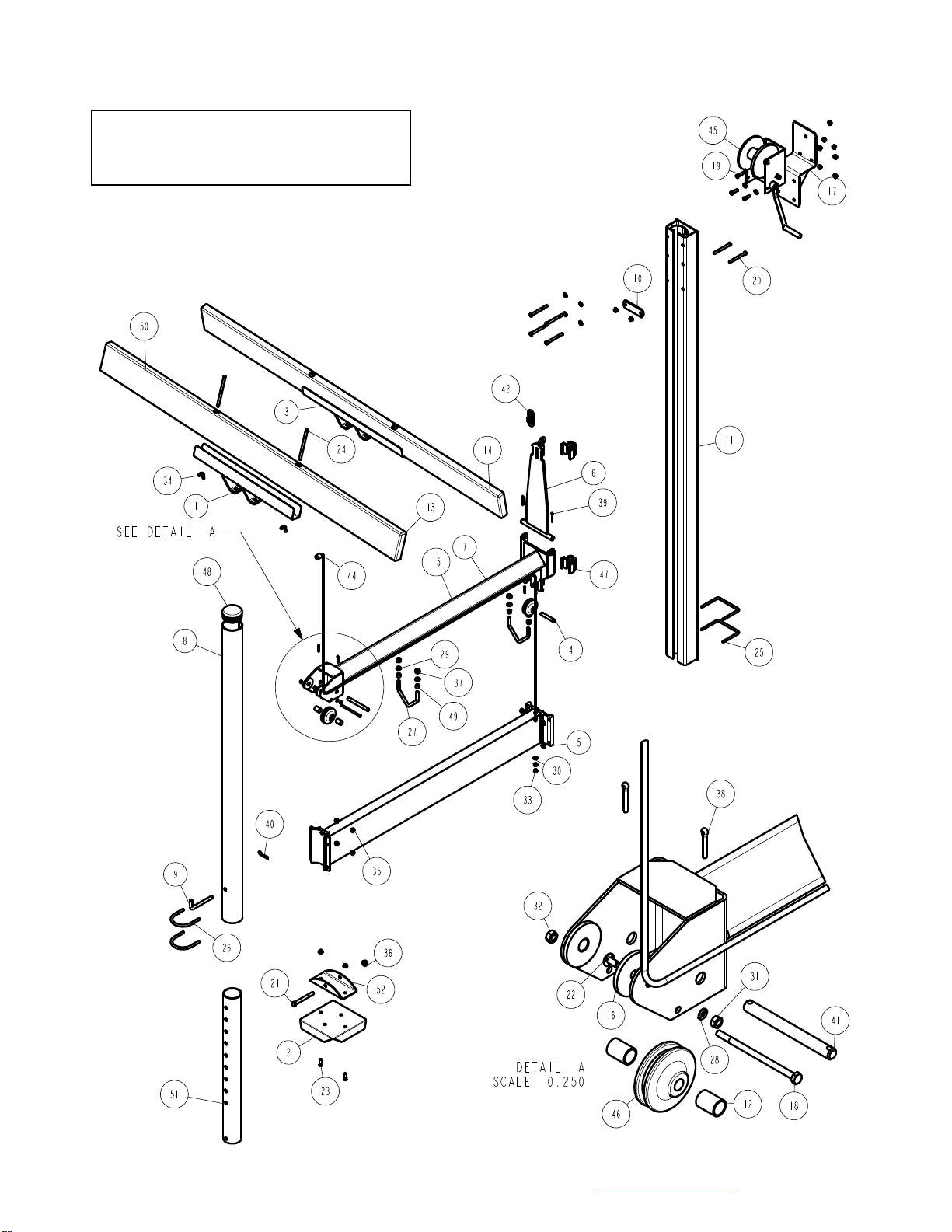

Bundle –71059

Leg Bundle SS1053 90” W/Post

Bundle –71060

Leg Bundle SS1053 120” W/Post

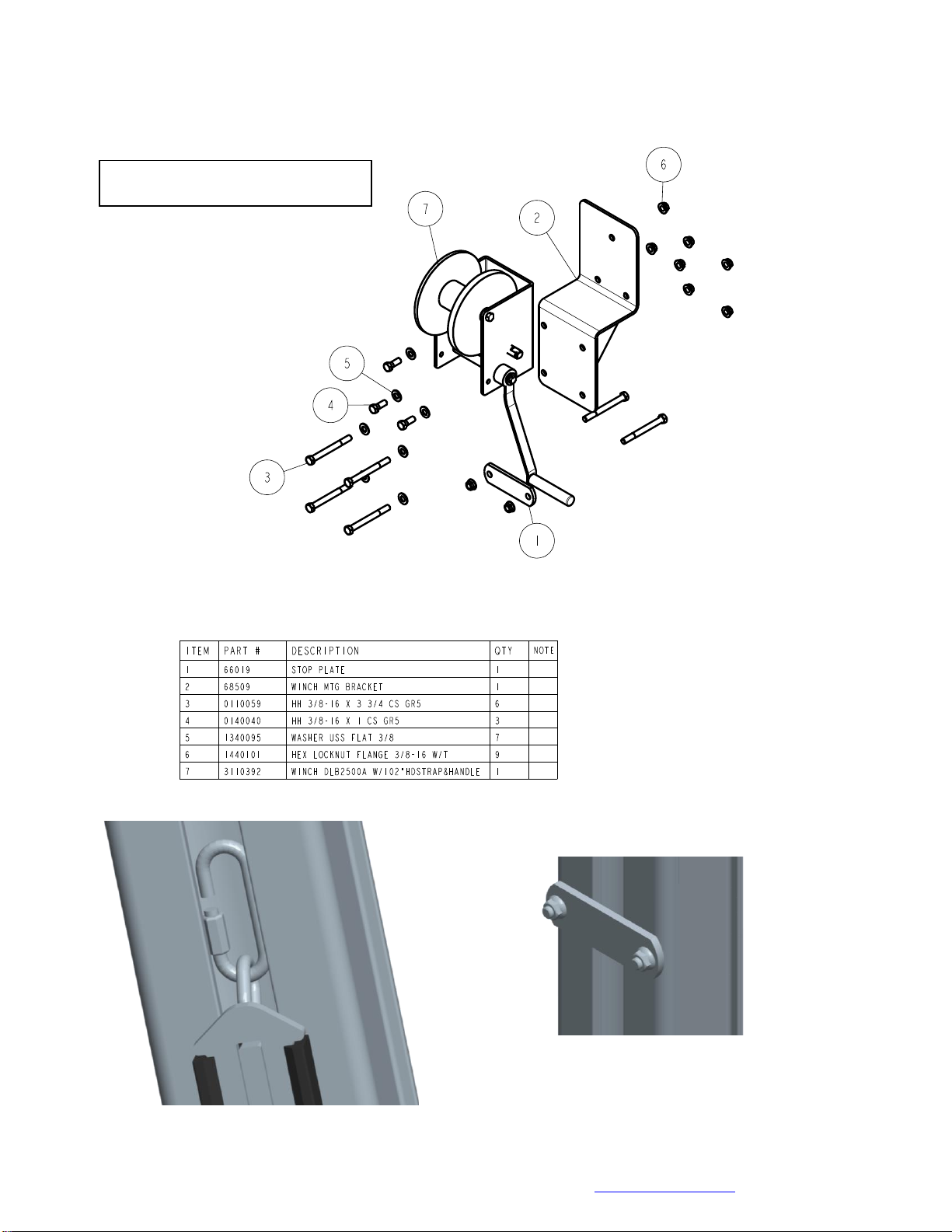

Manual Winch Assembly

HDWE Box SS1053 Manual Winch

Mount the stop bracket on the winch post extrusion in

the set of holes closest to the platform.

Mount the bunk with brackets onto the platform

weldment using one (1) 1/2” v-shaped u-bolts, two (2)

NOTE: The strap must be free of any twisting.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 7 of 12 Rev B 11/05/2013

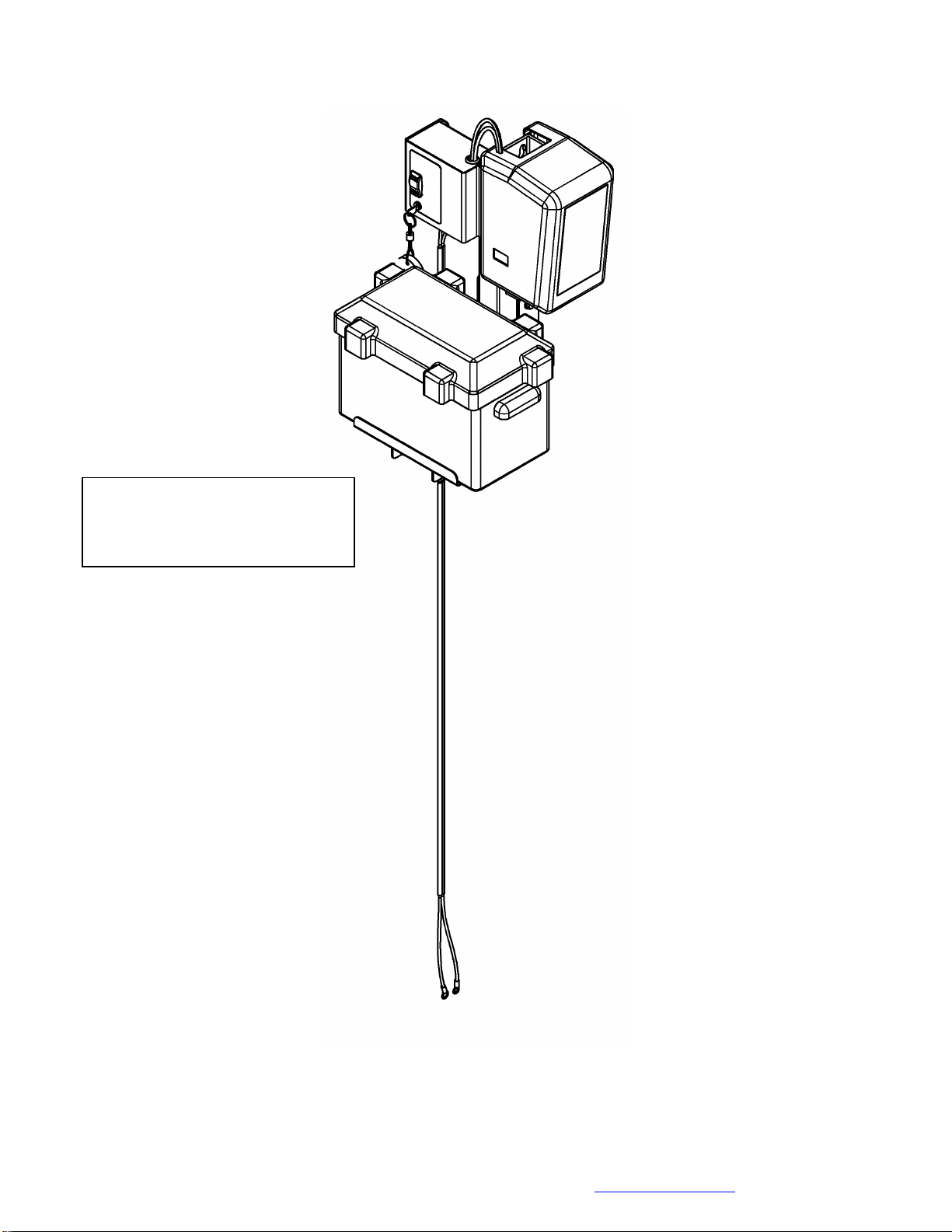

EDS Electric DC Winch Assembly

Assembly and operating

instructions included in the HA0119

kit

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 8 of 12 Rev B 11/05/2013

Electric Winch Assembly

HDWE Box SS1053 Electric Winch

spacers, two (2) 1/2” lock washers and two (2) 1/2”

hex nuts per bunk as shown. Note: The short end of

bunk from galvanized mounting channel goes to

the right of the winch handle. Repeat on other

bunks. Bunks should be spaced to fit your watercraft

before tightening. Bunks should also be angled

toward the center of the platform. NOTE: To enter

the dock hoist from the other end –reverse the

bunk assembly.

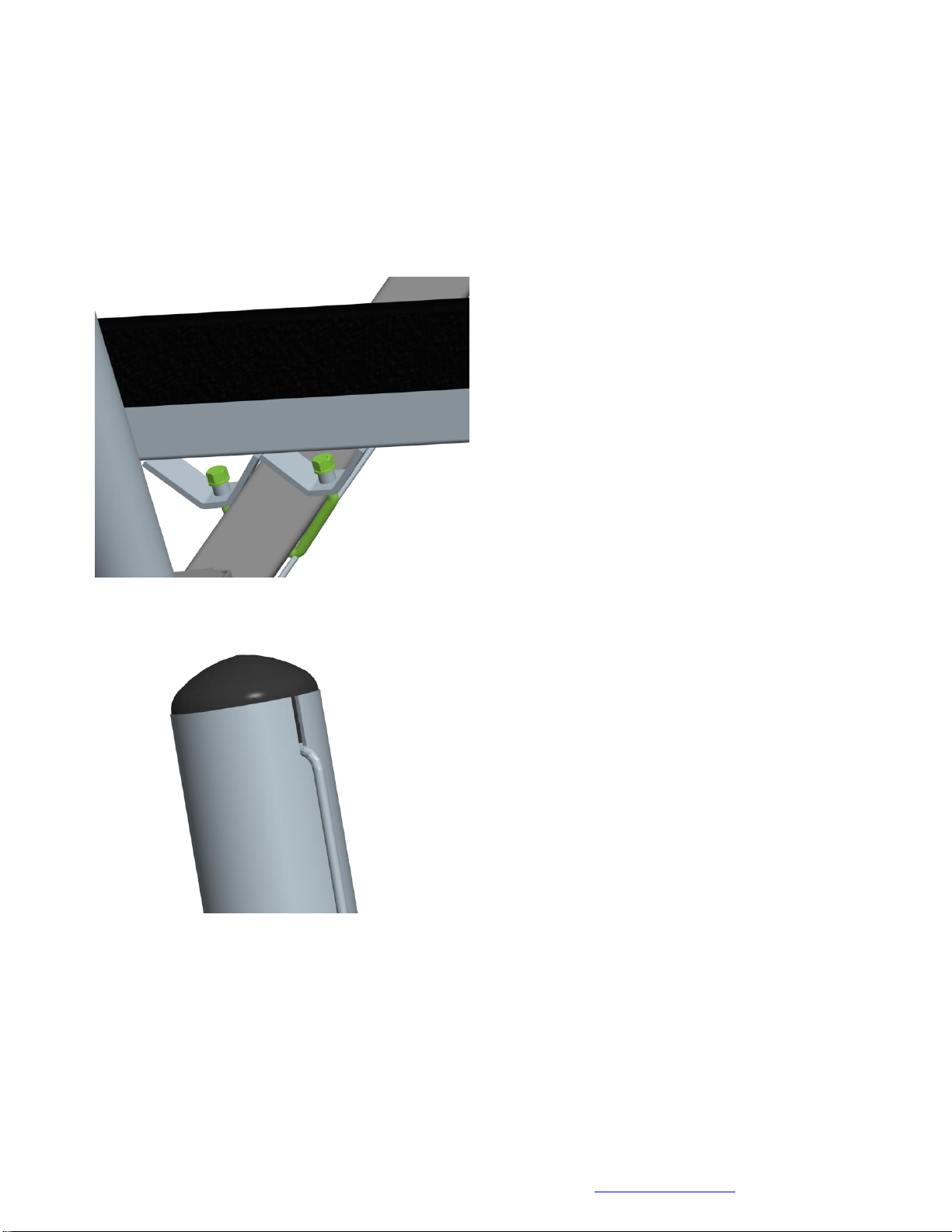

Insert the black plastic cap into the guide post tube.

SAFETY MAINTENANCE

It is recommended that your Shore Station hoist be

thoroughly inspected at least once each season:

1. Tighten all bolts.

2. Check pulleys and make sure they are all turning

freely.

3. Inspect all cables for fraying, wearing or

deteriorating. If any signs appear, replace cables.

4. Check frame thoroughly.

5. Check winch as per manufacturer’s specifications.

Safety Tips

“The best insurance policy

is safety”

After the hoist installation is complete, it is important

to next check and see that the winch mechanism is

functioning properly. This is easily accomplished by

raising the empty platform about one-fourth the way

up and releasing your grasp on the lift handle. If the

winch is operating properly, the clutch brake will

automatically hold the platform at any position.

Perform this same test in the half, three-fourths and

full lift positions. Next, repeat this same procedure

with your boat on the hoist. If the lift handle begins to

freely spin down from any of these test positions, at

no time should you attempt to prevent it from doing

so. Such action could result in injury to arms and

hands. Instead simply let the platform spin down into

the water. Doing so will neither damage your hoist nor

your watercraft.

If for some reason your winch mechanism does not

function as described call your authorized Shore

Station dealer. Do not tamper with the winch

mechanism.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 9 of 12 Rev B 11/05/2013

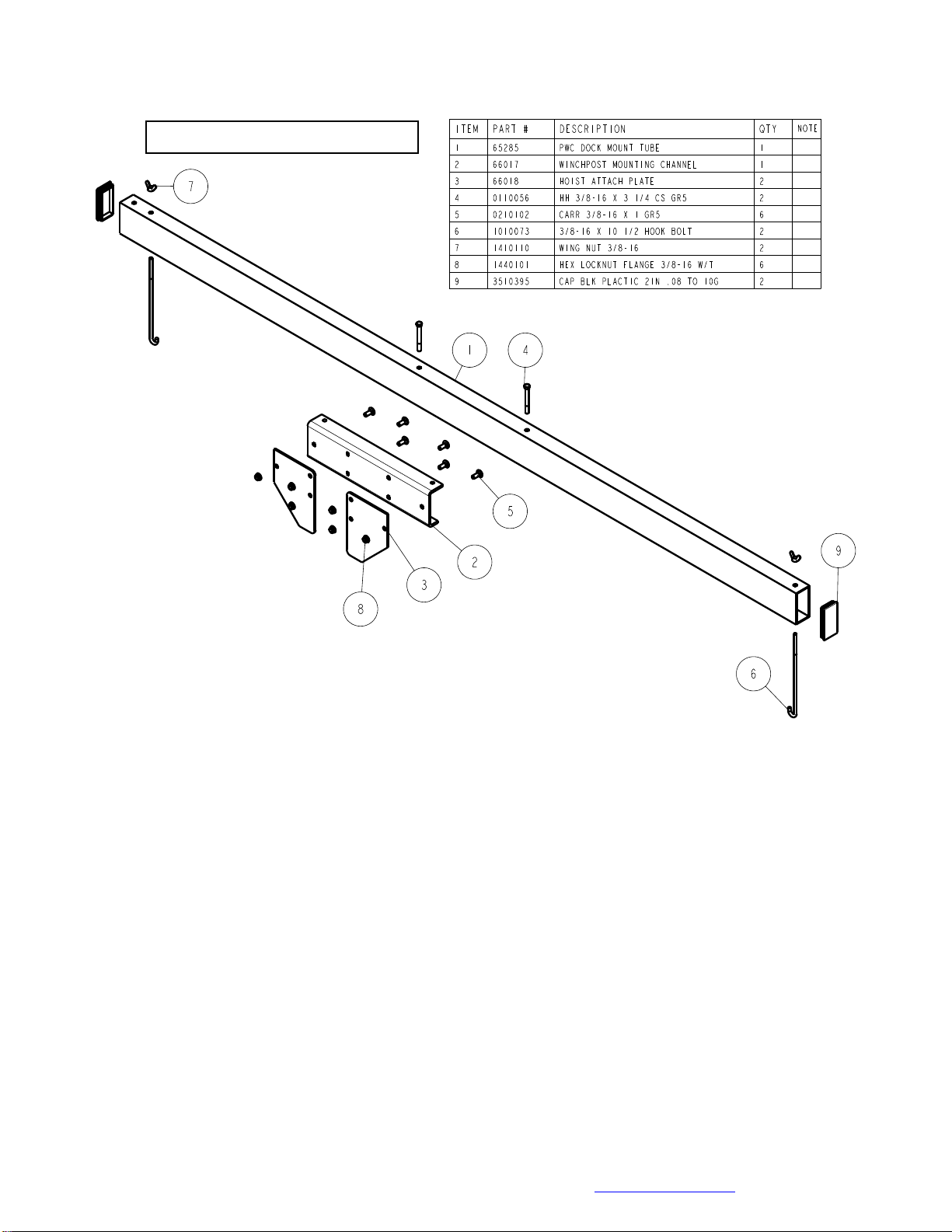

Hoist Dock Mount Kit Classic Dock

Mount the dock mount tube between the dock and

bumper. Secure the dock mount tube using a 3/8” X

10-1/2” j-hook hooking from the bottom of the dock leg

universal bracket up. Secure with a 3/8” wing nut.

Insert the end cap into the ends of the dock mount

tubes.

Mount one (1) hoist attach plate to the winch post

mounting channel using three (3) 3/8” X 1” carriage

bolts. Secure with 3/8” flange lock nuts. NOTE: The

hoist attach plate must be hooked over the lip on

the winch post extrusion. Place the other hoist

attach plate onto the opposite side of the winch post

extrusion - be sure this plate extends over the lip of

the winch post extrusion before tightening.

Mount the entire hoist by sliding the winch post

mounting channel over the dock mount tube and drop

two 3/8” X 3-1/4” hex bolts down through holes on

winch post mounting channel to secure the hoist to

the dock.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004405

Page 10 of 12 Rev B 11/05/2013

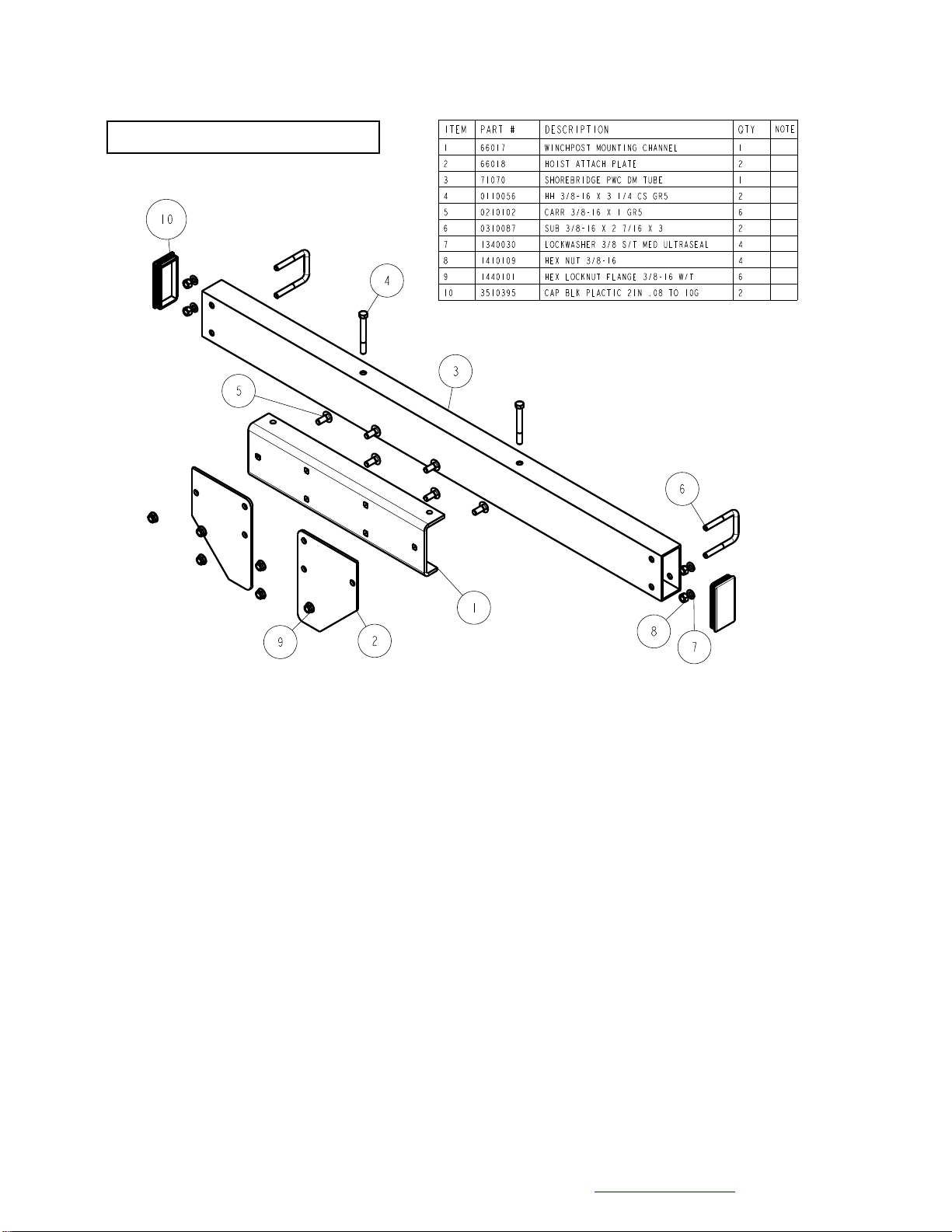

Hoist Dock Mount Kit ShoreBridge

Slide square u-bolts from the inside out on the

curved truss of the Shorebridge dock section locating

them so they will insert into the holes on each end of

the dock mount tube. Place a 3/8” lock washer over

the threaded end of the u-bolt inside the tube and

secure with a 3/8” hex nut. Repeat on the other leg

of the u-bolt and on the u-bolt on the other end.

Level the tube and tighten securely.

Insert the 3/8 X 1” carriage bolts thru the winch post

mounting channel and thru the hoist attaching plate

and then thread on a 3/8” flange lock nut to hold in

place.

Slide the channel assembly over the tube that is

mounted on the dock and align the holes in the

channel with those in the tube. Insert the 3/8 X 3 1/4”

hex bolts into the holes.

Slide the lift into position and insert the flanges of the

winch post extrusion behind the hoist attaching

plates. Position the lift for proper water depth and

tighten the flange lock nuts so that the winch post

extrusion is tightened in position securely.

Check to make sure that all fasteners have been

tightened securely and that all adjustments have been

made.

Insert the black plastic caps into the ends of the tube

and assembly is complete.
