Operation Manual

Shodex



RSpak



KC-811

（Please read this manual carefully to achieve the best and consistent column performance for a long time）

Important Handling Instructions

Caution! · Please consult the Safety Data Sheet (SDS) of reagents and solvents used with the column

and understand their proper handling methods to prevent potential health hazards or death

from occurring.

· Please wear appropriate personal protective equipment such as lab goggles and gloves

when handling organic solvents and acid and alkaline reagents. Avoid any direct physical

contact to prevent chemical injuries.

Before Using the Column

(1) Please visually inspect the package and outside of the column for any damage.

(2) Please check if product name and serial number written on the column package, column name tag, and

enclosed Certificate of Analysis (CoA) are matching and correct.

1. Introduction

Thank you for purchasing the Shodexproduct. ShodexRSpakKC-811 is a high performance

chromatography column which is specifically designed for the separations and analysis of organic acids. The

column is packed with a strong acid cation exchange gel prepared from a rigid resin of styrene divinylbenzene

copolymer and it works under ion exclusion chromatography mode. It is capable of separating and analyzing

multiple organic acids simultaneously.

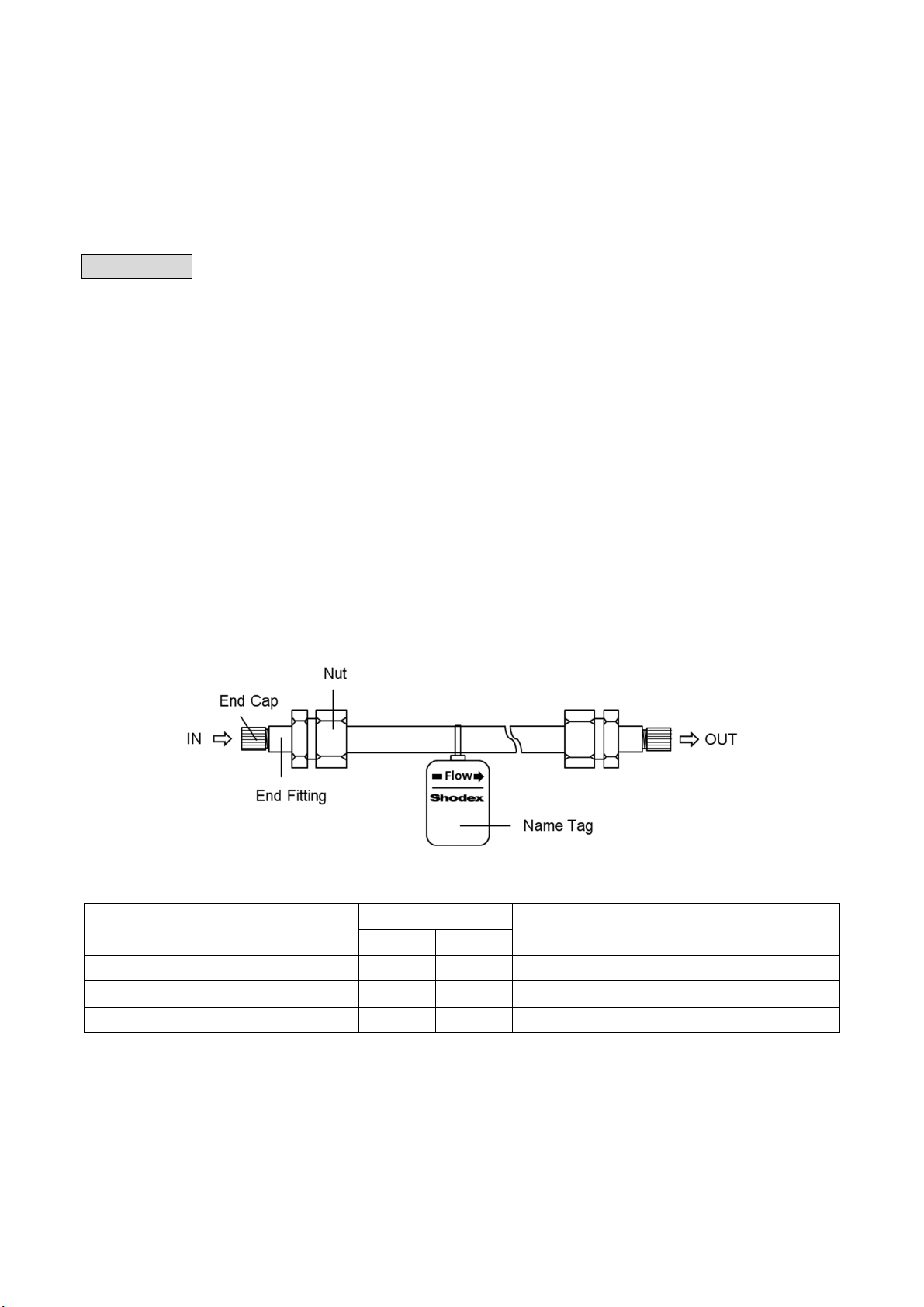

2. Column Components

3. Column Specifications

Product

Code Product Name Column Size (mm) Particle size

(μm)

Theoretical Plate Number

(Per Column)

I.D. Length

F6378030 RSpak KC-811 8.0 300 6 ≥17,000

F6700030 RSpak KC-G 6B 6.0 50 10 (Guard Column)

F6700010 RSpak KC-G 8B 8.0 50 13 (Guard Column)

Please select KC-G 6B for the samples containing less matrix and KC-G 8B for the samples containing more matrix.

Base Material : Spherical porous particles of styrene divinylbenzene copolymer modified with sulfo group

Column Housing : SUS-316

Screw Type : Internally-threaded type No.10-32 UNF

Shipping Solvent : 0.1 % Phosphoric Acid aq. Solution

ver.211209E

SHOWA DENKO K.K. (https://www.shodex.com/)

4. Usable Conditions

Usable solvents are listed below.

(1) The standard eluent is acidic aqueous solution.

(2) Aqueous solutions of up to 1 % phosphoric acid, and up to 100-mM perchloric acid can be used.

(3) Up to 20 % (v/v) acetonitrile or ethanol is usable.

Attention! · Use the column within above stated flow rate, pressure, and temperature ranges. Using

the column outside the given range may damage the column and lower its performance.

· When using a mixture of acidic aqueous solution and organic solvent, make sure there is

no precipitation of salt.

·Column pressure is influenced by the eluent composition, flow rate, and column

temperature. When changing the eluent compositions, adjust the flow rate and column

temperature so that the column pressure remains below the usable maximum pressure.

· Do not use hydrochloric acid as it corrodes stainless steel.

5. Eluent Preparation

(1) Degas the eluent fully to prevent the formation of air bubbles.

(2) Presence of small debris or insoluble substances may result in deterioration of the column and/or they appear

as noise on the chromatograms. Filter the eluent with a 0.45-μm disposable filter to prevent the problems.

Attention! · Whenever water is required, use ultra-pure water freshly generated by a water purification

system or water from a newly opened HPLC grade distilled water bottle. Solvents left in an

opened bottle for a long time should not be used. The content may have been changed or

has been contaminated.

· Always use freshly prepared solvents. Solvents stored for a long time may have changed

their compositions and may influence elution patterns and/or damage the column.

Note · Use of on-line degasser is recommended.

6. Sample Preparation

(1) If possible, use the eluent for analysis to dissolve or dilute samples. If this is difficult, use a solvent which

has a composition that is as close as possible to the eluent's composition, but which fully dissolves or dilutes

the sample. When gradient elution is used, it is recommended to use the initial eluent to prepare the sample.

(2) Filter the sample solution using disposable 0.45-μm filter to prevent the column from clogging or deteriorating.

(3) Recommended sample injection volume is less than 50 μL per column.

(4) When a sample contains organic solvents such as an alcohol, dilute the sample with water to make the

organic solvent concentration less than 20 % (v/v).

(5) When analyzing an acidic or a basic sample, make sure to neutralize the sample prior to the injection.

(6) When a sample contains cations (the pretreated sample after neutralization), remove them by using a cation

exchange resin.

(7) When a sample contains protein or lipid, make sure to remove them prior to the injection. Proteins may be

removed by ultrafiltration or by adding acid.

(8) When a sample contains hydrophobic substances or surfactants, use a reversed-phase solid phase

extraction to remove them.

Note · Use of guard column is recommended to protect the analytical column.

Product Name Flow Rate (mL/min) Maximum Pressure

(MPa) (Per Column)

Temperature (°C)

Recommended Maximum Recommended Maximum

RSpak KC-811 1.0 1.5 5.0

40 - 85 85

RSpak KC-G 6B - - -

RSpak KC-G 8B - - -

ver.211209E

SHOWA DENKO K.K. (https://www.shodex.com/)

7. Column Usage Procedure

7.1 HPLC System Preparation

Wash entire LC system prior to the column installation, including all flow-lines and sample loop by switching the

valve, and then replace the washing solution with the eluent to be used. If desired new eluent has low

miscibility/solubility to the eluent of previous analysis, first use the eluent that is miscible/soluble to both eluents,

and then replace it with the desired eluent.

e.g. When replacing chloroform to acidic aqueous solution, first run methanol and water in that order, and then

introduce acidic aqueous solution.

Attention! · If the eluent left in the system is not compatible with the column to be used, it may damage

the column.

· A drastic change in the eluent compositions may remove substances adsorbed on the

system and they may enter and deteriorate the column.

7.2 Column Installation

(1) Connect the column to LC system by following the “flow direction arrow” (➡) indicated on the column name

tag. If guard column is used, position the guard column in front (before the inlet) of the analytical column.

(2) Make sure to insert the tubing all the way to the end fitting and secure it with the male nut. It is important that

there is no extra space between the tubing and the column side of the end fitting. Presence of an extra space

will let the sample to spread out and may result in wide peaks.

(3)

Set the initial flow rate at 0.2 - 0.3 mL/min and start the system. If using the column at an elevated temperature,

keep a low flow rate until the temperature of the column reaches to the set temperature, and then gradually

increase the flow rate to the desired.

(4) At the end of analysis, reduce the flow rate to 0.2 - 0.3 mL/min and turn the column oven off. Make sure that

the column oven temperature is at room temperature before turning off the pump.

Caution! · Verify that there is no solvent leak. It may cause electronic leakage, rust, and/or chemical

injury.

Attention! ·

Make sure not to let air bubbles enter the column while installing the column. The air

bubbles may damage the column.

· When restarting the system after column installation or after holding the eluent flow, start

the system at 0.2 - 0.3 mL/min. A rapid increase in pressure can damage the column.

· If the column was used at an elevated temperature, let the column temperature return to

room temperature before stopping the pump. If the pump was stopped while the eluent

inside the column was still hot, as the eluent temperature decreases, its volume also

decreases. This may result in creating an empty space in the column and deteriorates the

column.

Note

· It is recommended to set the pump limiter to avoid exceeding the maximum pressure.

7.3 Solvent Exchange

When replacing the solvent, set the column temperature at 50 °C and start the system at 0.2 - 0.3 mL/min.

Recommended solvent volume to introduce at each step is 3 to 5 times of the column volume.

Attention! ·

Frequent eluent replacement may damage the column, and thus not recommended.

ver.211209E

SHOWA DENKO K.K. (https://www.shodex.com/)

7.4 Column Cleaning

Problems in peak shapes and elution time changes or elevated column pressure etc. are often caused by

insoluble or adsorbing components present in the eluent and reagents being deposited inside the column. These

problems may be resolved by cleaning the column.

If a guard column is used with the analytical column, first remove the guard column and check the performance

of the analytical column alone. If the problem is solved, most likely the cause is from the guard column. In this

case, clean the guard column.

If the problem is not solved by removing the guard column, clean and/or regenerate both guard and analytical

columns. Make sure to clean and/or regenerate the guard and the analytical columns separately. When washing

the column, let the washing solution flow from the column outlet go directly into the waste container and not let

the solution go through the detector.

(1) Insoluble components that block the column inlet may be removed by reversing the flow direction, i.e.,

introducing the eluent from the column outlet, with flow rate at less than half of the recommended flow rate.

(2) Follow below cleaning steps for adsorbing components. For an efficient cleaning, reverse the flow direction.

Method 1: Adsorption of ionic compounds (cations)

Set the column temperature at 50 °C and the flow rate at 0.5 mL/min.

Introduce 50 mL of 25-mM aqueous sulfuric acid solution.

Method 2: Adsorption of hydrophobic compounds

Set the column temperature at 50 °C and the flow rate at 0.5 mL/min.

Introduce 50 mL of eluent mixed with 20 % (v/v) acetonitrile or ethanol.

Caution! · After using a strong acidic eluent such as sulfuric acid solution, wash the HPLC system

and the column thoroughly. If left, the metal parts of the system and/or the column may

react with the acid and generate hydrogen gas.

8. Column Storage

Remove the column from the system after replacing the in-column solvent with the shipping solvent. Securely

tighten the end caps and store the column at a location with stable temperature (a cool and dark space is

recommended). Refer to section 7.3 Solvent Exchange for how to replace the eluent.

Attention! · Never allow inside of the column to dry. It can damage the column.

ver.211209E

SHOWA DENKO K.K. (https://www.shodex.com/)

9. Column Inspection

Inspection method is described in the Certificate of Analysis (CoA).

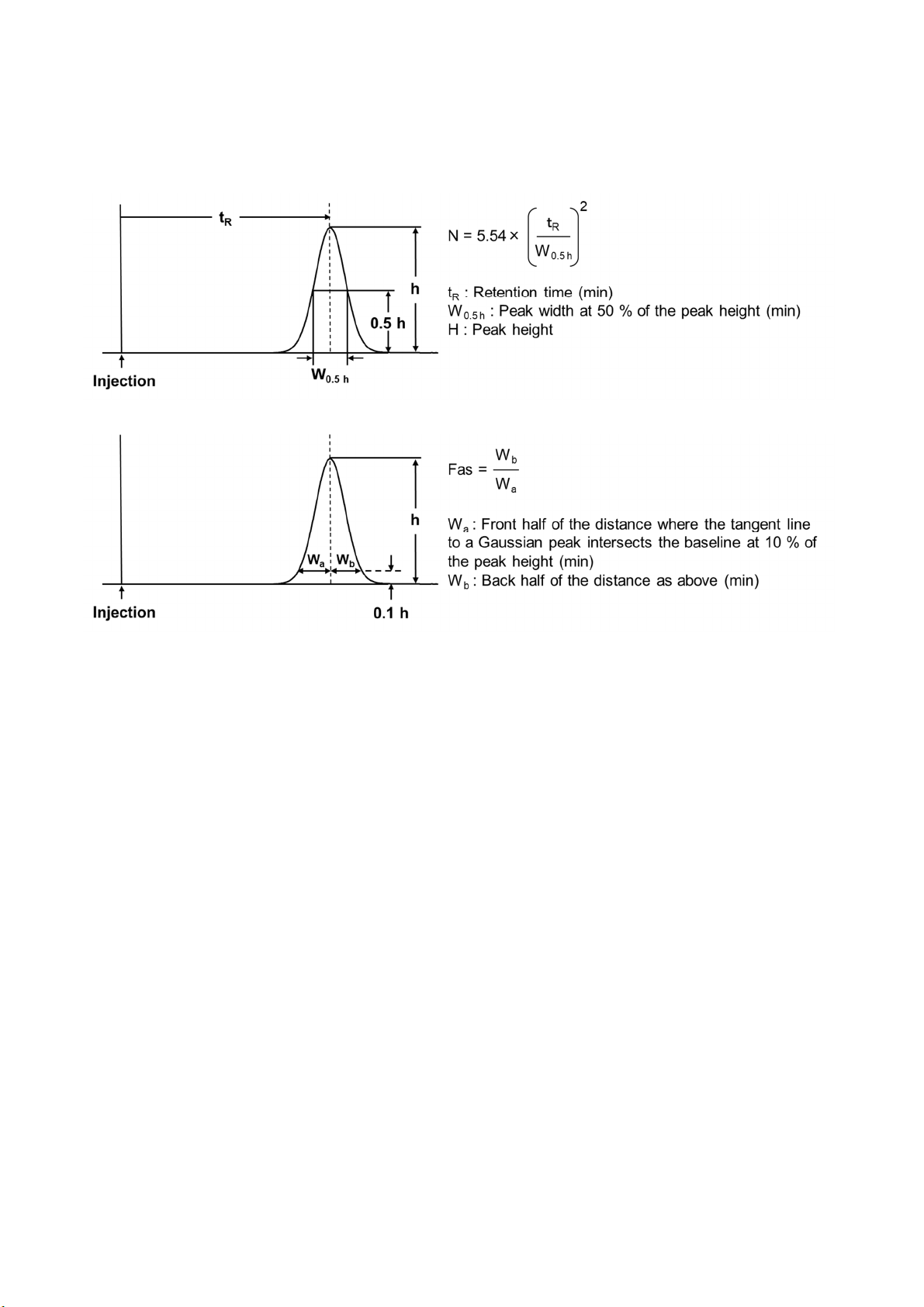

Theoretical Plate Number (N) and Asymmetry Factor (Fas) were calculated using the below equations.

(1) Theoretical Plate Number (N)

(2) Asymmetry Factor (Fas)

10. Additional Warnings

(1) Do not remove end fittings.

(2) Do not make a strong impact on the column. Do not drop or hit the column on a hard surface.

Refer to the Shodex™ website (https://www.shodex.com/) for product details and their applications.

For additional assistance, contact the distributor from whom you purchased the column or contact your regional

Shodexsupport office (https://www.shodex.com/en/support_office/list/).

ver.211209E

SHOWA DENKO K.K. (https://www.shodex.com/)

11. Warranty (Ver. 4COLUMN)

(1) Showa Denko K. K. warrants that the Shodexproduct, at the time of delivery to the user, will conform to

the specification of the attached CERTIFICATE OF ANALYSIS, if the Shodex product is used in accordance

with the attached operating manual. The foregoing warranty is exclusive and is in lieu of all other warranties

with respect to the Shodex product, whether written, oral, implied, statutory or otherwise. No warranties by

Showa Denko K. K. are implied or otherwise created, including, but not limited to, the warranty of merchantability

and fitness for particular purposes.

(2) Any claim of inconformity to the specification must be notified to Showa Denko K.K. within ten (10) days after

delivery to the user. User’s exclusive remedy and Showa Denko K.K.‘s exclusive liability for such claim are

limited to the replacement of the Shodex product in question. In no event is Showa Denko K.K. liable for any

indirect, incidental or consequential damage arising out of in connection with the Shodex product, whether or

not such damage is allegedly based on breach of warranty, negligence or otherwise.

(3) No warranty is made in any of the following cases:

3-1 If the Shodex product is not used in accordance with the operating manual

3-2 If the Shodex product is remodeled by anyone other than person or firm designated by Showa Denko K.K.

3-3 If the Shodex product is disposed of

3-4 If the Shodex product is resold by the user without giving prior written notice to Showa Denko K.K.

3-5 If the performance of the Shodex product is not conform to the specification of the attached CERTIFICATE

OF ANALYSIS due to any of the reasons below:

a. Computer virus

b. Impurities contained in the sample, reagent, gas air or cooling water provided by the user

c. Breakdown or malfunction of equipment, apparatus or component used in combination with the Shodex

product

d. Force majeure such as fire, earthquake, flood, other natural disaster, crime, riot, act of terrorism, war or

radioactive contamination

(4) In no event is Showa Denko K.K. liable for

4-1 the results of analysis or preparations using the Shodex product or any portion of the same, including, but

not limited to, the reliability, accuracy, efficacy and safety of said results, and

4-2 the occupational hazard in the use of the Shodex product, whether or not such use is made in accordance

with the attached Conditions for use.

(5) The Shodex product is for laboratory use only. It must not be used for clinical diagnosis. Showa Denko K.K.

is not liable for any use of the Shodex product except laboratory use.

Following names are trademarks or registered trademarks of SHOWA DENKO K.K.

Shodex, AFpak, Asahipak, AXpak, CLNpak, CXpak, HILICpak, MSpak, ODP, OHpak,

ORpak, RSpak, SUGAR, USPpak.

Products described in the operation manual are not intended for medical use or medical applications.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shodex Instrument de mesure

Shodex

Shodex RSpak KC-811 6E Manuel utilisateur

Shodex

Shodex IC SI-35 2B Manuel utilisateur

Shodex

Shodex ODP2 HP-2B Manuel utilisateur

Shodex

Shodex IC SI-52 4E Manuel utilisateur

Shodex

Shodex OHpak SB-2000 Series Manuel utilisateur

Shodex

Shodex Mspak GF-310 4D Manuel utilisateur

Shodex

Shodex Asahipak ODP-90 20F Manuel utilisateur

Shodex

Shodex GPC HK-400 Series Manuel utilisateur

Shodex

Shodex Asahipak ODP-50 6D Manuel utilisateur

Shodex

Shodex Asahipak NH2P-90 20F Manuel utilisateur

Shodex

Shodex IEC DEAE-825 Manuel utilisateur

Shodex

Shodex Asahipak NH2P-50 10E Manuel utilisateur

Shodex

Shodex HILICpak VN-50 10E Manuel utilisateur

Shodex

Shodex Asahipak NH2P-40 2E Manuel utilisateur

Shodex

Shodex Asahipak GF-HQ Series Manuel utilisateur

Shodex

Shodex OHpak SB-2000 Series Manuel utilisateur

Shodex

Shodex Asahipak ODP-50 series Manuel utilisateur

Shodex

Shodex KW400-4F Series Manuel utilisateur

Shodex

Shodex CLNpak EV-200 Manuel utilisateur

Shodex

Shodex GPC LF-804 Manuel utilisateur

Shodex

Shodex RSpak DM-614 Manuel utilisateur

Shodex

Shodex IC SI-37 4D Manuel utilisateur

Shodex

Shodex Asahipak ES-502C 7C Manuel utilisateur

Shodex

Shodex Asahipak ODP-50 4D Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
