Shockwave S5 Manuel utilisateur
INCLUDED WITH YOUR S5 PURCHASE:
• SHOCKWAVE S5 Marine Suspension Module
• SHOCKWAVE S5 User Manual
• SHOCKWAVE S5 Drill Template
• Spacer Kit - 2 spacers to change
suspension module height
• 2 Product Cards -Warning and Care Instructions
• 2 Decals – SHOCKWAVE (all purpose)
SHOCKWAVE EQUIPPED (for your boat)
ACCESSORIES SOLD SEPARATELY:
• SHOCKWAVE S5 Pump
• Corbin2 Seat (High-Back & Mid-Back)
• Corbin2 Seat with Heated Cushions
• SHOCKWAVE S5 Swivel Slide, Swivel, Slide, and
Height Adjust
At SHOCKWAVE, we’ve proven that innovation
and attention to the highest safety standards can
protect boaters from the shock of wave impact.
As avid boaters ourselves, we understand what our
customers value most – and we create the best
marine suspension seats in the world to provide
a safer, more comfortable and exciting ride.
CUSTOMER SERVICE
• SHOCKWAVE S5 Pump
• Corbin2 Seat (High-Back & Mid-Back)
• Corbin2 Seat with Heated Cushions
• SHOCKWAVE S5 Swivel Slide, Swivel, and Slide.
• SHOCKWAVE S5 Marine Suspension Module
• SHOCKWAVE S5 User Manual
• SHOCKWAVE S5 Drill Template
• Spacer Kit - 2 spacers to change suspension module height
• 2 Product Cards -Warning and Care Instructions
• 2 Decals – SHOCKWAVE (all purpose), SHOCKWAVE EQUIPPED (for your boat)
At SHOCKWAVE, we’ve proven that innovation and
attention to the highest safety standards can protect
boaters from the shock of wave impact.
As avid boaters ourselves, we understand what our
customers value most – and we create the best
marine suspension seats in the world to provide
a safer, more comfortable and exciting ride.
CUSTOMER SERVICE INCLUDED WITH YOUR S5 PURCHASE:
ACCESSORIES SOLD SEPARATELY:
USER MANUAL CONTENTS
4
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
IMPORTANT INSTRUCTIONS
BEFORE YOU START
MOUNTING YOUR SUSPENSION MODULE
SETTING UP THE SUSPENSION MODULE
STEPS TO SET UP THE SUSPENSION MODULE
SHOCK COMPRESSION ADJUSTMENT SETTINGS
CHANGING SUSPENSION MODULE HEIGHT
REBOUND ADJUSTMENT
SERVICE TIPS
DRAWINGS AND EQUIPMENT LIST
SUSPENSION MODULE DRAWING (SW-05026)
EMERGENCY PROCEDURES/TROUBLESHOOTING
HOW TO VIDEOS
S5 PRODUCT LINEUP
GENERAL BOATING BEST PRACTICES AND SAFETY
CAUTIONS AND WARNINGS
INCLUDED WITH YOUR S5 PURCHASE:
ACCESSORIES SOLD SEPARATELY:
JOIN THE SHOCKWAVE COMMUNITY:
4
IMPORTANT INSTRUCTIONS
WARNING

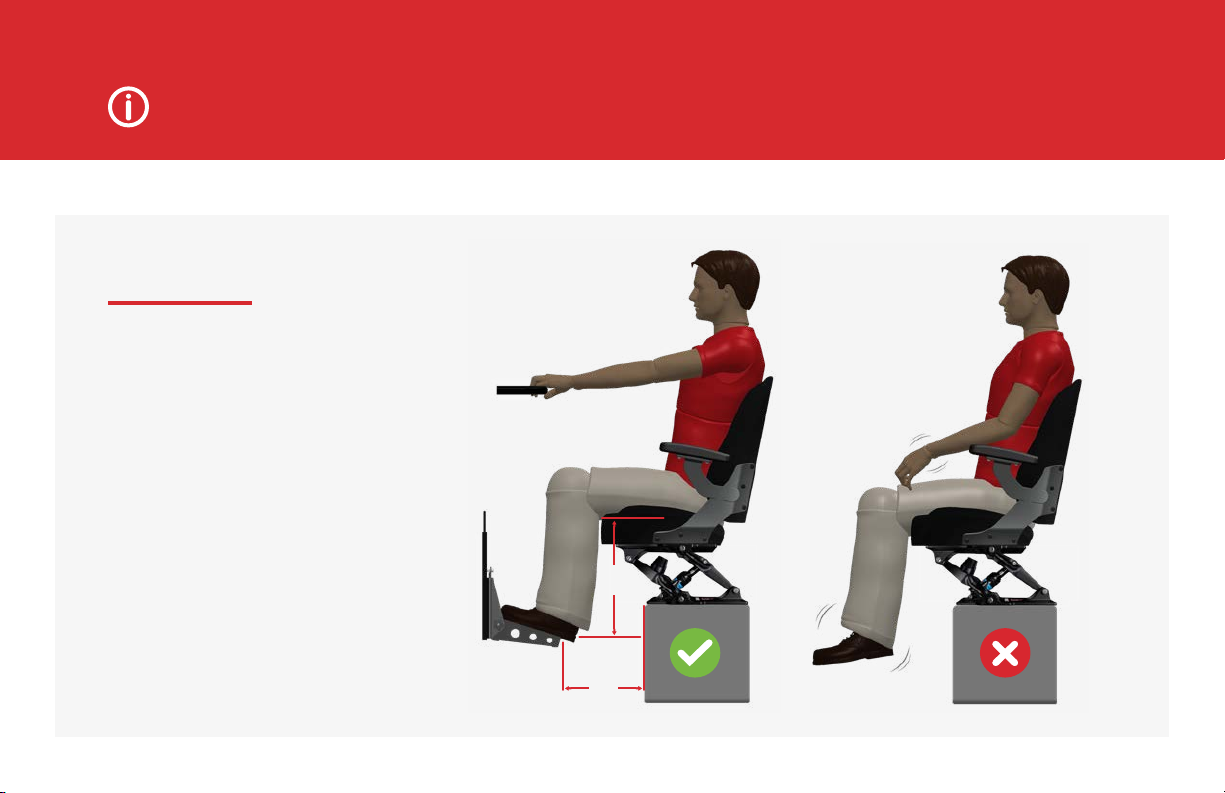

All occupants are required to have footrests
available, or feet placed on deck, at all times.
The footrest surface should be 1” [25.4mm] -
6.0” [152.4mm] below the base of the S5 and
7”[177.8mm] - 16”[406.4mm] infront of S5 and
be a minimum of 16” [406.4mm] wide.
(A) 15” [381mm] - 21” [533.4mm]
(B) 7”[177.8mm] - 16”[406.4mm]
B
A
FOOTREST AND GRAB HANDLES
5

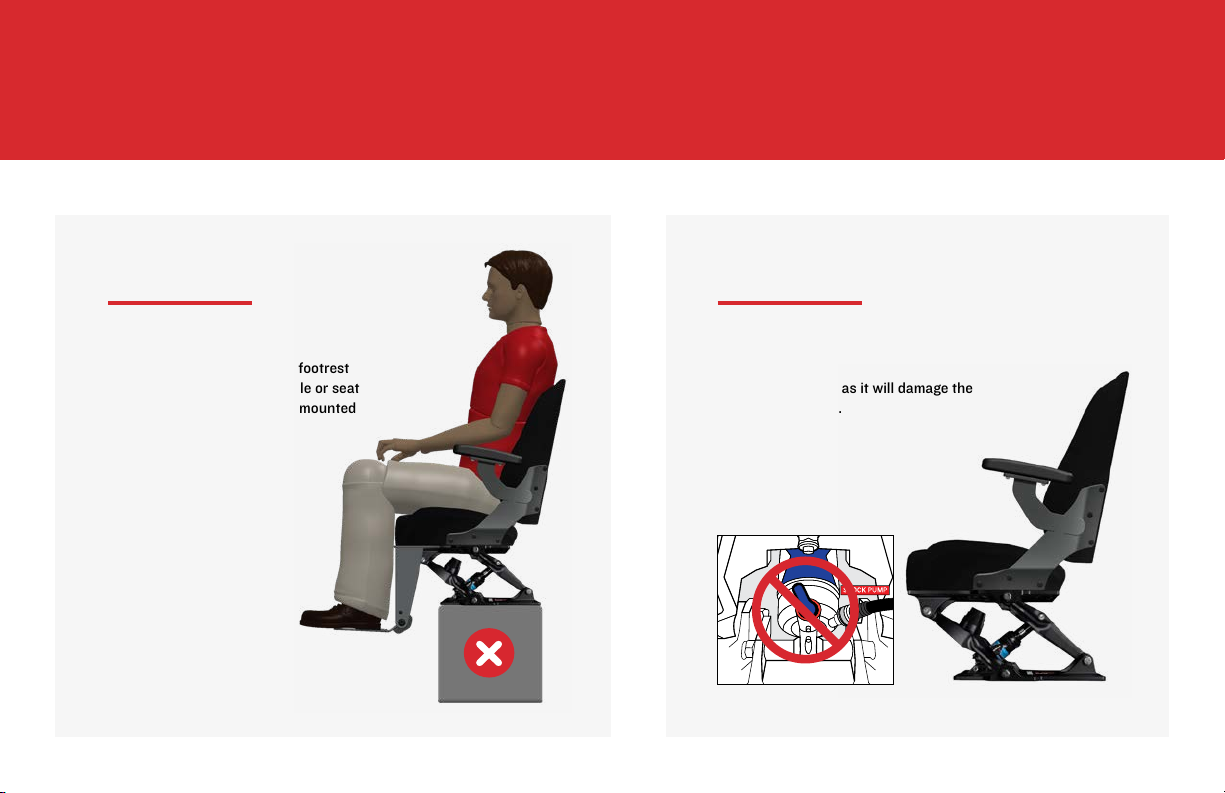

WARNING
Do not leave pump attached when
operating the seat, as it will damage the
pump and fill valve.
WARNING
Do not install any suspended footrest
onto the S5 suspension module or seat
mounted to the S5. Footrests mounted
to the module or seat will void
the warranty.
SUSPENDED FOOTREST FILL PUMP
6
The maximum occupant weight for the S5 module is 250lbs [113kgs]
on a vessel that sees maximum deck accelerations of 3g’s. For calm
waters and deck of accelerations less then 2g’s, a 300lb [136kg]
occupant is acceptable. When mounting a seat to the module, always
use the largest fasteners possible for the bolting configuration.

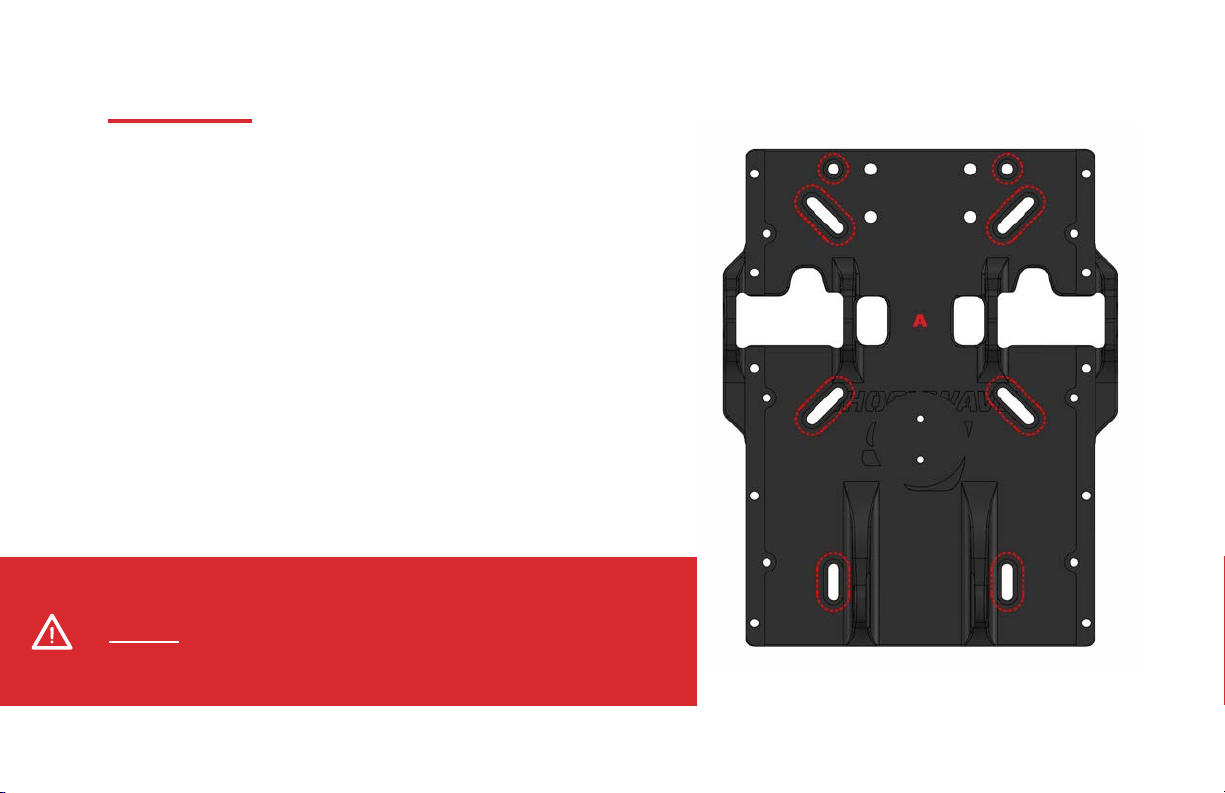

Third party seats should be properly positioned on the module with
the center of mass being located across the main pivots shown by
position (A).
Any modifications done to the module that are not approved
in writing by SHOCKWAVE, or installing a seat using incorrect
bolting locations, can result in damage and injury, which will
void the manufacturers warranty.
DANGER
BEFORE YOU START
7
Congratulations on your purchase of a SHOCKWAVE S5 Marine Suspension Module.
We hope you enjoy this new boating experience offering you access to new possibilities
on the water.
• There must be sufficient deck
structure to support the weight of the
seat and occupant within the vessels
operational envelope
• Thin or weak decks or mounting
boxes should have large washers or
reinforcement plates placed under the
bolting surfaces to prevent fasteners
from pulling through
• There must be no flex in the seat mounting
or deck plate when the seat is loaded
• Do not attach any equipment to the
suspension module
• Do not mount the suspension module in the
middle of an unsupported deck plate
• Ensure that the movement of the suspension
module does not interfere with the vessel
structure or equipment
• Properly torque the deck mount fasteners
• Check the operation of the suspension
module after installation to ensure it does
not bind or stick
• Remove the red and blue spacers from
your SHOCKWAVE S5 - these will be
required if you need to adjust to one of
the two additional height positions. See
page 10 for instructions on changing
suspension module height
• Through-bolt the suspension module
or bolt to stainless steel inserts bonded
into the deck or equivalent structure,
using the largest fasteners possible
The suspension module must not be modified.
GETTING STARTED
MOUNTING YOUR SUSPENSION MODULE
Apply a quality marine grade sealant to all matting surfaces and
hardware to prevent crevice corrosion.
8
Strength of decks and deck mountings is the responsibility of the boat builder or
installer of the seats. SHOCKWAVE assumes no liability for suspension modules
that are incorrectly installed.
Incorrectly installed suspension modules can cause serious injury or death and
can cause damage to the vessel and the seat.

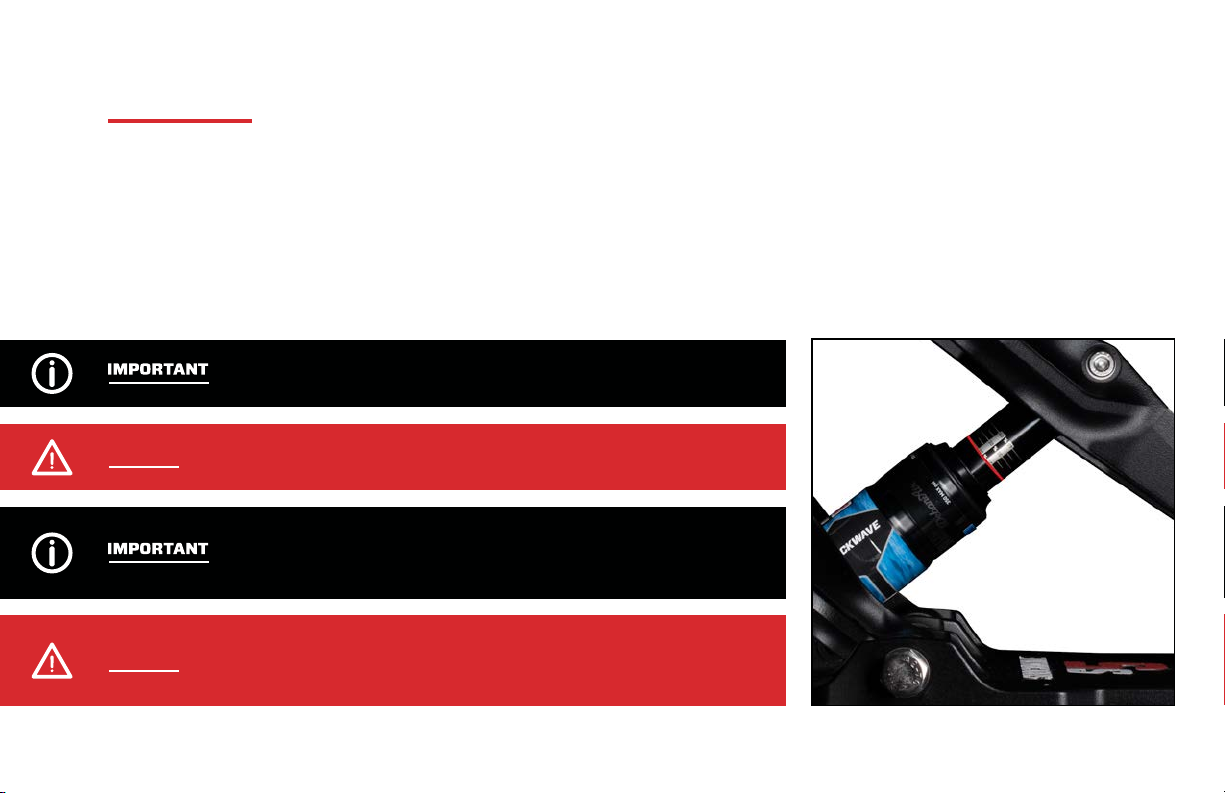

Prior to use be sure to pressurize the shock absorber! Do not operate the seat
without sufficient pressure in shock absorber or serious injury and damage to
the suspension module will result.
To achieve the best performance from the suspension module’s shock absorber, the pressure should be adjusted to attain the
proper sag setting. Sag is the amount the suspension compresses under the occupant’s weight. Sag should be set at 20% of total
shock travel as indicated via red O-ring on shock.
Warranty is void on suspension modules where incorrect installation causes
damage to the module.
DANGER
DANGER
SETTING UP THE SUSPENSION MODULE
9
1 Turn the 3-position lever at the base of the shock
absorber to the SOFT position. See page 10.
2 Install the pump and pressurize the shock absorber
to 100 PSI then remove the pump.
3 Cycle the shock absorber by bouncing on the seat
5 times. This will equalize the positive and negative
air chambers.
4 Use the pump to pressurize the shock absorber
(in PSI) to match the weight in pounds (lbs) of the
occupant. Remove the pump before step 5.
5 Cycle the shock absorber by bouncing on the seat
5 times.
6 Push the red O-ring against the shock body.
7 Gently sit on the seat.
8 Gently out of the seat.
9 Check the sag percentage marking on the shock absorber
shaft. Sag is correct if the red O-ring sits at
the 20% mark.
10 If the sag value is not at the desired level, inflate
or deflate the shock absorber in 10 PSI increments
and repeat steps 5-8 until the desired sag level
is achieved.
Do not sit on the seat with the SHOCKWAVE S5 Pump attached! Damage will
occur to the shock and pump. Note, SHOCKWAVE S5 Pump sold separately.
Do not exceed 350 PSI. The maximum shock absorber pressure.
STEPS TO SET UP THE SUSPENSION MODULE
10
1 SOFT MODE
For operating in flat water and light chop
where the likelihood of experiencing a
slam is low. Mostly inshore use. Gives a
soft ride.
2 MEDIUM MODE
For operating in moderate to rough
conditions where some slamming could
occur. Gives a medium ride.
3 FIRM MODE
For operating in big seas and at higher
speeds where regular slamming will
occur. Gives a firm ride.
Setting the sag height is designed to be a starting point. To get the most out of the suspension module the shock absorber can be
fine-tuned. This is done using a combination of compression and rebound tuning to optimize ride quality as well
as for varying sea conditions.

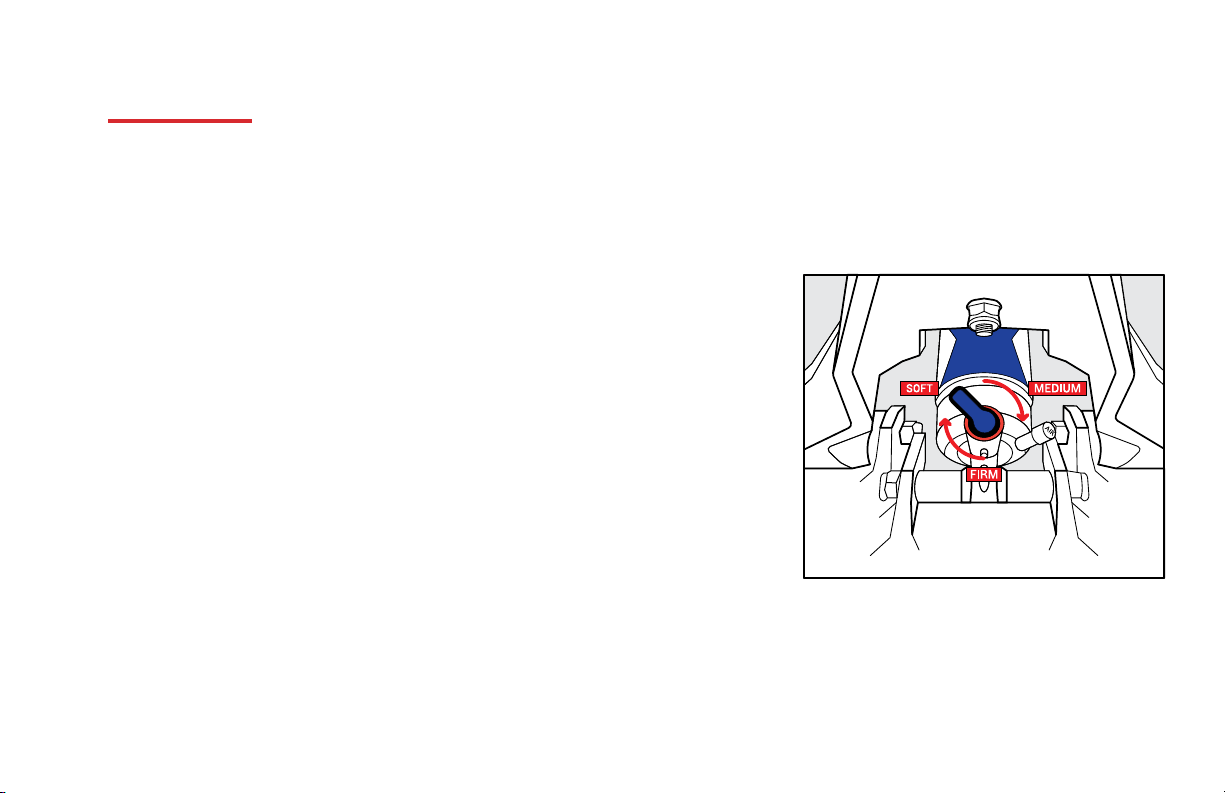

The suspension module comes with a 3-position blue lever that is designed to make
quick adjustments to optimize the performance of the shock absorber in varying sea
conditions. You can select three settings:
SHOCK COMPRESSION ADJUSTMENT SETTINGS
