Shintaro Blazer Manuel utilisateur

USB 3.0 Single/Dual

Display Docking Station

User's Manual

Table of contents

Safety instructions ...........................................................1

Trademarks .......................................................................1

Introduction.......................................................................2

Features.............................................................................2

Package contents.............................................................2

System requirements.......................................................3

Product overview................................................ ..............4

Front

.................................................................................

Rear...................................................................................5

Connection..........................................................................6

- Dual display docking station

..............................................6

- Single display docking station

...........................................7

Installation ........................................................................ 8

- For Windows®7/ Windows®8 user

..................................8

- For Windows®Vista user

.................................................11

- For Windows®XP user

....................................................13

Verifying the driver……………………………………. ….. 14

Display configuration....................................................... 15

- Utility settings

.....................................................................15

- Multi-monitor configuration

.................................................18

Audio configuration ......................................................... 23

Uninstall the driver........................................................... 24

- For Windows®7/ Windows®8 user

…..............................25

- For Windows Vista® user

...................................................26

- For Windows XP® user

......................................................27

Specification........................................................................28

Regulatory compliance..................................................... 29

- FCC

conditions................................................................... 29

- CE

..................................................................................... 29

- WEEE information

.............................................................. 29

Before attempting to connect, operate or adjust this product, please save and read the

User's Manual completely. The style of the

product shown in this User's Manual may be different from the actual unit due to various

models.

Safety instructions

Always read the safety instructions carefully:

■ Keep this User’s Manual for future reference

■ Keep this equipment away from humidity

■ If any of the following situation arises, get the equipment checked by a service

technician:

•The equipment has been exposed to moisture.

•The equipment has been dropped and damaged.

•The equipment has obvious sign of breakage.

•The equipment has not been working well or cannot get it to work according to the

User’s Manual.

This document contains proprietary information protected by copyright. All right are

reserved. No part of this manual may be reproduced by any mechanical, electronic or

other means, in any form, without prior written permission of the manufacturer.

Trademarks

All trademarks and registered trademarks are the property of their respective owners or

companies.

Introduction

The Shintaro Blazer Docking Station is a unique design for a computer that has extra

connectivity

demands.

Through the docking station, you can extend the connection of a

computer to more USB peripherals, Ethernet network, speaker and microphone using

only one USB port on your computer.

This docking station is built-in USB 3.0 ports which mean you can enjoy the super speed

data transmission between USB peripherals. Besides, this product is fully compliant with

the USB 1.1/2.0

specification.

Your previousUSB 1.1/2.0 devices can continue tofunction

as usually.

The video output is another feature. With the DVI (and HDMI® Dual Head Docking

Station model only) port(s), you can connect more monitor, LCD or projector. The

connected monitor can be configured to either mirror your primary screen, or extend

the Window desktop allowing visibility of more applications at the same time. No more

stacking windows within the confines of a single display.

As to the housing, aside from the impressive sailboat-like appearance, the upright

design of the body helps to spare your desktop space. Most peripherals are connected

behind while two USB ports and audio outputs are implemented on the front panel for

easier accessibility. An industry standard security lock is also provided for anti-theft

purpose.

Enhanced expansion capability plus the stylish appearance, surely this docking station

with video is the most versatile accessory that also

complements

your home or office

space.

Features

■ Compatible with USB 3.0/2.0 specification

■ Resolution up to 2048x1152

■ Support audio 2.1 channel

■ Support Gigabit Ethernet

■Support HDMI® 1.3 (Dual Display Model only)

Package contents

■ Docking Station x1

■ USB 3.0 Cable x1

■ Power Adapter x1

■ CD (Driver and User’s Manual) x1

■ Quick Installation Guide x1 2

System requirements

The minimum requirements for the PC are:

■ 1.6 single core CPU or higher processor clock. Intel

Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor

■ 1GB of RAM

■ USB 2.0/3.0 port

■ 30MB of available disk space

■ Windows®XP 32-bit,Windows® Vista 32/64-bit,Windows®7 32/64bit, Windows®8

32/64bit.

To play DVD on the extra connected monitor through docking station, in addition to the

requirements above, the following requirements should also be met:

■ With dual core CPU at 2.0 GHz processor clock

Product overview

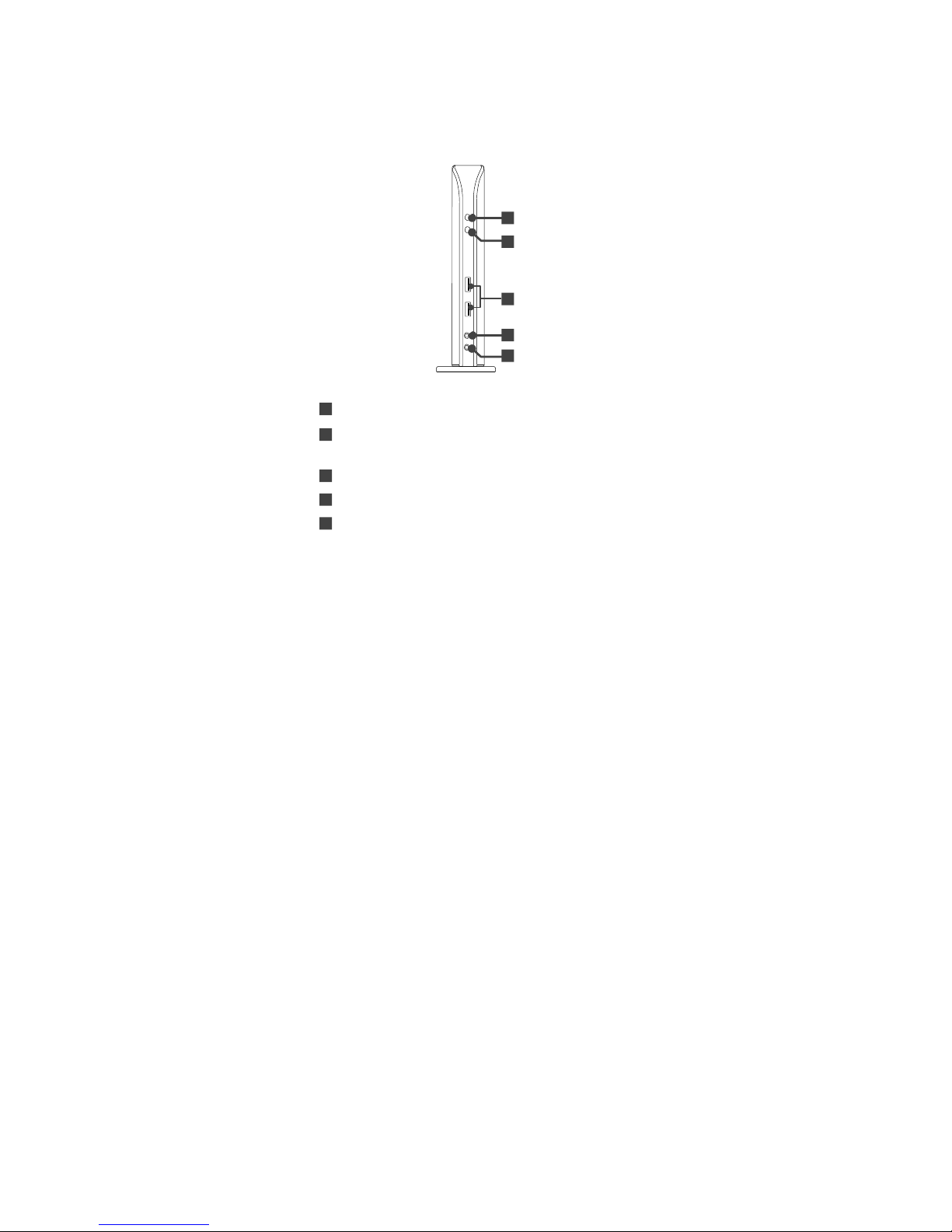

Front

1 Power indicator: Lights up when the power is on.

2 USB indicator: Lights up when a USB

device is plugged into this unit.

3 USB 3.0 ports: Connect to USB 3.0 devices.

4 Speaker jack: Connect to a speaker or earphone.

5 MIC jack: Connect to a microphone.

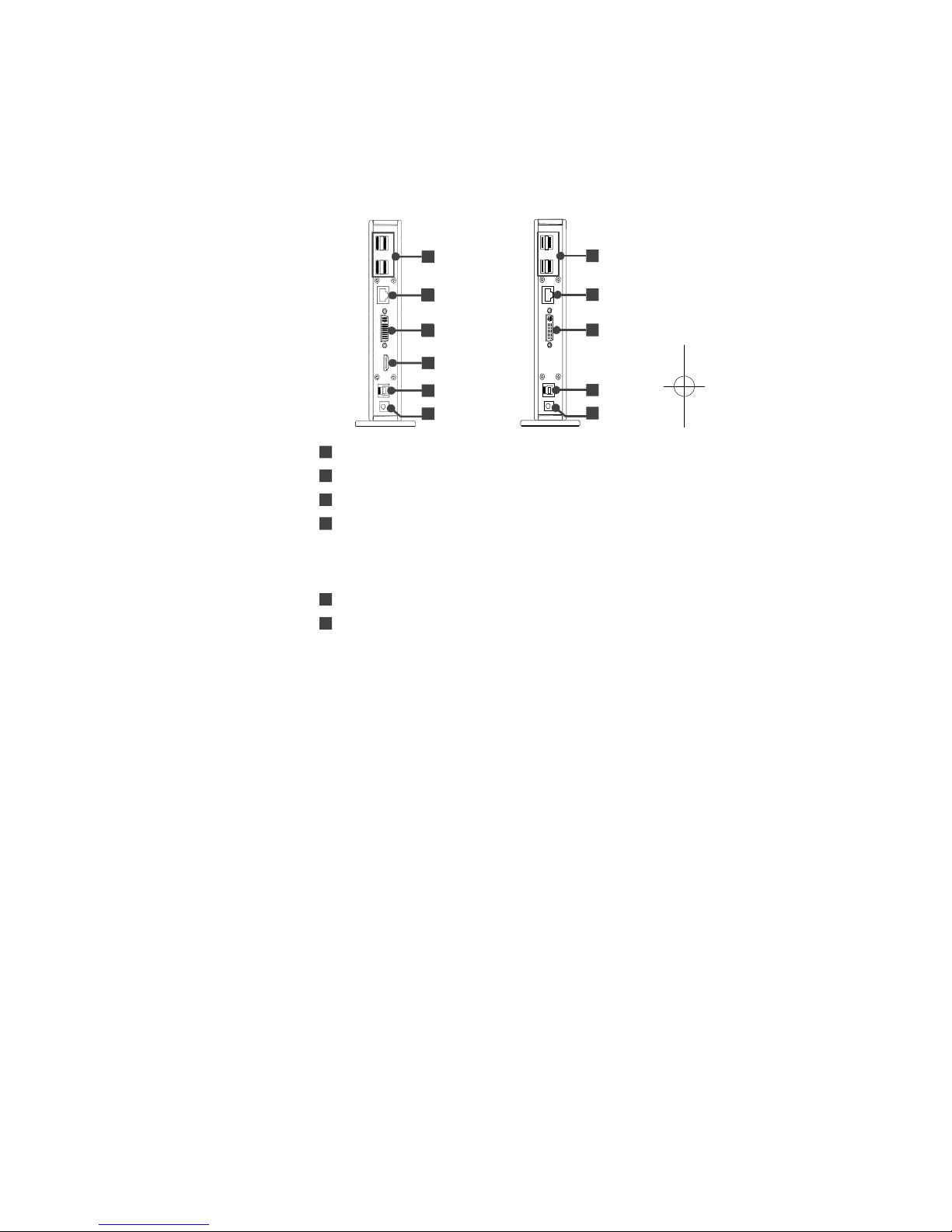

Rear

Dual Display

Docking station

Single Display

Docking Station

6 6

7 7

8 8

10 10

11 11

6 USB 2.0 ports: Connect to USB 2.0 devices.

7 RJ45 port: Connect to an Ethernet.

8 DVI connector: Connect to a DVI monitor or projector.

9 HDMI connector: Connect to a HDMI

monitor or projector.

Note: This function provided only on the model of Dual

Head Docking Station.

10 USB 3.0 port (Type B): Connect to a computer.

11 Power jack: Connect to the power adapter.

Connection

To connect the USB peripherals, Ethernet, speaker and

microphone,

follow the

illustrationsbelow to connect the

corresponding

connectors.

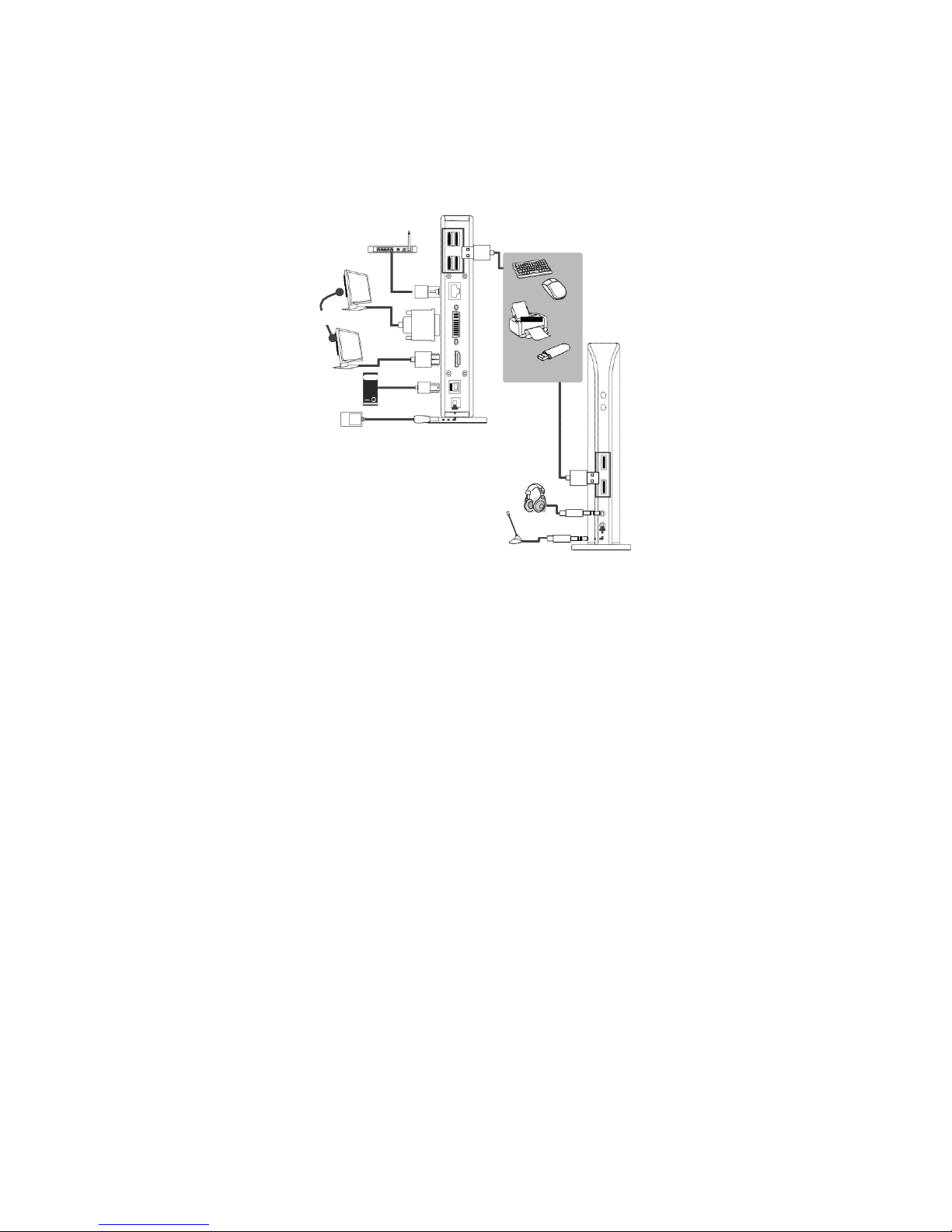

Dual display docking station

Router

Monitor

USB

peripherals

Power adapter

Earphone

Microphone

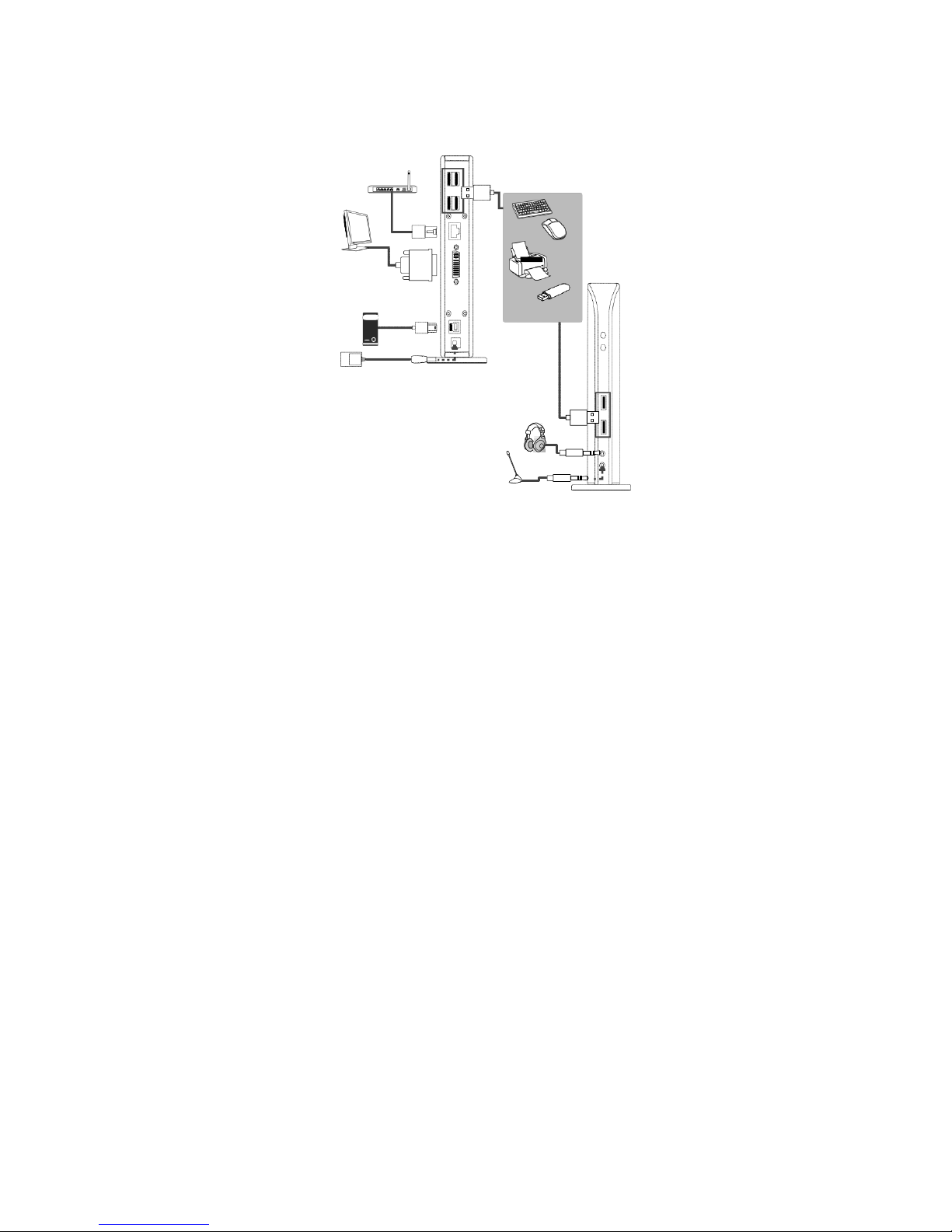

Single display docking station

Router

USB

peripherals

Power adapter

Earphone

Microphone

Installation

Caution: DO NOT connect the docking to a computer before

installing the provided driver.

Note that the following strings and screen shots shown on this

user's manual may vary slightly from each operation.

For Windows®7/ Windows®8 user

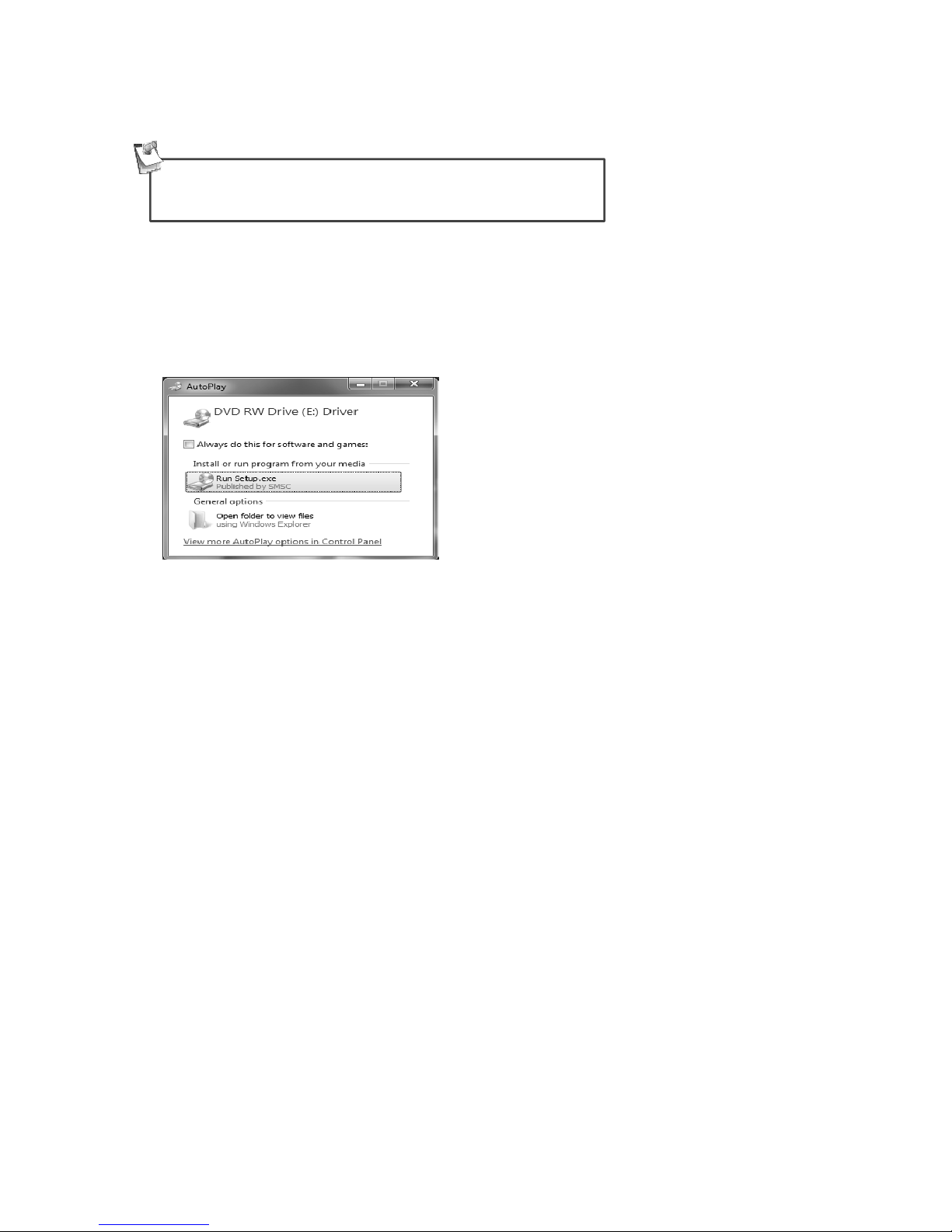

1.Insert the supplied driver CD into a computer's CD/DVD- ROM.

2. Click <Run Setup.exe> to start the installation.
