Shining 3D FreeScan UE Manuel utilisateur
FreeScan UE
Blue Laser Handheld 3D Scanner
Getting Started with FreeScan UE
Quick Start Guide
Recommended
Scanner
Markers
Adaptor
Calibration plate
USB drive
USB dongle
Data cable with
power port
PC System Requirements

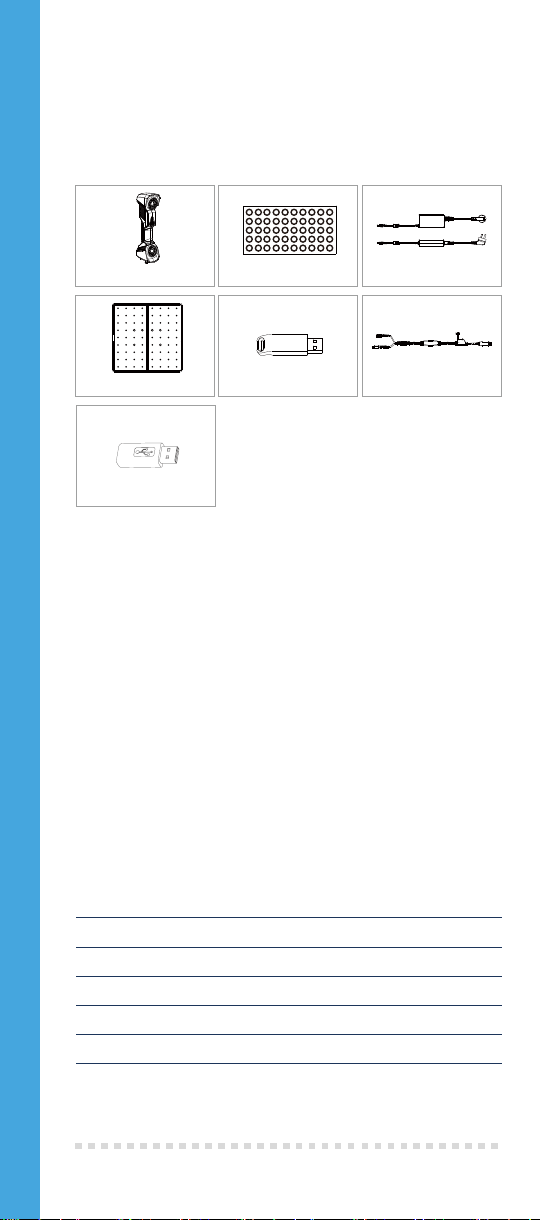

List of parts
Graphics Card：NVIDIA GTX/RTX series cards，higher or equal to GTX 1080
Processor：I7-8700
Memory : ≥32G
Video Memory：≥4G
USB Port：High-speed USB3.0
Preparation

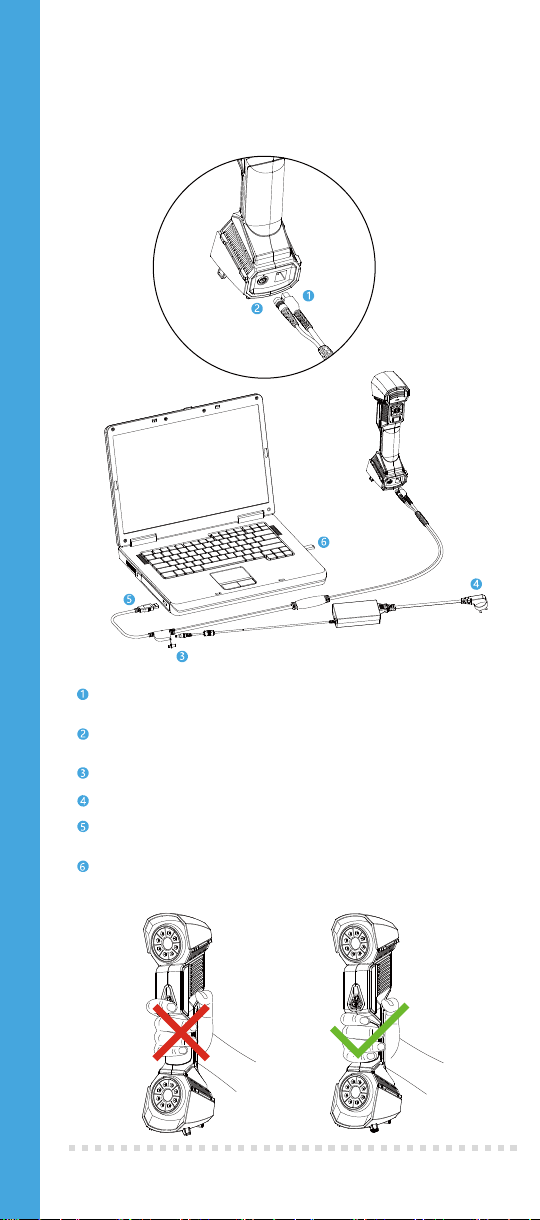

Hardware Installation
Insert the round aviation plug of the data cable into circular port of
the scanner.
Insert the USB3.0-BM plug of the data cable into USB port of the
scanner.
Connect the data cable to Adaptor through the power port.
Insert the Adaptor into power socket.
Connect the USB3.0-AM of the data cable to USB 3.0 port on the
computer.
Plug the USB dongle on the computer.
STEP
01
STEP
02
STEP
03

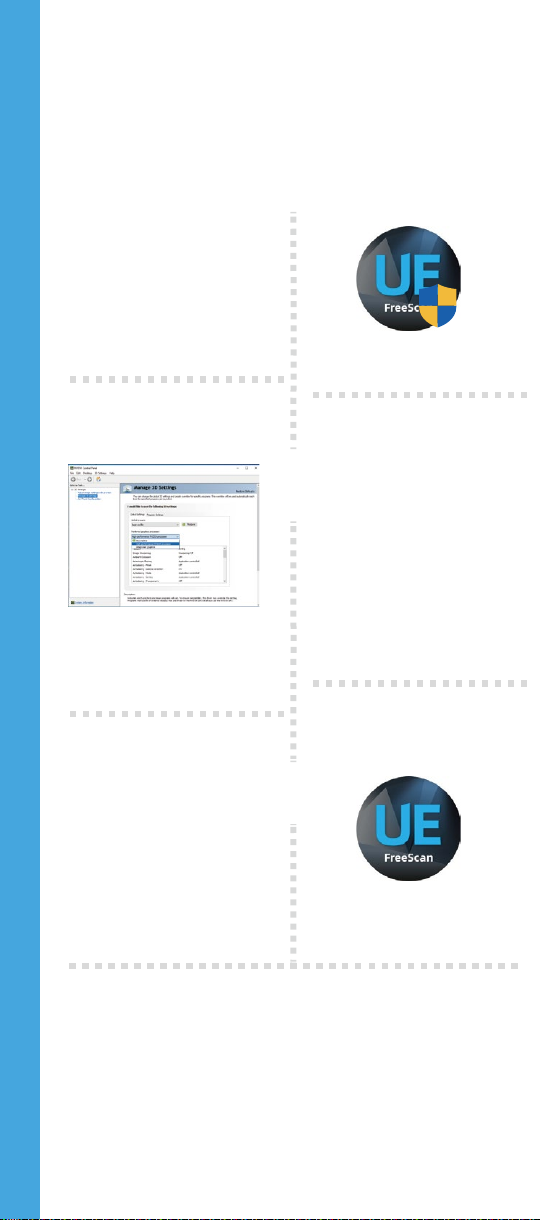

Software Installation
Software
Installation
Use the installation package from
the USB drive to correctly install
the program and device driver.
Software start
Make sure the dongle is correctly
inserted and double-click the
shortcut to start the software.
Switch to discrete graphics.
Set the software
graphics card
Attention：
USB dongle contains the necessary parameters for software startup and
it must be properly paired with the device. The software will start
abnormally with wrong USB dongle. It is forbidden to pull out the dongle
during use, otherwise it will cause software error.
STEP
01
STEP
02
STEP
03
STEP
04
STEP
05

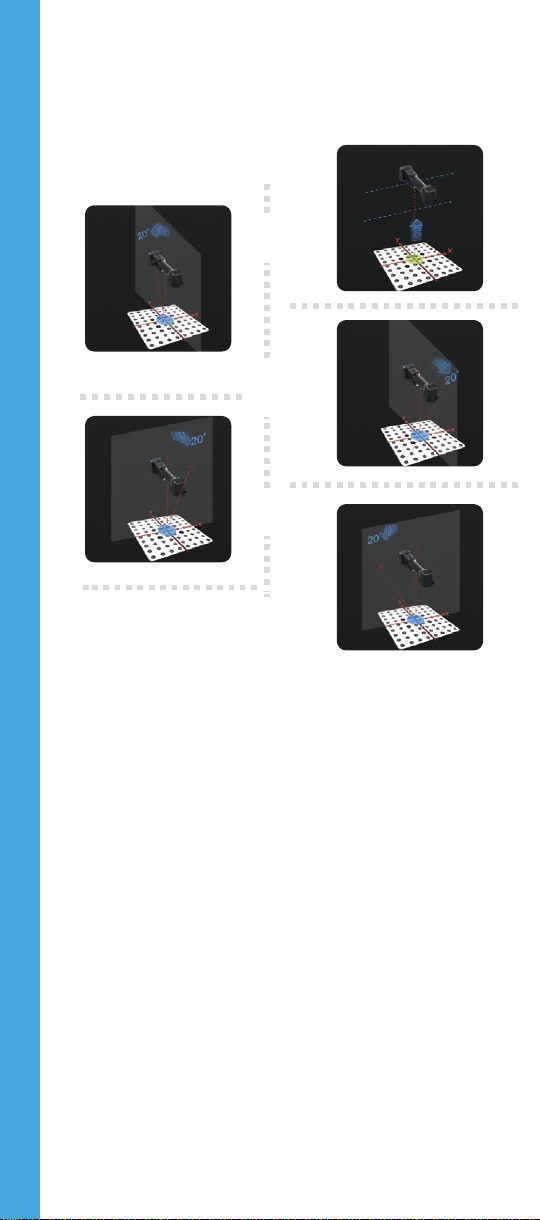

Take the calibration plate out of the bottom of the equipment box, open
and place it in a flat position. Pull the scanner farther or closer to the
calibration plate according to the instructions of the program until the
images at all distances are captured. Move the scanner in pitch and roll
to complete the calibration of the scanner.
The purpose of calibration is to ensure the accuracy of the scanned data.
The scanner therefore needs to be calibrated after installing the software
for the first time.
Attention：
1. It is recommended that the scanner be calibrated before use after
transportation to ensure data accuracy.
2. It is recommended to calibrate the scanner before use, when it has
been stored for more than a week.
3. The scanner needs to be calibrated when the temperature differences
are huge between storage, transportation and use.
4. Please be careful about the operation of the calibration plate and put it
back into the equipment box after calibration to avoid damage.
5. Do not touch, scratch or stain the reflective points on the surface of the
calibration plate, and it is forbidden to clean the calibration plate with any liquid.
6. The calibration plate and the scanner are bound with the software and
cannot be wrong used.
Calibration
Scanning Process
Scan preparation
Calibration
Select scan mode
Laser scan
New project
Select resolution
Scan preview Adjust brightness
and scan distance
in scan preview
Start scan
Edit scan data
Finish scan
New/open
project
Project splicing
Data wrap Data processing Data measurement
Save data
Export to inspection
Software
The scan could be
Previewed after editing
Arrangement of markers
a.The intervals between markers is better to be around
80-150mm.
b.There are fewer markers in flat areas and more should be
used in curved areas so as to ensure smooth scanning.
c.When the scanned object is so small that the markers could
not be stick onto the object, markers could be arranged
around the object to ensure that the relative positions of the
markers and the object remain unchanged during the
scanning process.
d. Avoided sticking markers on locations with high curvature.
e. Avoided sticking markers near the edge of the scan details
(< 3-4 mm).
f. Avoid using damaged, dusty, or dirty markers.
g. Avoid arranging the markers in a line.
Adjustment of scanning parameters
Before scanning black or highly reflective objects, please
adjust the brightness of the scanning object to get higher
quality data.
Use of developer
The developer could be used in an appropriate amount, when
we scan highly reflective or transparent objects.
Depending on the type of developer, the final scan data will
have a deviation of 1-6μm.
Mode
Accuracy
Volume accuracy
*Locate with the help of markers
Point distance
Laserscan
up to 0.02 mm
0.02 mm + 0.04 mm/m
0.05 - 3 mm
Scanning Skills
Conclusion
APAC Headquarters
SHINING 3D Tech. Co., Ltd.
Hangzhou, China
P: +86-571-82999050
Email: [email protected]
No. 1398, Xiangbin Road, Wenyan,
Xiaoshan,Hangzhou, Zhejiang, China,
311258
Americas Region
SHINING 3D Technology Inc.
San Francisco, United States
P: +1-415-259-4787
Email: [email protected]
1740 César Chávez St. Unit D.
San Francisco, CA 94124
EMEA Region
SHINING 3D Technology GmbH.
Stuttgart, Germany
P: +49-711-28444089
Email: [email protected]
Breitwiesenstraße 28, 70565,
Stuttgart, Germany
Technical support
Email:[email protected]
www.shining3d.com
