Shimano E8000 STEP Manuel utilisateur

[email protected]e // www.eplus.bike

Via Pontestura 124 Camino 15020 (AL) Italy

eplus

VERSION 4.01

EN

SHIMANO ENGINE

INSTALLATION MANUAL

E8000 STEP

2. INSTALLATION

INSTALLATION

Module connection

WARNING

Unlocking the speed limiter in public places such as roads,

squares, bike paths is prohibited by law. Therefore, you can activate unlocking only in private

locations such as circuits, slopes, and private properties. Mounting the device may invalidate the

bicycle factory warranty. The manufacturer declines any responsibility for any damage caused

to assisted pedal bicycles on which the Eplus system is mounted. The manufacturer declines any

responsibility for damages to persons or things caused or in any way related to the use of Eplus

Disconnect the connectors

and locate the cables

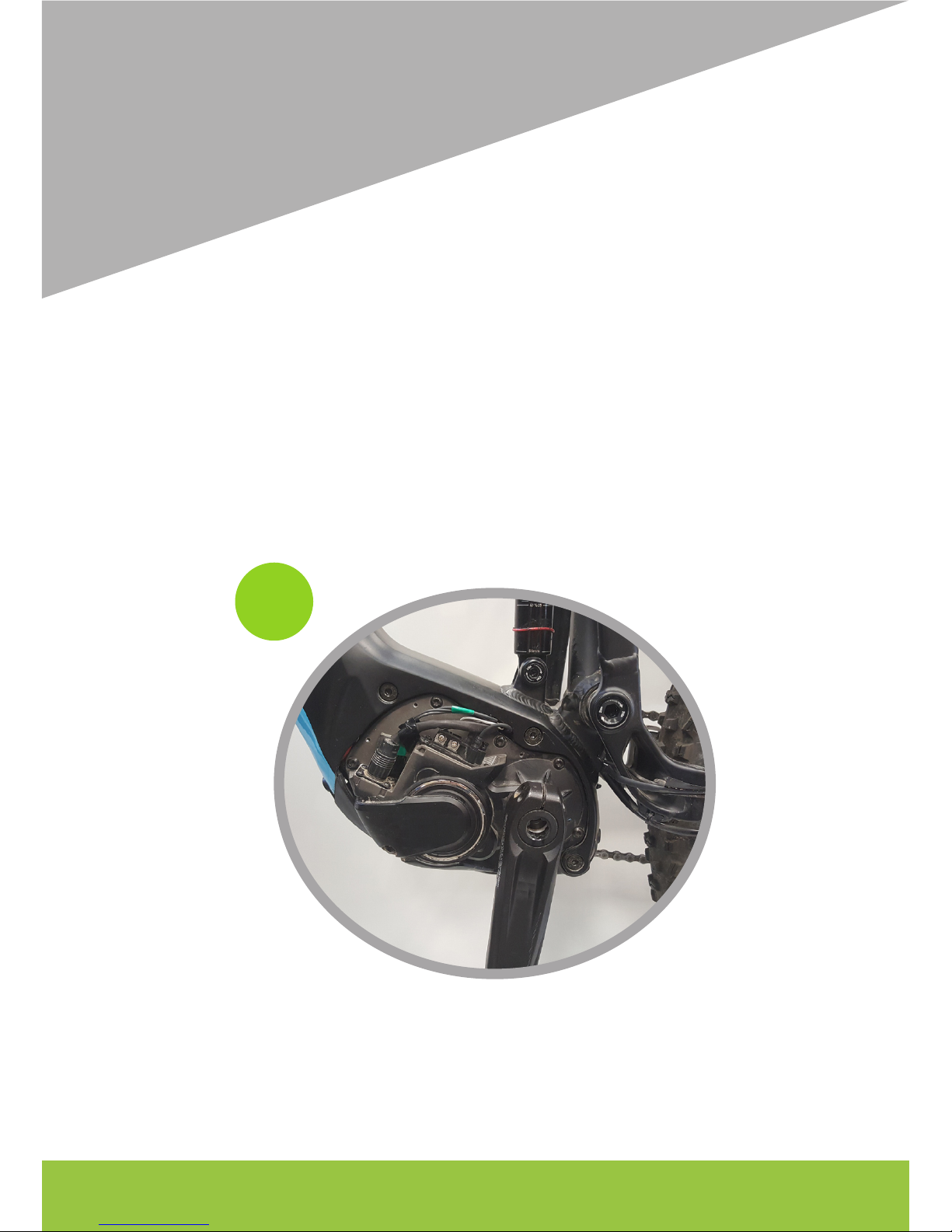

Remove the battery from your e-bike.

Remove, on the left side (opposite sideof the transmission crown), the 3 screws that secure

the engine cover.

1

3. INSTALLATION

2

3

Once removed the protective cap, locate the connector in the foreground among the

connector assembly on the right side.

Remove it gently, paying attention not to crush or spoil connectors or wires.

4. INSTALLATION

4

With a cutter gently remove the pin on the connector just disconnected.

5

Insert the supplied tube into the connector just disconnected.

5. INSTALLATION

6

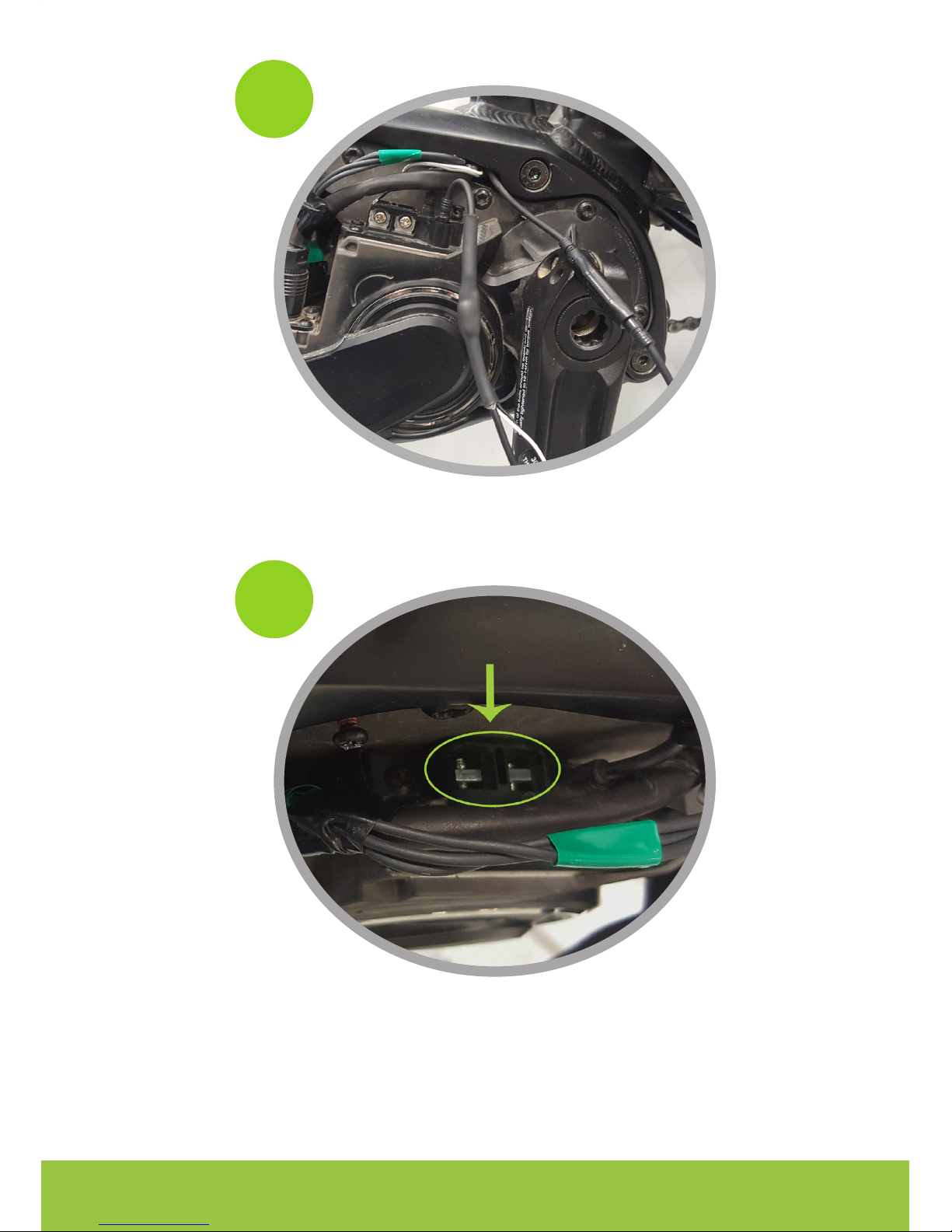

Put one of the two connectors of the eplus on the opposite side of the tube and connect the

second connector of the eplus replacing the one that you previously plugged out of the engine.

7

Locate the 2 screws to use the lights and proceed with step 8.

6. INSTALLATION

8

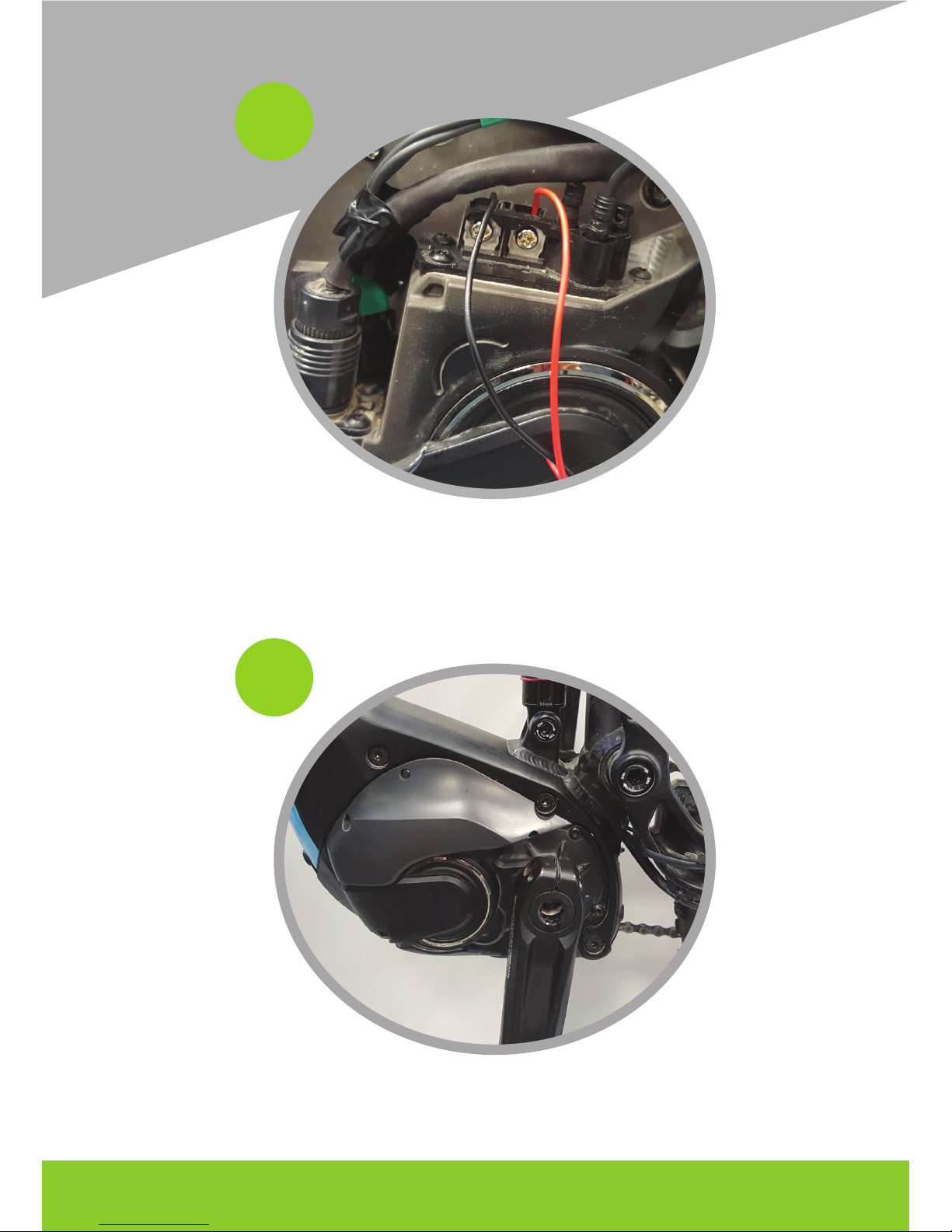

Insert the black cable between the screw with the symbol - and the plate (left), AND the red

cable between the screw with the + symbol and the plate (right). Tighten the two screws.

9

If necessary, order the cables, making sure that there are no cables positioned in correspondan-

ce of the holes where the screws of the protective cap of the motor pass and reposition it.

7. INSTALLATION

To activate Eplus, turn on the lights (if the key is not active, you must enable it using the Shima-

no E-Tube app). Download the Etube application from Google Play or Play Store:

http://e-tubeproject.shimano.com/

and turn on the “lights” function using the app. The activation can also be performed by the

Dealer using the Shimano Diagnosis.

Access the menu by holding down the key on the dashboard

•

Find the “lights” entry, access and select the “ACC” entry•

From now on, the Eplus Unlocker mode will always be active.

10

8. INSTALLATION

11

Choose Customize> transmission unit and switch to On.

Press on OFF and save to the bottom right, then exit the application. From this point on, the

‘lights’ menu will be active on the display: it will then be possible to set the lights from the ‘lights’

menu by choosing ACC to activate the unlocker mode of the Eplus.

WARNING On some models and depending on the FW, you must repeat the operation every time

you turn on / o the bike.

9. INSTALLATION

12

Available for:

Android iOS

The Eplus app displays:

total km

•

partial km•

maximum and average speed•

odometer•

At the time of the rst installation, the Eplus app will ask you to type the number of kilometers

traveled in total by the bicycle.

From now on:

The Eplus app will correctly display the kilometers traveled

•

When lights are on, also from the Eplus app you can enable / disable the speed unlock feature.•

Use of the Eplus app

goo.gl/DehnLE goo.gl/i3uwvL

10. INSTALLATION

Notes

12 months Warranty . We will respond for manufacturing faults but not

for installation defects.

Keep away from moisture and heat sources.
