Shenchen Peristaltic Pump
Manual of V6-12L Series
Important Information
Please read the manual carefully before operating the product.
Warning
Tubing may have crack due to wear. It results in the overflow of fluid
from tubing. In that time human body and instruments may be
damaged. So user must check usually and change tubing in time.
Connect directly the power line to the wall socket, and avoid using
the extense electric line.
If the power line or plug had wear and other damage, please hold
the plug to unplug it, not hold the line.
If following situations happened, please turn off the electric power
and unplug the plug, holding the plug and not the line.
1. Fluid splash on the pump.
2. You think the pump need to maintain or amend.
The user’s power socket must have ground wire, and have reliable
grounding
Catalogue
V6-12L Series Product Introduction:............................................- 1 -
V6-12L Series Product Appearance..............................................- 1 -
V6-12LSeries Keyboard Instruction.............................................- 2 -
V6-12L Series Operation Interface Structure:..............................- 3 -
V6-12L Series Operation Interface Instruction......................... - 3 -
V6-12L Series Technical Specification...................................... - 16 -
V6-12L Series Function and Features........................................ - 16 -
External Control Interface Instruction：....................................- 18 -
Product Dimension (mm):.......................................................... - 22 -
Maintenance................................................................................- 23 -
Warranty and After Service.........................................................- 24 -
Shenchen Peristaltic Pump V6-12L Series
- 1 -
V6-12L Series Product Introduction:
4.3 inch color touch screen control; dynamic display working status; flow data,
setted parameters and system settings displays in the same screen. Intelligent
calibration and online micro adjusting function; three measurement mode; fixed
volume measurement, fixed time and volume, timer start and stop. It can load YZ35
pump head. It is the ideal choice for industrial production and equipment
supporting.

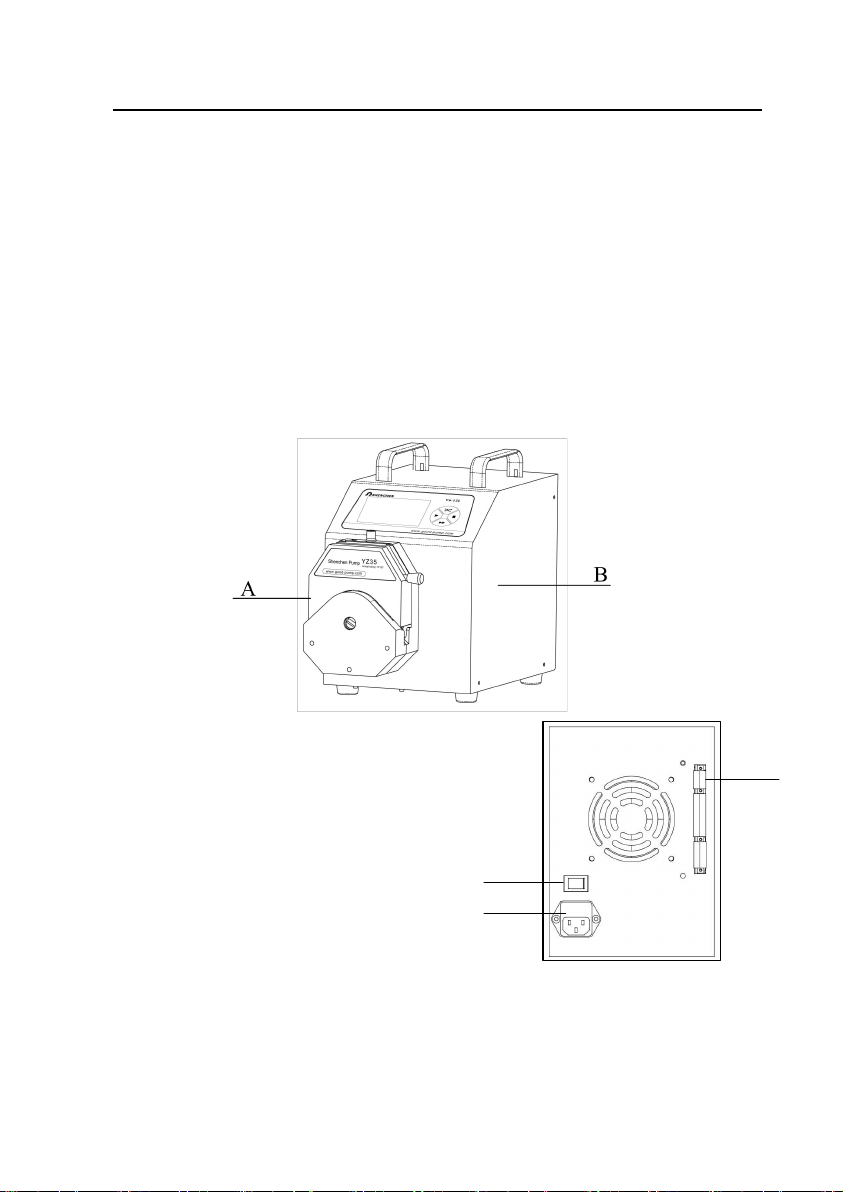

V6-12L Series Product Appearance
A——Pump Head
B——Drive
C——Power Switch
D——Power Port
E——External Control Input Port
C
D
E
Shenchen Peristaltic Pump V6-12L Series
- 2 -

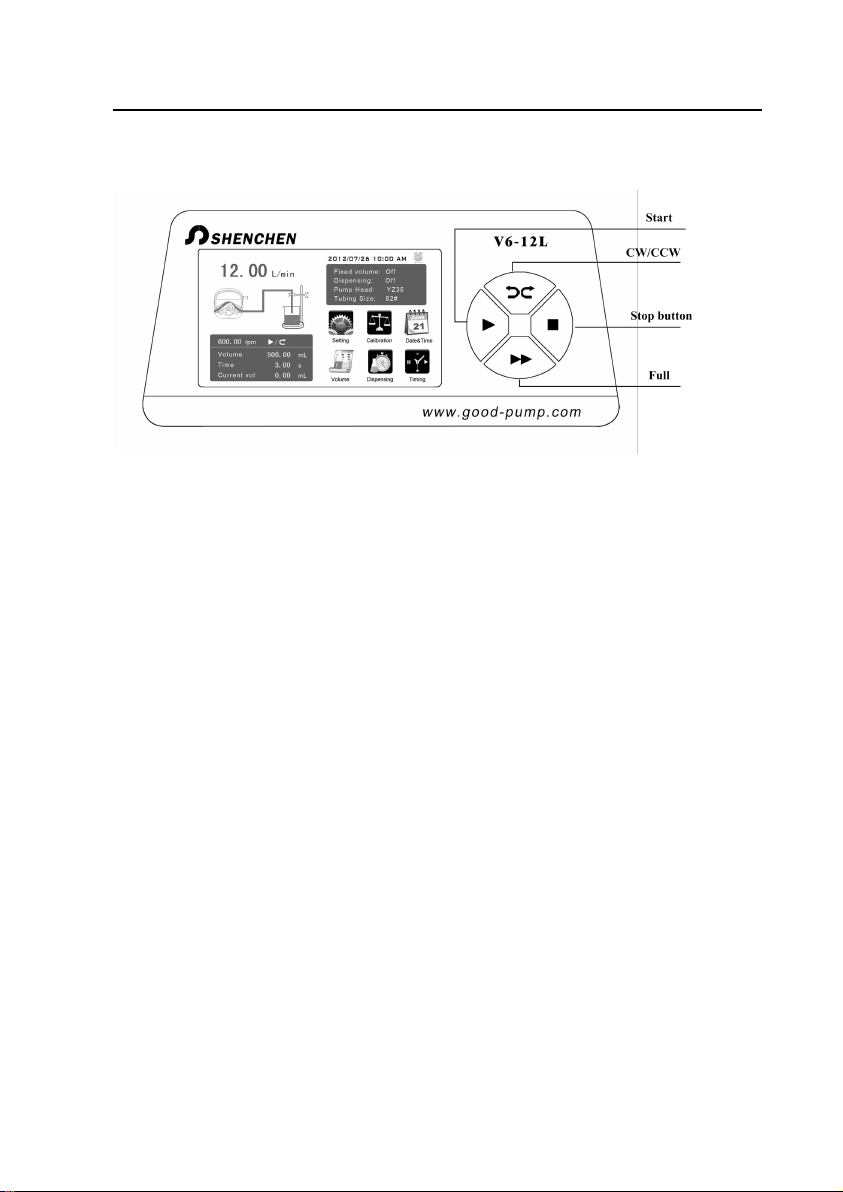

V6-12LSeries Keyboard Instruction
Stop Button：Press stop button, stop working. Forbidden buttons can be used on
the main interface.
Full Button：When stop state or transferring state, press this button, the pump will
running with highest speed. This button can be used for wash tube or fast
filling liquid.
CW/CCW Button: Press this button, the motor will change running direction.
When the pump working with fixed volume measurement function or
fixed time and volume function, this button does not work.
Start Button: Press this button, the motor start running. When fixed volume
measurement function or fixed time and volume function turn on, press
this button, the pump will start work with the function.
Shenchen Peristaltic Pump V6-12L Series
- 3 -

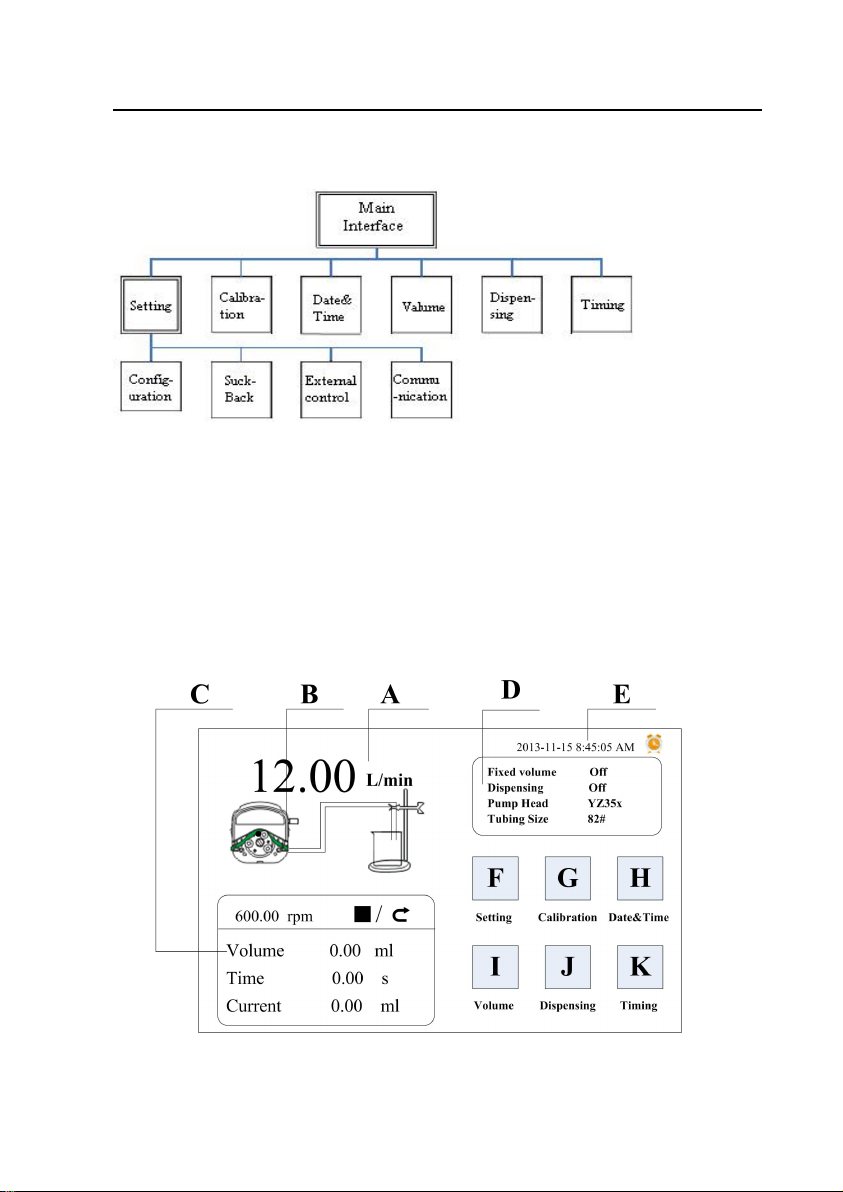

V6-12L Series Operation Interface Structure:
V6-12L Series Operation Interface Instruction
1. Boot Interface:
After power on the system, enter the welcome interface, choose system language,
Chinese/English. If do not choose, it will enter the English main interface after 2.5
seconds automatically.
2. Main Interface:
Main Interface Composition as below:
Shenchen Peristaltic Pump V6-12L Series
- 4 -
Speed/Flow Rate Display: Under the flow rate mode, display the current set up
flow rate, the motor speed display at the C frame. Under the
rotating speed mode, display the current set up speed, flow rate
display at the C frame. Click A to amend the flow rate or speed.
When fixed time and volume function turn on, A is forbidden, not
allowed to amend the flow rate or speed.
Real-time Dynamic Display：Display the current running state.
Real-time Parameter Display ：Display the current running state and set up
parameter. When the fixed volume measurement turn on, display
the fixed volume measurement parameter; when the fixed time and
volume function turn on, display the fixed time and volume
parameter. When these two functions turn off, display the
parameter is all 0.
Set Parameter Display ：Display the fixed volume measurement, fixed time and
volume state information, the model of pump head and tube size.
Date and Time Display：Display the current data and time, you can change it in the
system setting. When it display an alarm clock on the right side, it
means the timer start and stop function is turn on.
System Setting Button：Click this button, set up other parameters.
Flow Calibration Button：
Click this button enter the flow rate calibration interface.
Date & Time Button：Click this button enter set up current date and time interface.
Fixed Volume Measurement Button: Click this button, enter the fixed volume
measurement interface.
Fixed Time and Volume Button: Click this button, enter fixed time and volume
interface.
Timer Start and Stop Button: Click this button, enter timer start and stop
interface.

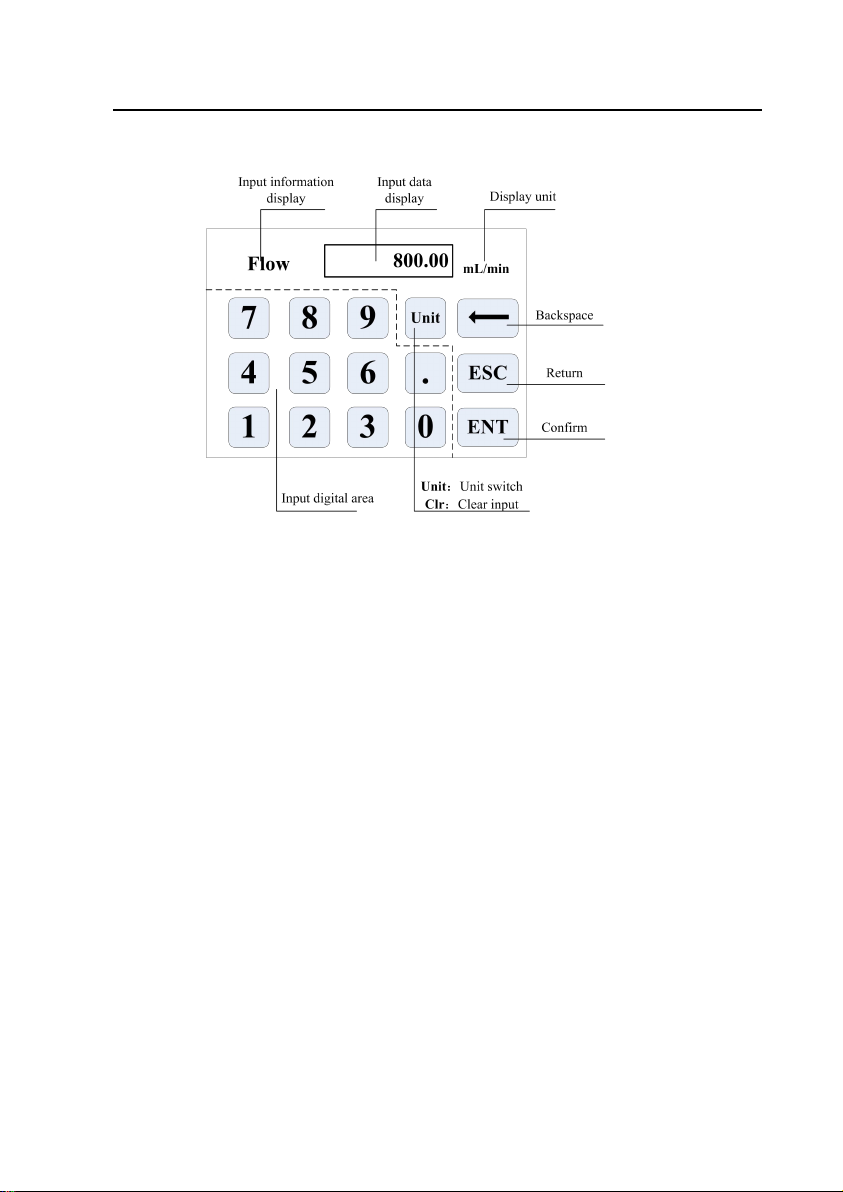

3、Numeric Keypad Input Interface:
Shenchen Peristaltic Pump V6-12L Series
- 5 -
Numeric keypad input interface as below:
Input Information Display ：The information displayed is the current operation
object.
Input Data Display: Display the current input data, range is 0.01-9999.
Unit Display: Display input units when input flow rate or volume.
Input Digital Area: Numeric keypad.
Unit/Clr Button：When input flow rate or volume, this button is unit switch, you
can choose different unit. When it is Clr, you can clear the current
input data.
Backspace Button: Delete an input digital.
ESC Button: Cancel the current input, back to prev interface.
ENT Button: Confirm the current input.

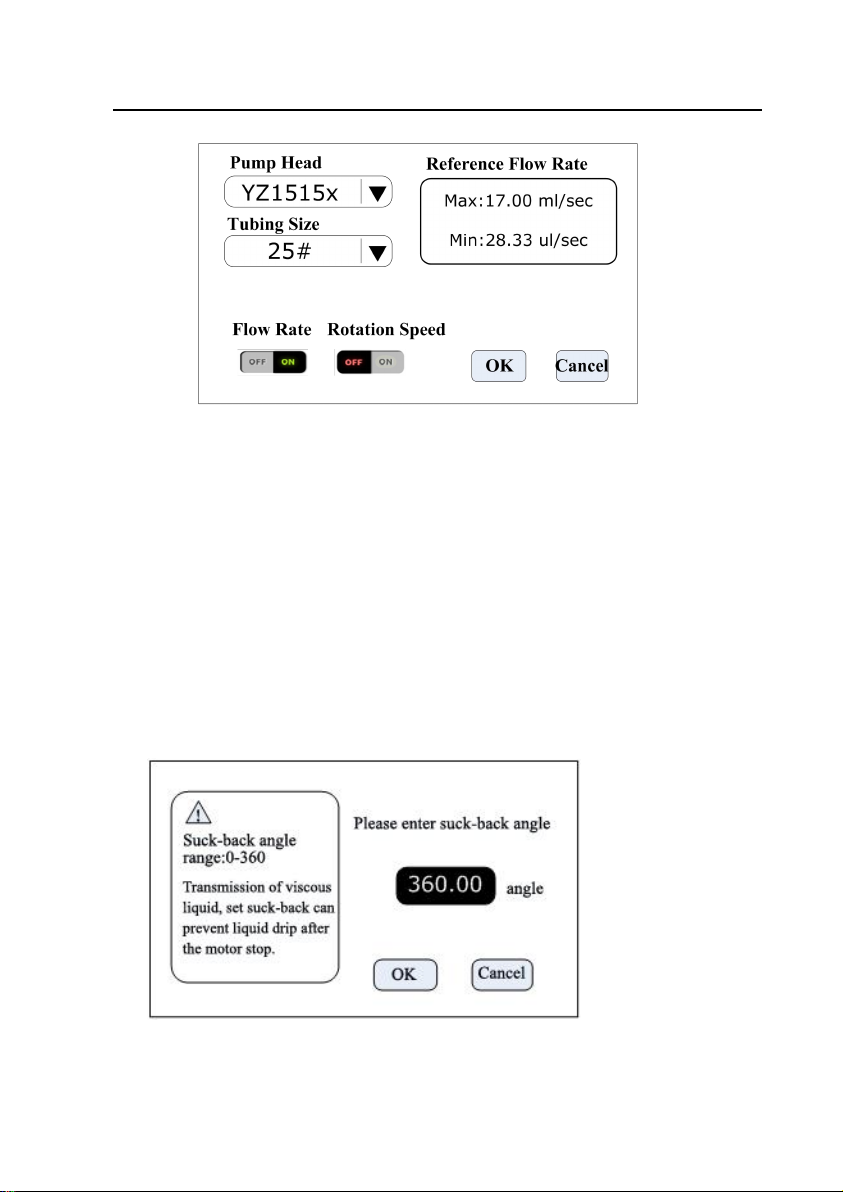

4、The Basic Configuration Interface:
The basic configuration interface:
Shenchen Peristaltic Pump V6-12L Series
- 6 -
Click the pump head and tubing size to choose the pump head and tubing.
Reference flow rate display the max. and min. flow rate with the current pump
head and tubing.
Click the flow rate mode or rotating speed mode button to choose the working
mode. When you choose the flow rate mode, the flow rate is adjustable, the
speed will change with the flow rate. When you choose the rotating speed
mode, the speed is adjustable, the flow rate will change with the rotating
speed.
Click the confirm button back to the main interface.
5. Back Suction Angle Interface:
The back suction angle interface as below:
Shenchen Peristaltic Pump V6-12L Series
- 7 -
Click the Setting button in the main interface, then click Suck-Back button to
enter the back suction angle setting interface. Click angle button, enter
suck-back angle then click ENT. This can set all suck-back angle when motor
stop running, except dispensing is ON.

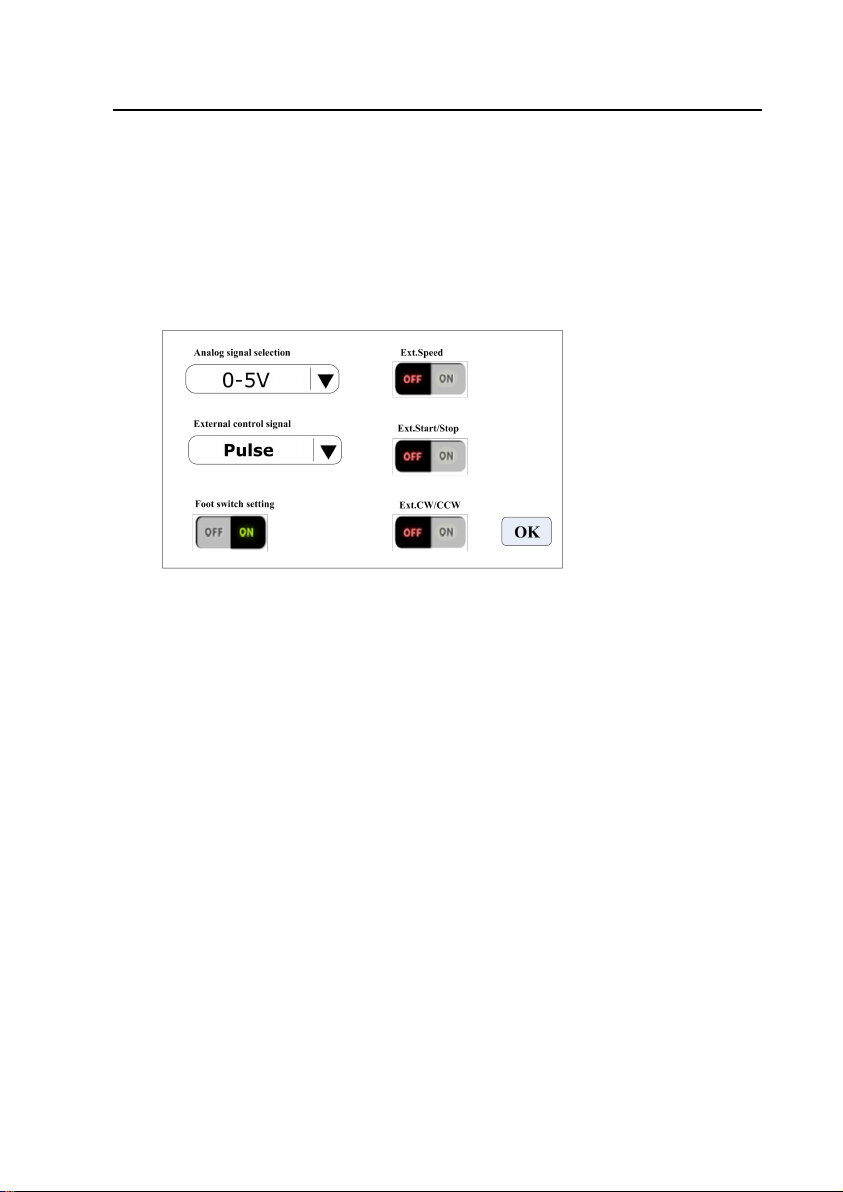

6. External Setting Interface:
External Setting Interface as below:
Click Setting button in the main interface, then click External control to enter
Extrocontrol Settings interface.
A. According to the external port speed analog input signal to select signal ,
0-5V , 0-10V ,4-20mA analog signal three kinds of optional analog signal.
voltage range and the motor speed is linear.
B. External control and commutation of the motor start-stop signal is divided
into two kinds : level mode and pulse mode.
Specific interface, see details in describes external control interface .
C. Various independent external control mode setting switch work only
when the corresponding external control function is turned on.
7. Communication Setting Interface:
Communication Setting Interface as below:
