Shelters4Less SR1604 Manuel utilisateur

Assembly Instruction

Shelter Type: SR1604

SR1604-01-220116-UK

Email : [email protected]

Web : www.shelters4less.com

Tel : 0800 160 1002

EXPLODED VIEW

ITEM

NO. PART NAME

DRG NUMBER

LENGTH

Default/QTY.

S1 - Full Frame - SR

Default

CB1 Bracket

CB1

Default

JF1 Bracket

JF1

Default

RB1 Bracket

RB1

Default

S1 S1

Default

JF2 Bracket

JF2

Default

FT1 Bracket

FT1

Default

FT3 Bracket

FT3

Default

R5 R5

Default

R4 R4

Default

ST8 Roof Tie

ST8

Default

L1 Bracket

Default

Seasling Strip -

2195mm

Sealing Strip

Default

PCE2 PCE1

Default

RC2 - 4059 RAD - RC1

Default

2MD 2MD

2110 2

40x40 End cap

BOUGHT IN ITEM

40 x 40 x

20 7

PARTS LIST AND FIXINGS

FIXINGS

Bolt set M10

Nut

Washer

Black

Cap

T25 T50 AB1210

M10 x 60mm

25mm

Tech

screw

50mm

Tech

screw

M10 X 100mm

Concrete Bolt

Pack A

30 30 60 60 72 30 8

Required

24 24 48 48 52 30 5

Spare

6 6 12 12 20 0 3


ITEM NO.

PART NO.

DESCRIPTION

DIMENSION


QTY.

FRAME

2000 x 1035

CB1

CORNER

BRACKET

110 x 110

JF1

BRACKET

220 x 40

RB1

BRACKET

110 x 46

S1 STUB

STUB

140 x 40 x40

JF2

BRACKET

130 x 30

FT1

FOOT BRACKET

109 x 100 x 40

FT3

FOOT BRACKET

109 x 100 x 80

RAFTER

2160 x 40 x 40

RAFTER

2160 x 40 x 40

ST8

ROOF TIE

2100 x 40 x 40

BRACKET

95 x 45 x 30

SEALING STRIP

Cut to length

2 ROLLS

PCE2

ROOF PANEL

2205 x 1050

RC2

ROOF STRIP

2205 3

2MD

ROOF EDGING

Cut to fit

EC40

PLASTIC END

CAP

40x40

2110

1035

1075

Step 1

Assemble

frames to make up the main structure using

CB1

brackets in the corners and

JF1

brackets for the straight joints.

JF1

CB1

CB1CB1

Ensure corners are

aligned correctly.

TOP VIEW

Check shelter dimensions

to ensure correct

alignment.

ST8

FT1

FT3

RB1

FT1

FT3

ST8

DETAIL B

SCALE 1 : 5

JF1

JF3

CB1

S1 STUB

DETAIL A

SCALE 1 : 9

JF2

JF1

CB1

S1 STUB

Step 2

Move the shelter in to its final position, make sure it is square and attach

FT1 and FT3

foot brackets, which screw into the ground with the concrete

bolts.

ttach

JF2

brackets to

Stubs. Using

CB1

and

JF1

brackets, secure

SB1

to frame. Now fix the

RB1

brackets to the rear of the frame, attach

rafters. Use

brackets to attach

ST8

tie bar.

PCE2

PCC2

PCE2

Step 3

Apply sealing strips

(SS)

to rafters. Align the two

PCE2

roof panels

with the outer edges of the shelter, leaving a gap in between the

panels.

RC2

2MD

RC2

2MD

Step 4

Apply more sealing strips

(SS)

to the top of the roof panels, above

the fist strips. Use

RC2

strips to cover the gap in the centre and the

edges and screw them directly into the frame using

50mm TEC

screws

. Finish of the shelter by attaching the

2MD

edge trim, then

inally, fit the Black plastic caps on exposed nuts and bolts, and fit

the square end caps

(EC40)

to any open ends of box sections.

995

945.50

1035 945.50

1980.50 TO FOOT HOLE CENTRES

2110

2187

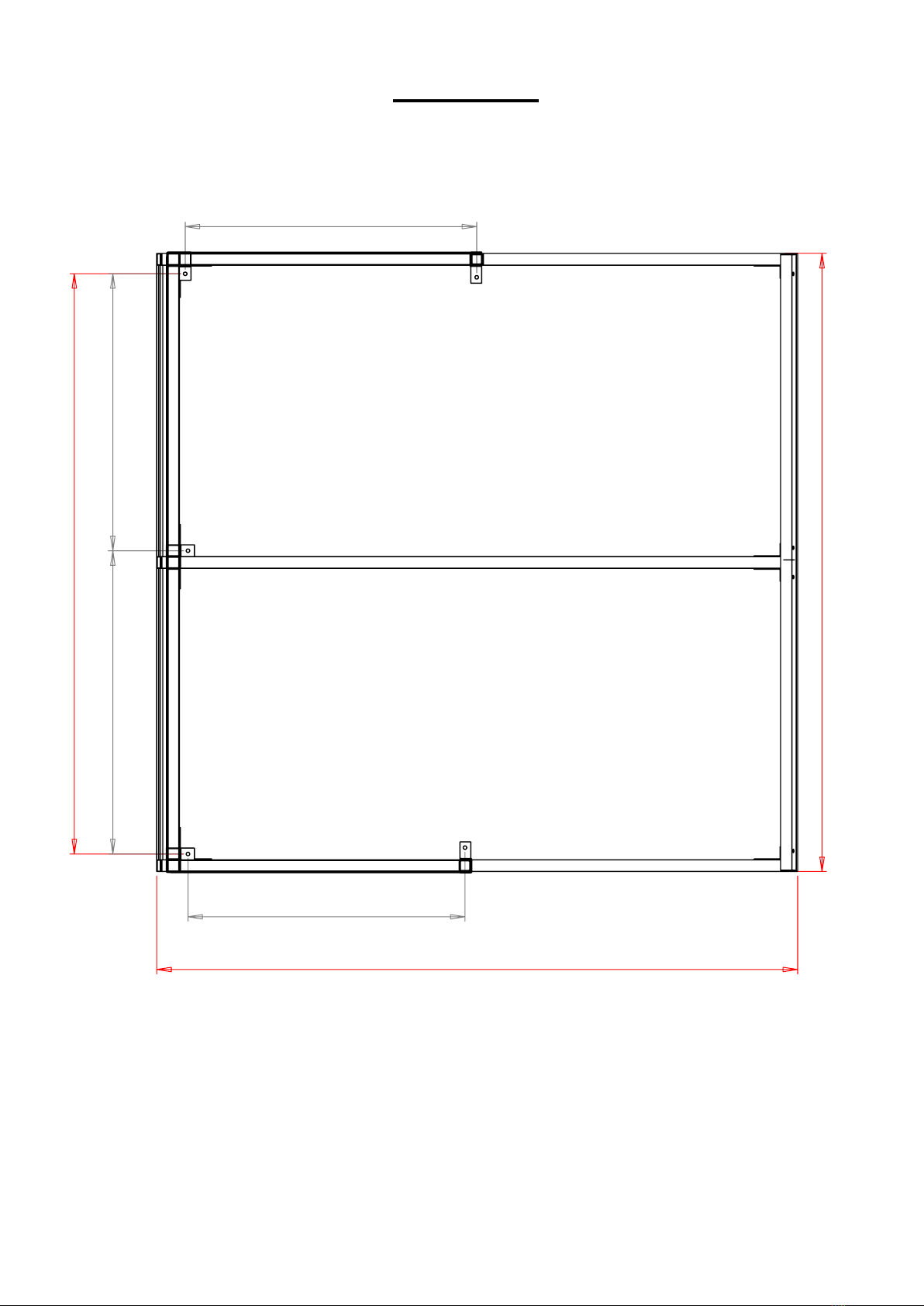

Plan View

Suggested size for concrete base: 200mm oversized on all four sides

Notes
