ShelterLogic 25769 Manuel utilisateur

orPlease read instructions completely bef e assembly

Model #25769

12x30 CELEBRATION "2" DECORATIVE CANOPY

Anchors

10431

Description Qty. Part #

67" Swedged Rafter Poles 12 10042

76" Swedged Leg Poles 12 10043

69.6" Cross Poles 15 10244

(Top Bend, shallow bend)

3-Way Frame Connectors 2

10046

4-Way Frame Connectors 10048

(Side Bend, sharp bend)

3-Way Frame Connectors 10045

4-Way Frame Connectors 10047

Cover 1800202

Bolts 1/4" x 2 1/2" 18 10017

Nuts 1/4" 12 1010

Wing Nuts 67000

Foot Plates 12 10050

Bungee Cords 56 10066

Long Pins w/rings

12 10052

Short Pins w/rings

12 10051

05-25769-0C 03/03/08

ATTENTION: PINS

Pins are for legs and feet,

and are NOT needed

for any other part of the

Long Pins secure feet plates to legs.

Short Pins secure legs to side bends.

Recommended Tools

Adjustable

wrench

Ratchet with

7/16

Safety Glasses

Ladder

Rubber Mallet

Tape Measure

Before You Start

• 2 or more persons recommended

to assemble

• Estimated assembly time = 2 hours

Manufactured Under

U.S. Patents

D415,571 D409,310

D430,306 D414,564

Other Patents Pending

150 Callender Road

Watertown, CT 06795

800.524.9970

www.shelterlogic.com

PAGE 1

3802102

Truss

PAGE 2

Side Bend Connectors

(sharp bend)

Top Crest Connectors

(shallow bend)

10042

10244 10244 10244

10042

10046 10048 10045 10047

10042 10042

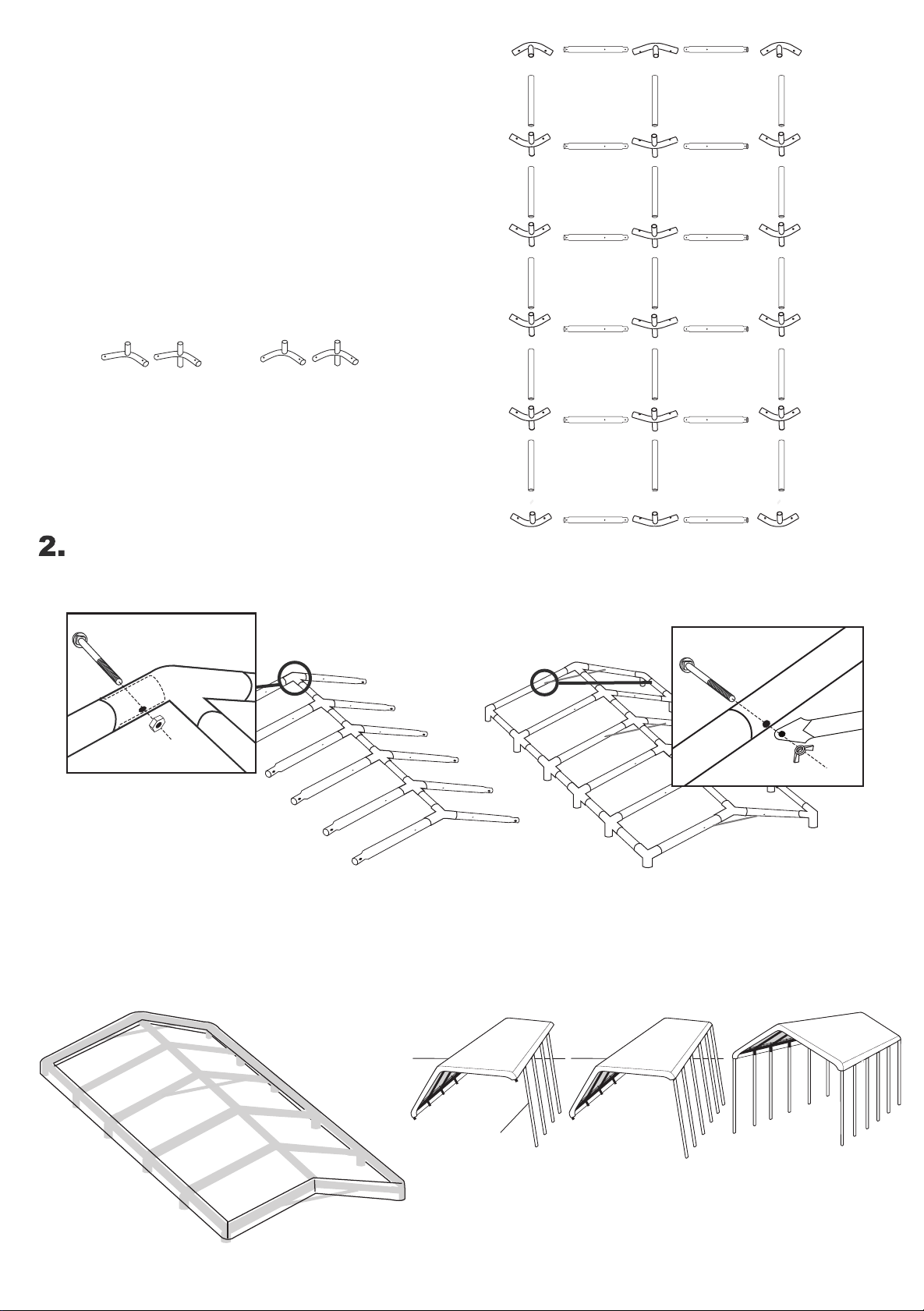

Assembly is easiest if you layout all parts as

shown. There are (12) #10042 Rafter Poles ,

they are swedged on both ends. The (15)

#10244 Cross Poles do not have swedged

ends. It is very important that you determine

which of the 3 & 4 way connectors are meant

for the sides and which are for the crest.

assembly together as shown in Fig. 1A. Assemble each side of the roof as shown in Fig. 2. Install #802102 truss

brace roof cables as shown in Fig. 2A.

Start with center, Fig. 1, using layout shown in diagram above. Bolt roof

Assemble Roof

Fig. 2

Fig. 1

Note: Install all carriage bolts

with nut toward center of frame.

10043

01010

10017

Fig. 1A

Place cover over frame so that the

grommeted portion is face down,

this allows the valance to wrap

around and cover the frame eaves.

Insert #10043 Leg Poles on one side of the frame, swedged

end up, then the end legs on that same side. Repeat for the

other side. Now you can secure the legs to the side bend

connectors and secure the cover with bungee cords.

10046

10045

10046

10045

10047 10047

10048

10045

10047 10047

10048

10047 10047

10048

10047 10047

10048

10017

7000

Fig. 2A

802102

Frame Assembly

4. Attaching Legs

3. Place Cover

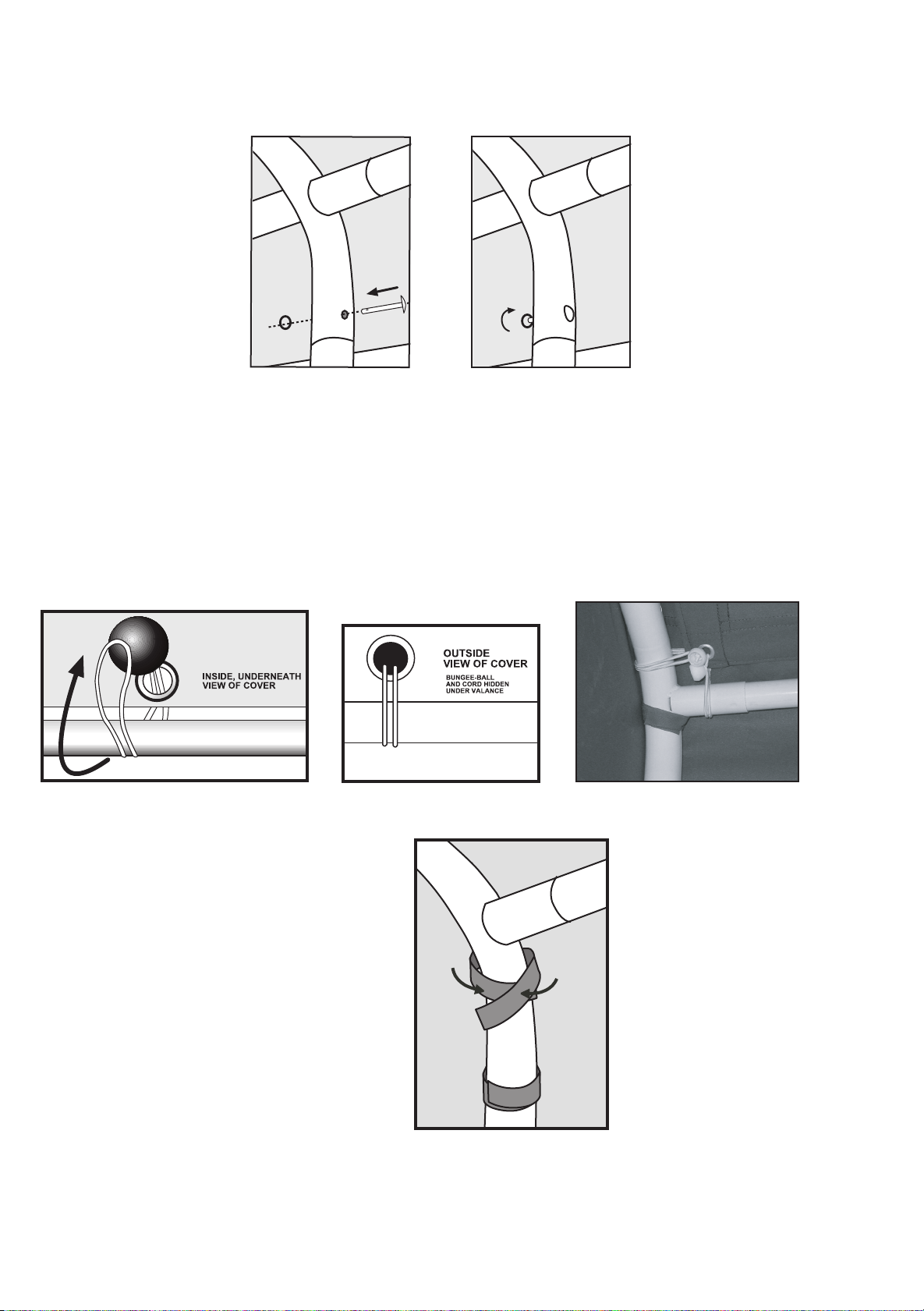

12 Short Pins are used to secure legs to side bend connectors.

Working inside, beneath the cover, begin with the corners. Insert the cord of the bungee-ball through the

grommet and around the Cross Pole, then around the ball. By doing this from the inside it will hide the bungee-ball

and give a cleaner look. When all 4 corners are secured, work from side to side to get an even fit.

To secure the valence corners wrap the

upper hook and loop tie just below the elbow.

Do the same for the lower hook and loop tie.

Note: this will keep the valence from rolling up

but still allow for movement.

Page 3

5.Securing legs

6.Securing cover

Locate a suitable location to place one anchor

as shown in the illustration into each of the base

feet until the round end of the anchor touches the

base feet.

Page 4

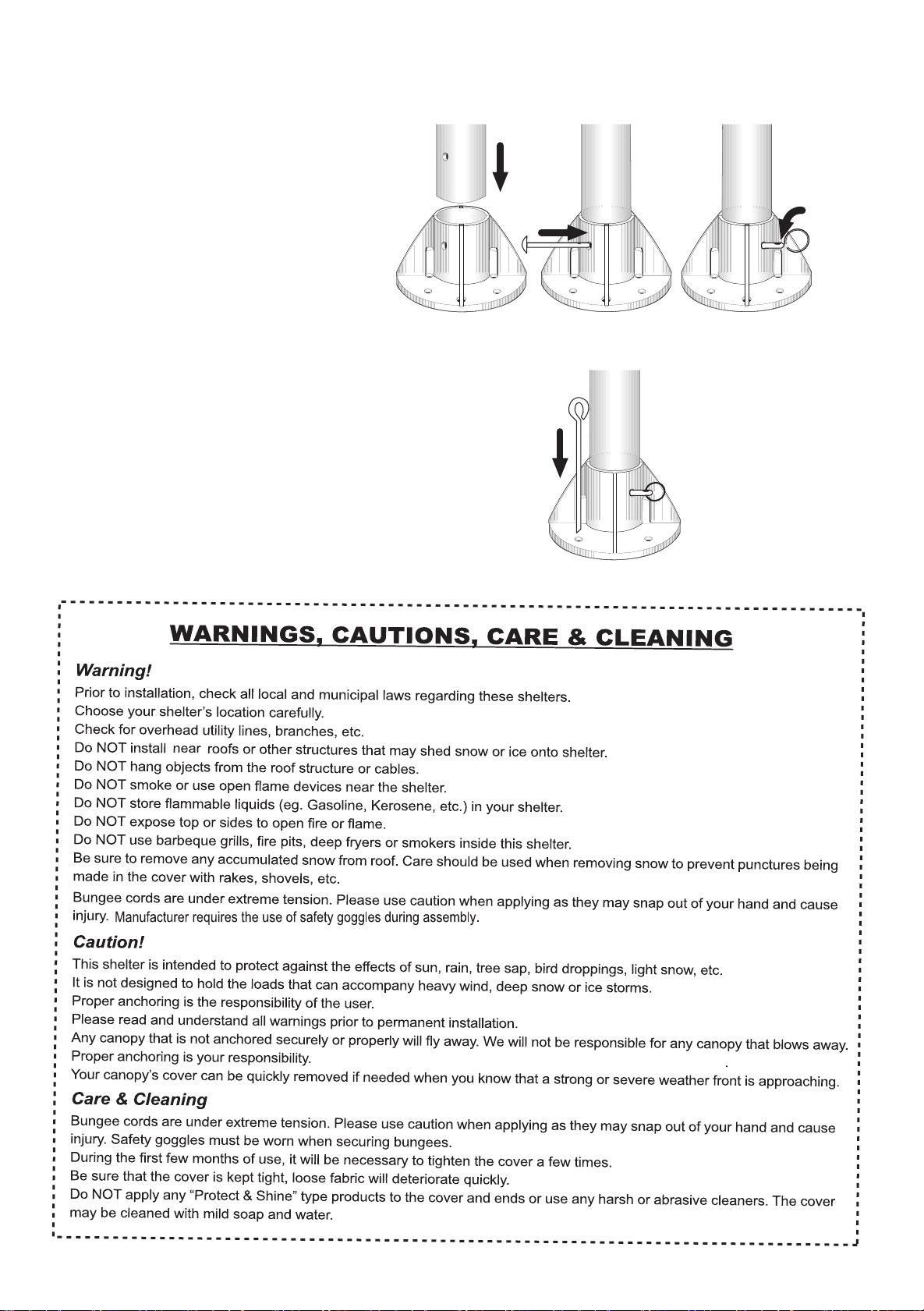

Insert Base Feet Plates onto

bottom of legs, be sure to line

up the pre-drilled hole in the leg

with the pre-drilled hole in the

base foot. Insert long pins all

the way through leg and foot,

to other side, secure with ring.

7.Attaching

&Securing base

feet

8.Anchoring
