Sharp PG-M10SU Manuel utilisateur

PG-M10SU/SE

PG-M10XU/XE

SHARP CORPORATION

DLP PROJECTOR

DLP PROJEKTOR

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored

to its original condition and only parts identical to those specified should be used.

Im lnteresse der Benutzersicherheit (erforderliche Sicherheitsregeln in einigen Ländern) muß das Gerät in seinen

Originalzustand gebracht werden. Außerdem dürfen für die spezifizierten Bauteile nur identischeTeile verwendet

werden.

MODELS

MODELLE

CONTENTS / INHALT

• SPECIFICATIONS.............................................. 2

• NOTE TO SERVICE PERSONNEL....................3

• OPERATION MANUAL ...................................... 4

• DISASSEMBLYAND REASSEMBLY ...............10

• REPLACING THE LAMP.................................. 15

• BLOCK DIAGRAM OF OPTICAL SYSTEM

PRINCIPLE ...................................................... 16

• OPTICALADJUSTMENT AND MEASURING ..17

• SAFETY DEVICE............................................. 20

• TROUBLE SHOOTING TABLE ........................21

• BLOCK DIAGRAM ........................................... 43

• PARTS LIST ..................................................... 44

• PACKING OF THE SET ................................... 51

Page

• TECHNISCHE DATEN ..................................... 22

• HINWEISE FÜR DAS

WARTUNGSPERSONAL ................................. 23

• BEDIENUNGSANLEITUNG .............................24

• ZERLEGUNG UND ZUSAMMENBAU .............30

• AUSWECHSELN DER LAMPE........................35

• BLOCKDIAGRAMM FÜR OPTISHES

SYSTEMPRINZIP ............................................ 36

• OPTISCHE EINSTELLUNGEN UND

MESSUNG ....................................................... 37

• SICHERHEITSEINRICHTUNG ........................40

• FEHLERSUCHTABELLE ................................. 41

• BLOCKSCHALTBILD ....................................... 43

• ERSATZTEILLISTE.......................................... 44

• VERPACKEN DES GERÄTS ...........................51

Seite

S90i7PG-M10SU

SERVICE MANUAL

SERVICE-ANLEITUNG

PG-M10SU/SE

PG-M10XU/XE

PG-M10SU/SE

PG-M10XU/XE

Specifications

PG-M10SU/SE

PG-M10XU/XE

NOTE TO SERVICE

PERSONNEL

UV-RADIATION PRECAUTION

The light source, metal halide lamp, in the DLP

projector emits small amounts of UV-Radiation.

AVOID DIRECT EYE AND SKIN EXPOSURE.

To ensure safety please adhere to the following:

1. Be sure to wear sun-glasses when servicing the

projector with the lamp

turned “on” and the top

enclosure removed.

2. Donot operate the lamp outside of the lamp housing.

3. Do not operate for more than 2 hours with the

enclosure removed.

UV-Radiation and Medium Pressure

Lamp Precautions

1. Be sure to disconnect the AC plug when replacing

the lamp.

2. Allow one hour for the unit to cool down before

servicing.

3. Replace only with same type lamp. Type BQC-

PGM10X//-1 rated 85V/130W.

4. Thelampemitssmall amounts ofUV-Radiation, avoid

direct-eye contact.

5. The medium pressure lamp involves a risk of

explosion. Be sure to follow installation instructions

described below and handle the lamp with care.

12345678901234567890123456789012123456789012345

234567890123456789012345678901212345678901234

12345678901234567890123456789012123456789012345

1234567890123456789012345678901212345678901234

DANGER ! –– Never turn the power on without the

lamp to avoid electric-shock or damage of the

devices since the stabilizer generates high voltages

at its start.

UV-RADIATION PRECAUTION (Continued)

Lamp Replacement

Note:

Since the lamp reaches a very high temperature

during units operation replacement of the lamp

should be done at least one hour after the power

has been turned off. (to allow the lamp to cool off.)

Installing the new lamp, make sure not to touch the

lamp (bulb) replace the lamp by holding its reflector

[Use original replacement only.]

Since small amounts of UV-Radiation are emitted

from an opening between the duct cover and the

lamp housing, it is recommended to place the LENS

CAP on the opening during servicing to avoid eye

and skin exposure (Fig. 1).

Notes:

»Please obtain a lens cap before servicing a model

PG-M10SU/SE, PG-M10XU/XE that is received

without one.

»The color wheel is running at high speed. Do not

touch it nor bring anything nearby.

Lamp

Reflector

COLOR WHEEL LENS CAP

Figure 1.

PG-M10SU/SE

PG-M10XU/XE

Location of Controls

PG-M10SU/SE

PG-M10XU/XE

PG-M10SU/SE

PG-M10XU/XE

Reomte Control

PG-M10SU/SE

PG-M10XU/XE

Connections

PG-M10SU/SE

PG-M10XU/XE

PG-M10SU/SE

PG-M10XU/XE

Pin Assignments

Dimensions

PG-M10SU/SE

PG-M10XU/XE

Louver

Screw

Top Cover

S-8

Louver

Screw

DISASSEMBLY AND REASSEMBLY

1.Preparations and precautions

● Tools required

1. Phillips screwdriver, Nos. 1 and 2

2. Phillips and bladed precision screwdrivers

3. Anti-static wrist band

4. Hexagonal wrench (opposite side: ___ mm)

● Precautions for disassembly and reassembly

1. Before starting the procedure, unplug the power cable.

2. Some parts are still hot immediately after operation. Wait until they have cooled down.

3. Restore the components, screws and wires in their original positions.

4. Follow the important notes in handling the components and carrying out the job.

5. Be careful not to confuse the specific component parts for different models.

6. Do not tamper with the unit to ensure safety.

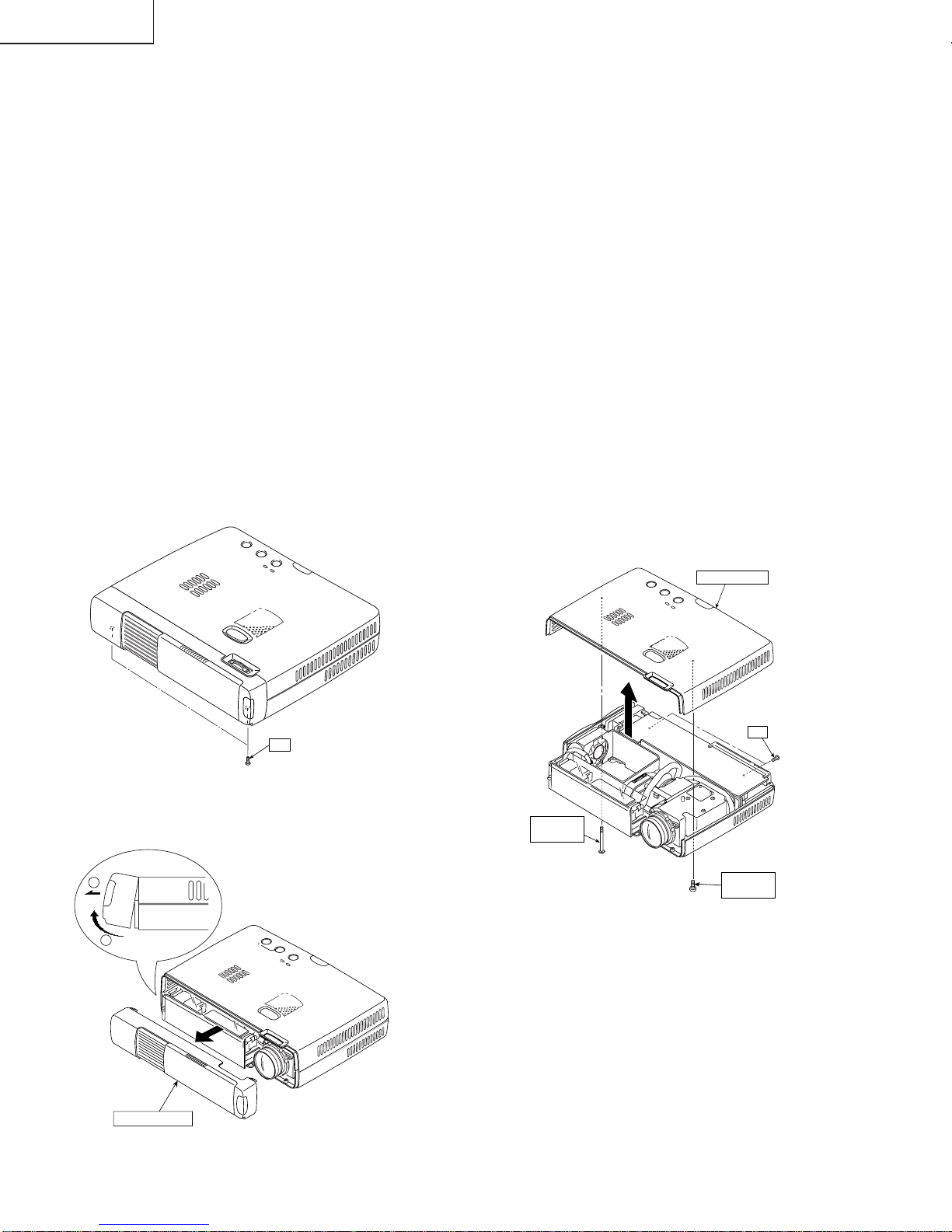

2.Disassembly and reassembly

1) Front panel (See Fig. 1 and Fig. 1-A.)

Remove the two screws (S-8) shown in Fig. 1.

Remove the front panel as shown in Fig. 1-A.

Note: Take care not to damage the IR cable.

Fig. 1

S-8

Front Panel

Fig. 1-A

2) Top cover (See Fig. 2.)

Remove the two louver screws (S-8) shown in Fig.

Remove the top cover as shown in Fig. 2.

Note: Take care not to damage the speaker cable.

Fig. 2
