Digital copier

: Paper feed unit

AR-D30

MODEL AR-D31

[1] GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

[2] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

[3] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 1

[4] EXTERNAL VIEW AND INTERNAL STRUCTURE . . . . . . . . . . . 6

[5] OPERATION DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

[6] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . 7

[7] MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

[8] ELECTRICAL SECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1-Stage paper

feed unit

2-Stage paper

feed unit

AR-D30/D31 GENERAL

–

1 –

[1] GENERAL

The AR-D30 (1-stage paper feed unit) and the AR-D31 (2-stage paper

feed unit) are optional paper feed units added to the digital copier, and

their cassettes are common with those of the main machine.

[2] SPECIFICATIONS

1. Paper feed unit (AR-D30/AR-D31)

[3] UNPACKING AND INSTALLATION

1. Unpacking

2. Installation

PARTS INCLUDED

Remove all pieces of fixing tape and fixing materials from the paper

feed unit.

AR-D30 AR-D31

No. of stage 1-stage 2-stage

Capacity 550 pages x 1 stage

(Japan)

550 pages x 2 stages

(Total 1,100pages)

(Japan)

500 pages x 1 stage

(EX)

500 pages x 2 stages

(Total 1,000 pages)

(EX)

(Note) Japan: 64g/m2, EX: 80g/m2

Size detection No (The paper size is set with the user program.)

Paper empty

detection

Provided

Paper feed

size

A3, B4, A4, A4R, B5, B5R, 16k, 16kR, 8k,

11 x 17, 8.5 x 14, 8.5 x 13, 8.5 x 11, 8.5 x 11R

Size when

shipping

AB series: A4

Inch series: 8.5 x 11

Size selection User selection (Set by the user program.)

A3, B4, A4, A4R, B5, B5R, 11 x 17, 8.5 x 14, 8.5 x 13,

8.5 x 11, 8.5 x 11R

Cassette

installation

Installed by the user.

Heater Provided only for Japan.

Power source Supplied from the copier. DC24V.

Power

consumption

5.6W 8.4W

Drive supply

• When installed as the

2-stage cassette for the

2-stage cassette standard

model: Supplied via gears

from the copier.

• When installed as the

optional 2-stage or 3-

stage cassette:

Sup plied by the

individual motor.

Supplied by the

individual motor.

External

dimensions

596(W) x 498(D) x

97(H) mm

596(W) x 498(D) x

194(H)mm

Weight About 6.1kg About 11.8kg

AR-D30

AR-D31

Fixing plates: 4 pcs. Paper size labelScrews (M4 x 12): 8 pcs.

Cassette relay harness

(contained in the optional paper feed unit)

AR-D30/D31 UNPACKING AND INSTALLATION

–

2 –

Turn off the main switch of the copier and then remove the power

plug of the copier from the outlet.

1. Remove the rear cover from the copier.

Remove the two screws and then remove the rear cover from the copier.

2. Remove the rear cover from the optional paper feed unit.

Remove the two screws and then remove the rear cover from the

optional paper feed unit.

3. Remove the connector cover.

Remove the cover from the connector.

4. Attach the copier

Place the copier on the optional paper feed unit and remove the second

and third paper trays.

Connect the copier to the paper feed unit using four fixing plates and

two screws (M4 x 12) for each plate.

Rear cover

Screw

Rear cover

Screw

Connector cover

Fixing plate

Right of rear side

Screws

(M4 x 12)

Detailed view

Front side

Screws (M4 x 12)

Fixing plate

Screws

(M4 x 12)

Left of rear side

AR-D30/D31 UNPACKING AND INSTALLATION

–

3 –

5. Connect the harness.

Connect the cassette interface harness contained in the optional paper

feed unit to the paper feed unit interface PWB.

• For two tray type

• For one tray type

6. Attach the rear covers of the copier and the optional

paper feed unit.

Attach the rear covers of the copier and the optional paper feed unit

using two screws respectively.

7. Remove the securing fixture for packing the paper feed

unit and remove the packing material.

Remove the securing fixture for packing that fixes the paper pressure

plate of the tray by rotating it in the direction of the arrow and remove

the packing material.

Caution: Be sure to remove the securing fixture bofore turning on the

power.

8. Change the paper size in the tray.

Hold the grip and slide the cassette side plate to adjust it to the paper to

be used.

Then, fit the rear end plate to the specified size position.

Insert the power plug of the copier to the outlet and turn on the

main switch of the copier. Then, carry out the following procedure.

9. Load paper into the paper tray.

Do not exceed the maximum height line.

10. Check for center displacement.

• Set an original on the document glass and copy it using the paper tray

in the copier.

Then, copy an original using the attached optional paper feed unit.

• If the center of the copy image from the tray in the copier is different

from that of the copy image from the optional paper feed unit, carry

out adjustment referring to the service manual.

Installation of Paper feed unit is now complete.

Cassette relay harness

Rear cover

Real cover

Screws

Securing fixture for packing

Packing material

Rear plate

Side plate

AR-D30/D31 EXTERNAL VIEW AND INTERNAL STRUCTURE

–

4 –

[4] EXTERNAL VIEW AND INTERNAL STRUCTURE

1. External view

2. Internal strecture

Moter and sensor solenoid etc.

No. Name

1 Paper feed tray

2 Paper feed right cover

AR-D31

AR-D30

15 16 17 10

No. Code Name Type Function/Operation Remark

1PWBInterfacePWB

2 DM Drive motor Hybrid Drives gears.

3 LUM3 Lift-up motor (No. 1 tray)

4 CPFS3 Paper feed clutch Electromagnetic clutch Rotates the paper feed roller.

5 TRC3 Transport clutch Electromagnetic clutch Rotates the transport roller.

6 CD3 Cassette detection SW Contact Detects cassette empty.

7 CD4 Cassette detection SW Contact Detects cassette empty. AR-D31 only

8 LUM4 Lift-up motor (No. 2 tray)

9 CPFC3 Paper feed solenoid DC solenoid Feeds paper.

10 DSWR3 Door open/close detection SW Contact Detects door open/close.

11 DSWR4 Door open/close detection SW Contact Detects door open/close. AR-D31 only

12 PED3 Paper empty sensor Photo transmission Detects paper empty in the cassette.

13 LUD3 Upper limit sensor Photo transmission Detects the upper limit for paper pickup.

14 PFD3 Paper entry sensor Photo transmission Detects paper transport.

15 PED4 Paper empty sensor Photo transmission Detects paper empty in the cassette. AR-D31 only

16 LUD4 Upper limit sensor Photo transmission Detects the upper limit for paper pickup. AR-D31 only

17 PFD4 Paper entry sensor Photo transmission Detects paper transport. AR-D31 only

18 CPFC4 Paper feed solenoid DC solenoid Feeds paper. AR-D31 only

19 CPFS4 Paper feed clutch Electromagnetic clutch Rotates the paper feed roller AR-D31 only

AR-D30/D31 OPERATION DESCRIPTION

–

5 –

[5] OPERATION DESCRIPTION

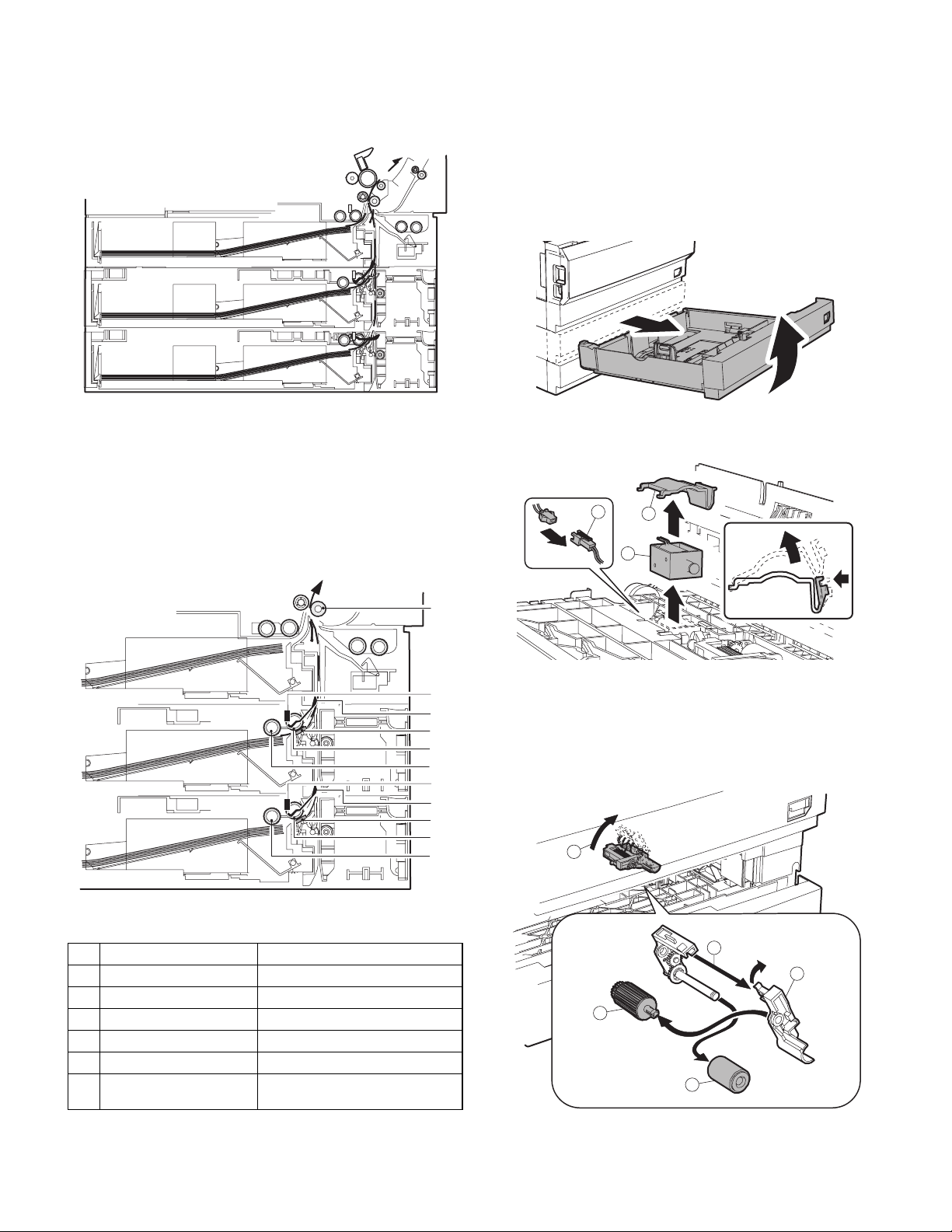

1. Paper transport path

2. Operation descriptions

The operations of this unit is controlled by the copier, and the pickup

roller, the paper feed roller, etc. are driven by the drive motor. Paper

picked up by the pickup roller is transported by the paper feed roller,

detected by the paper entry sensor, and fed to the resist roller.

[6] DISASSEMBLY AND ASSEMBLY

For disassembly, follow instructions of illustrations 1, 2, 3, ... in this

sequence. For assembly, reverse the disassembly procedures.

For replacement of parts described in this manual, refer to the Parts

Guide.

1. Paper feed solenoid

1 - 1

1 - 2

2. Paper feed roller

Refer to 1 - 1.

2 - 1

No. Part name Operation

1 Pickup roller Picks up paper.

2 Paper feed roller Transports paper.

3 Separation sheet Press paper to the paper feed roller.

4 Paper entry detection ACT Detects transport of paper.

5 Paper entry sensor Detects transport of paper.

6 Resist roller Synchronizes the paper lead edge

and the image lead edge.

AR-D30/D31 DISASSEMBLY AND ASSEMBLY

–

6 –

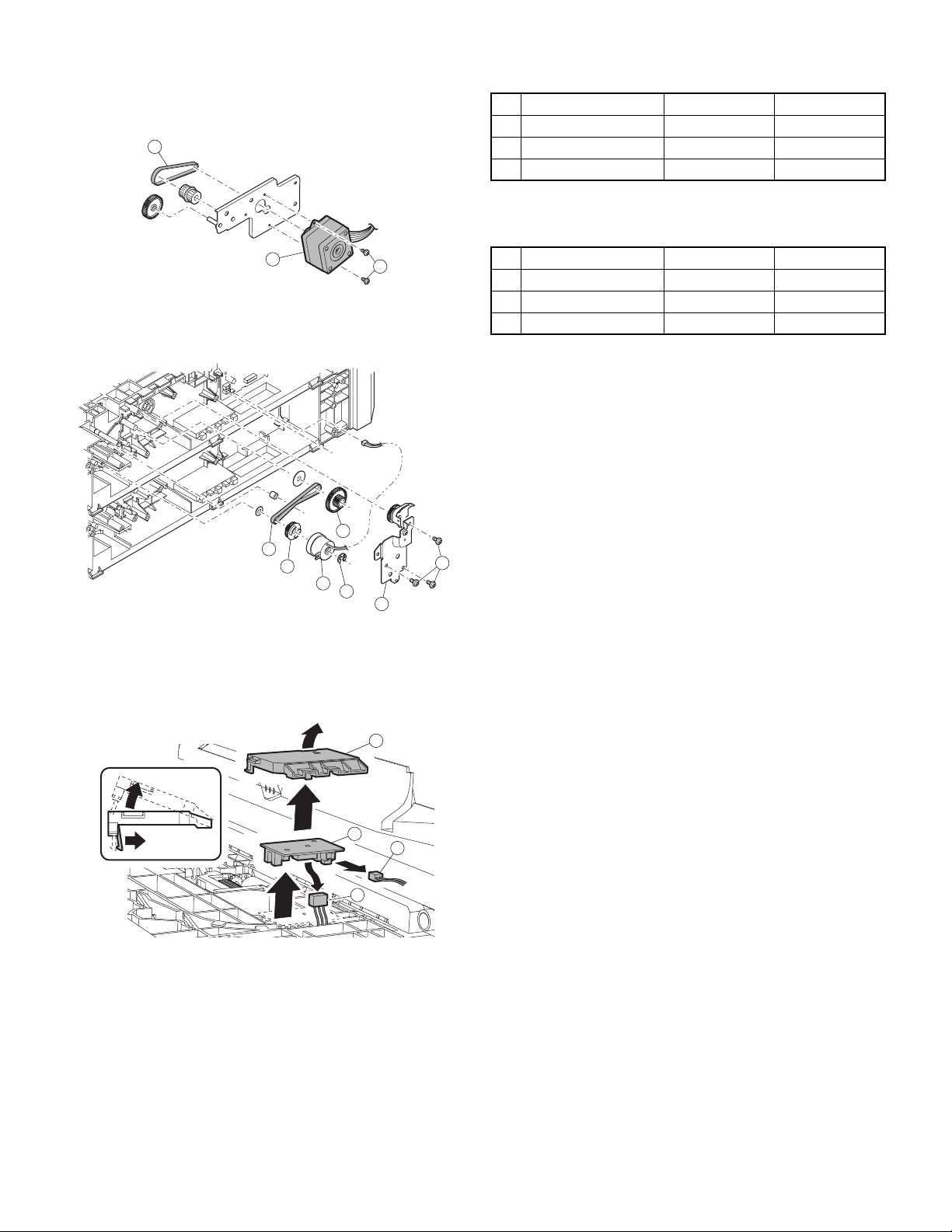

3. Motor, Clutch, Belt, Sensor PWB, Dehumidifier heater

3 - 1

A. Drive motor

3 - A - 1

3 - A - 2

B. Lift-up motor

3 - B - 1

3 - 5

C. Paper feed clutch, Transport clutch

3 - C - 1

AR-D30/D31 MAINTENANCE

–

7 –

D. Belt

Refer to 3 - A - 1.

3 - D - 1

3 - D - 2

E. Sensor PWB

3 - E - 1

[7] MAINTENANCE

For the replacement method of the pickup roller and paper feed roller,

refer to “[6] DISASSEMBLY AND ASSEMBLY”.

No. Name Work item When service call

1 Pickup roller Cleaning 50K

2 Paper feed roller Cleaning 50K

3 Separation sheet Cleaning 50K

No. Name Work item When service call

1 Pickup rollor Replacement 100K

2 Paper feed roller Replacement 100K

3 Separation sheet Replacement 100K

AR-D30/D31 ELECTRICAL SECTION

–

8 –

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

1. BLOCK DIAGRAM

Copier

(MCU PWB)

DRS1B

PAP1B

LUD1B

PPD1B

CSS1B

/PCL1B

/PCS1B

/TRCLB

LUM1BD

LUM2D

DRS2

PAP2

LUD2

PPD2

CSS2

/PCL2

/PCS2

Y1A

CSSEL(A,B,C)

1A(PCL,PCS,

TRCL,LUM)

(PCL,PCS,LUM)

AI,BI,/AI,/BI

OPCASSEL

Y1B

:MULTI CASSETTE LOWER :OPTION 2nd CASSETTE or MULTI CASSETTE

24V

CASSETTE INTERFACE PWB

(PCL,PCS,

TRCL,LUM)

MOTOR

DRIVER

TRANSISTOR

ARRAY

DATA

SELECTOR

DATA

SELECTOR

MOTOR

(A,/A,B,/B)

DRS2

PAP2

LUD2

PPD2

CSS2

LUM2D

/PCL2

/PCS2

24V

DRS1B

PAP1B

LUD1B

PPD1B

CSS1B

DATA

SELECTOR

DATA

SELECTOR

/PCL1B

/PCS1B

/TRCLB

LUM1BD

24V

MOTOR

DRIVER

TRANSISTOR

ARRAY

MOTOR

(A,/A,B,/B)

[8] ELECTRICAL SECTION

AR-D30/D31 ELECTRICAL SECTION

–

9 –

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

A A

87654321

12345678

2. Actual wiring diagram

3BI

2/AI

524V1

4/BI

1AI

OPTION 2nd CASSETTE ONLY

CN6(B5B-PH-K-S) PHR-5

PHR-8 PHR-6

SMP-02V-NC(RD)(JST)

SMR-02V-N(RD)(JST)

LUD1

/PCS1A

PAP1

PPD1 2

SGND

+5V

DRS1

8+24V RD

CN1(B3B-PH-K-R(RD)) LB

PHR-3(RD)

N.C. 2

LUM1AD

PGND

CN3(B3B-PH-K-S)

PHR-3

N.C. 2

/PCL1A

+24V

N.C. 2

TRCLA

+24V

CN2(B3B-PH-K-K(BK)) LB

HPR-3(BK)

N.C. 2

CSS1

SGND

CN7(B3B-PH-K-B(BL))

Lift-up motor

PHR-3 LB

CN9(53314-1015)

16B

17B

15B

PCL1B#

PCL2#

+3.3V

LUM2#

LUM1B#

+24V

20B

SGND

18B

+5V

+3.3V

19B

+24V

/BI#

11A

10B

11B

12A

14B

12B

10A

13B

13A

14A

TRCLB#

SGND

CSSELA#

CSSELC#

CSSELB#

/AI#

PGND

SGND

BI#

AI#

PGND

Y1B

SGND

Y1A

15A

PCS1B#

PCS2#

OPCASSEL#

16A

LUM1A#5B

+24V17A

TRCLA#4B

+24V18A

PCS1A#3B

PGND19A

PCL1A#2B

PGND20A

SGND1B

SRA-21T-4

SRA-01T-3.2

51089-4005

SENSOR PWB

B6B-PH-K-S

B3B-PH-K-S

SGND

PPD

LUD

DRS1

PAP

+5V

PHR-3

179228-2(AMP)

DRS

HPIN

SGND

16B

17B

15B

PCL1B#

PCL2#

+3.3V

LUM2#

LUM1B#

+24V

20B

SGND

18B

+5V

+3.3V

19B

+24V

/BI#

11A

10B

11B

12A

14B

12B

10A

13B

13A

14A

TRCLB#

SGND

CSSELA#

CSSELC#

CSSELB#

/AI#

PGND

SGND

BI#

AI#

PGND

Y1B

SGND

Y1A

15A

PCS1B#

PCS2#

OPCASSEL#

16A

LUM1A#5B

+24V17A

TRCLA#4B

+24V18A

PCS1A#3B

PGND19A

PCL1A#2B

PGND20A

SGND1B

179228-2(AMP)

CN5(53314-1015)

51089-4005

CN4(B14B-PHDSS-B)

+24V

/PCL2

CSS2

/PCS2

+24V

3+5V

2 PPD2

PGND

5DRS2

LUD2

4 PAP2

1SGND

13 PGND

LUM2D

16B

17B

15B

N.C.

PCL2#

+3.3V

LUM2#

N.C.

+24V

20B

SGND

18B

+5V

+3.3V

19B

+24V

/BI#

11A

10B

11B

12A

14B

12B

10A

13B

13A

14A

N.C.

SGND

CSSELA#

CSSELC#

CSSELB#

/AI#

PGND

SGND

BI#

AI#

PGND

N.C.

SGND

Y1B

15A

N.C.

PCS2#

OPCASSEL#

16A

LUM1B# 5B

+24V 17A

TRCLB# 4B

+24V 18A

PCS1B# 3B

PGND 19A

PCL1B# 2B

PGND 20A

SGND 1B

Sensor PWB

PHR-3

HPR-3(BK)

PHR-8

PHR-5

PHR-6

SMP-02V-BC(JST)

SMR-02V-B(JST)

PHDR-14VS B6B-PH-K-S

SMP-02V-NC(RD)(JST)

SMR-02V-N(RD)(JST)

PHR-6 B6B-PH-K-S

SGND

PPD

LUD

DRS1

PAP

+5V

SMP-02V-NC(RD)(JST)

SMR-02V-N(RD)(JST)

PHR-3(RD)

SGND

PPD

LUD

HPIN

PAP

+5V

179228-2(AMP)

PHR-3

PHR-3 LB

B3B-PH-K-S

PHR-3

DRS

HPIN

SGND

B3B-PH-K-S

PHR-3

179228-2(AMP)

DRS

HPIN

SGND

16B

17B

15B

PCL1B#

PCL2#

+3.3V

LUM2#

LUM1B#

+24V

20B

SGND

18B

+5V

+3.3V

19B

+24V

/BI#

11A

10B

11B

12A

14B

12B

10A

13B

13A

14A

TRCLB#

SGND

CSSELA#

CSSELC#

CSSELB#

/AI#

PGND

SGND

BI#

AI#

PGND

Y1B

SGND

Y1A

15A

PCS1B#

PCS2#

OPCASSEL#

16A

LUM1A#5B

+24V17A

TRCLA#4B

+24V18A

PCS1A#3B

PGND19A

PCL1A#2B

PGND20A

SGND1B

CN9(53314-1015)

3BI

2/AI

524V1

4/BI

1AI

CN6(B5B-PH-K-S)

CN8(B8B-PH-K-S)

LUD1

/PCS1B

PAP1

PPD1 2

SGND

+5V

DRS1

8+24V

CN1(B3B-PH-K-R(RD))

N.C. 2

LUM1AD

PGND

CN3(B3B-PH-K-S)

N.C. 2

/PCL1A

+24V

N.C. 2

TRCLA

+24V

CN2(B3B-PH-K-K(BK))

N.C. 2

CSS1

SGND

CN7(B3B-PH-K-B(BL))

CN4(B14B-PHDSS-B)

+24V

/PCL2

CSS2

/PCS2

+24V

3+5V

2PPD2

PGND

5DRS2

LUD2

4PAP2

1SGND

13PGND

LUM2D

CN5(53314-1015)

SRA-21T-4

SRA-01T-3.2

179228-2(AMP)

PHR-3(BL)

MCU PWB

CASSETTE INTERFACE PWB

2nd CASSETTTE

CN8(B8B-PH-K-S)

PLUSE

MOTOR

PPD1H:Paper entry sensor

PAP1H:

DRS:Door sensor

LUD1H:Lift-up upper

limit sensor

Paper feed

solenoid

Paper feed

clutch

Cassette

detection

MULTI CASSETTTE

CASSETTE INTERFACE PWB

PAP1H:

PULSE

MOTOR

PAP1H:

Lift-up motor

PPD1H:Paper entry sensor

HDRS:Door sensor

LUD1H:Lift-up upper

limit sensor

Paper feed

solenoid

Paper feed

clutch

Cassette

detection

Sensor PWB

Lift-up motor

PPD1H:Paper entry sensor

DRS:Door sensor

LUD1H:Lift-up upper

limit sensor

Paper feed

solenoid

Paper feed

clutch

Cassette

detection

MULTI CASSETTE (UPPER)

2nd CASSETTE

MULTI CASSETTE (LOWER)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp Photocopieuse

Sharp

Sharp MX 5500N - Color Laser - Copier Manuel utilisateur

Sharp

Sharp AR-150 SERIES Manuel utilisateur

Sharp

Sharp AL-1640 - B/W Laser - Copier Manuel utilisateur

Sharp

Sharp SF-2540 Manuel utilisateur

Sharp

Sharp AR-235 Manuel utilisateur

Sharp

Sharp MX-CF10 Manuel utilisateur

Sharp

Sharp AL1215 - B/W Laser - Copier Manuel utilisateur

Sharp

Sharp AR-150 SERIES Manuel utilisateur

Sharp

Sharp AR-M201 Guide de configuration

Sharp

Sharp SF-2052 Manuel utilisateur

Sharp

Sharp AL-2020 Guide de configuration

Sharp

Sharp AL-1611 Manuel utilisateur

Sharp

Sharp AR-203E Manuel utilisateur

Sharp

Sharp AR-C250 Manuel utilisateur

Sharp

Sharp AR-5520 Manuel utilisateur

Sharp

Sharp SF-2218 Manuel utilisateur

Sharp

Sharp AR-164 Manuel utilisateur

Sharp

Sharp SF-2314 Manuel utilisateur

Sharp

Sharp AR-5220 Manuel utilisateur

Sharp

Sharp SF-2314 Manuel utilisateur

Sharp

Sharp AR-C160 Manuel utilisateur

Sharp

Sharp DM 2000 - B/W Laser Printer Manuel utilisateur

Sharp

Sharp AL-1611 Manuel utilisateur

Sharp

Sharp AL-1043 Manuel utilisateur

Manuels Photocopieuse populaires d'autres marques

Canon

Canon iR1210 Manuel de référence

Ricoh

Ricoh FW740 Manuel utilisateur

Minolta

Minolta CF910 Manuel utilisateur

Ricoh

Ricoh B003 Manuel utilisateur

Xerox

Xerox EC70 Manuel utilisateur

Oce

Oce 9800 Manuel utilisateur

Olivetti

Olivetti d-Copia 1800 Manuel utilisateur

Minolta

Minolta Di181 Manuel utilisateur

Canon

Canon iR5000i Manuel utilisateur

Telecrane

Telecrane F25 Manuel utilisateur

Xerox

Xerox WorkCentre Pro 40 Manuel utilisateur

Canon

Canon NP6317 Comment utiliser

Ricoh

Ricoh Di-C1 Manuel utilisateur

Mita

Mita MIP-2400 Manuel

Muratec

Muratec MFX-C2280 Manuel utilisateur

Ricoh

Ricoh FT5034C Manuel utilisateur

Minolta

Minolta EP4000 Manuel utilisateur

Ricoh

Ricoh V-C3 Guide d'installation
