ENGLISH

“Plasmacluster” and “Device of a cluster

of grapes” are trademarks of Sharp Cor-

poration.

UA-HD60E

UA-HD50E

UA-HD40E

AIR PURIFIER

with Humidifying Function

OPERATION MANUAL

* The number in this technology mark indicates an

approximate number of ions supplied into air of 1 cm3,

which is measured around the center of a room with

the “high-density Plasmacluster 7000” applicable ﬂ oor

area (at 1.2 m height above the floor) at the medium

wind volume in humidifying & air purifying mode, or in

air purifying mode, when a humidiﬁ er/air puriﬁ er or an

air purifier using the high-density Plasmacluster ion

evolving device is placed close to a wall. This product is

equipped with a device corresponding to this capacity.

Free standing type

NOTE

The air puriﬁ er draws in room air from the air intake, passes the air through a Pre-

Filter, a Deodorizing Filter and a HEPA Filter inside of the unit, then discharges the air

through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small

as 0.3 microns that pass through the ﬁ lter and also helps absorb odours.

The Deodorizing Filter gradually absorbs odours as they pass through the ﬁ lter.

Some odours absorbed by the ﬁ lters may break down over time, resulting in additional

odour. Depending on the usage environment, especially when the product is used in

extreme environments (significantly more severe than normal household use), this

odour may become strong in a shorter period than expected. If the odour persists, the

ﬁ lters should be replaced.

• The air puriﬁ er is designed to remove air-suspended dust and odour, but not harmful gases (for

example, carbon monoxide contained in cigarette smoke). If the source of the odour still exists, the

air puriﬁ er may not completely remove the odour.

(Common illustration has used “UA-HD60E”.)

Please read before operating your new Air Puriﬁ er

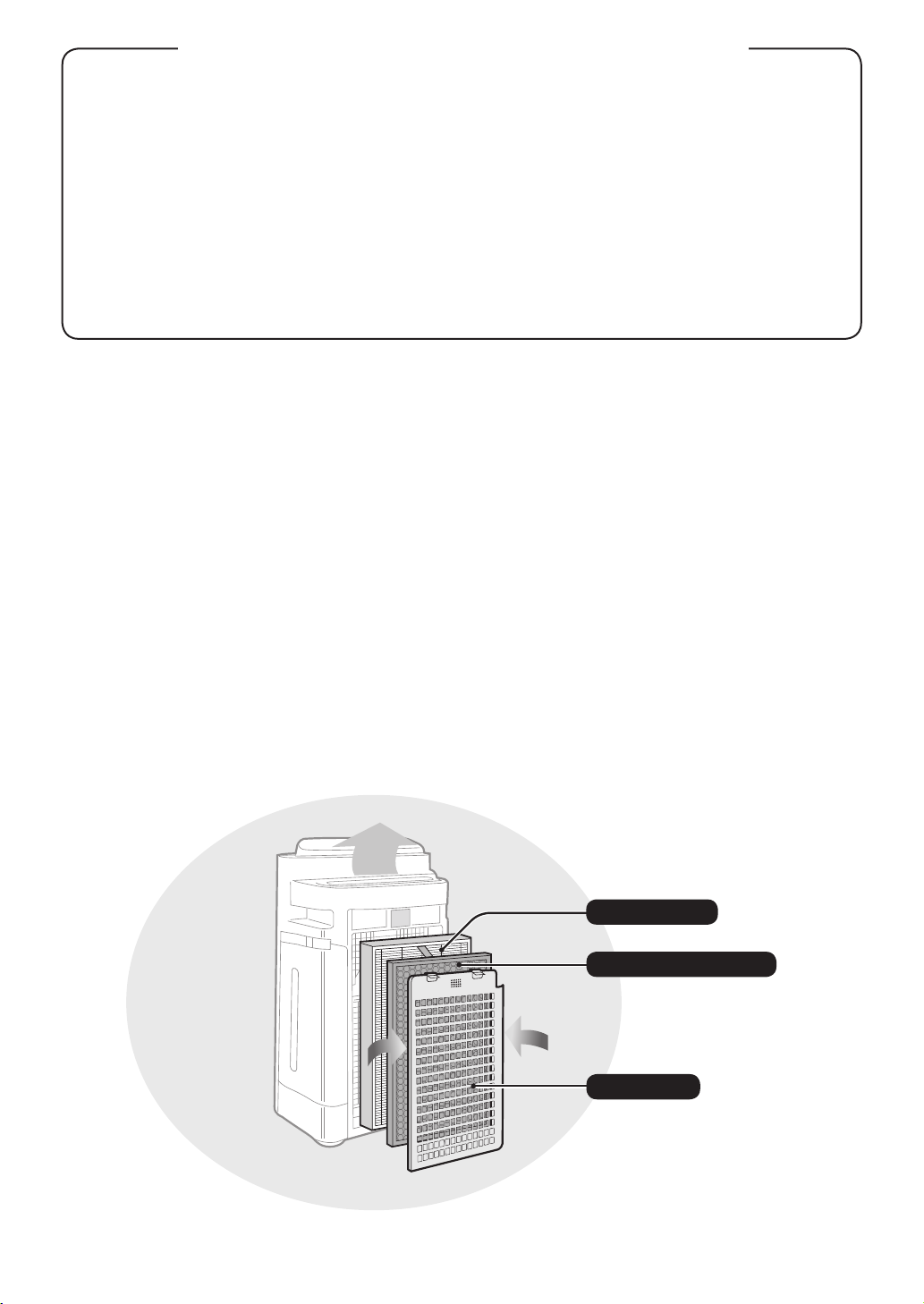

Pre-Filter

Deodorizing Filter

HEPA Filter

E-1

ENGLISH

Thank you for purchasing this SHARP Air

Purifier. Please read this manual carefully

before using the air puriﬁ er.

After reading, keep the manual in a

convenient location for future reference.

FEATURES CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

...E-2

• WARNING

• CAUTIONS CONCERNING OPERATION

• INSTALLATION GUIDELINES

• FILTER GUIDELINES

PART NAMES .............................................E-5

• FRONT / BACK

• OPERATION PANEL

• DISPLAY ILLUSTRATIVE DIAGRAM

PREPARATION ..........................................E-7

• FILTER INSTALLATION

• REFILLING THE WATER TANK

OPERATION ...............................................E-9

• CLEAN AIR HUMIDIFY

• CLEAN AIR

• CLEAN ION SHOWER

• FAN SPEED

• PLASMACLUSTER ION ON/OFF

• CHILD LOCK

USEFUL FUNCTIONS .............................E-11

• LIGHTS CONTROL

• ON TIMER

• OFF TIMER

• ADJUSTMENT OF SENSOR

DETECTION SENSITIVITY

CARE AND MAINTENANCE .................E-12

• FILTER INDICATOR

• CARE INDEX

• HUMIDIFYING DISINSTALLATION

• WATER TANK

• HUMIDIFYING FILTER

• HUMIDIFYING TRAY AND COVER

• BACK PANEL

• HEPA FILTER/DEODORIZING FILTER

• UNIT

• FILTER REPLACEMENT

TROUBLESHOOTING ............................E-17

SPECIFICATIONS ....................................E-20

Unique Combination of Air Treatment

Technologies

Triple Filtration System + Plasmacluster

+ Humidiﬁ cation

TRAPS DUST*

Pre-Filter traps dust and other large

airborne particles.

DECREASES ODOURS

Deodorizing Filter absorbs many common

household odours.

REDUCES POLLEN & MOLD*

HEPA Filter traps 99.97% of particles as

small as 0.3 microns.

FRESHENS

Plasmacluster treats the air similar to the

way nature cleans the environment by

emitting a balance of positive and negative

ions.

HUMIDIFIES

*When air is drawn through the filter

system.

Sensor Technology continuously monitors

air quality, and automatically adjusting

operation based on detected air purity and

humidity.

E-2

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed,

including the following:

WARNING – To reduce the risk of electrical shock, ﬁ re or injury to persons:

• Read all instructions before using the unit.

• Use only a 220-240 volt outlet.

• Do not use the unit if the power cord or plug is damaged or the connection

to the wall outlet is loosened.

• Periodically remove dust from the plug.

• Do not insert ﬁ ngers or foreign objects into the air intake or air outlet.

• When removing the power plug, always hold the plug and never pull on the

cord.

Electrical shock and/or ﬁ re from a short circuit may result.

• Be careful not to damage the power cord, it may cause electric shock, excess

heat or ﬁ res.

• Do not remove the plug when your hands are wet.

• Do not use this unit near gas appliances or ﬁ replaces.

• When reﬁ lling the Water Tank, cleaning the unit, or when the unit is not in use, be

sure to unplug the unit. Electrical shock and/or ﬁ re from a short circuit may result.

• If the power cord is damaged, it must be replaced by the manufacturer,

its service agent, a Sharp authorized Service Centre or similarly qualiﬁ ed

person in order to avoid a hazard.

• Only a Sharp Authorized Service Centre should service this air puriﬁ er. Contact

the nearest Service Centre for any problems, adjustments, or repairs.

• Do not operate when using aerosol insecticides or in rooms where there is

oily residue, incense, sparks from lit cigarettes, chemical fumes in the air, or in

locations where the unit may get wet, such as a bathroom.

• Be cautious when cleaning the unit. Strong corrosive cleansers may damage the

exterior.

• When carrying the unit, remove the Water Tank and Humidifying Tray ﬁ rst and

hold the unit by handles on both sides.

• Do not drink the water in the Humidifying Tray or Water Tank.

• Change the water in the Water Tank daily with fresh tap water and regularly clean

the Water Tank and Humidifying Tray. (See E-13 and E-14). When unit is not in

use, dispose of the water in the Water Tank and Humidifying Tray. Leaving water

in the Water Tank and/or Humidifying Tray may result in mold, bacteria, and bad

odours.

In rare cases, this bacteria may cause harmful physical eﬀ ects.

• This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved. Children shall

not play with the appliance. Cleaning and user maintenance shall not be made by

children without supervision.

E-3

ENGLISH

NOTE – Radio or TV Interference

If this air puriﬁ er should cause interference to radio or television reception, try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation distance between the unit and radio/TV receiver.

• Connect the equipment into an outlet on a circuit diﬀ erent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.

• Do not use the unit near or on hot objects, such as stoves or heaters, or where it

may come into contact with steam.

• Always operate the unit in an upright position.

• Hold the unit by using the handles on both sides when moving.

Do not move when the unit is in operation.

• Do not move or change the direction of the main unit while dragging the casters.

• Lift it up and move such as a soft mat, a ﬂ oor which gets damaged easily, an

uneven place, and thick-poled carpet.

• When moving by the caster, move it in a horizontal direction.

• Turn the appliance oﬀ and remove the water tank before moving, take care not to

catch your ﬁ ngers.

• Do not operate the unit without the ﬁ lters, Water Tank, and Humidifying Tray

properly installed.

• Do not wash and reuse the HEPA Filter and the Deodorizing Filter.

Not only does it not improve ﬁ lter performance, it may cause electric shock or

malfunction.

• Clean the exterior with a soft cloth only.

Do not use volatile ﬂ uids and/or detergents.

The unit surface may be damaged or cracked.

In addition, the sensors may malfunction as a result.

• Frequency of maintenance required (descaling) will depend on the hardness

or the impurities of the water that you use; the harder the water the more

often descaling will be necessary.

• Keep the unit away from water.

E-4

IMPORTANT SAFETY INSTRUCTIONS

• Use only fresh tap water. Use of other water sources may promote the growth of

mold, fungus and/or bacteria.

• Do not shake the Water Tank when with holding the carrying handle.

• Do not remove the Humidifying Filter from a Filter Frame.

• Avoid spilling water when removing or cleaning the Humidifying Tray.

• Do not remove the Float and the Roller.

Refer to E-18 if the Float and/or Roller comes oﬀ .

• Do not use the detergents for maintenance of the Humidifying Tray and Cover.

It may cause deformation, tarnishing, cracking (water leakage).

• Do not scrub the Back Panel hard during its maintenance.

• Avoid bending or folding the Deodorizing Filter when washing.

INSTALLATION GUIDELINES

• When using the unit, place at least 2 m away from equipment utilizing

electric waves such as televisions or radios to avoid electrical interference.

• Avoid a location where the sensor is exposed to direct wind.

The unit may not operate properly.

• Avoid use in locations where furniture, fabrics or other items may come in

contact with and restrict the air intake and/or air outlet.

• Avoid use in locations where the unit is exposed to condensation or drastic

temperature changes. Appropriate conditions are when room temperature

is between 5 – 35 ºC.

• Place on a stable surface with suﬃ cient air circulation.

When placing the unit on a heavily carpeted area, the unit may vibrate slightly.

Place the unit on an even surface to avoid water leakage from the Water Tank

and/or Humidifying Tray.

• Avoid locations where grease or oily smoke is generated.

The unit surface may crack or the sensor may malfunction as a result.

• Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper

airﬂ ow.

The dust collecting performance will be the same even if using the unit 3cm away

from the wall, but place it as far as possible because it may dirty the wall or ﬂ oor

around.

FILTER GUIDELINES

• Follow the instructions in this manual for correct care and maintenance of the

ﬁ lters.

E-5

ENGLISH

PART NAMES

FRONT / BACK

1 Air Outlet (Front)

2 Operation panel (Ref. E-6)

3 Display (Ref. E-6)

4 Main Unit

5 Stopper (2 Locations)

6 Caster (4 Locations)

1 Air Outlet 6 Float

2 Handle (2 Locations) 7 Humidifying Tray

3 Sensor (Internal)

•Dust Sensor

•Temperature / Humidity Sensor

•Odour Sensor

(UA-HD60E and UA-HD50E only)

8 Louver (auto)

9 HEPA Filter (white)

10 Deodorizing Filter (black)

11 Back Panel (Pre-Filter)

12 Air Inlet

4 Water Tank 13 Power Cord / Plug

5 Humidifying Filter

(Plug shape varies by country.)

Dust / Odour Monitor*

The dust / Odour monitor

detects dust in the room

and indicates the intensity

in 5 levels with colour

changes.

*Odour sensor is equipped

with UA-HD60E and UA-

HD50E.

Green

Green (both ends)

Orange (middle)

Orange

Orange (both ends)

Red (middle)

Red

Colour CLEAN

IMPURE

E-6

OPERATION PANEL

1 POWER ON Button

a CLEAN AIR MODE Button / INDICATOR LIGHT (green)

b CLEAN AIR HUMIDIFY MODE Button / INDICATOR LIGHT (green)

c CLEAN ION SHOWER MODE Button / INDICATOR LIGHT (green)

2 • FAN SPEED Button /

INDICATOR LIGHT (green)

• Plasmacluster Ion ON / OFF Button

(Press 3 sec.) /

INDICATOR LIGHT (green)

5 • LIGHT CONTROL Button

• FILTER RESET Button (Press 3 sec.) /

INDICATOR LIGHT (orange)

3 ON/OFF TIMER Button /

INDICATOR LIGHT (green)

6 POWER OFF Button

4 CHILD-LOCK Button (Press 3 sec.) /

INDICATOR LIGHT (green)

32 4516

DISPLAY ILLUSTRATIVE DIAGRAM

Humidity Monitor

Indicates approximate humidity level in the room.

Humidity setting cannot be adjusted.

bca

Plasmacluster Ion Light

blue Plasmacluster Ion ON

oﬀ Plasmacluster Ion OFF

green

oﬀ

red

(Flash

ing)

Humidity ON

Humidity OFF

need to supply water

Humidify Light

PART NAMES

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sharp Purificateur d'air

Sharp

Sharp FU-S40E Manuel utilisateur

Sharp

Sharp FU-D40A Manuel utilisateur

Sharp

Sharp FP-N40CX - Plasmacluster Ion Air Purifier Manuel utilisateur

Sharp

Sharp Plasmacluster IG-CH2J Manuel utilisateur

Sharp

Sharp FU-W28J Manuel utilisateur

Sharp

Sharp Plasmacluster FP-J80M Manuel utilisateur

Sharp

Sharp UA-HG40E-T Manuel utilisateur

Sharp

Sharp KC-850EK Manuel utilisateur

Sharp

Sharp Plasmacluster KC-850U Manuel utilisateur

Sharp

Sharp FU-E30A-W Manuel utilisateur

Sharp

Sharp FP-FM40Y Manuel utilisateur

Sharp

Sharp IZCA10EKW Manuel de la liste des pièces

Sharp

Sharp IG-CL15B Manuel utilisateur

Sharp

Sharp FU-P60S-E Manuel utilisateur

Sharp

Sharp Plasmacluster FP-R45CX Manuel utilisateur

Sharp

Sharp FP-F30A Manuel utilisateur

Sharp

Sharp FP-J52M Manuel utilisateur

Sharp

Sharp FU-440E Manuel utilisateur

Sharp

Sharp KI-G75EU Manuel utilisateur

Sharp

Sharp FP-G50Y Manuel utilisateur

Sharp

Sharp KC-AE60 Manuel utilisateur

Sharp

Sharp FX-J80U Mode d’emploi

Sharp

Sharp KC-G60SA Manuel utilisateur

Sharp

Sharp Plasmacluster IG-A10EU Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur

vollara

vollara Air & Surface Pro+ Manuel utilisateur
