Sharkoon Tauron Manuel utilisateur
TAURON
Manual
Tauron
2
Content
1. Features 3
2. Package content 3
3. The case at a glance 4
4. Installation notes 8
5. Rebuilding the HDD cages 9
6. Installation of a mainboard 11
7. Installation of a PSU 14
8. Installation of a HDD 15
9. Installation of an optical device 17
10. Installation of a 3.5" device 19
11. Installation of an add-on card 21
12.The pre-installed fans / using the fan control 21
13. Installation of additional fans / optimized airflow 22
Dear customer!
Congratulations for purchasing this premium quality SHARKOON product.
For a long life time and to take full advantage of this product we recommend you to read this manual
completely.
Enjoy our product!
SHARKOONTechnologies
Tauron
3
1. Features
• ATXcase
• 2x5.25"drivebays(external)
• 1x5.25"or3.5"drivebays(external)
• 7x2.5"or3.5"bayswithremovablemountingtraysforHDDs(internal)
• TopI/O:2xUSB3.0,2xUSB2.0and2xaudio,powerandresetbutton,2xfanspeedcontrollersfor
upto6fans
• 7slotsforadd-oncards
• Acrylicsidepanel
• Plasticfrontpanelwithairinlet,drivebaycoversinmeshdesign
• Quickfastenersforopticaldrives,mainboardmountingwithinstallationopeningforCPUcoolers
• 4openingsforwatercooling
• Cablemanagementsystem
• Interiorpainting
• RemovableHDDbracketssupportlongVGAcardsupto42cm
• Fanconguration:
Frontpanel 2x120mmLEDfan(pre-installed)
Rearpanel 1x120mmfan(pre-installed)
Toppanel 1x170mmfan(pre-installed)
• Dimensions:510x205x495mm(LxWxH)
• Weight:~9.5kg
2. Package contents
• ATXcase“Tauron”
• Manualyer
• Accessorykit
Screwsformainboardmoun-
ting
Mountingscrewsfor2.5"
HDDs/SSDs
ScrewsforPSU
mounting
ScrewsforHDDmounting
Note:
Ifyouaremissinganyoftheitemslistedabove,
pleasecontactour
customerserviceimmediately:
[email protected](GermanyandEurope)
[email protected](international).
Stand-offsformainboard InternalUSB3.0adapter
Tauron
4
3.The case at a glance
Frontpanel
A – 5.25"drivebays
B – 3.5"mountingbay
C – behindthemeshpanel:2x120mmLEDfans
Sidepanel(closed/left)
A – Acrylicsidepanel
A
A
B
C
Tauron
5

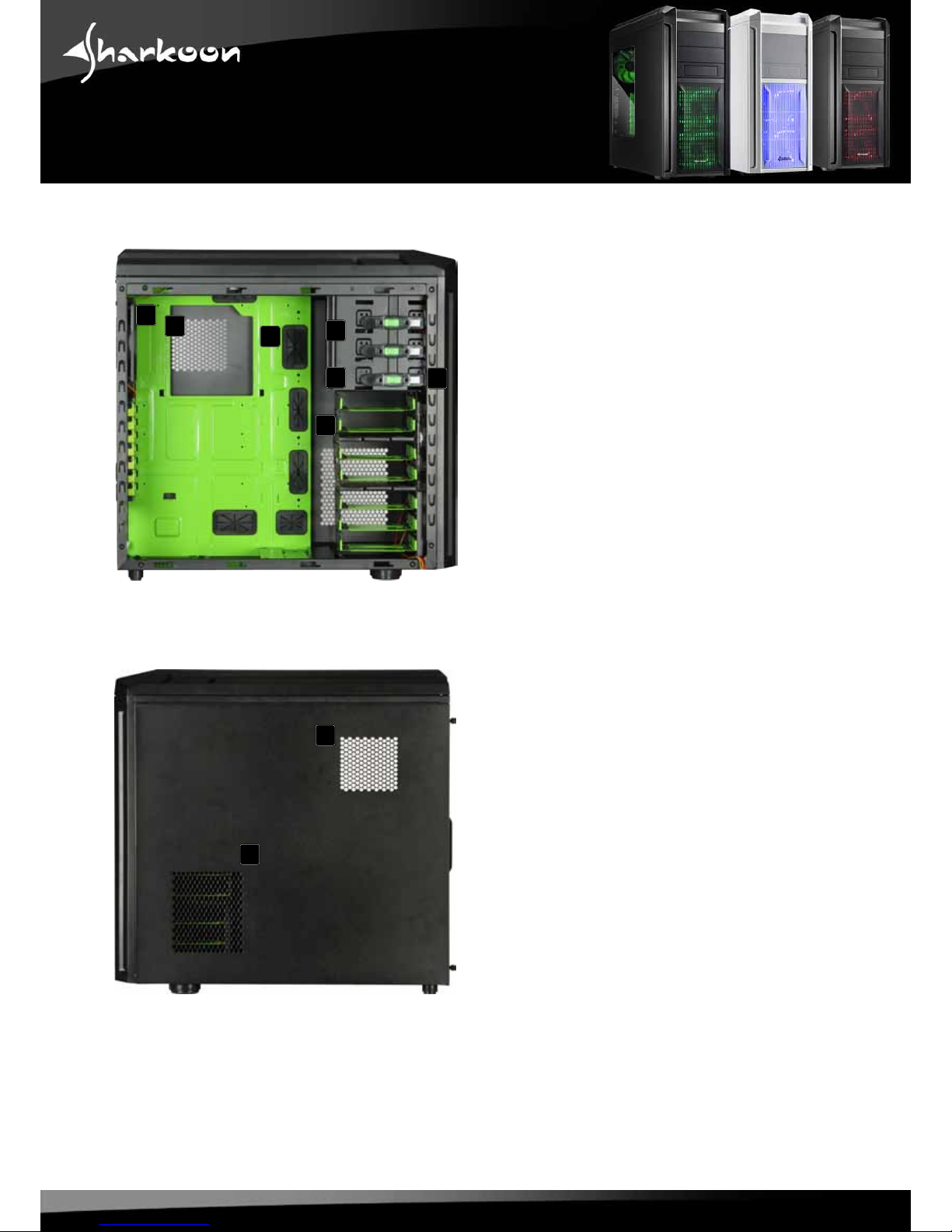

Sidepanel(opened/left)
A – Mainboardmountingpanel
a – InstallationopeningforCPUcoolers
b – Cablefeedthrough
B – 5.25"drivebays
C – 3.5"mountingbay
D – Quickfasteners
E – HDDcages
Sidepanel(closed/right)
A – AirinletforCPU
B – AirinletforHDDs
ab
A
A
B
B
CD
E
Tauron
6
Sidepanel(opened/right)
A – 5.25"drivebays
B – 3.5"mountingbay
C – Quickfasteners
D – HDDcages
E – Mainboardmountingpanel
a – InstallationopeningforCPUcoolers
b – Cablefeedthrough
Rearpanel
A – OpeningforI/Oshield
B – Openingsforwatercooling
C – 120mmfan
D – Slotbezels
E – PSUbracket
a
b
A
A
B
B
B
C
C
D
D
E
E
Tauron
7
Toppanel
A – On/offbutton
B – TopI/O:
a – 2xUSB3.0
b – 2xaudio
c – Resetbutton
d – 2xUSB2.0
e – 2xfancontrol
C – underthemeshbezel:
170mmfan
Bottompanel
A – Casefeet
B – AirinletforPSU
C – Fanbracketfor120mmor140mmfan
a
b
c
d
e
e
A A
A
A
A
A
B
B
C
Tauron
8
TheinternalI/Oconnectors
A – Audioconnectorsfor:
a – HDAudio
b – AC’97
B – USB2.0connector
C – 2xUSB3.0connectors
D – Fancontrolconnector
E – Front-I/Opowerconnector
F – Connectorsfor:
a – PowerSwitch
b – PowerLED–
c – Power-LED+
d – HDD-LED
e – Reset-Switch
4. Installation notes
1.ForfurtherinformationonhowtoinstallthePCcomponents,pleasealsorefertotheirrespective
instructions.
2.Inordertoguaranteefullfunctionalityofthefancontrolsandthefrontconnectors,thefront-I/O
powerconnectormustbeconnectedtothepowersupply.
a
a
b
b
cd
e
A B C D
E F
Tauron
9
5. Rearranging the HDD cages
TheHDDcagesofthecasemaybere-arranged,sothatVGAcardsupto42cmcanbeinstalled.
Deliverystatus
RemovedHDDcages
AlternativeHDDcagearrangements
Tauron
10
InordertoremovetheHDDcages,proceedasfollows:
1.Unscrewthethumbscrewsonthebacksideofthecaseandremovebothsidepanels.
2.LifttheattachmentleveroftherespectiveHDDcage(g.1)anddragthecageoutofitstting(g.1b).
g.1ag.1b
3.SlidetheHDDcageintotherespectivebottomttingofthecaseuntiltheattachmentleverlocks
(g.2aandb).
g.2ag2b
