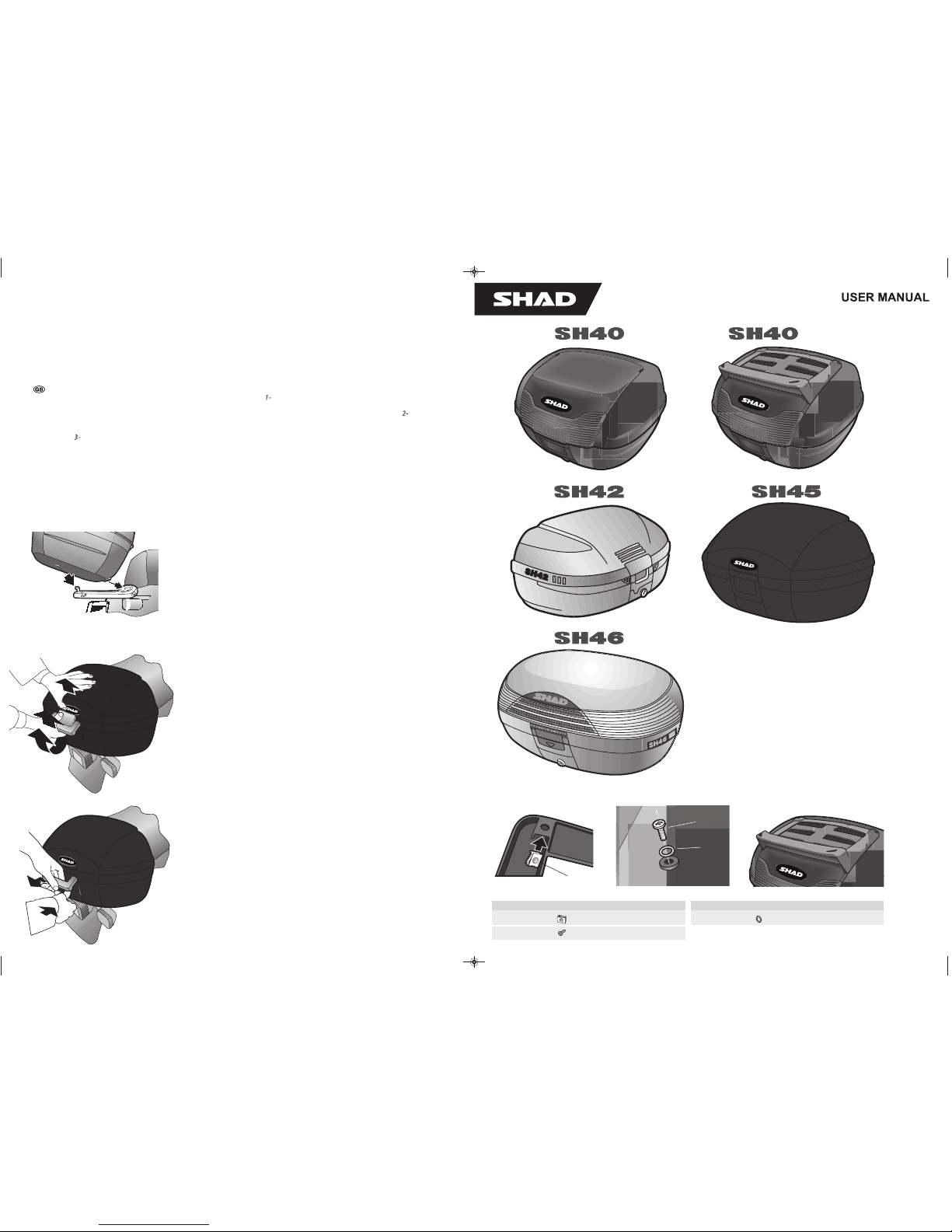

Shad SH40 Manuel utilisateur

ASSEMBLY INSTRUCCIONS

Once the adaptor has been assembled you are then ready to t the TOP CASE. 1-Put the key in and leave in the vertical position. Slot the rear

tongue into the adaptor groove. Fit the front anchorage into its housing. WARNING.It is important to ensure that the case is properly xed to the

adaptor. Make sure you hear the click of the pin as it goes in and that the front opening lever is correctly positioned (Fig. F). 2- To open the

TOP CASE, insert the key in the vertical position. Operate the locking mechanism as shown in Fig. G.Turning the key in a clockwise direction will

lock the TOP CASE so that it can neither be opened nor detached from the adaptor. The key can be removed in either the locked or unlocked

position. 3- To remove the TOP CASE, insert the key in the vertical position, hold the case by the handle, operate the lower part of the opening

mechanism and lift up gently until the anchorage comes out of the case. Then pull to remove the upper tongue from the adaptor groove (Fig. H).

SH40-45-46

Fig. G

SH40-45-46

Fig. H

Fig. F

1. SH40 CARGO

PARTS

.tnaC.feR.soP

48505031

42314032

.tnaC.feR.soP

44250023

The maximum load of the case is of:

SH40 - SH40 CARGO: 4 kg

SH42 - SH45 - SH46: 6 kg

CARGO

500791/1 user guide SH40_42_45_46 15/08/16 17:00 Página 1

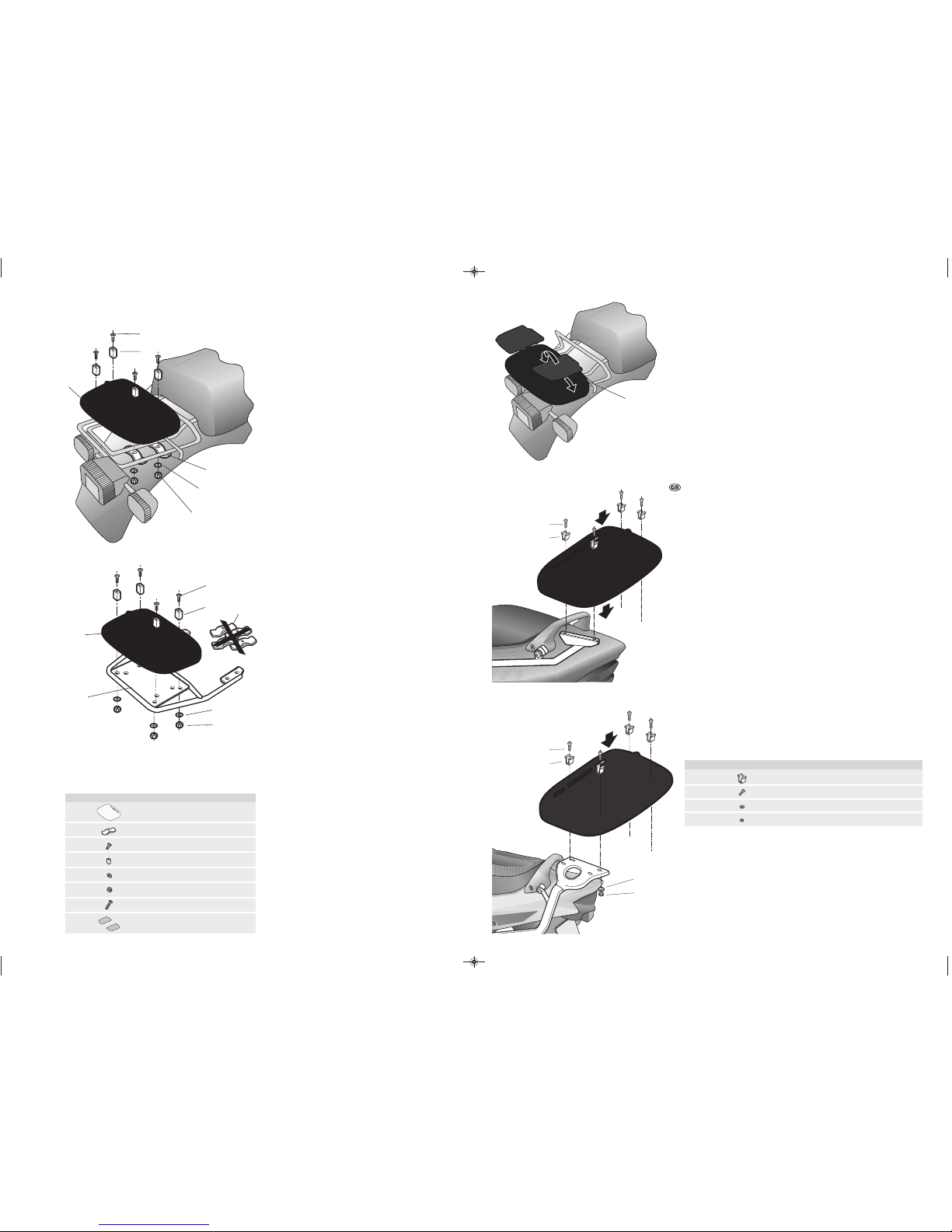

Fig. A:

(*) Place the TOP CASE bottom rack (1) in the assembly

position(*)on the motorcycle original packet-holder, fit the

anchoring flanges (2) under the most suitable tubes or supports

and secure using the screws (3), the rectangular washers(4),

the flanges (2), the washers (5) and the nuts (6). Fig. B on the

SHAD anchoring:

Situate the bottom rack of the TOP CASE (1)

the assembly position, remove the fastening clips (2), fasten

with

screws (7),the rectangular washers (4), the washers (5)

and the nuts (6). Tighten all the screws and nuts.

Fig. A

.tnaC.feR.soP

16051021

49401022

4)569NID04x6M(4414033

42/3170024

4)6Ø(0003035

4)6M(1202036

4)569NID03x6M(8504037

1805102/7051028

Fixation SHAD

PARTS

2. Rack D1B40PA

Then fit the covers (8) by bending it slightly to insert the tongues

(Fig. C).

(*)

It can only be used on the Top or Full master.

(**) Included in the specific support.

Fig. D

Fig. E

Fig. D: Fit the grille plate Top Case bottom rack on the Top kit sup-

port

arms and secure it with the screws (10) and the washers (9).

Fig. E:

Fit the grille plate Top Case bottom rack on the Top kit support

arms and secure it with the screws (10), the washers (9) and (11) and

the

screws (12).

PARTS

.tnaC.feR.soP

4*4051029

4**)21902x8M(47040301

4**)8Ø(02030311

4**)8M(42020321

Fig. C

Fig. B

500791/1 user guide SH40_42_45_46 15/08/16 17:00 Página 3

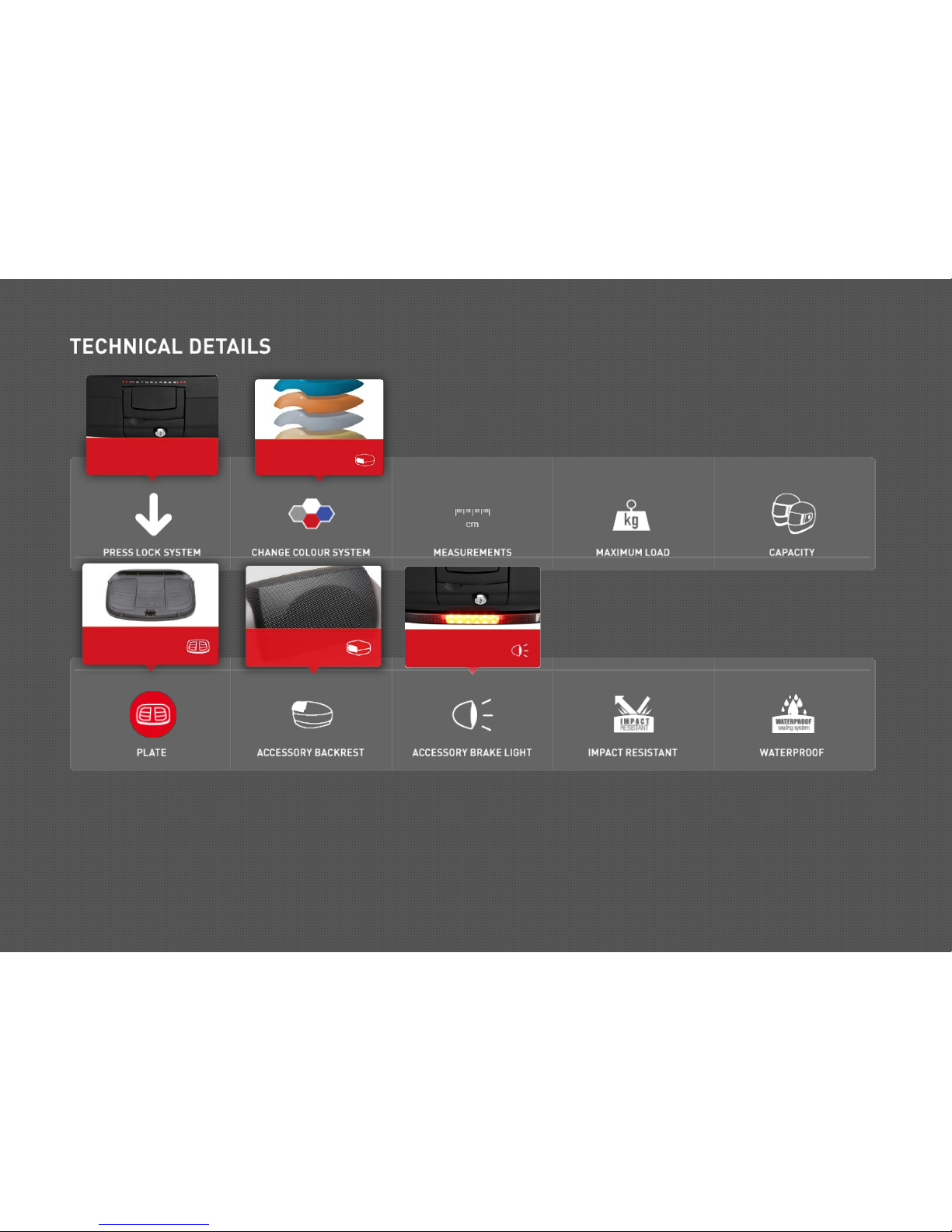

Press Lock System Change Colour System

Width: 56 / Height: 31 / Depth: 41 Maximum Load: 6 2 full face helmets

D1B40PA plate

included

Optional backrest

as an accessory

Optional brake light

as an accessory

Waterproof Sealing System

Find out more about luggage systems & saddlebags we have.

SHAD puts everything within reach.
