SF SFTHCPH022WFC Manuel utilisateur

Premier Series

Digital

Thermostat

Non-Programmable

with Humidity Control

Owner’s Manual

and Installation

Instructions

COMMERCIAL

model SFTHCPH022WFC

Follow the Installation Instructions before proceeding. Set the

thermostat mode to “OFF” prior to changing settings in setup

or restoring Factory Defaults.

CAUTION

This thermostat has the ability to receive updates to its ﬁrmware. Periodically

ﬁrmware updates are released by the manufacturer to add features and/or

performance enhancements.This manual was produced reﬂecting the most

current ﬁrmware/feature set at the time of publication, ﬁrmware rev. 12. Firmware

releases after rev. 12 may not be adequately depicted in this manual. Please

refer to the appropriate website or contact your place of purchase to learn about

changes to the thermostat after ﬁrmware release 12.

Glossary of Terms

Auto-Changeover: A mode in which the thermostat will turn on the

heating or cooling based on room temperature demand.

Cool Setpoint: The warmest temperature that the space should rise

to before cooling is turned on (without regard to deadband).

Deadband: The number of degrees the thermostat will wait, once a

setpoint has been reached, before energizing heating or cooling.

Dehumidify: To reduce the amount of moisture in the air.

Dierential: The forced temperature dierence between the heat

setpoint and the cool setpoint.

Heat Setpoint: The coolest temperature that the space should drop

to before heating is turned on (without regard to deadband).

Humidify: To increase the amount of moisture in the air.

Icon: The word or symbol that appears on the thermostat display.

Mode: The current operating condition of the thermostat (i.e. O,

Heat, Cool, Auto).

Non-Programmable Thermostat: A thermostat that does not have

the capability of running Time Period Programming.

Programmable Thermostat: A thermostat that has the capability of

running Time Period Programming.

Reheat: Running the cooling and 2nd stage strip heaters at the same

time in order to dehumidify the air without signicantly cooling down

the room temperature.

Temperature Swing: Same as Deadband.

Time Period Programming: A program that allows the thermostat to

automatically adjust the heat setpoint and/or the cool setpoint based

on the time of the day.

iii

Table of Contents

GET TO KNOW YOUR THERMOSTAT

Get to Know Your Thermostat....................................................... 1

Quick Start ..................................................................................... 6

INTALLATION INSTRUCTIONS ....................................................... 9

Sample Wiring Diagrams.............................................................. 13

Test Operation............................................................................... 16

USER SETUP

Backlight Operation...................................................................... 17

Scrolling Display Options ............................................................. 18

Thermostat Display Options......................................................... 18

Emergency Heat ........................................................................... 18

RF Module..................................................................................... 19

Wi-Fi Module................................................................................. 20

System Runtimes.......................................................................... 21

INSTALLER SETUP

Program Mode Operation............................................................. 23

Programming Fan Operation........................................................ 25

Humidication & Dehumidication .............................................. 26

Dry Contact Operation ................................................................. 27

Remote Sensor Operation............................................................ 27

ADR ............................................................................................... 29

Locking/Unlocking the Keypad.................................................... 34

Factory Defaults............................................................................ 35

TECHNICIAN SETUP

Sensor Calibration ........................................................................ 36

Equipment Testing ........................................................................ 36

Advanced Output Testing............................................................. 36

Troubleshooting ............................................................................ 37

Advanced Setup Table ................................................................. 38

WARRANTY..................................................................................... 40

TECHNICAL SPECIFICATIONS...................................................... 41

Get To Know Your Thermostat

Optional WiFi Module

Backlit, Scrolling Display

Backlit LCD Display

Heat or Cool

Demand Indicator

Red = Heat, Green = Cool

Backlit Cooler & Warmer

Buttons

Setup Buttons Behind Door

Override Button

Get To Know Your Thermostat

Setup Buttons

Get To Know Your Thermostat

Display Features

Outdoor

Fan On

COOL

AUXHEAT

Override

Day Night

Morning

Evening

Setup Step

2nd

Stage

18:88

188

1The scrolling display will be used to help you easily navigate

the setup screens in the thermostat.

2Clock

Indicates the current time.

3Mode Indicators

Selects the operational mode of the equipment.

HEAT - Indicates the heating mode.

COOL - Indicates the air conditioning mode.

HEAT & COOL - Indicates the system will automatically change-over

between heat and cool modes as the temperature varies.

OFF - Indicates heating and cooling is turned off.

4Room Temperature Display

Indicates the current room temperature and displays the outdoor

temperature when selected.

5Outdoor icon

Indicates the temperature displayed is from the optional

outdoor sensor.

Get To Know Your Thermostat

Display Features

Outdoor

Fan On

EAT

Override

Day Night

Morning

Evening

Setup Step

2nd

Stage

18:88

188

6 Desired SetTemperature

Indicates desired room temperature(s). Also displays

the highest and lowest temperatures for the day.

7 Wi-Fi icons

One dot indicates the thermostat recognizes the wireless module.

The full icon indicates the thermostat is currently connected to

the Local access point, via the optional Wi-Fi Module.

8 Setup Step icon

Indicates the step number when the thermostat

is in the setup mode.

9 2nd Stage icon

Indicates what stage of cooling or heating is currently energized.

10 icon

Indicates the keypad has been locked.

Get To Know Your Thermostat

Outdoor

Fan On

EAT

Override

Day Night

Morning

Evening

Setup Step

2nd

Stage

18:88

188

Display Features

11 AuxHeat icon

Indicates 2nd stage electric strip heat is being used when the

thermostat is programmed for Heat Pump operation. Only the

Aux icon will appear during Cool to Dehumidify to indicate

Reheat operation.

12 Fan On icon

Indicates constant, continuous fan operation.

When Fan On is not lit - indicates the fan will only

operate when necessary to heat or to cool.

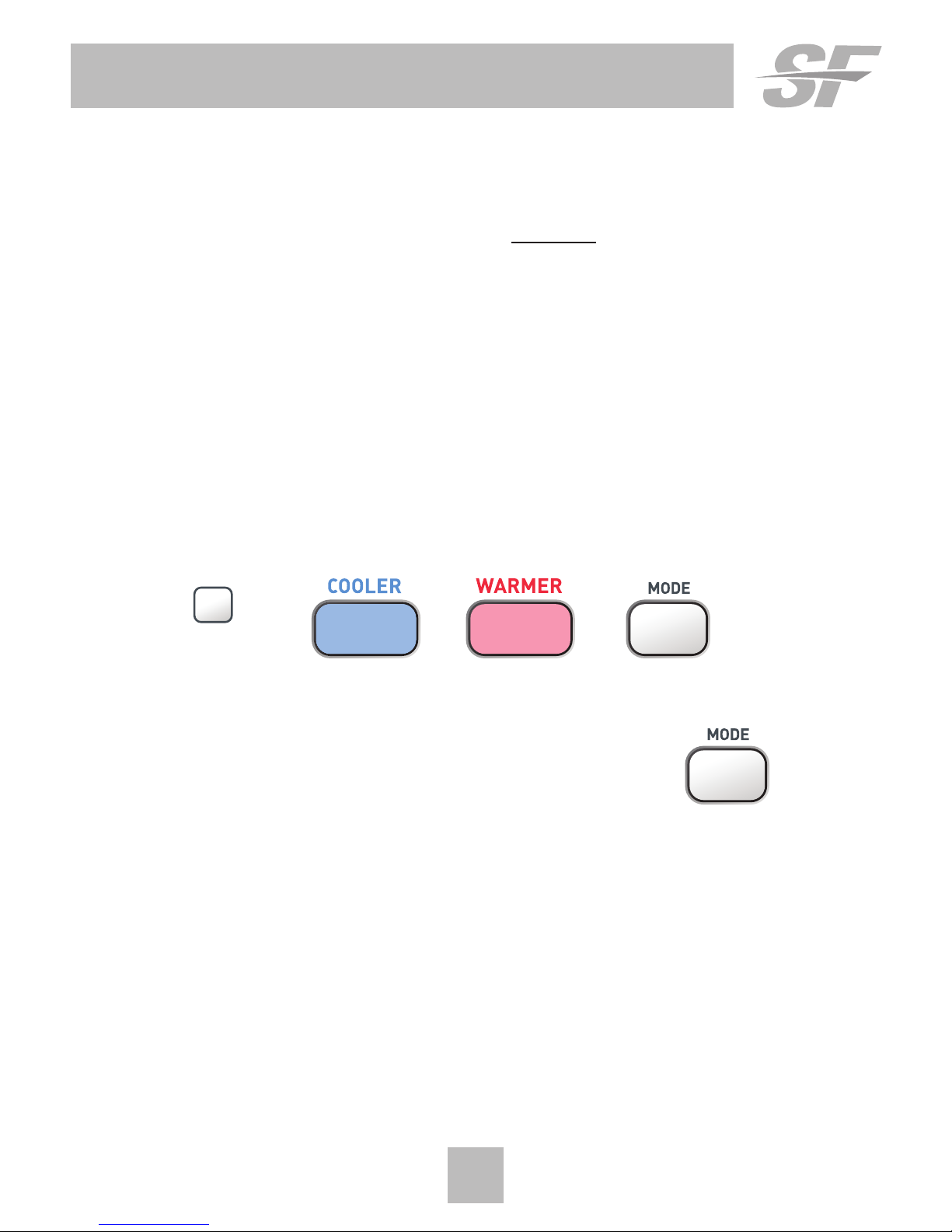

Quick Start

During Setup and Programming:

Press the WARMER or COOLER buttons to modify the selection.

Press the MODE button to advance and conﬁrm through the setup steps.

Setting the Clock

Not available when wi-ﬁ module is present

Press the SET CLOCK button. Adjust the clock using the WARMER or

COOLER buttons. Press MODE to advance to the day setting. Adjust the

day using the WARMER or COOLER buttons. Press the SET CLOCK

button to conﬁrm settings.

NOTE: To adjust the time by hours, press and hold the FAN button

while pressing the WARMER or COOLER buttons.

Selecting the Heat or Cool Mode

Select mode by pressing the MODE button.

Heating Only - Only the heating operation will be controlled by the

thermostat in this mode.

Cooling Only - Only the cooling operation will be controlled by the

thermostat in this mode.

Heating or Cooling (Auto-Changeover) - AUTO will automatically select

heat or cool based on room temperature demand.

OFF - OFF indicates both heating and air conditioning systems are turned off.

Set

Clock

Set

Clock
