Seville Classics UltraHD 20267 Manuel utilisateur

TR151008

ASSEMBLY INSTRUCTIONS

UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)

(1.21m W X 60.9cm D X 1.56m H)

48in. W X 24in. D X 61.5in H

Reference page 6 for special care and

maintenance of stainless steel

No. Qty. No. Qty. No. Parts Qty.

#1 1 pc #46 1PC #50 SCREW I (M6 x 15L) 56 pcs

#2-D 1 pc #47 8 pcs #51 STUD SCREW J 4 pcs

#3-D 1 pc #48-1 1 pc #100 1/2" CURVED 4 pcs

#3-B 1 pc #48-2 1 pc #101 1" CURVED 4 pcs

#5-B 2 pcs #48-3 1 pc #102 1" STRAIGHT 4 pcs

#6 4 pcs #49-A 2 pcs #103 1.5" STRAIGHT 4 pcs

#18 2 pcs #15 42 pcs #104 2" DOUBLE PRONG 2 pcs

#19-2 2 pcs #21 1 pc #105 4" CURVED DOUBLE PRONG 2 pcs

#20-1 2 pcs #25 1 pc #106 2" PLIER HOLDER 2 pcs

#20-3 2 pcs #27-B 10 pcs #107 2" MULTI-TOOL HOLDER 1 pc

#20-4 2 pcs #40 10 pcs

#20-5 SMALL DRAWER BACK PANEL 2 pcs #41 8 pcs

SMALL DRAWER LEFT PANEL

SCREW DRIVER

WASHER

SCREW E (M8 x 18L)

SMALL DRAWER RIGHT SUPPORT

SCREW F (M4 x 8L)

PEGBOARD LONG SUPPORT BAR

POWER STRIP W. USB PORTS

WRENCH

Parts

"L" BRACKET

Drawer

PARTS LIST ( pg 1 of 7 )

Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service

department (please refer to page 7 of 7).

LEVELING FOOT

DRAWER BASE PANEL

SMALL DRAWER FRONT PANEL

SOLID HARDWOOD TOP

FPR-SS TOP PEGBOARD PANEL

FPR-SS BOTTOM PEGBOARD PANEL

BOTTOM CROSSBAR

LEG PIECE

DRAWER MAT

SMALL DRAWER RIGHT PANEL

SMALL DRAWER MIDDLE SUPPORT

SMALL DRAWER LEFT SUPPORT

SCREW B (M4 x 8L)

#100 #101 #102 #103 #104 #105

#106 #107

#40 #27-B #15 #25#21

#50

#41

#51

#46

#15

#20-3

#20-4 #20-5

#19-2

#20-1 #18

M8X20 pcs

#40

#49-A

#2-D

#20

#27-B

#15

#41

#3-D

Step 1.

Step 2.

NOTE:

Step 3.

Attach the Small Drawer Middle Support

(#48-1) to the back of Solid Hardwood Top

(#1), line up the screw holes, use 8pcs Screw

I (#50) and Screwdriver (#21) to tighten.

Repeat this step to install Small Drawer Left

Support (#48-2) and Small Drawer Right

Support (#48-3).

Do not fully tighten the screws. This will help

you make any adjustments for alignment.

ASSEMBLY INSTRUCTIONS (pg 2 of 7)

Install Bottom Cross Bar (#3-B) and Leveling

Feet (#6).

Attach the Bottom Cross Bar (#3-B) to the back

of Leg Piece (#5-B), line up the screw holes,

use 4 pcs of Screw E (#40) with Washer (#27-B)

and Wrench (#25) to tighten.

After installing the Bottom Cross Bar (#3-B),

attach Leveling Feet (#6) to the Leg Pieces (#5-

B) , use Wrench (#25) to tighten.

UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)

Install Leg Piece (#5-B).

A: Open the package, and put the parts aside. Then, attach the "L" Bracket (#47) to the Leg Piece (#5-B) , use 4

pcs Screw I (#50) to tighten. Repeat Step A to install "L" Brackets (#47) to another Leg Piece (#5-B) with another

4 pcs Screw I (#50).

Note: Tighten all the screws after the Brackets (#47) are flush with the Leg Piece (#5-B).

B: Attach the Leg Pieces (#5-B) to the back of the Solid Hardwood Top (#1), line up the screw holes, use 16 pcs of

Screw I (#50) and Screwdriver (#21) to tighten.

Note: Assemble the workcenter on top of the cardboard packaging to help avoid scratching the solid hardwood

top.

Install Small Drawer Middle Support

(#48-1), Small Drawer Left Support

(#48-2), Small Drawer Right Support

(#48-3).

TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used,

keep on a low torque setting.

Front

Back

Front

Back

Front

Step 4. Install Pegboard Long Support Bar (#49-A).

Step 5:

Step 6:

Install Left and Right Drawer Side Panels (#20-3

and #20-4).

Fit and attach the Left and Right Small Drawer Side

Panels (#20-3 and #20-4) to the Small Drawer

Front Panel (#20-1). Make sure the Left and Right

Small Drawer Side Panels (#20-3 and #20-4) are

placed in all the way making contact with the rear

of the Small Drawer Front Panel (#20-1). Line up

the screw holes and use Screw B (#15) to tighten.

UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)

ASSEMBLY INSTRUCTIONS (pg 3 of 7)

Turn the workcenter up right, attach Pegboard

Long Support Bar (#49-A) to the back of the

workbench, line up the screw holes, using 6 pcs of

Screw E (#40) with Washer (#27-B) to tighten.

NOTE: Do not fully tighten the screws. This will

help you make any adjustments to alignment

later.

Install FPR-SS Top Pegboard Panel (#2-D) and

FPR-SS Bottom Pegboard Panel (#3-D).

Attach FPR-SS Bottom Pegboard Panel (#3-D) on

the back top edge of workcenter and Pegboard

Long Support Bar (#49-A), line up the screw holes,

use 4 pcs of Screw F (#41) and Screwdriver (#21)

to tighten.

NOTE: Do not fully tighten the screws. This will

help you make any adjustments to alignment

later.

Attach FPR-SS Top Pegboard Panel (#2-D) to the

Pegboard Long Support Bar (#49-A), line up the screw

holes, use 4 pcs of Screw F (#41) and Screwdriver

(#21) to tighten.

Use 2 pcs Screw B (#15) to fasten the FPR-SS Top and

Bottom Pegboards (#2-D and #3-D) together as left

detail photos shows.

Back

Front

#20-4

#20-3

#20-1 #15

#15

#2-D

#3-D

#41

#49-A

#27-B

#40

Step 7:

Step 8:

Note:

ASSEMBLY INSTRUCTIONS (pg 4 of 7)

Each Drawer's maximum loading capacity is 40

lbs.

UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)

Attach the Drawer Base Panel (#19-2) between

the Drawer Left and Right Side Panels (#20-3 and

#20-4) and into the back of the Drawer Front

Panel (#20-1). Line up screw holes and use Screws

B (#15) to tighten.

Note: Do not fully tighten the screws. Once you

adjust all the parts in position, tighten all screws.

Attach the Drawer Back Panel (#20-5) to the rest

of the assembled drawer. Line up screw holes and

use Screws B (#15) to tighten.

Repeat Steps 6-8 to assemble the second drawer.

Install Drawer Base Panel (#19-2).

Install Drawer Back Panel (#20-5).

#15

#19-2

#20-5

#15

#20-3

#20-5

#20-4

#20-1

#19-2

Step 9: Insert Drawers.

WARNING:

NOTE:

Step 10:

How to pull the drawer out of the unit?

To pull the drawers out of the unit, pull the black plastic clip on the right side of the drawer up, then push on the black

plastic clip on the left side of the drawer down. Now you can pull the drawer out.

After attaching the two drawers, place the Drawer

Mats (#18) inside the drawers.

ASSEMBLY INSTRUCTIONS (pg 5 of 7)

Pull out the Ball Bearing track towards you.

Place Drawer Mats (#18).

UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)

Once you insert the drawers, tighten the screws

for Small Drawer Middle Support (#48-1), Small

Drawer Left Support (#48-2) and Small Drawer

Right Support (#48-3).

Pull out the drawer sliders and inner ball bearing

track completely. Then attach and fit the Drawer

to the inner track of the sliders and slide drawers

in.

Pull the ball

bearing track

towards you.

PULL

DOWN

#18

Step 12: Place Power Strip (#46).

UltraHD Wood Top

Restore Shallow Scratches or Chips

Applying a Polyurethane Coating

Please follow the manufacturer's instruction on the product for application.

Stainless Steel Maintenance:

These parts have an UltraGuard® fingerprint resistant finish. Do not use traditional stainless steel cleaners on this unit. Lightly

wipe off once a month with clean warm water and a soft cloth (preferably a micro fiber cloth). This is the safest formula to

prevent new stains from appearing over time and manage unwanted fingerprints or grease marks.

Remember to always wipe in the direction of the surface grain (NEVER ACROSS) and always use a lint-free cloth.

Once the surface is clean, thoroughly wipe dry with a soft absorbent cloth.

ASSEMBLY INSTRUCTIONS (pg 6 of 7)

On the front of the FPR-SS Bottom

Pegboard Panel (#3-D) insert 2 pcs of Stud

Screw J (#51). Then, hook the Power Strip

(#46) onto the screws. Insert the power

cord through the Rubber Grommet in the

bottom corner of Pegboard Panel (#3-D).

NOTE: You can position Power Strip (#46)

on the left or right side of the FPR-SS

Bottom Pegboard Panel (#3-D).

Place Hooks (#100), (#101), (#102),

(#103), #104), (#105), (#106), (#107) to

Pegboard as needed.

Although great care is taken to hand select consistent wood top color and grain for UltraHD products,

there can and will be natural variations in color and graining between finished products. These

variations contribute to the beauty of using a natural material as a workbench and are considered

standard quality. Variations of color within these standards and minor scratches in the clear coat finish

will not be a reason for replacement. If the wood top is received with excessive damage or splitting,

Seville Classics will guarantee replacement of the wood top.

If the wood top becomes scratched and chipped over time or during assembly, a Polyurethane finish

can be applied to help restore the wood's natural texture, as well as protect the surface from future

damage.

UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267)

[!] CAUTION: Potential Shock or Fire Hazard. This unit is not

intended for use in wet or potentially wet locations, such as

showers, saunas, under or near fishtanks, sinks, etc.

Seville Classics, Inc.

19401 South Harborgate Way

Torrance, CA 90501

USA

Model No. 20204

UltraHD 6-Drawer Rolling Cabinet

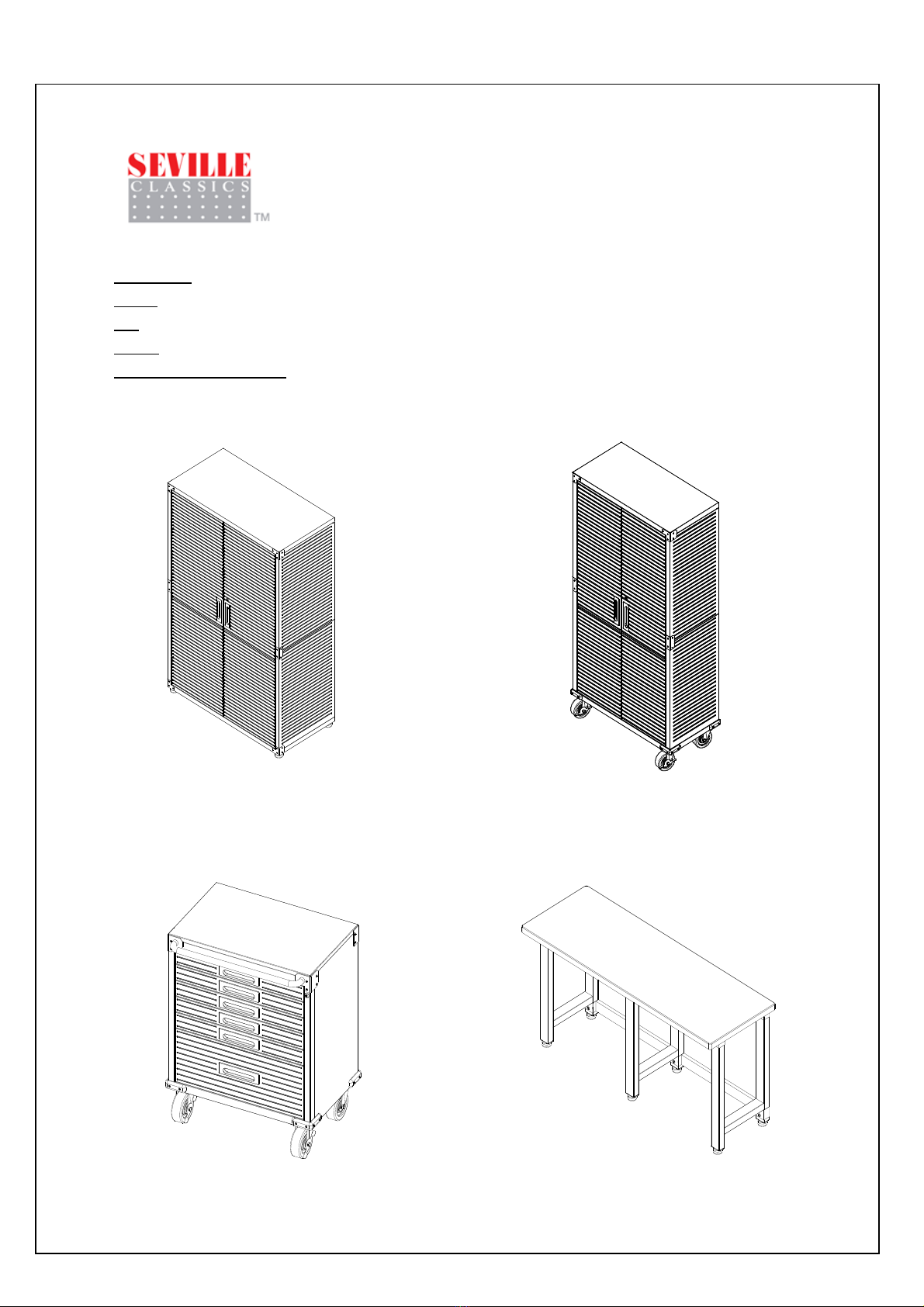

**Please visit our website or call and inquire about our additional UltraHD Line**

CONTACT INFORMATION (pg 7 of 7)

Model No. 16238

UltraHD Storage Cabinet

*If you are missing any parts, have any questions or need additional assistance with assembly, please contact our

bilingual (English & Spanish) Customer Service Department at:

Hours: 9:00am - 4:30pm (Pacific Standard Time)

Fax: (310) 533-3899

E-mail: support@sevilleclassics.com

Website & Online Store: www.sevilleclassics.com

Telephone: (800) 323-5565 within USA

Model No. 16236

UltraHD Storage Cabinet

Model No. 20206

UltraHD Workbench

Model No. 20215

UltraHD Trash Bin

Model No. 20255

UltraHD Tool Box

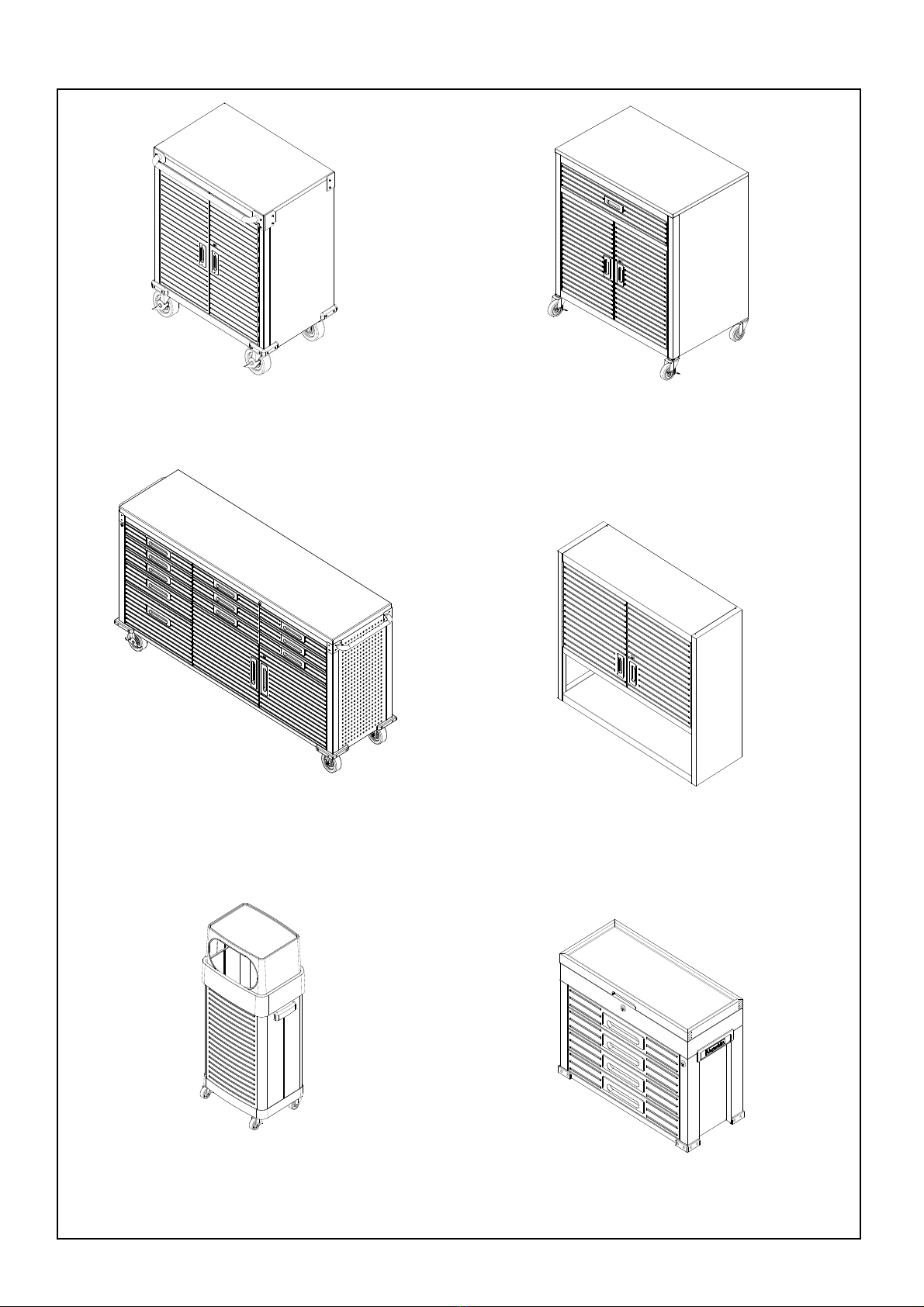

UltraHD Line

Model No. 20238

UltraHD Rolling Cabinet

Model No. 20230

UltraHD Wall Cabinet

Model No. 20227

UltraHD Rolling Cabinet

Model No. 20262

UltraHD Rolling Workbench

Table des matières

Autres manuels Seville Classics Stockage

Seville Classics

Seville Classics 16236 Manuel utilisateur

Seville Classics

Seville Classics WEB703 Manuel utilisateur

Seville Classics

Seville Classics UltraHD UltraGuard 20204 Manuel utilisateur

Seville Classics

Seville Classics 15894 Manuel utilisateur

Seville Classics

Seville Classics UltraGuard UltraHD Extra-Wide Mega Storage... Manuel utilisateur

Seville Classics

Seville Classics UltraHD UltraGuard 16234 Manuel utilisateur

Seville Classics

Seville Classics UltraHD UltraGuard WEB346 Manuel utilisateur

Seville Classics

Seville Classics WEB284 Manuel utilisateur

Seville Classics

Seville Classics UltraHD UltraGuard 16234 Manuel utilisateur

Seville Classics

Seville Classics WEB490 Manuel utilisateur

Seville Classics

Seville Classics UltraHD UltraGuard WEB347 Manuel utilisateur

Seville Classics

Seville Classics 18595 Manuel utilisateur

Seville Classics

Seville Classics STR30238 Manuel utilisateur

Seville Classics

Seville Classics WEB241 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
