Sergio iH-100 Manuel utilisateur
1
Sergio iH-100 Operation Manual
Thank you for purchasing Sergio iH-100 music sound effect system for your iPod® or MP3 player. The Sergio iH-100 is the
latest innovation from Sergio, a long time leader in the manufacture of professional audio systems. It features a fresh and
innovative new iPod® docking system that allows users to play music with their favorite stereo system, and watch movies on
the big screen display. iH-100’s multi functional features not only will diversify your iPod® life, but also creates an environment
for your enjoyment.
1
IMPORTANT
Read Before Proceeding
Please read through this operating instruction so you will know how to operate this product properly. After you have finished
reading the instruction, put it in a safe place for future reference.
In some countries or regions, the shape of power plug or power outlet may sometimes differ from that shown in the
explanatory drawings. However the method of connecting and operating the unit is the same.
2
Table of Contents
Table of Content
1. Package Contents ………………………………………………………………………………………………………………………… 3
2. Features
…………………………………………………………………………………………………………………………………..… 4
3. Getting Start
……………………………………………………………………………………………………………………………… 5
4. Using Remote Control Unit
……………………………………….……………………………………………………………………… 7
5. Controls and Indicators ………………………………………………………………………………………………………………… 8
6. iPod® / MP3 Player ……………………………………………………………………………………………………………………… 12
7. Using iH-100
……………………………………………………………………………………………………………………………… 14
8. Wiring Diagrams
…………………………………………………………………………………………………………………………… 18
9. Specification ……………………………………………………………………………………………………………………………… 19
10. Consumer Guide to Product Safety …………………………………………………………………………………………………… 20
11. Trouble Shooting
…………………………………………………………………………………………………………………………… 22
12. Warranty
……………………………………………………………………………………………………………………………………… 24
3

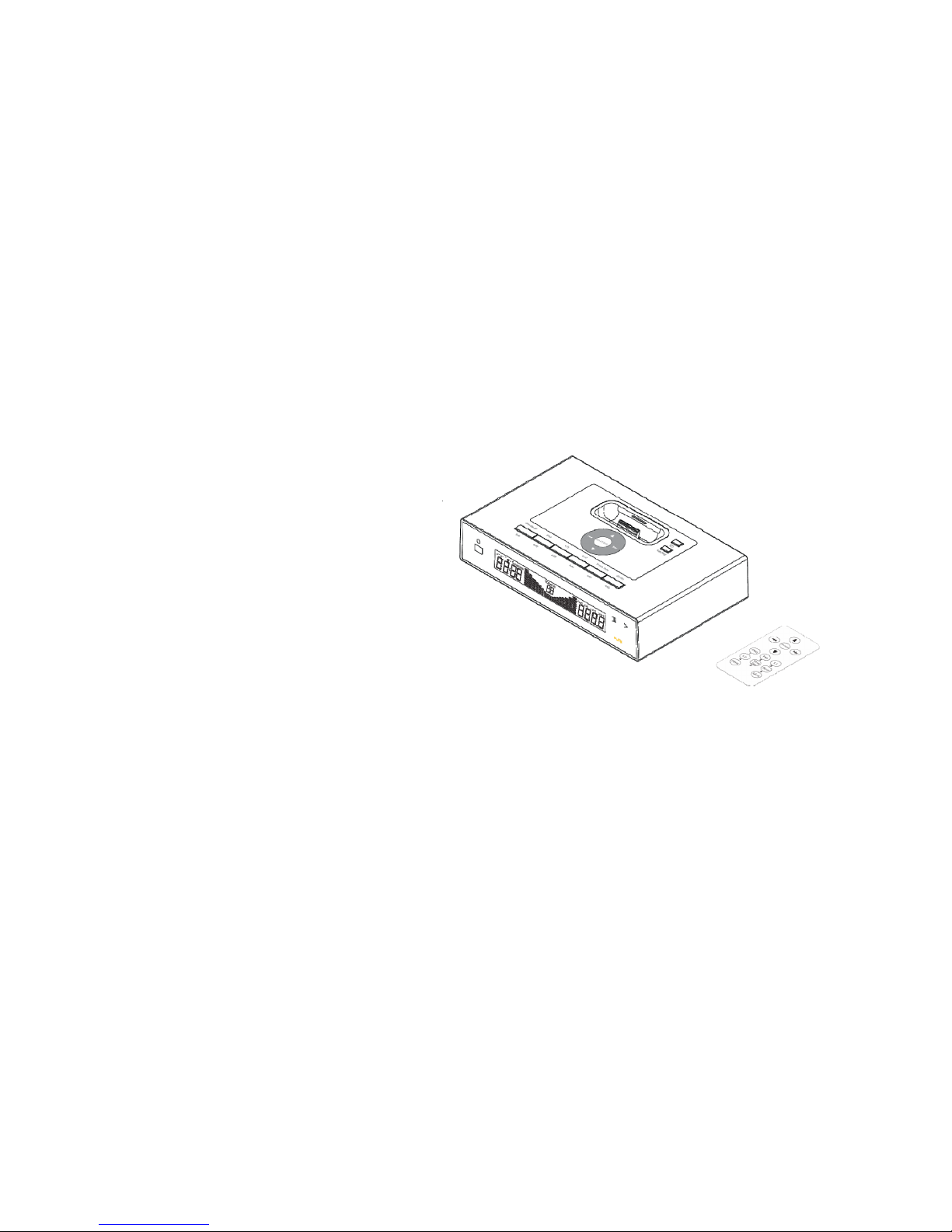

Package Contents
The iH-100 package included the following
1. iH-100 multimedia center
2. A power adaptor
3. Antenna
4. USB cord
5. 3.5mm phone jack converter
6. iPod® Inserts
7. Operation manual
4
Features
zPlay and simultaneously charge you iPod®
zTwo line-in 3.5mm plugs for MP3 players (Rear)
zTransferring video from iPod®-Video to Television
zTransferring music from iPod® to home stereo system
zInfrared remote controller
zUpdates iTune and uploads video via iH-100 (USB Port) directly
zSupport FM radio
5
Getting Start

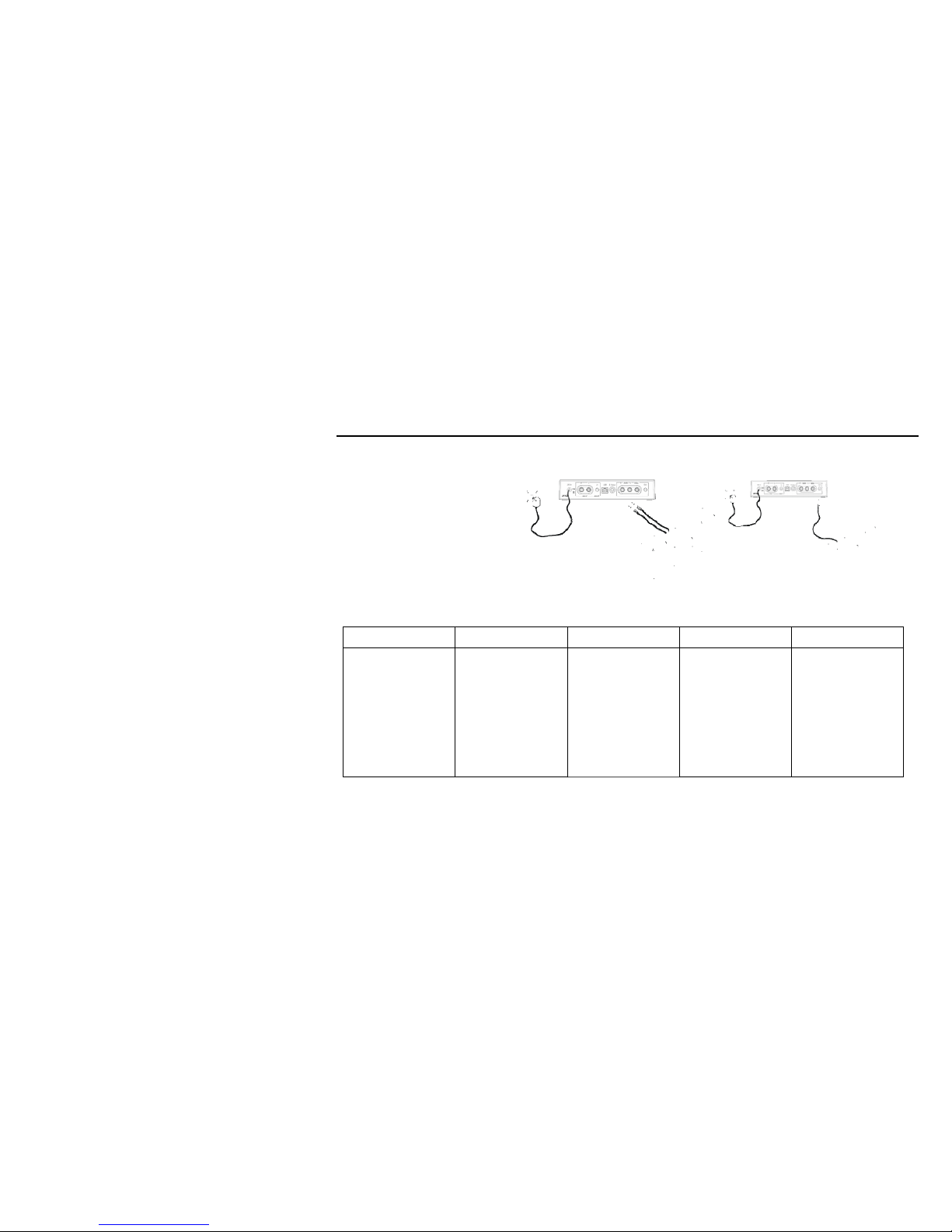

Install Speakers
Install Speakers (RCA Jack) Install Speakers (Phone Jack)Connect AV cord or 3.5mm patch cord
from your speakers to RCA jack or
phone jack.
iPod® Inserts
Insert iPod®s onto connector or MP3 player into line-in jack (rear).
Shuffle Insert Mini Insert Thin iPod® Insert Thick iPod® Insert Nano Insert
Use with iPod®
Shuffle
NOTE: iBuddy will
NOT charge iPod®
shuffle.
Use with iPod® Mini iPod® 3Gen 10-15 GB
iPod® 3Gen 20 GB
iPod® 4Gen 20 GB
iPod® Photo 30 GB
iPod® 3Gen 30GB
iPod® 3Gen 40GB
iPod® 4Gen 40GB
iPod® Photo 40GB
iPod® Photo 60GB
iPod® 5Gen 30GB
iPod® 5Gen 60GB
iPod® 5Gen 80GB
iPod® Nano 2GB
iPod® Nano 4GB
6

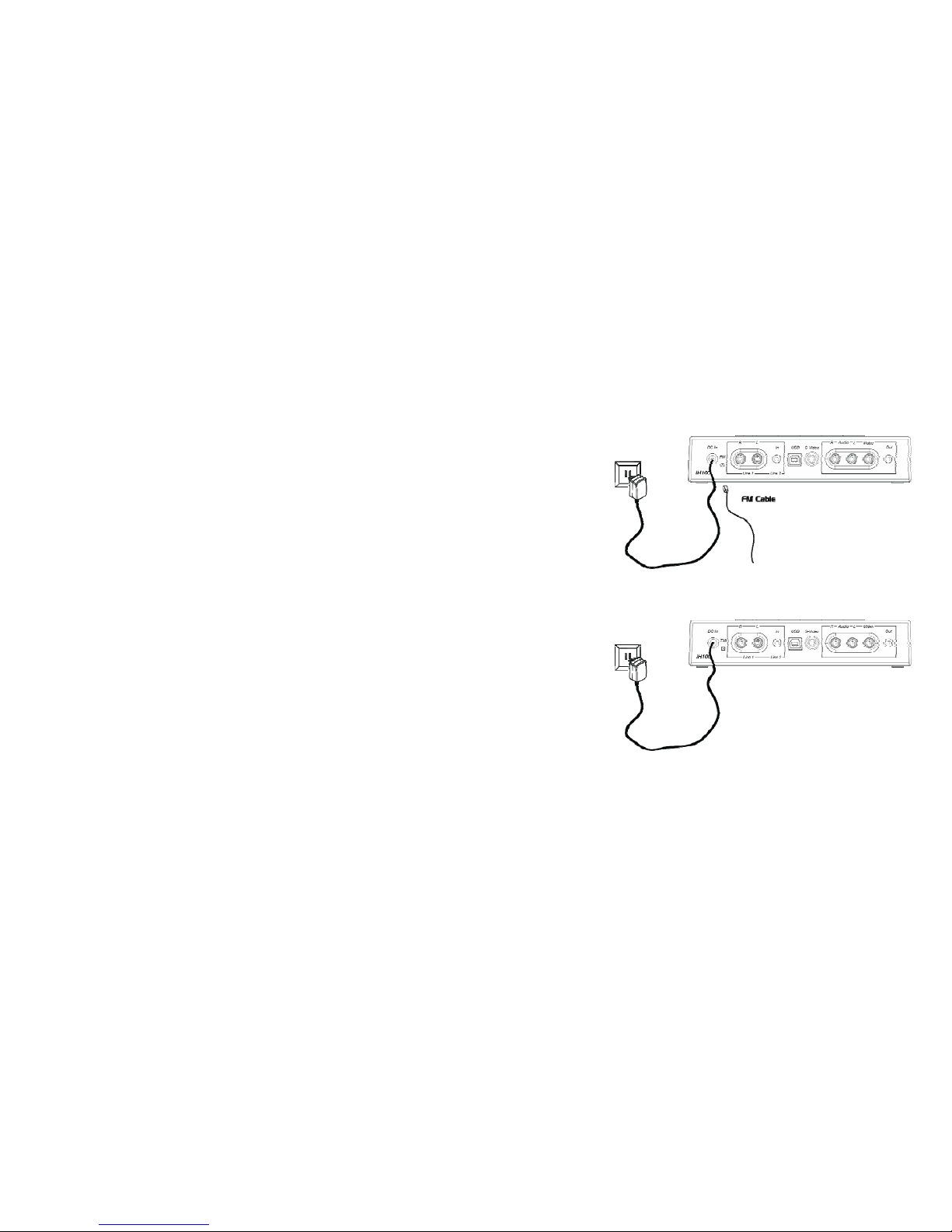

Install FM Loop Antenna
Plug the FM loop antenna into the connector located on
the back of unit for FM band radio operation. For the best
reception, please move the FM antenna 12” away from the
unit and iPod®.
Install AC Adaptor
Connect the AC adaptor cable plug into the jack on the
back of the system, and then plug adaptor into the wall
outlet.
7
Using Remote Control Unit

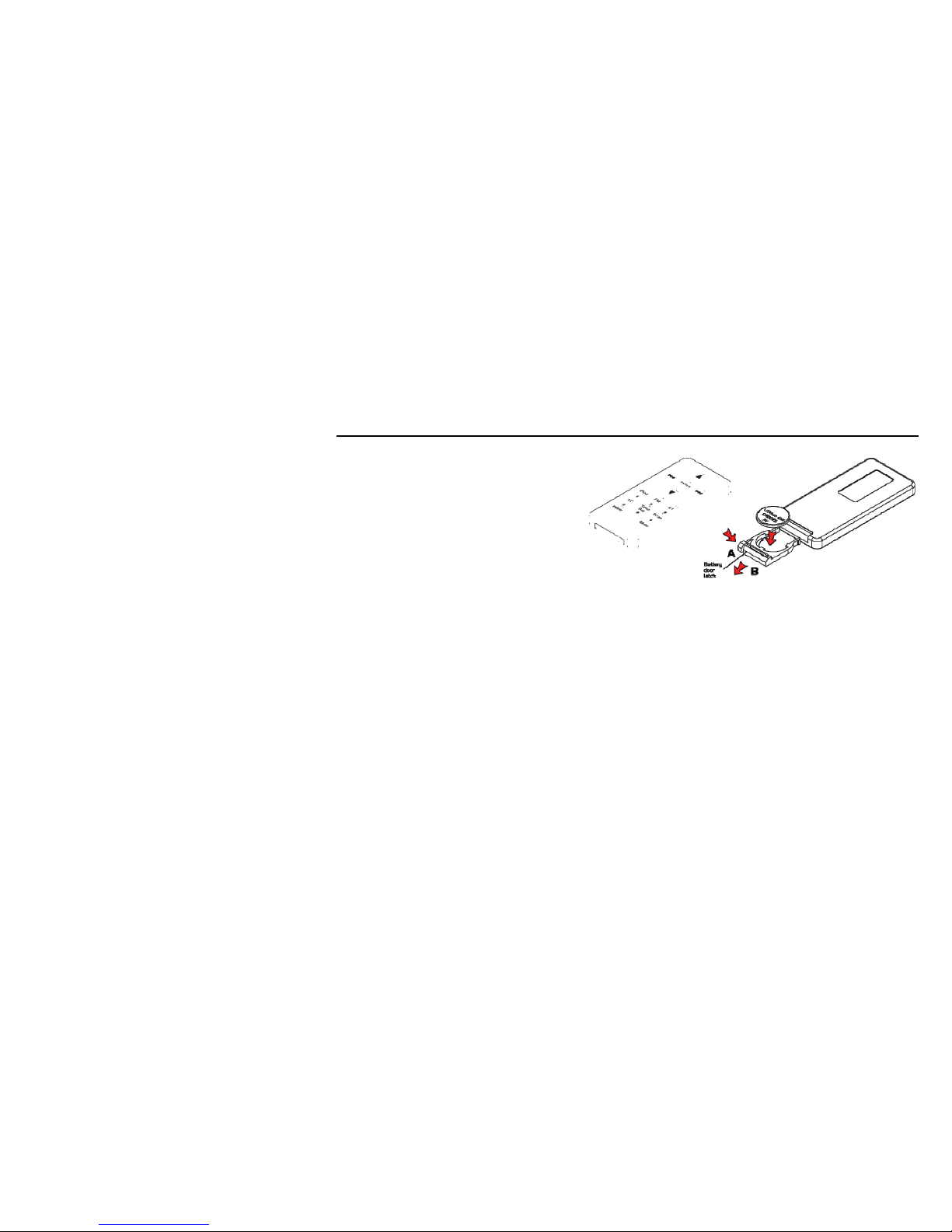

Install/Replace the Remote Control Battery
The remote control battery is already installed at the
factory. When the remote control stops operating or
its range seems reduced, replace the battery with
new one.
1. The battery door is located on the back end of the unit.
2. Squeeze notched tab A while pulling battery door latch B to release the battery door latch and take out the battery holder.
3. Insert a “CR2025” 3 volt lithium battery. Make sure the polarity (the + and – side of the battery) is correct.
4. Replace the battery holder back in the remote control.
8

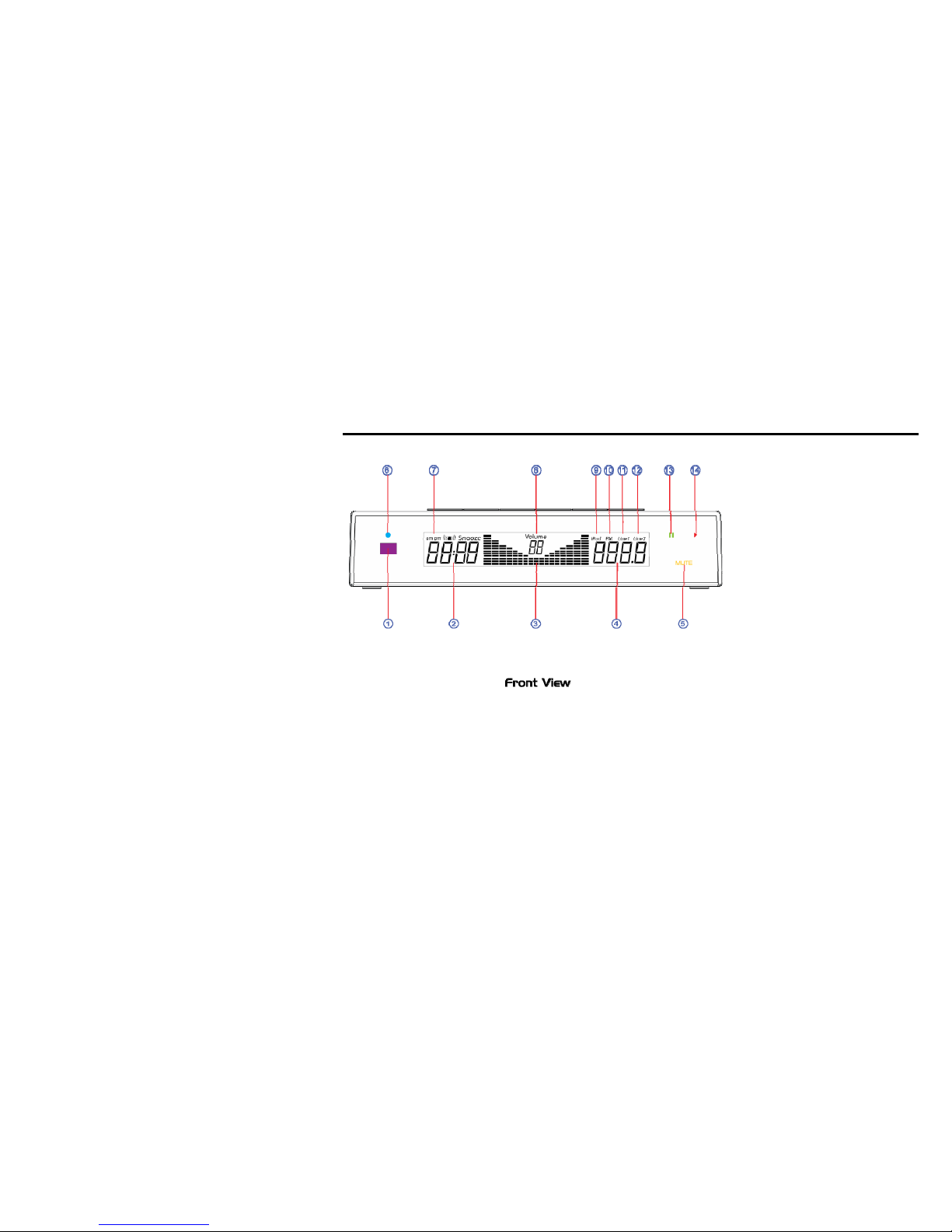

Controls and Indicators
1.Infrared Remote Receiver
2.Time Display
3.Volume Indicator
4.Radio Frequency
5.MUTE Display
6.Power Indicator
7. AM/PM Indicator
8.Volume Number Indicator
9.iPod® Indicator
10.FM Indicator
11.Line1 Indicator
12.Line2 Indicator
13.Pause Indicator
14.Play Indicator

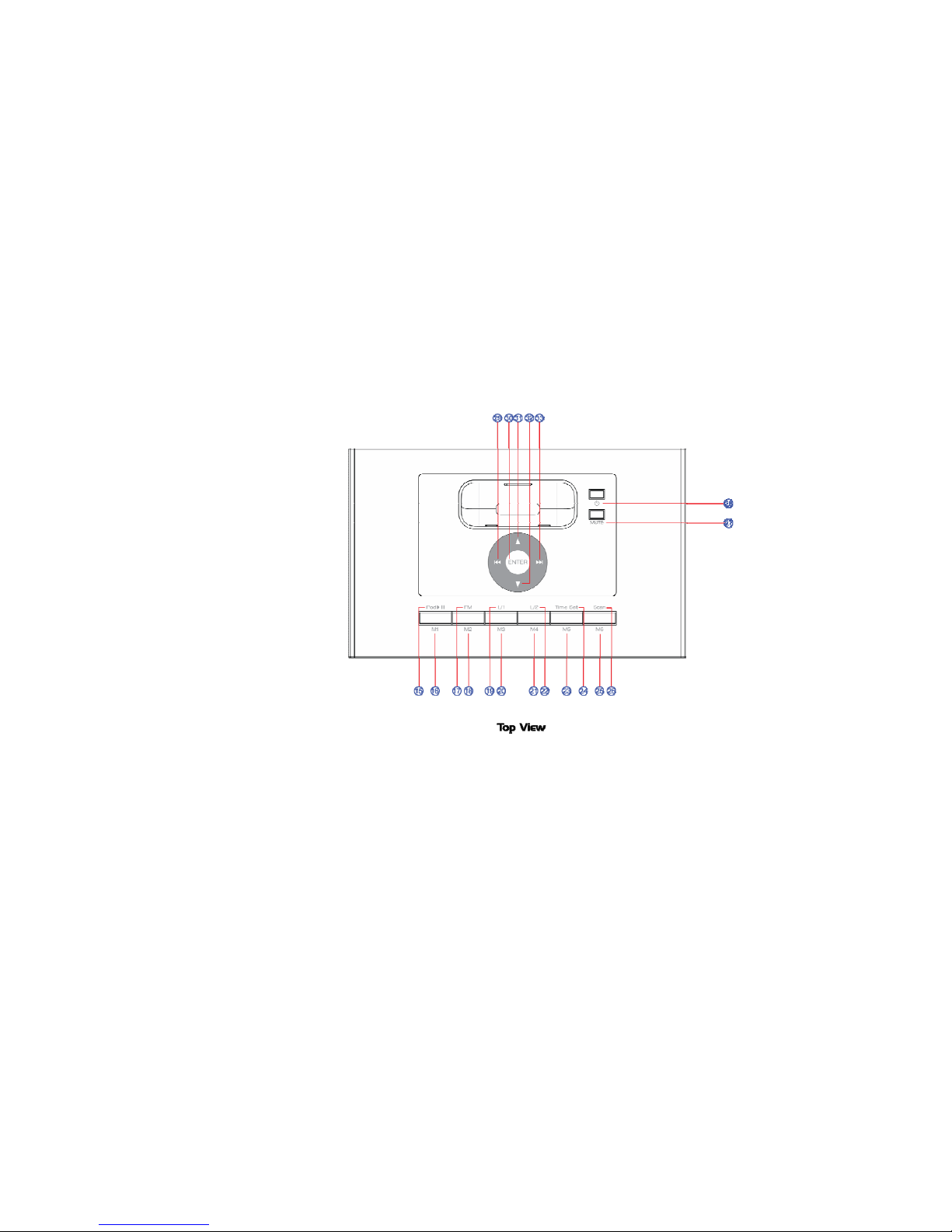

9
15.iPod® Play/Pause Button
16.Radio Memory 1
17.FM Button
18.Radio Memory 2
19.Line 1 Button
20.Radio Memory 3
21.Radio Memory 4
22.Line 2 Button
23.Radio Memory 5
24.Time Set Button
25.Radio Memory 6
26.Radio Station Scan Button
27.Mute Button
28.Power ON/OFF Button
29.Circular Previous Key
30.Circular ENTER Key
31.Circular Volume Up Key
32.Circular Volume Down Key
33.Circular Next Key
