Instruction Manual

Stand-Alone Access Control Keypad

with Built-in EM Reader

ACSK-EM

Please read the Operational Manual before attempting to use this product.

Instruction manual subject to change without prior notice from the manufacturer.

Locks, cards, sensor and power adaptor not included.

www.SentryUS.com

Index

Features …………………………………………………………………...

Keypad Description ………………………………………………..……..

Mounting Installation …………………………………………….….…...

System Wiring Diagram ………………………………………………….

System Wiring Connection ……………………………………..……….

Programming & Operation ………….……………………………....…

Changing Programming/Admin Code ……………………...…….

Restoring the Programming/Admin Code to factory default …...

Access Mode Setting ………………………………………………

Length of Password Setting ……………………………..………..

Adding a Master Card (ZONE 1) ………………………………….

Adding a User Card and Code …………………….……………

Modifying the User Code (ZONE 1) ………………………………

Group Cards Added in Zone 1 ……………………………………

Removing All User and Codes ……………………………………

Changing the Unlock Delay Time ……………………………

Pickproof Alarm ………………………………………………..

Door Bell ……………………………………………………………

Restoring Factory Default ………………………………………..

Specifications ……………………………………………………………

Package Contents ……………………………………………………..

Other Related Product Options ………………………………………...

Recommended Lock Systems ………………………………………….

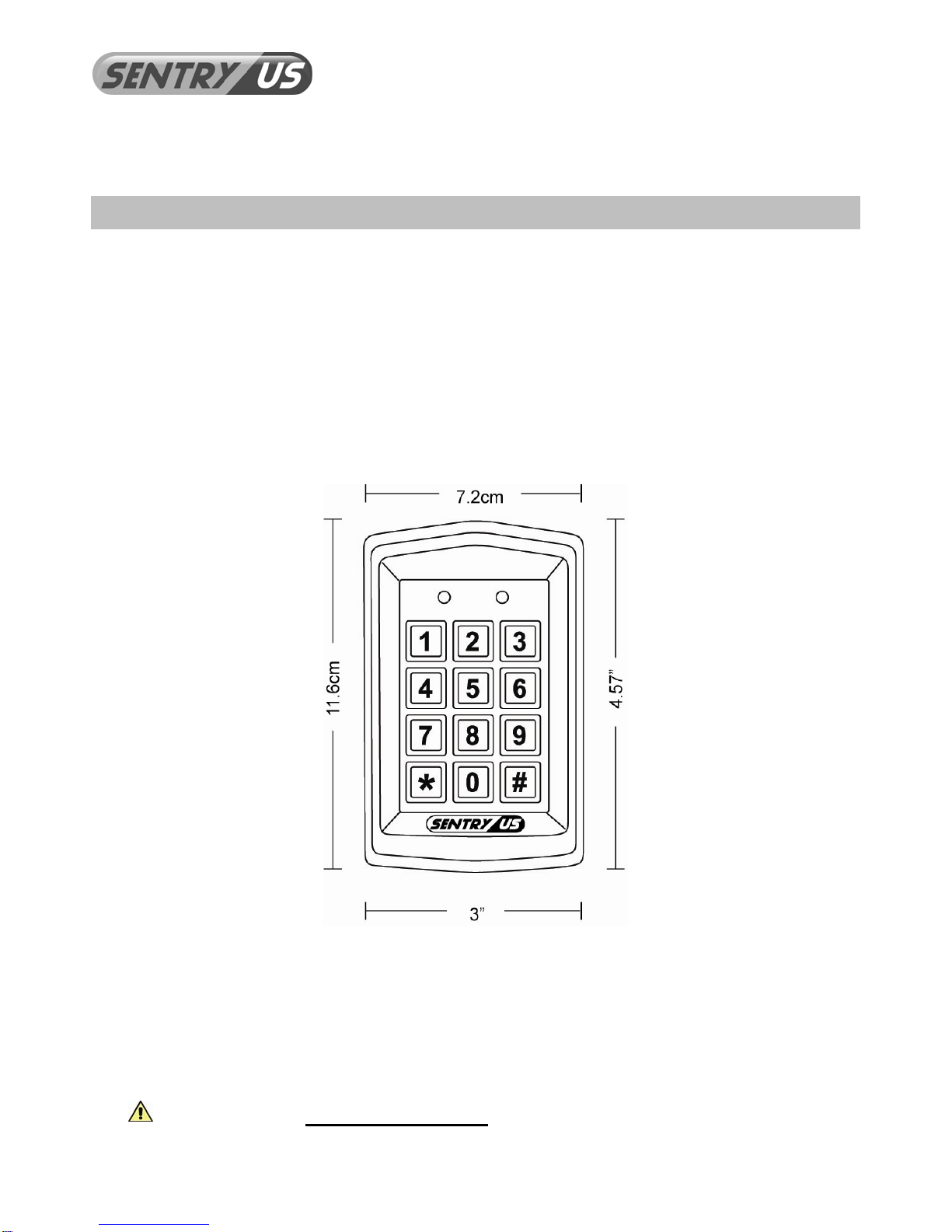

Features

•Outdoor, water resistant

•Built-in EM Reader; Card / Code / Combined access

•IP65 Rating

•125KHz Frequency

•1.97 inch / 5 cm Effective distance

•Up to 1000 password & card holders for Zone 1

•Digital keypad operation

•Built-in pickproof function

•Watchdog timer, powerful reboot & self-recovery watchdog

•Dual relay outputs, 0~99 sec unlock output delay time

•12V~15V DC, 150 mA

•3” x 4.57” x 0.87”

6-8

8-9

10-11

11-12

www.SentryUS.com

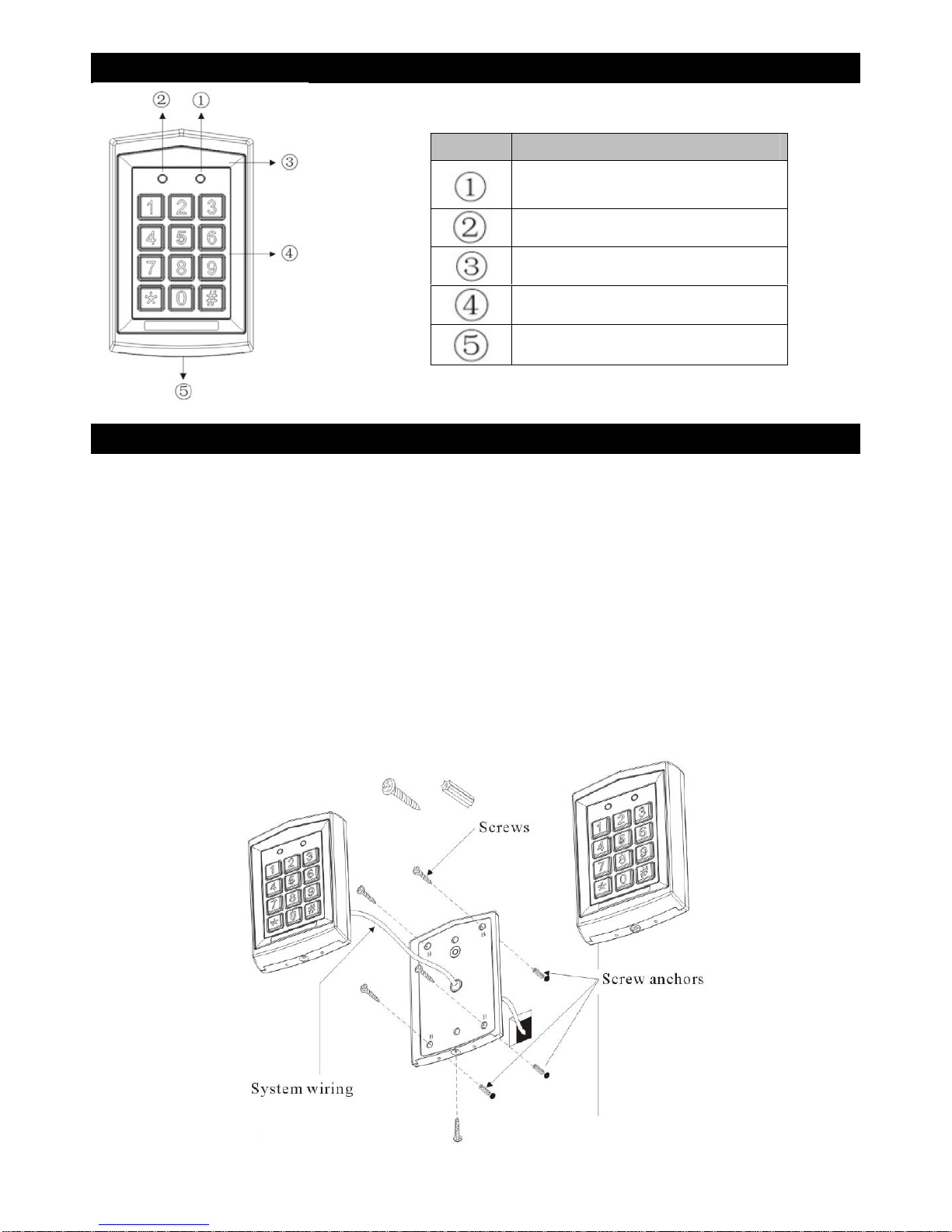

Keypad Description

Mounting Installation

(Note: Before mounting, decide first where to mount the keypad.)

1. Open the control keypad by removing the screw at the bottom using the

provided torque wrench.

2. Punch the necessary holes at the back template for the screws.

3. Using the back template as a guide, drill the holes for the screws and system

wiring (make a bigger hole for the system wiring).

Note: Level the back template

4. Draw out the system wiring through the center hole of the back template.

5. Mount the back template using the screws provided.

6. Mount the front panel using the torque wrench.

7. Connect system wiring (see System Wiring Diagram and System Wiring

Connections).

No. Description

Mode Indicators

Yellow, Red, Green

Door Indicators

Antenna

Matrix Keypad

Vandal Proof Case Screw

www.SentryUS.com

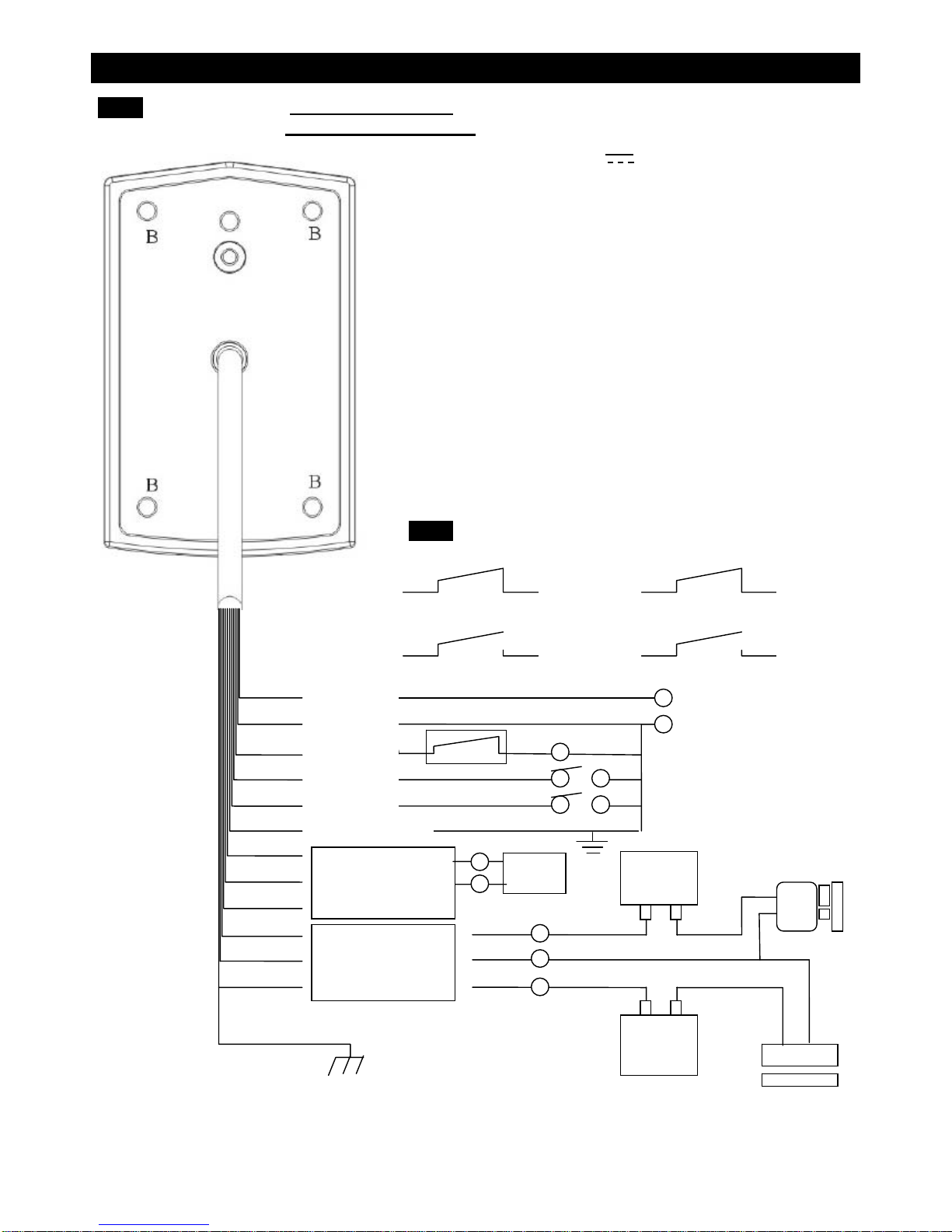

System Wiring Diagram

NC 1

NO 1

NC 2

NO 2

Red = DC Input: +12V ~ +24V

Black = AC Input: ~9V ~ 18V

White =Normally Open: N/O

Electric Door Strike Lock

Pink = Common - Relay

Aqua =Normally Close N/C

Magnetic Lock

Brown = Door Status Detection

(See * on page 5 for DSD)

Orange = Unlocking Button 1

Yellow = Unlocking Button 2

Green = GND

Blue = NO 2

Purple = COM 2

Gray = NC 2

Shielded Ground

Note: The first 4 wires

(

bolded

)

are the most important.

- Power Su

Door magnet

Button 1

Button 2

GND Electric

Strike Lock

Power

Supply

Electric

Magnetic Lock

Power

Supply

Note: White NO 1: For Electric Strike Lock

Aqua NC 1: For Electric Magnetic Lock

* Please make sure you are using one of the two locks.

Red

Black

Brown

Orange

Yellow

Green GND

Blue NO 2

Purple COM 2

Gray NC 2

White NO 1 (+)

Pink COM 1 (-)

Aqua NC 1 (+)

Door

Bell

Shielded GND

www.SentryUS.com

System Wiring Connections

Connecting to Power:

Connect the Red to power positive (+).

Connect the Black to power negative (-).

Connecting to Locks (two options):

Option1: Using a Strike Lock

Connect the White to power positive (+).

Connect the Pink to the Strike lock power positive (+) or the

normally open (NO).

Connect the Strike lock power negative (-) to the power negative (-).

Option 2: Using a Magnetic Lock

Connect the Aqua to power positive (+).

Connect the Pink to the Magnetic lock power positive (+) or the

normally close (NC).

Connect the Magnetic lock power negative (-) to the power negative (-).

Connecting an Unlocking Button to Open the Door from the Inside:

Connect the Orange to the button NO for Strike lock or NC for Magnetic lock.

Connect the button negative (-) or common to power negative (-).

Connecting to Button 2:

Connect the Yellow to the button NO for Strike lock or NC for Magnetic lock.

Connect the button negative (-) to power (-).

Connecting the Door Status Detection:

Connect the Brown to the sensor positive (+).

Connect the sensor negative (-) to power negative (-).

*The Door Status Detection (DSD) will automatically lock the door once a

connection is detected. When a person comes in, it will not wait for the delay

time to lock the door but locks it automatically when connection is detected.

This is a good way to prevent someone coming in from behind a person who

has access.

www.SentryUS.com

Programming & Operation

* All programming need to go to Setup Mode first.

Two-zone relays can be programmed for opening the lock. Up to 1000 user cards

and correlative codes can be stored into ZONE 1 and up to 10 user cards or codes

can be stored into ZONE 2. In addition the ZONE 1 can be programmed for 3 modes

to open the lock: only the card access, both the code and card access, or combined

access. The ZONE 2 could be programmed for door bell.

The Factory Default Programming/Admin Code is .

To enter Setup Mode press Programming Code twice.

(ex: ) The mode indicator will turn yellow.

To exit or quit from the Setup Mode, press .

Changing Programming/Admin Code:

In Setup Mode, press and . The mode indicator will flash yellow.

Enter new Programming Code twice.

(ex: ) A long beep means Programming

Code was changed. The length of the admin code must be the same as X.

Please remember your new programming code.

Exit Setup Mode.

Restoring the Programming/Admin Code to its factory default (only if

you cannot remember your new programming code):

Turn off control keypad power.

While pressing , turn on the power of the control keypad. A long beep means

Programming Code factory default was restored.

(Programming Code: ).

Exit Setup Mode.

www.SentryUS.com

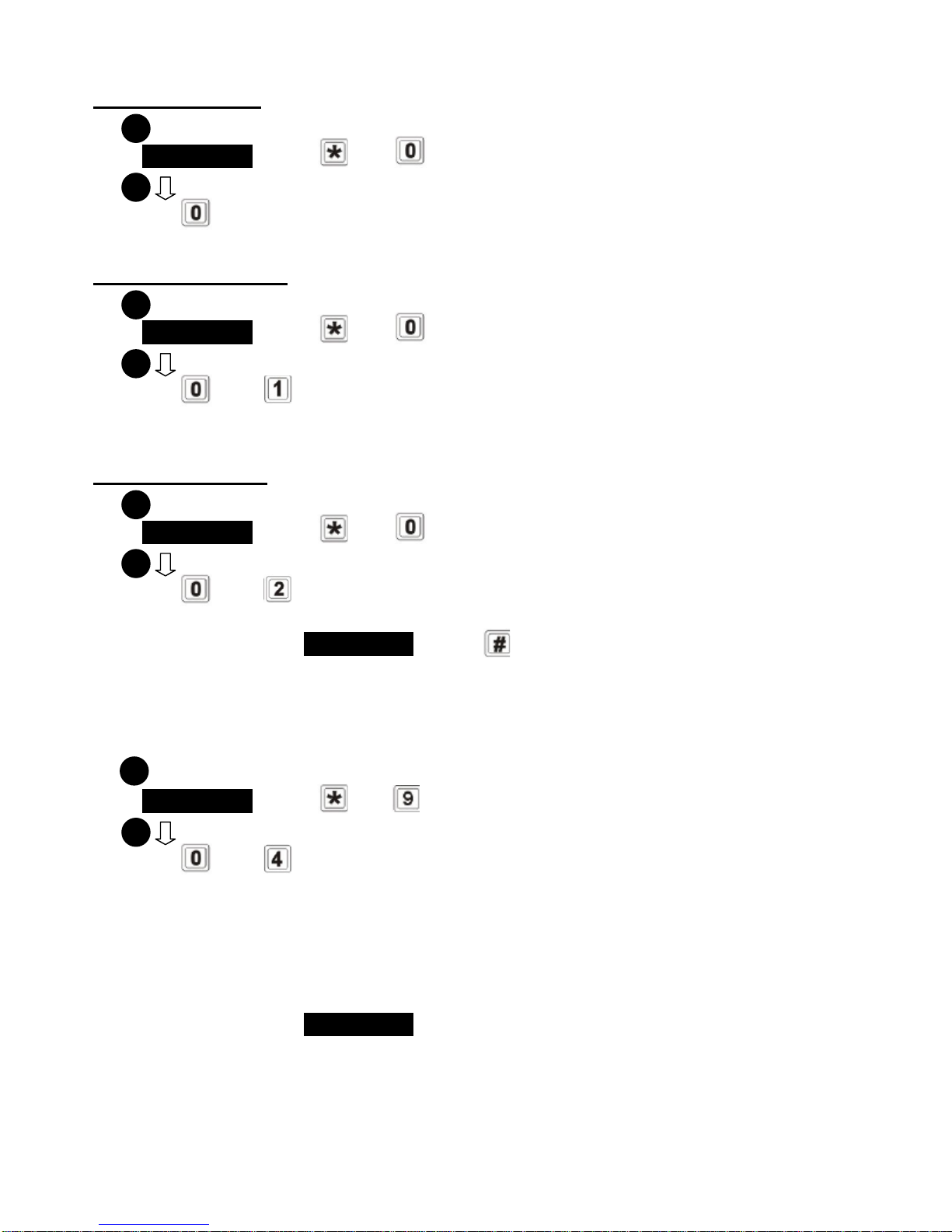

Access Mode Setting:

Card access only

In Setup Mode, press and . The mode indicator will flash yellow.

Press twice. The mode indicator will turn yellow and a long beep will sound.

Card & code access

In Setup Mode, press and . The mode indicator will flash yellow.

Press and . The mode indicator will turn yellow and a long beep will

sound.

Combined access

In Setup Mode, press and . The mode indicator will flash yellow.

Press and . The mode indicator will turn yellow and a long beep will

sound.

To exit or quit from the Setup Mode, press .

Length of Password Setting:

In Setup Mode, press and . The mode indicator will flash yellow.

Press and . A “BI” sound will beep. Enter X (X = 2, 3, 4, 5, 6).

Note: 2 – stands for the password/code length of 2 digits (00~99)

3 – stands for the password/code length of 3 digits (000~999)

The rest may be deduced by analogy, and the max. is 6 digits.

A “BI” sound means digit length setting is successful. A “BI BI BI” sound means

digit length is the same as the existing, so setting is not permitted.

To exit or quit from the Setup Mode, press .

IMPORTANT NOTE: In case the digit length changed, all added cards

and passwords clean out.

www.SentryUS.com

Adding a Master Card (Only for ZONE 1):

Note: It is advisable to install the Master Card first before installing any User Cards

To add a Master Card:

1. In Setup Mode, press and . The mode indicator will flash green

indicating there is no master card stored. If the mode indicator turns red, a

Master Card is already stored. To clean up and remove, press twice.

2. Swipe Master card. A long beep means master card was installed.

3. Exit Setup Mode.

Using the Master Card to enter and exit Setup Mode:

1. Swipe Master Card. A long beep will sound and the mode indicator will flash

yellow. This means that you are in Setup Mode.

2. Exit Setup Mode by swiping Master Card again. Three rapid beeps and the

mode indicator will turn green means that you have exited from Setup Mode.

The access control will be locked for 60 seconds if one of the following occurs:

•A wrong code is entered continuously

•An invalid card is swiped 5 times

When a door is opened and then closed, the system will automatically detect the

door status and lock the door even though it is still in delay period (for ZONE 1 only).

IMPORTANT NOTE: The user code must be different from the Programming/Admin

Code. The code of ZONE 1 must be different from that of ZONE 2.

Adding a User Card and Code:

ZONE 1

In Setup Mode, press one number from 000 to 999 data storage units. Yellow LED

indicator light will flash.

1. At the same time, if red LED indicator light is flashing, this means the number

data storage unit existed. Press twice to clean up.

2. If green LED indictor light is flashing, this means the number data storage unit

can add card(s) and password(s).

www.SentryUS.com

To add card and passwords:

1. Enter Setup Mode. The yellow LED indicator light will flash.

2. Input a 3-digit number from 000 to 999 data storage units and the green LED

indicator light will also flash.

3. Swipe card and a sound “BI” means the card has successfully been added.

Then input the correlative passwords. The length of passwords should be the

same as the admin code. After the “BI” sound, this means the card is added

and the passwords are set successfully.

Press to exit and standby.

ZONE 2

In Setup Mode, press button and . Input a 2-digit number from 00 to 09 data

storage unit. Yellow LED indicator light will flash.

1. At the same time, if red LED indicator light is flashing, this means the number

data storage unit existed. Press twice to clean up.

2. If green LED indictor light is flashing, this means the number data storage unit

can add card(s) and password(s).

To add card and passwords:

1. Enter Setup Mode. The yellow LED indicator light will flash.

2. Input a 3-digit number from 000 to 999 data storage units and the green LED

indicator light will also flash.

3. Swipe card and a sound “BI” means the card has successfully been added.

Then input the correlative passwords. The length of passwords should be the

same as the admin code. After the “BI” sound, this means the card is added

and the passwords are set successfully.

Press to exit and standby.

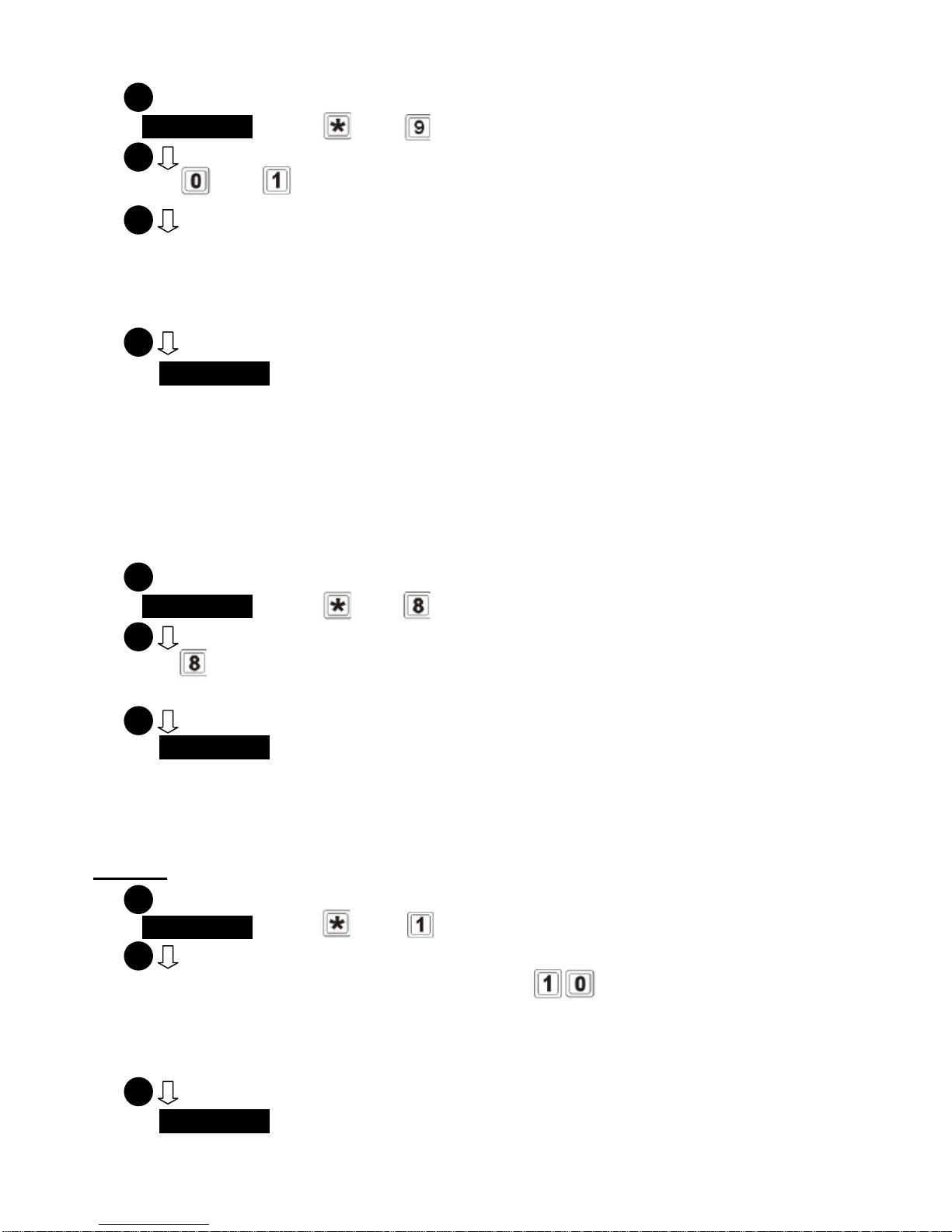

Modifying the User Code (For ZONE 1):

In Setup Mode, press and . The mode indicator will flash yellow.

Press button and . A beep will sound.

Input 3-digit number from 000 to 999 data storage units and input the correlative

passwords. (The length of relative passwords should be the same as the

Programming/Admin Code).

Exit Setup Mode.

www.SentryUS.com

Group Cards Added in ZONE 1:

In Setup Mode, press and . The mode indicator will flash yellow.

Press and .

Input the 3-digit numbers from 000 to 999 for data storage unit starting number

and then another 3-digit number for the whole cards account you want to add..

For example, Input 005 060 – means the cards added in storage units start at

005 and the number of cards added are 60 cards.

Exit Setup Mode.

Swipe the first added card or input the first added card serial number (8 digits). A

beep will sound indicating the add is successful.

Removing All User and Codes (and cards if also installed):

In Setup Mode, press and . The mode indicator will flash yellow.

Press twice, a long beep means all Users and their Codes were removed

(except Programming Code).

Exit Setup Mode.

Changing the Unlock Delay Time:

ZONE 1

In Setup Mode, press and . The mode indicator will flash yellow.

Enter unlocking delay time from 00 to 99 (ex: means ten seconds delay

time before it locks). A long beep means unlock delay time was adjusted.

If setting lock-time is 00: swipe card or input password once and open the door,

then swipe card or input password again and close the door.

Exit Setup Mode.

Autres manuels pour ACSK-EM

Table des matières

Autres manuels Sentryus Clavier

Sentryus

Sentryus ACSK-EM Manuel utilisateur

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

GE NetworX NX-1600E Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation
