Thermal Conditions Measuring System

ThermCondSys 5500

r’

’s

ThermCondSys 5500 2 –Operator’s Manual

The ThermCondSys 5500 is user friendly system for measuring, calculating and logging thermal comfort parameters

at four levels at the same time in moderate, hot and cold environments. It has been developed to meet the growing need

for indoor climate monitoring equipment such as:

-mobility (moving from place to place)

-easy fast configuration (connection)

-low power consumption and long logging time

-automatic sleeping mode and auto turning off

-wire-less communication between computer and devices.

ThermCondSys5500 offers simultaneous measurement following parameters depending on the system configuration

of measuring modules.

Modules

Measured results

Calculated thermal comfort results

SensoTCMod 5503

ta, tgc, tw,va,

WBGTin, WBGTout, SD, DR, Tu, tr, tadb, teq, twc

SensoTCMod 5506

ta, tgc, tw, va, RH

WBGTin, WBGTout, SD, DR, Tu, tr, to, teq, PMV, PPD, pa,

DEW, i, Ereq, Emax, Wreq, SWreq, twc, IREQmin, IREQneut,

ICLmin, ICLneut, DLEmin, DLEneut,

SensoTCMod 5507

ta, tgc, tw, va, RH, Pb

WBGTin, WBGTout, SD, DR, Tu, tr, to, teq, PMV, PPD, pa, x,



, DEW, i, Ereq, Emax, Wreq, SWreq, twc, IREQmin, IREQneut,

ICLmin, ICLneut, DLEmin, DLEneut,

tgc: corrected globe temperature

tnw: natural wet temperature

ta: air temperature

ts: supplementary temperature

va: air speed

RH: relative humidity

Pb: barometric pressure

WBGTin: wet bulb globe temperature

WBGTout: wet bulb globe temperature

in the presence of radiation

SD: standard deviation of air speed

DR: draught rating

Tu: turbulence intensity of air speed

tr: mean radiant temperature

tadb: adjusted dry-bulb temperature

to: operative temperature

teq: equivalent temperature

PMV: predicted mean vote

PPD: predicted percentage of dissatisfied

pa: partial water vapour pressure in the air

x: humidity ratio

air density

DEW: dew point temperature

i: enthalpy for humid air

Ereq:required evaporation rate

Emax: maximum evaporation rate

Wreq: required skin wettedness

SWreq: required sweat rate

twc : wind chill temperature

IREQ: required clothing insulation (minimal

and neutral)

ICL: required basic thermal insulation (minimal

and neutral) according to ISO 9920

DLE: duration limited exposure (minimal and

neutral)

Because the humidity RH and barometric pressure Pbare the same on the each level you can use measuring

configuration consisting of one SensoTCMod 5506 (SensoTCMod 5507) module and two or three SensoTCMod 5503

modules. ThermCondSys5000 is in compliant with following standards: ISO 7726, ISO 7730, ISO 13182, ISO 7243,

ISO 7933, ISO 9920, ISO11079 and ASHRAE 55.

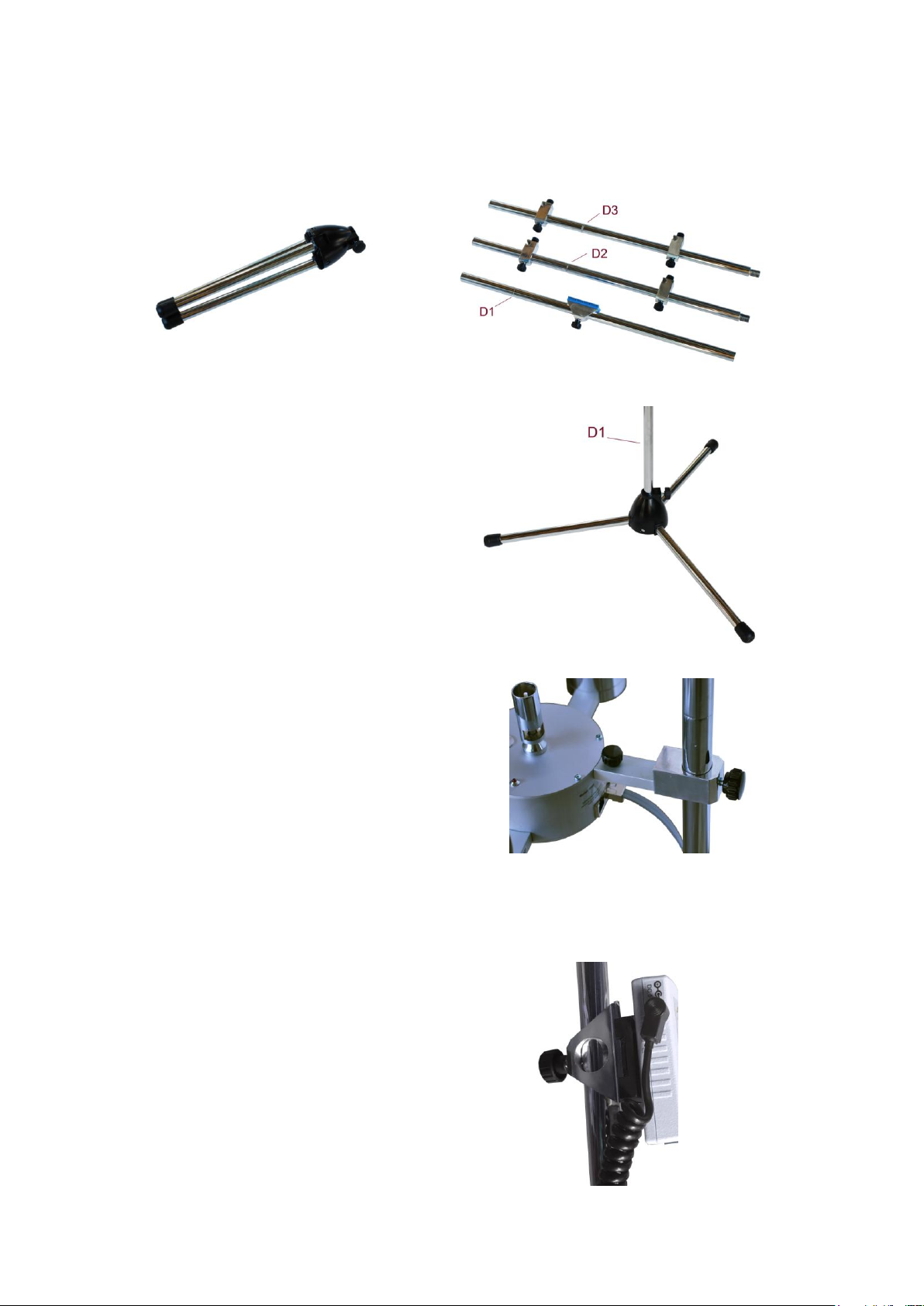

Mount the measurement modules on a tripod.

Connect measurement modules with cables (an example: SensoCable 5601).

Connect one of the measurement module with SensoConnectUSB interface or SensoBee wire-less transmitter.

Connect the power supply adaptor to the SensoConnectUSB interface (SensoBee wire-less transmitter) or turn

on the power supply in the SensoBee transmitter (see Chapter 4C). The LED diode on the top of the

measurement modules should blink first for a few seconds and next light up continuously. If the LED diode

blinks permanently it means that the voltage of power supply is too small or batteries placed in the PowerBank

are used up.

Connect the SensoConnectUSB interface (SensoBeeUSB receiver) to the USB port in a computer. The LED

diode on the casing should light up continuously (for SensoConnectUSB) or blink (for SensoBeeUSB).

ThermCondSys 5500 3 –Operator’s Manual

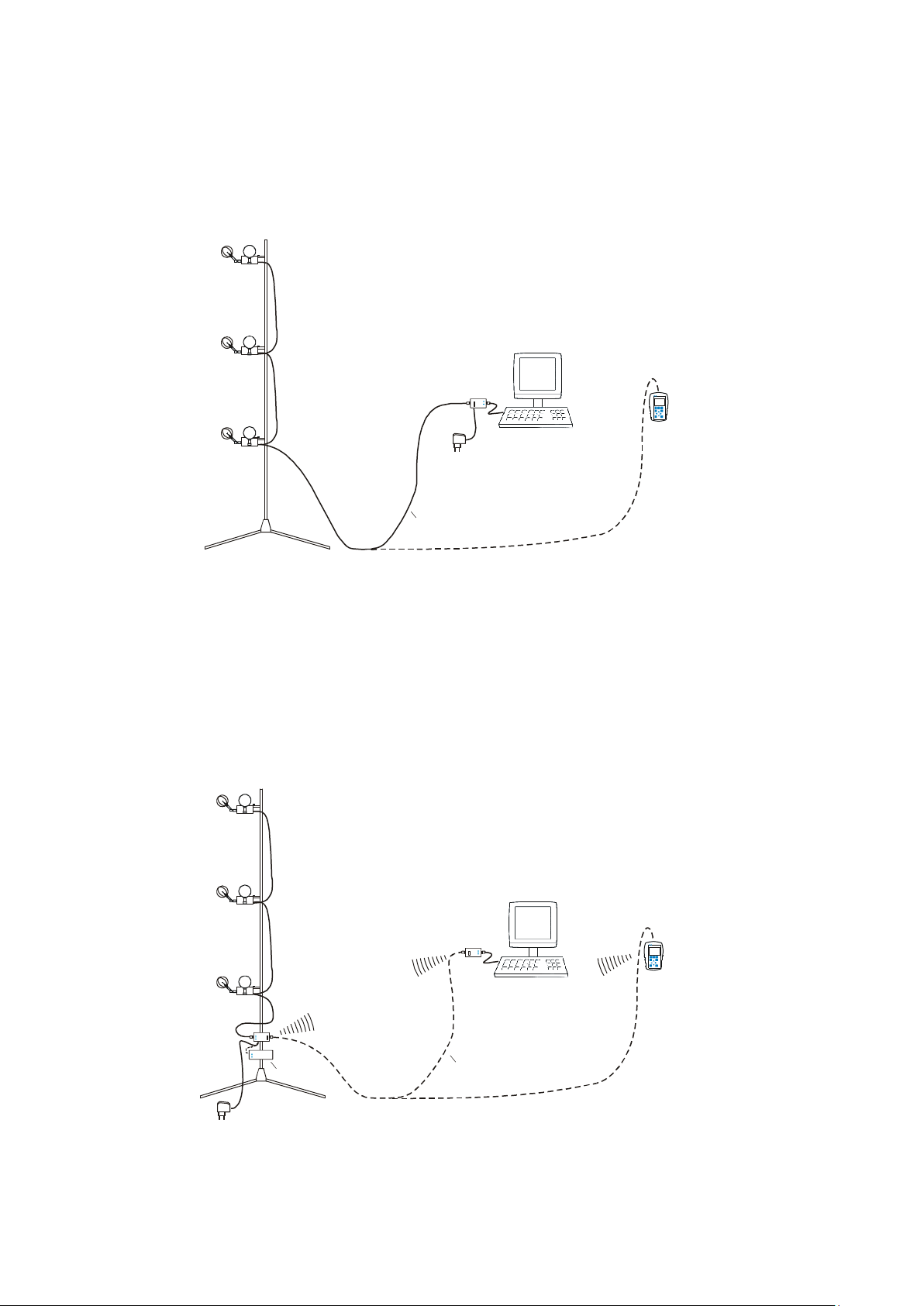

Multipoint wire configuration

Multipoint wire-less configuration

SensoTCMod 5507

SensoTCMod 5503

SensoTCMod 5503 SensoData 5500 Bee

hand held data logger

SensoCable 5610 (length 10m)

optional wire communication

SensoData5500

IndoorClimateMeter

ESC

Off

Menu RecOn

Start

electronic

max. 60m

SensoBee

wire-less transmitter

SensoBee

transmitt er

electronic

Power Supply

adapter

Power Bank

(optional)

SensoBee

transmitter

electronic

SensoBee

transmitt er

electronic

SensoBee USB

wire-less receiver or

SensoTCMod 5507

SensoTCMod 5503

SensoTCMod 5503 SensoData 5500

hand held data logger

SensoCable 5610 (length 10m)

SensoData5500

IndoorClimateMeter

ESC

Off

Menu RecOn

Start

electronic

Power Supply

adapter

SensoBee

transmitter

electronic

SensoConnect USB

interface or

ThermCondSys 5500 4 –Operator’s Manual

A. SensoTCMod module

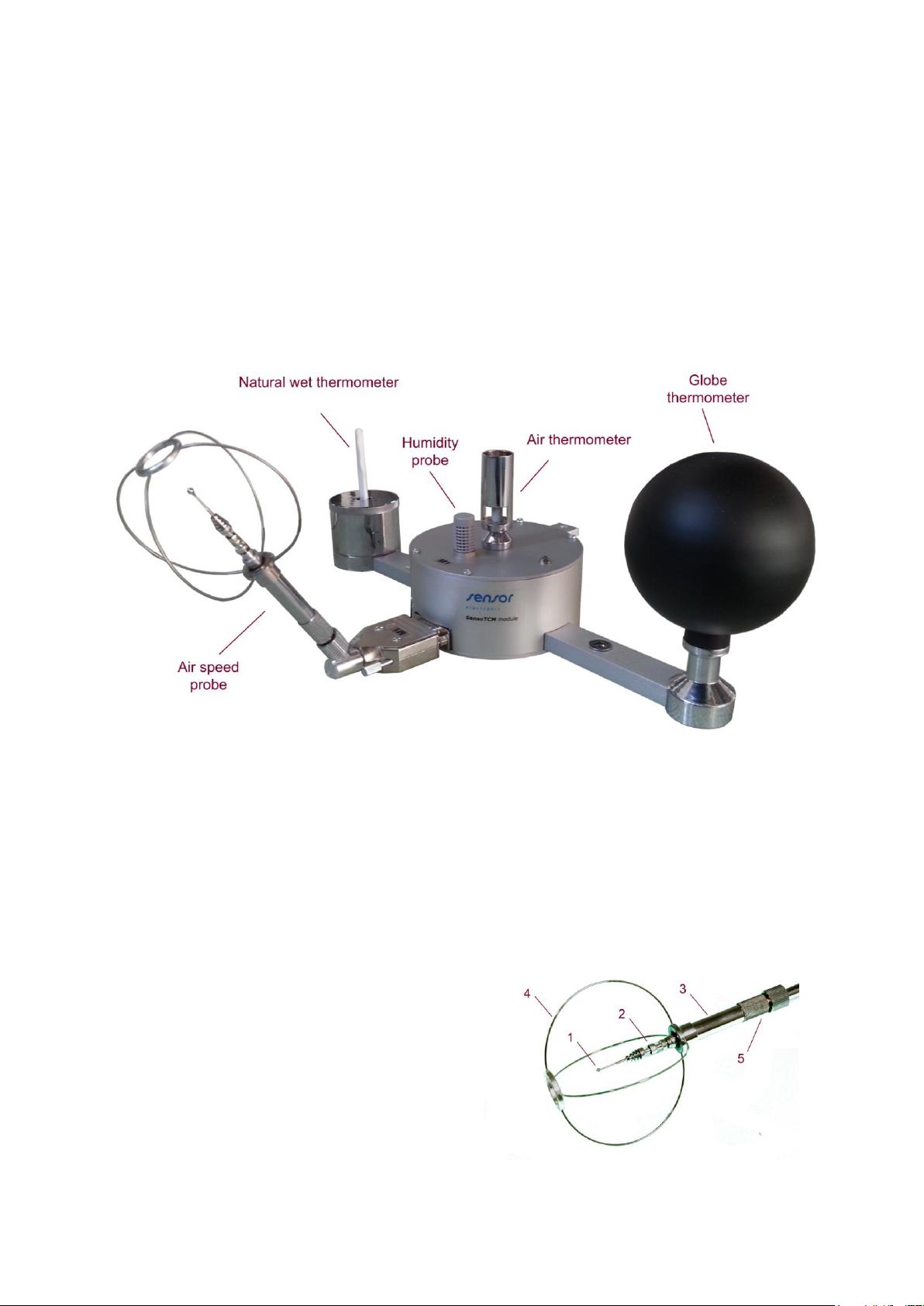

Measuring modules of the thermal comfort are made in the form of cylinders with dimensions of 100x48mm.

The SensoTCMod 5506 module includes following transducers: anemo, thermo, hygro. The SensoTCMod 5507

includes additionally barometric pressure sensor. The SensoTCMod 5503 module includes anemo and thermo

transducers, but doesn’t include baro and hygro transducer. Air temperature and relative humidity sensors are

placed on the top of the cylinder. Natural wet temperature, globe temperature and air speeds sensors are placed on

lateral horizontal supports. Air speed probe can be disconnected from the measuring module and may be

transported, stored or calibrated separately. The measuring modules can be mounted on a special folding tripod,

which enables mounting three or four units at the different heights.

Air speed probe includes the spherical omnidirectional air speed (1) and compensation temperature (2) sensors.

Both the sensors are vacuum covered with special aluminium coating that increases their resistance to contamination

and decreases the effect of thermal radiation on the accuracy of velocity measurement. The temperature sensor (2)

can be additionally protected against radiation by moving shielding tube (3) (it may be necessary only if the airflow

is measured very close to high temperature sources). Both sensors can be also protected against mechanical damage

using openwork basket (4) made with wire circles. If such a protection isn't necessary it is possible to removed them

from the shielding tube (3). Shielding tube (3) can be moved along the support of the probe and locked by the clamp

screw (5).

Technical data:

- diameter of the speed sensor: 2 mm

- measurement speed range: 0.05…5 m/s

- resolution: 0.001...0.01 m/s

- accuracy: ±0.02 m/s ±2% of readings

- automatic temperature compensation: < than 0.1%/K

- temperature compensation: -20OC…50OC

- upper frequency fup*): min. 1Hz, typ. 1.5 Hz

The upper frequency is defined as the highest frequency up to which

the standard deviation ratio remains in the limits of 0.9 to 1.1 in

relation to the standard deviation of the frequency 0 Hz (see the

ASHRAE Transaction Vol.1,1998, paper No SF-98-20-2).

ThermCondSys 5500 5 –Operator’s Manual

Preparation for measurements:

1. Check if the openwork basket (4) is on the shielding tube (3). If not, put openwork basket (4) on the shielding

tube (3). Be particularly careful not to damage the speed sensor (1). To this purpose check if the shielding tube

(3) is on the end of the probe completely covering the speed sensor and the clamp screw (5) is properly locked

(it does not move). Put on the openwork basket (4) only then when the sensor (1) is covered by the shielding

tube (3).

2. Connect the air speed probe to measurement modules. Loosen the clamp screw (5) and move the shielding tube

(3) with the openwork basket (4) into the bottom uncovering the sensors (1) and (2).

3. Lock the clamp screw (5).

4. After the measurements move the shielding tube (3) back on the sensors (1) and (2).

5. The probe should be transported in the carrying case only with imposed openwork basket (4).

Air (ta), globe (tg) and natural wet (tnw) thermometers measure temperature using RTD sensors. Automatic

correction of thermal drift provides high measurement stability. The use of insulating elements in design of probes

(special wood and fiberglass) guarantees the appropriate thermal insulation and high measurement accuracy. In

order to improve the accuracy each sensor is individually calibrated.

Technical Data:

- type and diameter of thermometer: ta: Pt-100 cylindrical Ø 2.6 mm

tg: black globe ε0.95, Ø 70 mm, tickness 1.5 mm

tnw: Pt-100 cylindrical, length 30 mm, Ø 5 mm; support Ø 5 mm

- measurement range: ta: -20…60 OC

tg: -20…120 OC

tnw: 0…50 OC

- accuracy: ta: ±0.3 OC

tg: ±0.3 OC for range -20..50 OC i ±0.5 OC for range 50..120 OC

tnw: ±0.3 OC

- stabilization time of measurement: 15…20 min

Barometric pressure probe is located inside the cylinder of the measuring module. The probe utilizes specialized

piezoresistive micro-machined sensing element. Each probe is individually calibrated and thermally compensated.

The calibration coefficients are programmed into EEPROM memory.

Technical Data:

- measurement range: 500…1500 hPa

- accuracy: ±3 hPa

- response time: 2s

Relative humidity probe (optional) is located outside on the top of cylinder of the measuring module. The probe

includes a capacitive polymer sensing element for relative humidity and a bandgap temperature compensation

sensor. Each probe is individually calibrated in a precision humidity chamber with a chilled mirror hygrometer as

reference.

Technical Data:

- measurement range: 0…100 % RH

- accuracy: typ. ±1,5% in range 10…90% RH,max ±3%

- long term stability: <0.25% RH/rok

- response time: <4s

B. SensoBee wire-less transmitter

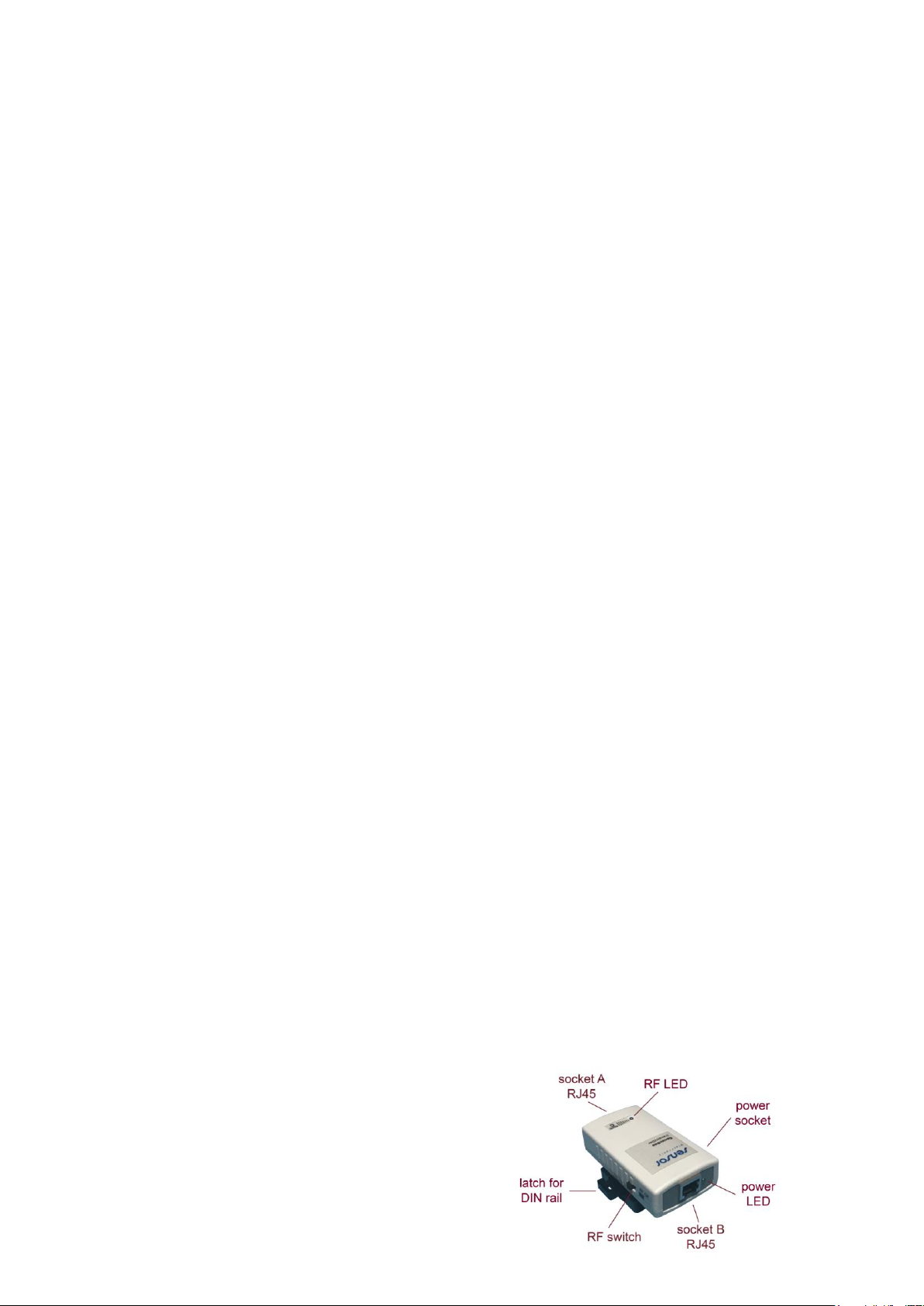

The SensoBee transmitter contains an RF module for

wire-less data transmission. The RF module operates

under ZigBee (802.15.4) protocol accepted by ETSI/EC

(Europe), FCC (U.S.A) and IC (Canada). The

transmitter should be powered by an external power

supply adapter or by PowerBank. RF switch should be

in the position RF and RF led should flash.

Measurement modules must be connected to the socket

B. In the case of the absence or errors in the wire-less

ThermCondSys 5500 6 –Operator’s Manual

transmission, the socket A enables optional wired connection of the transmitter with wire-less receiver. To do this,

move RF switch to the Off position, the RF led is not lit. The transmitter is equipped with a latch for mounting it in a

DIN rail.

Technical Data:

indoor (urban) range: up to 60m

outdoor line-of-sight range: up to 100m

transmit power output: 100mW (20dB)

operating frequency: 2.4GHz

RF data rate: 250 kbps

power supply: 5…9 VDC/1A

Remark:

Pay attention that the power supply adapter should have the voltage polarity on the plug compatible with

power socket in the casing (+ out).

C. SensoBeeUSB wire-less receiver

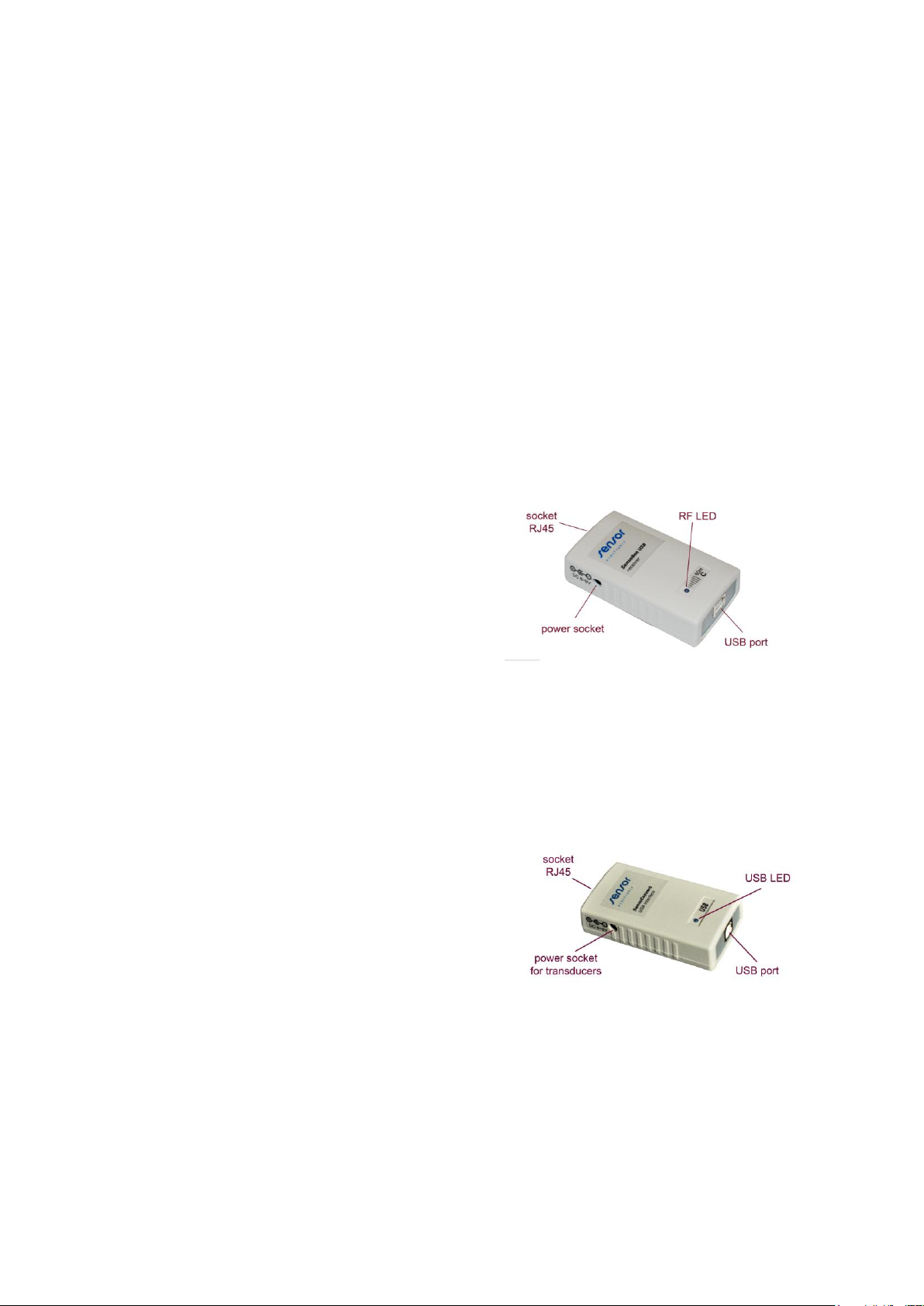

The SensoBeeUSB wire-less receiver contains the

RF module for wire-less data transmission. It enables

wire-less data transmission between transducers (via

SensoBee) and USB port of computer. The RF module

operates under ZigBee (802.15.4) protocol accepted by

ETSI/EC (Europe), FCC (U.S.A) and IC (Canada). The

receiver is being powered from the USB port of

computer (RF led flashes when connected to USB port),

therefore it doesn't require the use of external power

supply adapter.

The SensoBeeUSB can also be used for wired data

transmission. In this case, you should:

-connect to the RJ45 socket one end of the

connecting cable and the other end depending on the configuration, either directly to one of the measurement

module or SensoBee wire-less transmitter

-RF switch in the SensoBee transmitter change from RF position to Off (disable RF module).

Power socket placed on the side of the casing is used to connect the power supply adapter in case of direct power

connection to the measurement modules without using the SensoBee wire-less transmitter.

D. SensoConnect USB interface

The SensoConnect USB interface enables data

transmission to a computer through the USB port. It is being

powered from the USB port of computer, therefore doesn't

require external power supply adapter. The power socket

located on the side of the casing allows the user to connect an

external power supply adapter used to power the measurement

modules. The USB led indicates the connection interface to the

computer.

ThermCondSys 5500 7 –Operator’s Manual

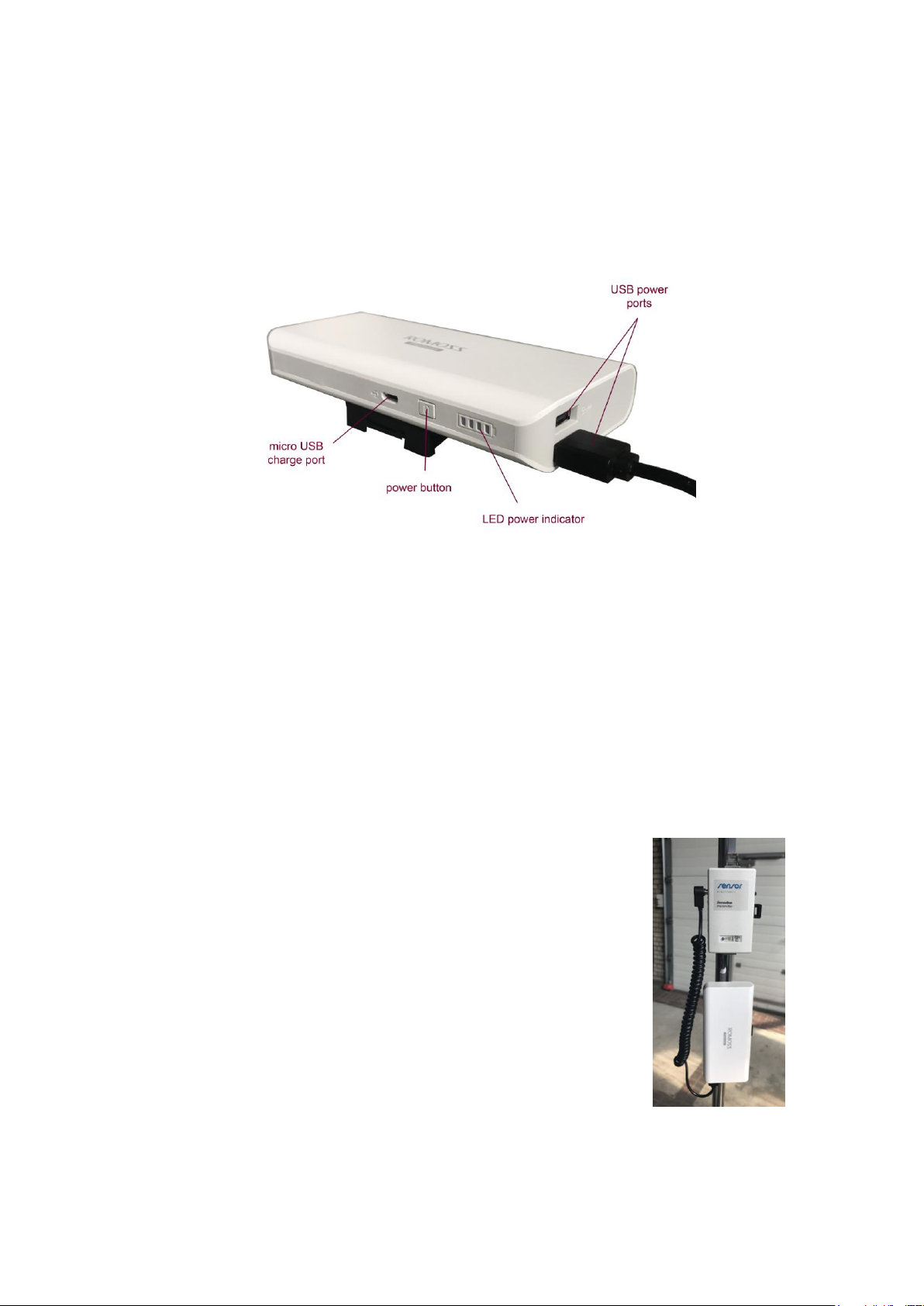

A. PowerBank

PowerBank is a high performance external battery pack with latch for DIN rail. The latch allows for easy

installation of the device on a tripod along with other parts of the measuring system. Includes a charging cable (USB

to micro USB) and spiral power cable (USB-plug DC) with a length of 30-100 cm.

Technical Data:

Power port: 2 x USB DC 5V/1A

Real capacity*): 7000mA or 1400mA

Minimum supply current: 135mA

Charging port: micro USB 5V/2.1A max

Charging time: >15 h

Long time efficiency: 300 cycles of full charge and discharge cycles will leave 85% of nominal

capacity)

*) Capacity due to reduced efficiency when converting from battery voltage 3.6 V to output voltage 5V (theoretical

capacity of the battery is 10000mAh or 20000mAh)

Remarks:

1. Turn off the PowerBank by disconnecting the power cable when you

are finished working. Otherwise, this may lead to rapid discharge of

the battery.

2. Charge and discharge the device once every 3 months, if it is not used

for a longer period of time.

3. Due to the minimal supply current, PowerBank may automatically turn

off after a few seconds in the case of smaller receivers power supply

current consumption (for example: a single SensoAnemo transducer).

Proper operation is achieved when are powered at least two

SensoAnemo transducers and SensoBee wire-less transmitter.

4. See picture next to how to connect the PowereBank with SensoBee

wire-less transmitter.

ThermCondSys 5500 8 –Operator’s Manual

B. Folds-out tripod

Measurement system can be equipped with a fold-out tripod adapted to mount several measuring transducers

with accessories. The tripod consists of the following parts presented in the photos below.

The way of assembling of the tripod is shown in

the photos below. Attention should be paid to the

pipes D1 ... D3 turn in the order corresponding to the

incisions, ie. D1 pipe (single) to the D2 (dual), and D2

to D3 pipe (triple). D1 pipe should be inserted to the

base of the tripod and locked by the knob. Then place

the grips for fastening the measuring transducers and

DIN grips for the accessories and lock them using the

knobs.

C. Grip for the modules

The grip enables attaching on the tripod the

measuring module at the any height from the floor.

D. DIN rail-mounted grip

The DIN rail-mounted grip enables attaching the

devices equipped with rail clamps, so as: SensoBee

wire-less transmitter, SensoBox adapter, SensoHygBar

transducer or SensoData 5500 datalogger.

ThermCondSys 5500 9 –Operator’s Manual

1. Insert the CD-ROM in your CD drive, choose setup.exe in folder ThermCondSys_Inst and run.

2. Follow the on-screen instructions.

3. Locate the USB port and connect the device to the computer. The driver for new device will be installed

automatically after finishing the software installation. In the case of trouble it is possible to install the driver into

the following way:

Option 1

select SensoUSB DriverInstaller icon from SENSOR Electronic folder located in Program Menu Folder or

click it on the Desktop Panel (the SensoUSB DriverInstaller.exe file is also in SensoUSB_driver folder on the

CD-ROM.

locate the USB port and plug in the device (SensoConnectUSB or SensoBeeUSB).

Windows automatically identifies the new device and select the appropriate driver.

Option 2

locate the USB port and plug in the device (SensoConnectUSB or SensoBeeUSB).

Windows will detect the new device and will initiate the Found New Hardware Wizard prompting you to

install the software for the detected USB device.

select the “Specify a location” and choose the correct path. Enter E:\SensoUSB_driver\. The “E” is the Disk

that Package CD put in. Click “OK” to start the search.

once Windows finds the correct driver, click “Next” to install the driver.

4. To verify whether the device is properly installed and to determine the COM port assignment for the device

follow the steps:

open the “Control Panel”, and then double click on the “System” icon.

once the System Properties window is displayed select the “Device Manager” button.

double-click on Ports (COM &LPT).

if the hardware is correctly installed, you should now see the USB device listing and the assigned COM port.

5. If you need to assign the COM port name to another Port Number:

double-click on the USB device to view the properties

once the properties window opens click on the Port Settings tab and select the advanced button

when the Advanced Settings dialog box appears on the screen, click on the COM Port Number drop down the

box to check what other port number are available

try to reassign COM port to a unused port number

click OK when finished.

Features and Requirements

The ThermCondSys 5500 program provides:

- automatic scanning of the configuration of the measuring system

- calculating thermal comfort parameters

- on-line viewing and logging all data in a PC computer

- identification of the low battery level for each module

- automatic identification of the faulty probe and over range

- ECO mode that reduces power consumption

Program requirements:

- operating system: Microsoft Windows

- minimal monitor resolution: 1024x760 pixels

- size of text and other elements in Windows: default 100%

ThermCondSys 5500 10 –Operator’s Manual

The program contains the Context Help window which displays a description when the user moves the cursor

over the property. The user can enable or disable the Context Help by selecting ‘Show Context Help’ from the

menu item ‘Help…’ on the menu bar on the front panel.

Updating the program and downloading the newest version of the instruction are available from the menu bar.

The program communicates only at the speed 115 200 BPS. It is very important not to start up the program

before SensoConnectUSB interface or SensoBeeUSB receiver are connected to the USB port and the power

supply is turned on.

The DataSocket connection automatically convert measurement data into a stream of bytes that is sent across the

network to another application.

The measurement data can be transfer across the network by TCP/IP protocol.

In the case of select automatic mode the program is scanning all ports of the computer in order to find connected

devices. In the manual mode the user have to choose the number of COM port. After establishing contact the

program is reading the information of all devices.

All connected devices are specified on the ‘Configuration’ window which appears after establishing contact. The

user can deactivate (set as OFF) or activate (set as ON) the devices to be used. The program automatically will

adjust the device as OFF if the calibration date is expired. However the user can change it and to activate him. If

the voltage of power supply is too small or batteries are discharge the indicator of power supply is shining red

and the transducer is automatically deactivate.

Running Data

Results are displayed every 2 seconds with the chosen averaging time. Averaging Time determines the time

of calculating an average of the measurement results. Averaging is continuous, i.e. the oldest result is being

replaced with the youngest result in the cycle of averaging. Averaging Time is independent from Interval

Time which is a parameter of logging.

Logged Data

Only logged results are displayed according to logging parameters: Interval Time and Logging Time.

Buttons Selector of Results

It is possible to select results to displaying and logging by pressing the appropriate buttons above a

multicolumn listbox.

Visible results depending on buttons selector

Buttons

selector

Thermal comfort results

Input

parameters

Q-ty

none

ta, tgc, va, tr, to, PMV, PPD, RH, Pb

W, M, Icl, Ar/Adu

Hot

Environment

tnw, WBGTin, WBGTout, Ereq, Emax, SWreq, Wreq

Cold

Environment

twc, IREQmin, IREQneut, ICLmin, ICLneut, DLEmin, DLEneut

w, p

tadb, teq

pa, x, ro,

Dew, i

pa, x, ro, Dew, i

Table des matières

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
