Sensio SE9080HD Manuel utilisateur

1 x Fitting Instructions

HD LED

In-CabInEt

LIgHt wItH

IR SEnSoR

CODE: SE9080HD

Components

Important safety information

Tools required

INSTALLATION

INSTRUCTIONS

IMPORTANT: please read these instructions before commencing installation and retain for future reference.

1 x SE9080HD HD LED In-Cabinet Light

with mounting bracket and cable

Please read these instructions carefully before attempting to install

this product. It is advisable to keep these instructions in a safe place

for further reference.

We recommend that you consult a qualiﬁed electrician.

All electrical installations must be carried out in accordance

with current IEE wiring regulations (BS7671).

These products must not be modiﬁed, if any modiﬁcations are

made, it may invalidate the warranty and may render the product

unsafe. These LED lights operate low voltage (24V).

Do not wire the individual LED light ﬁttings directly to the mains.

This product is for indoor use only. Keep out of moisture and use

only in dry rooms.

• If in doubt installation must be carried out by a qualiﬁed

electrician.

• Install on smooth ﬂat surface(s) only.

• The Wattage of this product is 2W. Make sure that

the LED driver used with these ﬁttings has an adequate

max wattage.

• We recommend using a SE40553 15W LED Driver with this ﬁtting.

You will be able to run a maximum of 3 ﬁttings per driver.

•for more fittings, use the SE40555 15W 24V LED Driver. You will

be able to run a maximum of 6 ﬁttings per driver.

Safety instructions

1. Before commencing installation or maintenance, isolate the main

electrical supply for the appropriate circuit at the fuse board.

This product requires a 24V LED driver which is only

suitable for connecting to a 240V 50Hz supply.

3. The light should be mounted onto a secure surface.

4. Position lights where they will not be exposed to steam

or splashes etc.

5. Suitable for furniture lighting.

6. When the lamp expires the ﬁtting must be replaced.

7. Class III safety extra low voltage (SELV).

Waste Electrical & Electronic Equipment (WEEE)

The Symbol on the product, or on the document accompanying the product, the crossed out

wheelie bin symbol, indicated that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and

electronic waste.

Power DrillPZ1 Screw Bit10mm

Drill Bit

Pencil

Installation

Operation

Maintenance & Care

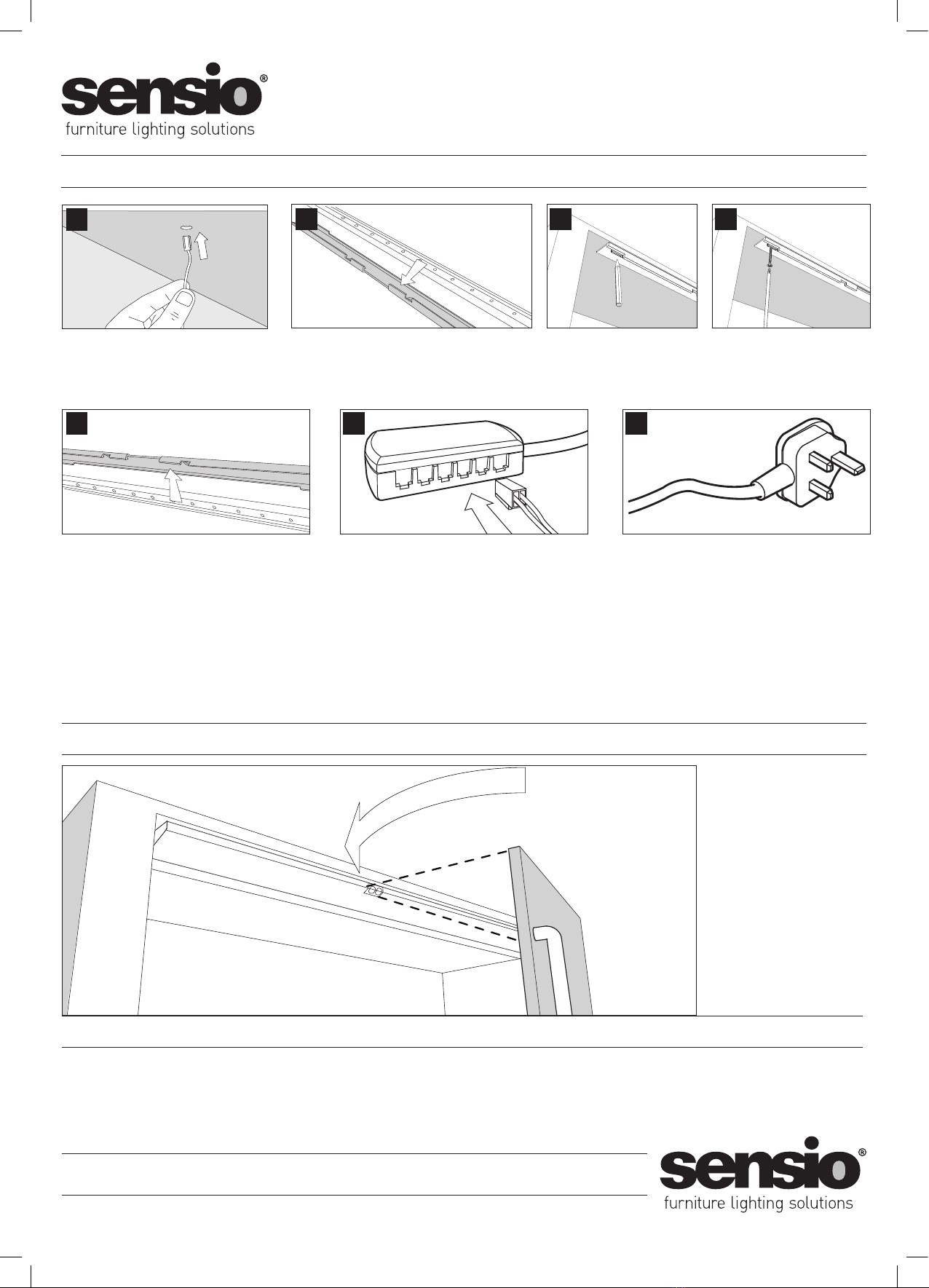

Once ﬁxed the SE9080HD light

is activated on the opening

of the cabinet door. The IR

sensor detects that the door

is no longer in its path and

activates the light.

HD LED In-CabInEt LIgHt

wItH IR SEnSoR

• Ensure that the power is disconnected prior to cleaning.

• To keep the ﬁnish of this product, wipe over with soft cloth periodically.

• Do not use harsh chemical solvents, it may dis-colour or damage the ﬁnish.

Finally wire the LED driver to 240V mains supply

or 13A plug top.

Re-attach the light unit to the bracket once

ﬁxed.

Taking the bracket, mark-up

the positions for the screw

holes in the cabinet.

Secure the bracket with

2 screws tightly to the inside

of the cabinet.

Unclip the bracket from the back of the

light ﬁtting.

Unit 7 Speedwell Road, Whitwood, Castleford, West Yorkshire, WF10 5PY

www.sensio.co.uk

Technical drawings for illustration purposes only, Sensio has the right to change any information

without prior notice. Make sure you check all hole cut outs before work commences.

Plug the white connector into the 24V LED

driver distributor block. Beware not to exceed

the wattage of the LED driver, the max wattage

will be displayed on the 24V LED driver and on

the light unit ﬁtting it will display the wattage

requirement.

Drill hole in bottom of cabinet and feed

cable through.
