Sensaphone FGD-0108 Manuel utilisateur

FGD-0108

Temperature and Humidity Sensor

Quick Installation Guide

Informational Reference for Authorized Installers and Fitters

1. Overview

FGD-0108 temperature and humidity sensor is compact and user friendly. It measures and

displays both ambient temperature and relative humidity at the same time.

Page 1

Main Features:

1. 12V DC (5-15V DC) Main Power Input

2. Temperature Sensing Range: -20℃–70℃ (-4℉–158℉) (Accuracy: ± 0.5℃ at 25℃)

3. Humidity Sensing Range: 0 –100% RH (Accuracy: ± 5% RH at 25℃)

4. Temperature Display Unit: Degree Celsius or Degree Fahrenheit

5. Normally Open (NO) Solid State Output

6. Dimension: 80 x 80 x 28mm

7. Weight: 220g

8. Material: ABS

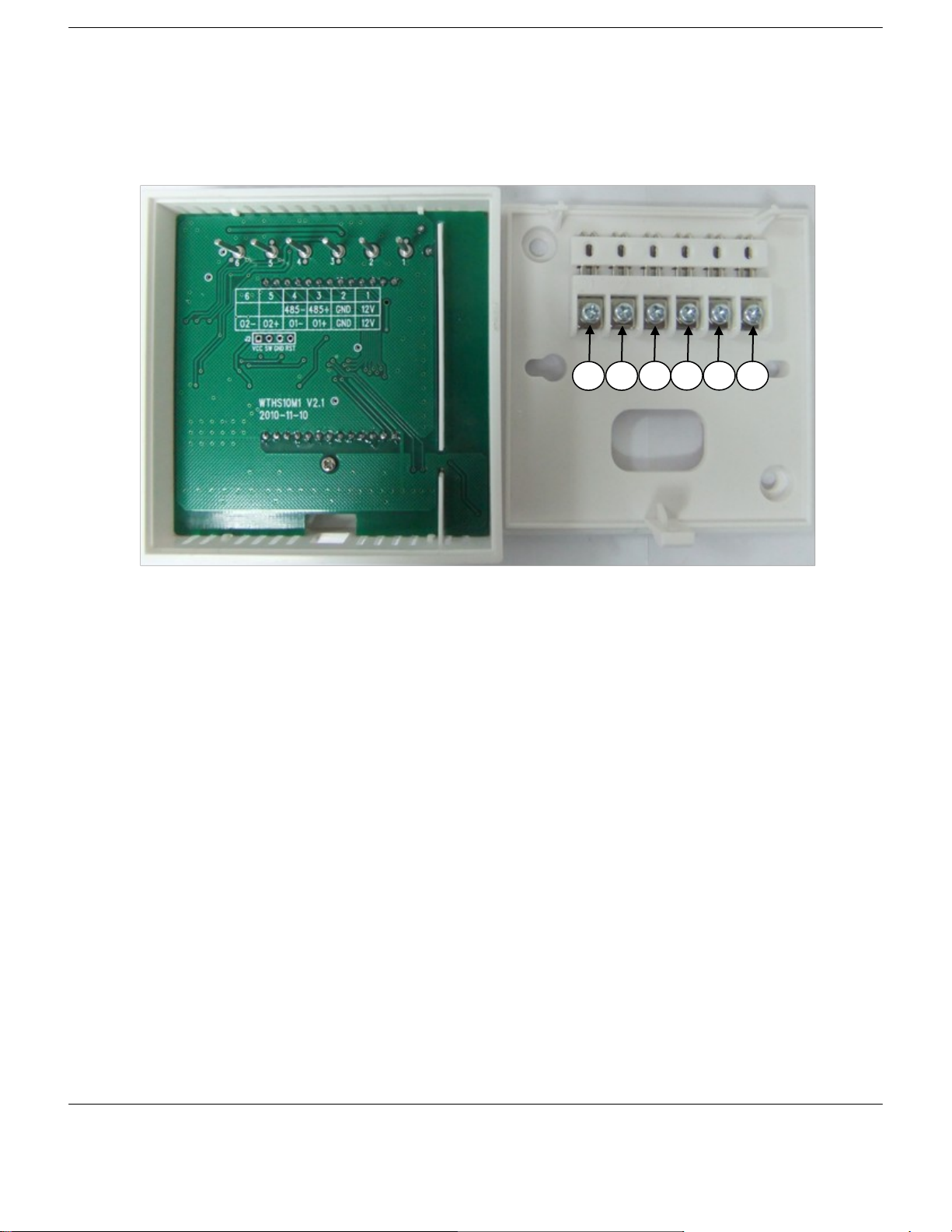

2. Wiring Connection

Page 2

1 2

5 6

1: 12V DC+

2: GND

3: Temperature NO

4: Temperature COM

5: Humidity NO

6: Humidity COM

Page 3

3.1 Configure High / Low Temperature Limit

1. Press and hold for 3 seconds

3. Press to save, press to go to next page

ENTER MENU

5. Press to save, press to go to next page

ENTER MENU

7. Press to save, press for 5 times to exit

ENTER MENU

2. Use and to set high temperature limit Set 35℃

4. Use and to set low temperature limit Set 15℃

6. Use and to set temperature hysteresis width Set 0.5℃

3.2 Configure High / Low Humidity Limit

1. Press and hold for 3 seconds and then press for 3 times

3. Press to save, press to go to next page

ENTER MENU

5. Press to save, press to go to next page

ENTER MENU

7. Press to save, press twice to exit

ENTER MENU

2. Use and to set high humidity limit Set HI

80%

4. Use and to set low humidity limit Set Lo

30%

6. Use and to set humidity hysteresis width Set dL

3.3 Reset to Factory Default

1. Press and hold for 3 seconds and then press for 6 times

3. Press to exit

2. Press to restore to factory default

ENTER

dEFt

Page 4

3.4 Configure Temperature Display Unit ℃ / ℉

3. Press to save, press for 3 times to exit

ENTER MENU

1. Press and hold for 3 secondsand ENTER

2. Press for Degree C / for Degree F Set ℃Set ℉

3.5 Configure Humidity Display RH.

3. Press to save, press twice to exit

ENTER MENU

2. Press for no RH display /for RH display Set

Set

1. Press and hold for 3 seconds and then pressand ENTER MENU

ENTER

3.6 Temperature and Humidity Offset Value Setting

4. Press to save, press to go to next page

ENTER MENU

6. Press to save, press to exit

ENTER MENU

1. Press and hold for 3 secondsand ENTERMENU

2. Use and to input password: 11 and then press PS

3. Use and to input temperature offset value ERR 0.0℃

SET

5. Use and to input humidity offset value ERR RH

SET 0.0 %
