Sennheiser E 945 Manuel utilisateur

e 945

Instruction manual

e 945 | 2/8

Delivery includes

• e 945

• MZQ 800 microphone clamp

• pouch

• quick guide

• safety guide

Product overview

1. Sound inlet basket

2. XLR-3 connector

e 945 | 3/8

Installation

Attaching the microphone

Screw the microphone clamp to a stand.

Place the microphone with its back end into the microphone clamp.

Orient the microphone together with the microphone clamp.

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of

the microphone.

Using the windshield

Place the MZW 4032 (optional accessories) windshield over the microphone head.

e 945 | 4/8

Operation

Holding the microphone

If you cover the microphone head during transmission, this will change the pick-up pattern of the

microphone and consequently the sound.

Only hold the microphone by its body.

Positioning the microphone

It is vital to observe the following notes:

Pos. Resulting sound Commentary

A High proximity effect (large bass boost)

Powerful, direct sound Very little crosstalk from other

sound sources

B Less proximity effect (less bass boost)

Some room ambience, natural, balanced sound More crosstalk from other

sound sources

C Very little proximity effect (minimal bass boost)

More room ambience, indirect sound Higher crosstalk from other

sound sources

5-10 cm

CBA

>10 cm

If sibilance occurs:

Position the microphone slightly to the side and not directly in front of the mouth.

e 945 | 5/8

Operation

Positioning the monitor loudspeakers

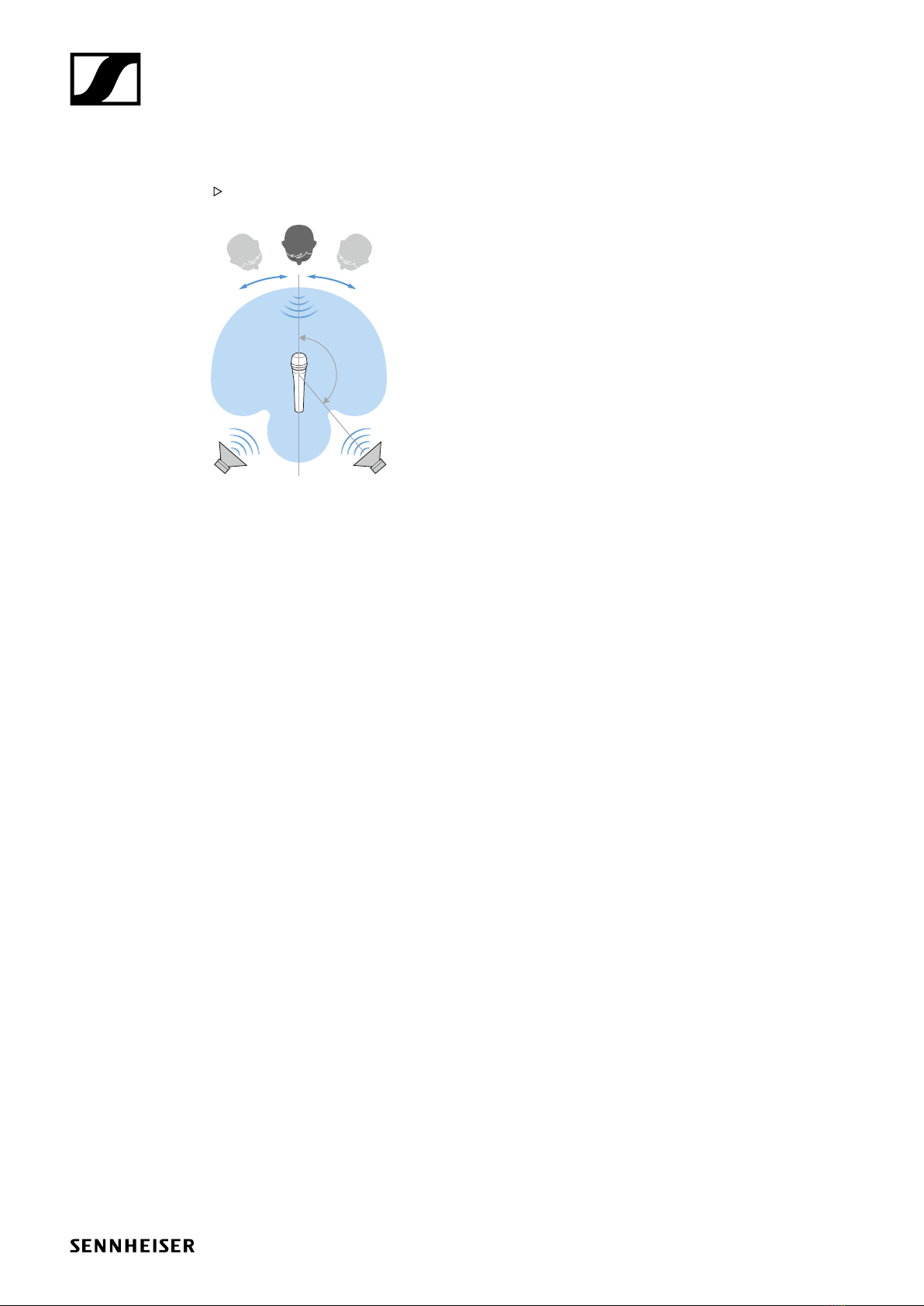

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the

highest cancellation of the microphone (approx. 120°).

120°

e 945 | 6/8

Cleaning and maintaining the e 945

CAUTION

LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!

Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

Keep all liquids away from the product.

Do not use any solvents or cleansing agents.

Disconnect the products from the power supply system and remove rechargeable batteries and

batteries before you begin cleaning.

Clean all products only with a soft, dry cloth.

Cleaning the sound inlet basket of the microphone module

Unscrew the sound inlet basket.

Remove the foam insert from the sound inlet basket.

Use a slightly damp cloth to clean the sound inlet basket from the inside and ouside.

If necessary, clean the foam insert with a mild detergent or replace the foam insert.

Dry the foam insert.

Reinsert the foam insert.

Replace the sound inlet basket on the microphone head and screw it tight.

e 945 | 7/8

Speciﬁcations

Transducer principle dynamic

Frequency response 40 - 18,000 Hz

Pick-up pattern super-cardioid

Sensitivity (free ﬁeld, no load) 2.0 mV/Pa ±3 dB

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Temperature range 0 °C to +40 °C

Dimensions ⌀ 47 x 186 mm

Weight 365 g

Polar pattern

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

Frequency response

-40

-50

-60

-70

-80

-90

0°, 1 m

100

200

500

1,000

2,000

5,000

10,000

20,000

dBV

e 945 | 8/8

Overview of applications

Connector assignment

+ +

XLR 6.3 mm

XLR

6.3 mm

XLR

UNBALANCED

BALANCED

Overview of applications

Primary application

Secondary application

•••••

••

••••

••

•••

••

••••• •

•• ••• •••

•• •

•••

•• •

••

••••

••

••••• •

••

••• •

••••• •••

••

••• ••

e 602 II

e 604

e 608

e 609 silver

e 614

e 835

e 845

e 865

e 901

e 902

e 904

e 906

e 908

e 914

e 935

e 945

e 965
