RS 170

Digital Wireless System

Instruction manual

Contents

Important safety information ........................................................................... 2

The RS 170 digital RF headphone system ...................................................... 4

Delivery includes .................................................................................................. 5

Product overview ................................................................................................. 6

Overview of the HDR 170 headphones ..................................................... 6

Overview of the TR 170 transmitter .......................................................... 7

Overview of the indicators and acoustic signals ..................................... 8

Overview of the connection stages .......................................................... 10

Putting the RS 170 into operation ................................................................. 11

Setting up the transmitter ......................................................................... 11

Connecting the transmitter to a sound source ...................................... 12

Connecting the transmitter to the mains ............................................... 15

Inserting and changing the rechargeable batteries ............................. 16

Charging the headphones’ rechargeable batteries ............................... 17

Adjusting the headband of the headphones ......................................... 17

Using the RS 170 ............................................................................................... 18

Switching the transmitter on and off ...................................................... 18

Switching the headphones on and off .................................................... 20

Adjusting the volume on the headphones ............................................. 21

Adjusting the sound of the RS 170 to your needs ................................ 22

Associating the headphones to the transmitter ................................... 24

Listening with several headphones simultaneously ............................ 27

Cleaning the RS 170 .......................................................................................... 28

If a problem occurs ... ........................................................................................ 29

Accessories and spare parts ............................................................................ 31

Specifications ...................................................................................................... 32

Manufacturer declarations ............................................................................... 33

Important safety information

• Please read this instruction manual carefully and completely before

using the product.

• Make this instruction manual easily accessible to all users at all times.

Always include this instruction manual when passing the product on to

third parties.

• Do not use the product in situations which require special attention

(e.g. in traffic or when performing skilled jobs).

• Always keep the product dry and do not expose it to extreme

temperatures (normal operating temperatures: 0 °C/32 °F to 40 °C/

104 °F).

• Use the product with care and store it in a clean, dust-free

environment.

• Switch the headphones off after use to conserve battery power.

Remove the batteries if the product will not be used for extended

periods of time.

• The headphones contain magnets that generate a magnetic field which

could cause interference with cardiac pacemakers and implanted

defibrillators. Keep the headphones at least 1.2” (3 cm) from cardiac

pacemakers or implanted defibrillators.

• Please protect your hearing from high volume levels. Sennheiser

headphones also sound exceptionally good at low volumes.

• Only use the Sennheiser supplied power supply units.

• To reduce the risk of fire or electric shock, do not use the product near

water and do not expose it to rain or moisture.

• Unplug the power supply unit from the wall socket

– to completely disconnect the product from the mains

– during lightning storms or

– when unused for long periods of time.

• Only operate the power supply unit from the type of power source

specified in the chapter “Specifications” (see page 32).

• Ensure that the power supply unit is

– in a safe operating condition and easily accessible,

– properly plugged into the wall socket,

– only operated within the permissible temperature range,

– not covered or exposed to direct sunlight for longer periods of time

in order to prevent heat accumulation (see “Specifications” on

page 32).

• Do not operate the product near any heat sources.

• Only use attachments/accessories specified by Sennheiser (see

“Accessories and spare parts” on page 31).

Important safety information

Replacement parts

When replacement parts are required, be sure the service technician uses

replacement parts specified by Sennheiser or those having the same

characteristics as the original part. Unauthorized substitutions may result

in fire, electric shock, or other hazards.

Intended use

Intended use of the product includes

• having read this instruction manual, especially the chapter “Important

safety instructions” on page 2,

• using the product within the operating conditions and limitations

described in this instruction manual.

“Improper use” means using the product other than as described in this

instruction manual, or under operating conditions which differ from those

described herein.

Safety instructions for the NiMH rechargeable batteries

If abused or misused, the rechargeable batteries may leak. In extreme

cases, they may even present

Please understand that Sennheiser does not accept liability for damage

arising from abuse or misuse.

• a heat hazard,

• a fire hazard,

• an explosion hazard,

• a smoke or gas hazard.

Keep away from

children.

Only use rechargeable batteries

recommended by Sennheiser.

Observe correct polarity. Do not short-circuit.

Do not expose to

moisture.

Switch rechargeable battery-

powered products off after use.

Do not pack charged

batteries loose – danger

of shorting out/fire

hazard.

When not using rechargeable

batteries for extended periods

of time, charge them regularly

(about every 3 months).

Only charge

rechargeable batteries

at ambient

temperatures between

10 °C/50 °F and 40 °C/

104 °F.

Do not heat above 70 °C/

158 °F, e.g. do not expose to

sunlight or throw into a fire.

Do not mutilate or

dismantle.

Do not continue to use

defective rechargeable

batteries.

Immediately remove

rechargeable batteries

from obviously

defective devices.

Dispose of rechargeable

batteries at special collection

points or return them to your

specialist dealer.

The RS 170 digital RF headphone system

The RS 170 is an RF stereo hi-fi headphone system with comprehensive

technical features. Its transparent and balanced sound image with

excellent bass response makes this system an ideal choice for hi-fi, home

cinema and TV use.

The rechargeable batteries can conveniently be recharged while in the

headphones. Enjoy total freedom of sound, stylish design and maximum

comfort.

Additional features of the RS 170 headphone system

• Transmits uncompressed audio over a robust 2.4 GHz digital link,

enabling you to enjoy your music without the hassles of cables.

• Dynamic transducer systems with powerful neodymium magnets

deliver clear and detailed audio reproduction.

• Kleer’s uncompressed digital wireless transmission delivers CD-quality

sound.

• No set-up required – just plug and play. Simply connect the transmitter

to your personal audio/video player, put on the headphones and turn

it on!

• TR 170 transmitter with multi-receiver capability, enabling up to 4

people to listen to the same sound source.

KleerTM wireless transmission technology

The RS 170 headphone system features the digital wireless audio

transmission technology from Kleer. The Kleer company has developed an

RF-based wireless transmission standard (of the same name) that offers

lossless audio transmission in CD-quality while consuming minimal power.

Delivery includes

1 HDR 170 headphones

1 TR 170 transmitter

1 power supply unit with country adapters

1 stereo audio cable with 3.5 mm jack plugs

1 adapter 3.5 mm jack socket to ¼“ (6.3 mm) jack plug

1 adapter 3.5 mm jack socket to 2 RCA plugs

2 AAA size NiMH rechargeable batteries, 1.2 V

1 cable dresser

1 cable binder

1 quick guide incl. CD ROM with detailed instruction manual (PDF file)

1safetyguide

Product overview

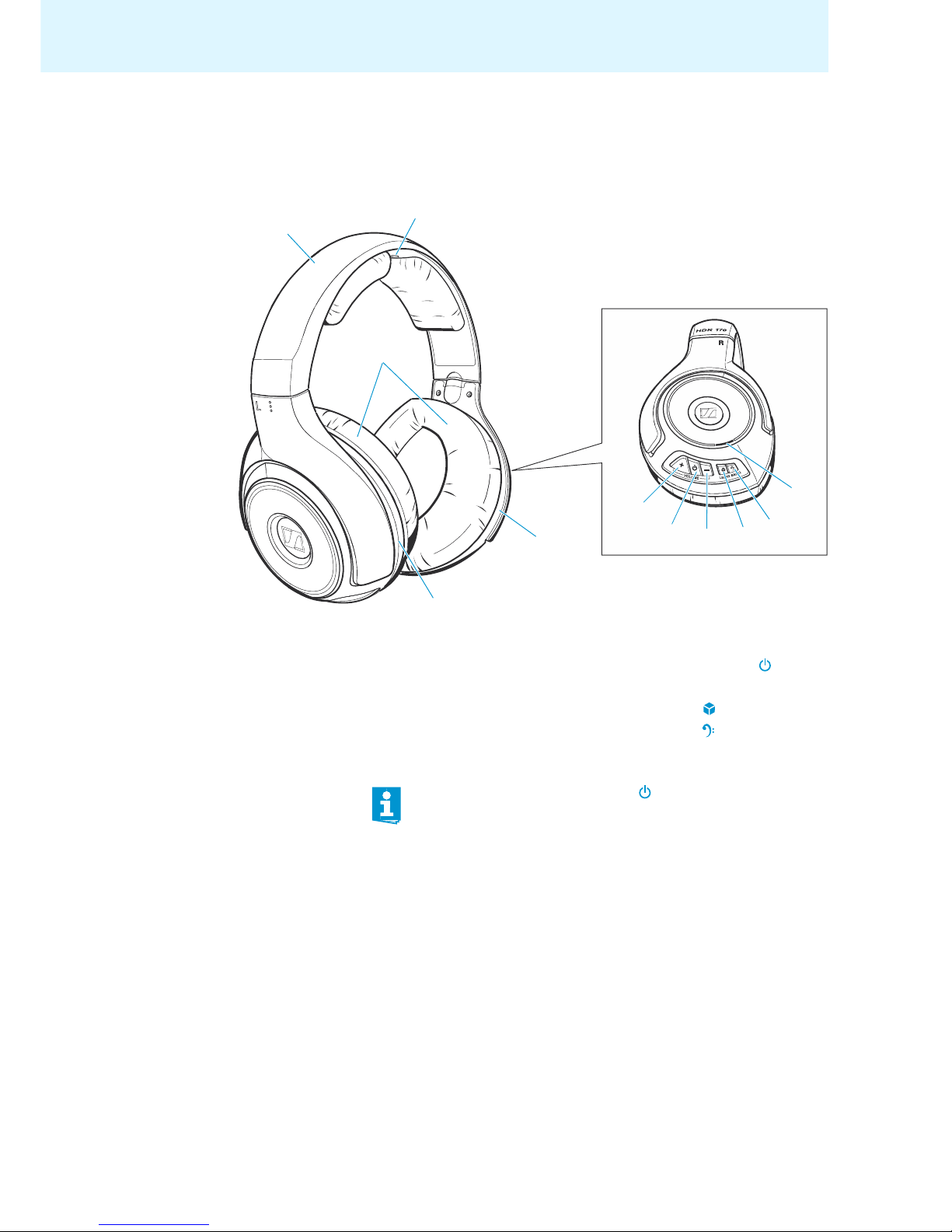

Overview of the HDR 170 headphones

쐇

쐋

쐃

쐅

쐄

쐆

쐂쐊쐎

쐏

쐃Headband 쐄VOLUME + button

쐇Charging contacts 쐂Multi-function button

쐋Ear pads 쐆VOLUME – button

쐏Battery compartments 쐊SURR button

쐎BASS button

쐅Multi-function LED

With the multi-function button 쐂, you can switch the

headphones on/to standby mode, set the headphones to multi-user

operation, mute the headphones and associate the headphones.

Product overview

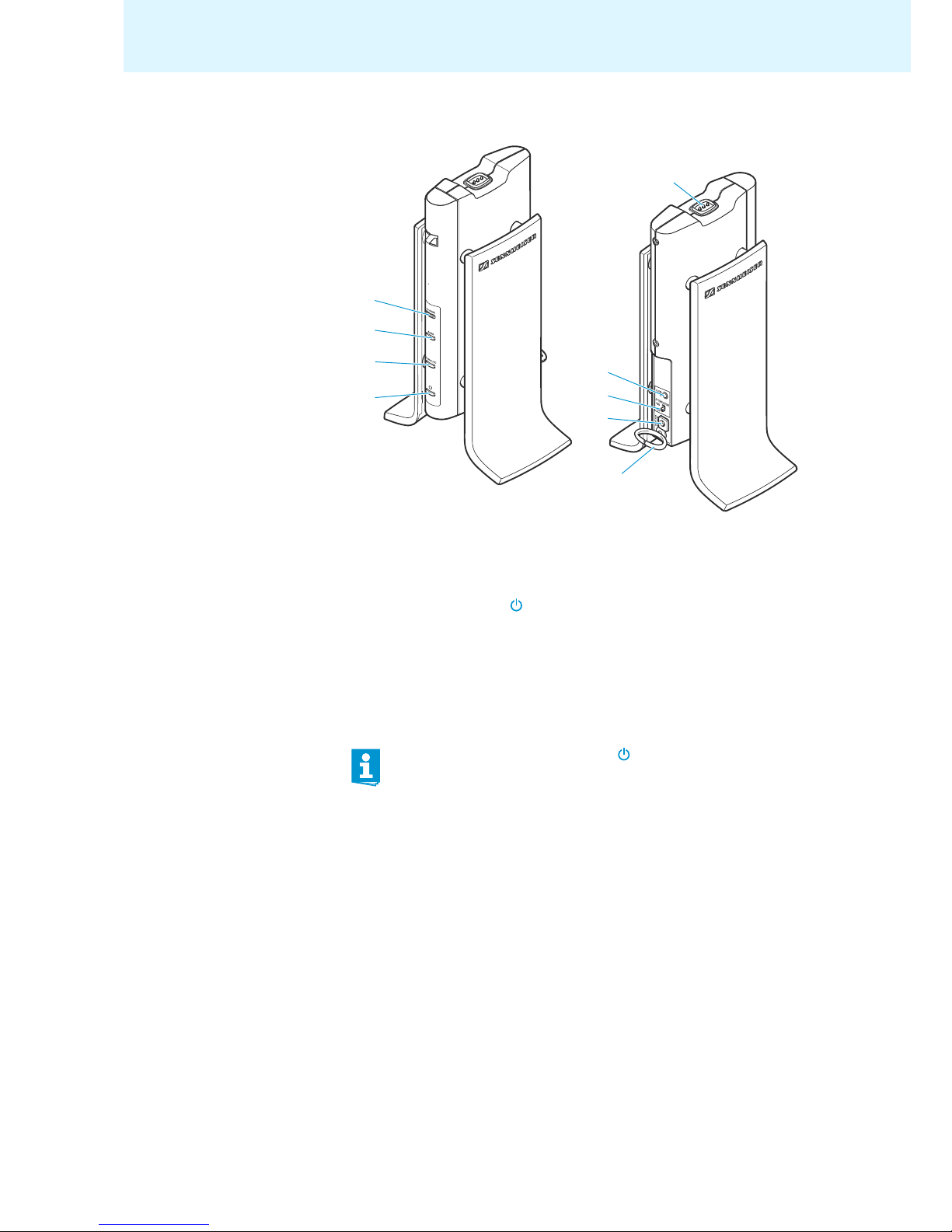

Overview of the TR 170 transmitter

햲CHARGE LED, orange

햳BASS button, backlit in green

햴SURROUND button, backlit in green

햵Multi-function button , backlit in green

햶Charging contacts for charging the headphones

햷Audio input (AUDIO IN)

햸ATTENUATOR switch

햹Socket for power supply unit (DC 5V 0.5A)

햺Cable dresser

With the multi-function button 햵, you can switch the

transmitter on/to standby mode, set the transmitter to multi-user

operation and associate the transmitter.

Product overview

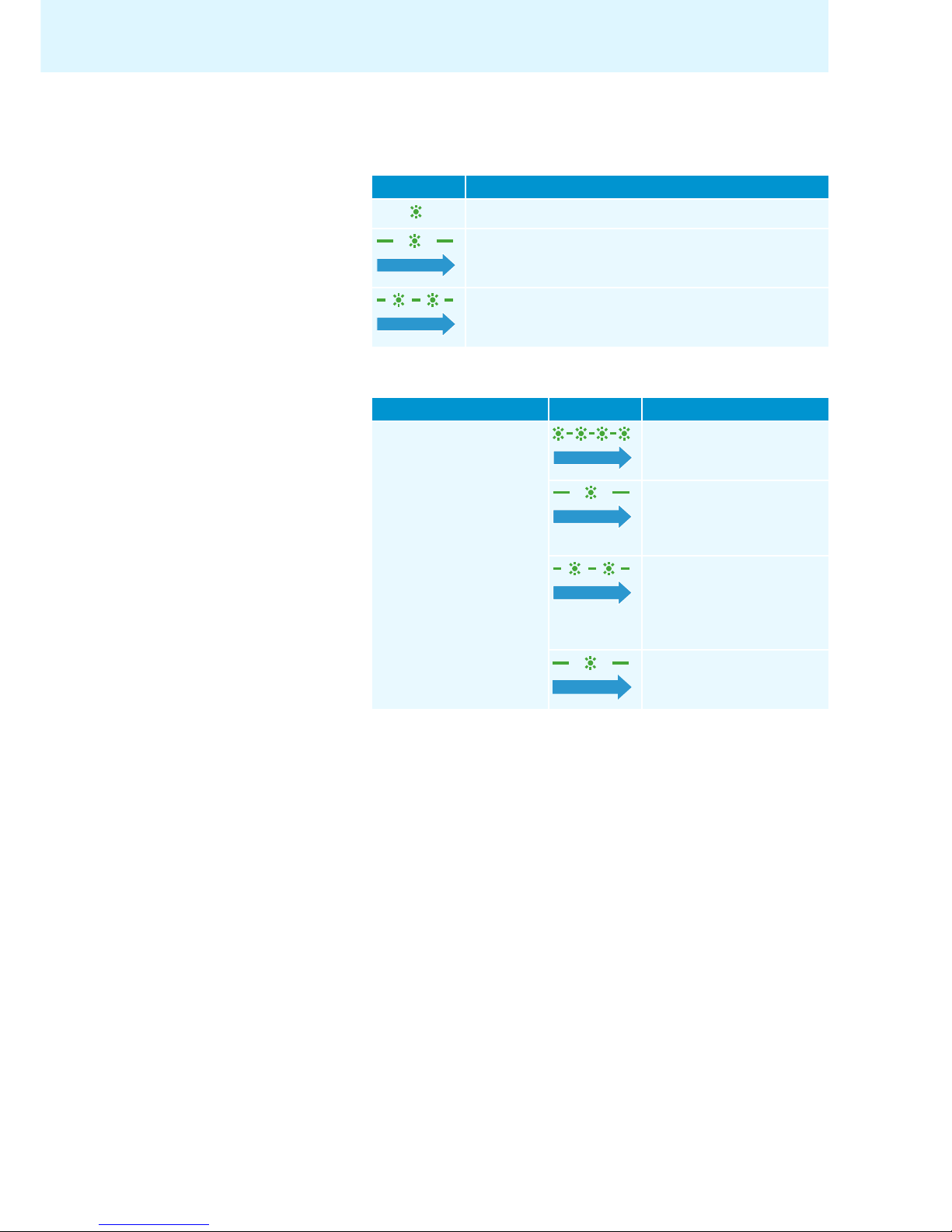

Overview of the indicators and acoustic signals

Meaning of the pictograms for the different LEDs

Indicators on the headphones

Status Meaning

The LED is lit.

The LED flashes once per second.

The LED flashes twice every 5 seconds.

Indicator Status Meaning

Multi-function LED 쐅The rechargeable batteries

are almost flat.

The headphones are in

enrollment mode (searching

for a transmitter to pair

with).

The headphones are in

association mode

(exchanging device

information with the

transmitter).

The headphones receive an

audio signal.

Product overview

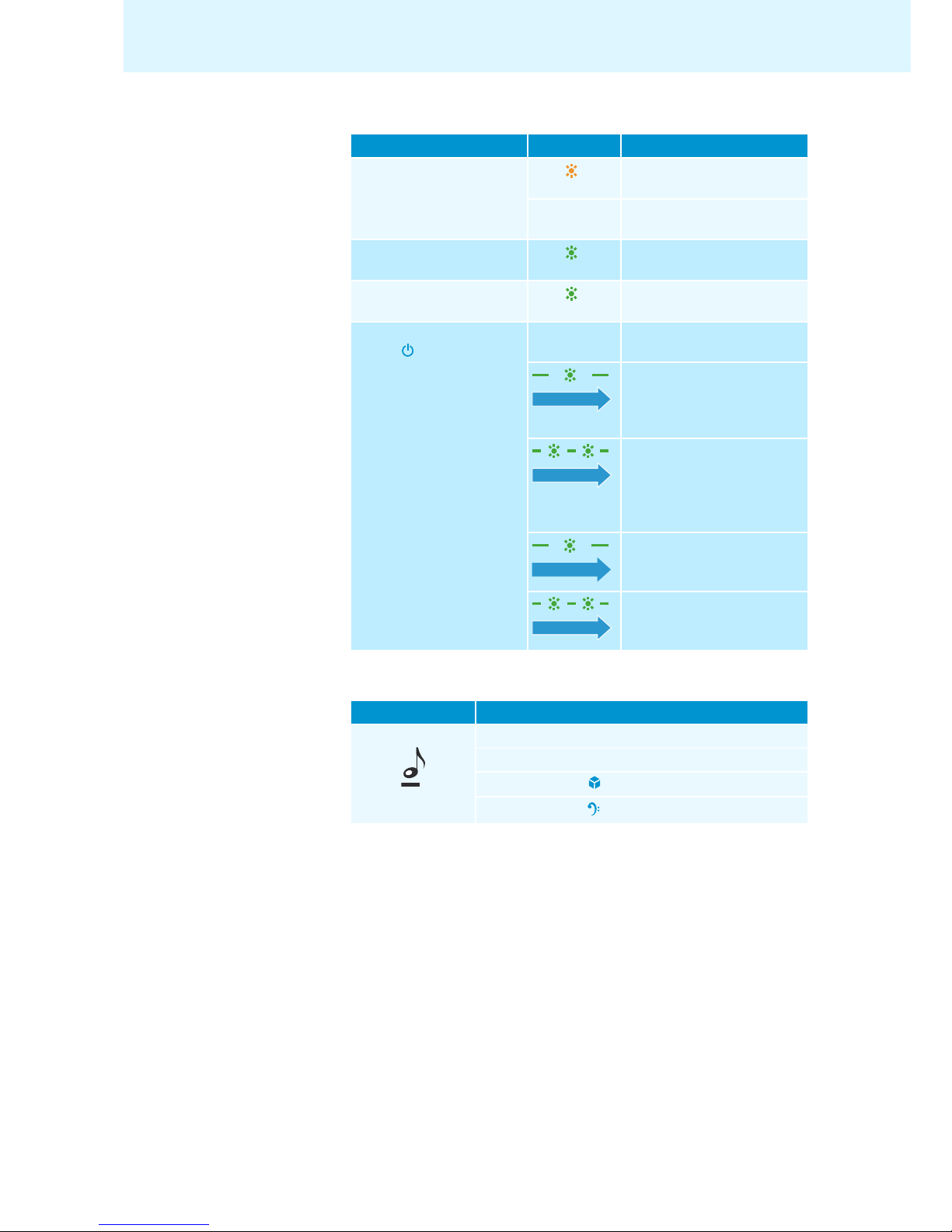

Indicators on the transmitter

Acoustic signal of the headphones

Indicator Status Meaning

CHARGE LED 햲The rechargeable batteries

are being charged.

off The rechargeable batteries

are fully charged.

BASS button 햳The dynamic bass boost is

activated.

SURR button 햴3D surround sound is

activated.

Multi-function

button 햵

off The transmitter is in

standby mode.

The transmitter is in

enrollment mode (searching

for headphones to pair

with).

The transmitter is in

association mode

(exchanging device

information with the

headphones).

The transmitter is in single-

user operation.

The transmitter is in multi-

user operation.

1 short beep Meaning

The minimum volume is reached.

The maximum volume is reached.

The SURR button 쐊is being pressed.

The BASS button 쐎is being pressed.
