Sennheiser HMD 46 - ANNEXE 863 Manuel utilisateur

HMD 46

Air Traffic Control

Instructionsfor use

HME 46

HMD 46 / HME 46

The HMD 46 / HME 46 headset features dynamic, open

headphones. The noise-compensating microphone

ensures excellent speech transmission even in noisy

environments. Designed for air traffic control, intercom

systems and other communication purposes.

Features

yExtremely lightweight

yExtremely comfortable to wear due to the patented

two-piece automatic headband and soft ear pads

yActiveGard™ safeguards you from the effects of an

acoustic burst

y“Flip-away” headphone allows single-sided listening

yFlexible microphone boom, can be worn on either left

or right-hand side

yNoise-compensating microphone ensures excellent

speech transmission

ySingle-sidedcable, easy to exchange

yPTT button integrated in the cable (HMD 46-3PTT-x

and HME 46-3PTT-x only)

Note

Store the headset ina dry, dust-free environment.

Delivery includes

yHMD 46 / HME 46 headset

yCable clip (except HME 46-ATC)

yWind and pop screen

yInstructions for use

Operation

Putting on the headset

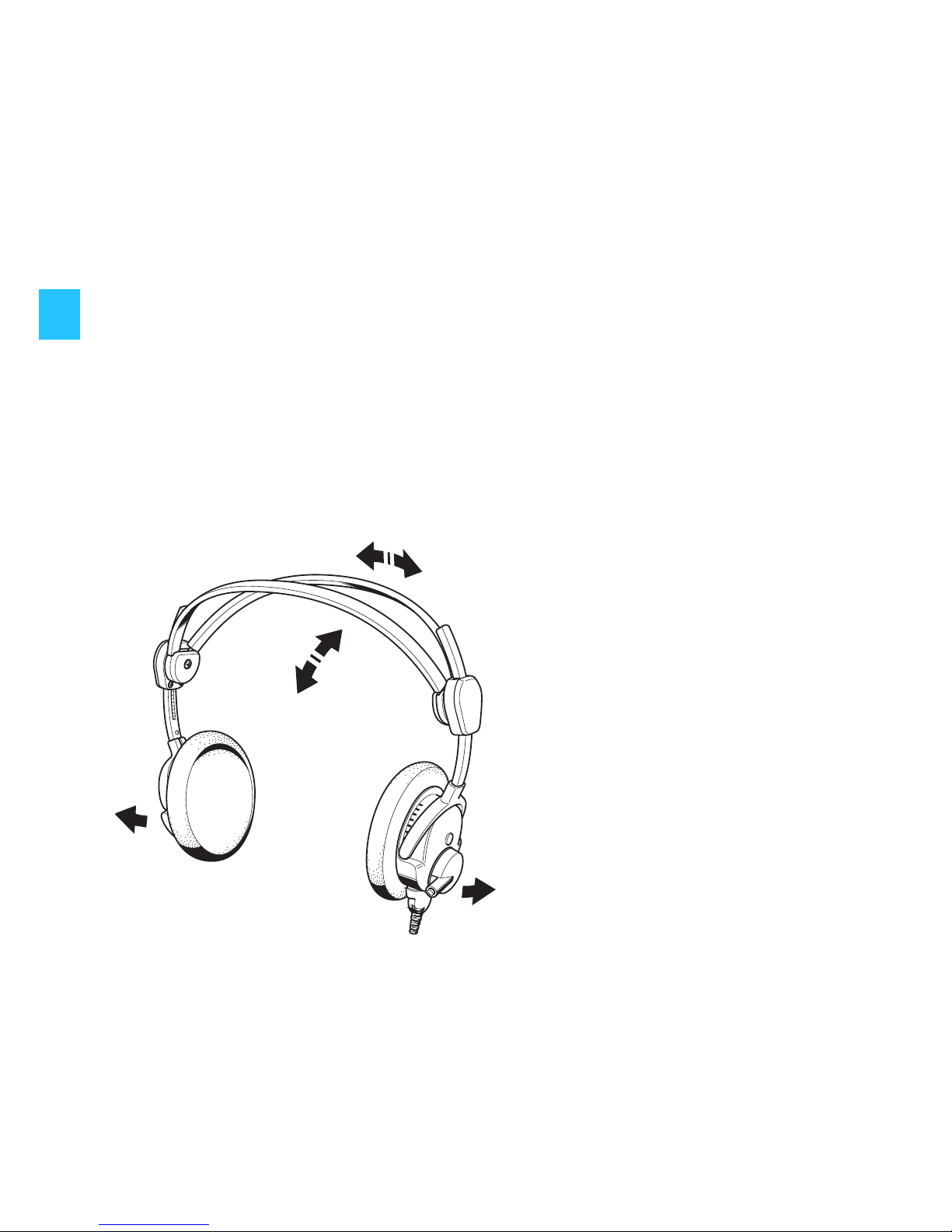

When putting on the headset, the patented two-piece

headband adjusts automatically.

Positioning the microphone

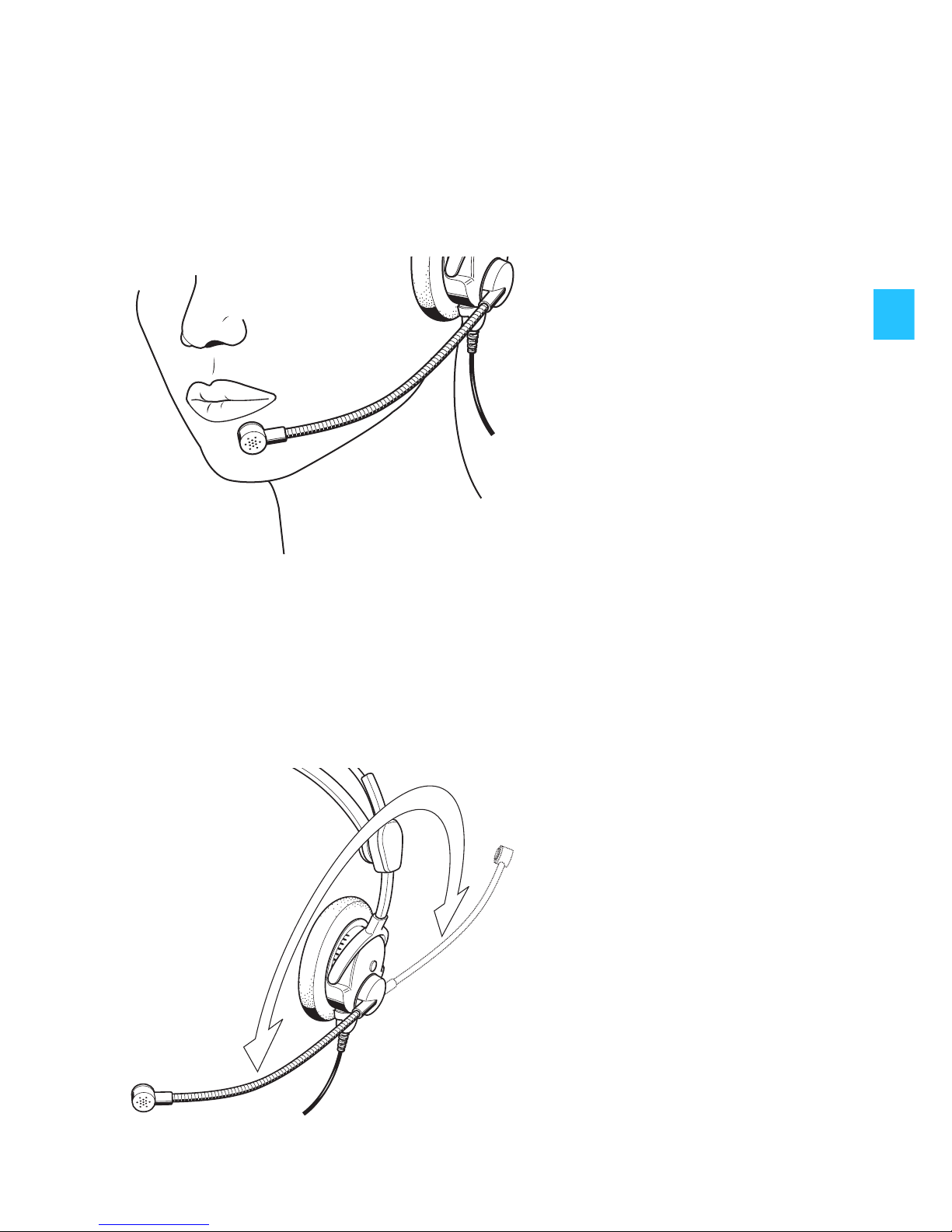

Bend the flexible microphone boom so that the micro-

phone is placed at the corner of the mouth. Maintain a

distance of approx. 2 cm between microphone and mouth.

Turning the microphone boom

The microphone boom can be rotated. This allows the

headset to be worn with the microphone boom positioned

on either the left or right-handside of the head.

Flipping away one earcup

The headset features a “flip-away” earcup for single-

sided listening.

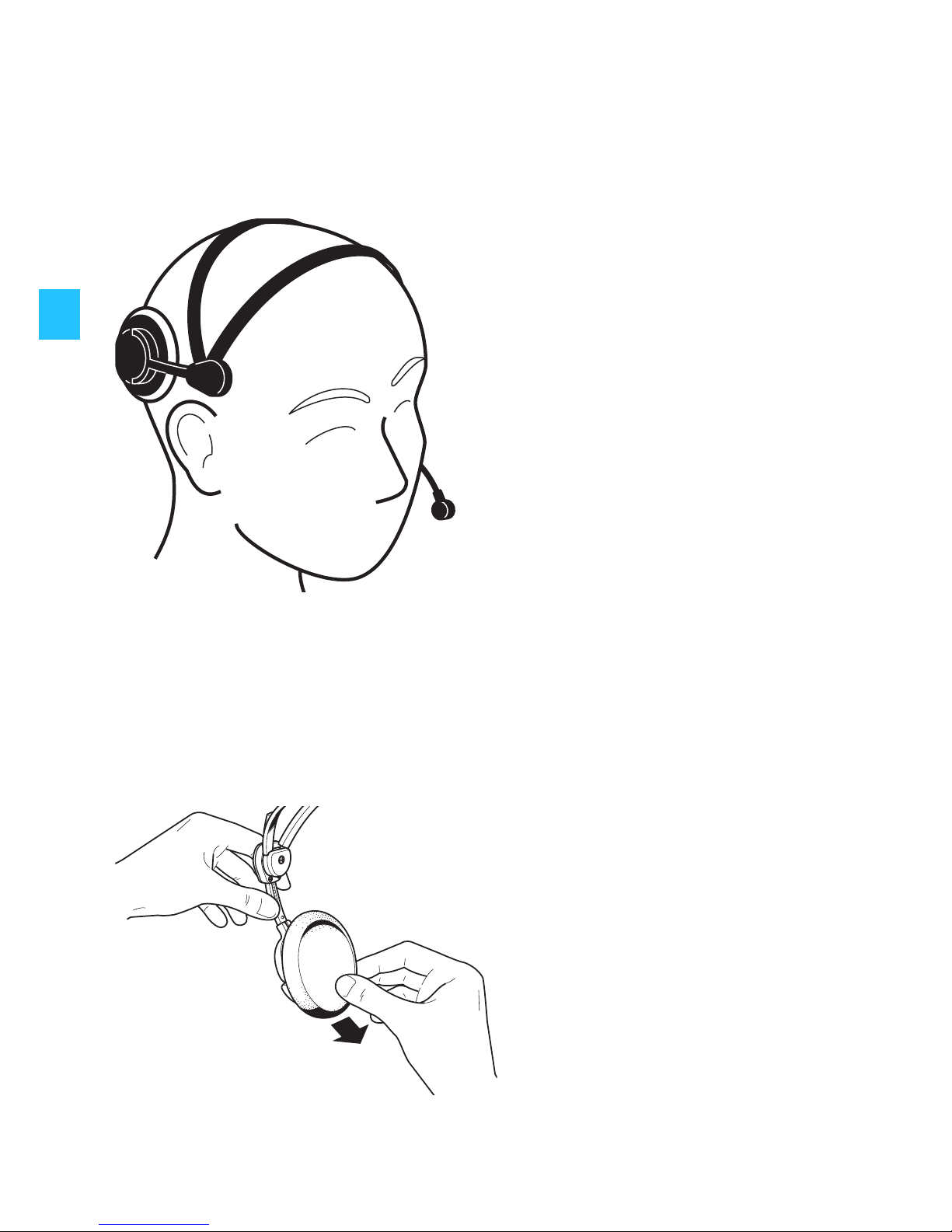

Replacing the ear pads

Grasp the edge of the foam earpad behind the earcup as

shown and peel it up and away from the earcup. Slide the

new earpad onto the earcup. Repeat for the other earcup.

Accessories and spare parts

yCable -6 Cat. No. 500836

yCable -PTT-6 Cat. No. 500844

yCable -PTT-L Cat. No. 500845

yCable -PTT-LA Cat. No. 502187

yCable D-3PTT-M Cat.No. 500930

yCable E-3PTT-M Cat. No. 500931

yCable clip Cat. No. 044740

yEarpads (1 pair) Cat. No. 515295

yEarpads (100 items) Cat. No. 515296

yWind and pop screen Cat. No. 515297

yWind and pop screen(100 items) Cat.No. 515298

yHeadband padding (1 pair) Cat. No. 515629

Product variants

Variant

(Cat. No.)

Microphone

type Single-sided round

cable

HMD 46-3

(500849)

Dynamic mic –

HMD 46-3-6

(500466)

Dynamic mic with open ends,

length1.85 m

HMD 46-3PTT-M

(500873)

Dynamic mic with PTT button and

mini DIN plug,

length1.85 m

HME 46-3

(500857)

Condenser mic –

HME 46-3-6

(500467)

Condenser mic with open ends,

length1.85 m

HME 46-3PTT-M

(500874)

Condenser mic with PTT button and

mini DIN plug,

length1.85 m

HME 46-3PTT-6

(500468)

Condenser mic with PTT button and

open ends,

length1.85 m

HME 46-3PTT-L

(500469)

Condenser mic with LEMO connector

FFP.3S.310.CLA.252A,

length1.85 m

HME 46-3PTT-LA

(502172)

Condenser mic with LEMO connector

FHG.2B.310.CLAD52Z,

length1.85 m

HME 46-ATC

(500851)

Condenser mic with LEMO connector

FFP.3S.310.CLA.252A,

length 2 m

Headset connection

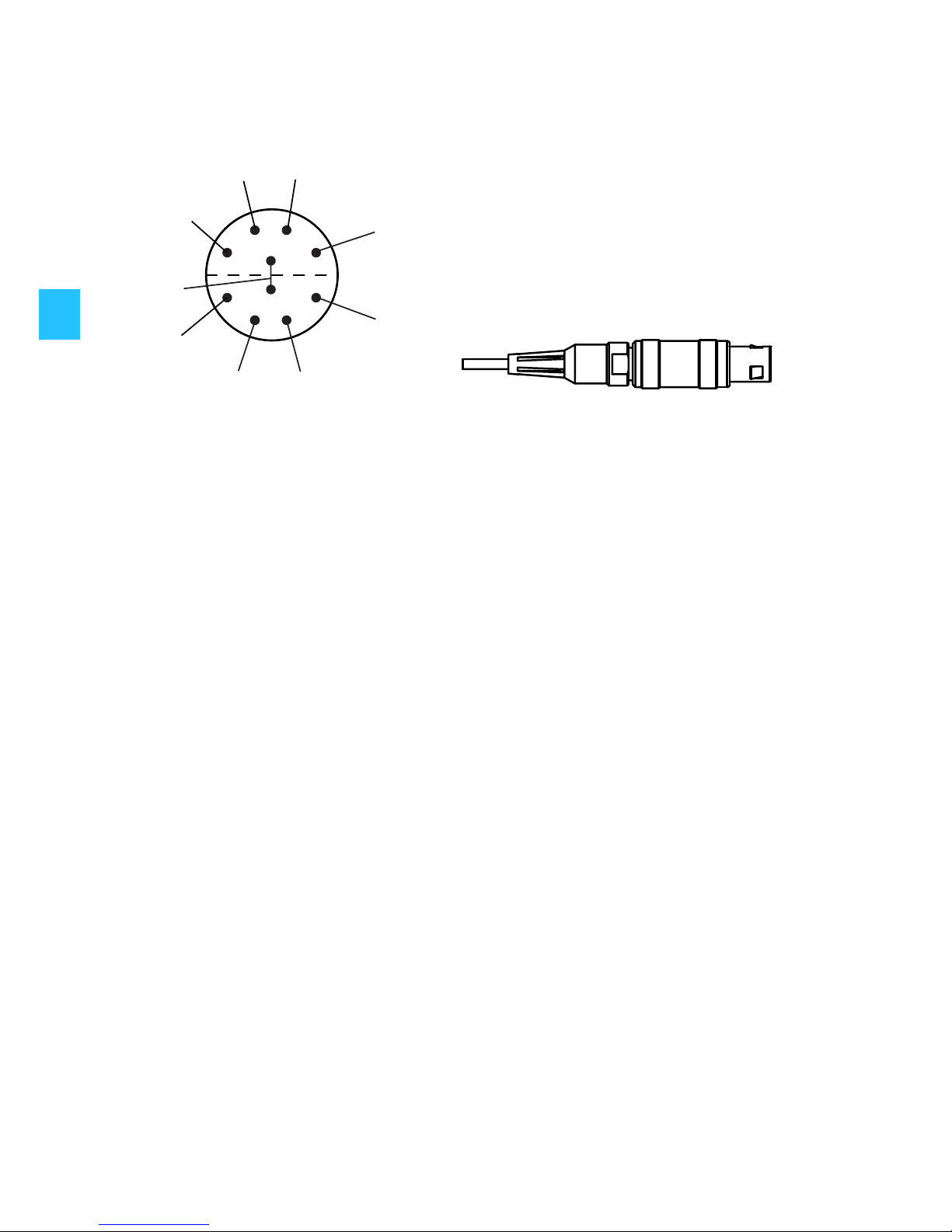

Connector assignment HME 46-3PTT-L

Connector assignment HME 46-3PTT-LA

white

orange

brown

green

yellow

red

blue

screen

Audio Hi left

Audio Hi right

Audio Lo left

Audio Lo right

not assigned

Microphone Hi

Microphone Lo

Micro

hone Lo

Lato saldato

149 8

510

bridge

white

blue

redoran

brownyellow screen

Solder side

green

black

58 9

bridge

white

screen

yellowgreen

brownred

Solder side

orange

blue

75 ohm

resistor

Connector assignment HME 46-ATC

149 8

510

bridge

orange

blue

redbrown

greennot assigned

white

screen

Solder side
