SEM 0101 Manuel utilisateur

Operation and Maintenance Manual

SEM Model 0101 Crusher

(Serial number 3174 and up)

POP-0112 Rev. 1 | Created 11/18/2019 | ECN: 00501

For service, parts, and customer support, contact us:

SECURITY ENGINEERED MACHINERY

5 Walkup Drive • Westborough, MA 01581

[email protected]

1-508-366-1488

www.semshred.com

508.366.1488 | www.semshred.com

TABLE OF CONETENTS

IMPORTANT SAFETY PRECAUTIONS ................................................................................................... 3

1. ABOUT YOUR CRUSHER .................................................................................................................. 4

2. UNBOXING AND SET-UP ................................................................................................................. 4

3. CONFIGURATIONS .......................................................................................................................... 6

3.1 DETERMINING IF YOUR CRUSHER IS SSD CAPABLE ..................................................................................................... 6

4. SSD OPERATION ............................................................................................................................. 7

5. HDD OPERATION .......................................................................................................................... 10

5.1 OVERLOADING .................................................................................................................................................. 13

6. SSD MAINTENANCE .................................................................................................................... 133

6.1 REMOVING THE SSD ANVIL ............................................................................................................................... 144

6.2 INSTALLING THE SSD ANVIL ............................................................................................................................... 155

7. HDD MAINTENANCE ................................................................................................................... 188

7.1 REMOVING THE HDD ANVIL ................................................................................................................................ 19

7.2 INSTALLING THE HDD ANVIL ................................................................................................................................ 20

8. FLUID ........................................................................................................................................... 20

9. TROUBLESHOOTING ................................................................................................................... 211

10. PREVENTATIVE MAINTENANCE OPTIONS ................................................................................. 211

11. ELECTRICAL SCHEMATICS .......................................................................................................... 211

12. CABINET EXPLODED VIEW ........................................................................................................ 222

13. TOWER EXPLODED VIEW .......................................................................................................... 233

14. SSD KIT EXPLODED VIEW .......................................................................................................... 244

508.366.1488 | www.semshred.com

Important Safety Precautions

The SEM Model 0101 crusher incorporates powerful, heavy duty pressing mechanisms.

Serious and permanent injury may result if proper precautions are not followed.

1. This equipment should never be operated by children or individuals who are untrained or incapable of

understanding these safety precautions.

2. Do not reach into the crushing chamber for any reason. Never insert fingers, hands, or objects not

meant to be crushed into the crushing chamber.

3. Do not operate or come into close proximity to this equipment wearing loose clothing, neckties,

dangling jewelry, or long hair, which may become entangled in the crushing chamber.

4. Maintenance or repair of this equipment should be performed only by trained, authorized service

personnel.

5. Always disconnect electric power (unplug) before removing or opening any cover or other panels

providing access to the internal mechanisms.

6. Always wear gloves when working with the SSD anvil as it has many sharp tines.

508.366.1488 | www.semshred.com

1. About Your Crusher

INTENDED USE

The Model 0101 is designed for crushing rotating platter hard drives up to 1.85 inches thick and SSD media if

the unit was purchased with the SSD kit option. Trying to crush other objects or material other than rotating

platter hard drives or SSD media for units equipped with the SSD kit option will void the warranty. SEM is not

responsible for the failure of this unit if a customer uses the unit for something other than what is was

intended.

SPECIFICATIONS FOR CE UNITS

This machine was designed with a CE marking for export from the US. A CE machine will

have a serial number label with a CE mark present.

2. Unboxing and Set-up

1. After removing the crusher from its packaging, place the system on a strong and sturdy surface.

Note: All packaging should be retained by the customer for 30 days from the time of receipt. If this unit

needs to be returned for replacement or repair this packaging will be required to do so. Should the

packaging have been discarded before the requested 30-day period, packaging costs will be incurred by the

customer.

2. Be certain that all paperwork and any loose items that may have been shipped with the crusher have been

removed from the packaging and from within the crushing chamber.

• Important: To avoid fluid from leaking from the reservoir tank during shipment, this crusher was shipped

with a red shipping plug installed. Prior to operating this crusher, the red shipping plug must be replaced

with the black breather plug (see plug pictures below). DO NOT OPERATE THE CRUSHER WITH THE RED

SHIPPING PLUG INSTALLED IN THE RESERVOIR.

• Note: The red shipping plug must be retained by the customer; this item will be required to prevent fluid

from leaking from the reservoir tank in the event the unit needs to be moved to another location or

shipped in any way.

• Caution: If shipping, do not over-tighten the shipping plug as you may strip the plastic threads.

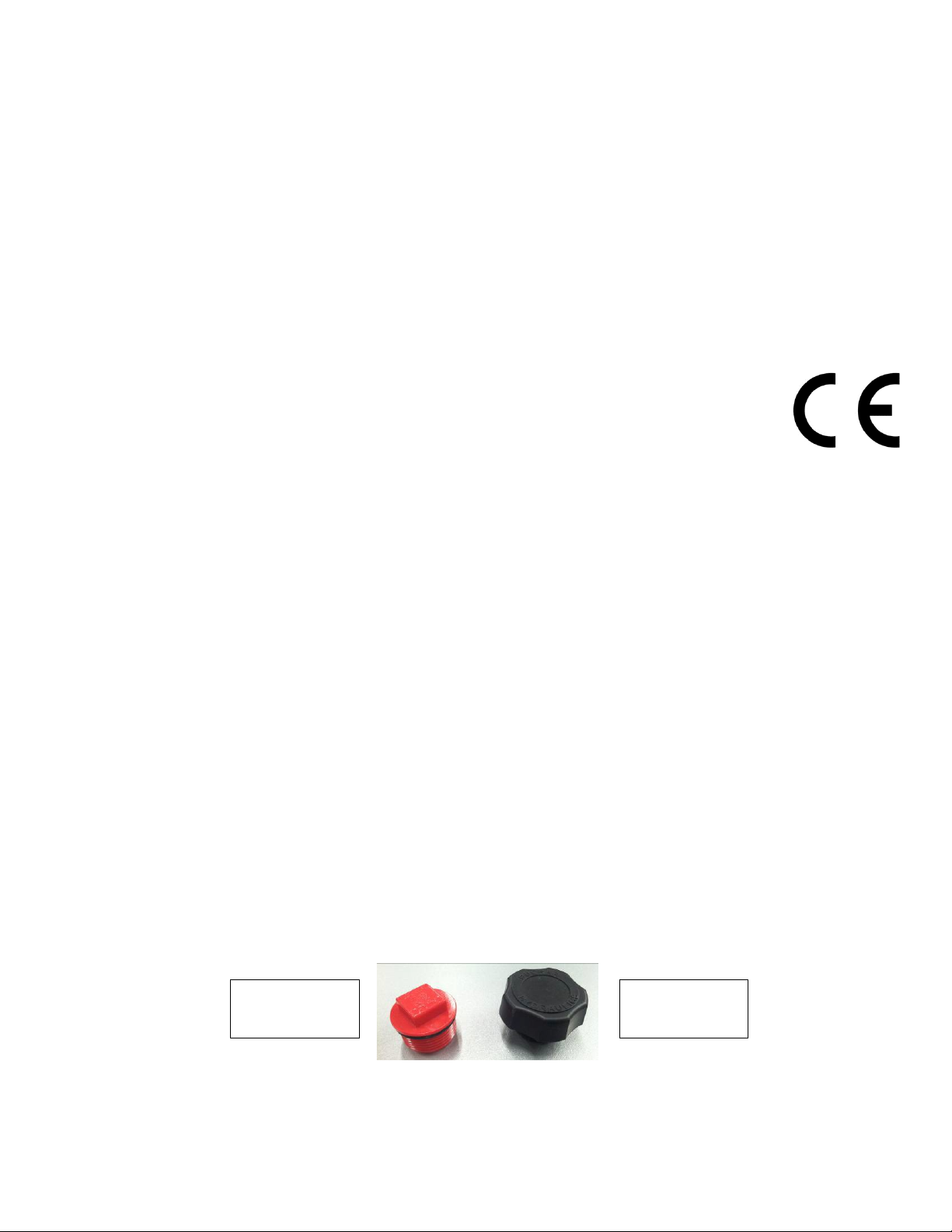

Red Shipping

Plug

Black Breather

Plug

508.366.1488 | www.semshred.com

3. To replace the red shipping plug with the black breather plug, locate and remove the back panel on the

crusher. THE CRUSHER SHOULD NOT BE PLUGGED INTO AN ELECTRICAL OUTLET WHEN COMPLETING THIS

PROCESS. The back panel is secured by six Phillips head screws. Begin by removing these screws and slide the

back panel next to the system.

Caution: The back panel is connected to the unit at the power entry module. DO NOT apply excessive

force to the panel when removing. Simply lean the panel on the side of the crusher (see below).

4. Once the red shipping plug has been replaced with the black breather plug, re-secure the back panel by

replacing the six Phillips head screws in the following sequence: begin with the two bottom screws, followed

by the two top screws, and finally the two middle screws.

• Note: You may need to squeeze the sides of the top cover to install the middle screws.

• Reminder: Retain the red shipping plug for future use when transporting the crusher.

5. With the back panel securely fastened, the crusher can now be plugged into the appropriate electrical outlet.

The crusher must be installed according to the customer's incoming power.

• 115V units must be installed on a 110-120V/1/60Hz grounded electrical line service. These crushers are

equipped with a 15 Amp three-prong plug on the power cord.

• 230V units must be installed on a 220-240V/1/50Hz grounded electrical line service. These crushers are

equipped with a 10 Amp two-prong (SCHUKO) European plug on the power cord. Note: 230V plugs may

vary depending on location.

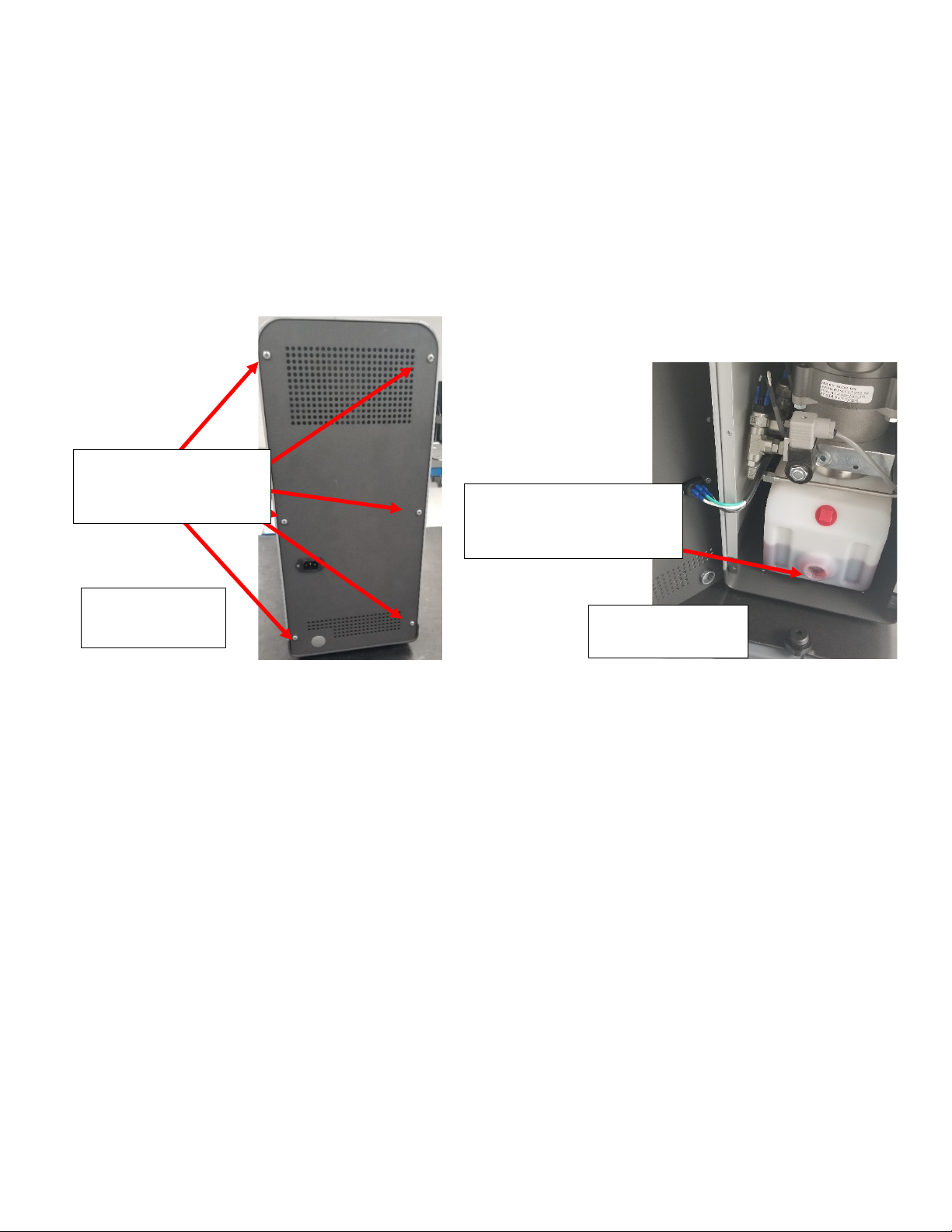

Remove back panel by

unscrewing the six

Phillips head screws.

Make sure unit is

unplugged.

Remove the red shipping

plug and thread into

storage hole.

Install the breather

plug for use.

508.366.1488 | www.semshred.com

3. Configurations

SEM offers two different configurations for the 0101 crusher in either 115V or 230V power:

• Model 0101 HDD

• Model 0101 HDD and SSD Combo

3.1 Determining if Your Crusher is SSD Capable

NOTE: SSD destruction with the Model 0101 is only possible with units that were originally purchased with

the SSD kit option. SSD kits cannot be purchased separately and retrofitted to the Model 0101. They must

be purchased with the Model 0101 at the time of ordering .

To determine if your crusher is capable of destroying SSD media, look at the serial number label on the

back panel. Serial numbers beginning with the prefix SSD are capable of destroying solid state media as

well as rotating platter hard drives up to 1.85 inches in thickness when installed with the proper anvil.

Serial numbers that DO NOT begin with SSD are only capable of destroying rotating platter hard drives up

to 1.85 inches in thickness.

Specifications

Model

Model 0101 HDD

Model 0101 HDD and SSD Combo

Media Destroyed

Computer rotational platter hard drives

up to 1.85” height (3.5” and 2.5” casings

accepted)

Computer rotational platter hard drives

up to 1.85” height (3.5” and 2.5” casings

accepted)

SSD boards removed from housings

Destruction Time

10 seconds

Up to 25 seconds

Power Supply

115/230 Volt

Power Consumption

7.5/5 Amps

Operating Environment

34°F- 115°F (1°C - 46°C)

Weight

120 lbs. (55 kg)

Size

19” (50 cm) x 10” (25 cm) x 22” (56 cm)

Hydropack Fluid

Automatic transmission fluid

[Approximently two quarts (1.9 liters)]

508.366.1488 | www.semshred.com

Below is an example of a Model 0101 serial number tag that was purchased with the SSD kit.

4. SSD Operation

Note:

SSD destruction is only possible with the SSD anvil installed.

Warning:

• Gloves are recommended for this operation as the SSD anvil has many sharp tines and the crushed

solid state material may also be sharp.

• Prior to destroying any solid state media, be sure to remove any protruding connectors,

capacitors, or batteries.

• Only devices ordered for SSD destruction can be used as such.

1. To begin crushing solid state media, ensure that the correct anvil is installed within the crushing chamber.

Open the access door and look inside of the crushing chamber. The proper anvil for SSD crushing is shown

below. If the correct anvil is installed, proceed to Step 3.

SSD prefix designating

crusher was purchased

with SSD Kit

508.366.1488 | www.semshred.com

2. If the HDD anvil is installed in lieu of the SSD anvil, the anvil will need to be changed. To remove the HDD

anvil, see section HDD Maintenance. Once the HDD anvil has been removed, see section SSD

Maintenance for instructions regarding installation of the SSD anvil.

3. With the proper SSD anvil installed, make sure the steel press plate and wear plate are properly positioned

inside the bottom of the crushing chamber. Proper positioning of these plates will ensure the anvil is

positioned for maximum effectiveness by piercing the data holding integrated circuit (IC) chips of the

media. The following pictures provide an example of how the steel press plate, wear plate, and solid state

media should be positioned within the crushing chamber. Instructions regarding installing the steel press

plate and wear plate can be found in the section named SSD Maintenance.

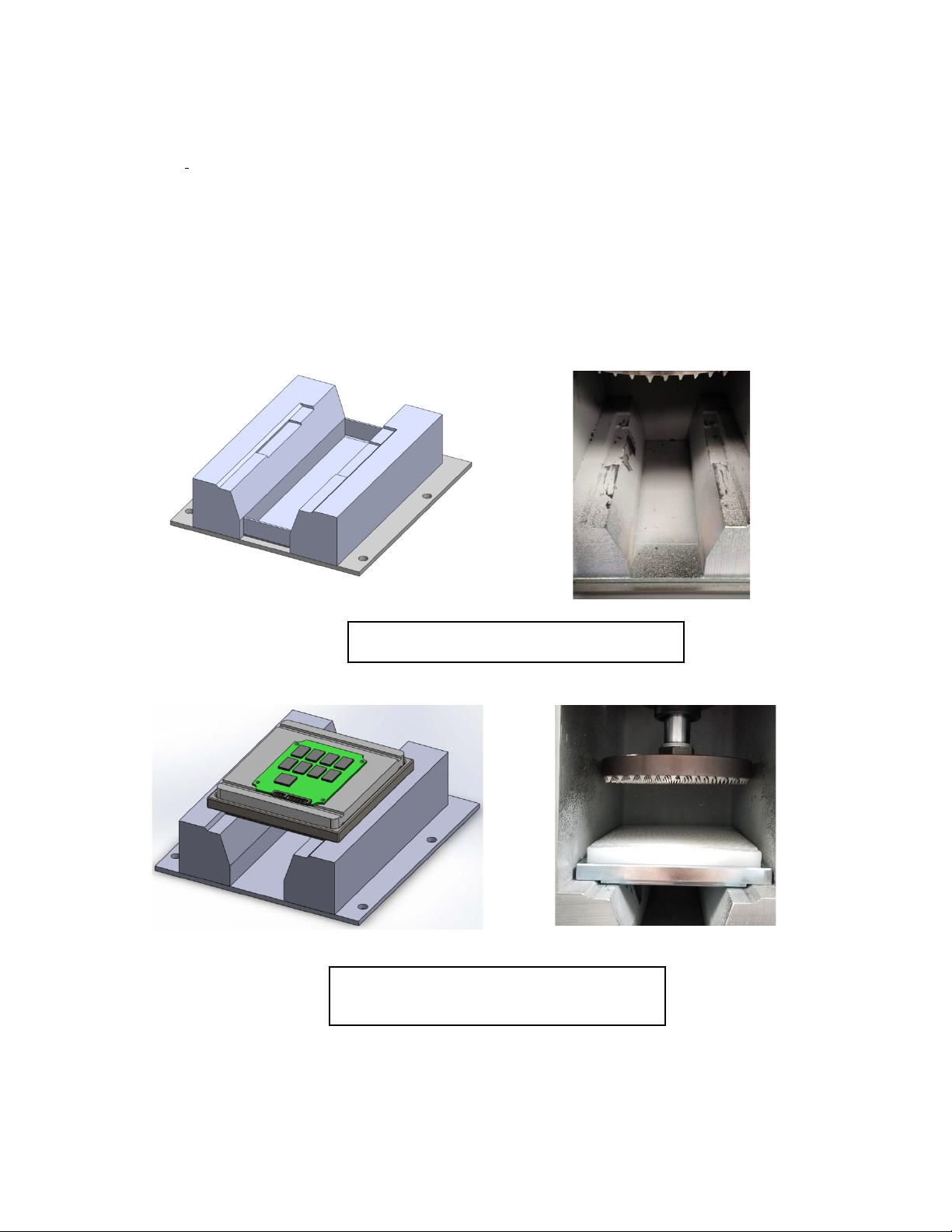

Solid State Media Placed in Cutting

Chamber for Crushing

Channels in Cutting Chamber

508.366.1488 | www.semshred.com

4. Position the solid state media onto the wear plate. If the SSD has any end-mounted connectors attached,

allow them to hang over the edge of the wear plate so the media is as horizontal as possible. See picture.

5. Close the access door and press the green button labelled RUN. The button will illuminate, the motor will

activate, and the hydraulic ram will descend to pierce the SSD within the crushing chamber. When the

ram has reached the end of the down stroke, it will start its upward movement. Upon completion of the

cycle, the green light will extinguish and the motor will deactivate.

Note: The unit will not function if the access door is open.

6. The access door to the crushing chamber can now be opened and the SSD can be removed from the

crushing chamber.

Note: If the media becomes stuck to the bottom of the SSD anvil, use a small screwdriver to pry it away

for disposal. Failure to remove media may cause incomplete destruction.

7. In the event of an emergency or to stop the unit, push the red button labeled STOP. The button will then

illuminate and the hydraulic ram will return to the start position. When the hydraulic ram is in the start

position, the red light will extinguish and the motor will deactivate.

Note: If the access door is opened during the crushing cycle, the hydraulic ram will stop moving. When the

access door is reclosed, the operator will need to press the RUN button to restart the crushing

Solid state media with attached

connector overhanging the wear plate

to allow the media to rest as horizontal

possible.

508.366.1488 | www.semshred.com

5. HDD Operation

1. To begin crushing rotational platter hard drives up to 1.85" in thickness, ensure the correct anvil

is installed within the crushing chamber. Open the access door and look inside the crushing

chamber. The proper anvil for HDD crushing is shown below. If the correct anvil is installed,

proceed to Step 3.

2. If the SSD anvil is installed in lieu of the HDD anvil, the anvil will need to be changed. To remove

the SSD anvil, see section SSD Maintenance. Once the SSD anvil has been removed, see section

HDD Maintenance for instructions of how to install the HDD anvil.

3. With the proper HDD anvil installed, look inside the crushing chamber to find the two channels

at the bottom of the chamber. These channels properly align the hard drives to be crushed.

Proper use of these channels will ensure the anvil is positioned for maximum effectiveness by

piercing/bending the data holding platters of the hard drive rather than pushing the center drive

hub. The following pictures provide examples of how different hard drives should be positioned

within the channels of the crushing chamber.

Autres manuels pour 0101

Table des matières

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
