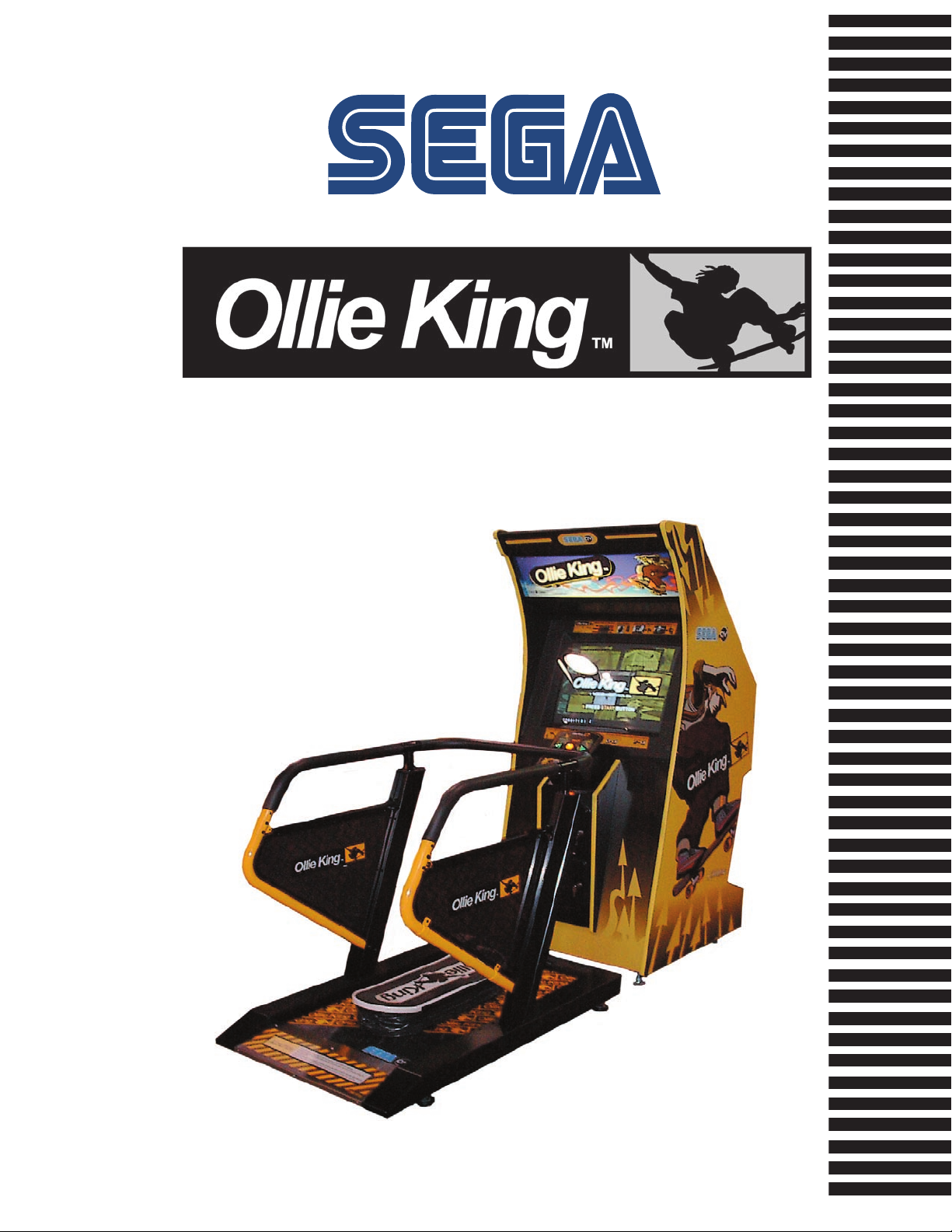

Sega Olle King Manuel utilisateur

1ST PRINTING MAY ‘04

MANUAL NO. 999-2026

Owner’s Manual

SEGA AMUSEMENTS USA, INC.

29 inch Deluxe Version

www.sauservice.com

GAME CODE: OLS

VISIT OUR WEBSITE!

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

To maintain the safety:

To ensure the safe usage of the product, be sure to read the following before using the product. The

following instructions are intended for the users, operators and the personnel in charge of the opera-

tion of the product. After carefully reading and sufﬁciently understanding the warning displays and

cautions, handle the product appropriately. Be sure to keep this manual nearby the product or else-

where convenient for referring to it when necessary.

Herein, explanations which require special attention are enclosed with dual lines. Depending on the

potentially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to under-

stand the contents of the displays before reading the text.

Indicates that mishandling the prod-

uct by disregarding this warning

will cause a potentially hazardous

situation which can result in death

or serious injury.

Indicates that mishandling the product

by disregarding this caution will cause

a slight hazardous situation which can

result in personal injury and or material

damage.

For the safe usage of the product, the following pictographs are used:

Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment,

this display is attached to places where the Owner’s Manual and or Service Manual should

be referred to.

Perform work in accordance with the instructions herein stated.

Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to

perform work as per the instructions can cause accidents. In the case where only those who have tech-

nical expertise should perform the work to avoid hazardous situation, the instructions herein state that the

serviceman should perform such work.

Be sure to turn off power before working on the machine.

To prevent electric shock, be sure to turn off power before starting the work in which the worker touches

the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual

herein always states to that effect.

Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord

with earth is used).

This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Ter-

minal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is

grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the

Control equipment, ensure that the Earth Wire is ﬁrmly connected to the Control equipment.

Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.

This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not

equipped with the Earth Leakage Breaker can cause a ﬁre when earth leakage occurs.

Be sure to use fuses which meet the speciﬁed rating. (only for the machines which use fuses).

Using fuses exceeding the speciﬁed rating can cause a ﬁre and electric shock.

WARNING! CAUTION!

Speciﬁcation changes (removal of equipment, conversion and addition) not designated by SEGA

are not allowed.

The parts of the product include warning labels for safety, covers for personal protection, etc. It is

very hazardous to operate the product by removing parts and or modifying the circuits. Should doors,

lids and protective parts be damaged or lost, refrain from operating the product, and contact where the

product was purchased from or the ofﬁce herein stated. SEGA shall not be held responsible for any

accidents, compensation for damage to a third party, resulting from the speciﬁcations not designated by

SEGA.

Ensure that the product meets the requirements of appropriate Electrical Speciﬁcations.

Before installing the product, check for Electrical Speciﬁcations. SEGA products have a nameplate

on which Electrical Speciﬁcations are described. Ensure that the product is compatible with the power

supply voltage and frequency requirements of the location. Using any Electrical Speciﬁcations different

from the designated Speciﬁcations can cause a ﬁre and electric shock.

Install and operate the product in places where appropriate lighting is available, allowing warning

labels to be clearly read.

To ensure safety for the customers, labels and printed instructions describing potentially hazardous situ-

ation are applied to places where accidents can be caused. Ensure that where the product is operated

has sufﬁcient lighting allowing the warnings to be read. If any label is peeled off, apply it again imme-

diately. Please place an order with where the product was purchased from or the ofﬁce herein stated.

When handling the Monitor, be very careful. (Applies only to the product w/monitor.)

Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some

portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be

performed only be those technical personnel who have knowledge of electricity and technical expertise.

Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)

Do not operate the product leaving on-screen ﬂickering or blurring as it is. Using the product with the

monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the cus-

tomers.

When transporting or reselling this product, be sure to attach this manual to the product.

In the case where commercially available monitors and printers are used in this product, only the con-

tents relating to this product are explained herein. Some commercially available equipment has func-

tions and reactions not stated in this manual. Read this manual together with the speciﬁc Instruction

Manual of such equipment.

Descriptions herein contained may be subject to improvement changes without notice.

The contents described herein are fully prepared with due care. However, should any question arise or

errors be found, please contact SEGA.

•

INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION.

Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after

transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before

turning on power, check the following points to ensure that the product has been transported in a satis-

factory status.

Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?

Are Casters and Adjusters, damaged?

Do the power supply voltage and frequency requirements meet with those of the location?

Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,

connector connections can not be made accurately. Do not insert connectors forcibly.

Do power cords have cuts and dents?

Do the fuses used meet speciﬁed rating? Is the Circuit Protector in an energized status?

Are all accessories available?

Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be ﬁrmly closed?

TABLE OF CONTENTS

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

TABLE OF CONTENTS

INTRODUCTION OF THE OWNER’S MANUAL

1. HANDLING PRECAUTIONS ..........................................................................................

2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ...................................

3. PRECAUTIONS REGARDING PRODUCT OPERATION .............................................

4. PART DESCRITIONS .......................................................................................................

5. ACCESSORIES .................................................................................................................

6. ASSEMBLING AND INSTALLATION ............................................................................

7. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE ........................

8. GAME DESCRIPTION .....................................................................................................

9. EXPLANATION OF TEST AND DATA DISPLAY .........................................................

9 - 1 SWITCH UNIT AND COIN METER ............................................................

9 - 2 SYSTEM TEST MODE ..................................................................................

9 - 3 GAME TEST MODE ......................................................................................

10. MAINTENCE OF SKATEBOARD MECHANISM UNIT ...............................................

10 - 1 ADJUSTING/REPLACING THE TILT DETECTION VOLUME CONTR

10 - 2 GREASING ....................................................................................................

10 - 3 REPLACING THE BELLOWS ....................................................................

11. COIN SELECTOR ............................................................................................................

12. MONITOR ........................................................................................................................

13. REPLACING THE FLOURESCENT LAMP/OTHER LAMPS ......................................

14. PERIODIC INSPECTION TABLE ..................................................................................

15. TROUBLESHOOTING ....................................................................................................

16. GAME BOARD ................................................................................................................

16 - 1 REMOVING THE GAME BOARD ..............................................................

16 - 2 REMOVING THE GD-ROM DRIVE ...........................................................

16 - 3 COMPOSITION OF GAME BOARD ...........................................................

16 - 4 REPLACING THE MAIN BOARD BATTERY ............................................

16 - 5 REPLACING THE MEDIA BOARD BATTERY PACK ..............................

16 - 6 SHIPPING THE GAME BOARD AND CARTON BOX ..............................

17. NETWORK PLAY ............................................................................................................

17 - 1 PRECAUTIONS REGUARDING NETWORK PLAY SETUP ...................

17 - 2 CONNECTING NETWORK CABLES .......................................................

17 - 3 NETWORK PLAY SETTINGS ...................................................................

17 - 4 GENERAL PRECAUTIONS REGARDING NETWORK PLAY .................

18. DESIGN RELATED PARTS ...........................................................................................

19. PARTS LIST ...................................................................................................................

20. WIRE COLOR CODE TABLE ........................................................................................

21. WIRING DIAGRAM .......................................................................................................

3 - 4

5 - 11

12 -

13 - 14

15 - 35

36 - 37

38 - 47

48 - 73

51 - 63

64 - 73

74 - 82

75 - 78

80 - 82

83 - 84

85 - 87

88 - 90

91 - 92

93 - 97

98 - 114

99 - 105

106

107

108

109 - 111

112 - 114

115 - 122

115 - 116

117 - 120

121 - 122

122

123

124 - 138

139

XXX

SPECIFICATIONS

INTRODUCTION OF THE OWNERS MANUAL

This Owner's Manual is intended to provide detailed descriptions together with all the

necessary information covering the general operation of electronic assemblies, electrome-

chanicals, servicing control, spare parts, etc. as regards the product,

OLLIE KING 29INCH DELUXE TYPE.

This manual is intended for the owners, personnel and managers in charge of operation

of the product. Operate the product after carefully reading and sufﬁciently understand-

ing the instructions. If the product fails to function satisfactorily, non-technical personnel

should under no circumstances touch the internal system. Please contact where the prod-

uct was purchased from.

SEGA AMUSEMENTS USA, INC. / CUSTOMER SERVICE

45133 Industrial Drive, Fremont, California 94538, U.S.A.

Phone : (415) 701-6580

Fax : (415) 701-6594

Use of this product is unlikely to cause physical injuries or damages to property. However,

where special attention is required this is indicated by a thick line, the word "IMPORTANT"

and its sign in this manual.

Indicates that mishandling the product by disregarding this display can cause the

product's intrinsic performance not to be obtained, resulting in malfunctioning.

Installation Space : 32.8 inches width X 87.4 inches depth

Height : 84 inches

Width : 32.8 inches

Length : 87.4 inches

Weight : 634.9 lbs

Power, maximum current : 336 W 3.44 A (AC 120V 60 Hz AREA)

MONITOR : 29 inch supplied by Sanwa

Monitor Part# 998-0162

Chassis Part# 998-0161

STOP

IMPORTANT!

DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN

Non-technical personnel who do not have technical knowledge and expertise should

refrain from performing such work that this manual requires the location's main-

tenance man or a serviceman to carry out, or work which is not explained in this

manual. Failing to comply with this instruction can cause a severe accident such

as electric shock.

Ensure that parts replacement, servicing & inspections, and troubleshooting are performed by the

location's maintenance man or the serviceman. It is instructed herein that particularly hazardous work

should be performed by the serviceman who has technical expertise and knowledge.

The location's maintenance man and serviceman are herein deﬁned as follows:

"Location's Maintenance Man" :

Those who have experience in the maintenance of amusement equipment and vending machines, etc.,

and also participate in the servicing and control of the equipment through such routine work as equip-

ment assembly and installation, servicing and inspections, replacement of units and consumables, etc.

within the Amusement Facilities and or locations under the management of the Owner and Owner's

Operators of the product.

Activities of Location's Maintenance Man :

Assembly & installation, servicing & inspections, and replacement of units & consumables as regards

amusement equipment, vending machines, etc.

Serviceman :

Those who participate in the designing, manufacturing, inspections and maintenance service of the

equipment at an amusement equipment manufacturer.

Those who have technical expertise equivalent to that of technical high school graduates as regards

electricity, electronics and or mechanical engineering, and daily take part in the servicing & control

and repair of amusement equipment.

Serviceman's Activities :

Assembly & installation and repair & adjustments of electrical, electronic and mechanical parts of

amusement equipment and vending machines.

WARNING!

LISTED

5K92

AMUSEMENT MACHINE

Notes:

1www.seuservice.com

1. HANDLING PRECAUTIONS

When installing or inspecting the machine, be very careful of the following points and pay attention to

ensure that the player can enjoy the game safely.

Non-compliance with the following points or inappropriate handling running counter to the cautionary

matters herein stated can cause personal injury or damage to the machine.

● Before performing work, be sure to turn power off. Performing the work without

turning power off can cause an electric shock or short circuit. In the case work

should be performed in the status of power on, this manual always states to that ef-

fect.

● To avoid electric shock or short circuit, do not plug in or unplug quickly.

● To avoid electric shock, do not plug in or unplug with a wet hand.

● Do not expose Power Cords and Earth Wires on the surface, (ﬂoor, passage, etc.).

If exposed, the Power Cords and Earth Wires are susceptible to damage. Damaged

cords and wires can cause electric shock or short circuit.

● To avoid causing a ﬁre or electric shock, do not put things on or damage Power

Cords.

● When or after installing the product, do not unnecessarily pull the power cord. If

damaged, the power cord can cause a ﬁre or electric shock.

● In case the power cord is damaged, ask for replacement through where the product

was purchased from or the ofﬁce herein stated. Using the cord as is damaged can

cause ﬁre, electric shock or leakage.

● Be sure to perform grounding appropriately. Inappropriate grounding can cause an

electric shock.

● Be sure to use fuses meeting speciﬁed rating. Using fuses exceeding the speciﬁed

rating can cause a ﬁre or electric shock.

● Completely make connector connections for IC BD and others. Insufﬁcient inser-

tion can cause an electric shock.

● Speciﬁcation changes, removal of equipment, conversion and/or addition, not desig-

nated by SEGA are not permitted.

• Failure to observe this may cause a ﬁre or an electric shock. Non-compliance with

this instruction can have a bad inﬂuence upon physical conditions of the players or

the lookers-on, or result in injury during play.

• SEGA shall not be held responsible for damage, compensation for damage to a third

party, caused by speciﬁcation changes not designated by SEGA.

● Be sure to perform periodic maintenance inspections herein stated.

WARNING!

www.seuservice.com

● For the IC board circuit inspections, only the logic tester is allowed. The use of a

multiple-purpose tester is not permitted, so be careful in this regard.

● The Projector is employed for this machine. The Projector's screen is susceptible

to damage, therefore, be very careful when cleaning the screen. For details, refer to

PROJECTOR.

● Static electricity from your body may damage some electronics devices on the IC

board. Before handling the IC board, touch a grounded metallic surface so that the

static electricity can be discharged.

● Some parts are the ones designed and manufactured not speciﬁcally for this game

machine. The manufacturers may discontinue, or change the speciﬁcations of, such

general-purpose parts. If this is the case, Sega cannot repair or replace a failed game

machine whether or not a warranty period has expired.

STOP

IMPORTANT!

Table des matières

Autres manuels Sega Machine de jeu d'arcade

Sega

Sega SEGA-RaceTV Manuel utilisateur

Sega

Sega OUTRUN 2 SPECIAL TOURS DELUXE Manuel utilisateur

Sega

Sega Crazy Taxi High Roller Supplément

Sega

Sega Rally 2 DX Manuel utilisateur

Sega

Sega World Series Baseball Super Major League Manuel utilisateur

Sega

Sega Let's Go ISLAND! Manuel utilisateur

Sega

Sega Sonic & Sega All-Stars Racing Arcade Manuel utilisateur

Sega

Sega NAOMI Manuel utilisateur

Sega

Sega The House of the Dead 4 Manuel utilisateur

Sega

Sega HOUSE OF THE DEAD 4 SUPER DELUXE Manuel utilisateur

Sega

Sega House of the Dead Manuel utilisateur

Sega

Sega Ghost Squad Manuel utilisateur

Sega

Sega Future Tone ProjectDIVA Arcade Manuel utilisateur

Sega

Sega Giant Plants vs Zombies The Last Stand Manuel utilisateur

Sega

Sega OutRun2 Manuel utilisateur

Sega

Sega Snakes & Ladders Manuel utilisateur

Sega

Sega SHOOT THIS WIN THIS Manuel utilisateur

Sega

Sega AFTER BURNER CLIMAX Manuel utilisateur

Sega

Sega Derby Owners Club World Edition Manuel utilisateur

Sega

Sega Grid 42 Manuel utilisateur

Sega

Sega Lindbergh Universal Manuel utilisateur

Sega

Sega STAR WARS RACER ARCADE Deluxe Version Manuel utilisateur

Sega

Sega BEJEWELED Manuel utilisateur

Sega

Sega Virtua Cop 3 Manuel utilisateur

Manuels Machine de jeu d'arcade populaires d'autres marques

Universal Space

Universal Space COCONUT BASH Manuel utilisateur

Bay-Tek

Bay-Tek EVOLVE Manuel utilisateur

Global VR

Global VR America's Army Instructions d'installation et d'utilisation

Atronic

Atronic Cashline Manuel utilisateur

Universal Space

Universal Space Checky Monkey Manuel utilisateur

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Manuel utilisateur

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Manuel utilisateur

Family Fun Companies

Family Fun Companies Reactor Guide de démarrage rapide

Universal Space

Universal Space FRUIT MANIA Extreme Manuel utilisateur

falgas

falgas CARRUSEL FIESTA Manuel utilisateur

Konami

Konami DanceDanceRevolution Manuel utilisateur

Bay-Tek

Bay-Tek quik drop Manuel utilisateur

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manuel utilisateur

Adrenaline

Adrenaline Flying Tickets Instructions d'installation et d'utilisation

Swinks

Swinks Stern Pinball Ghostbusters Manuel utilisateur

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manuel utilisateur

jakar

jakar SPEED CARS Manuel utilisateur

Carmelli

Carmelli HAT TRICK NG1015H Manuel utilisateur
