Seenergy SVR-204 Manuel utilisateur

4-Ch Network Video Recorder with HDMI

Output

V1.1.0 08102012

SVR-204 User Manual

SVR&204"User"Manual!

Table of Contents

System Overview ..................................................................... 5!

Front View .................................................................................... 5!

Rear View ..................................................................................... 6!

Illustration .................................................................................... 7!

LED Definition ............................................................................... 7!

Installation .............................................................................. 8!

HDD Installation .............................................................................8!

Connect to the NVR.......................................................................16!

Use Device Search Utility .............................................................. 16!

Access the NVR with its default IP address....................................... 20!

Set up Password .......................................................................... 21!

Camera Installation ......................................................................22!

Add a Camera -- Automatic Search................................................. 22!

Add a camera manually ................................................................ 24!

Live View (Web Interface) ..................................................... 25!

Live View ......................................................................................25!

Retrieve camera’s video stream ..................................................... 25!

Retrieve camera’s status ............................................................... 26!

Perform Sequence Viewing ............................................................ 26!

PTZ Control................................................................................. 28!

Perform PTZ Preset Viewing........................................................... 29!

Preset Point Viewing..................................................................... 30!

Auto Pan Viewing ......................................................................... 30!

Preset Point Sequence Viewing ...................................................... 31!

Live Video Controls ...................................................................... 31!

Display ratio and full screen .......................................................... 32!

Take a snapshot of a live video ...................................................... 32!

Perform Digital PTZ ...................................................................... 36!

Adjust Bightness for the Live Video................................................. 38!

Adjust Contrast For the Live Video.................................................. 39!

Change Web UI Display Language .................................................. 40!

Live View through iPhone Safari Browser......................................... 41!

Live View through Blackberry Phones.............................................. 44!

Playback (Web Interface) ...................................................... 48!

Playback .......................................................................................48!

Methods to Search Playback Videos ................................................ 48!

Search by time chart .................................................................... 49!

Search by event........................................................................... 50!

Play by specific time..................................................................... 52!

Search by event (Most Recent) ...................................................... 53!

Certain functions you can perform to the playback video ................... 55!

Take a snapshot of a playback video............................................... 56!

Adjust Bightness for the Playback Video .......................................... 60!

Adjust Contrast For the Playback Video ........................................... 61!

SVR&204"User"Manual!

Export Playback Videos to AVI Files ................................................ 61!

Play Exported Playback Videos with NVR Media Player....................... 65!

Open Event Snapshot images with NVR Media Player ........................ 67!

NVR Setup -- System Configurations (Web Interface) ............ 67!

Network Setup..............................................................................67!

Network Settings ......................................................................... 68!

DHCP Server ............................................................................... 69!

DDNS Service.............................................................................. 70!

Time and Date ..............................................................................76!

User Account ................................................................................77!

Add a new user............................................................................ 78!

Change the password of the “admin” account .................................. 79!

Group Privilege .............................................................................80!

Disk Setup ....................................................................................82!

Build RAID Volume ....................................................................... 83!

Deleting RAID.............................................................................. 87!

Notes for RAID function ................................................................ 87!

NVR Setup -- Channel Configurations (Web Interface)........... 88!

Add a camera................................................................................88!

Automatic Search......................................................................... 89!

Add a camera manually ................................................................ 93!

OSD Settings.................................................................................94!

PTZ Setting ...................................................................................96!

PTZ Preset Settings ...................................................................... 96!

PTZ Preset Sequence .................................................................... 97!

E-Map Setting ...............................................................................99!

Local E-Map Setting...................................................................... 99!

Google Map Setting .....................................................................101!

NVR Setup -- Event Configurations (Web Interface)............. 103!

Event Configuration ....................................................................103!

General Settings .........................................................................104!

I/O Settings ...............................................................................106!

Event Servers .............................................................................108!

Configuring an FTP server ............................................................108!

Configuring an SMTP server..........................................................110!

Event Triggers ............................................................................111!

NVR Setup -- Recording Configurations (Web Interface)...... 112!

General Settings .........................................................................112!

General Settings .........................................................................113!

Schedule Recording ....................................................................117!

To configure a schedule recording .................................................117!

NVR Setup -- System Options (Web Interface)..................... 118!

Device Information.....................................................................118!

Device Information......................................................................119!

Logs and Reports ........................................................................120!

SVR&204"User"Manual!

Logs and Reports ........................................................................120!

Maintenance ...............................................................................121!

Maintenance...............................................................................121!

Reboot the NVR at a specific time automatically ..............................122!

Firmware Upgrade.......................................................................122!

Through the web interface............................................................122!

Upgrade through USB thumb drive ................................................124!

Reset the NVR to Factory Default ..................................................125!

Disk Status .................................................................................126!

USB Backup ................................................................................127!

Things to pay attention to the USB Backup function .........................128!

Play the backup file with the NVR Media Player ...............................129!

Local UI from HDMI Output .................................................. 133!

Live View ....................................................................................133!

Remote control ...........................................................................135!

Live View ...................................................................................138!

Side menu .................................................................................139!

Sequence view ...........................................................................144!

PTZ Control................................................................................148!

Add preset points........................................................................148!

Preset point sequence view ..........................................................149!

Manual Recording .......................................................................151!

Take snapshot ............................................................................153!

PIP (Picture-in-picture) Event Video...............................................155!

Turn on Audio.............................................................................156!

Full Screen.................................................................................157!

Display video in its original size.....................................................158!

Detail channel status ...................................................................159!

Dashboard .................................................................................161!

Power off ...................................................................................162!

Playback .....................................................................................163!

Time Chart.................................................................................165!

Export recorded data ...................................................................168!

SVR&204"User"Manual!

System Overview

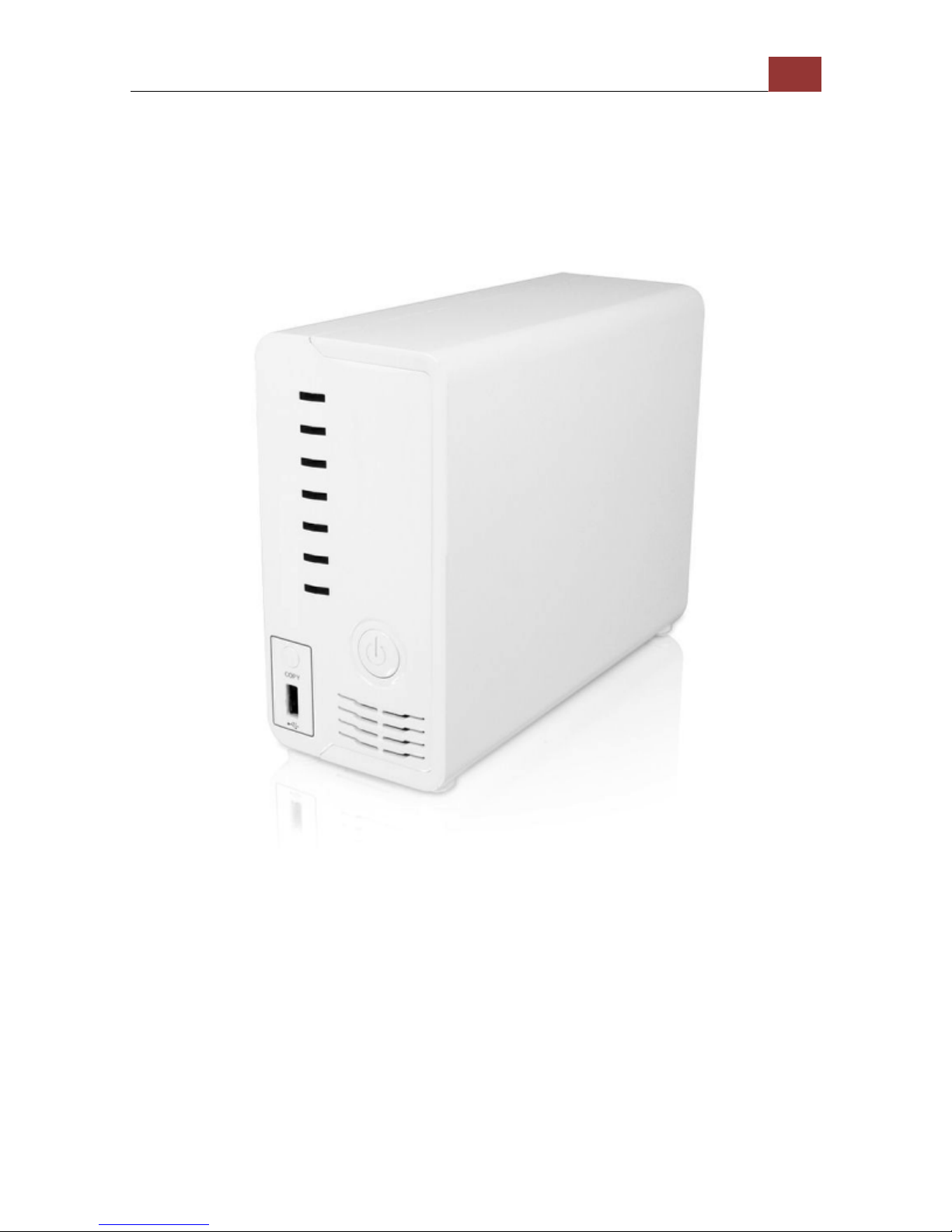

Front View

SVR&204"User"Manual!

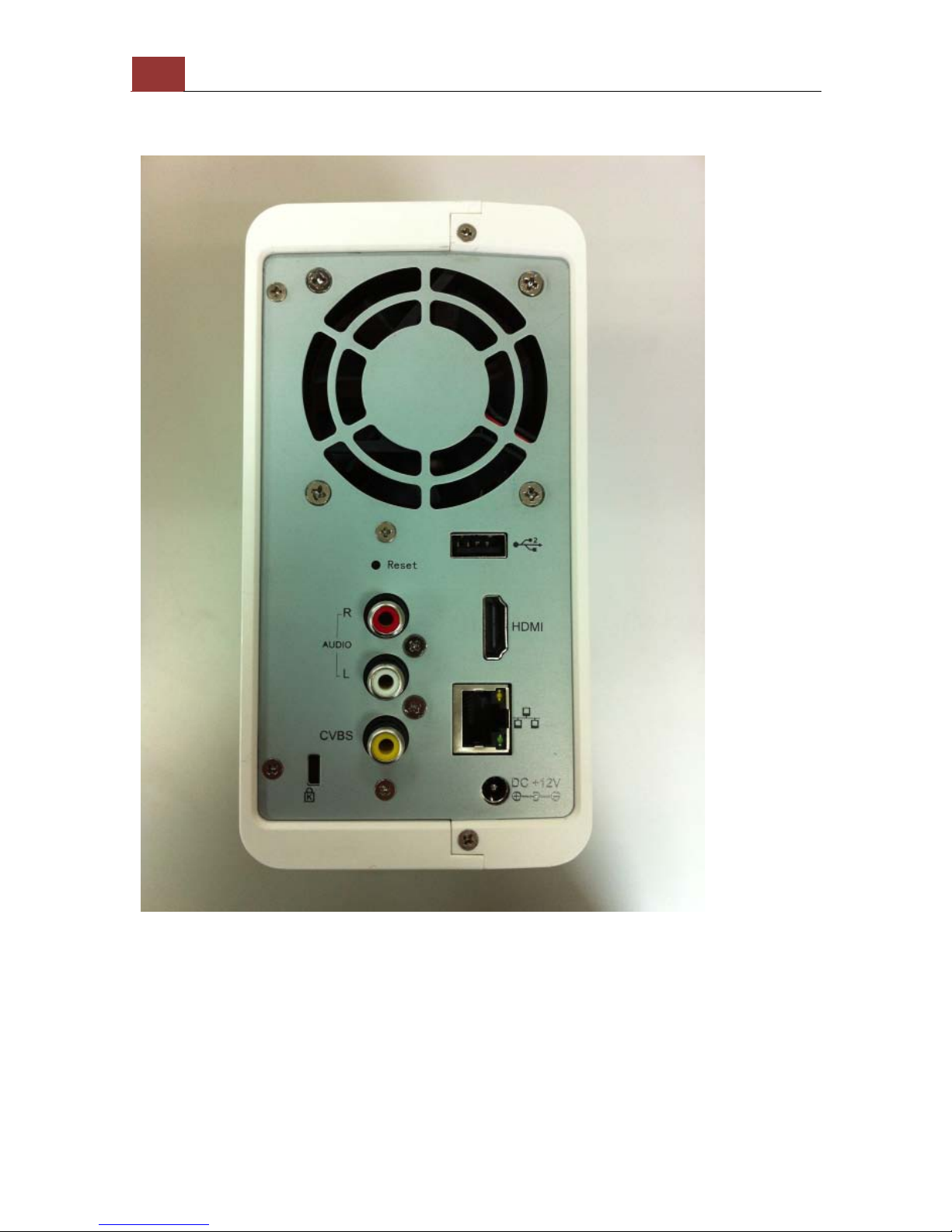

Rear View

SVR&204"User"Manual!

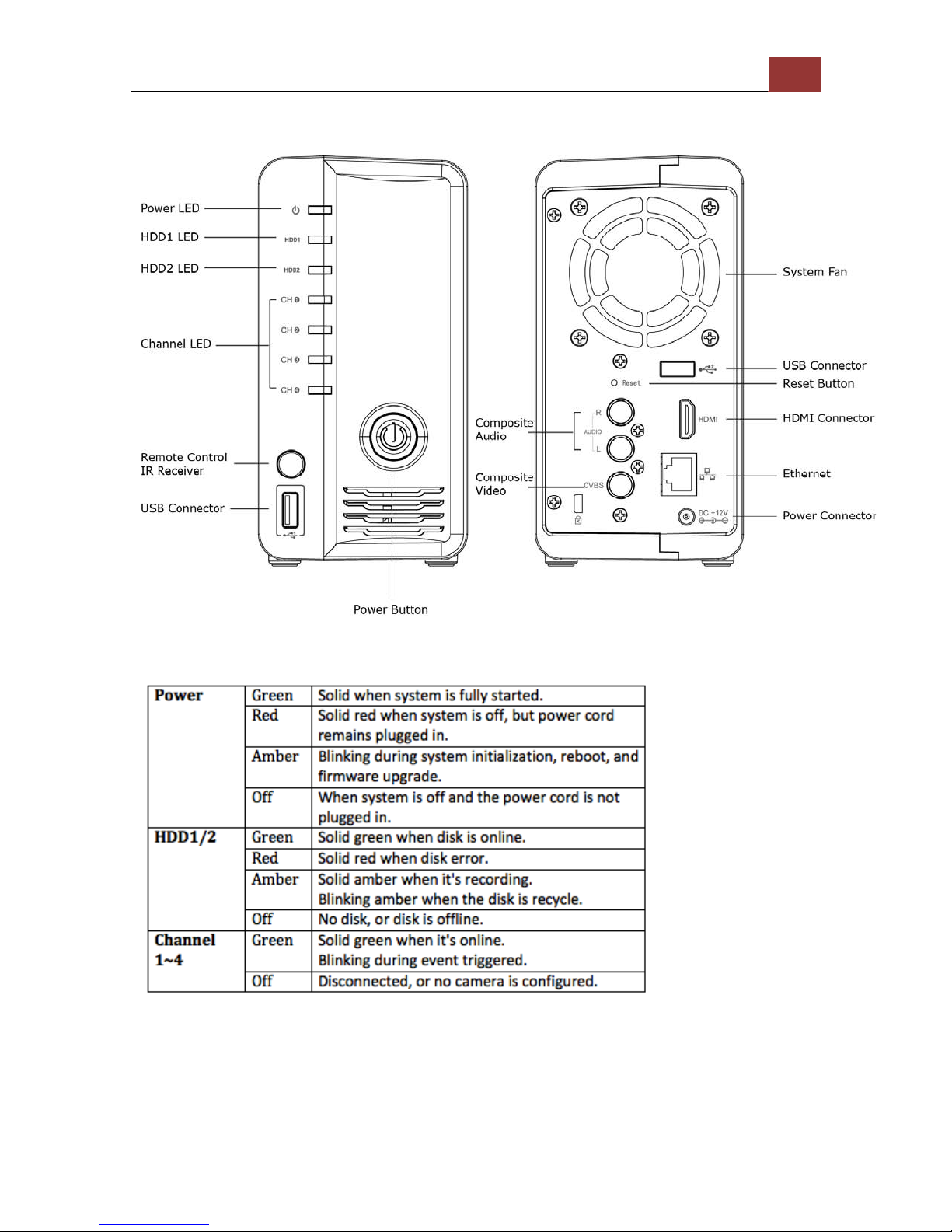

Illustration

LED Definition

SVR&204"User"Manual!

Installation

HDD Installation

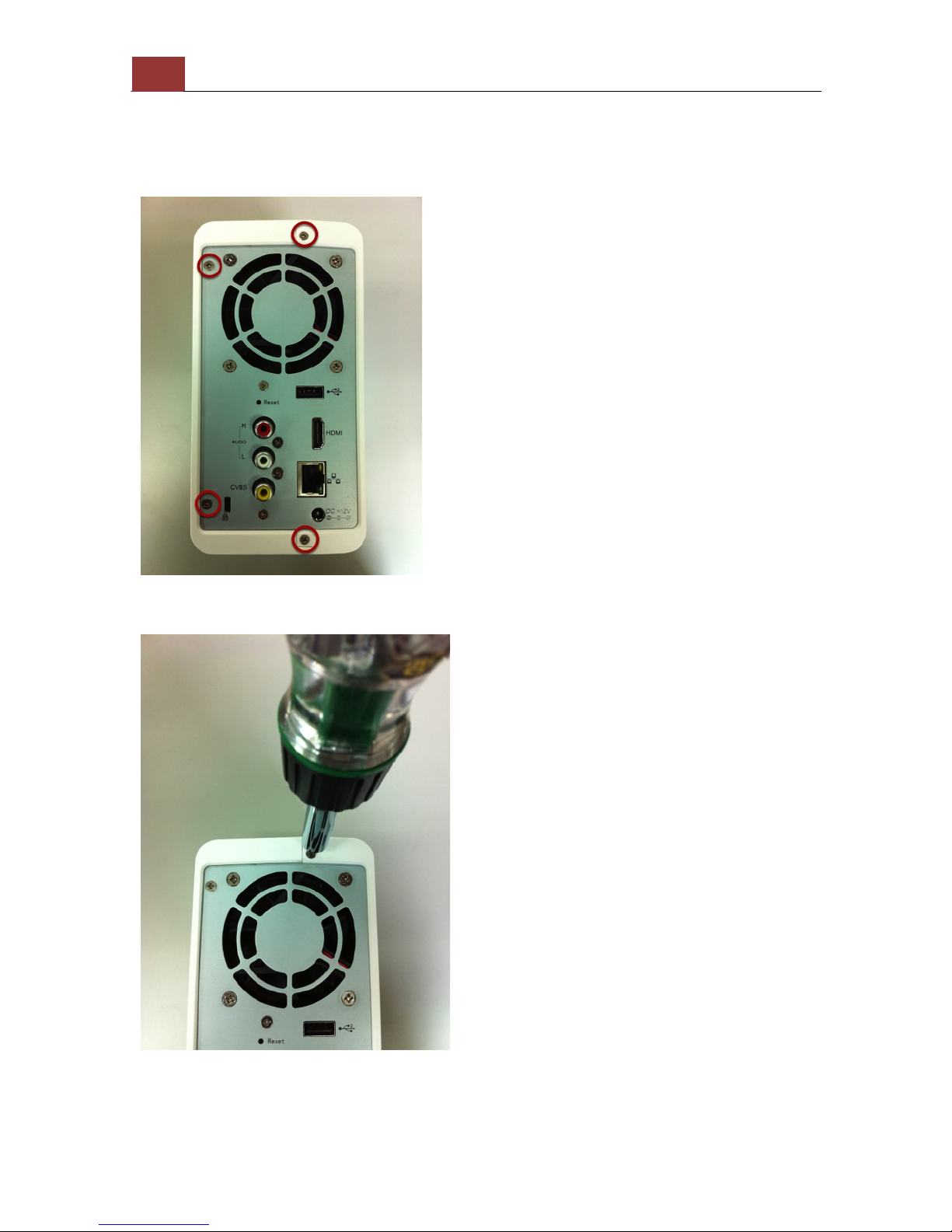

Locate the screws highlighted above on the back of the NVR.

Use a Philips screwdriver to release the screws.

SVR&204"User"Manual!

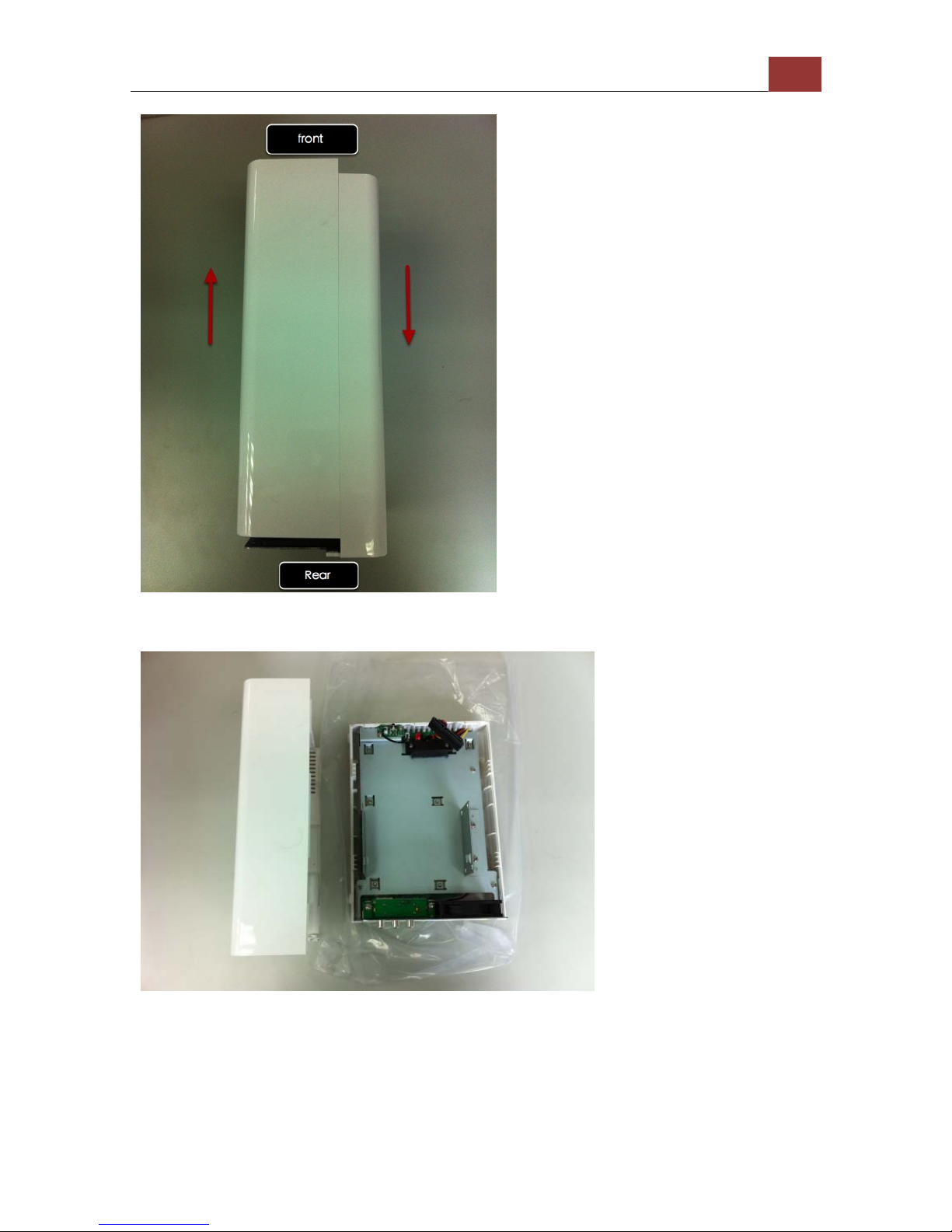

Slide open the case as shown above.

One side of the housing can be detached as shown above.

10"

SVR&204"User"Manual!

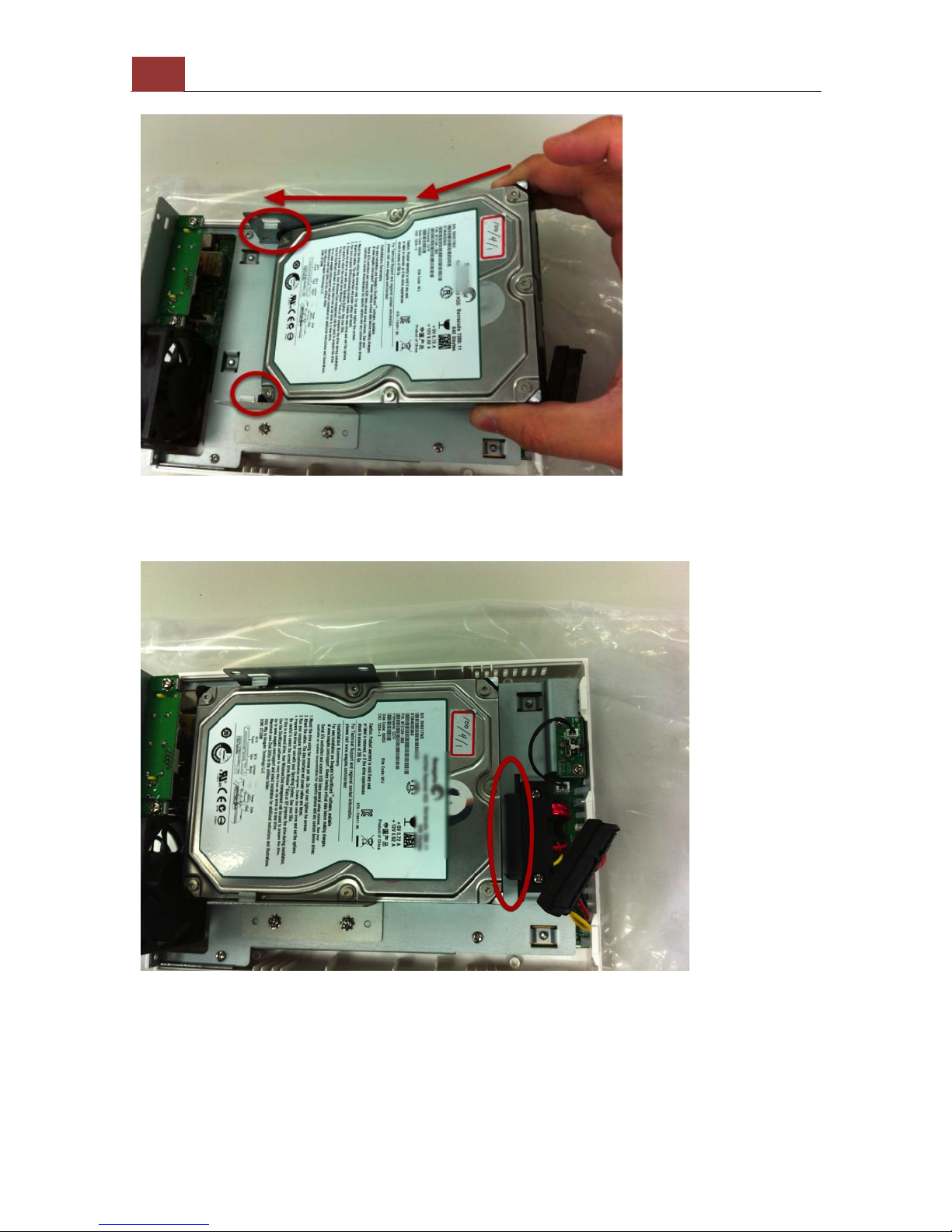

Install the bottom HDD by slide it in to the tray diagonally to avoid the

tray separator.

Once the HDD is placed into the tray, you should see a gap between

the HDD and the SATA connector.
