INSTALLATION MANUAL

ST-D600DN2812-DSHB

Super WDR, 3D DNR True Day & Night

Dome Camera with Heater & Blower

v1.0 1/19/11

PACKAGE CONTENTS

This package contains:

One ST-D600DN2812-DSHB Super WDR dome color camera with heater and blower

One installation manual

Mounting hardware and mounting template

One side cap

Video and external OSD control cable

RS485 terminal block

Note: The ST-D600DN2812-DSHB requires a minimum 12VDC 150mA (no heater or blower)

power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. The camera may also operate at

24VAC 360mA (heater and blower on).

PRODUCT DESCRIPTION

The ST-D600DN2812-HB is a professional grade, WDR (Wide Dynamic Range) day and night

color dome camera designed to provide clear images even under intense back light conditions.

The camera uses a 1/3” SONY Color Vertical Double Density CCD, provides 600TV lines of

resolution in color and 700TV lines in B&W. The ST-D600DN2812-DSHB has a 2.8mm –12mm

lens for wide or narrow viewing. The 3 axis mount, built-in RS485 connection and on-screen

display make this camera very easy to set up. The day and night feature supports low light

illumination down to 0.0008Lux. An integrated heater and blower make this camera perfect for all

weather applications. This is a dual voltage camera that can be powered with either 12VDC or

24VAC, however, 24VAC must be applied to activate the heater function.

SPECIFICATIONS

ST-D600DN2812-DSHB

Specifications (Typical)

1. Image Sensor

1/3” SONY Color Vertical Double Density CCD

2. Scanning System

NTSC

3. Horizontal Resolution

600TV Lines Color, 700TV Lines B&W

4. Synchronization

Internal H/V 15.734/59.94Hz

Line Lock H/V 15.750/60Hz

5. Minimum Illumination

Sens-Up Off 0.12Lux (15IRE), 0.2Lux (30IRE),

0.4Lux (50IRE) F1.2

Sens-Up On 0.0002Lux (15IRE), 0.0005Lux (30IRE),

0.0008Lux (50IRE) F1.2

6. Scanning System

2 :1 interlace

7. Auto Electronic Shutter

1/60s~1/100,000s

8. Auto Gain Control

Automatic Low, Middle, High, Off

9. Lens

Aspherical 2.8 –12mm DC Auto Iris ICR lens

10. S/N Ratio

>52dB (AGC off)

11. Privacy Masking

8 Windows (Polygonal, 8 Colors)

12. Day & Night

Color, B&W, Auto, Ext

13. Motion Detection

On/Off

14. Digital Zoom

X1.0 –x10

15. Gamma Correction

0.45

16. Video Output

1.0Vp-p/75Ω

17. WDR Level

120dB Max.

v1.0 1/19/11

18. Operating Temperature

-4F°- 140°F

19. Operating Humidity

30% -80%

20. Power Supply

DC12V 150mA, AC24V 360mA (blower & heater on)

21. Dimensions

7”x4.5”

22. Weight

2.5 lbs.

INSTALLATION AND OPERATION

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this

unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than

specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 140°F.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Do not mount the camera near a radiator or heater.

f. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

g. Using a power supply other than specified will damage the camera.

h. Only qualified installers are allowed to install, test and disassemble the camera.

i. The camera is a low voltage product. If installed outdoors proper safety and lightening

grounding are required.

This symbol is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electrical shock.

v1.0 1/19/11

4. WIRING CONNECTIONS

DC Power Wiring

AC Power Wiring

v1.0 1/19/11

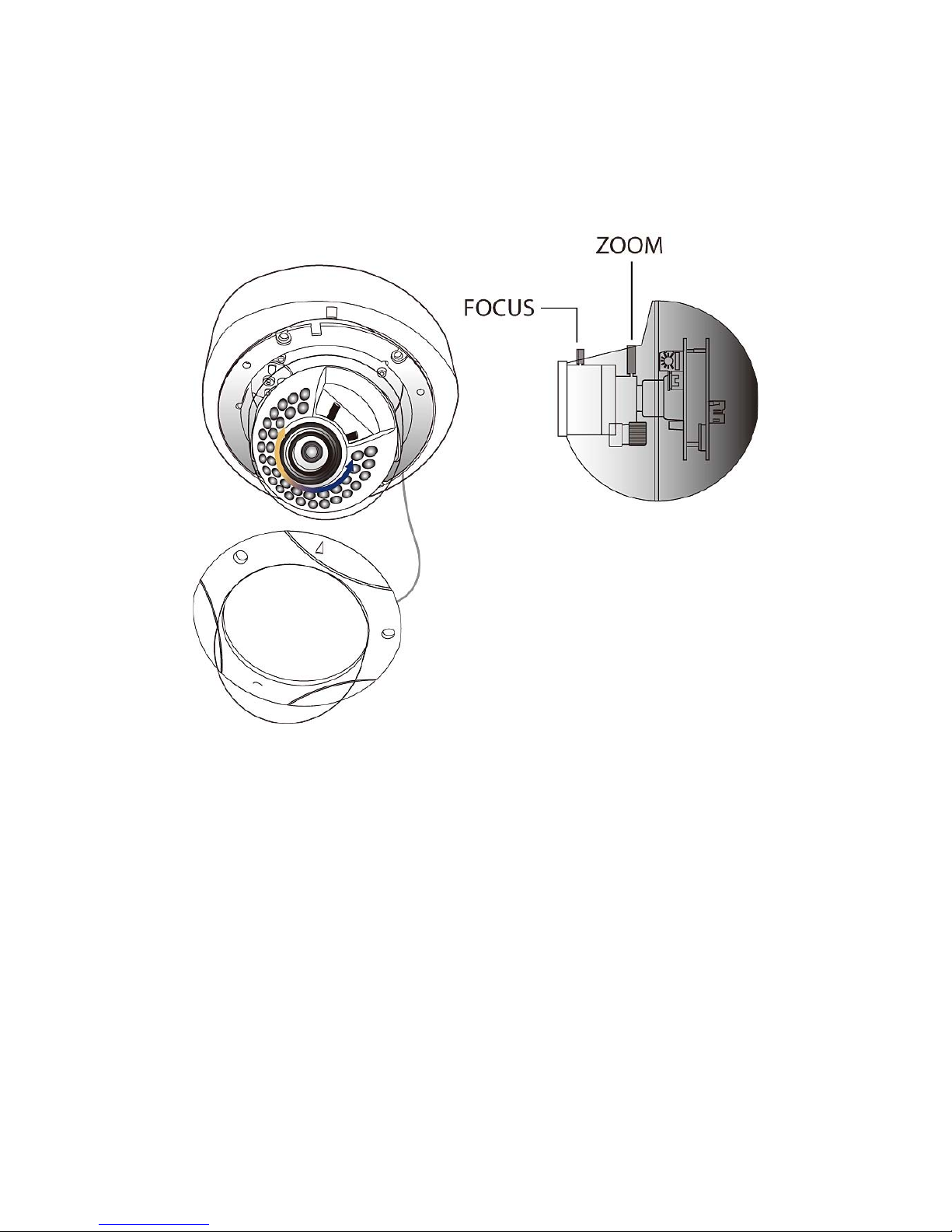

To Adjust the Varifocal Lens

v1.0 1/19/11

5. OSD SETTINGS

Accessing and setting the camera functions are done through the camera’s On Screen Display

(OSD) via the included Video & External OSD Control Cable. A menu item may be selected my

moving the joystick UP, DOWN, LEFT or RIGHT. The selected item may be entered by taping the

joystick.

Warning:

This camera is set for BNC

connections at the factory.

Do not reset the switch to

UTP.

v1.0 1/19/11

OSD SETTINGS

"#$%!

&'(!#"'!

#)%*+,,#-!

.+,/(!012345."6(!01734$,%'6(!!

01033)(333!

8"'!

/$90:;27<(!

/==!

>&-!

/==!

/$!

>&-!"#?#"93:03<!

.@'!

/==(!"/>(!AB&(!*B@*!

%#$%C+5!

.+,/(/==(!A.$+."!4D20;:D;6!

EXPOSURE(

-#,+-$!

>8!A/&#!

.>'(!.,>(!A.$+."(!5+%*!

-C[email protected]$!

8C[email protected]$!

COLOR(

-#,+-$!

&F$!A/&#!

.+,/(!&.E(!$B@*,(!#G,!

"#.&!,BA#!

90)!H)!2)!03<!

8+-%,!

/$(!/==!

DAY&NIGHT(

-#,+-$!

AB--B/!

/$(!/==(!?C="B5(!-/,.,#!

%*.-5$#%%!

93:I3<!

@.AA.!

3)I2(!3)2(!3)7!

=-##J#!

/==(!/$!

$#@.!

/==(!/$!

H&C&$-!

/==(!"/>(!AB&(!*B@*!

&)J//A!

/==!

/$!

J//A4G0)3:G036!

5.$4C0;K:0;L6!

,B",4C0;K:0;L6!

%*/>!5/%4/==(/$6!

"%'!

/==(!

/$93:23<!

#'"B5%#!

/==!

/$!

%#,!"#?#"9"/>(!AB&(!*B@*<!

*BCB$?9/==(!/$<!

&B%!

/==(!/$!

FUNCTION(

-#,+-$!

A/,B/$!

/==(!/$!

%#,!>B$&/>%!

.""!%#,!

.""!'"#.-!

%#$%B,B?B,E!

%*/>!

/==(!B'/$(!

,-.'#!

&#".E!,BA#!

90:02<!

MOTION(

-#,+-$!

A.%M0!

/==!

PRIVACY(

/$!

%#,!>B$&/>%!

v1.0 1/19/11

-#&(!A.@#$,.(!E#""/>([email protected]<!

A.%MK!

/==!

/$!

%#,!>B$&/>%!

-#&(!A.@#$,.(!E#""/>([email protected]<!

(

-#,+-$!

%E$'!A/&#!

.+,/(!B$,#-!

?C5*.%#!

93:0NN<!

SYNC(

-#,+-$!

.&&-#%%!

93:;2I<!

8.+&!-.,#!

9;I33:!

HKI33<!

5-/,/'/"!

5#"'/C&!

COMMUNICATION(

-#,+-$!

,B,"#!

/==!

/$!

#&B,!

-#%#,!

5/%B,B/$!

".$@+.@#!

#$@!

&5'!

/==(!.+,/!

=B",#-!

8"+#(!-#&!

SPECIAL(

-#,+-$!

%.?#F#GB,!

=.',/-E!%#,!

#GB,!

EXIT(

-#,+-$!

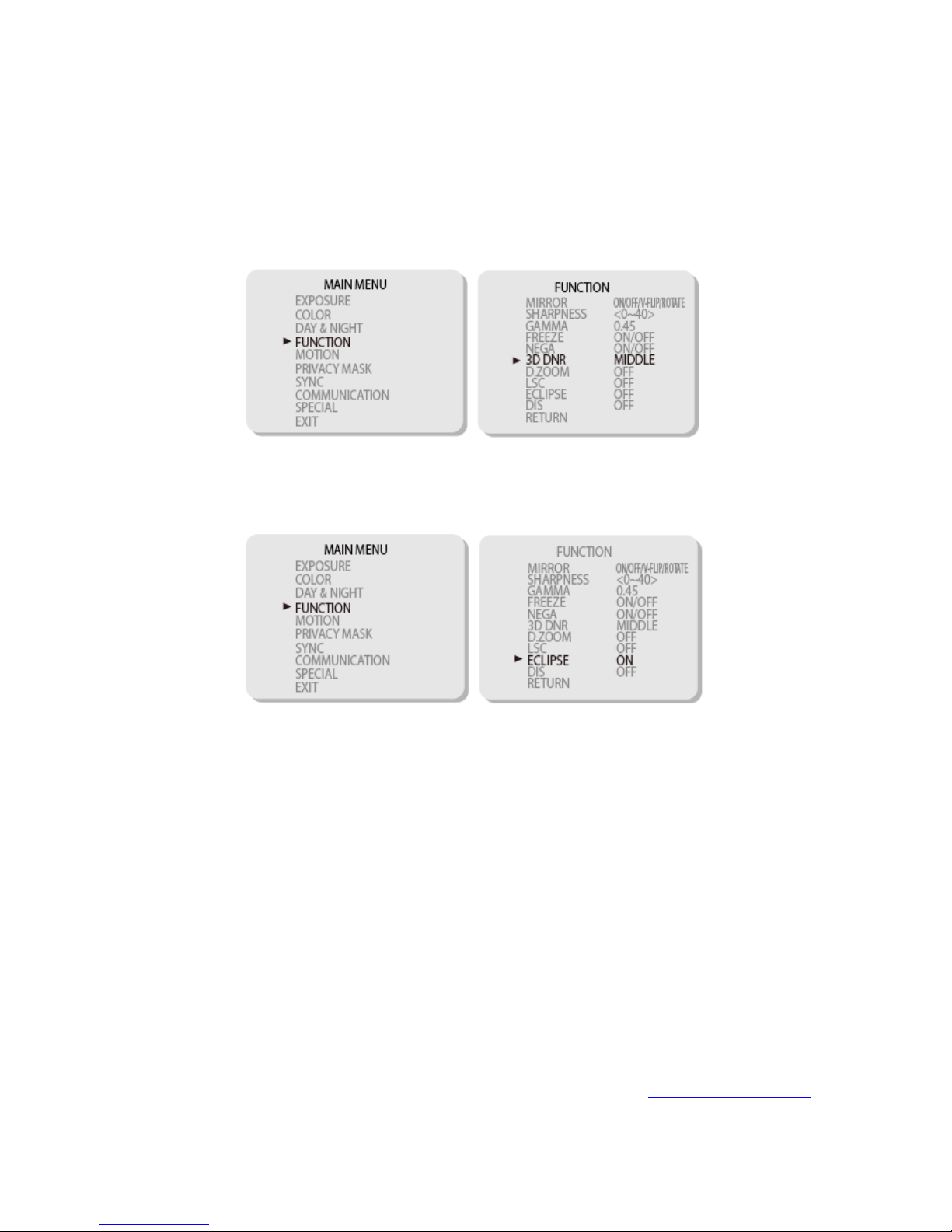

6. WIDE DYNAMIC RANGE, WEIGHT, 3D-DIGITAL NOISE REDUCTION and ECLIPSE

Wide Dynamic Range (WDR) allows the capturing of images at all light levels. The camera offers

10 WDR levels selectable through the settings menu.

WDR Low Level (0 –3): WDR mode for general or low light conditions.

WDR Middle Level (4 –7): WDR mode for medium light conditions.

WDR High Level (8 –10): WDR mode for strong or bright light conditions.

Factory default is WDR Low Level 0 with the WDR mode set to ON.

v1.0 1/19/11

Weight levels allow a dark area to become brighter. A lower Weight level is selected for a darker

condition while higher levels are for increased brightness.

3D-Digital Noise Reduction (DNR) reduces the background noise in a low luminance

environment. Upgraded 3D filtering ensures an even more clear image. Per the menu settings:

DNR Level High –The image is clearer, but the potential of a ghost image is increased.

DNR Level Low –The image is less clear, but the potential for a ghost image is reduced.

The Eclipse function is used to recognize detail under strong light conditions (e.g., to recognize a

vehicle license plate number when the ambient light is stronger than the vehicle’s headlight). Note

the ECLISPE mode should be off while using the WDR ON.

7. TROUBLESHOOTING

a. No picture after applying power –(i) check all plugs and cables are securely

connected to the proper connectors; (ii) ensure your power supply is providing the

correct voltage and current.

b. The picture has ripples –(i) check to see if the power supply is experiencing AC ripple,

if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if

other peripheral equipment is causing ripple and if so make the necessary

adjustments.

c. The picture background continuously changes color –a fluorescent lamp’s magnetic

field may cause color roll, therefore, reduce the number of fluorescent lamps or

increase the distance between the camera and the lamps.

d. The picture appears smeared –(i) the power supply voltage level may be unstable,

therefore, try another power supply; (ii) ensure the cables are correctly connected

and/or the cables are of the correct impedance.

e. Other interference may require a SecurityTronix ground loop isolation filter.

f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com

in addition to support from SecurityTronix sales engineers at 1-610-429-1511.
