SecurityMan SM-823T Manuel utilisateur

2.4GHz Wireless Outdoor/Indoor

Color Camera (Night Vision/Audio) User Guide (SM-823T)

Thank you for purchasing 2.4GHz Wireless Color Camera with night vision and audio.

This is a convenient wireless outdoor/indoor security camera for home or business use.

1 x Wireless outdoor/indoor color camera (SM-823T), antenna and mounting hardware

1 x 12V power AC adapter

Package Contents

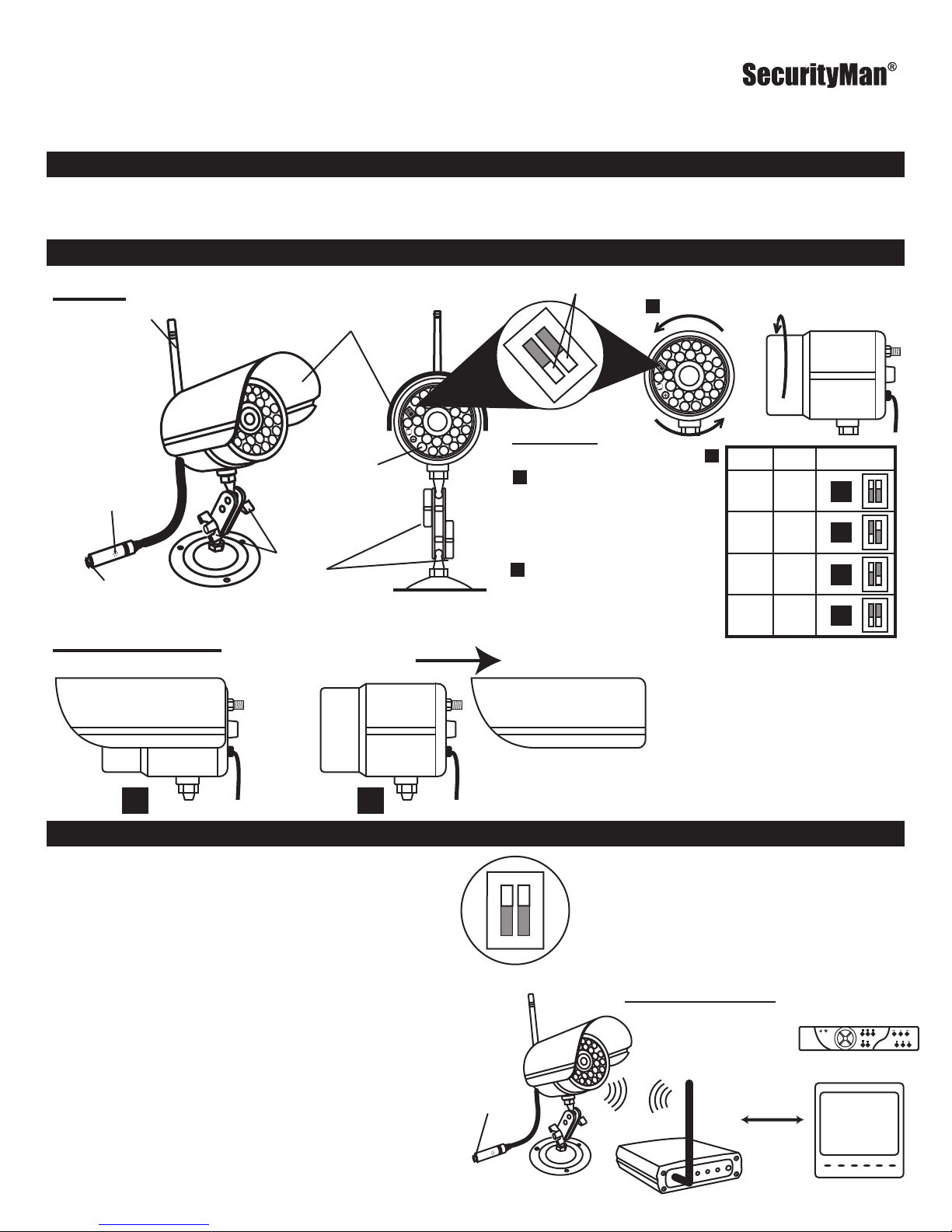

Hardware Basics

Setting up the Camera and Receiver

Antenna

Camera

Power Jack

Microphone

Built-in

(not weather-

proof, for indoor

use only)

Bracket

(with 2 adjustable

viewing angle)

Sunshade

Dip-Switch

ON GDH02

Infrared LEDs

for night vision

ONGDH02

ON GDH02

1 2

1 2 Channel

ON ON 1

ON GDH02

1 2

OFF ON 2

ON GDH02

1 2

ON OFF 3

ON GDH02

1 2

OFF OFF 4

To adjust the dip-switch

channel for the camera,

unscrew to remove the

front portion of the camera

Use a pointed object to

set the dip-switch to

desired channel

For outdoor use, you should

attach the sunshade to reduce

sun reflection (A). For indoor

use, please detach the sunshade

from the camera to prevent

dark images. (B)

Setting up the Camera

1) Set the camera to desired Dip-Switch Channel

2) Place the camera at desired location.

3) Plug the power adapter jack into the power jack

4) Plug the power adapter to any DC outlet

5) Mark down the Dip-Switch Channel of each camera.

(The receiver will receive signal from camera’s

corresponding Dip-Switch Channel and display in

different channels. For example, Channel 1 on the TV/

Monitor will display the image from Camera 1 only).

Setting up the Receiver to match

camera's frequency

Press the Channel Switch button until the LED channel

indicator light match to the camera's frequency.

*Please refer to the receiver manual for more information

ON GDH02

ONGDH02

unscrew to remove the

front portion of the camera

Camera Sunshade

A B

A / V Cable

Receiver

Camera Installation Diagram

TV/ Monitor

VCR/DVR

adapter

CH4CH3CH2CH1SET

Note: The SM-823T camera’s Dip-Switch

setting has been preset to Ch1. Please

set it to different channel when multiple

wireless cameras are used.

Switch
