SecurityMan BoxCam-I Manuel utilisateur

SecurityMan

BoxCam-I

Auto lris color CCD Camera kit

w/Night Vision

This manual is furnished under license and may be used or copied

only in accordance with the terms of such license. Except as

permitted by such license, no part of this publication may be

reproduced, stored in a retrieval system, or transmitted, in any form

or any means, electronic, mechanical. Recording, or otherwise,

including translation to another language or format, without the

prior written permission of SecurityMan. The content of this manual

is furnished for informational use only, is subject to change

without notice, and should not be construed as a commitment by

SecurityMan. SecurityMan assumes no responsibility or liability for

any errors or inaccuracies that may appear in this book. All other

product names, trademarks and registered trademarks in this

document are the properties of their respective holders.

FCC Information

Notes on FCC’s “Consistent Statement of Information” This product

meet the requirements specified in Part 15 of FCC Regulation.

Operation rests with the following two conditions:

(1) The equipment should not cause any harmful interference.

(2) The equipment must receive and process any interference,

Including any possible interference caused by operation

Mistakes.

Warranty

SecurityMan warrants this product will be free from defects in

materials and workmanship for period of time specified on the

product packaging. This limited warranty shall commence from the

date of purchase. SecurityMan Products warranty is not transferable

and is limited to the original purchaser. If the product is found to be

defective then, as your sole remedy and as the manufacturer’s only

obligation,SecurityMan will repair or replace the product. This

warranty shall not apply to products that have been subjected to

abuse, misuse, abnormal electrical or environmental conditions,

normal wear and tear or any condition other than what can be

considered normal use.

Limitation of Liability

The liability of SecurityMan arising from this warranty and sale shall

be limited to a refund of the purchase price. In no event shall

SecurityMan be liable for costs of procurement of substitute

products or services, or for any lost profits, or for any consequential,

incidental, direct or indirect damages, however caused and on any

theory of liability, arising from this warranty and sale. These

limitations shall apply not with standing any failure of essential

purpose of any limited remedy

SecurityMan

4601E.Airport Drive, Ontario,CA91761, USA

Tel: 888-977-3777 or 909-230-6668

Email: info@securitymaninc.com

Fax: 909-230-6889

Website: http://www.securitymaninc.com

For Customer Service：888-977-3777

Contents

SM－308 Camera Features 5

Package List 6

Diagram 6

Product Basics 7

Installation 8

Caution 9

Specification 10

Warning 11

Troubleshooting 12

Package Contents

EU Environmental Protection 12

Package Contents

User's Manual

• SM－308 box camera day/night with 4mm auto iris lens

• Wall－mount metal bracket

• 12 VDC power adapter (UL)

• 60ft VP cable

•

SM－308 Camera Features

• clear indoor color camera with 1/3” SHARP CCD sensor

(better than ¼ and CMOS sensor).

• 4mm auto iris lens provides clear picture quality when the camera

is shooting toward window or door areas where light often changes.

• Built-in 14 infrared leds for night vision(B/W)

• Convenient all-in-one D. I . Y.(do-it-yourself) kit.

Crystal

Secu rityMa n

Box Ca m-1

Au to lr is co lo r CC D Ca me ra k it

w/ Ni gh y Vi si on

Package List

Diagram

Camera adapter BoxCam-I

BoxCam-IOutput to TV or Recorder

4mm camera w/ mounting bracket 60ft BNC Cable

12VDC adapter for camera User’s Manual

BNC Output And/Or

Product Basics

1／3＂Color

CCD 4mm Lens

Metal mounting

bracket

BoxCam－l

Electric aperture-Use EE if Al is producing

(default setting)

too much lights

Automatic Iris

Video Driver -This is a DC driver camera,

do not use this setting

Direct Currency Driver (default setting)

Light Level-Do not use metal tip material

to adjust the light level, to adjust please

use plastic material

BNC Video Output

For Auto Iris Lens

Power Light Indicator

Power DC Input

EE:

AI:

VIDEO:

DC:

LEVEL:

VIDEO OUT:

PL:

12V DC IN:

1~4 (Auto Iris):

BoxCam-I

EE AI

VIDEO

LEVEL

VIDEO OUT

12V DC IN

－＋

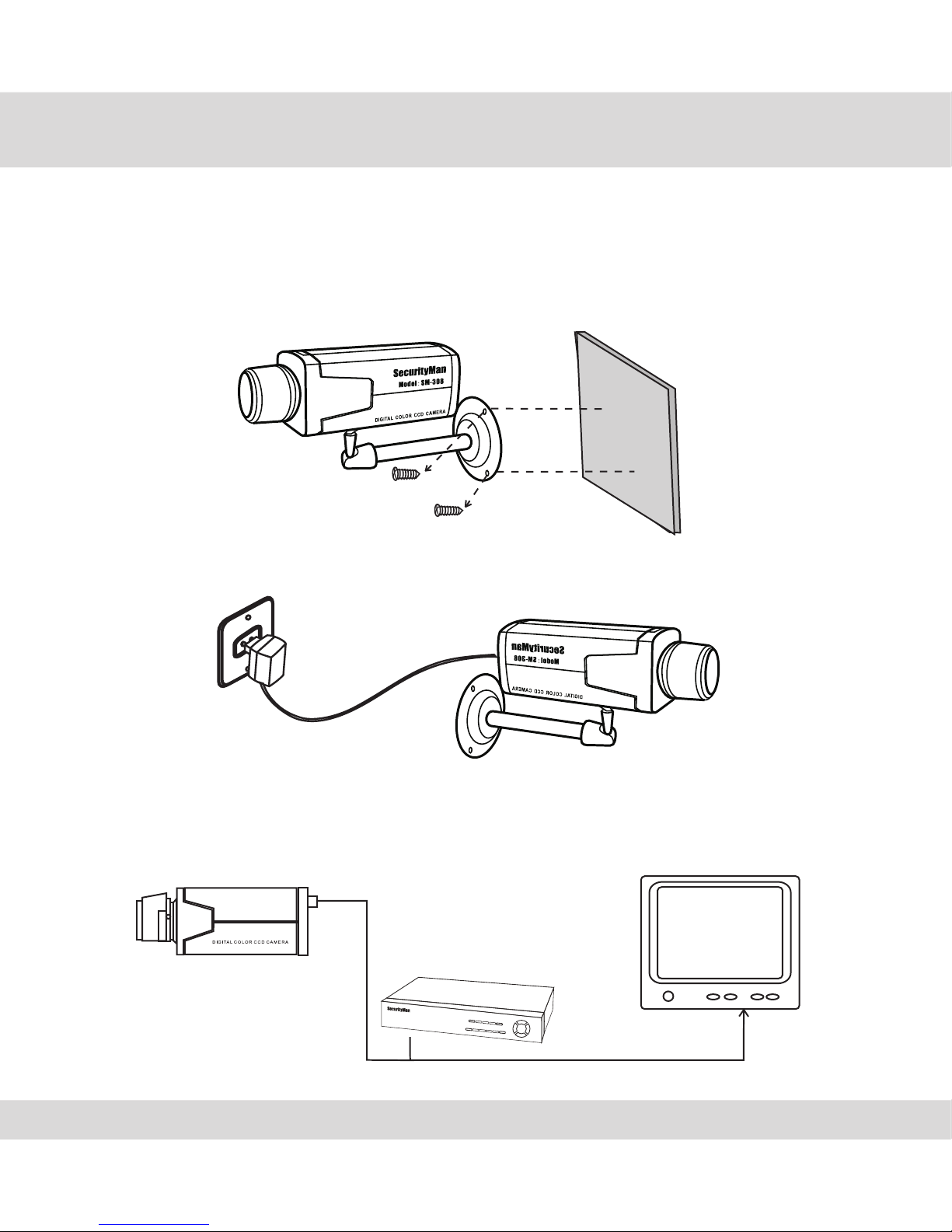

Installation

1. the camera to a desired , mount it with provided

screws and then adjust for a suitable angle.

2. Connect the power adapter to the camera and power outlet.

3.Connect the VIDEO OUT to a recorder or monitor/

cable．

Note: if recorder or monitor/TV has RCA connector type, an additional

female BNC to male RCA adapter may require.

Position location the

TV with "BNC"

Caution:

1) Please keep the lens, IR lights, and sensor window clear to

prevent IR sensor from malfunctioning.

2) Avoid projection angles where there are bright background

lighting.

3) Operate by using the included AC adapter with 12VDC 500mA,

positive inside.

4) Use under condition where the temperature is below 122

degree Fahrenheit.

5) Do not use strong or abrasive detergent when cleaning the

camera.

Specification

Image Pick-up Device

Effective Picture Elements

Horizontal Resolution

S／NRatio

Auto Electronic Shutter

Back Light Compensation

Gain Control

White Balance

Gamma Correction

Lens Furnished

Viewing Angle

Synchronous System

Video Output

Power Supply

Operating Temp.

IR LED

IR Night Vision Range

Camera Dimensions

Weight （Net／Gross)

SHARP 1／3＂Color CCD

NTSC：512X492，PAL：512X582（option）

0Lux with IR on (night time);

0.8Lux with IR off

More than 48 dB

NTSC：1／50s~1/100,000s

PAL: 1/60s~1/110,000s

Automatically

Automatcally

Auto tracking(2500K~9500K)

R>0.45

4mm auto iris lens/CS F1.4 (detachable)

Internal

1Vp-p Composite Video/75 Ohms.

12V DC／300mA(AC 110v~220v),UL

14 Units of 850nm IR LED

30~35ft

120（L）X55（w）X48(h)mm (4.7”x2.2”x1.9”)

394g（camera itself with lens)/2.75Ibs

420 horizontal TV lines

Minimum IIIumination

SM－308 －ICamera

o o o o

-20 C to 50 C (-4 F to 122 F)
