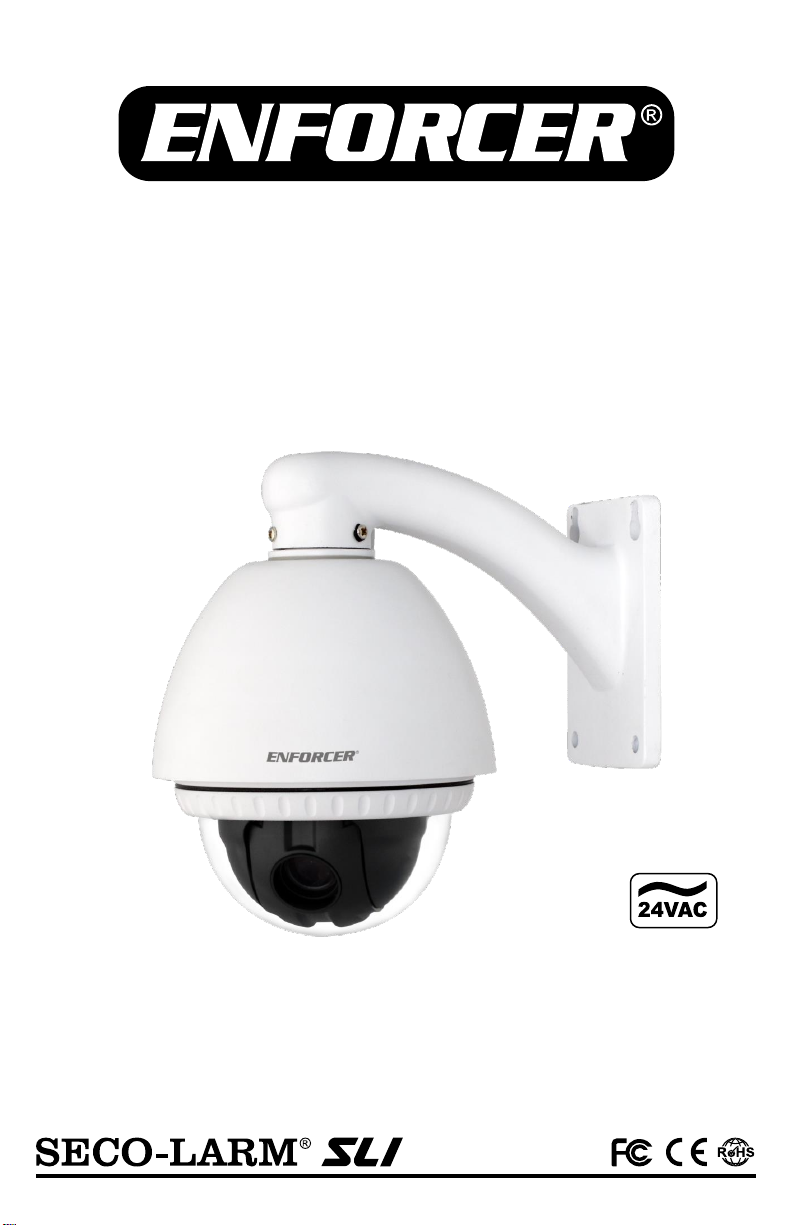

SECO-LARM ENFORCER EV-7605-NYWQ Manuel utilisateur

NOTE: Products with a model number that ends with “Q” or have a round green “Q” sticker represent RoHs compliant products.

EV-7605-NYWQ (NTSC)

EV-7605-PYWQ (PAL)

Mini PTZ Camera

Manual

12x Optical zoom and 16x digital zoom

Up to 192x zoom

Up to 360°/sec pan/tilt motion

Outdoor or indoor use

Up to 256 preset target views, each with

its own characteristics such as white

balance and auto exposure

Up to 90° tilt, up to 180° with auto-flip

ENFORCER Mini PTZ Camera

2SECO-LARM U.S.A., Inc.

Table of Contents:

Introduction .....................................................2

Features and Functions ..................................3

Parts List .........................................................4

Specifications..................................................4

Pan/Tilt Settings..............................................4

Dimensions .....................................................5

Safeguards and Precautions...........................6

Overview .........................................................7

Camera Address DIP Switch and

Communication Protocol Setup ......................7

Installation .......................................................8

Pre-operation Checklist...................................9

Understanding and Operating Preset

and Pattern Functions...................................10

Configuring Mini PTZ Camera with

Enforcer DR-1 Series DVR ...........................11

Reserved Presets..........................................12

Configuration Defaults...................................12

OSD Display..................................................13

Operating the OSD Menus............................13

Menu Diagrams.......................................14~16

System Information Menu .............................17

Addr Setting Menu ........................................ 17

Motion Menu ...........................................18~19

Pattern Menu ................................................ 19

Camera Menu .........................................20~21

Motion Detect Submenu ............................... 22

Focus Submenu............................................ 23

Exposure Submenu ...................................... 24

Special Submenu....................................25~26

Cruise Setting Menu ..................................... 27

Password Menu ............................................ 27

Display Setup Menu...................................... 28

Windows Blanking Menu .............................. 28

Alarms Setting Menu .................................... 28

Preset Label Menu........................................ 29

Restore Factory Default Menu...................... 29

Reboot System Menu ................................... 29

Preset Worksheet ......................................... 30

Installation Notes .......................................... 31

Troubleshooting ............................................ 32

Also Available from SECO-LARM................. 32

FCC Compliance Statement......................... 32

Warranty ....................................................... 32

The ENFORCER Mini PTZ Camera is a compact full-featured PTZ (pan/tilt/zoom) CCTV camera. In as little

as one second, the camera can pan a full 360 degrees, tilt up to 90 degrees, or auto-flip 180 degrees. It also

features an optical zoom of up to 12x and a digital zoom of up to 16x, providing a clear view of the entire

protected premises. The 1/4”Interline Transfer CCD provides high-resolution, 600 TV Line images in light as

low as 0.2 Lux for color use and 0.04 Lux for black and white use. A small size and a wide range of

mounting brackets make the ENFORCER Mini PTZ Camera ideal for almost any installation.

The Mini PTZ Camera is controlled with a keyboard controller or a DVR that uses RS-485 for

communicating between the devices.

Introduction:

ENFORCER Mini PTZ Camera

SECO-LARM U.S.A., Inc. 3

Powerful and Flexible: The ENFORCER Mini PTZ Camera is equipped with a 1/4”CCD, a powerful Day

and Night function with mechanical ICR, up to 192x zoom (max. 12x optical zoom and 16x digital zoom),

multiple focus modes, and other fully programmable features.

Pan/Tilt Functionality: The camera features 360° endless pan motion and 90° tilt. It can be programmed

to automatically flip the image if it tilts under the unit. The pan/tilt function uses vector drive technology to

quickly move to the target while ensuring the view on the monitor flows smoothly.

On-Screen Display (OSD): The On-Screen Display shows camera status and settings together with the

preset target views.

A Wide Range of Programmable Options:

Up to 256 preset target views, each with its own characteristics such as zoom and lens angle

Up to four patterns for moving the camera as if it were controlled by a joystick

Up to eight privacy masks which can be increased or decreased in size to cover certain areas to

protect privacy

Frame scan between two preset positions

Preset cruise for scanning between the first twenty presets

Reserved Presets: Certain camera characteristics can be specified by using reserved preset

configurations instead of individually configuring those characteristics.

Standard PTZ Control: Works with Pelco-D or Pelco-P compatible controllers via an RS-485 connection.

Auto-Flip: Vertically inverts the image if the camera tilts below its center.

Parking Action: Should no operator-activated or automated camera action occur during a specified time

(programmable from 15 to 250 seconds), the camera automatically moves to a pre-determined preset

position or any pre-programmed pattern, frame scan, or other scan function.

Smart Power-Up: The camera automatically moves to a pre-determined preset position or any pre-

programmed pattern, frame scan, or other scan function on power-up.

Window Blanking: Up to eight privacy masks can be created to cover certain areas or objects such as

windows or private houses. The masks can be adjusted for size. When the camera moves past such areas

or objects, the mask automatically covers them.

Semi/Auto Focus: The focus for each preset location is manually set, and the camera automatically uses

that focus when it moves to a preset location. During jog operations, the camera uses auto focus. The shift

between semi-auto and auto focus occurs automatically.

Features and Functions:

ENFORCER Mini PTZ Camera

4SECO-LARM U.S.A., Inc.

1x Camera 4x Short screws (for attaching camera to bracket)

1x Wall-mount bracket 4x Long screws (for attaching bracket to wall)

1x Manual 4x Screw anchors

1x Wire harness extension cord

Parts List:

EV-7605-NYWQ

EV-7605-PYWQ

Type

Mini PTZ Camera

CCD

¼” Interline transfer

Resolution

600TVL

Video output format

NTSC

PAL

Effective pixels

768x494 pixels

752x582 pixels

SSNR (Noise Reduction)

Low, middle, high, off

SSDR (Dynamic Range)

Off, on

Day/Night

Auto, Color, B/W (ICR)

OSD Control

RS-485

Protocols

Pelco-D, Pelco-P (automatic)

Scanning system

2:1 Interlace

Sync

Internal/Line-Lock

Video output

1.0Vp-p Composite video, 75Ω

Lens

3.94~46.05mm

Zoom

12x Optical / 16x Digital

Minimum illumination

Color: 0.2 Lux / B/W: 0.04 Lux

Gamma correction

Default

S/N Ratio

52dB (AGC Off)

DSS (Digital Slow Shutter)

x2~x512

Shutter control

1/60~1/120,000 s

Gain control

Off, Low, Middle, High, Manual

White balance

ATW, AWC, Indoor, Outdoor, Manual

Operating voltage

24VAC

Power

Consumption

Camera only

Camera w/ fan

10W

Camera w/ fan and heater

20W

IP Rating

IP66

Operating temperature

-4°F~131°F (-20°C~55°C)

Dimensions

413/16”x7”x413/16” (122x180x122 mm)

Cable length

31.5” (80cm)

Weight

42.3-oz (1.2kg)

Specifications:

Range

Pan

360°

Tilt

180°

Pan/Tilt Speed

Preset

Up to 360°/s

Manual

0.05~360°/s (proportional to zoom)

Swing

1~180°/s

Presets

Max. 256 presets (Label, camera image setting)

Patterns

Max. 4 patterns

Pan/Tilt Settings:

ENFORCER Mini PTZ Camera

SECO-LARM U.S.A., Inc. 5

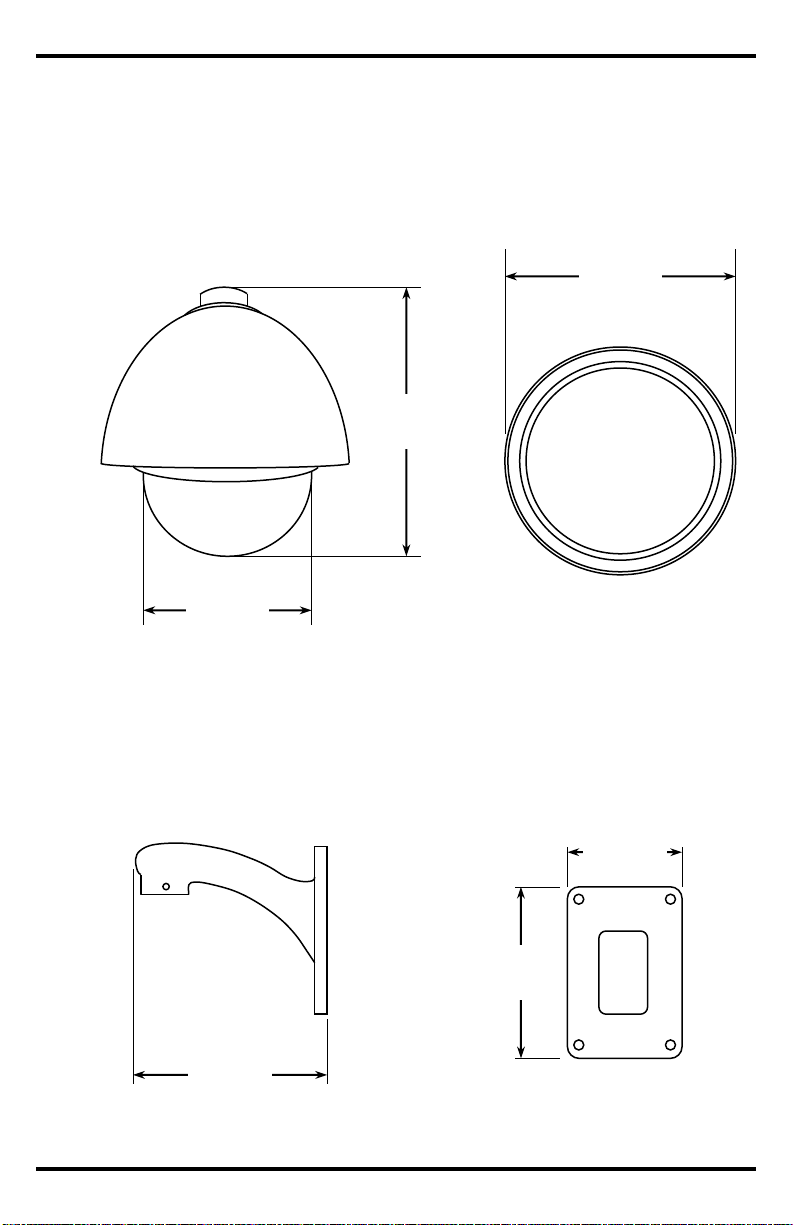

Camera

Wall-Mount Bracket

Dimensions:

6”

(152mm)

31/8”

(80mm)

411/16”

(119mm)

61/2”

(166mm)

Side

Bottom

Side

Bottom

413/16”

(122mm)

7”

(180mm)

ENFORCER Mini PTZ Camera

6SECO-LARM U.S.A., Inc.

Before Starting:

1. Please read this manual carefully and keep it for future reference.

2. Use the camera within given temperature and electrical limits.

3. Do not point the camera at the sun. Heat could damage the camera, even when not in use.

4. Do not expose the camera to rain or moisture.

5. Do not install the camera in dusty or humid environments.

6. Do not mount the camera in areas exposed to radiation, strong magnetic fields, or strong electrical

signals.

7. Do not open or disassemble the camera. There are no field-serviceable parts inside.

8. Do not drop the camera or subject it to strong vibrations.

9. This camera is VERY HEAVY. To prevent injury to the installer or the client, do not mount it on an

unstable or improperly supported surface. When mounting, only use brackets or other mounting devices

that are recommended in this manual.

Operation Precautions:

1. Only use regulated power supplies with voltage and minimum current output per the specifications of

this camera.

2. If the camera gets hot or starts smoking while in use, disconnect the power immediately and contact the

professional installer or dealer.

Cleaning Precautions:

1. Periodically clean the dust off the entire camera with a slightly damp (NOT WET) cloth. DO NOT USE

chemical cleaners.

2. Do not move the camera while cleaning, as this could change the angle of the view.

3. If the dome cover becomes dusty, carefully clean using a slightly damp (NOT WET) cloth. DO NOT USE

chemical cleaners. DO NOT SCRATCH the dome, as this will affect the quality of the video image.

Safeguards and Precautions:

ENFORCER Mini PTZ Camera

SECO-LARM U.S.A., Inc. 7

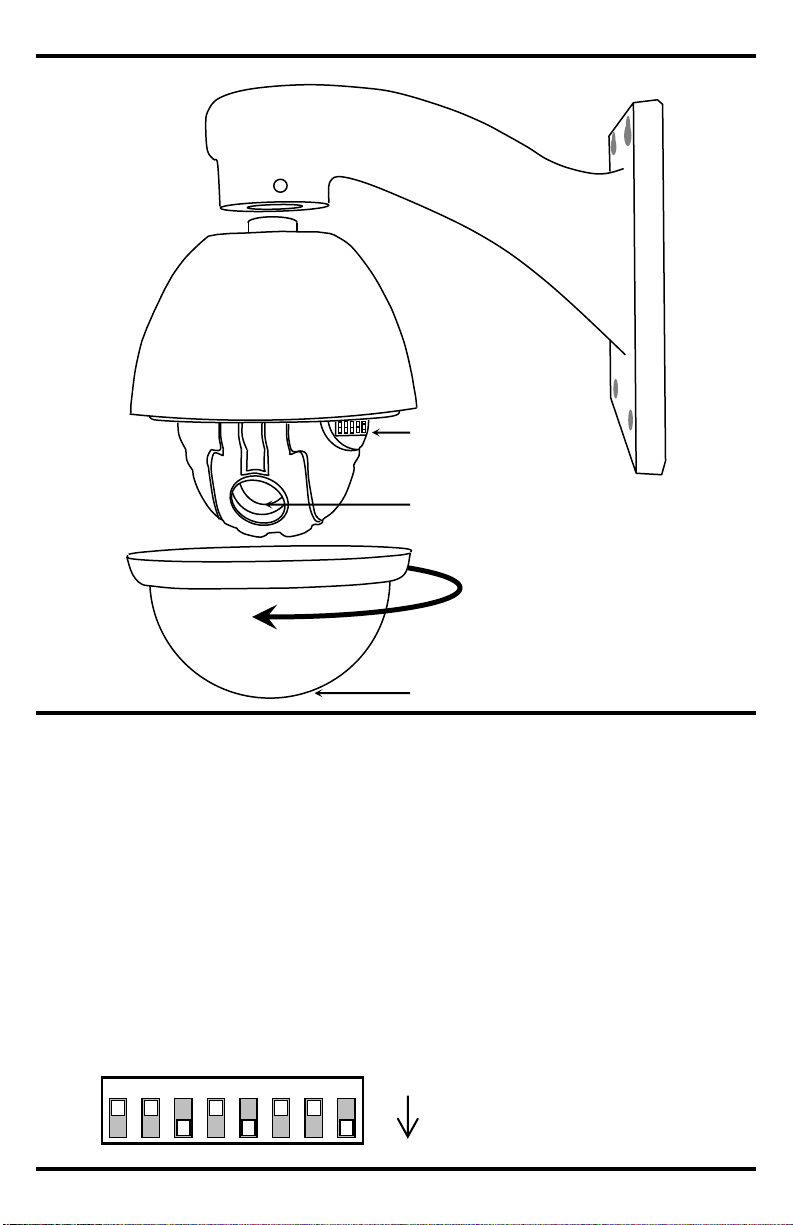

Overview:

Before the Mini PTZ Camera is installed, first set up the DIP switches to configure the camera address. The

communication protocol is configured automatically by the camera.

1. Remove the clear dome of the Mini PTZ Camera by turning it counterclockwise by hand.

2. Look for the DIP switch block near the base of the black plastic dome that surrounds the camera. DO

NOT REMOVE THE BLACK PLASTIC DOME.

3. Set the camera address (8-pin DIP switch):

The camera address is a number from 1 to 255. The factory default camera address is "1".

Do not use "0" as a camera address.

The address of a particular camera must match the address setting of the DVR or keyboard

controller.

To get the camera address, add the total DIP switches that are in the ON position.

Example: If DIP switches 1, 4, and 6 are ON then the camera address is 1+8+32=41.

Camera Address DIP Switch and Communication Protocol Setup:

Wall mount

bracket

Camera

DIP Switches

Lens

Dome

Turn counterclockwise to

remove

Value

128

OFF

ENFORCER Mini PTZ Camera

8SECO-LARM U.S.A., Inc.

1. Connect the camera to either the included wall mount or another optional bracket.

2. Run a 24VAC power supply wire, a video cable with a male BNC connector, and a data wire through the

wall to where the camera is to be mounted.

3. Connect the camera's video cable to the video cable coming from the wall. Do not cut the female BNC

connector of the camera's video cable as that will void the warranty.

4. Connect the camera's RS-485 cable to the data wire cable coming from the wall.

5. Temporarily connect the camera to the power supply. Do not cut the AC power terminal of the

camera's power cable as that will void the warranty.

6. Hold the camera's bracket against the wall or ceiling where it is to be mounted, but do not mount yet.

While watching the monitor, operate the camera's pan and tilt functions to ensure that this mounting

location is correct. Use a pencil to mark the location of the screw holes in the mounting bracket.

7. Disconnect the power supply from the camera.

8. Mount the mounting bracket to the wall or ceiling using the included mounting screws. If the wall is

made of drywall, brick, or similar material, it may be necessary to use the included screw anchors.

9. Reconnect the camera's power supply.

10. Program the camera via the OSD (on-screen display) menus from the DVR or keyboard controller.

11. Do a final test of the video camera and monitor.

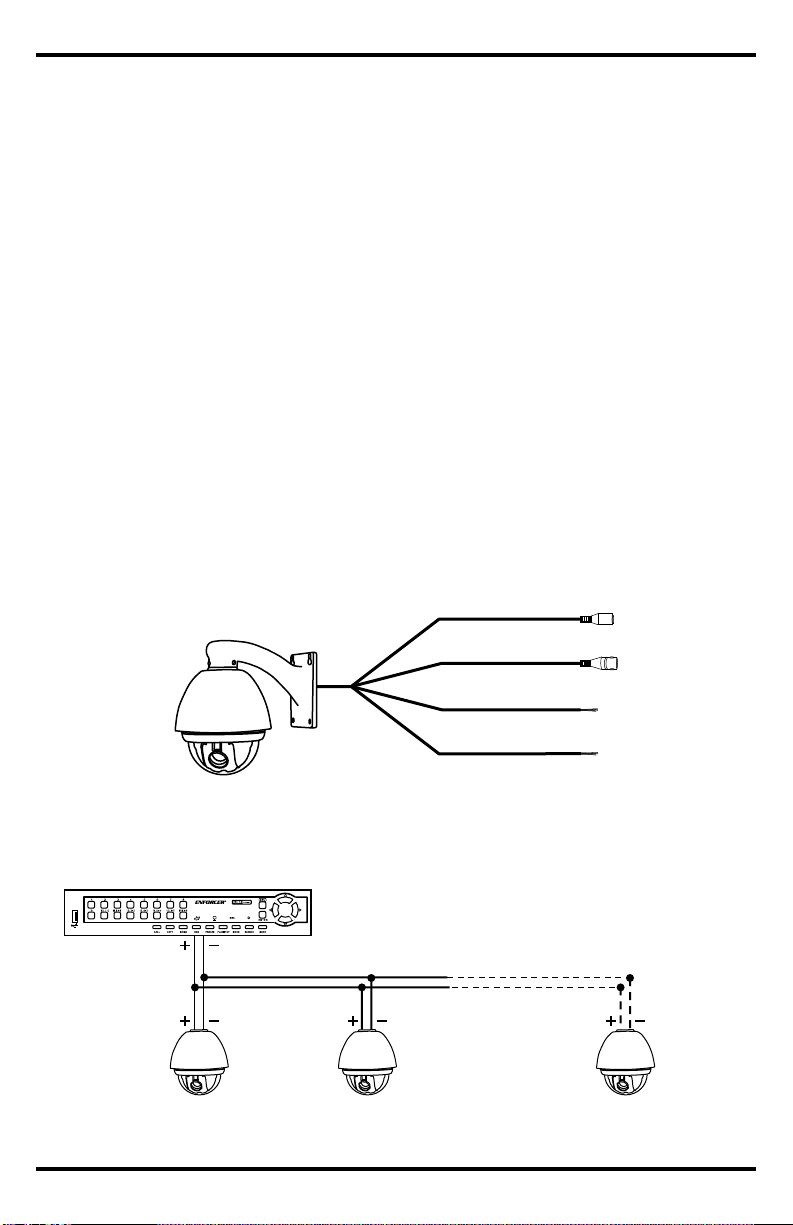

Installation:

Basic Installation

Multiple PTZ Camera Installation

DR-1 Series DVR

RS-485

24VAC Jack

Coaxial cable

RS-485 (-) (Yellow)

RS-485 (+) (Purple)

ENFORCER Mini PTZ Camera

SECO-LARM U.S.A., Inc. 9

Before operating the Mini PTZ Camera, please note the following:

Double-check that the cables are properly run between the controller and camera, and that all

connections are correct.

Double-check that the camera address on the controller is the same as the address of the target

camera. The camera address can be found by looking at the camera address DIP switch settings

(see page 7) or through the ADDR SETTING menu in the OSD (see page 17).

The Pelco protocol setting of the controller and the camera must be identical. The Pelco protocol setting

of the camera is automatically matched to the communication protocol of the controller or DVR.

Make sure that the camera is rebooted after the camera address setup DIP switches are changed.

Refer to the controller or DVR manual for information on configuring or operating those devices.

Pre-Operation Checklist:

ENFORCER Mini PTZ Camera

10 SECO-LARM U.S.A., Inc.

Understanding and Operating Preset and Pattern Functions:

Standard Pelco-compatible controllers allow the camera operator to do several functions without going

through the full OSD menu, depending on the capabilities of the DVR to which the camera is connected.

The SECO-LARM series of DVRs allows operators to do the following via the "Dome Preset" menu:

Set the camera to remember multiple specific preset locations.

Tell the camera to go to a specific preset location.

Run certain preset functions, including patterns, frame scan, or preset cruise functions.

Change certain configuration patterns.

Programming the patterns, frame scan, preset cruise, and a detailed configuration of the PTZ camera

requires operators to use the OSD menu. See page 16 for more information.

This PTZ camera can be controlled by any DVR or keyboard controller which uses Pelco-compatible

protocols. When using non-SECO-LARM DVRs or when using keyboard controllers, the manuals for those

devices may include information on how to operate or program the PTZ camera.

To set or go to a preset location or use a preset function via a SECO-LARM DVR:

1. Press the "Dome" button. The lower left corner of the screen will change from "REC" to "DOME" to

show the camera is in the Dome Control menu.

2. Press the "1" button to go to the DOME PRESET menu.

3. Use the UP, DOWN, LEFT, and RIGHT buttons to highlight your selection and press ENTER to confirm

your selection.

Note: In most cases, only the GO function will work. Only the preset locations can be programmed via

the DOME PRESET menu. Other functions must be programmed using the OSD menu.

4. Use the UP and DOWN arrows to switch between YES and NO. Navigate to YES, and then press the

ENTER button.

See page 12 for a list of preset functions.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SECO-LARM Caméra de sécurité

SECO-LARM

SECO-LARM Enforcer EV-122C-DVB3Q Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-122C-DVAVQ Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER EV-1323C12DWL Manuel utilisateur

SECO-LARM

SECO-LARM SLI ENFORCER VIDEO EV-1224C12 Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-1726-NKGQ Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER EV-N2506-2W4Q Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-2240-N3B Manuel utilisateur

SECO-LARM

SECO-LARM CBA series Manuel utilisateur

SECO-LARM

SECO-LARM SLI ENFORCER VIDEO EV-133C-DWAVQ Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER MVE-PB020Q Manuel utilisateur

SECO-LARM

SECO-LARM EV-2186-NKEQ Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-2866-NKGQ Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-1006-N4BQ Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER EV-N1506-2W4Q Manuel utilisateur

SECO-LARM

SECO-LARM EV-2221-N3BQ Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-5120-N3WQ Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER EV-N1506-2W4WQ Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-7105-NPEQ Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-1223C12M Manuel utilisateur

SECO-LARM

SECO-LARM EV-2166-N3WQ Manuel utilisateur

SECO-LARM

SECO-LARM SLI ENFORCER VIDEO EV-133C-DWBWQ Manuel utilisateur

SECO-LARM

SECO-LARM Enforcer EV-122C-DVC3 Manuel utilisateur

SECO-LARM

SECO-LARM EV-1146-N6SQ Manuel utilisateur

SECO-LARM

SECO-LARM ENFORCER EV-122C-VWA3 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
