ENFORCER Ball-Mount Indoor/Outdoor IR Camera Manual ENFORCER Ball-Mount Indoor/Outdoor IR Camera Manual
Dimensions:
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________________________________________
Parts List
1 x Camera Ball
1 x Case
1 x Base
4 x Screws with wall anchors
1 x Hex wrench
1 x Manual
1 x DC plug with terminal block
Before Starting:
1. Please read this manual carefully and keep it for future
reference.
2. Use the camera within given temperature and electrical
limits.
3. While the camera is weatherproof to IP66 standard, do
not mount the camera where it is exposed to rain or other
moisture, or in humid or dusty places.
4. Do not point the camera at the sun. Heat could damage
the camera, even when not in use.
5. Do not mount the camera in areas exposed to radiation,
Installation:
1. Run a 12VDC power supply wire and a video cable
with a male BNC connector through the wall to where
the camera is to be mounted.
2. Loosen the set screws with the included hex wrench
and remove the case from the base.
NOTE - The camera ball is NOT attached to the case
or the base. It sits loose inside the case. Therefore, be
very careful when removing the case from the base to
not drop the camera ball.
3. Mount the base to the wall using the four included
mounting screws. If the wall is made of dry wall, brick,
or similar material, it may be necessary to use the
included plastic screw anchors.
strong magnetic fields, or strong electrical signals.*
6. Do not open or disassemble the camera. There are
no user-serviceable parts inside.
7. Do not drop the camera or subject it to strong
vibrations.
*Note: Many video monitors produce strong
electromagnetic fields close to the display CRT,
especially when the monitor is turned on or during de-
Gaussing, which occurs automatically with many
monitors when the monitor is turned on.
4. Run the camera's BNC and power connectors through
the camera base, and connect to the video and power
wires that were run through the wall.
5. Put the case over the camera ball onto the base, being
careful to not drop the camera ball.
6. Holding the case loosely on the base, turn the camera
ball to the desired direction.
7. Once the camera ball is in the desired direction, tighten
the set screws with the included hex wrench. However,
do not tighten them too tightly. Tighten just enough so
that the case does not move, and the camera ball does
not rotate.
8. Do a final test of the video camera and the monitor.

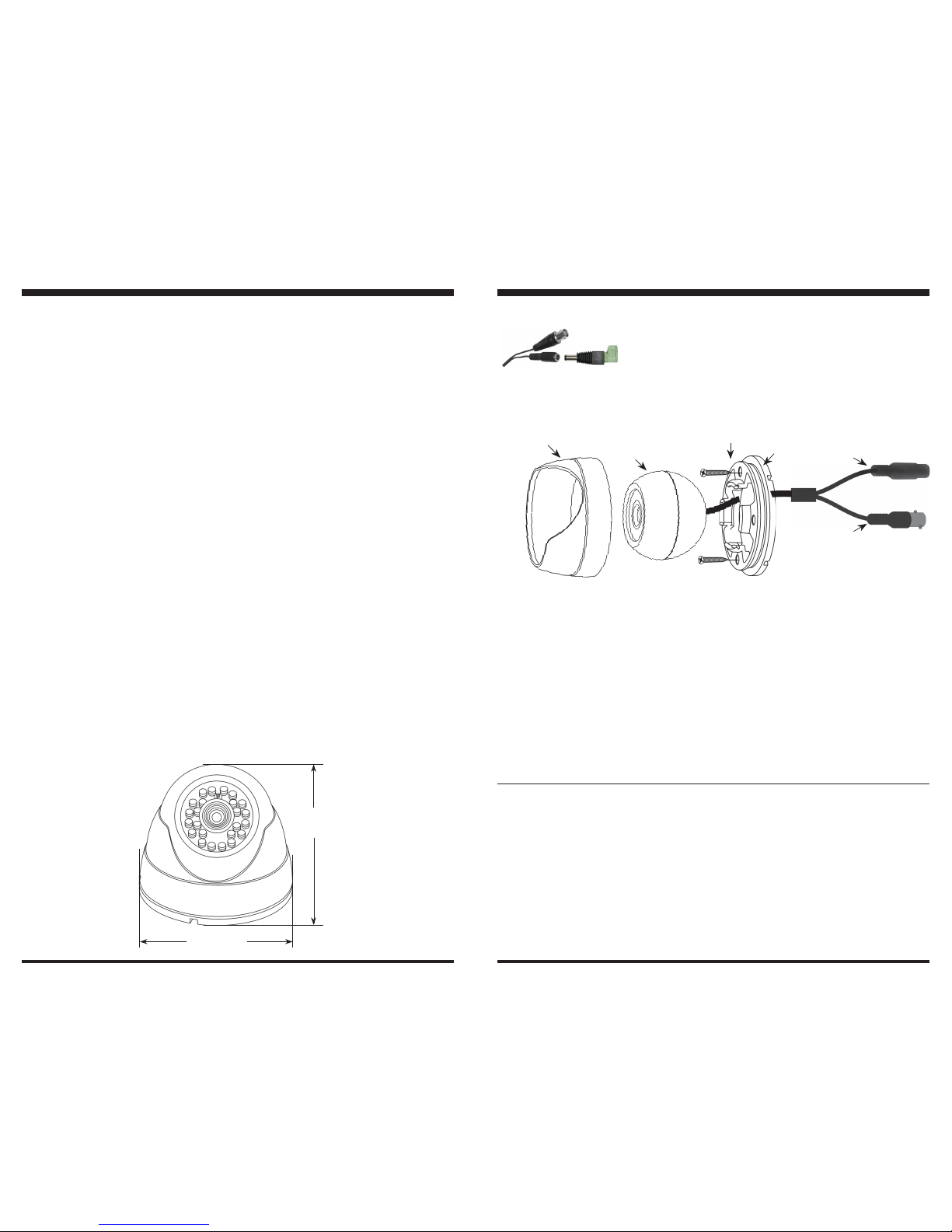

Case Camera
Ball Base
4 x
Screws Power
Connector
BNC
Connector
311/16” (94mm)
35/32”
(80mm)
To BNC
(From DC
camera)
DC plug included.
DC plug with
terminal block
Type
Chip
Resolution
Pickup elements
Scanning system
Sync
Video output
Lens
IR LEDs
IR distance
IR view angle
Minimum illumination
Gamma correction
S/N ratio
Shutter control
Automatic gain control
White balance
Power source
Power consumption
Operating temperature
Enclosure
Dimensions
Weight
Cable length
EV-122C-DVB3Q
Ball-Mount Color Dome Camera
1/3” CCD, Sony
420 TV lines
510 x 492 pixels
2:1 interlace, V: 59.94Hz, H: 15.734KHz
Internal
1V p-p composite output, 75 ohms
3.6mm, F2.0
24 x LEDs (850nm)
Up to 50’ (15m)
56o
0.5 lux (0 lux with IR on)
0.45
>48dB
Auto Electronic Shutter (AES), 1/60~1/100,000 sec.
Auto
Auto
12VDC ±10%
120mA (IR off), 400mA (IR on)
4°~122° F (-20°~50° C)
IP66 weatherproof
311/16” x 35/32” (94 x 80mm)
0.9 lb. (400g)
38” (98cm.)
Specifications
