Seametrics FT430 Manuel utilisateur

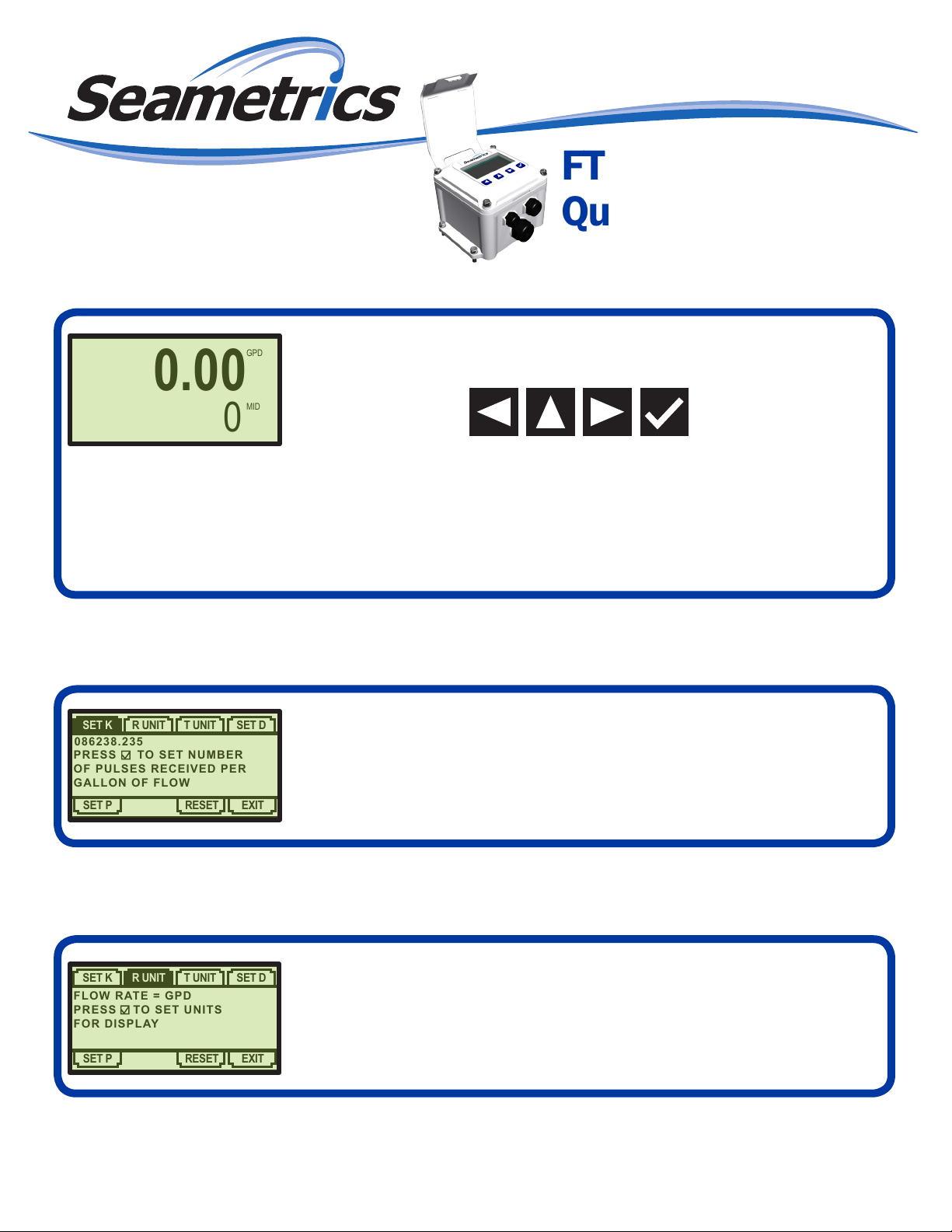

The Home screen displays total ow volume and ow rate. The four buttons below the LCD

display are used to access menu screens for viewing and changing setup parameters.

Press the check mark key to enter a submenu.

0.00

GPD

MID

R UNITSET K T UNIT SET D

SET P RESET EXIT

086238.235

PRESS TO SET NUMBER

OF PULSES RECEIVED PER

GALLON OF FLOW

R UNITSET K T UNIT SET D

SET P RESET EXIT

FLOW RATE = GPD

PRESS TO SET UNITS

FOR DISPLAY

The K factor is the number of pulses the ow sensor provides for every gallon of ow.

(Note that the decimal is xed at three places. If you only have two decimal places

for your K-factor, enter a zero for the third digit. If unable to set K-factor, the unit is

“locked” to prevent tampering. Please contact your distributor for assistance.)

View or change the ow rate display units.

FT430, 440 & 450

Quick Setup Guide

The Home Screen

Set K Factor (SET K)

Set Rate Display (R UNIT)

Page 1 of 2

The left/right keys are used to move through the menus and position the cursor during data entry. The up arrow is

used to scroll through the available values that are to be entered. For example, numerical values for K factor entry

or selection of units from the available options. The enter key (represented on the keypad by the check mark) is

used to save selected entries and in conjunction with the exit tab to move between menus screens. As one

navigates the menus, the current parameter setting is shown and instructions are displayed for how to change the

selected parameter.

Set Total Display Units (T UNIT)

Page 2 of 2

LT-14244-063015

6/30/2015

R UNITSET K T UNITSET D

SET P RESET EXIT

000

PRESS TO CHOOSE

NUMBER OF DECIMAL PLACES

IN TOTAL DISPLAY

R UNITSET K T UNIT SET D

SET P RESET EXIT

00000.0 GALLONS

PRESS TO SET NUMBER OF

GALLONS TOTALIZED PER

PULSE SENT OUT PULSE1

R UNITSET K T UNIT SET D

SET P RESET EXIT

PRESS TO EXIT MENU AND

RETURN TO FLOW DISPLAY

View or change the number of decimals displayed in the total volume display.

The factory setting will show Set P which allows one to view or change the volume of

ow totalized per pulse sent to pulse out 1. The units for Set P follow the units select-

ed for the rate display. Secondary menu selection will change the display to Set A. The

alarm can be set to trigger on either a high or low ow condition as determined by the

user.

Return to the home screen, enter a submenu, or accept a parameter change.

R UNITSET K T UNITSET D

SET P RESET EXIT

TOTAL = GALLONS

PRESS TO SET UNITS

FOR DISPLAY

View or change the total volume display units.

Set Number of Decimal Places (SET D)

Set Pulses & Alarms (SET P)

Exit & Save Setup (EXIT)
