Seagate Medalist Pro 2160sl Manuel utilisateur

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Medalist Pro 2160sl (ST52160A)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Medalist Pro 2520sl (ST52520A)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

for ATA (IDE)-Compatible PCs

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Guide

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

-2 Medalist Pro 2160sl and 2520sl, Rev. B

Publication Number: 39308-301, Rev. B, May 1999

Seagate, Seagate Technology and the Seagate logo are regis-

tered trademarks of Seagate Technology, Inc. Medalist, DiscWiz-

ard, SeaFAX, SeaFONE, SeaBOARD and SeaTDD are either

trademarks or registered trademarks of Seagate Technology,

Inc. or one of its subsidiaries. All other trademarks or registered

trademarks are the property of their respective owners.

Medalist Pro 2160sl and 2520sl, Rev. B -1

Contents

The easiest way to install your drive.................................... 1

What you need........................................................................ 2

Before you begin .................................................................... 2

Handling precautions............................................................. 3

Master/slave jumpers............................................................. 4

Attaching cables and mounting the drive............................ 6

Configuring your computer................................................... 9

Addressing drive capacity limitations................................ 11

Partitioning and formatting your drive............................... 13

Installation using Disk Manager........................................ 14

Windows 95 or Windows 98 installation ........................... 15

Standard DOS installation ................................................ 16

Additional installation options............................................ 18

Remote LED connection...................................................... 18

Cable select jumper ............................................................. 19

Advanced Disk Manager options........................................ 20

Troubleshooting ................................................................... 23

Alternate capacity jumper................................................. 25

Seagate Technology support services............................... 31

Storing and shipping your drive......................................... 37

iii

0 Medalist Pro 2160sl and 2520sl, Rev. B

Medalist Pro 2160sl and 2520sl, Rev. B 1

The easiest way to install your drive

DiscWizardis Seagate’s exclusive Win-

dows program, provided on a diskette, that

makes it easy to install your Medalistdrive.

DiscWizard helps you configure your new

drive and your computer. It analyzes your

system, lets you select various installation

options and creates customized step-by-step instructions. It also

allows older computers to access the full capacity of large hard

drives.

You can run DiscWizard to install your new hard drive if:

•You already have an existing, bootable hard drive in your com-

puter with at least 3 Mbytes of available disc space,

and

•You are running Windows 95 or Windows 98.

If you can run DiscWizard, follow the instructions on the

DiscWizard diskette to install your drive. If you need additional

information, refer to this installation guide.

If you cannot run DiscWizard, follow the instructions in this

installation guide to install and configure your new drive.

2 Medalist Pro 2160sl and 2520sl, Rev. B

What you need

•Straight-edge and Phillips screwdrivers

•Four 6-32 UNC drive mounting screws

•An ATA host adapter and interface cable (max length: 18

inches) with enough connectors for all your drives

•An unused drive power cable for your new drive

•A bootable DOS system diskette (Seagate recommends using

DOS Version 5.0 or later).

•If you are mounting this 3.5-inch drive in a 5.25-inch drive bay,

you need a mounting adapter or frame kit. Also, you may need

drive mounting rails if your drive bay is not designed for direct

mounting.

Before you begin

•Make sure your computer is turned off before you open the

case.

•Read the handling precautions following and inspect the drive

to make sure that it is not damaged.

•Save your foam-lined Seagatedisc drive box. This box has

been approved by Seagate for shipping a Seagate disc drive.

Using any other container or packing material voids your drive

warranty.

Medalist Pro 2160sl and 2520sl, Rev. B 3

Handling precautions

Disc drives are extremely fragile. Do not drop or jar

your drive.

Keep the drive in its antistatic bag until you are

ready to install it.

Protect your drive from static discharge by making

sure you are well grounded before touching the

drive. We recommend wearing a grounded wrist

strap throughout the installation process. Do not

touch the connectors or any part of the printed cir-

cuit board.

Always handle the drive by its edges or frame.

Do not apply pressure or attach labels to the circuit

board or the top of the drive.

4 Medalist Pro 2160sl and 2520sl, Rev. B

Master/slave jumpers

If your new Seagatedrive will be the only drive in your computer,

you do not have to change any jumper settings. In this case, skip

ahead to “Attaching cables and mounting the drive,” on page 6.

If you already have one hard drive in your computer and you are

installing a second drive, you must configure one drive as a mas-

ter and the other as a slave.

To configure the drive as a master or one drive only:

•Place a jumper on pins 5 and 6 (see Figure 1 on page 5).

The master drive usually defaults to being the “boot” drive

(drive C), from which the computer loads system software

when it first starts up.

•If there is only one drive in your system, remove all jumpers.

To configure the drive as a slave:

•Place a jumper on pins 7 and 8 (see Figure 1 on page 5).

•If you need to change the jumpers on your existing hard drive,

see the Disk Manager online manual, look on the drive label,

or contact the drive manufacturer.

Medalist Pro 2160sl and 2520sl, Rev. B 5

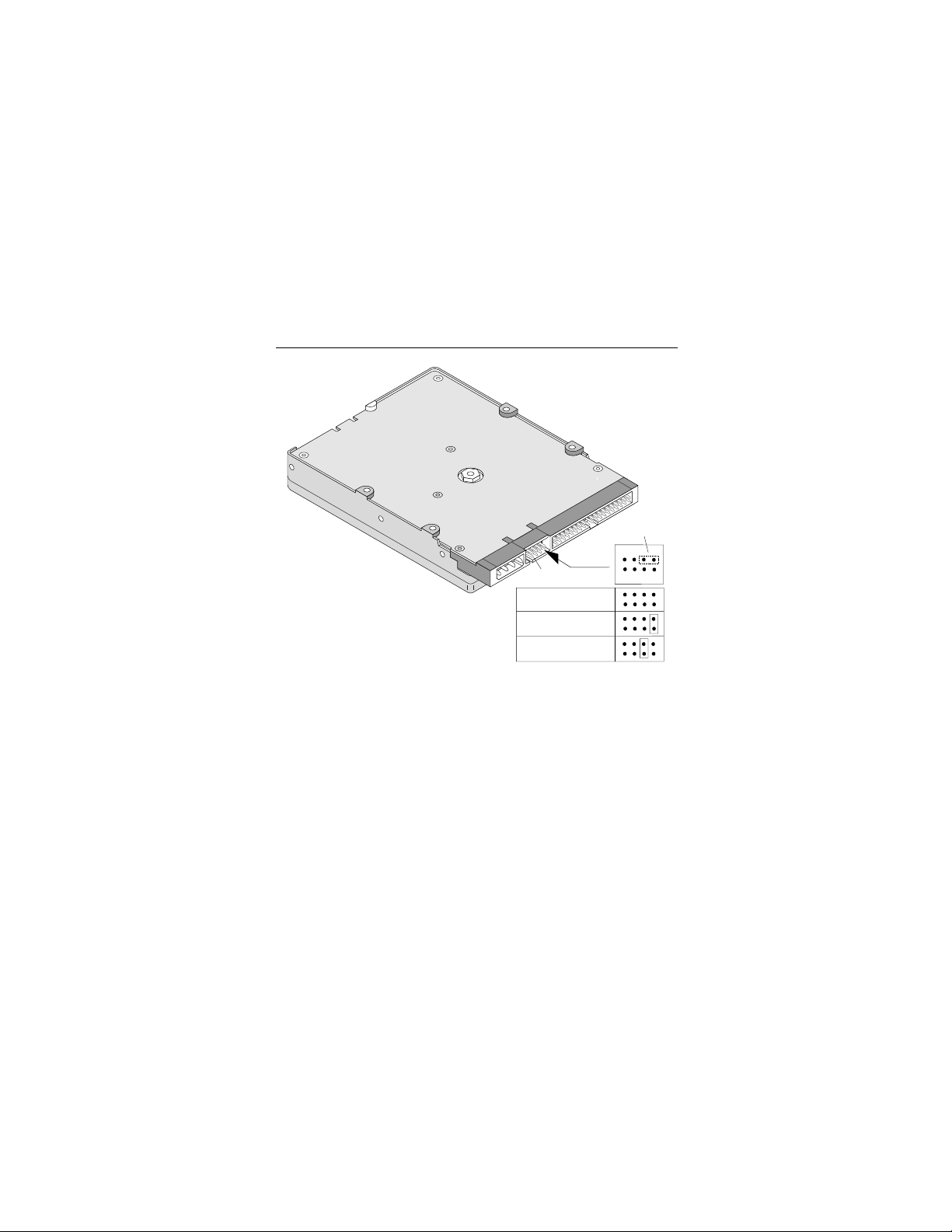

Figure 1. Master and slave jumper settings

135

246

Single drive

Drive is slave

Drive is master with

ATA-compatible slave

Spare jumper

Pin 1

6 Medalist Pro 2160sl and 2520sl, Rev. B

Attaching cables and mounting the drive

1. If you are attaching a new ATA interface cable to a single

drive, attach one end of the cable to the interface connector

on your host adapter or motherboard. Motherboard connec-

tors can be identified by the IDE or HDD 40-pin connector.

The ATA cable must be no more than 18 inches (457 mm)

long.

2. Thread the interface cable through the drive bay and attach

the connector at the end of the interface cable to your new

drive.

Note. If you have two drives, attach the second drive to the sec-

ond connector.

Figure 2. Attaching the cables

Caution. To avoid possible damage to your system,

make sure to align pin 1 on the host adapter or mother-

board with pin 1 on your drive or drives. Pin 1 on the

interface cable is usually indicated by a stripe along the

edge of the cable.

Pin 1

Stripe on

interface

cable
