SEA 23105198 Manuel utilisateur

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

(cod. 23105198)

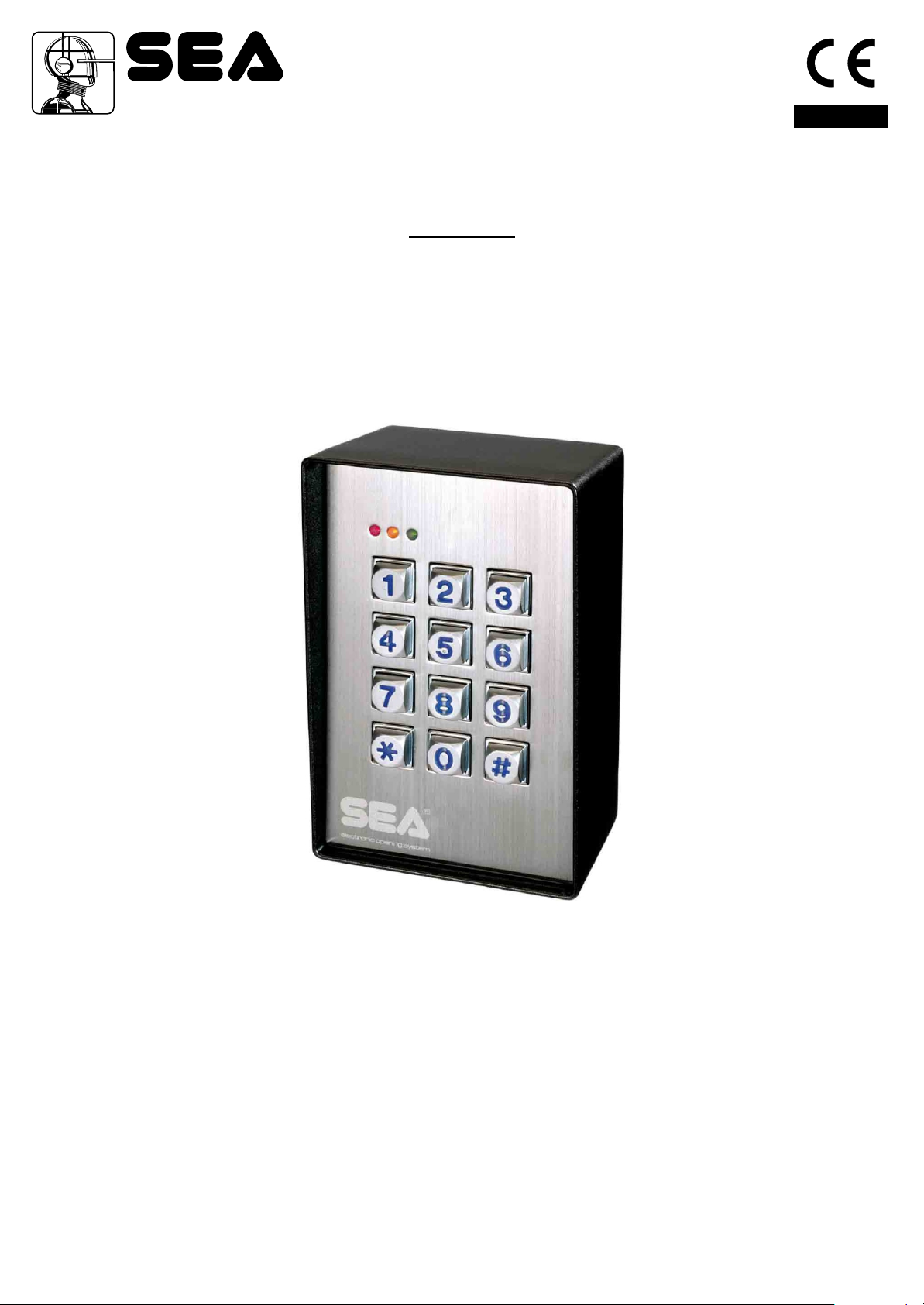

VANDAL RESISTANT BACK-LIT

WEATHERPROOF ACCESS CONTROL KEYPAD

For electric lock, inter-lock and security system installations

English

Rev. 01 - 05/201167411245

SEA S.p.A.

Zona industriale 64020 S.ATTO Teramo - (ITALY)

Tel. +39 0861 588341 r.a. Fax +39 0861 588344

www.seateam.com

[email protected]

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

TABLE OF CONTENTS

English

Rev. 01 - 05/2011674112452

INTRODUCTION.........................................................................................................................................................3

FEATURES..................................................................................................................................................................3

SPECIFICATIONS.......................................................................................................................................................3

INSTALLATION............................................................................................................................................................4

Precautions......................................................................................................................................................4

Package Contents............................................................................................................................................4

CONNECTION TERMINALS.......................................................................................................................................4

The On-Board LED Indicators...........................................................................................................................6

The Pacier Tones & The LED Signals................................................................................................................6

The Jumper for Back-Lit Selection....................................................................................................................6

FEATURE PROGRAMMING & OPERATION INSTRUCTIONS...................................................................................7

Set System in Programming Mode with The Master Code.................................................................................7

Direct Access to Programming Mode with The “DAP” Code – 8 0 8 0..................................................................7

Refresh The System with The “Refreshing Code” --- 9 9 9 9...............................................................................8

The Default Values of The Keypad....................................................................................................................8

KEYPAD PROGRAMMING MAKE SIMPLE – For General Users.................................................................................9

FEATURE PROGRAMMING -- KEY INAND STORE THE DESIRED VALUES.............................................................10

Programming Criteria for Codes.......................................................................................................................10

Record A Master Code......................................................................................................................................11

Record A Super User PIN..................................................................................................................................11

Operation And Functions of The Super User PIN...................................................................................11

Record-Delete PINs for Output 1, 2, & 3............................................................................................................12

Examples – Programming And Operation.............................................................................................12

Visitor Codes (For Output 1 Only).....................................................................................................................14

Duress Codes (For Outputs 1, 2 & 3).................................................................................................................15

The Operation And Function of The Duress Code.................................................................................16

Conguration of The Output Modes for Output 1, 2 And 3....................................................................................16

Personal Safety And System Lock-Out.............................................................................................................16

User PIN Entry Mode........................................................................................................................................17

Pacier Tones On-Off Selection..........................................................................................................................17

Output Operation Announcer............................................................................................................................17

Status LED Flashing On-Off during Standby......................................................................................................18

Door Forced Open Warning & Timing................................................................................................................18

Door Propped-Up Warning & The Delay Time...................................................................................................18

Intelligent Egress Button – An Unique Feature of AContemporary Keypad........................................................19

Egress Delay , Warning And Alarm....................................................................................................................19

Congurations of The Egress WarningAnd Alarm...................................................................................19

Door OpeningAlarm & Timer.............................................................................................................................20

Close The Programming Mode.........................................................................................................................21

PROGRAMMING SUMMARY CHART.........................................................................................................................21

APPLICATION EXAMPLES.........................................................................................................................................23

Basic Wirings of A Stand Alone Door Lock.........................................................................................................23

Basic Wirings of AStandAlone Door Lock with Inhibit Authorization Code.........................................................24

Basic Wirings of An Inter-Lock System Using Two Keypads..............................................................................25

APPLICATION HINTS FOR THEAUXILIARY TERMINALS..........................................................................................26

APPENDIX...................................................................................................................................................................28

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

INTRODUCTION

FEATURES

SPECIFICATIONS

The keypad unit comes with plenty of functions for owner’s selection via programming. Owners can take them freely to tailor the

desired features for their system. It is an ideal keypad mainly for Door Strike and Alarm Arm-disarm control. It is also a

programmable industrial timer (with the timing of 1 second to over 24 hours) for Automatic Operator Systems.

PUSH – Output Relays for Output 1, 2 and 3 (Surface Mount Version)

• Indoor or outdoor installation

• StandAlone or Inter-lock system built-in with all the required control logics

• Controls “Going in” with User PIN and “Going out” with programmable egress button

• Durable Steel housing for surface or gooseneck mounting (code: 12710208)

• Built-in Tamper Switch

• Heavy duty 1.5mm stainless steel faceplate

• Die-casting metal back-lit keyboard with dual brightness levels

• Vandal resistant and weatherproof (IP-66)

• Three outputs controlled by independent groups of codes / PINs

• Programmable Timers for Door Strike,AlarmArm-disarm Control or IndustrialAutomatic Operators.

Operating Voltage: 12V-24V DC,Auto adjusting

Operating Current: 40mA(quiescent) to 100mA(three relays active)

Operation Temperature: -20 C to +70 C

Environmental Humidity: 5-95% relative humidity non-condensing

Working Environment & Ingress Protection: All weather, IP-66

Number of Users: Output 1 – 1,000 User PINs + 50 Duress Codes

Output 2 – 100 User PINs + 10 Duress Codes

Output 3 – 100U ser PINs + 10 Duress Codes

Number of Visitor Codes: 50, programmable for one time or with the time limit

Timings for Code Entry: 10 seconds waiting for next digit entry

The Timers: Three 1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers

for O/P 1, 2 & 3

Egress Button: Programmable for Instant, Delay with Warning and/or Alarm

Momentary or Holding Contact for the Exit Delay

Input Sensing Terminals: a) Door position, b) Egress, c) O/P 1 inhibit

Output Control Terminals : Transistor Open Collector 24VDC/100mA sink Max for the following

outputs a) Duress, b) Alarm, c) KeyActive,

d) Output 3 (Door Bell version only), e) Inter-lock

Output Contact Ratings: Output Relay 1 – N.C. & N.O. dry contacts, 5A/24VDC Max.

Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max.

Output Relay 3 – N.C. & N.O. dry contacts, 1A/24VDC Max. (N.O. contact only for Door

Bell version)

Tamper Switch – N.C. dry contact, 50mA/24VDC Max.

Dimensions: PUSH – 125(H) X 79(W) X 46/54(D)mm

Weight: PUSH – 550g net

Housing: PUSH - CastAluminum, Power paint coating

Faceplate Material: 1.5mm stainless steel

Specications are subject to change for modication without notice

Rev. 01 - 05/201167411245 3

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

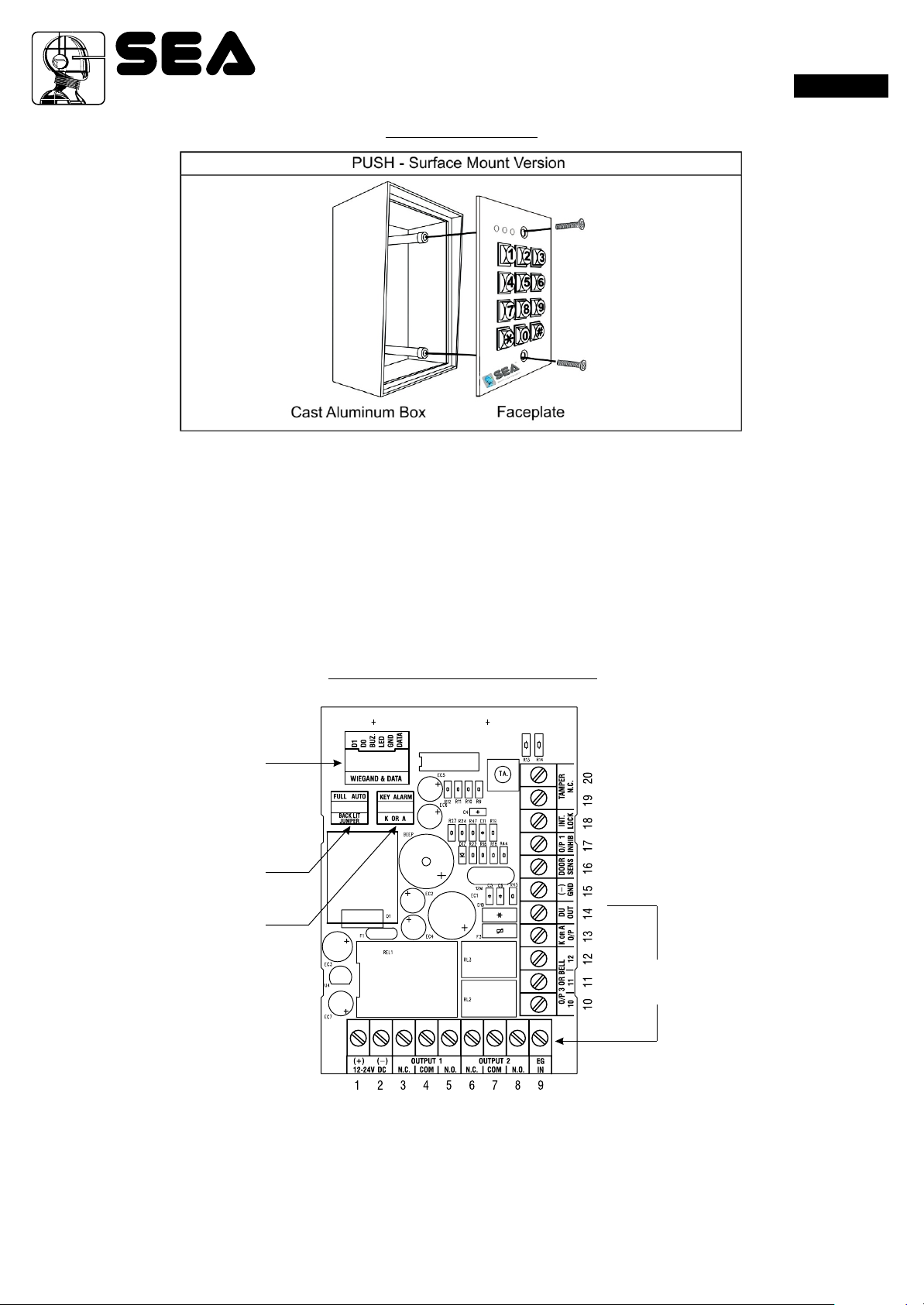

WIEGAND & DATA

I/O HARNESS

BACK-LIT JUMPER

K OR A JUMPER

CONNECTION

TERMINALS

INSTALLATION

PRECAUTIONS

Please be patient to study the manual to become familiar with the specications of the system before starting the installations.

1) Do not apply power to the system while it is in installation.

2) Check carefully all the wirings are correct before applying power to the system for testing.

PACKAGE CONTENTS

• One unit Keypad

• One pack of Mounting Screws

• One Centre Pin Torx Screw Wrench

• One Wire Harness ( Six wires)

• One Programming & Installation Manual

CONNECTION TERMINALS

• 1 - 2 : 12-24V DC (Power Input Terminal)

Connect to 12-24V DC power supply. The (-) supply and the (-) GND are the common grounding points of the system.

The system accepts full input voltage range with no jumper selection.

• 3 - 4 - 5 : OUTPUT 1 (Output Relay 1)

5 Amp relay dry contact controlled by the Group 1 User PINs for Output 1, recommended for door strike. Terminal 3 is Normally

Closed (N.C.), terminal 5 is Normally Open (N.O.) and terminal 4 is the common point of the two contacts.

Use N.C. output for “Fail-safe” locking device; and N.O. output for “Fail-secure” locking device. The relay is programmable for

Start/Stop (toggle) mode or Momentary timing mode. See programming Location 51 for the details.

Rev. 01 - 05/2011674112454

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

• 6 - 7 - 8 : OUTPUT 2 (Output Relay 2)

1 Amp relay dry contact controlled by the Group 2 User PINs for Output 2, it is an auxiliary output ideally for controlling security

system or automatic operator. Terminal 6 is Normally Closed (N.C.), terminal 8 is Normally Open (N.O.) and terminal 7 is the

common point of the two contacts. The relay is programmable for Start/Stop (toggle) mode or Momentary timing mode. See

programming Location 52 for the details.

• 9 : EG IN ( Egress Input)

A Normally Open (N.O.) input terminal referring to (-) ground. With the help of connecting a normally opened button to activate

Output 1 for door opening in the same manner of using the Group 1 User PINs. Egress button is usually put inside the house near

the door. More than one egress buttons can be connected in parallel to this terminal. Leave this terminal open if not used.

See Programming Locations 90 and 91 for more information about the Egress Button with other features.

• 10 - 11 - 12 : OUTPUT 3 (Output Relay 3)

1 Amp relay dry contact controlled by the Group 3 User PINs for Output 3, it is an auxiliary output ideally for controlling security

system or automatic operator. Terminal 10 is Normally Closed (N.C.), terminal 12 is Normally Open (N.O.) and terminal 11 is the

common point of the two contacts. The relay is programmable for Start/Stop (toggle) mode or Momentary timing mode. See

programming Location 53 for the details.

• 13 : “K” OR “A” O/P (KeypadActive Output orAlarm Output)

An NPN transistor open collector output with the maximum power rating of 24VDC/100mA sink. It is equivalent to an N.O.

(Normally Open) terminal referring to ground. It can be used to drive small power device, such as a relay or a low power control

point for other equipment. This output point is selectable to give Keypad Active Output or Alarm Output via the Selection of the “K

orA” jumper.

a) Keypad Active Output (“K”) --- It switches to ( -) ground for 10 seconds on each key touch. It can be used to turn on light,

CCTV camera, or buzzer to notify a guard. See Application Hints for more information.

b) Alarm Output (“A”) --- It switches to ( -) ground while Alarm occurs in order to trigger external alarm to give notication at

remote location.

• 14 : DU OUT (Duress Output)

An NPN transistor open collector output with the maximum power rating of 24VDC/100mA sink. It is equivalent to an N.O.

(Normally Open) terminal switching to (-) ground after the Duress Code is entered. Use it to trigger an alarm zone of a security

system, or turn on a buzzer to notify a guard.

• 15 : ( - ) GND (Common Ground)

Agrounding point of the keypad that is common to terminal 2.

• 16 : DOOR SENS N.C. (Door Position Sensing Input -- Normally Close)

A Normally Closed (N.C.) sensing point referring to ( - ) ground, with the help of a normally closed magnetic contact monitors the

open or close status of the door. It initiates the following functions for the system. Connect it with jumper to (-) Ground if not used.

a) DoorAuto Re-lock

The system immediately re-locks the door after it is re-closed before the end of the programmed time for output 1. It

prevents unwanted “tailgate” entry.

b) Door Forced Open Warning

The keypad generates “door forced open” warning and alarm instantly once the door is forced to open without a valid user

PIN or egress button. The warning lasts as long as the time programmed (1 - 999 sec). It can be stopped with an User PIN

for output 1 at anytime. See programming Location 80 for the details.

C) Door Propped-up Warning

The keypad generates propped-up warning beeps (does not activates alarm output) while the door is left open longer than

the allowable time programmed. The warning will last as long as the door is open until re-closed. See programming

Location 81 for the details.

d) Inter-lock Control

The inter-lock control output always goes to ( - ) while the door is open, which gives signal to disable the other keypad in

the inter-lock system. See the Inter-lock terminal description for more information.

e) Door OpeningAlarm

Door Opening Alarm is designed for the emergency door only. It is always given when the door is opened unless a valid

user code or card is used prior to the door is opened. See programming Location 91 for the details.

• 17 : O/P 1 INHIBIT N.O. (Output 1 Inhibit Control Input – Normally Open)

A Normally Open (N.O.) sensing input point for controlling the Output 1, with this terminal connecting to ( - ) ground, the Egress

Button, the group of User PINs for Output 1 are all disabled. It is prepared mainly for the cross wire connection with the “Inter-lock

O/P” point on the other keypad in an Inter-lock system.

NOTE: The inhibit function does not govern the Duress Codes and the Super User Codes. They are always valid.

Rev. 01 - 05/201167411245 5

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

• 18 : INTER-LOCK O/P (Inter-lock Control Output)

An NPN transistor open collector output with the maximum power rating of 24VDC/100mA sink. It is OFF at normal condition and it

switches to (-) ground immediately for the first 5 seconds after keying in a valid User PIN to operate Output 1, then, it will keep tying

to (-) ground during the Door Position Sensor is open circuit due to door opening. Use this output point to make cross wire

connection with the other keypad’s “O/P 1 Inhibit” point in an Inter-lock system to prevent both doors can be opened at the same

time.

An Inter-lock System:

An inter-lock system is a two-door system that always allows only one of the doors to open during the operation. While one

of the doors is opened, the other door keeps close until the open door is re-closed. It prevents the unauthorized people

dashing into a protected area while the doors are in use. An inter-lock system needs two keypads and two door position

sensing switches for the two doors.

• 19 - 20 : TAMPER N.C. (Tamper Switch Normally Closed Contact)

A normally closed dry contact while the keypad is secured on its box. It is open while keypad is separated from the box. Connect

this N.C. terminal to the 24 hour protection zone of an alarm system if necessary.

The tamper switch in the versions A and B is activated by the fixing screw of the front plate; in the versions C and D it is activated by

a magnet equipped on the back of the plastic box.

THE ON - BOARD LED INDICATORS

• RED / GREEN (Right) --- It lights up in Green for Output 1 activation; and Red for Output 2 activation.

•AMBER (Centre) ---------It flashes on Standby. It shows the system status in synchronization with the beep tones.

The standby flashing can be set to OFF in programming. See Location 73 for the details.

• RED (Left) ----------------It lights up while one of the outputs is inhibited. It is also the Wiegand LED in reader mode

THE PACIFIER TONES & THE LED SIGNALS

The buzzer and the amber LED indicator give following tones and signals respectively for system status:

STATUS TONES * LED SIGNALS

1) On Programming Mode ---------------- ON

2) Successful Key Entry 1 Beep 1 Flash

3) Successful Code Entry 2 Beeps 2 Flashes

4) Unsuccessful Code Entry 5 Beeps 5 Flashes

5) Power Up Delay Continuous Beeps Continuous Flashes

6) Output Relay Activation ** 1 Second Long Beep

7) On Standby *** ---------------- 1 Flash in 1 Seconds Interval

8) System Refreshing ---------------- Fast Flashes for 2.5 Minutes

9) PIN Already Stored in System 1 Long Beep ----------------

NOTE:

* All Pacier Tones can be ON or OFF through the programming option at Location 71

* * The Output RelayActivation beep can be selected through the programming option at Location 72

* * * The Standby ashing can be ON or OFF through the programming option at Location 73.

THE JUMPER FOR BACK - LIT SELECTION

1) Full Back-lit --- The keypad gives dim backlit on standby. It turns to full backlit when a key button is pressed, then back to dim

backlit 10 seconds after the last key button is pressed.

2) Auto Back-lit --- The backlit is OFF on standby. It turns to full backlit when a key button is pressed, then back to OFF 10 seconds

after the last key button is pressed.

Rev. 01 - 05/2011674112456

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

FEATURE PROGRAMMING & OPERATION INSTRUCTIONS

SET SYSTEM INTO PROGRAMMING MODE WITH THE MASTER CODE

IMPORTANT NOTE:

1) DO NOT TURN OFF POWER while the keypad is in Programming Mode. Otherwise, it may cause data lost/error programmed

features in the memory.

2) The keypad beeps after power up. Wait 1 minute until the end of the power up delay, then key in the Master Code for setting the

system into programming mode.

3) For the owner’s convenience in programming at the first time, the factory has put a Master Code 0000 into the keypad (It is NOT

a default code). To compromise security, in all cases, the owner should program a new Personal Master Code to invalidate the

factory set Master Code after the keypad is owned.

4) The Button * (Bell button) has two functions in the keypads with Door Bell button. It is a door bell button while the keypad is in

normal operation; and it is equivalent to a * Button in programming mode.

MASTER CODE VALIDATION

0000 **

MASTER CODE

• The Master Code can be a factory set master code or the private master code that was set by the owner.

• Validate the master code with * *

2-beep confirms a valid master code. The Mains LED (Amber) is constantly ON after the system is set in the programming mode.

DIRECT ACCESS TO PROGRAMMING MODE WITH THE “DAP” CODE – 8080

Set System Into Programming Mode With DAP Code In Case Of The Master Code Is Forgotten ! !

The owner requires to apply the following procedures precisely to set the system into programming mode with the DAP code

8080.

1) Switch OFF all the power for 1 minute to ensure that the system is fully discharged.

2) Swich ON power again. The system is in Power-up Mode for 1 minute and the buzzer gives beeps during the whole period. This

is the only time limit for setting the system to Direct Access to Programming (DAP).

3) Press the Egress Button (EG IN) once first to enable the DAP function.

4) Key in the DAP Code 8080 and validate it with * *, the existing Master Code in the memory is erased and the power up beep

stops. The keypad turns itself into programming mode like using the Master Code and it is ready to accept the new programming

data.

5) If the Egress Button is not pressed and the DAP code is not keyed in within the power up period, the system will set itself to

normal operation mode. To set it back to power-up mode, repeat procedures 1-4.

EGRESS BUTTON DAP CODE VALIDATION

8080 **

PRESS ONCE

DAP CODE

• The DAP code is xed on 8080 and it is valid only in the Power-up Period after the Egress Button is pressed.

• Validate the DAP code with the * *

• 2-beep confirms the system is in the Programming Mode; and the Mains LED is constantly ON.

• See “RECORDAMASTER CODE” at “Location 01” for the details of programming a new master code.

Rev. 01 - 05/201167411245 7

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

REFRESH THE SYSTEM WITH THE “REFRESHING CODE ” - - - 9999

The system can be refreshed to clear all the old data stored and back to its ex-factory default values.

IMPORTANT NOTE:

Make sure that you really want to clear ALL the OLD data before entering of the Refreshing Code. The keypad will be back with its

default values like a new unit. Re-program of the desired values are necessary.

REFRESHING CODE VALIDATION

9999 #

REFRESHING CODE

• The Code 9999 is for refreshing of the system. Once it is keyed in and validated with #, all the values programmed previously will

be cleared EXCEPT the Master Code .

• The refreshing takes around 2.5 minutes. During the keypad is being refreshed the Status LED (Amber) ashes fast until the end.

THE DEFAULT VALUES OF THE KEYPAD

PROGRAMMING

LOCATION PARAMETERS DEFAULT FUNCTIONS & VALUES

01 Master Code 0000 Factory Set, Not a default value *

02 Super User PINs Nil ----- User Program Required

10 User PINs for O/P 1 Nil ----- User Program Required

20 User PINs for O/P 2 Nil ----- User Program Required

30 User PINs for O/P 3 Nil ----- User Program Required

40 Visitor Codes Nil ----- User Program Required

41 Duress Code for O/P 1 Nil ----- User Program Required

42 Duress Code for O/P 2 Nil ----- User Program Required

43 Duress Code for O/P 3 Nil ----- User Program Required

51 O/P Mode of The O/P 1 Time = 5 Sec, Momentary

52 O/P Mode of The O/P 2 Time = 5 Sec, Momentary

53 O/P Mode of The O/P 3 Time = 5 Sec, Momentary

60 Personal Safety & Lock-out Code = 1, 10 False Code Lock-out 60 Sec

70 User Code Entry Mode Code = 2, Manual Entry Mode

71 Pacier Tones ON-OFF Selection Code = 1, Pacier Tone ON

72 O/P Operation Announcer Code = 1 Sec, Notication Beep ON

73 Status LED Standby Flashing ON-OFF Code = 1, Flashing Enabled

80 Door Forced Open Warning & Timing Code = 0, Warning Disabled

81 Door Propped-up Warning & Delay Code = 0, Warning Disabled

90 Egress Delay & Warning Code 1 = 0, Instant, No Delay

Code 2 = 1, Momentary Contact without Warning

91 Door Opening Alarm & Timer Code = 0, Alarm O/P Disabled

94 Operation Modes & Wiegand Output Code = 0, Wiegand O/P for Valid Code Only

NOTE:

The DAP Code 8080 and the Refreshing Code 9999 are fixed in the operating system program. It can not be changed in any ways

or be inuenced by the system in default setting.

Rev. 01 - 05/2011674112458

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

KEYPAD PROGRAMMING MAKE SIMPLE – FOR GENERAL USERS

This is a multi purpose keypad. It has many functions for user’s selection. For those general users taking the keypad for door strike

only, most of the features can be kept in their Default values. Only the User PINs and a private Master Code are necessary to

program for the system.

PROGRAMMING

NOTE:

a) The * button is equivalent to the button in the keypad with bell button.

b) Wait 1 minute until the end of the power up delay.

1) Set System into Programming Mode with The Factory Set Master Code 0000

0000 ** --- - 2 beeps, system is inP rogramming Mode.

NOTE: If the Master Code is forgotten, use the DAP Code to set the system into programming mode. See DAP CODE 8080 on the

previous page for the details.

2) Change The Factory Set Master Code to Owner’s Private Master Code for Security Reason

01 32 89 # ---- 2 beeps, 3 2 8 9 is a Master Code for example here only 3289 is the new Master Code and the 0000 is

erased

3) Set an “User PIN” to Operate The Output 1 for Door Open

10 2 001 8321 #

(a ) (b) (c) (d) (e)

(a) 10 = Programming Location for Output 1

(b) 2 = Programming for User PIN

(d) 8321 = The User PIN that is programmed for door open. 8321 is an User PIN for example here only

(e) # = Conrm the User PIN, 2 beeps

REMARK:

If more User PINs are required for Output 1, repeat the procedures (3) above with other User IDs, such as 002, 003, 004 --- 999 etc.

Total 1000 users are allowed. See Programming Location 10 for the details.

4) Close The Programming Mode

** ---- 2 beeps

The programming mode is closed. The keypad is back to normal operation mode.

OPERATION

5) Open The Door with The User PIN

8321 # ---- 2 beeps, the door is open

REMARK:

In the next Section, “KEY INAND STORE THE DESIRED VALUES” describes all the features and functions of the system in detail.

Users can follow them to tailor the desired values for their access control system. Suggest the general users also spend some time

on them to get acquaint with this powerful system for future expansion.

Rev. 01 - 05/201167411245 9

Sistemi Elettronici

di Apertura Porte e Cancelli

International registered trademark n. 804888

PUSH

English

FEATURE PROGRAMMING - - KEY IN AND STORE THE DESIRED VALUES

The feature values can be set and stored into the system one by one with the desired Programming Locations.

Programming can be made continuously and it is not necessary to be in sequence order. Just go to the desired programming

location and key in the value for the desired feature.

IMPORTANT NOTE --- Programming Criteria for Codes:

a) The User PINs and Codes:

All the User PINs, Master Code, Duress Codes, Super User PIN and the Visitor User Codes are Prime Codes in the system.

They MUST be unique and can not be repeated in the programming

b) Warning for ARepeated Use of Prime Code:

One long beep is given if a User Code/PIN is keyed in. It means that a Code/PIN was already in one of the PIN or Code Locations

or IDs. The programming is invalid. Change a new Code/PIN and program it again.

c) MakeA List Recording of The User Names VS User Codes:

Suggest the owner to make a list recording of the User Names corresponding to the Codes/PINs that are going to store in the

Locations and the IDs before the programming. It will be a useful tool for the owner to easily program them smoothly and also to

trace them from this multi-users system in the future.

Example:

User Name Location Function Code User ID PIN/Code Remark

1,000

Rev. 01 - 05/20116741124510

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SEA Clavier

SEA

SEA PUSH Manuel utilisateur

SEA

SEA ROCK Manuel utilisateur

SEA

SEA ROCK RF PLUS Manuel utilisateur

SEA

SEA CUBE READER Manuel utilisateur

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

GE NetworX NX-1600E Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation
