VEHICLE SECURITY SYSTEM

PRODUCT MANUAL

Limited Lifetime Warranty

This vehicle security system is warranted to the original purchaser, to be free from defects in

material and workmanship. The manufacturer will repair or replace at its option, and free of

charge for the first twelve (12) months, any part that proves defective in material or workmanship

under normal installation, use, and service, provided the product is returned to the manufacturer

freight prepaid. After the first 12 month of the warranty period there will be a maximum service

charge of $50.00 per calendar year (if required) for repair and/or replacement of any defective

parts.

A copy of the original purchase and installation receipt must accompany any products

returned for warranty service. Warranty is limited to defective parts and/or replacement parts

only and excludes any incidental, and consequential damages connected therewith.

The manufacturer of this theft deterrent system makes no warranty against the theft of the vehicle

or its contents. This warranty is not to be construed as an insurance policy against loss.

WARRANTY OF INSTALLATION LABOR, REMOVAL AND RE-INSTALLATION CHARGES ARE

NOT THE RESPONSIBILITY OF THE MANUFACTURER.

Note: This Warranty is voided if the product was not installed by an

Authorized ScyTek Dealer.

A777, A20, G777, G27 Page 1

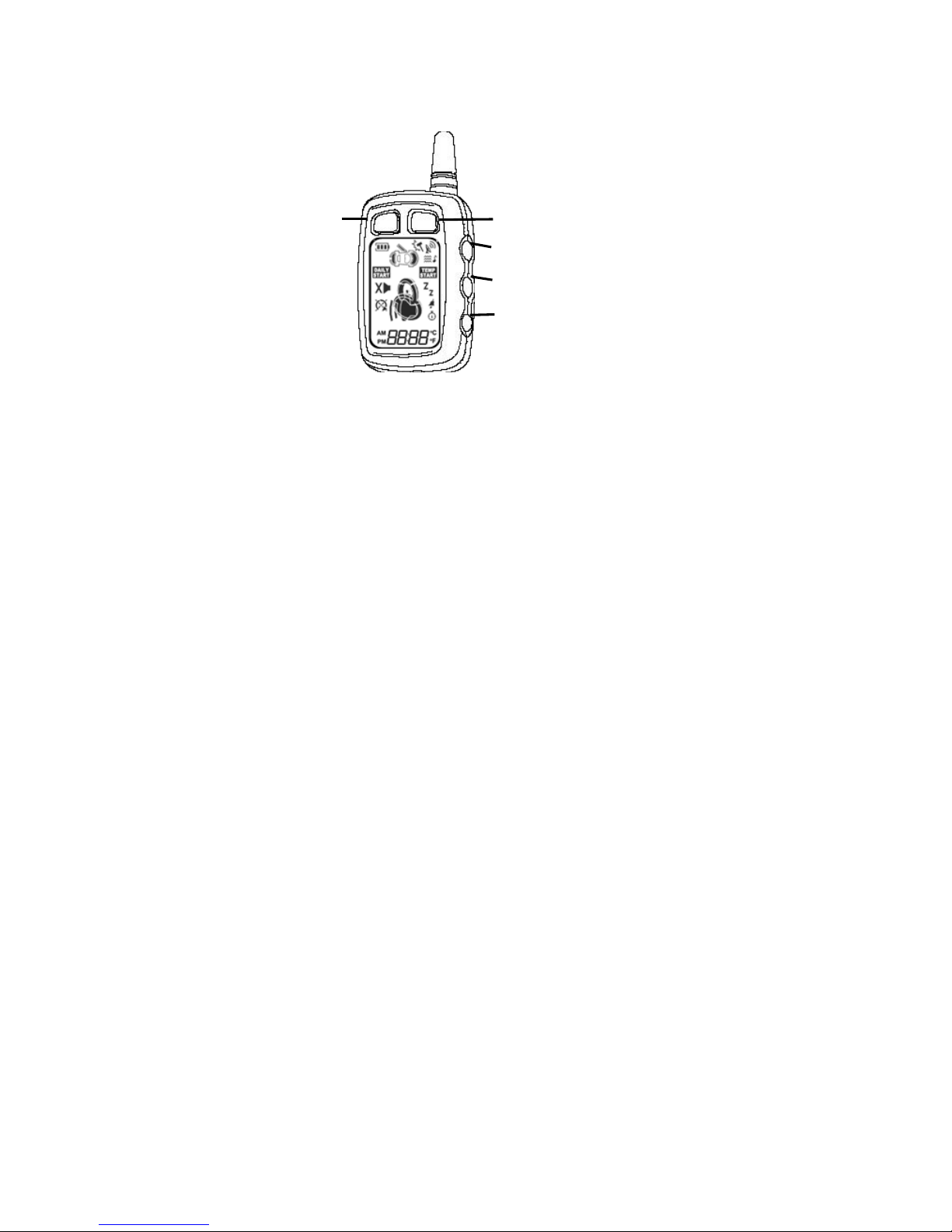

2-way LCD Remote Transmitter Description

Page 1

Button 1 Arms and Locks the system and when held for 5 seconds, activates the system’s Panic feature.

Button 1 also locks the doors when the system is in Valet Mode.

Button 2 Disarms and Unlocks the system. Pressing Button 2 again operates the Passenger Unlock feature

(if installed). Button 2 also unlocks the doors when the system is in Valet Mode.

Button 3 Activates the Auxiliary 1 output normally used for trunk release (note trunk icon on button).

Button 4 Activates the Remote Start feature.

Button 5 is the Confirmation, Programming and the Page Shift button. Quickly pressing button 5 will activate

the Page 2 function. Pressing button 5 for 2 seconds activates the system’s confirmation feature which will

then display the current status of the system (armed, disarmed, engine running, etc.).

Page 2

Button 1 Silently Arms/Locks the system.

Button 2 Silently Disarms/Unlocks the system.

Button 3 Activates the Auxiliary 2 output.

Button 4 Aux 3 or Factory Rearm output.

Button 5 Not Implemented. Page 3 & 4 are used as Page 1 & 2 for second car operation

LCD Transmitter Battery Replacement

Your Pager Remote Transmitter uses a 1.5 volt AAA alkaline battery, which will require replacement in time.

Depending on the amount of use, the battery may last up to 3 months before it needs replacement. When

the battery needs replacing, the system’s operating range will decrease, the LCD display will show only one

of three bars in the battery icon, or the display and sounds may suddenly stop and start as the battery

voltage drops below minimum.

In order to change the battery, first slide the battery door locking pin to the side. Carefully slide the battery

cover downward until it is free. While replacing the battery make sure that the positive and negative

terminals are positioned correctly, then carefully reassemble the transmitter case.

Button 1 Button 2

Button 3

Button 4

Button 5

Page 2 - A777, A20, G777, G27

Remote Transmitters

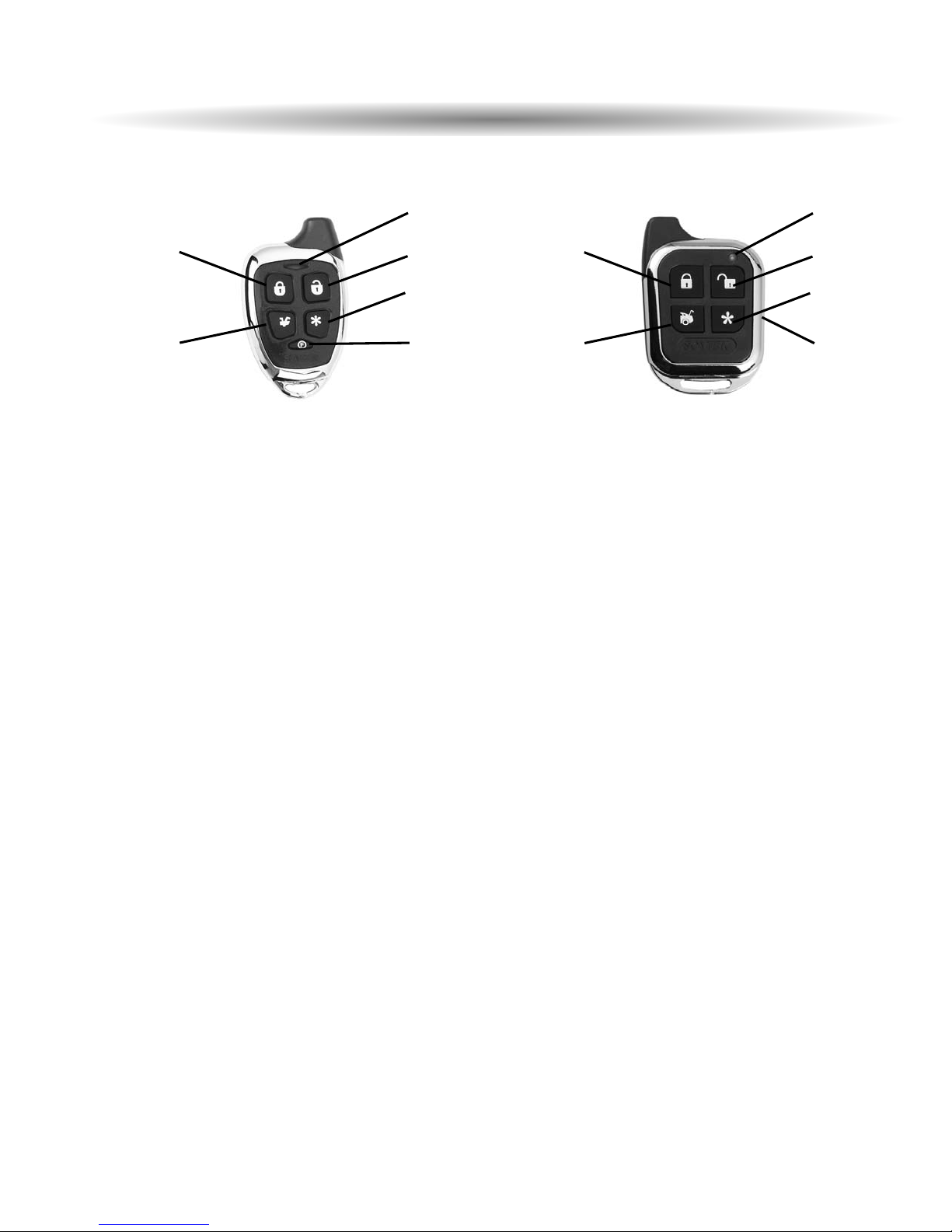

Remote Transmitter Description

G777,G27 A777,A20

The G777,G27,A777,A20 is supplied with 5-button Remote Transmitter used to control system

operations.

Button 1 Arms and Locks* the system and when held for 5 seconds, activates the system’s Panic

feature. Button 1 also locks the doors when the system is in Valet Mode.

Button 2 Disarms and Unlocks* the system. Pressing Button 2 again operates the Passenger Unlock

feature (if installed). Button 2 also unlocks the doors when the system is in Valet Mode.

Button 3 Activates the Auxiliary 1 output. This output will remain on for as long as the button is

pressed.

Button 4 Activates the Auxiliary 2 output. This output will remain on for as long as the button is

pressed.

Button 5 is the Page Shift button. The Page Shift button will change the function of Buttons 1

through 4 each time it is pressed, allowing access to additional features or multiple car operation.

Each time the Shift Button is pressed, the LED on the transmitter will illuminate and the

transmitter functions will shift to the next page, allowing access to another set of features. Once

shifted to another page (there are 4 pages total), the transmitter will remain on that page for 10

seconds or until a button is pressed, then return to page 1. Each time a transmitter button is

pressed and held, the LED will flash a number of times to indicate from which page it is

transmitting. Under normal operation, only pages 1 and 2 are used. Pages 3 and 4 are usually

used for Two Car Operation.

Shift then Button 1 Arms and Locks* the system silently.

Shift then Button 2 Disarms and Unlocks* the system silently.

* If the Optional Keyless Entry Feature is installed.

Button 1 Button 2

Button 5

LED

Button 3

Button 4

Button 1 Button 2

Button 5

LED

Button 3

Button 4

A777, A20, G777, G27 Page 3

Adding/Replacing One-Way Transmitters

To replace lost or stolen transmitters or to add additional transmitters into the system, have all

desired transmitters ready and follow the steps below.

Note: Up to 4 one-way transmitters can be programmed to operate the system. Any previously

stored transmitter code will be erased if it is not programed within the following sequence.

To program the transmitter(s):

1. Turn on the ignition key On, Off, On, Off, and back On.

· The siren will chirp 3 times.

2. Press and hold the Override switch for 5 seconds.

· The siren will chirp 5 times.

· The LED will illuminate.

3. Press Button 1 on the first transmitter.

· The siren will chirp once.

4. Repeat step 3 for each transmitter (up to 4).

5. Turn off the ignition key.

Adding/Replacing 2-way LCD Transmitters

(2 LCD remotes maximum)

When adding an optional 2-way LCD transmitter to the system, follow these steps:

1. Turn on the ignition key On, Off, On, Off, On, Off, and back On. (Key On 4 times)

· The siren will chirp 4 times.

2. Press and hold the Override switch for 5 seconds.

· The siren will chirp 4 times.

· The LED will illuminate.

3. Press Button 1 on the first transmitter, then on the second transmitter.

· The siren will chirp once for each transmitter learned.

4. Turn off the ignition key.

Battery Replacement

Your Remote Transmitter uses battery type 2016 for G777,G27 and 23A for A777,A20 which will

require replacement in time. Depending on the amount of use, the battery may last up to 24

months or more before it needs replacement.

When the battery needs replacing, the system’s operating range will decrease or the transmitter

LED may not be as bright.

In order to change the battery, first remove 2 screws from the back of the transmitter and

separate the top and bottom halves of the case.

While replacing the battery make sure that the positive and negative terminals are positioned

correctly, then carefully reassemble the transmitter case.

Page 4 - A777, A20, G777, G27

Remote Arming

The system monitors 4 independent areas (zones) while armed: doors, hood/trunk, shock sensor

and optional sensor input.

To Arm the System:

1. Turn off the ignition.

2. Press Button 1.

· The siren will chirp once.*

· The doors will lock.

· The parking lights will flash once.

· The LED will turn on, to indicate the starter defeat is activated.

3. 5 seconds after Arming:

· The LED will start blinking to indicate that the doors and hood/trunk inputs are being

monitored.

* During Arming, if the system detects a bad sensor or an open zone, the system will chirp 4 additional times

and ignore that input, but keep all other areas protected.

Once Armed, the alarm will trigger when any of the following occurs:

·The doors are opened.

·The hood or trunk is opened.

·The shock sensor detects an impact to the vehicle.

·The optional sensor is disturbed.

When the alarm triggers, the siren will sound, the horn will honk, and the parking lights will

flash. If the system is triggered by the doors, or hood/trunk, the system will alarm for 45

seconds. If triggered by the shock sensor or optional sensor input, the system will alarm for

30 seconds.

In the event the alarm is triggered and remains triggered continuously by the same sensor

or input during a single arming cycle, that sensor or input will be automatically bypassed

until the next time the system is armed.

If the Shock Sensor detects a light impact to the vehicle, or the Optional Sensor’s warn-

away zone is disturbed, the siren will chirp 5 times as a warning indication.

Remote Disarming

To Disarm the System:

Press Button 2

· The siren will chirp twice.*

· The doors will unlock.

· The parking lights will flash twice and remain on for 30sec..

· The dome light will turn on.**

· The LED will turn off.

* During Disarming, if the system was triggered while away from the vehicle, the siren will chirp 3 times, the parking lights

will flash 3 times, and the LED will flash to indicate triggered zone. See Tamper Alert for zone listing.

** If the optional Dome Light Activation Feature is installed.

System Operation

A777, A20, G777, G27 Page 5

Tamper Alert

If the system was triggered while away, the LED will flash to indicate which zone triggered the

system after disarming and turning on the ignition. The LED indication will repeat 8 times.

LED Flashes:

1 flash = optional sensor

2 flashes = shock sensor

3 flashes = not used

4 flashes = door

5 flashes = trunk

10 flashes = main power interrupt or system was reset

example: flash-flash-pause-flash-flash-pause = shock sensor

Silent Arming/Disarming

The system can be programmed to operate without Arm and Disarm chirp indications. When

programmed for full-time silent operation, the siren will sound only when the system is triggered.

The system is also capable of temporary silent operation if desired. Pressing the Shift button

before Arming or Disarming the system will bypass the chirp confirmations and allow one-time

silent operation.

Note: The open zone warning chirps will not be bypassed when the system is Armed or Disarmed silently.

Passive Arming

When programmed for the optional Passive Arming feature, the system arms itself automatically,

each time the ignition is turned off and all of the doors, hood, and trunk are closed.

To start the Passive Arming Process:

1. Turn off the ignition.

2. Open the door and exit the vehicle.

· Once all doors are closed and the dome light is off, the LED will begin flashing rapidly.

Parking Lights will flash twice three seconds after passive arming cycle began.

3. After 30 seconds,

· The siren will chirp.

· The parking lights will flash.

· The doors will lock.*

· The status LED will begin flashing.

4. The system is now armed.

* If the Passive Locking feature is selected.

Page 6 - A777, A20, G777, G27

Panic Mode

In the event of an emergency, the transmitter’s remote Panic feature can be used to instantly

trigger the alarm.

To activate the Panic Mode:

1. Press and hold Button 1 for 5 seconds.

· The alarm will sound.

· The parking lights will flash.

· The doors will unlock* allowing access to the vehicle.

2. Press Button 2 to stop Panic Mode.

* If the ignition is on when the Panic feature is activated, the doors will lock for personal safety.

Emergency Override

If the transmitter becomes lost or inoperable, the system can still be disarmed using the following

procedure. Before beginning this procedure be sure to have the ignition key ready and know the

location of the override switch.

To Emergency Override the system:

1. Unlock the door using the key.

2. Enter the vehicle.

· The system will trigger and the siren will sound.

3. Turn the ignition key on.

4. Press and hold the override switch until the system disarms.

5. The vehicle will now be able to start.

Optional Coded Emergency Override

As an extra measure of security, the system is equipped with an optional Coded Emergency

Override feature. Once an Emergency Override Code is chosen and programmed during

installation, the system can no longer be disarmed using the standard override procedure.

To Emergency Override the system using the Code:

1. Follow steps 1-3 above.

2. Press the override switch a number of times equal to the Disarm code, and continue

holding for 10 seconds on the last press.

· The system will disarm. If the code is entered incorrectly, turn off the ignition and begin

again.

To set the Emergency Override Code:

1. Turn on ignition.

2. Within 5 seconds, press the valet switch 5 times.

· The siren will provide one long chirp, indicating that you have entered Programming.

3. Press the valet switch 4 times.

· The siren will chirp each time the valet switch is pressed.

4. Within 5 seconds, press Button 3 on the transmitter.

A777, A20, G777, G27 Page 7

Entering System Programming

To enter System Programming:

1. Turn on ignition.

2. Within 5 seconds, press the valet switch 5 times.

· The siren will provide three chirps, indicating that you have entered Programming.

3. Press the valet switch the number times equal to the System Option you want to change.

· The siren will chirp each time the valet switch is pressed.

4. Within 5 seconds, press the transmitter button corresponding to the desired operating mode for

that System Option.

· The siren will chirp to indicate the setting.

1 chirp = Button 1

2 chirps = Button 2

3 chirps = Button 3

5. When you are finished, turn off the ignition to save the changes.

Default Reset

Following this procedure will set all Programmable System Options to factory default settings.

1. Enter System Programming.

2. Press Transmitter Button 3.

· The siren will chirp 6 times indicating that the reset signal was received.

· All Programmable System Options are now set to factory default settings.

· The Valet Mode is off.

3. Turn off ignition.

Programmable System Options

The following is a description of the programming options. Some program branches control more than one

option, and may require accessing a particular branch number twice in order to program all desired features.

1. Horn Chirps with Arm & Disarm. Selects one of two modes: Normal, Horn Chirps

Normal. When selected, the horn will honk only when the alarm is triggered.

Horn Chirps. When selected, the horn will provide the arm/disarmed trigger indications, allowing the siren

installation to be skipped.

2. Arm Mode. Selects one of two modes: Manual Arming or Passive Arming.

3. Passive Door Locking. Selects whether or not the system will automatically lock the doors during

Passive Arming.

4. Ignition Controlled Locks/ Override Code Set. This dual program branch sets Ignition Controlled

Locking and programs the optional Emergency Override Code. If Lock Only is selected, the doors will not

automatically unlock when the ignition is turned off.

Override Code Set. Changes the Emergency Override Code for a higher level of security (see page 7).

5. Ignition Door Unlocking. Selects whether or not the system automatically unlocks the doors when the

ignition is turned off. The Ignition Door Locking feature may be programmed to unlock all doors or the

driver’s door only. If driver’s door only is selected, the optional Passenger Unlock feature must be

connected. (See Two Stage Door Lock Diagrams)

System Programming

Page 8 - A777, A20, G777, G27

6. Ignore Open Door Report. Bypasses the open zone warning chirps for vehicles equipped with a

residual dome light circuit that remains ON for a period of time after closing the door.

7. Auto Rearming Mode. When selected, the system will automatically re-arm and lock 30 seconds after it

has been disarmed regardless if a door is open or closed.

8. Door Unlock Pulse. Selects between one pulse or two pulse operation for the door unlock output.

Vehicles that require two pulses on the proper wire to unlock the doors can be interfaced directly without

9. Warn-Away Pager Report. When Enabled, Warn-Away report will be sent to the pager. If Disabled no

Warn-Away report will be sent to the pager.

10. Disarm with Auxiliary 1. When selected, activating the Auxiliary 1 output (usually used to open the trunk)

will disarm the alarm.

11. Door Lock Pulse Length. Selects between a 1, 3 or 0.1 second output for door locking and unlocking.

the use of relays or any additional circuitry by programming the system for double unlock pulse. Program

to 3 seconds for vehicles equipped with vacuum door locking systems.

12. Anti-Carjack Type. Selects one of three modes for Anti-Carjacking: Active, Passive, or Full-Time.

Manual. When selected, pressing Button 4 will automatically engage the Anti-Carjacking feature.

Passive. When selected, the Anti-Carjacking feature will activate whenever a door is opened while the

ignition is on.Full-Time. When selected, the Anti-Carjacking feature will automatically activate each time

the ignition is turned on.

13. Anti-Carjack Mode. Enables Anti-Carjacking protection.

14. Horn Honk Output. Selects the output, when activated, to be pulsing or constant.

15. Aux 2 Auto Activate with Arm. When selected, the Auxiliary 2 output will activate when the system is

armed. This feature can be used to roll-up windows, close sunroofs, activate accessories, etc.

16. Auxiliary 1 Mode. Selects from momentary, 10 second timed, or latched operation for Auxiliary 1.

Momentary operation provides an output for as long as the transmitter button is pressed.

Timed operation provides an output that turns on for 10 seconds each time the transmitter button is

Latched operation provides an output that turns on when the transmitter button is pressed and remains

on until the transmitter button is pressed again.

17. Auxiliary 2 Mode. Selects from momentary, 10 second timed, or latched operation for Auxiliary 2.

Momentary operation provides an output for as long as the transmitter button is pressed.pressed. If the

button is pressed again during the 30 seconds, the output will turn off.

Timed operation provides an output that turns on for 10 seconds each time the transmitter button is

pressed. If the button is pressed again during the 30 seconds, the output will turn off.

Latched operation provides an output that turns on when the transmitter button is pressed and remains

on until the transmitter button is pressed again.

18. Auxillary 2 Output Selectable. Selects either Auxillary 2 output, starter output or ignition output.

19. Extended Parking Lights. When selected, the parking lights will remain ON for 30 seconds after

disarming the system.

Autres manuels pour G777

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Scytek electronic Alarme de voiture

Scytek electronic

Scytek electronic VISIONGUARD 6000 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X1 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X5 Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 1000RS-DBP Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 777 Mobile Manuel utilisateur

Scytek electronic

Scytek electronic Galaxy 5000RS Plus Series Manuel utilisateur

Scytek electronic

Scytek electronic Precision 700 series Manuel utilisateur

Scytek electronic

Scytek electronic 600 Manuel utilisateur

Scytek electronic

Scytek electronic G-20 Manuel utilisateur

Scytek electronic

Scytek electronic GALAXY 5100RS SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Galaxy 3000Plus Series Manuel utilisateur

Scytek electronic

Scytek electronic Astra 200 Manuel utilisateur

Scytek electronic

Scytek electronic 5000RS-2W Manuel utilisateur

Scytek electronic

Scytek electronic Astra 7T7 Series Manuel utilisateur

Scytek electronic

Scytek electronic G-20 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 70000000 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X55 series Manuel utilisateur

Scytek electronic

Scytek electronic G5.2W SERIES Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 777-TC Manuel utilisateur

Scytek electronic

Scytek electronic PRECISION PRO 5500 Manuel utilisateur

Scytek electronic

Scytek electronic SkyTrak-1000 Manuel utilisateur

Scytek electronic

Scytek electronic Astra 4000RS Manuel utilisateur

Scytek electronic

Scytek electronic 5100RS-22W Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur

Clifford

Clifford Nova 3 Manuel utilisateur
