660000SSEERRIIEESS

VEHICLE SECURITY SYSTEM

PRODUCT MANUAL

Limited LLifetime WWarranty

This vehicle security system is warranted to the original purchaser, to be free from defects in

material and workmanship. The manufacturer will repair or replace at its option, and free of

charge for the first twelve (12) months, any part that proves defective in material or workmanship

under normal installation, use, and service, provided the product is returned to the manufacturer

freight prepaid. After the first 12 month warranty period there will be a maximum service charge

of $25.00 per calendar year (if required) for repair and/or replacement of any defective parts.

A copy of the original purchase receipt must accompany any products returned for warranty

service. Warranty is limited to defective parts and/or replacement parts only and excludes any

incidental, and consequential damages connected therewith.

The manufacturer of this theft deterrent system makes no warranty against the theft of the vehicle

or its contents. This warranty is not to be construed as an insurance policy against loss.

WARRANTY OF INSTALLATION LABOR, REMOVAL AND RE-INSTALLATION CHARGES ARE

NOT THE RESPONSIBILITY OF THE MANUFACTURER.

1. About Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 1

2. Remote Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 2

Remote Transmitter Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 2

Adding/Replacing Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3

Two Car Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3

3. System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 4

Remote Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 4

Remote Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 4

Tamper Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 5

Silent Arming/Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 5

Passive Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 5

Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 6

Emergency Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 6

Optional Coded Emergency Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 6

Automatic Rearming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 7

Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 7

4. Extended Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

Ignition Controlled Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

Dome Light Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

Auxiliary Function Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

Disarm with Auxiliary Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

Remote Sensor Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

Anti-Carjacking Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8

5. System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 9

Mounting the Control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10

Mounting the Siren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10

Mounting the Shock Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10

6. System Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 11

15-Pin Main Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 11

5 Pin Door Lock Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 11

Starter Defeat Conncectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12

Plug-in Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12

7. Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 13

8. System Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14

Entering System Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14

Default Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14

Programmable System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14

Branch Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14

9. Door Lock Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 16

10. Two Stage Door Lock Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 17

11. Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 19

12. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Page

Table oofCContents

Congratulations on your purchase of this state-of-the-art vehicle security system from ScyTek

Electronics. With proper installation this system will provide superior protection and performance

for many years to come.

System Contents:

•Main Unit

•Two 5-Button Random Code Remote Transmitters

•High Output 6-tone Siren

•Dual Stage Shock Sensor

•Status LED

•Coded Valet Switch

Options and Accessories*

This ScyTek system includes several optional inputs and outputs allowing the creation of a

completely personalized security and convenience system by offering many optional features

such as:

*May require additional parts and/or labor, see store for details.

Astra 600 - Page 1

· Second Car Operation

· Remote Door Locking

· Two Stage Door Unlocking

· Starter Defeat

· Horn Honk

· Illuminated Entry

· Remote Window Control

· Remote Car Start

· Extended Range Antenna

· Power Trunk / Hatch Release

· Glass Breakage Sensor

· Radar Sensor

· Auxiliary Lighting Control

· Stereo System Valet

· Remote Head Lamp Control

· Back-up Battery Siren

About YYour SSystem

PLEASE NOTE:

Some of the features described in this manual may require additional parts and/or labor, and may not be included

as part of the standard installation of this unit. Additionally, many features of this security system have

selectable options that must be activated or programmed during the system’s installation. These items will be

identified in the following sections. Please discuss these features and any questions you may have regarding the

installation of this product with Your Authorized Dealer.

Remote Transmitter Description

The Astra 600 is supplied with two 5-button Remote Transmitters used to control system

operations.

Button 1

Arms the system and when held for 2 seconds, activates the system’s Panic feature.

Button 1 also locks the doors when the system is in Valet Mode.

Button 2

Disarms the system. Pressing Button 2 again operates the Passenger Unlock feature (if

installed). Button 2 also unlocks the doors when the system is in Valet Mode.

Button 3

Activates the Auxiliary 1 output. This output will remain on for as long as the button is

pressed.

Button 4

Activates the Auxiliary 2 output. This output will remain on for as long as the button is

pressed.

Button 5

is the Page

Shift

button. The Page Shift button will change the function of Buttons 1

through 4 each time it is pressed, allowing access to additional features or multiple car operation.

Each time the Shift Button is pressed, the LED on the transmitter will illuminate and the

transmitter functions will shift to the next page, allowing access to another set of features. Once

shifted to another page (there are 4 pages total), the transmitter will remain on that page for 10

seconds or until a button is pressed, then return to page 1. Each time a transmitter button is

pressed and held, the LED will flash a number of times to indicate from which page it is

transmitting. Under normally operation, only pages 1 and 2 are used. Pages 3 and 4 are usually

used for Two Car Operation (see page 3).

Shift then Button 1

Arms the system silently.

Shift then Button 2

Disarms the system silently.

Shift then Button 3

Activates the Auxiliary 3 output. This output will remain on for as long as the

button is pressed.

Shift then Button 4

Activates the Vehicle Locator feature which flashes the parking lights and

chirps the siren 5 times. This feature is useful to help locate the vehicle in a crowded parking

lot.

Page 2 - Astra 600

Remote TTransmitters

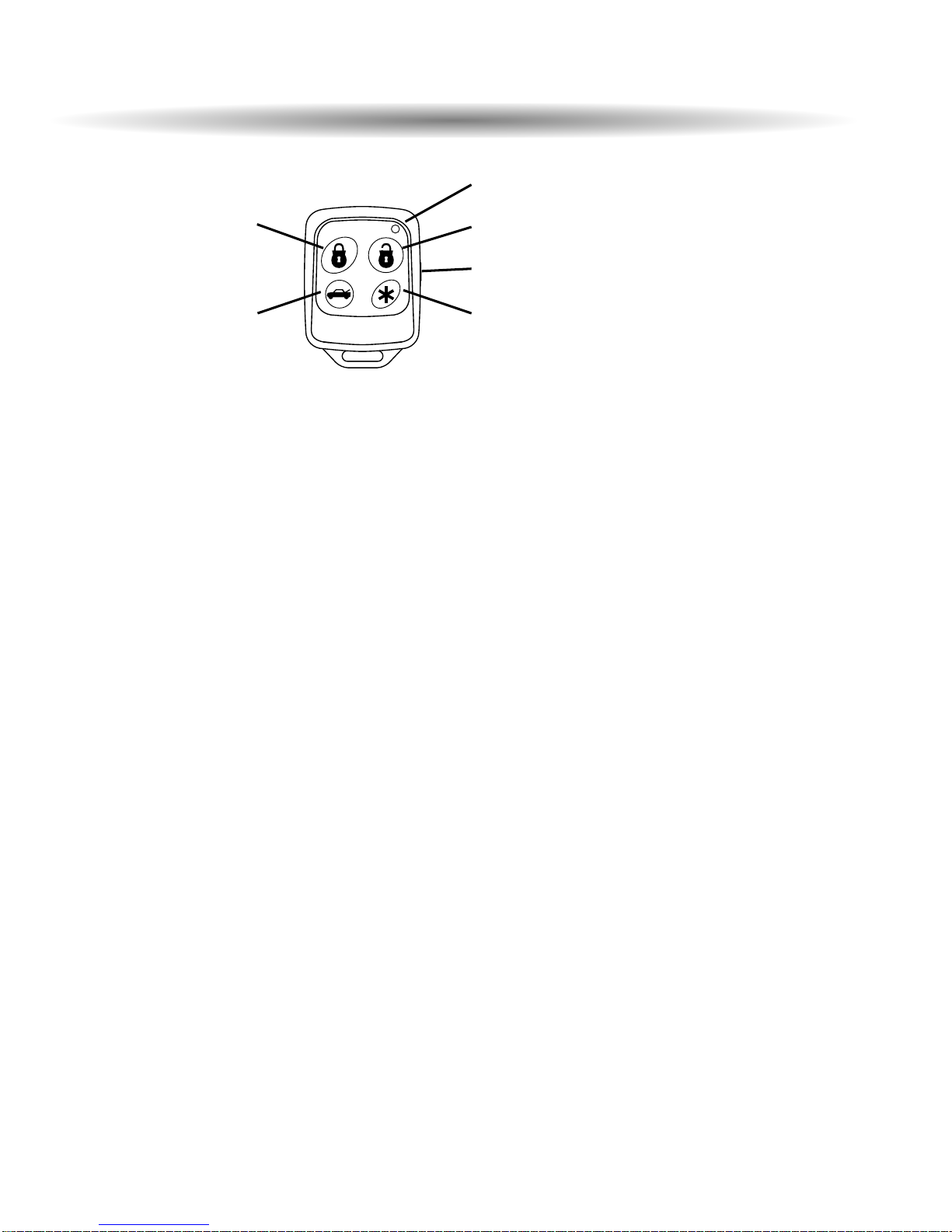

Button 1 Button 2

Button 5

LED

Button 3 Button 4

Adding/Replacing Transmitters

To replace lost or stolen transmitters or to add additional transmitters into the system, have all

desired transmitters ready and follow the steps below.

Note: Up to 4 transmitters can be programmed to operate the system. To erase any previously

stored transmitter codes, be sure to program all 4 transmitter memory locations.

To program the transmitter(s):

1. Turn on the ignition key On, Off, On, Off, and back On.

· The siren will chirp 3 times.

2. Press and hold the Override switch for 5 seconds.

· The siren will chirp 5 times.

· The LED will illuminate.

3. Press Button 1 on the first transmitter.

· The siren will chirp once.

4. Press Button 1 on the first transmitter again.

· The siren will chirp twice to indicate it has learned the code.

5. Repeat steps 3 and 4 for each transmitter (up to 4).

6. Turn off the ignition key.

Two Car Operation

If two vehicles are equipped with Astra 600 systems, for convenience both can be operated using

the same remote transmitter. If all four transmitters are to be used with both cars, program

transmitters A and B into the first vehicle in the manner described above. Program transmitters

C and D by pressing the Shift button twice before performing steps 3 and 4 above.

When finished programming the first vehicle, program transmitters C and D into the second

vehicle as normal, then program transmitters A and B by pressing the Shift button twice before

performing steps 3 and 4 above.

When programmed in this manner, the driver of the first car can also operate the second vehicle

by pressing the Shift button twice and the desired function button.

Battery Replacement

Your Remote Transmitter uses a 12 volt alkaline battery (type 23A), which will require

replacement in time. Depending on the amount of use, the battery may last up to six months

or more before it needs replacement.

When the battery needs replacing, the system’s operating range will decrease or the transmitter

LED may not be as bright.

In order to change the battery, first remove 2 screws from the back of the transmitter and

separate the top and bottom halves of the case.

While replacing the battery make sure that the positive and negative terminals are positioned

correctly, then carefully reassemble the transmitter case.

Astra 600 - Page 3

Page 4 - Astra 600

Remote Arming

The system monitors 4 independent areas (

zones

) while armed: doors, hood/trunk, shock

sensor and optional sensor input.

To Arm the System:

1. Turn off the ignition.

2. Press Button 1.

· The siren will chirp once.*

· The doors will lock.

· The parking lights will flash once.

· The LED will turn on red, to indicate the starter defeat is activate.

3. 5 seconds after Arming:

· The LED will start blinking to indicate that the doors and hood/trunk inputs are being

monitored.

* During Arming, if the system detects a bad sensor or an open zone, the system will chirp 4 additional

times and ignore that input, but keep all other areas protected.

Once Armed, the alarm will trigger when any of the following occurs:

·The doors are opened.

·The hood or trunk is opened.

·The shock sensor detects an impact to the vehicle.

·The optional sensor is disturbed.

When the alarm triggers, the siren will sound, the horn will honk, and the parking lights will

flash. If the system is triggered by the doors, or hood/trunk, the system will alarm for 45

seconds. If triggered by the shock sensor or optional sensor input, the system will alarm

for 30 seconds.

In the event the alarm is triggered and remains triggered continuously by the same sensor

or input during a single arming cycle, that sensor or input will be automatically bypassed

until the next time the system is armed.

If the Shock Sensor detects a light impact to the vehicle, or the Optional Sensor’s warn-

away zone is disturbed, the siren will chirp 5 times as a warning indication.

Remote Disarming

To Disarm the System:

Press Button 1.

· The siren will chirp twice.*

· The doors will unlock.

· The parking lights will flash twice.

· The dome light will turn on.

· The LED will turn off.

* During Disarming, if the system was triggered while away from the vehicle, the siren will chirp 3 times, the parking

lights will flash 3 times, and the LED will flash to indicate triggered zone. See

Tamper Alert

for zone listing.

System OOperation

Tamper Alert

If the system was triggered while away, the LED will flash to indicate which zone triggered the

system after disarming and turning on the ignition. The LED indication will repeat 8 times.

LED Flashes:

1 flash = optional sensor

2 flashes = shock sensor

3 flashes = not used

4 flashes = door

5 flashes = trunk

10 flashes = main power interrupt or system was reset

example: flash-flash-pause-flash-flash-pause = shock sensor

Silent Arming/Disarming

The system can be programmed to operate without Arm and Disarm chirp indications. When

programmed for full-time silent operation, the siren will sound only when the system is triggered.

The system is also capable of temporary silent operation if desired. Pressing the Shift button

before Arming or Disarming the system will bypass the chirp confirmations and allow one-time

silent operation.

Note: The open zone warning chirps will not be bypassed when the system is Armed or Disarmed silently.

Passive Arming

When programmed for the optional Passive Arming feature, the system arms itself automatically,

each time the ignition is turned off and all of the doors, hood, and trunk are closed.

To start the Passive Arming Process:

1. Turn off the ignition.*

2. Open the door and exit the vehicle.

· Once all doors are closed and the dome light is off, the LED will begin flashing rapidly.

3. After 30 seconds,

· The siren will chirp.

· The parking lights will flash.

· The doors will lock.**

· The status LED will begin flashing.

4. The system is now armed.

* The ignition must have been on for

at least

5 seconds or the Passive Arming sequence will be disabled.

** If the Passive Locking feature is selected.

To temporarily disable Passive Arming, turn on the ignition then turn off within 5 seconds. The

siren will chip once indicating the system will not passively arm until the ignition is cycled again.

If the Passive Arming with Countdown feature is programmed, the siren will chirp every 2

seconds until the system passively arms.

Note: If the Passive Arming feature is enabled, the Automatic Rearming feature will also be enabled even if it

was not already programmed.

Astra 600 - Page 5

Panic Mode

In the event of an emergency the transmitter’s remote Panic feature can be used to instantly

trigger the alarm.

To activate the Panic Mode:

1. Press and hold Button 1 for 3 seconds.

· The alarm will sound.

· The parking lights will flash.

· The doors will unlock* allowing access to the vehicle.

2. Press Button 2 to stop Panic Mode.

* If the ignition is on when the Panic feature is activated, the doors will lock for personal safety.

Emergency Override

If the transmitter becomes lost or inoperable, the system can still be disarmed using the following

procedure. Before beginning this procedure be sure to have the ignition key ready and know the

location of the override switch.

To Emergency Override the system:

1. Unlock the door using the key.

2. Enter the vehicle.

· The system will trigger and the siren will sound.

3. Turn ignition key on.

4. Press and hold the override switch for 10 seconds.

· The system will disarm.

5. The vehicle will now be able to start.

Optional Coded Emergency Override

As an extra measure of security, the system is equipped with an optional Coded Emergency

Override feature. Once an Emergency Override Code is chosen and programmed during

installation, the system can no longer be disarmed using the standard override procedure.

To Emergency Override the system using the Code:

1. Follow steps 1-3 above.

2. Press the override switch a number of times equal to the Disarm code, and continue

holding for 10 seconds on the last press.

· The system will disarm. If the code is entered incorrectly, turn off the ignition and

begin again.

To set the Emergency Override Code:

1. Turn on ignition.

2. Within 5 seconds, press the valet switch 5 times.

· The siren will provide one long chirp, indicating that you have entered Programming.

3. Press the valet switch 3 times.

· The siren will chirp each time the valet switch is pressed.

4. Within 5 seconds, press Button 3 on the transmitter.

· The siren will chirp 3 times.

Page 6 - Astra 600

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Scytek electronic Alarme de voiture

Scytek electronic

Scytek electronic ASTRA 777-TC Manuel utilisateur

Scytek electronic

Scytek electronic Astra 200 Manuel utilisateur

Scytek electronic

Scytek electronic Galaxy 5000RS Plus Series Manuel utilisateur

Scytek electronic

Scytek electronic VISIONGUARD 6000 Manuel utilisateur

Scytek electronic

Scytek electronic Galaxy 5000RS Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 70000000 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X1 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Scytek electronic

Scytek electronic P10 Series Manuel utilisateur

Scytek electronic

Scytek electronic Astra 4000RS Manuel utilisateur

Scytek electronic

Scytek electronic G-20 Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 1000RS-DBP Manuel utilisateur

Scytek electronic

Scytek electronic PRECISION PRO 5500 Manuel utilisateur

Scytek electronic

Scytek electronic GALAXY 5100RS SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Galaxy 3000Plus Series Manuel utilisateur

Scytek electronic

Scytek electronic G-20 Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 777 Mobile Manuel utilisateur

Scytek electronic

Scytek electronic 2000RS Manuel utilisateur

Scytek electronic

Scytek electronic Astra 7T7 Series Manuel utilisateur

Scytek electronic

Scytek electronic Galaxy 5000RS Plus Series Manuel utilisateur

Scytek electronic

Scytek electronic 5100RS-22W Manuel utilisateur

Scytek electronic

Scytek electronic G777 Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X55 series Manuel utilisateur

Scytek electronic

Scytek electronic ASTRA 777 Mobile Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur

Clifford

Clifford Nova 3 Manuel utilisateur
