MF 26

MF 36

MF 46

MF 56

MF 66

R 134 A / R 404 AVERSION

Electronic modular

flakers and

superflakers

MS 1000.20 REV. 10/2008

SERVICE MANUAL

TABLE OF

CONTENTS

Page 1

Table of contents page

Specifications MF 26

Specifications MF 36

Specifications MF 46

Specifications MF 56

Specifications MF 66

GENERAL INFORMATION AND INSTALLATION

Introduction

Unpacking and Inspection - Ice maker

Unpacking and Inspection - Storage bin

Location and levelling

Electrical connections

Water supply and drain connections

Final check list

Installation practice

OPERATING INSTRUCTIONS

Start up

Operational checks

PRINCIPLE OF OPERATION (How it works)

Water circuit

Refrigerant circuit

Mechanical system

Operating pressures

Components description

ADJUSTMENT, REMOVAL AND REPLACEMENT PROCEDURES

Adjustment of the evaporator water level

Replacement of the Gear Motor Magnetic Sensor

Replacement of the auger, water seal, bearings and coupling

Replacement of the gear motor assy

Replacement of the freezing cylinder

Wiring diagram

Service diagnosis

MAINTENANCE AND CLEANING INSTRUCTIONS

General

Icemaker

Cleaning instructions of water system

SPECIFICATIONS

ice making capacity

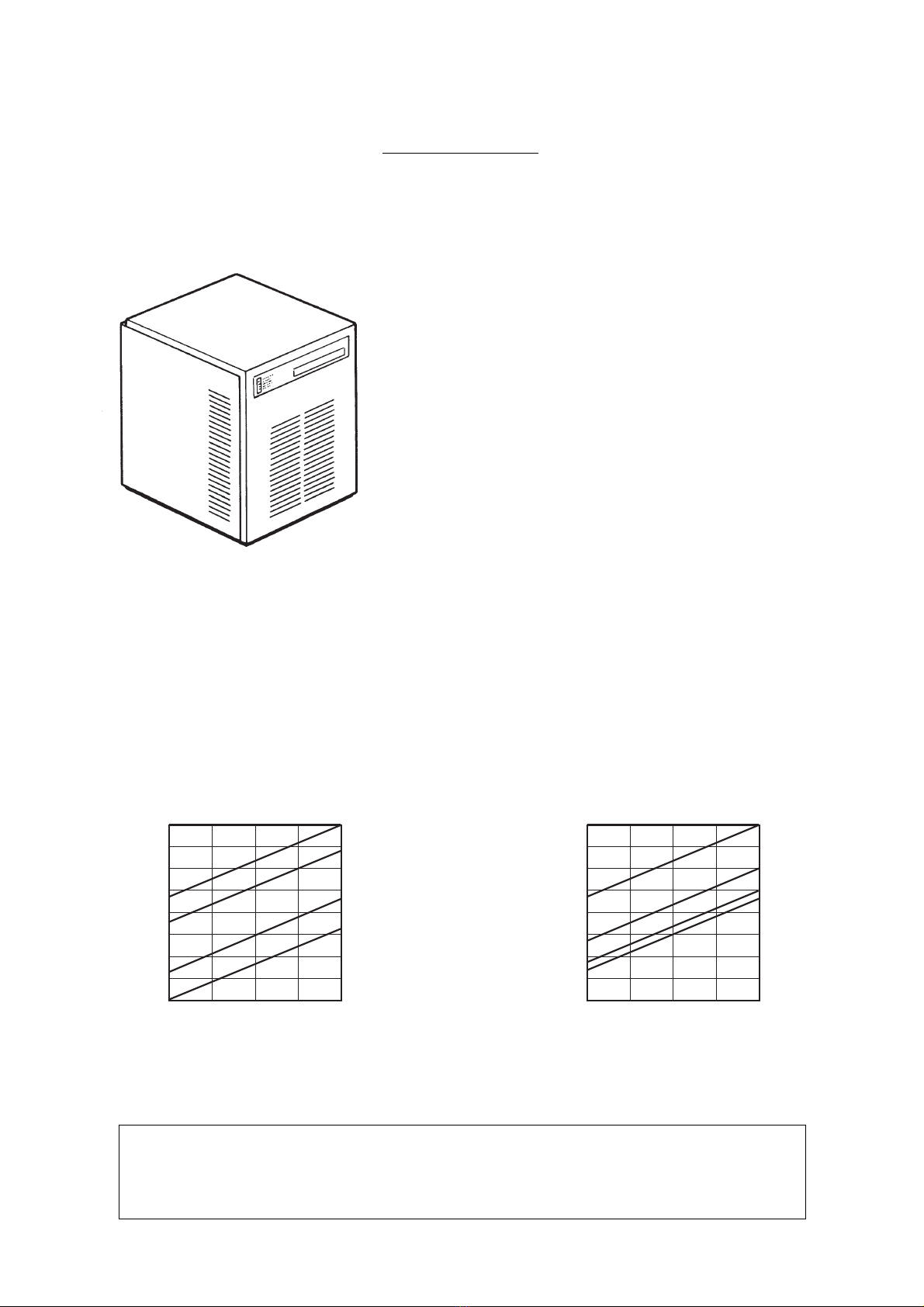

ELECTRONIC MODULAR FLAKER MODEL MF 26

Important operating requirements:

MIN MAX

• Air temperature 10°C (50°F) 40°C (100°F)

• Water temperature 5°C (40°F) 35°C (90°F)

• Water pressure 1 bar (14 psi) 5 bars (70 psi)

• Electr. voltage

• variations from voltage

• rating specified

• on nameplate -10% +10%

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on maintenance section of this manual.

Page 2

Kg.

32 °C27 21 15 10

°C

120

115

110

105

100

Kg.

32 °C27 21 15 10

°C

120

115

110

105

100

ICE PRODUCED PER 24 HRS.

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

WATER COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

MF 26 AS Air 120*

MF 26 WS Water 480*

Start Electric power cons.

Amps Kwh per 24 HR

SPECIFICATIONS

Water req.

lt/24 HR

Model Finish

Cond. unit Comp. HP

* A 15°C water temperature

S. Steel 3/8

Basic electr. Amps Watts Nr. of wires Amps fuse

230/50/1 3.2 17 500 11 3 x 1.5 mm210

MF 26 - MACHINE SPECIFICATIONS

Page 3

Dimensions:

HEIGHT (less legs) 525 mm.

HEIGHT (with legs) 542 mm.

WIDTH 563 mm.

DEPTH 536 mm.

WEIGHT 49 Kg.

SPECIFICATIONS

ice making capacity

ELECTRONIC MODULAR FLAKER MODEL MF 36

Important operating requirements:

MIN MAX

• Air temperature 10°C (50°F) 40°C (100°F)

• Water temperature 5°C (40°F) 35°C (90°F)

• Water pressure 1 bar (14 psi) 5 bars (70 psi)

• Electr. voltage

• variations from voltage

• rating specified

• on nameplate -10% +10%

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on maintenance section of this manual.

200

180

160

140

120

Kg.

32 °C27 21 15 10

°C

190

180

170

160

150

Kg.

32 °C27 21 15 10

DE 10 A 38°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

WATER COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

Page 4

MF 36 AS Air 200*

MF 36 WS Water 850*

Start Electric power cons.

Amps Kwh per 24 HR

SPECIFICATIONS

Water req.

lt/24 HR

Dimensions:

HEIGHT (less legs) 525 mm.

HEIGHT (with legs) 542 mm.

WIDTH 563 mm.

DEPTH 536 mm.

WEIGHT 49 Kg.

Model Finish

Cond. unit Comp. HP

* A 15°C water temperature

S. Steel 5/8

Basic electr. Amps Watts Nr. of wires Amps fuse

230/50/1 4 20 760 17 3 x 1.5 mm210

MF 36 - MACHINE SPECIFICATIONS

Page 5

SPECIFICATIONS

ice making capacity

ELECTRONIC MODULAR SUPERFLAKER

MODEL MF 46

Important operating requirements:

MIN MAX

• Air temperature 10°C (50°F) 40°C (100°F)

• Water temperature 5°C (40°F) 35°C (90°F)

• Water pressure 1 bar (14 psi) 5 bars (70 psi)

• Electr. voltage

• variations from voltage

• rating specified

• on nameplate -10% +10%

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on maintenance section of this manual.

Page 6

310

330

310

290

270

250

230

210

190

Kg.

°C27 21 15 10

°C

360

340

320

300

280

260

240

220

200

Kg.

32 °C27 21 15 10

°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

WATER COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

SPECIFICATIONS

Start Electric power cons.

Amps Kwh per 24 HR

Water req.

lt/24 HR

MF 46 - MACHINE SPECIFICATIONS

Dimensions:

HEIGHT (less legs) 645 mm.

HEIGHT (with legs) 650 mm.

WIDTH 535 mm.

DEPTH 660 mm.

WEIGHT 77 Kg.

Model Finish

Cond. unit Comp. HP

* A 15°C water temperature

MF 46 AS Air 320*

MF 46 WS Water 1800*

S. Steel 1

Basic electr. Amps Watts Nr. of wires Amps fuse

230/50/1 5.2 29 1200 26 3 x 1.5 mm 16

Page 7

SPECIFICATIONS

ice making capacity

ELECTRONIC MODULAR SUPERFLAKER

MODEL MF 56

NOTE.Thedailyice-makingcapacityisdirectlyrelatedtothecondenserairinlettemperature,water

temperature and age of the machine.

To keep your SCOTSMAN FLAKER at peak performance levels, periodic maintenance checks

must be carried out as indicated on maintenance section of this manual.

Page 8

Important operating requirements:

MIN MAX

• Air temperature 10°C (50°F) 40°C (100°F)

• Water temperature 5°C (40°F) 35°C (90°F)

• Water pressure 1 bar (14 psi) 5 bars (70 psi)

• Electr. voltage

• variations from voltage

• rating specified

• on nameplate -10% +10%

700

650

600

550

500

450

400

350

300

Kg.

32 °C27 21 15 10

°C

600

575

550

525

500

475

450

425

400

Kg.

°C

AIR COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

WATER COOLED MODELS

WATER TEMPERATURE

AMBIENT TEMPERATURE

ICE PRODUCED PER 24 HRS.

32 27 21 15 10

Basic electr. Amps Watts Nr. of wires Amps fuse

2000

230/50/1 10 34 45 3 x 1.5 mm216

400/50/3+N 4 22 40 5 x 1.5 mm216

SPECIFICATIONS

Start Electric power cons.

Amps Kwh per 24 HR

Water req.

lt/24 HR

MF 56 - MACHINE SPECIFICATIONS

Dimensions:

HEIGHT (less legs) 785 mm.

HEIGHT (with legs) 790 mm.

WIDTH 535 mm.

DEPTH 660 mm.

WEIGHT 93 Kg.

Model Finish

Cond. unit Comp. HP

* A 15°C water temperature

S. Steel

MF 56 AS Air 600*

MF 56 WS Water 3000*

Page 9

1.5
