MODEL
AL150-HS
HIGH SPEED
PIPE NOTCHER
GRINDER
VERSION 1 - JULY 2019
SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542
PAGE 2
MODEL AL150-HS
HIGH SPEED PIPE NOTCHER GRINDER
PAGE 3

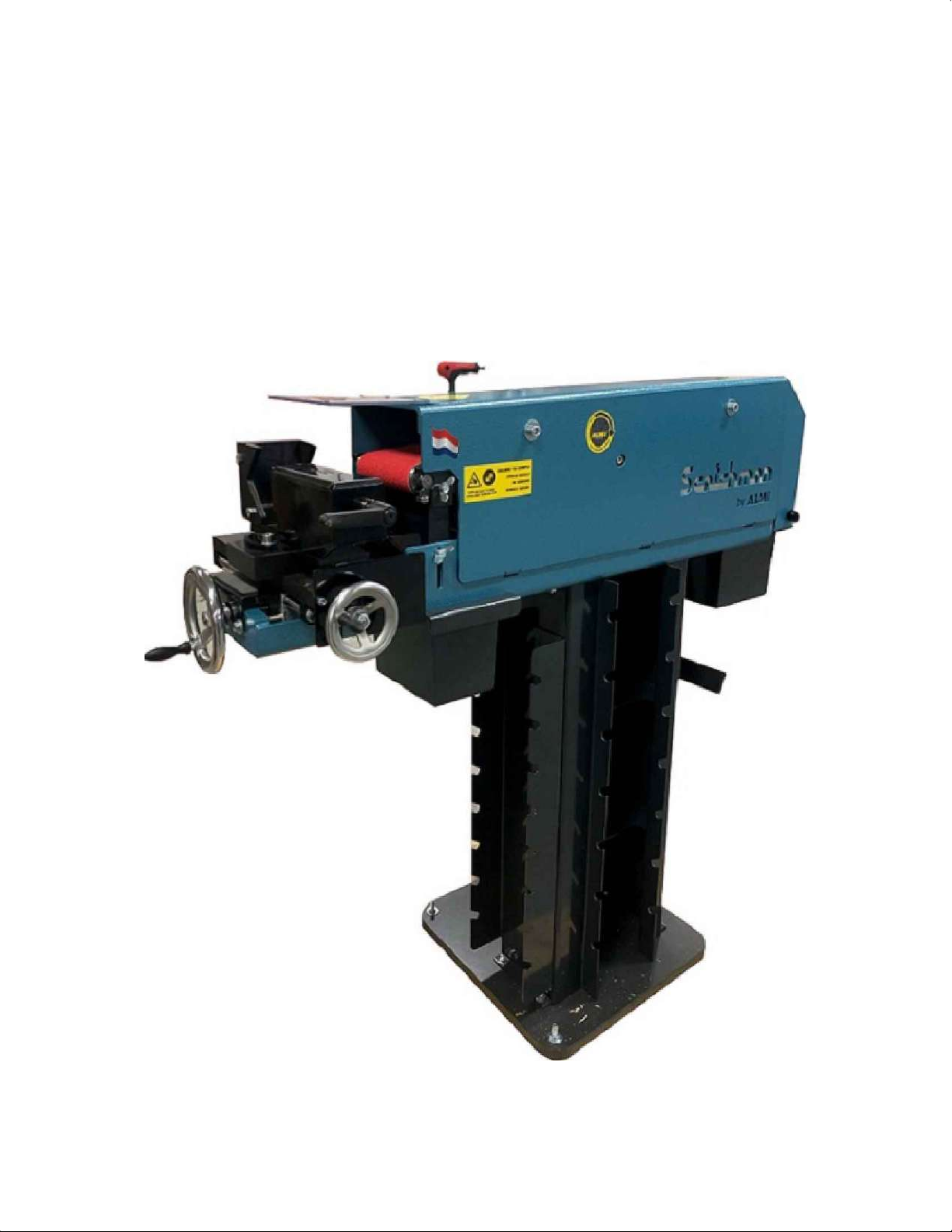

TUBE & PIPE GRINDER NOTCHERS
The AL150-HS is ideal for grinding &
notching stainless steel and aluminum,
producing a gap-free fit ready for welding.
With the AL150-HS you are able to grind 3x
faster than the AL150 due to the higher
grinding belt speed of 4,300 RPM . Also, your
grinding belt will see a 3 times longer life than
other grinders when grinding at this High
Speed. This machine will grind steel, stainless
steel, aluminum, inconel and plastics. It is
equipped with a high speed parts grinder that
can be used for more than just your typical
deburring.
Thank You for your purchase of Scotchman
products - We appreciate your business!!
TABLE OF CONTENTS
1.0 INTRODUCTION 6
2.0 SAFETY PRECAUTIONS 6
3.0 MACHINE DECALS 9
4.0 INSTALLATION AND SET UP
9
MACHINE START-UP5.0
22
30
NOTCHING CAPACITIES
4.2
7.0
6.0
22
MACHINE OPERATIONS
4.1
SECTION DESCRIPTION PAGE #
10
2.1 Warranty 7
12
Warning Symbols
Assembling Machine & Moving
10
4.3
4.4
16
4.5 Wiring Diagrams
15
18
15
5.1 Machine Controls & Adjustments
22
22
6.2 Drive for the Grinding Belt
23
6.3 Securing a Tubing Section
24
6.4 Angle Adjustment
25
6.1 Starting and Stopping Belt
22
6.5 Depth Stop
25
6.6 Length Stop
29
7.1 Angled Notching Capacity
20
Physical Dimensions
3.1
Electrical Requirements
Machine Identification
6.7 Notching the Tubing
6.8 Deburring
SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542
PAGE 4
31
8.3
Setting Belt Tension
33
8.1 Belt Tension 31
8.2 Notcher Roller Support 32
CHANGING ROLLERS AND BELT8.0
40
8.5
Adjustment Of Grinding Roller
36
8.4
Setting The Belt Tracking
35
37
38
38
40
41
AVAILABLE OPTIONS
9.0
9.1 Roller Holder
AVAILABLE ROLLERS10.0
45
AVAILABLE GRINDING BELTS11.0
AL 150-HS PARTS LIST12.0
AL 150-HS Exploded Views
SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542
Changing The Roller
8.6
12.1
49
OPTIONAL BACK GAUGE
PAGE 5
1.0 INTRODUCTION
Tube & Pipe Notch Grinders
Scotchman Tube & Pipe Grinder/Notchers are strong, accurate machines. The AL150-HS operates at a
higher speed than our other grinders and grinds a notch much faster. Stainless-steel sections and pipes
can be machined problem free, at high speed without grinding burrs or heat discoloration. The
grinding rollers can be changed without tools in just seconds, saving time and money! The grinding
belt can also be changed easily from one side of the machine. Once the sections and pipes have been
ground, they can be deburred using the high speed parts grinder on the other end of the machine.
The AL150-HS can feed the tube with either a handwheel or a lever. The pipe grinder/notchers offer
trouble-free, accurate, quick and efficient machining of tubes and pipes for many years; and are
backed by a 3-year warranty.
FEATURES:
Fast, strong and accurate
Ideally suited for grinding stainless quickly
Fitted with grinding rollers that can be changed in seconds
Equipped with a high speed parts grinder
Tool Free Belt and Mandrel Change Over
Grinds tube and pipe at every angle between 30 degrees and 90 degrees
3-Year Warranty
2.0 SAFETY PRECAUTIONS
1. The operators of this machine must be qualified and well trained in the operation of the machine.
The operators must be aware of the capacities of the machine and the proper use of the holding
device and the guards provided with the machine. This manual is not intended to teach untrained
personnel how to operate machinery.
2. All of the guards, and awareness barriers must be installed on the machine and kept in good
working order. Promptly replace worn or damaged parts with the correct authorized parts.
3. Never place any part of your body into any of the machine’s moving parts or hold devices.
4. Wear the appropriate personal protective equipment. This machine grinds metal and creates
abrasive and metallic particles so Safety Glasses are required at all times!! Whether operating,
setting up or observing this machine in operation, Safety Glasses are a requirement.
5. Since pieces of metal with sharp edges are processed on this machine, the operator should also
wear steel-toed shoes and leather gloves.
6. Strictly comply with all warning labels and decals on the machine. Never remove any of the labels
and replace worn or damaged labels promptly.
7. Always disconnect and lock out the power when performing maintenance work or repairs on this
machine.
8. Replace sanding belt when needed. Never operate this machine with a sanding belt that is worn out.
The excessive pressure required to notch a tube with a worn out sanding belt can damage roller and
cut the sanding belt.
PAGE 6
8. Practice good housekeeping. Keep the area around the machine clear and well lit. Do not obstruct
the operator’s position by placing anything around the machine that would impede the operator’s
access to the machine.
9. Never modify this machine in any way without the written permission of the manufacturer.
10. Never leave this machine running unattended.
11. Never operate any of the work stations from a sitting or kneeling position.
12. Always be aware of what others around you are doing at all times.
13. Set up a program of routine inspections and maintenance for this machine. Make all repairs and
adjustments in accordance with the manufacturer’s instructions.
2.1 WARRANTY
Scotchman Industries, Inc. will, within three (3) years of the date of purchase, replace F.O.B. the factory
or refund the purchase price for any goods which are defective in materials or workmanship, provided
the buyer returns the warranty registration card within thirty (30) days of the purchase date and, at the
seller’s option, returns the defective goods freight and delivery prepaid to the seller, which shall be the
buyer’s sole and exclusive remedy for defective goods.
Hydraulic and electrical components are subject to their respective manufacturer’s warranties.
This warranty does not apply to machines and/or components which have been altered, changed or
modified in any way or subjected to abuse and abnormal use, inadequate maintenance and lubrication
or subjected to use beyond the seller’s recommended capacities and specifications.
In no event shall the seller be liable for labor cost expended on such goods or consequential damages.
The seller shall not be liable to the purchaser or any other person for loss or damage directly or
indirectly arising from the use of the goods or from any other cause. No officer, employee or agent of the
seller is authorized to make any oral representations or warranty of fitness or to waive any of the
foregoing terms of sale and none shall be binding on the seller.
Any electrical changes made to the standard machine due to local electrical code variation must be paid
by purchaser. As we constantly strive to improve our products, we reserve the right to make changes
without notification.
PAGE 7
ALMIby
PAGE 8
FIGURE 1
PAGE 8
FIGURE 1
1
Qty Part # Description
2 A050.00024 Safety Sticker 8 x 8 cm
2 1 A050.00025 Sticker side flap 13x5 cm
3 1 A050.00045 Instruction sticker AL150HS
4 1 N/A Triangle Pinch Point Sticker
Item
3.0 MACHINE DECALS
2
4
3
1
"CE" Identification on Other Side
ALMI Motor
Type AL 150 HS Volt 230
Hz. 60
l/min 4300
Weight 2752019
Sr.No.
PAGE 9
3.1 WARNING SYMBOLS
PICTOGRAM 1:
READ OWNERS MANUAL FIRST!!
PICTOGRAM 2:
USE OF EYE PROTECTION REQUIRED!!
PICTOGRAM 3:
USE OF HEARING PROTECTION REQUIRED!!
PICTOGRAM 4:
KEEP LID CLAP CLOSED
WHILE BELT IS IN MOTION!!
BEFORE OPERATING THIS MACHINE
Strictly comply with all warning labels and decals on the machine. Never
remove any of the labels and replace worn or damaged labels promptly!!
PAGE 10
4.0 INSTALLATION AND SET UP
CAUTION: THIS SECTION (4.0 to 5.0) DISCUSSES INSTALLATION AND SET-UP
PROCEDURES. PLEASE READ THOROUGHLY BEFORE OPERATING THIS MACHINE.
►
4.1 PHYSICAL DIMENSIONS SEE FIGURE 2 ► ◄
1Machine Height 50 127
253 134.6
3
4
5
6
7
8
9
31 78.7
34-1/2 87.6
22-3/4 57.8
Length
11 27.9
Width
Front from Base
695 LBS. 315 KG.
19-1/4 48.9
INCHES CM DESCRIPTION
ITEM
Base Length
19-1/4 48.9
Base Width
Base Height
Weight
Rear from Base
