Schwinn 250 Manuel utilisateur

SCHWlNN_

Manual en Esp¢_ol LaSno ArYericano_

http://www_schwinnfitnes_ s_cor_ ASSEMBLY MANUAL / OWNER'S MANUAL

Important Safety Instructions - Assembly 3

Safety Warning Labels /Serial Number 4

Specifications 5

Before Assembly 5

Parts 6

Hardware 7

Tools 7

Assembly 8

Moving the Bike 21

Leveling the Bike 21

Important Safety Instructions 22

Features 23

Console Features 24

Remote Heart Rate Monitor 26

Operations 29

Adjustments

Initial Setup

Quick Start /Manual Program

Guest User /Profile Program

User Setup Mode

Profile Programs

Fitness Test

Heart Rate Control Workout

Distance Goal Workout

Results/Cool Down Mode

Pausing or Stopping

User Statistics

Console Setup Mode

Maintenance

Troubleshooting

Tovalidatewarrantysupport,keepthe originalproofof purchaseand recordthe following information:

Serial Number

Dateof Purchase

Toregisteryourproductwarranty, goto: www.SchwinnFitness.com/register

Orcall 1(800) 605=3369.

ifyouhavequestionsor problemswithyourproduct,pleasecall 1(800) NAUTILUS(628-8458).

Nautilus, Inc., (800) NAUTILUS /(800) 628-8458, www.Nautiluslnc.com - Customer Service: North America

(800) 605-3369, [email protected] I outside U.S. +01-360-859-5180, [email protected] I

trademark. Nautilus, Inc. (www.Nautiluslnc.com) trademarks include NAUTILUS@, BOWFLEX@, SCHWINN@

and UNIVERSAL@ and respective Iogos. Other trademarks are the property of their respective owners

,_, This icon means a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

Obeythe following warnings:

_, Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

Keep bystanders and children away from the product you are assembling at all times.

Do not connect power supply to the machine until instructed to do so.

Do not assemble this machine outdoors or in a wet or moist location.

Make sure assembly is done in an appropriate work space away from foot traffic and exposure

to bystanders.

Some components of the machine can be heavy or awkward. Use a second person when

doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or

awkward movements on your own.

Set up this machine on a solid, level, horizontal surface.

Do not try to change the design or functionality of this machine. This could compromise the

safety of this machine and will void the warranty.

• If replacement parts are necessary, use only genuine Nautilus® replacement parts and

hardware. Failureto use genuine replacement parts can cause a risk to users, keep the

machine from operating correctly and void the warranty.

Do not use until the machine has been fully assembled and inspected for correct performance

in accordance with the Manual.

Read and understand the complete Manual supplied with this machine before first use. Keep

the Manual for future reference.

Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect

function.

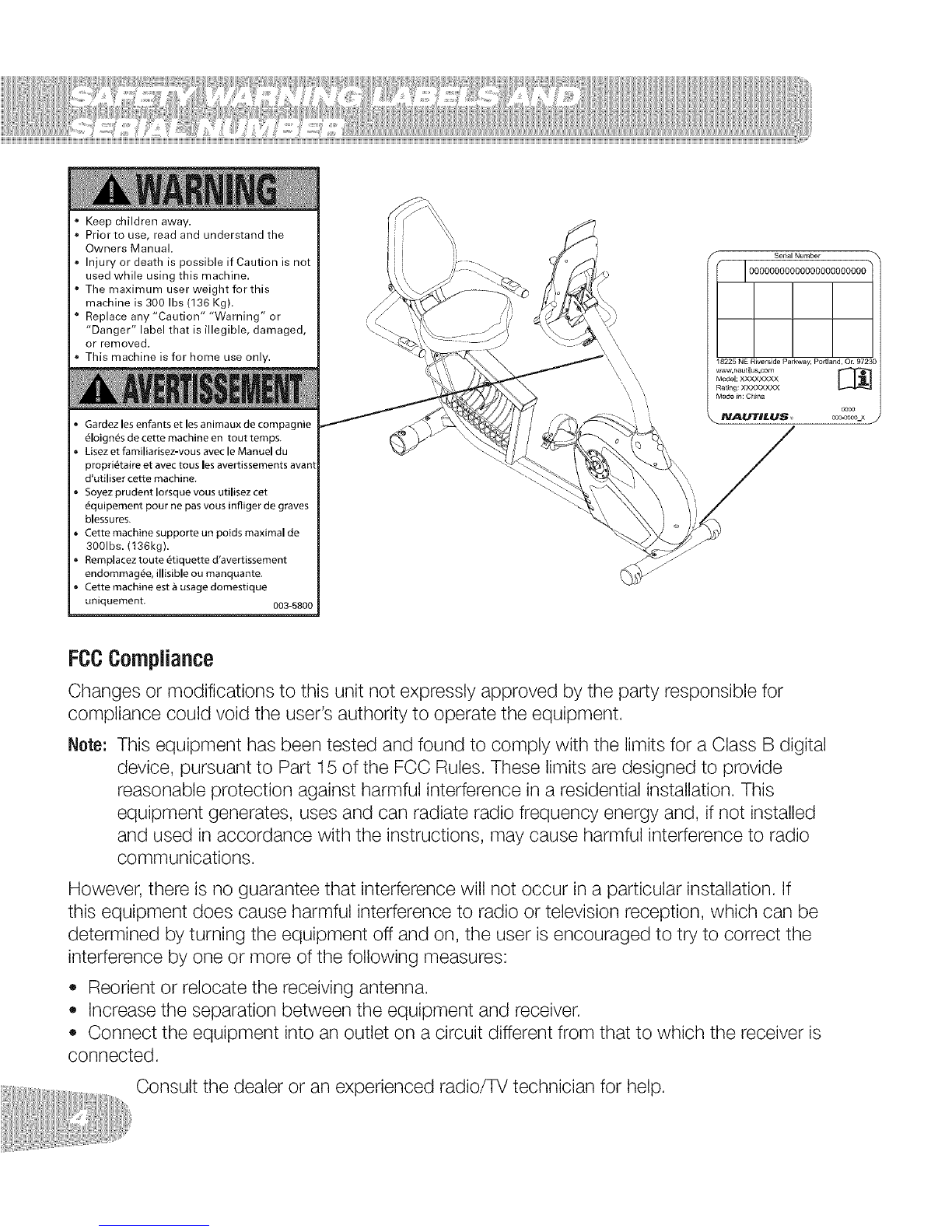

Keep children away.

Prior to use, read and understand the

Owners Manual.

Injury or death is possible if Caution is not

used while using this machine.

The maximum user weight for this

machine is 300 Ibs (136 Kg).

Replace any "Caution" "Warning" or

"Danger" label that is illegible, damaged,

or removed.

This machine is for home use only.

Gardez les enfants et les animaux de compagnie

&loign_s de cette machine en tout temps.

Lisez et familiarisez-vous avec le Manuel du

propri_taire et avec tous les avertissernents avant

d'utiliser cette machine.

Soyez prudent Iorsque vous utilisez cet

&quipement pour ne pas vous infliger de graves

blessures.

Cette machine supporte un poids maximal de

30Olbs. (136kg).

Remplacez toute _tiquette d'avertissement

endommag_e, illisible ou manquante.

Cette machine est & usage domestique

uniquement. 003-5800

f SerialNumbe>r

00000000000000000000000

FCCCompliance

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

MaximumUserWeight:

PowerRequirements:

Operational Voltage:

Operating Current:

Regulatory Approvals:

AC Power Adapter:

300 Ibs. (136 kg)

Operational Voltage 9VDC

1500 mA

UL listed, CSA certified (or

equivalent), Rated 120V 60Hz

Input, 9VDC, 1500mA Output.

Class 2 or LPS.

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the

location must be on a hard, level surface. Allow a workout area of a minimum 103" x 65" (2.6m x

1.7m).

BasicAssemblyTips

Follow these basic points when you assemble your machine:

• Read and understand the "Important Safety Instructions" before assembly.

Collect all the pieces necessary for each assembly step.

Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,

and the left (counterclockwise) to loosen, unless instructed otherwise.

When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt

through the holes.

The assembly requires 2 people.

16 14

17 13

7 8

ioi

Item Qty Description Item Qty Description

1 1 Rear Stabilizer 10 1 Seat Bottom

2 1 Front Stabilizer 11 1 Seat Rail *

3 1 Seat Frame 12 1 Console Mast

4 1 Frame 13 1 AC Adapter

5 1 Console 14 1 Left Pedal

6 1 Console Bracket 15 1 Right Pedal

7 1 Handlebar Bracket 16 1 Upright Handlebar

8 1 Seat Rail Bracket * 17 1 Side Handlebar

9 1 Seat Back

* Pro-installed on Frame (Item 4).

i i

B G H

item Qty Description item Qty Description

A 1 Carriage Bolt, M8x85 H 1 Mounting Bracket

B 1 Hex Bolt, M8x85 I 2 Hex Bolt, M7x30

C 1 Console Tilt Adjustment Knob J 4 Curved Washer, M8

D 8 Button Head Hex Screw, M8x16 K 4 Cap

E 1 Lock Nut, M8 L 8 Button Head Hex Screw, M8x45

F 4 Hex Screw, M8x16 M 2 Lock Washer, M6

G 14 Flat Washer, M8 N 2 Flat Washer, M6

Tools

Included NotIncluded

(recommended)

6mm

1. RemoveSeatRailfromFrameandDisconnectHeartRateCable

NOTICE: Make sure that the heart rate cable does not fall into the frame tube. Hardware is

not on hardware card.

4X7

=Remove Seat Rail Bracket from Seat Rail

NOTICE: Hardware is not on hardware card.

\\, \

4. AttachSideHandlebarto SeatFrame

5.AttachSeatPadsto SeatFrameAssembly

I,II I

/_/ ,

/ l

I '\

ft.LoosenandPulltheSeatPostAdjustment Knobto SlideSeatAssemblyontoSeatRail

NOTICE: Do not crimp the Heart Rate ©able.

Note: Lock the Adjustment Knob intoone of the Seat Rail lockingholes.
