Schrack Technik GENIO Tower Plus USSEP VFI 0,7 Mode d’emploi

Installation and use manual

UNINTERRUPTIBLE POWER SUPPLY

Series GENIO Tower Plus

USSEP VFI 0,7 - 3kVA

1 phase input / 1 phase output

On Line / Double Conversion (VFI) Technology

INTRODUCTION

Congratulations on purchasing a UPS GENIO Tower Plus product and welcome to Schrack! To use the support service

offered by Schrack, visit the site www.ups-technet.com

The company is highly specialised in the development and production of uninterruptible power supplies (UPSs).

The UPSs in this series are high-quality products, carefully designed and manufactured in order to ensure the highest levels

of performance.

This device can be installed by anyone on the condition that he/she has READ THE USER AND SAFETY MANUAL

CAREFULLY.

The UPS and the Battery Box internally generate DANGEROUS electrical voltages. All maintenance operations must

be carried out SOLELY by qualified operators.

This manual contains detailed instructions for using and installing the UPS and the Battery box.

For information about using and making the most of the performance of your device, please keep hold of the CD

containing this manual and read it carefully before operating the equipment.

ENVIRONMENTAL PROTECTION

In the development of its products, the company devotes abundant resources to analysing the environmental aspects.

All our products pursue the objectives defined in the environmental management system developed by the company in

compliance with applicable standards.

No hazardous materials such as CFCs, HCFCs or asbestos are used in this product.

When evaluating packaging, the choice of material has been made favouring recyclable materials.

For correct disposal, please separate and identify the type of material of which the packaging is made in the table below.

Dispose of all material in compliance with applicable standards in the country in which the product is used.

DESCRIPTION MATERIAL

Box Cardboard

Packaging corner Stratocell

Protective bag Polythene

Accessories bag Polythene

DISPOSING OF THE PRODUCT

The UPS and the Battery Box contain electronic cards and batteries which are considered TOXIC and HAZARDOUS waste.

When the product reaches the end of its operating life, dispose of it in accordance with applicable local legislation.

Disposing of the product correctly contributes to respecting the environment and personal health.

In order to make improvements, the manufacturer reserves the right to modify the product described at any moment and without

notice.

ONTENTS

PRESENTATION 5

UPS

IEWS

RONT VIEW

EAR VIEW

ISPLAY PANEL VIEW

ATTERY

(

ACCESSORY NOT PROVIDED WITH UPS

) 9

EAR VIEW

INSTALLATION 10

NITIAL CONTENT CHECK

NSTALLATION ENVIRONMENT

ATTERY

OX INSTALLATION

ETTING THE NOMINAL BATTERY CAPACITY

USE 12

ONNECTIONS AND SWITCHING ON FOR THE FIRST TIME

WITCHING ON FROM THE MAINS

WITCHING ON FROM THE BATTERY

WITCHING OFF THE

UPS 12

ISPLAY PANEL MESSAGES

UPS

STATUS MESSAGES

EASUREMENT DISPLAY AREA

ONFIGURING THE OPERATING MODE

OSSIBLE SETTINGS

DDITIONAL FUNCTIONS

OFTWARE

ONITORING AND CONTROL SOFTWARE

ONFIGURATION SOFTWARE

UPS

CONFIGURATION

OMMUNICATION PORTS

RS232

CONNECTOR

OMMUNICATION

LOT

TROUBLESHOOTING 21

ALARM CODES 23

FAULT 23

LOCK 24

TECHNICAL DATA 25

PRESENTATION

GENIO Tower Plus uses ON-LINE double conversion technology, resulting in the highest levels of reliability and maximum

protection for critical loads such as servers, IT applications and Voice/Data.

It is possible to use one or more autonomy expansion units known as BATTERY BOXES (optional accessories) with the

same dimensions and aesthetic line as the UPS alongside it.

The ER model UPSs fitted with upgraded battery chargers are the solution for Business Continuity applications which require

long battery-powered operating times. For these versions, the batteries are housed in separate cabinets which are designed

to contain large, high-capacity batteries.

UPS VIEWS

FRONT VIEW

REAR VIEW

00VA / 1500VA model

1000VA / 1000VA ER model

Display

Cooling fans

Multipurpose buttons Battery expansion connector

ON/OFF switch IEC 10A output socket

RS232 communication port and contacts IEC 10A input plug

USB communication port Remote control terminal board

Slot for communication cards

2200VA / 2200VA ER / 3000VA / 3000VA ER model

RS232 communication port and contacts IEC 16A output socket (only for 3000VA models)

USB communication port IEC 10A output socket

Slot for communication cards IEC 16A input plug

Cooling fans Remote control terminal board

Battery expansion connector

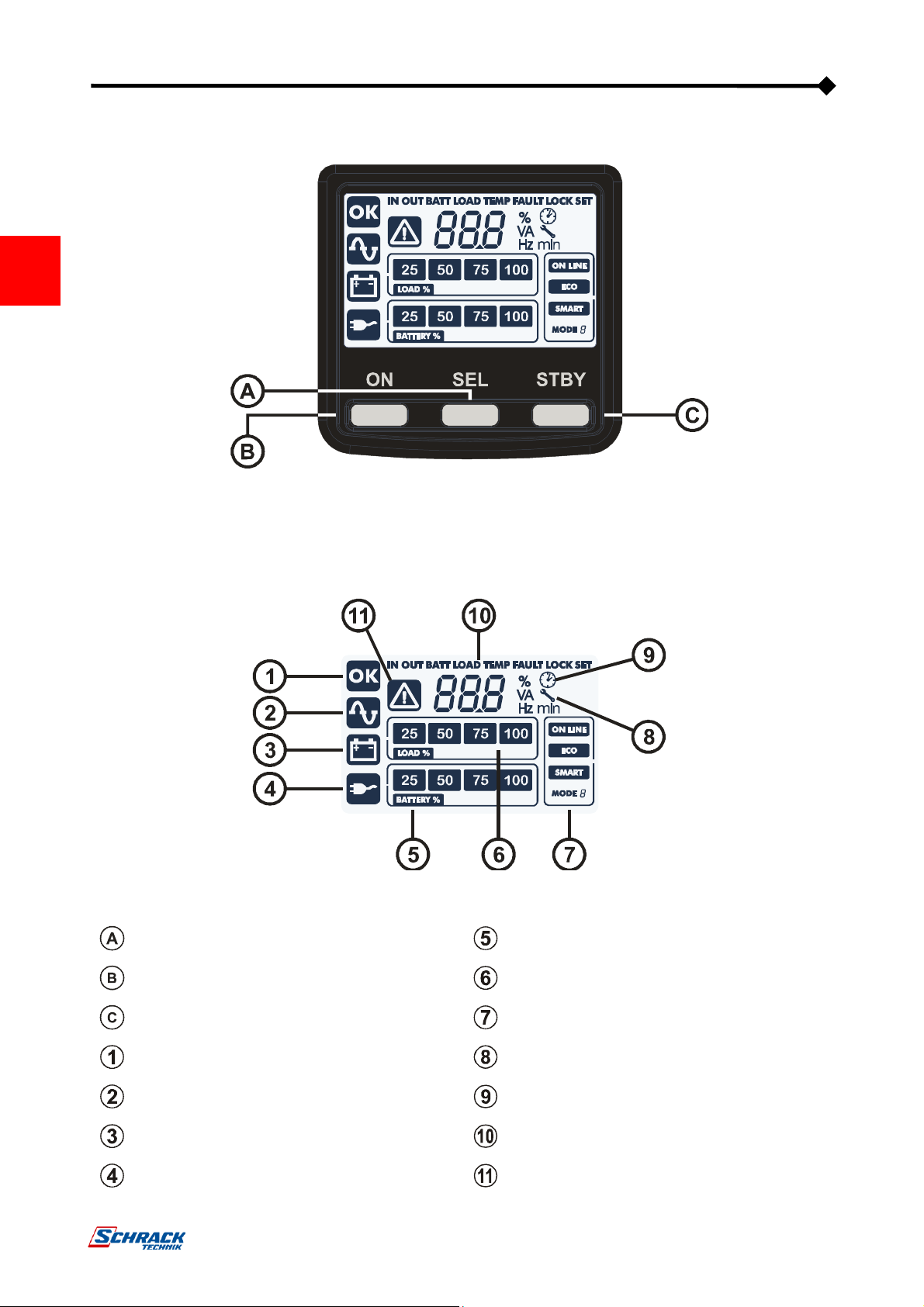

DISPLAY PANEL VIEW

“SEL” button (Select)

Battery charge indicator

“ON” button Load level indicator

“STAND-BY” button Configuration area

Regulation operation Maintenance request

Mains operation Timer

Battery operation Measurement display area

Load powered by bypass Stand-by / alarm

ATTERY

(

ACCESSORY NOT PROVIDED WITH UPS

)

The BATTERY BOX is an optional accessory dedicated to this range of UPSs (same dimensions and aesthetic line).

The BATTERY BOX contains batteries which allow the operating time of the uninterruptible power supplies to be increased

during extended blackouts. The number of batteries contained can vary according to the type of UPS for which the BATTERY

BOX is intended. It is therefore necessary to take great care to ensure that the battery voltage of the BATTERY BOX is the

same as the voltage permitted by the UPS.

It is possible to connect further BATTERY BOXES in order to create a chain, suitable for achieving any autonomy time

without mains power.

EAR VIEW

36V Battery Box

72V Battery Box

Battery disconnector (SWBATT) Battery expansion connector

INSTALLATION

NITIAL CONTENT CHECK

After opening the packaging, it is first necessary to check the contents.

The package must contain:

UPS

Schuko power cable - IEC 10A (for 700AV / 1000VA /

1500VA models); Schuko power cable - IEC 16A (for

2200VA / 3000VA models)

IEC 10A connection cable IEC 16A male plug

(For 3000VA models only)

USB cable User manual CD + Safety manual

Battery expansion plug

(ER version only)
