Schlage Z-Wave Manuel utilisateur
Bridge User Guide
Enroll a Z-Wave® Device
1. Install a fresh, high-quality battery into
the bridge.
2. Hold the bridge within 6 feet (1.8
meters) of the Z-Wave device you
want to enroll throughout the entire
enrollment process.
3. Press and release the plus (+) button
on the bridge.
4. Press the proper button(s) on the
Z-Wave device.
See the instructions that came with
the device for more information.
5. Observe the lights on the bridge. The
orange Z-Wave light will blink while
enrollment is taking place. Enrollment
is complete when the orange light
becomes solid.
See the “Lights” section for more
information on light indicators.
Exclude a Z-Wave Device
1. Install a fresh, high-quality battery into the bridge.
2. Hold the bridge within 6 feet (1.8 meters) of the Z-Wave device being excluded throughout the entire exclusion
process.
3. Press the minus (-) button on the bridge.
4. Press the proper button(s) on the Z-Wave device.
See the instructions that came with the device for more information.
5. Observe the lights on the bridge. The orange Z-Wave light will blink while exclusion is taking place. Exclusion is
complete when the orange light becomes solid.
See the “Lights” section for more information on light indicators.
Bridge Reset
1. Plug the bridge into A/C power.
2. Press and hold the plus (+) and minus (-) buttons simultaneously for 10 seconds.
3. Release both buttons.
4. The orange light on the bridge will continue to flash for 10 - 15 seconds.
This procedure can be used to initialize the bridge at any time. See “System Reset” at www.nexiahome.com
for more information.

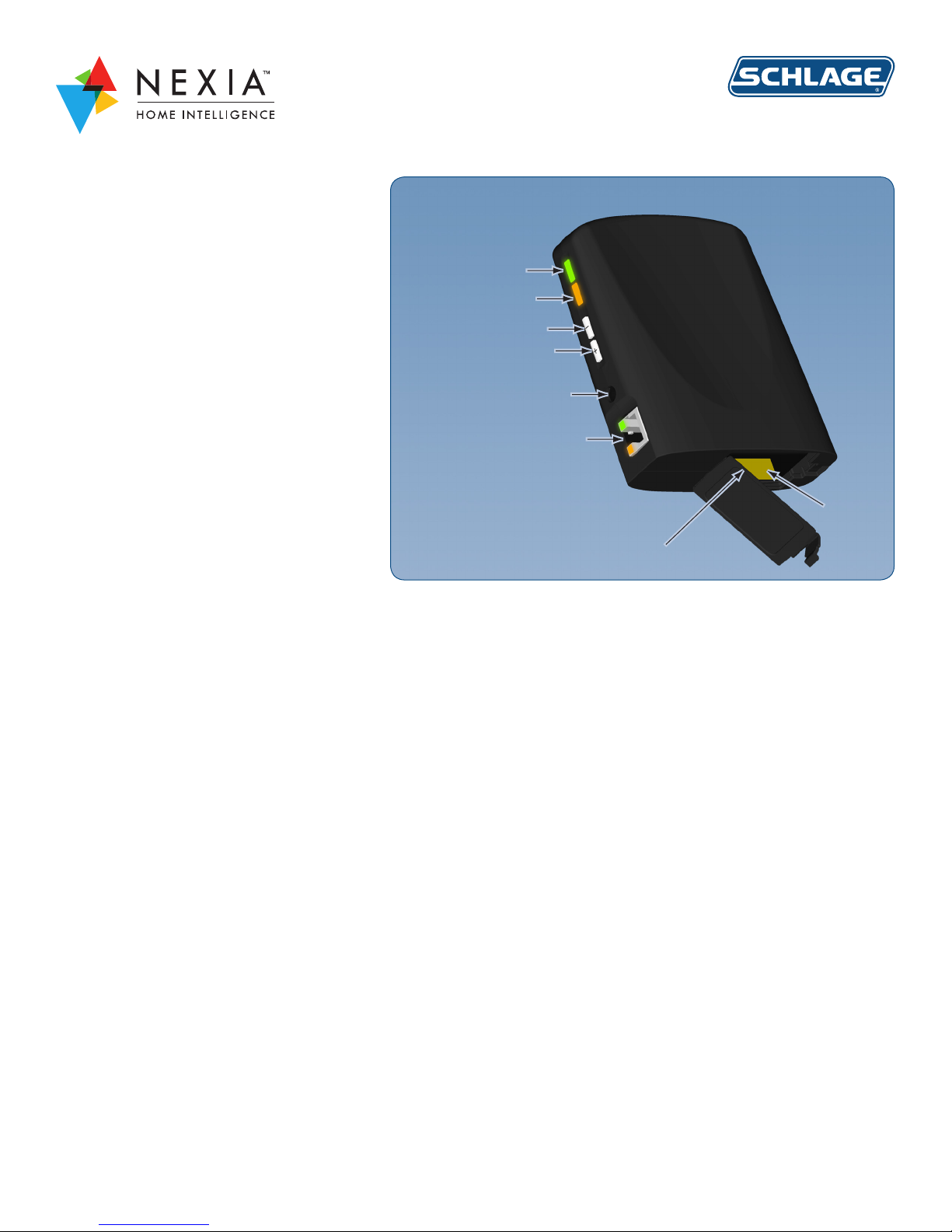

Server Light
Z-Wave™ Light
Minus (-) Button
Plus (+) Button
A/C Input
Ethernet Lights
9V Battery Compartment
MAC ID
©2011 Ingersoll Rand
24230302 Rev. 11/11-c
Lights
Server Light
Z-Wave™ Light
Ethernet Lights
Schlage Light
Light Light Behavior Action
Orange
(Z-Wave)
slow blink Waiting for enrollment or exclusion to begin
fast blink Enrollment or exclusion is taking place
solid At least one Z-Wave device was enrolled or excluded
flicker Z-Wave activity is detected on the local network
Green
(Server)
solid Connected to the server
flicker Information is being exchanged with the server
2 blinks Ethernet cable is connected, but no Internet connection is found
3 blinks Ethernet cable is connected, Internet connection is established, but
cannot connect to the server
no light
(but orange light is solid)
Ethernet cable is not connected
Blue Schlage solid Bridge is powered by A/C
slow blink Bridge is powered by battery
Blue, Green and
Orange
solid Indicates low battery, when the bridge is not connected to A/C and
battery is installed
no light No A/C or battery
Green and Orange blink simulaneously for 5
seconds
Occurs during reset. After reset, orange light will continue to blink
for 5 seconds.
Ethernet Lights solid or blinking Internet is connected
