Magnetic Drilling Machine
OPERATING MANUAL
SWC 40
SWC 40
Magnetic Drilling Machine
Operating Manual
5.1 How to mount tools or adapters in a Weldon arbor
5.2 Drilling with broach cutters
2. Components Content
5. Operating manual
3. Safety Procedures
6. Exploaded View
Table of contents
4. Accessories
5.3 Drilling with twist drills
7. Helpful Tips
9. Warranty
1. Description & Technical Data
8. Troubleshooting
SWC 40
This manual is for information only & not a legal document, the company has all
rights to change, cancel, amend any designs, specifications etc. without any prior notice.
SWC 40
Magnetic Drilling Machine
Operating Manual

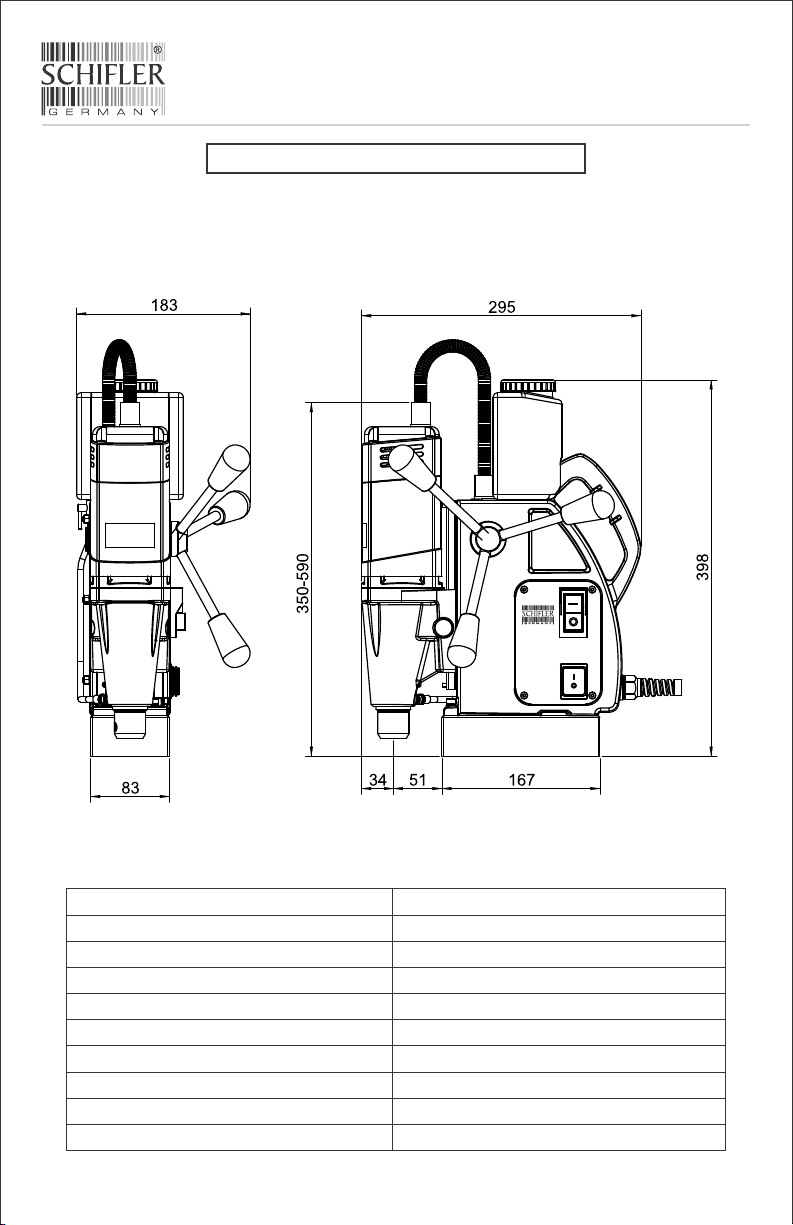

DESCRIPTION & TECHNICAL DATA
RPM 450 min-1
Spindle 19 mm (3/4”) Weldon
Flexible Stroke upto 240 mm
Broach cutter(50 mm length) ø 12 mm - ø 35 mm
Input supply voltage 220 V
Weight 12 kg (26,8 lbs)
Broach cutter (35 mm length) ø 12 mm - ø 35 mm
Magnet power 10000 N
Twist drill Upto ø 13 mm
Motor power 1100 watt
1SWC 40
SWC 40
Magnetic Drilling Machine
Operating Manual
COMPONENTS CONTENT
5. 4,0 mm Allen Wrench 1 No.
2. Cooling Bottle 1 No.
4. 2,5 mm Allen Wrench 1 No.
1. Packing case 1 No.
6. 6,0 mm Allen Wrench 1 No.
7. Instruction Manual 1 No.
8. Magnetic Drill Machine 1 No.
3. Safety Belt 1 No.
9. Pilot Pin 6x50 1 No.
10. Pilot Pin 8x50 1 No.
11. Drill Chuck Adaptor 1 No.
12. Drill Chuck 1 No.
2SWC 40
Please read
the manual
Use eye
protection
Use ear
protection
Use safety
helmet
Use safety
gloves
Wear appropriate
clothing
Disconnect before
opening
Use safety
chain
Warning for
electrical shock
Dangerous
environment
Don’t use in
wet places
Pacemaker
warning
Magnetic Drilling Machine
Operating Manual

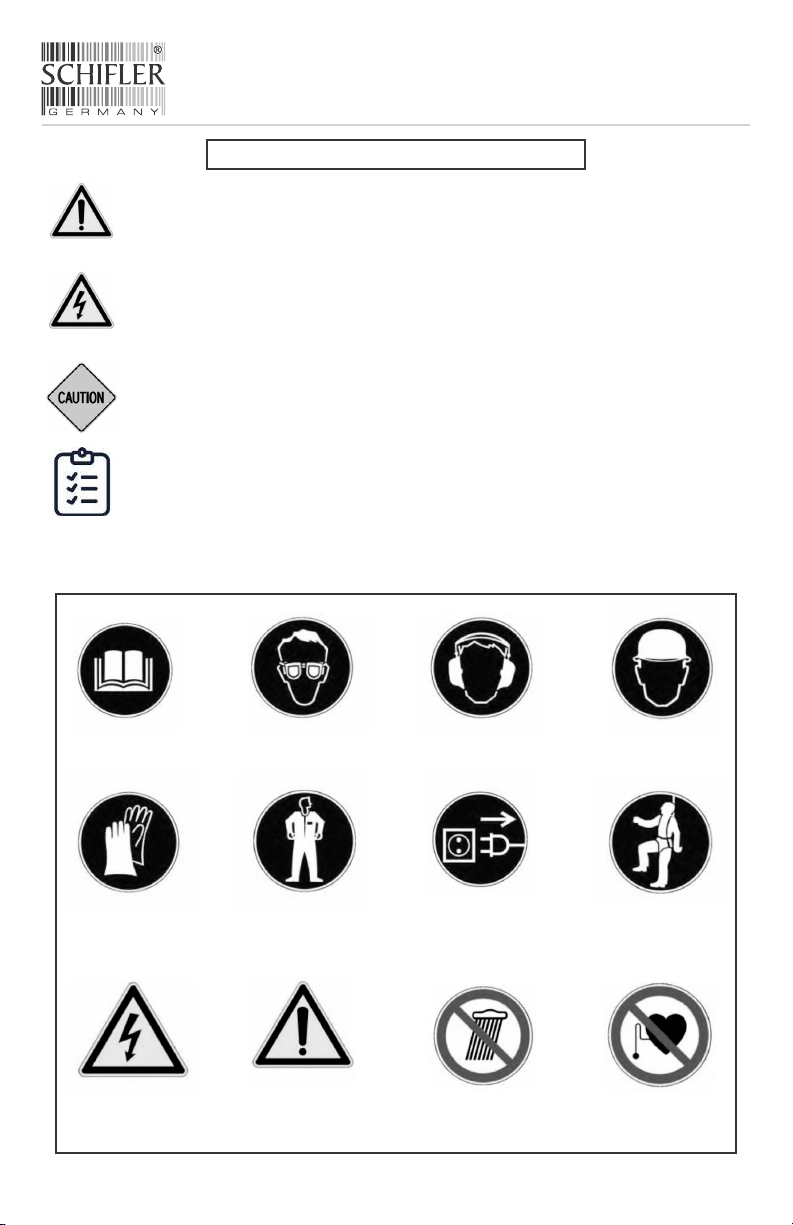

UNDERSTANDING SAFETY SYMBOLS
When using magnetic drilling machines please follow the general
safety instructions for electric power tools.
CAUTION : Care taken to avoid danger or mistakes during operation of
the machine
NOTE : A brief record of points or ideas written down as an aid to
memory while using the machine
WARNING : A statement or event that warns of something or that serves
as a cautionary example while using the machine
DANGER : The possibility of suffering harm , injury or even death if the
situation is not avoided during operation of the machine
3SWC 40
Magnetic Drilling Machine
Operating Manual
4SWC 40
12. Use only spare parts advised by your dealer for magnetic drilling machines.
5. Regularly clean the work area and machine., remove swarf and dirt, paying
particular attention to the underside of the magnet.
1. Always secure the machine with the supplied safety chain before starting to
operate, this is to protect the user in case of power failure or breaking loose
of the magnet while in use.
2. Always wear safety goggles, gloves and ear plugs.
7. Remove tie, rings, watches and any loose adornments which might entangle
with the rotating parts of the machine.
8. Should the cutter get stuck in the workpiece, stop the motor immediately to
prevent personal injury. Disconnect from the power source and push and pull
the arbor by hand. DO NOT ATTEMPT TO FREE THE CUTTER BY SWITCHING
THE MOTOR ON AND OFF.
4. Always ensure cutter retaining screws are secure – they sometimes vibrate
loose in use.
9. If the machine is accidentally dropped, always thoroughly examine the
machine for signs of damage and check that it functions correctly before
trying to drill a hole.
10. Regularly inspect the machine and check the nuts and screws are tight.
14. If you discover any irregularity on machine cables immediately bring the
machine to a recognized dealer for a repair or maintenance service.
6. With a gloved hand, after switching off the power, remove any swarf which
might have gathered around the cutter and arbor before proceeding to the
next hole.
13. Use the magnetic drilling unit on a clean and flat surface only, to prevent the
machine breaking out because of poor clamping force.
3. Disconnect from the power source when changing cutters or working on the
machine.
11. Always ensure when using the machine in an inverted position use special
cutting paste or cutting spray which is specially designed for inverted position
drilling.
WARNING: THIS APPLIANCE MUST BE EARTHED.
WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE
WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK
THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE.
Magnetic Drilling Machine
Operating Manual
SAFETY INSTRUCTIONS
5SWC 40
3. Only when the surroundings around are brightly lit, use the machine instead
of a dark environment.
2. In case the floor is wet, stop the usage of the drill machine immediately. You
will expose yourself to the risk of shock if you don't.
5. Children should never be allowed near the drill machine, especially when it is
being operated.
4. You should not never place flammable material near the machine or avoid
using the drill machine in the presence of anything flammable. The drill
machine tends to produce sparks in the process of working, which may cause
fire.
6. Nobody should be in the area where the drill machine is being used by the
Operator.
It is mandatory to read and follow all the safety norms, regulations and
instructions given in this Guide before you operate the machine to avoid
unwanted and fatal accidents. Follow the mentioned workplace safety measures
in the guide strictly to ensure your safety against electric shocks or injuries.
WARNING
SELF PROCTECTION
The machine operators must start their work only after wearing protective gears
like eyeglasses, ear muffs, and insulated shoes tightened to the legs ensuring
comfortable movement.
Never operate the machine using your feet or remove the slug without wearing
the gloves. Never work towards the maintenance of the circuit board if you
haven't followed all the rules mentioned above.
MANDATORY RULES FOR THE WORK PLACE
1. Say no to a messy work environment completely. Keep yourself protected
against fatal accidents by keeping the area clean.
Magnetic Drilling Machine
Operating Manual
6SWC 40
8. Do not use drilling machine for not more than a total duration of 30
MANDATORY RULES TO ENSURE SAFETY
1. Before starting the drill machine, make sure you inspect the condition of
the power cord and the plug. Replace them immediately if you see any
damage.
2. The power supply should always be in sync with what the equipment
requires. Hence, ensure the same while making sure that safety
measures for grounding and leakage are made available.
3. Study this manual well to understand the do's and don'ts of the drilling
tools. They should be used strictly according to the size specified. The
material of the drilling workpiece comes with a magnetized absorption
and works better on a smooth surface. Double check that its thickness
ranges between 10mm-75mm, without the 0.5mm thickness of Iron
scrap and the presence of paint, granular impurities and any other
foreign particles should be avoided.
4. If the thickness of the drilling machine is less than 10mm, you must
ensure that it is well-supported by iron plates right at the bottom that
come with a thickness higher than 10mm. The supporting iron plate must
have a base area greater than the drilling machine's area of the magnetic
base if you need to improvise the reliability of the capability of the
magnetic base's absorption. In case you opt for a supporting iron plate
which is thinner than the requirement, you will notice the drilling
machine magnet becoming lose in the process of absorption that may
lead to unwanted and fatal accidents.
6. Whenever the drill starts to operate or shuts down, ensure that the
operating sequence of the motor and magnetic switch has been
complied.
7. Do not continuously operate the magnetic base with a full load as that
will cast a strong effect negatively on the life of the magnetic base. It may
also get heated up to an extent that it may catch fire. Never touch the
magnetic base, especially when it is extremely hot as that will cause a
serious burn. Turn off the switch and unplug immediately once you stop
using the magnetic base.
5. Don't press the drill machine too hard as that may lead to an overload,
which tends to shorten the life of the magnetic drill. When in use, be
extremely attentive to the condition of the magnetic absorption of the
drill. Stop using the drill immediately if you notice any instability in the
magnetic absorption.
Magnetic Drilling Machine
Operating Manual
7SWC 40
9. Add a certain amount of coolant to the equipment whenever you replace the
drill. In case you notice a blockage, switch off the motor immediately.
However, you must leave the magnetic base power on. The logic behind this
process is that in case you shut down the power supply of the magnetic base
directly, it may result in the operator suffering from injuries. It will also harm
the motor because of the sudden loss of magnetic force of the magnetic
base.
13. Even when the equipment stops working, never use your bare hands to
remove the slug after the drilling process as it is very hot.
14. While using the magnetic drill on a particular workpiece, do not do the
process of welding on the same work piece.
15. Use the handle function of the drilling machine to move it from one place to
another instead of pulling the power cable.
12. Do not remove the drill if the spindle and the drill are in continuous motion.
Unplug the drill from the main power supply to change its gear and never
touch it with your bare hands.
16. Switch off the main power supply and unplug the drilling machine after the
usage. If this is not done and the spindle and the tool continue to rotate, then
do not let the operator remove the drill and replace the gear with his bare
hands. Make sure you practice this to avoid injuries.
11. Only use genuine spare parts and tools as it comes with guaranteed usage
safety.
10. Whenever the magnetic drilling machine is in use and is suspended either in a
vertical or a horizontal position, you must get it fixedwith a device that gets
attached to the equipment so that it doesn't come down falling caused by the
sudden loss of power of the magnetic base. When you choose to drill in an
upside-down position, always opt for cutting paste or cutting spray a cooling
method that is reasonable. Say a frank NO to the option of liquid cooling
method as liquid will easily infiltrate into the equipment and result in leakage
of electricity. Instead of liquid cooling method, choose cutting paste or spray
coolant.
minutes at a stretch. If done otherwise, it will lead to extreme heat getting
generated that will result in a fire or explosion. Switch off the motor when it is
not in use.
17. The generation of the magnetic field affects devices such as watches, mobile
phones and pacemaker installed to regulate the heartbeat. Make sure that
the operator takes off the watch and keeps off the mobile phone before
operating the drilling machine and doesn't have a pacemaker installed in him.
Magnetic Drilling Machine
Operating Manual
8SWC 40
2. Disposal of grease: Follow the instructions given by the lubricant's
manufacturer.
1. Disposal of the old electrical equipment: Make sure you process the product
in accordance with EC Directive 2002/96/EC-WEEE, also known as Waste
Electrical and Electronic Equipment. In case of doubts or queries, contact the
Department of Waste Disposal.
CLEANING AND MAINTENANCE
2. Inspect the carbon brush and change it immediately if you notice that it is
worn out.
4. It is always the after-sales service department or the designated dealer who
cater to the maintenance of the drill machine.
1. Keep a close check on the bolt of the magnetic drill. It should not be loose and
the gap in the spindle should not be too large. The power cable of the drill
should be in a good condition. You must make sure that the machine is
maintained well.
3. The lubricating grease in the Gear Box should be changed by a professional
once you have used the drill for three months. Inspect well once the
professional finishes to double check that all the parts have been fully
lubricated.
7. Switch the machine off and unplug it from the main power socket before you
start the process of maintenance and cleaning.
When it comes to the process of maintenance, inspection and repair pertaining
to their electrical aspects, only a qualified electrician must be contacted to cater
to the task. The qualifications of these electricians change according to their
respective countries. They must follow the effective rules put in place when it
comes to processing, inspection and the maintenance of a Circuit Board in order
to avoid accidents.
5. The operator must clean the magnetic drill after finishing the work, scrub the
side where the drill slides while working and apply lubricating oil on the drill
for the machine to last longer.
6. Whenever you indulge in the process of cleaning the Drill with compressed
air, you must wear safety goggles and protective gloves to protect yourself
and the other people around you at the workstation.
ENVIRONMENTAL PROTECTION AND WASTE DISPOSAL
Table des matières
Autres manuels Schifler Percer
